LAPP EPIC SOLAR 4Plus Series User manual

44428235
ASSEMBLY INSTRUCTION
Valid from:
17.07.2019
EPIC®SOLAR 4 PLUS
Document: L44428235EN
Version: 02
Page 1 of 9
We reserve all rights according to DIN ISO 16016.
EPIC®SOLAR 4 PLUS ASSEMBLY INSTRUCTION
Contents
Scope of delivery...........................................................................................................................2
Contacts :.......................................................................................................................................2
Technical Specifications ...............................................................................................................3
Safety Instructions.........................................................................................................................4
Necessary Tools ............................................................................................................................5
Mounting of EPIC®SOLAR 4 PLUS...........................................................................................6
Analyzing the cable.......................................................................................................................6
Preparing the cable........................................................................................................................6
Stripping the cable.........................................................................................................................6
Crimping the contacts....................................................................................................................7
Mounting.......................................................................................................................................8
Connecting and Disconnecting......................................................................................................8
Laying the cable ............................................................................................................................9

44428235
ASSEMBLY INSTRUCTION
Valid from:
17.07.2019
EPIC®SOLAR 4 PLUS
Document: L44428235EN
Version: 02
Page 2 of 9
We reserve all rights according to DIN ISO 16016.
Trade Mark on the Product : EPIC®
Scope of delivery
The Connector EPIC®SOLAR 4PLUS is delivered pre-assembled, the necessary contacts are
included separately.
EPIC®SOLAR 4 Plus X Y
Item number
Designation
44428235
EPIC®SOLAR 4 PLUS M 4, 0 mm² or
6,0 mm²
44428236
EPIC®SOLAR 4 PLUS F 4, 0 mm² or
6,0 mm²
44428237
EPIC®SOLAR 4 PLUS M 10,0 mm²
44428238
EPIC®SOLAR 4 PLUS F 10,0 mm²
Symbol
Signification
X:
M ( male) or F (female)
Y:
Cross sections 4, 0 mm² or 6,0
mm² or 10,0 mm²
EPIC®SOLAR 4 PLUS FEPIC®SOLAR 4 PLUS M
female male
Contacts :

44428235
ASSEMBLY INSTRUCTION
Valid from:
17.07.2019
EPIC®SOLAR 4 PLUS
Document: L44428235EN
Version: 02
Page 3 of 9
We reserve all rights according to DIN ISO 16016.
Technical Specifications
According to IEC 62582 : 2014
Rated Voltage: 1.500 V DC
Rated Current:
30 A (4.0mm²)
30 A (6.0mm²)
30 A (10 mm²)
Rated impulse withstand voltage: 16 kV
Rated temperature: -40°C … +85°C
Upper Limit of Temperature : 105°C
Protection degree: IP68, 10 h, 1m; IP 65
Connecting Type: Crimp
Contact resistance: <5m
Protection Class: II
Material of the Insulating Bodys: Polyamide
Material of the Nut Polyamide
Contact Surface: Tin plated
Pollution Degree 3 (in the Interior: 2)

44428235
ASSEMBLY INSTRUCTION
Valid from:
17.07.2019
EPIC®SOLAR 4 PLUS
Document: L44428235EN
Version: 02
Page 4 of 9
We reserve all rights according to DIN ISO 16016.
Safety Instructions
The Connector EPIC®SOLAR 4 PLUS is not able to be connected or disconnected under load.
De-energize the circuit by appropriate measures, e.g. at the inverter. To disconnect and to
connect without load, under voltage, is possible.
EPIC®SOLAR 4PLUS Connectors are intended to connect stationary photovoltaic systems.
They are suitable for fixed installation in dry or damp rooms, as well as outdoors. EPIC®SOLAR
products are not suitable for laying into earth.
PV Cables
Designation LAPP KABEL H1Z2Z2-K
Cable Code H1Z2Z2-K
Rated cross-section : 4,0 mm²; 6,0 mm²; 10,0 mm²
Rated Voltage : AC U0/U 1,0/1,0 kV
DC 1,5 kV
max. Voltage : DC 1,8 kV (Conductor / Earth)
System without Earth Connection
Mated connectors are IP68 protected, 1m 10 h. A permanent use under water, e. g. water on
the roof of a flat roof is not possible.
EPIC®SOLAR connectors shall be mounted only with tools and accessories specified by Lapp.
The connection of the cable at the connector must be performed by qualified electricians. To
protect the installer from the danger of the electric current, the connector must be made
floating on all sides during assembly.
Unplugged connectors must be protected against ingress of dirt and moisture. Before plugging
together, make sure that the mating area is free of any dirt.
Note :The PV Connectors EPIC®SOLAR 4 Plus are not rewirable.
Defective connectors can be replaced by new connectors of the same type and
connection cross-section, complying with all requirements of this installation
instruction and having ensured that the connector is without voltage and not under
load.

44428235
ASSEMBLY INSTRUCTION
Valid from:
17.07.2019
EPIC®SOLAR 4 PLUS
Document: L44428235EN
Version: 02
Page 5 of 9
We reserve all rights according to DIN ISO 16016.
Necessary Tools
Cable shears for cutting the PV-cables:
LAPP Cable shear KS20, Item number 62120045
Stripping Tool to strip the PV-Cable
LAPP Universal Strip Solar, Item number 21920120
EPIC®SOLAR Mounting Tool is not necessary:
Two 19 mm open-end wrenches are enough.
Crimping Tool
Note :
To comply the tested quality, it`s necessary to use only the indicated tools.
Crimptool CSC Parts Crimptool CSC mounted
Crimptool (11147000) with crimp inserts (e.g. 44428995) and locator (44428996)
to crimp the EPIC®SOLAR contacts:
Alternating the CSC insert can be used with the Crimping Tool. This insert has the function: cut,
stripping and crimping.

44428235
ASSEMBLY INSTRUCTION
Valid from:
17.07.2019
EPIC®SOLAR 4 PLUS
Document: L44428235EN
Version: 02
Page 6 of 9
We reserve all rights according to DIN ISO 16016.
Mounting of EPIC®SOLAR 4 PLUS
Analysing the cable
Find the cross section
Find the outer diameter
Item
Number
Designation
Cross section
in mm²
Cable
clamping
range
d in mm
Stripping
Length
L [mm]
Rated
Current
[A]
EPIC®SOLAR 4PLUS Female Connector, field mountable , including Contacts
44428236
EPIC®SOLAR 4PLUS F 4 mm² ...
6 mm²
4 – 6
5,2 - 7,1
8
30
44428238
EPIC®SOLAR 4PLUS F 10 mm²
10
5,2 –7,1
12
30
EPIC®SOLAR 4PLUS Male Connector, field mountable , including Contacts
44428235
EPIC®SOLAR 4PLUS M 4mm² ...
6mm²
4 – 6
5,2 - 7,1
8
30
44428237
EPIC®SOLAR 4PLUS M 10 mm²
10
5,2 –7,1
12
30
Preparing the cable
Carefully cut the cabel. The strands shall be without any oxidation or contamination.
Stripping the cable
Stripping length: depending on the table (see table above!).
The insulation must be removed clean and competed. No stranded wires may be cut off

44428235
ASSEMBLY INSTRUCTION
Valid from:
17.07.2019
EPIC®SOLAR 4 PLUS
Document: L44428235EN
Version: 02
Page 7 of 9
We reserve all rights according to DIN ISO 16016.

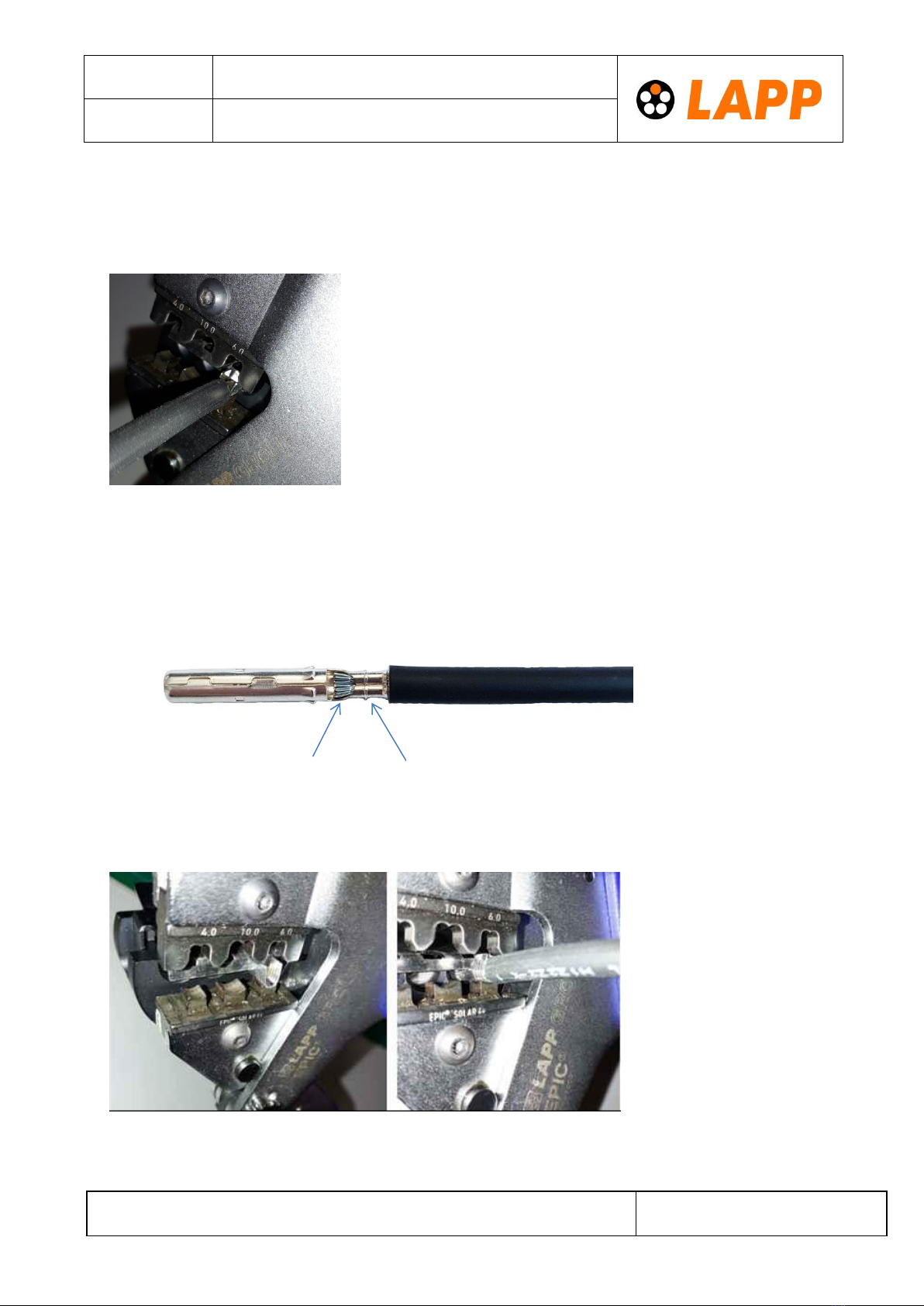

Crimping the contacts
Check that contact and cross-section fit together.
Insert the contact with the opening facing upwards into EPIC®SOLAR Crimp-Tool.
Insert the wire completely into the crimp area of the contact.
The cable is pushed forward until the insulation strikes the
crimp receptacle of the contact. In this way, the
supermatent is insured at least 2 mm.
Completely squeeze the tool until the trigger lock releases the tool again.
Remove the crimp ad check visually if all strands are completely enclosed.
The strand supernatant after crimping is at least 2 mm.
Explanation of the crimping process
Contact into the crimp insert Contact into the crimp insert with cable
Strand
supernatant
Crimping area

44428235
ASSEMBLY INSTRUCTION
Valid from:
17.07.2019
EPIC®SOLAR 4 PLUS
Document: L44428235EN
Version: 02
Page 8 of 9
We reserve all rights according to DIN ISO 16016.

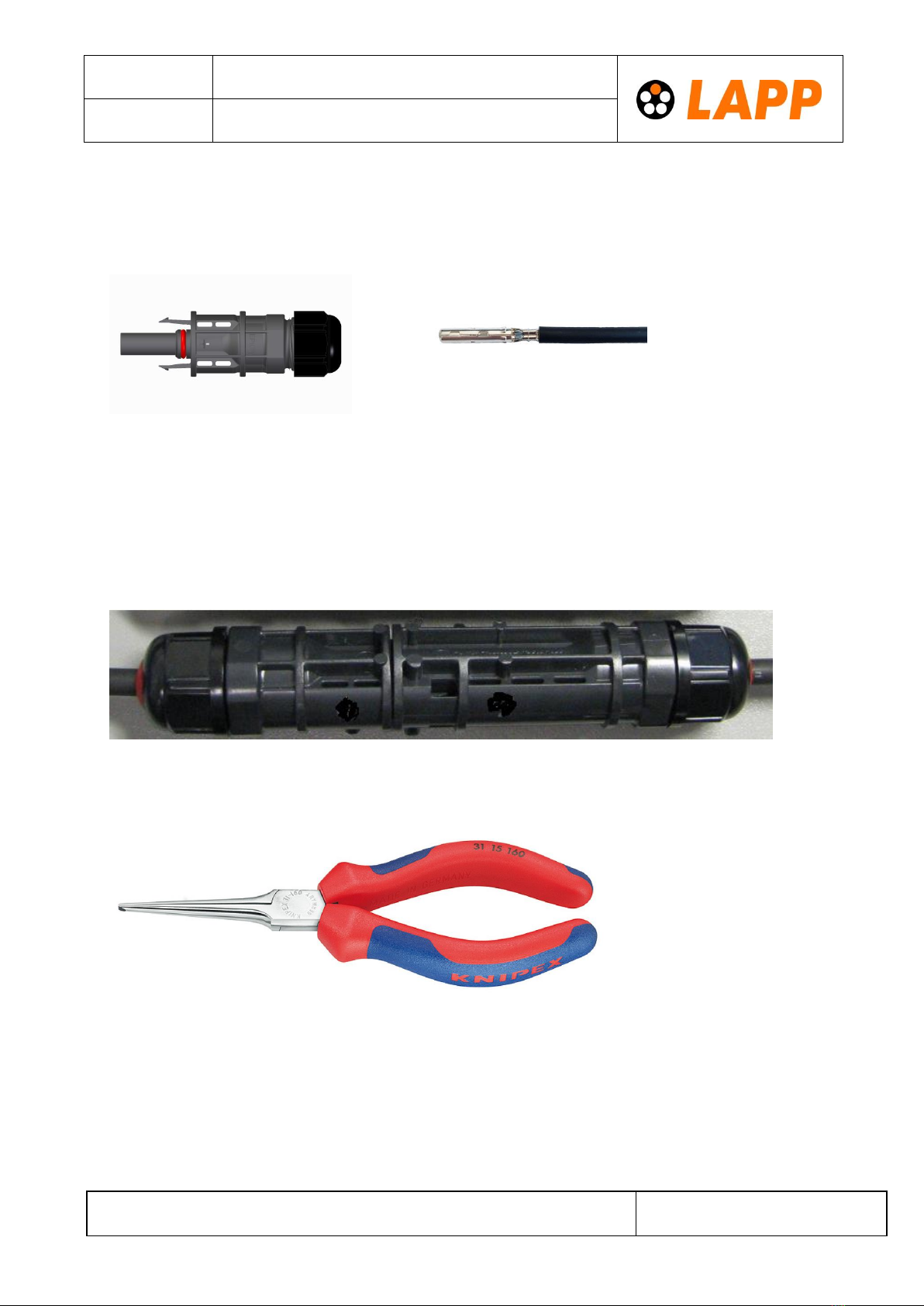

Mounting
Insert the crimped contact into the opened cable gland until the contact clicks into place.
Lightly pull the cable to make sure that the contact is properly engaged.
Turn cap nut “hand-tight” (4,5 Nm) – finished. Spanner size 19.
(EPIC®SOLAR 4PLUS F)
Connecting and Disconnecting
Before plugging in, check the plug-in area for any dirt and, if necessary, clean it. Especially the
O-ring on the female connector must be absolutely clean. Remove moisture. Connect EPIC®
SOLAR 4 PLUS, male and female until the snap-in hooks are completely engaged on both sides.
To disconnect, press the latching hooks on both sides with the standard pliers (article
3115160) and pull them apart carefully but firmly.

44428235
ASSEMBLY INSTRUCTION
Valid from:
17.07.2019
EPIC®SOLAR 4 PLUS
Document: L44428235EN
Version: 02
Page 9 of 9
We reserve all rights according to DIN ISO 16016.

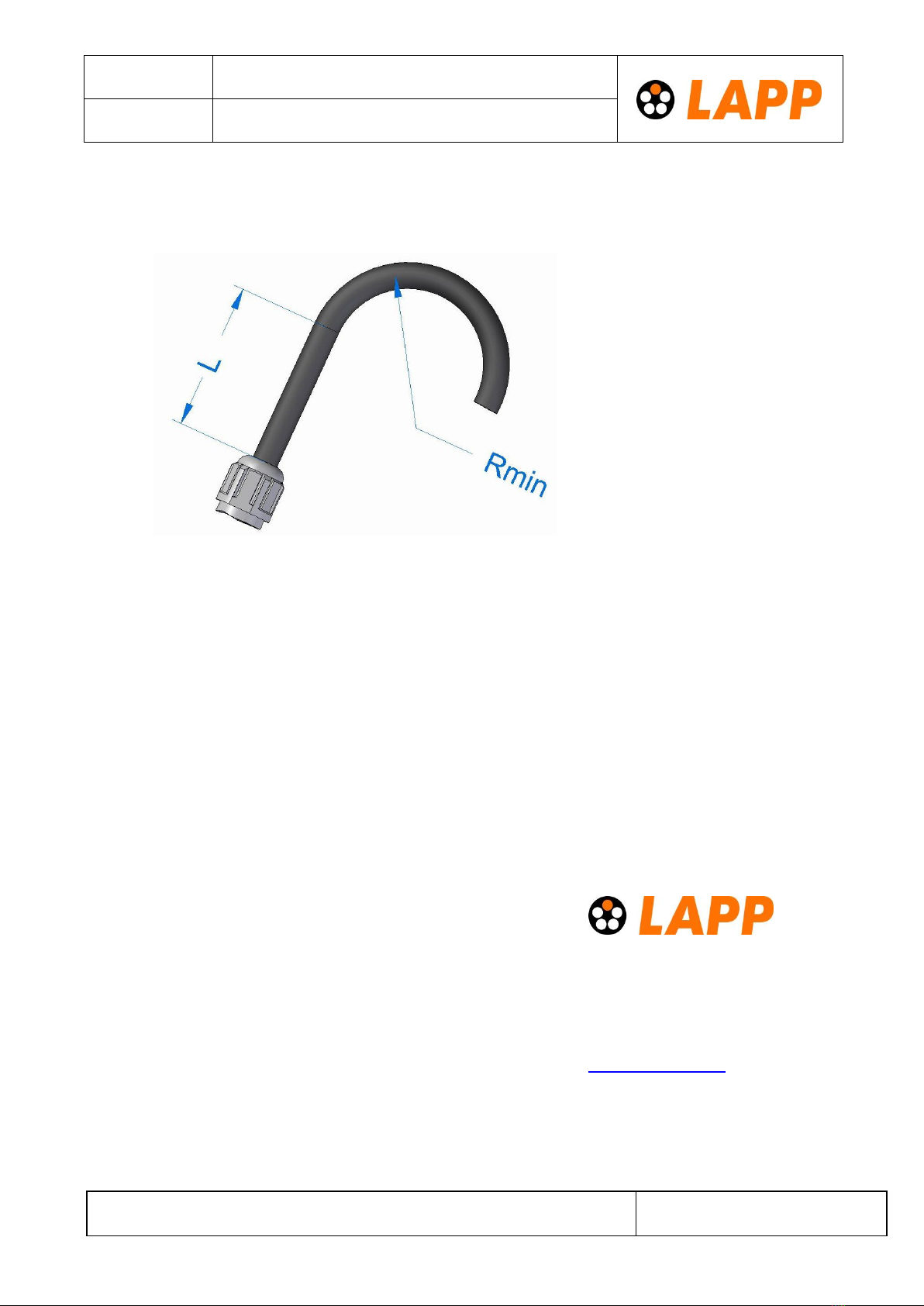

Laying the cable
The cables must be laid firmly in the photovoltaic system, securely fastened and the minimum
bending radius shall not be undercut. The cable shall be led out staight at least L=50 mm. The
bending radius Rmin must be at least 10x cable diameter.
