LARQ PureVis Pitcher User manual

Unique two-
stage process
LARQ Pitcher PureVis™

01English
Now, you’ve got
the magic touch

02 English
We are LARQ
LARQ was started with a simple vision where innovative technology can be
combined with inspirational design to help people access pristine drinking
water easily and sustainably.
Drink brilliantly
Our products look as good as they make you feel. We are confident that these are
the most beautiful hydration products in the world that make it easy to make the
healthier and more sustainable choice – anytime, anywhere.
Part of the solution
A million plastic bottles are bought around the world every minute. Only 7% of those
collected were turned into new bottles. Instead, most plastic bottles end up in landfills
or in the ocean.
Every single LARQ Filter can help eliminate 500+ single-use bottles. By switching
to the LARQ Pitcher PureVis™, you are part of the change. In addition, a portion of
proceeds go to 1% for the Planet to benefit the environment and bring safe drinking
water to billions.

03English
LARQ Pitcher PureVis™: The first multi-stage
purification water pitcher
Traditional filters simply trap contaminants where they can quickly multiply and
reverse contaminate your drinking water. The LARQ Pitcher PureVis™ neutralizes
contaminants by going beyond filtration*†.
Better filtration
Our innovative plant-based filters are independently tested to NSF/ANSI 42, 53 &
401 standards to be effective against pollutants like lead**, chlorine, PFAS/ PFOS**,
HAA5**, pharmaceuticals**, mercury, VOCs, cadmium, and particulates†.
PureVis™ technology
Proprietary PureVis™ technology improves the quality of your water by inhibiting bio-
contaminant* growth.
1
2
*In lab testing, PureVis™ inhibits and deactivates naturally occurring heterotrophic bacteria that may cause
odor and impact the taste of water compared to non-UV treated water pitchers.
**with Advanced Filter.
†Tested to NSF/ANSI 42, 53 & 401 standards. For details on specific contaminant removal visit www.livelarq.com.

04 English
LARQ Pitcher PureVis™
Fill flap
ΛLambda button
Charging pins
Hopper
LARQ Filter
PureVis™ Wand
1
2
3
1
3
2
4
5
6

05English
5 6
4

Getting started
Remove the PureVis™ Wand from the LARQ Pitcher PureVis™. Give your LARQ
Pitcher PureVis™ a good wash before use.
Wake up your LARQ Pitcher PureVis™ by simply charging the PureVis™ Wand.
Connect the magnetic charger to the gold charging pins on top of the
PureVis™ Wand. We recommend a full charge to kick things off right.
Remove the filter from its packaging and soak the filter in water for 10
minutes before first use.
Install the filter into the reservoir and put the filter lid on. The lid should snap
into place. Fill up the reservoir with tap water. Pour out the first batch.*
The PureVis™ Mode will automatically activate after the LARQ Pitcher PureVis™
is completely filled. A blue breathing light indicates that the LARQ Pitcher
PureVis™ is on as water is filtered through. A 30-second PureVis™ cycle can
also be manually activated by pressing the Λbutton.
Pour yourself a glass of water and enjoy pure water beyond filtration!
1
06 English
*Note: you may notice some black carbon dust in the water on your first use or after a prolonged
period of not using the LARQ Pitcher PureVis™. This is harmless carbon from our plant-based filter
media. If desired, simply run a batch through the filter and pour out.
2
3
4
5
6

07English
65
43
21

Modes & notifications
PureVis™ Wand modes
PureVis™ Mode
Breathing sky blue light - Activated automatically upon fill or by a
single press of the ΛLambda button.
Self-cleaning Mode
Breathing sky blue light - Activated automatically every 6 hours for
60 seconds.
Filter life notifications
<20% filter life remaining
Orange light will flash 3x prior to PureVis™ Mode. Time to order a
replacement filter!
0% filter life remaining
Solid orange light (5 seconds) prior to PureVis™ Mode. Swap it out
for a new one!
After a new filter is installed, hold down the ΛLambda button for 5 seconds
(the indicator light will turn white for 5 seconds followed by a flash of blue light).
08 English

Modes & notifications
Check filter life
Simply activate PureVis™ (single press of the ΛLambda button.)
Battery status
Breathing green light
I’m charging!
Steady green light
I’m fully charged!
Flashing green light
Low on battery. I will flash twice before a cleansing mode.
Red solid light or flashing purple light?
Oh no! Something is wrong. Go to livelarq.com/warranty-claim
DO NOT charge with any other magnetic charger other than the charger cable
provided with your LARQ Pitcher PureVis™.
09English

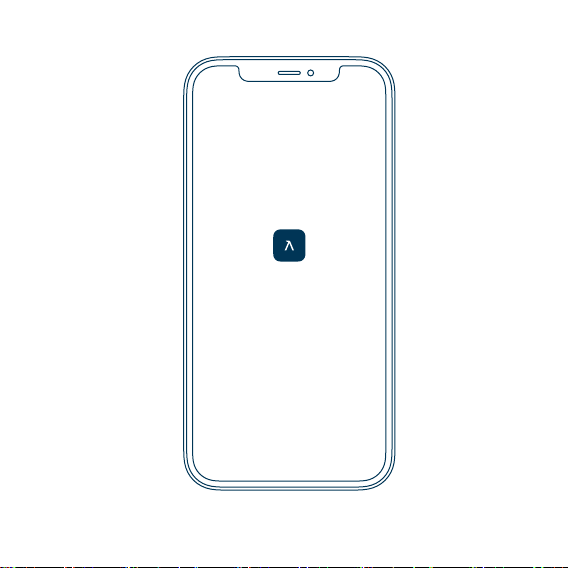

The LARQ App: Your personal control center
Unlock the full potential of the LARQ Pitcher PureVis™ with the LARQ App.
Insights & full custom controls
Track filter performance, household water consumption, and gain access
to a full suite of controls (like travel lock, customizing PureVis™ power,
and more).
Filter recommendations
It’s all in the numbers. Get custom filter recommendations based on
your local water quality and your unique household needs.
Intelligent filter life tracking
Take the guesswork out of filter replacements and stop counting
the days. Smart sensors track the volume of water consumed by
your household - not some arbitrary timeframe.
10 English

11English
Learn more at
livelarq.com/larq-app

12 English
Product care
PureVis™ technology activates automatically in the background to help keep your
LARQ Pitcher PureVis™ clean*. However, we do recommend washing the LARQ Pitcher
PureVis™ (it’s dishwasher-safe!**) every 2-3 months when you need to replace the
filter for a quick reset clean.
Before washing the LARQ Pitcher PureVis™, remove the PureVis™ Wand and hand
wash with mild soap and warm water. Don’t worry, the PureVis™ Wand is completely
waterproof! Do not put the PureVis™ Wand in the dishwasher.
We also recommend that you give the PureVis™ Wand a full charge every time you
replace the filter.
*In lab testing, PureVis™ prevents and deactivates naturally occurring heterotrophic bacteria that may cause
odor and impact the taste of water compared to non-UV treated water pitchers.
**Put smaller parts like the LARQ Pitcher PureVis™ lid, hopper, and filter lid in the top tray of the dishwasher.
Do NOT put the PureVis™ Wand in the dishwasher, handwash only.

13English
We’re here to help
Register for our warranty program at livelarq.com/register and you’ll also receive
special offers and expedited service.
Have questions about the LARQ Pitcher PureVis™? Head over to livelarq.com/support
for FAQs or contact our customer support team at [e-mail].
Love LARQ?
Us too. Share a photo of your LARQ Pitcher PureVis™ with us and we’ll post it!
@livelarq #DrinkBrilliantly

14 English
Disclaimer
Users of the LARQ Pitcher PureVis™ do so at their own risk. Neither LARQ nor its
retail partners assume any responsibility or liability for any injuries or damages,
physical or otherwise, resulting, directly or indirectly, from the use of this product.
LARQ reserves the right to revise this publication and to make changes from time to
time in the contents thereof without obligation to notify any person of such revision
or changes.
Model may be changed for improvements without notice.

Safety
The PureVis™ Wand should be used exclusively with the LARQ Pitcher PureVis™.
The efficacy of the UV water purification has only been tested with the LARQ
Pitcher PureVis™. LARQ cannot guarantee the UV’s effectiveness when used with
alternative water pitcher designs that have not been fully tested.
Disposal
• The PureVis™ Wand contains a rechargeable lithium-polymer battery that
must be disposed of properly.
• DO NOT allow contact with fire.
• Contact your local town or city officials for battery disposal information.
15English

16 English
Take a pair of tweezers and pry
off the silicone button pad.
Remove the plastic button cover.
Remove the button board
connection.
Pull out the inner bracket,
removing the entire inner
component from the outer
casing.
Remove the LED board
connection.
Unscrew the two screws of the
control board.
Turn over the control board and
pull out the battery connector
(red, white & black wires).
Remove the holding pads and
remove the battery.
Remove the sensor connection
to complete battery removal.
Removing the rechargeable battery
DO NOT remove the battery until you intend to discard the product. Make sure that
the battery is empty of charge before removing it. DO NOT use a sharp object when
removing the battery. DO NOT puncture the battery. Please exercise basic safety
precautions when following the instructions below. Make sure the battery is
completely empty when you remove it. Observe safety precautions when following
the procedure below.
1
2
3
4
5
6
7
8
9

987
64
3
21
5
17English

18 English
Warnings & cautions
Improper operation of the LARQ Pitcher PureVis™ may cause injury. Please read and
understand all warnings & cautions prior to operating this product. Do not use the
LARQ Pitcher PureVis™ in any manner other than instructed in the User Manual.
Caution: Ultraviolet radiation. Do not look at light directly. Direct UV light can irritate
eyes and skin. Do not operate the PureVis™ Wand outside the LARQ Pitcher PureVis™.
• To cancel a purifying cycle, first press the ΛLambda button on top of the PureVis™
Wand, then safely remove the PureVis™ Wand from the LARQ Pitcher PureVis™.
• Do not use as a light source.
• Only use the LARQ Pitcher PureVis™ with potable water.
• Do not operate the PureVis™ Wand in containers such as laboratory beakers.
• The PureVis™ Wand’s UV-C light is not intended to disinfect water in the upper
chamber or exterior surfaces of the pitcher where the light does not reach.
• This product is not intended for use by children.
• As with any water treatment system, you should always have a backup method
available.
• The UV-C light is an electrical device. Removal or tampering with the electronic
circuit board of UV-C light assembly may cause injury or damage to the product,
and will void all warranties.
