CHAPTER 1 Introduction
Thank you for purchasing the SpeedLaser from Laser Atlanta. This
rugged laser speed gun integrates the latest in solid-state laser
technologies to bring you hand-held, eye-safe laser speed and distance
measurement.
The SpeedLaser is a Class 1 eyesafe, multi-function device generally
used to measure range and speed of targets up to 9144 meters away.
The laser technology utilized by the SpeedLaser is called LIDAR: LIght
Detection And Ranging. Your SpeedLaser uses a pulsed time-of-flight
method to accurately calculate distances based on over two hundred
pulses of light per second. Sophisticated computer algorithms reduce
these individual distance measurements to extremely accurate speed
and range measurements.
To get the most from your new SpeedLaser, please take the time to read
through this manual. For your convenience and ease of understanding,
it has been divided into 4 sections:
Chapter 1 Introduction
Chapter 2 Getting Started
Chapter 3 User Setting’s
Appendices Information on care, troubleshooting, and specifications
If you have questions or comments, please do not hesitate to contact
Laser Atlanta via any of the following means:
voice: [phone]
fax: [phone]
Email: [email protected]
Web: http://www.laseratlanta.com
6

Cautions
Every step has been taken to ensure your SpeedLaser is completely safe
to use. However, certain common sense precautions should always be
taken when using your SpeedLaser.
• Do not open the case under any circumstances.
• Do not point the SpeedLaser directly at the sun.
• Use only Laser Atlanta approved power sources.
• Do not leave SpeedLaser in areas of high humidity.
• Do not place SpeedLaser on unstable surfaces.
• Always transport the SpeedLaser in its carrying case.
Your SpeedLaser is a Class 1 Laser Product that complies with 21 CFR
1040.10 and 1040.11. Class 1 is the lowest classification of laser product
with regards to risk in use. This class of laser cannot emit levels of
optical radiation above the exposure limits for the eye, under any
exposure conditions inherent to the laser product.
Caution: The use of optical instruments with this product will
increase eye hazard. Do not point this laser at anyone with optical
viewing devices within 15 meters of the operator.
Although optical viewing instruments may increase eye hazard, it is
unlikely that actual damage can occur. Prescription eyeglasses, contact
lenses, and sunglasses are not considered optical gain devices since they
merely correct the focus of the human eye to normal.
Optical devices that provide magnification may increase the risk of eye-
hazard. These include binoculars, telescopes and magnifying glasses.
7

Capabilities
Performance
• Target Acquisition in 0.3 seconds
• Speed Accuracy of ± 1 kph
• Range to 9144 meters
Advanced Input-Output
• Remote Fire capability
• Data Collection via RS-232 port
• Data Collection via PCMCIA SRAM Cards
Ease of Use
• Menu Driven
• Head Up Display (HUD) shows both target and/or data through the
same sighting mechanism
• Rechargeable NiMh Battery Handle
• 12 V Cigarette Adapter
• Optional 8X Monoscope for distant viewing
• Optional Shoulder Stock for steadying while hand-held
• Optional Monopole and Tripod for mounting
Environmental Features
• Water Resistant
• Ruggedized Case
• Rechargeable NiMh Battery Handles
8

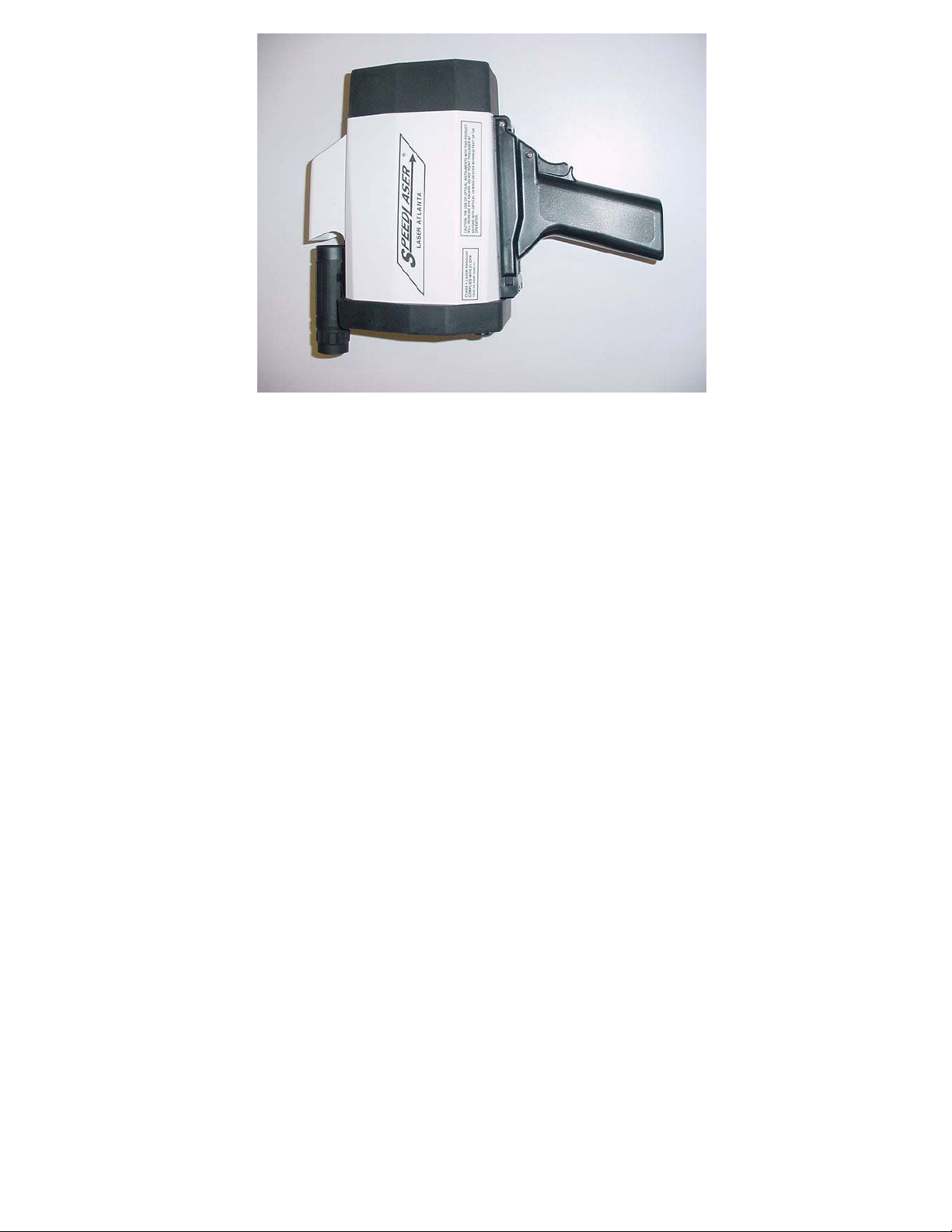

9

Chapter 2Getting Started
PACKING LIST
Please check to make sure the following items were included in your
shipment:
• SpeedLaser LIDAR Gun
• Carrying Case
• 110 volt Battery Charger
• 2 Battery Handles
• 12 volt Vehicle Power Cable
• 12 volt Vehicle Power Cable
• User's Guide
• Warranty Card
Additionally, you may have received the following optional parts:
• RS-232 Serial Data Cable
• 8X Monoscope Kit
• Shoulder Stock Kit
Please see Appendix D for diagrams of these items.
10

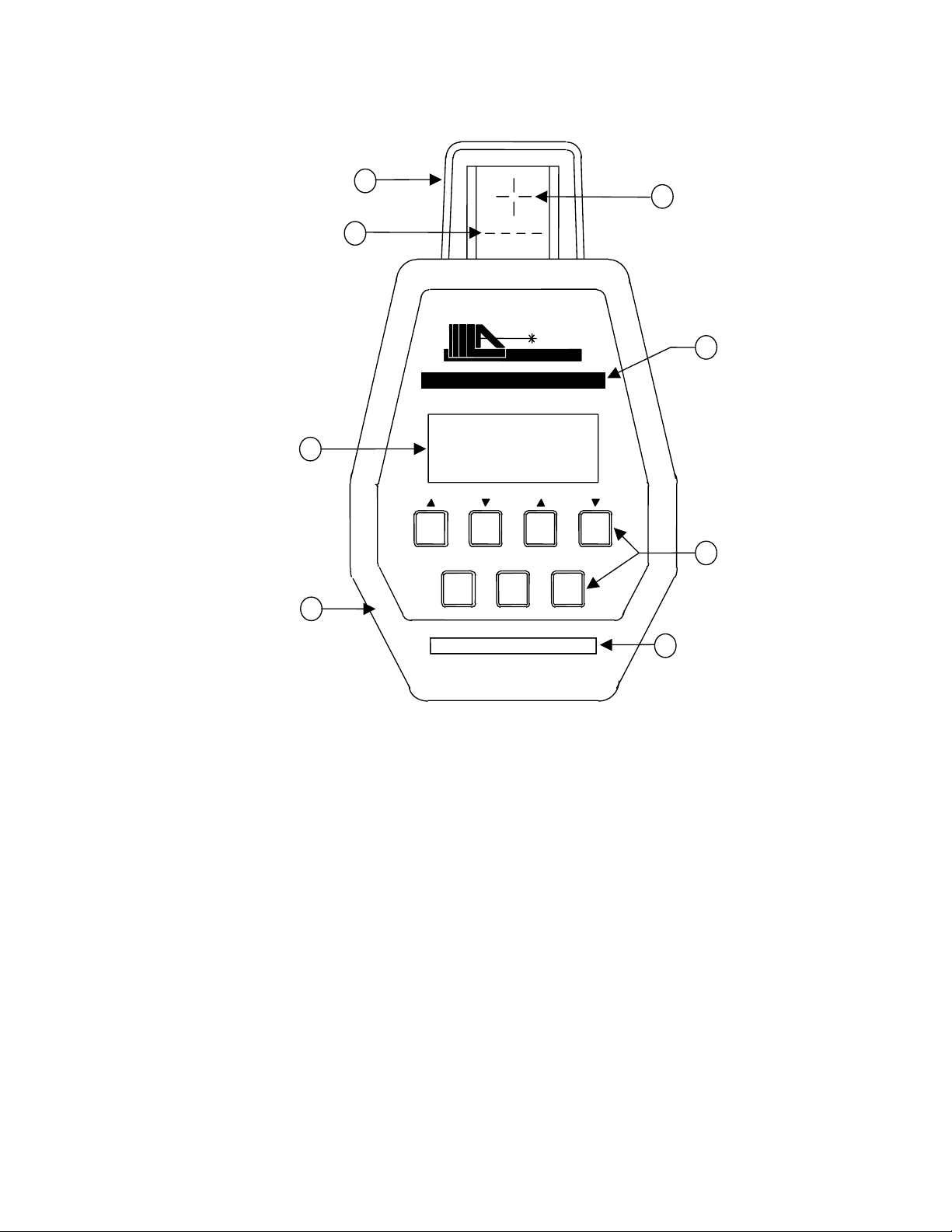

SpeedLaser Controls & Layout
A
B
C
D
LASER ATLANTA
S/LASER ATLANTA OPTICS, INC. N:12345
NORCROSS, GA 30071 MF’D: NOVEMBER 2002
E
Laser Atlanta Optics
SpeedLaser
P/N 50103-E152 v4.66
System Ready
LCD HUD
A
B C D
FIRE
F
G
PWR BACK MENU
H
A
. HEAD UP DISPLAY (HUD) E. LIQUID CRYSTAL DISPLAY
B. HUD SIGHTING RETICLE F. KEYPAD KEYS
C. HUD CHARACTER DISPLAY G. REAR BUMPER
D. SERIAL NUMBER H. PCMCIA CARD SLOT
11

12

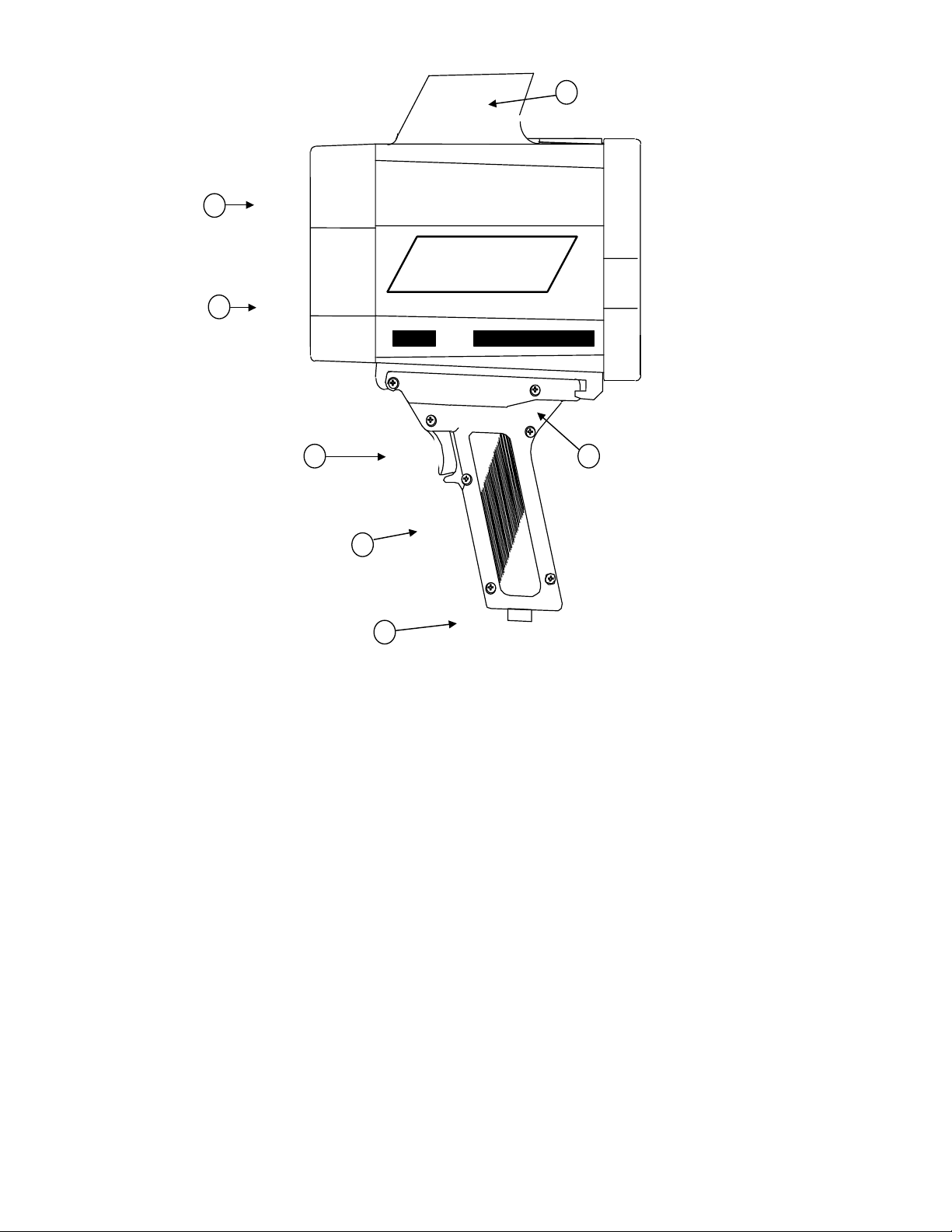

SpeedLaser
LASER ATLANTA
J
I
K
M
N
A
L
BATTERY HANDLEI. TRANSMIT OPTICS
J. RECEIVE OPTICS
K. HANDLE TRIGGER
L. HANDLE LATCH
M.
N. EXTERNAL DATA PORT

Battery Handle Power
The SpeedLaser comes equipped with two (2) rechargeable battery
handles. They have been shipped completely uncharged, so you will
need to charge them with the wall charger or 12V cigarette cable
completely before first use. Each handle will provide an average of five
(5) hours of continuous use per charge.
These handles are also capable of powering the SpeedLaser from a 12V
source such as an automotive cigarette power adapter using the cable
provided. Plug the small circular connector onto the bottom of the
handle and the cigarette adapter end into an automotive cigarette-
power adapter. You can charge the handles in this manner as well as
operate the unit.

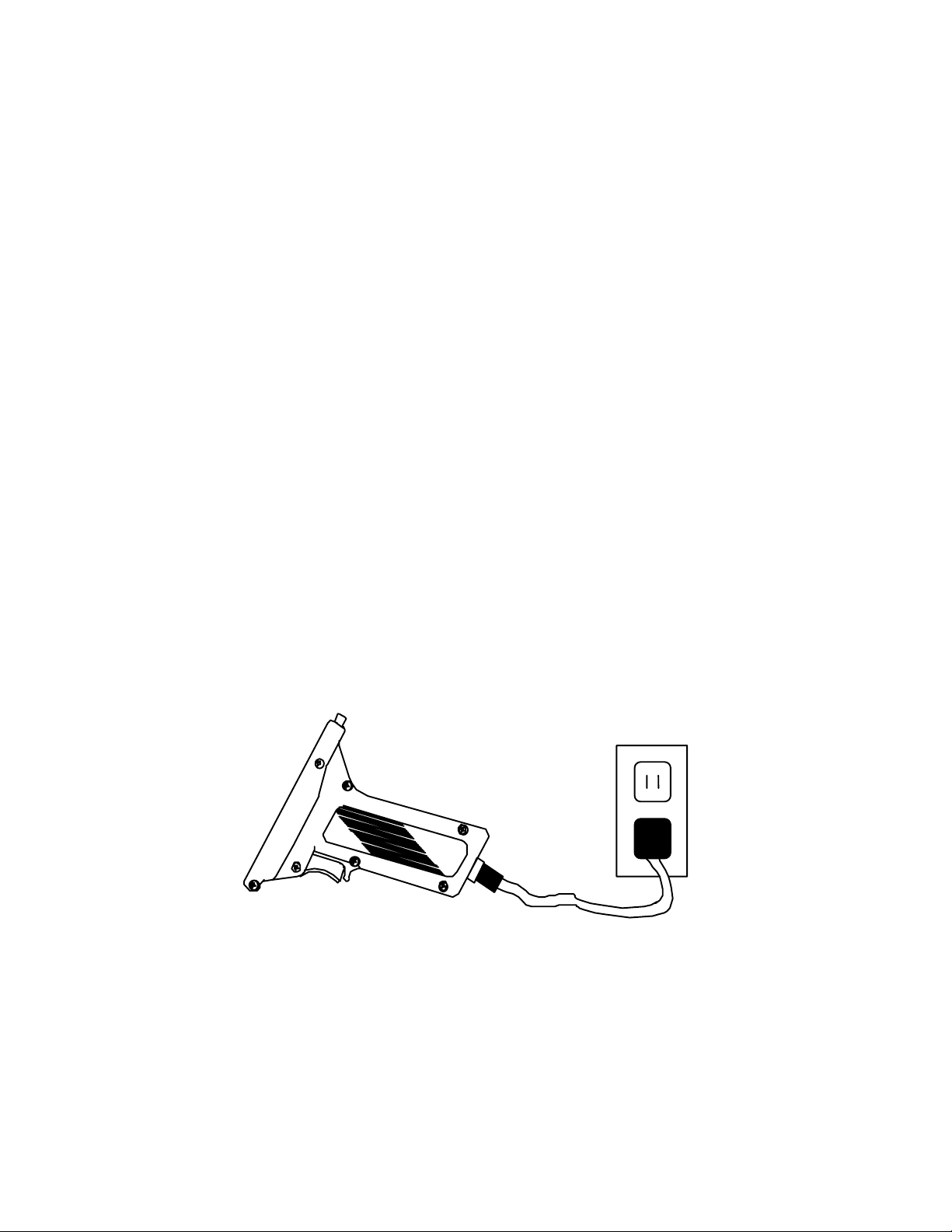

To charge your battery handle:
1. Plug the circular connector into the side of the handle. Do not force
the connector as it is keyed...slowly rotate the connector and push
gently until it clicks and locks into place.
2. Plug the charger into a standard 120 VAC power receptacle OR plug
the cigarette adapter into a power source.
3. Charge the handle for ten to twelve hours.
4. To remove the connector, pull gently downward on the outside of
the connector.
5. Unplug the charger from the wall. The handle is now charged.
CAUTION: DO NOT
• Charge handles with other chargers/power supplies
• Short circuit the battery pins
• Charge handle for over sixteen (16) hours continuously
13

14

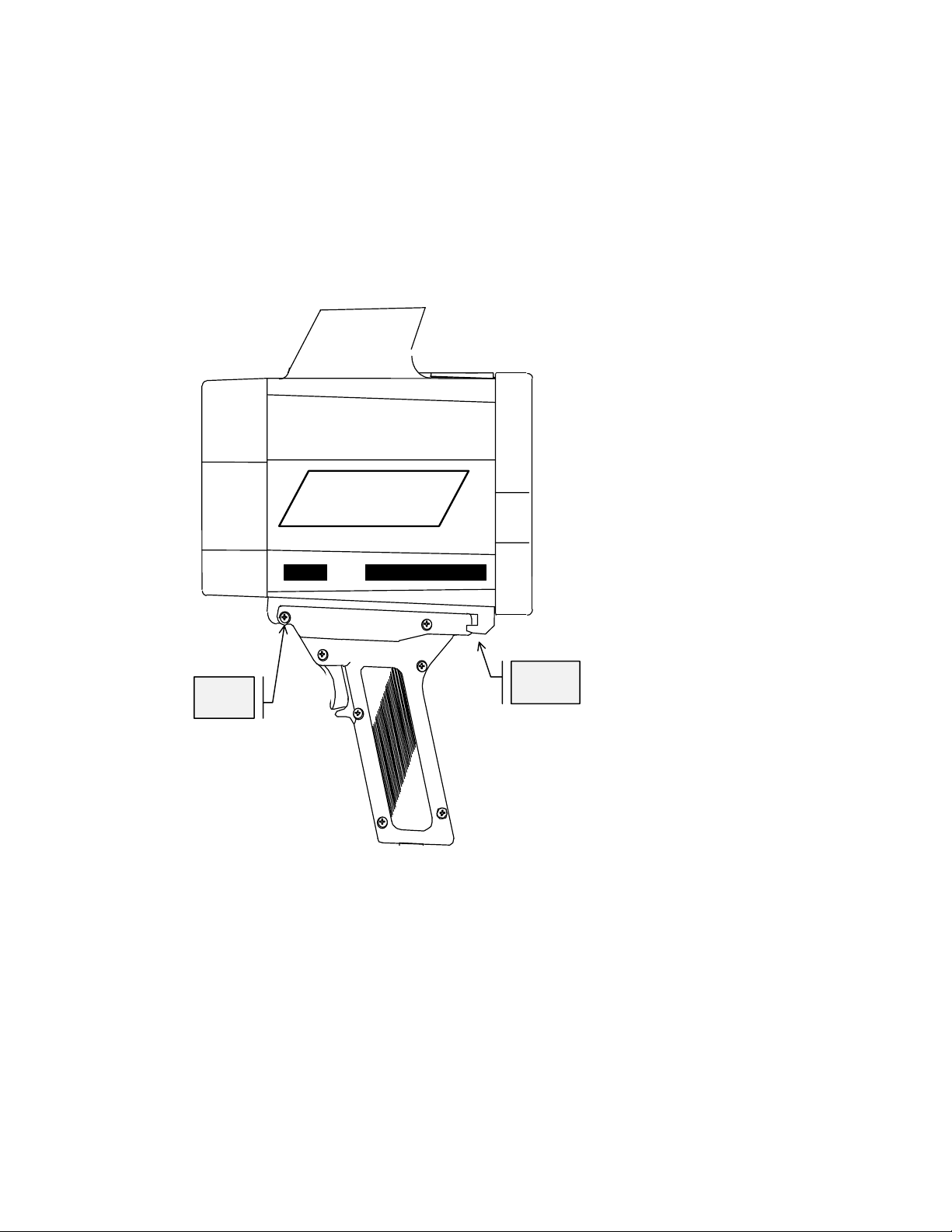

Connecting a Handle
To install a handle onto the SpeedLaser:
1. Press the handle latch forward on the handle.
2. Push the front of the handle into the front handle catch on the
bottom of the SpeedLaser.
3. Rotate the rear of the handle upward.
4. Release the handle latch.
NOTE: Make certain the handle latch slides into position and secures
the handle to the SpeedLaser. If necessary, push the handle latch
rearward to secure the handle to the SpeedLaser.
SpeedLaser
LASER ATLANTA
Handle
Catch
Handle
Latch

Turning the SpeedLaser ON and OFF
TO POWER ON
1) Press the PWR key on the back of the SpeedLaser and hold for one
second.
Note: The self-test (pg. 19) will automatically run when the unit is first
powered ON.
TO POWER OFF
1) Press the PWR key on the back of the SpeedLaser and hold for
three seconds.
Note: Keep the key pressed until no information is displayed on the
LCD. If the button is not depressed for a long enough time, it toggles
the LCD backlight ON and OFF.
Laser Atlanta Optics
SpeedLaser II
P/N 50103-E152 v4.66
System Ready
LCD HUD
A B C D
FIRE
Power
PWR MENUBACK
15

16

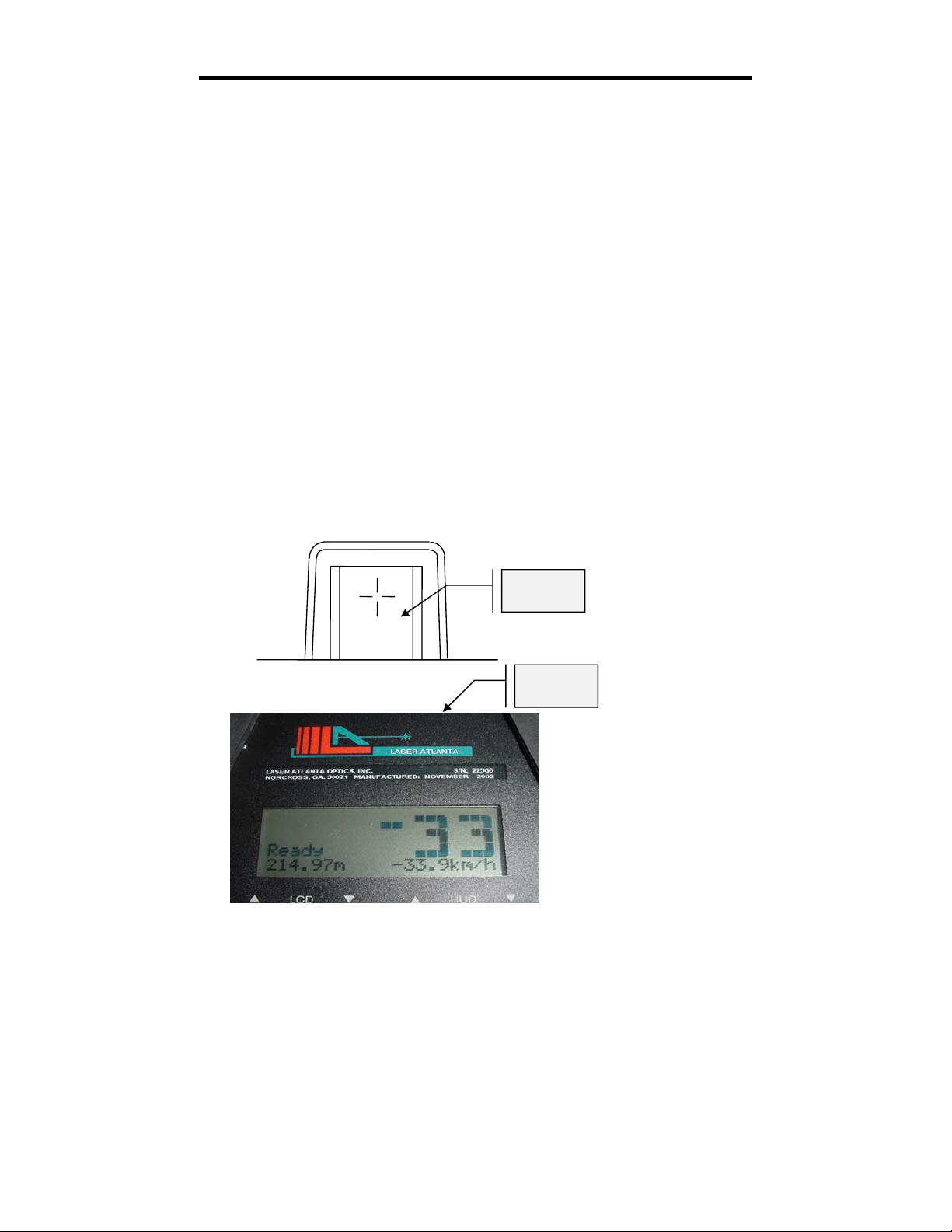

SPEED MEASUREMENT
When the SpeedLaser is first turned ON, it automatically runs the self-
test function. To capture a speed, simply follow the procedure below.
MEASURING SPEED
*Always verify operational procedures for Alignment Check*
1. Align the HUD Sighting Reticule on the target you wish to measure
the speed of.
2. Squeeze and hold the Handle Trigger.
3. Release the Handle Trigger to stop measurement and lock
information in the HUD and on the LCD.
The speed will be shown in two places…on the rear bottom right of the
LCD and in the HUD (if selected) character display. Notice that the
speed displayed is always rounded to the nearest kph.
The distance to the target will be shown on the left side of the LCD.
NOTE: Pressing the trigger will take you to the Speed Display Page
regardless of any other mode the SpeedLaser may be in. (The exception
is in TEST mode.)
LCD
S
p
eed
- 33
HUD
S
p
eed

17
Laser Atlanta Optics
SpeedLaser
1095ft 65 mph
Laser Atlanta Optics
SpeedLaser
1095ft - 65 mph

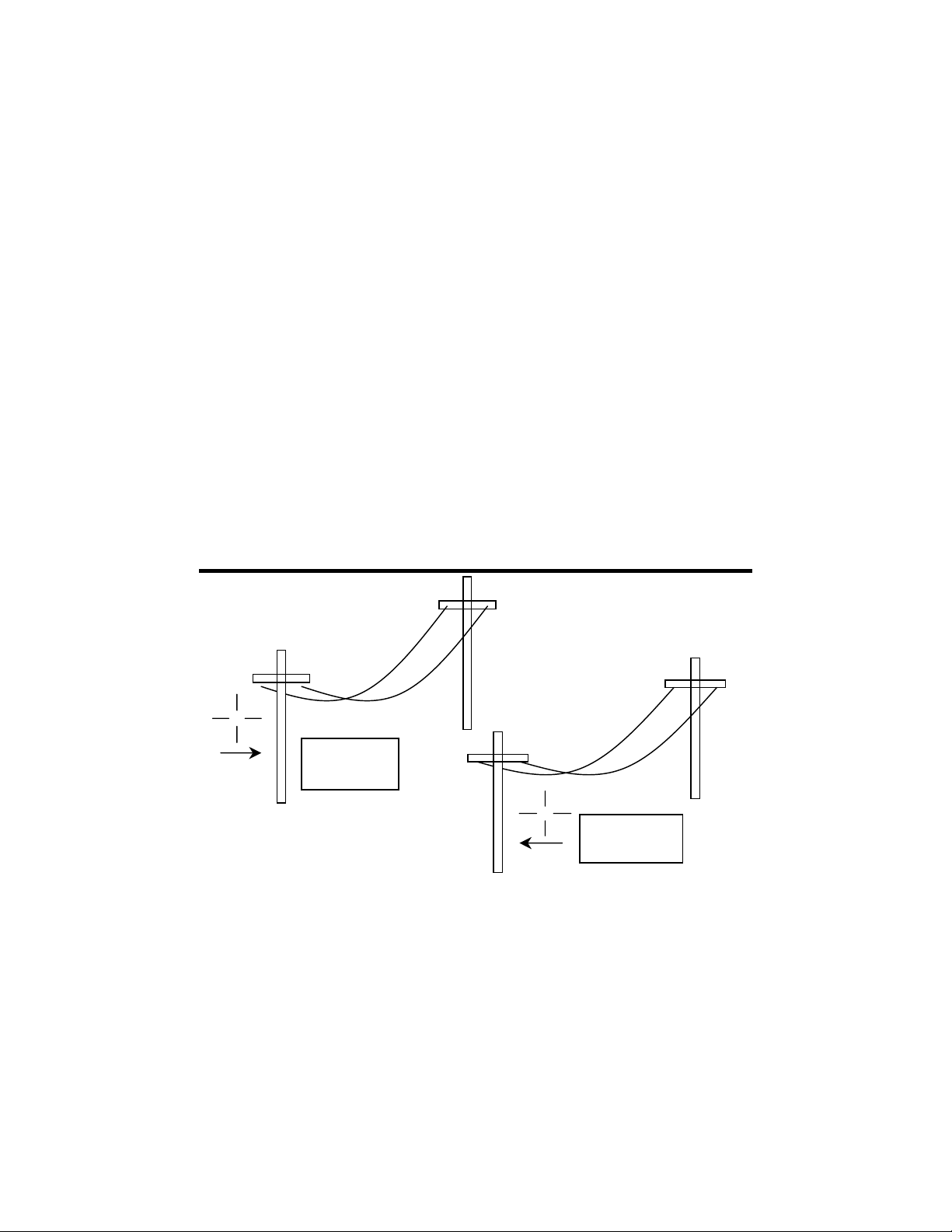

APPROACHING AND RECEDING TARGETS
The SpeedLaser can measure the speeds of both approaching
(oncoming) and receding targets.
The speed displayed in the HUD and on the LCD will be preceded by a
‘–‘ when the target is receding.
Example of an Approaching
Oncoming
Tar
g
et
56
Oncoming
Tar
g
et
Example of a Receding
Receding
Tar
g
et
- 33
Receding
Tar
g
et

Daily Self-Test and Alignment Check Procedure
This test checks the memory and timing circuits and allows the operator
to verify that the HUD crosshairs are aligned with the laser. The
alignment crosshairs in the HUD are set at the factory and should not
need realignment over the life of the SpeedLaser.
1) Press MENU A to place the unit in Test & Reset Mode.
2) Note if all of the tests pass (OK will be displayed.)
3) Note if all of the segments in the HUD are turned on. (This will
appear as a four-segment crosshair and four 8’s.)
4) Range Test – Stand at a known position, aim at a target at a known
distance, squeeze trigger until tone sounds. Confirm known range in
LCD panel. Repeat for one other known distance.
5) Horizontal Alignment Test - Locate a tall, vertical object (such as a
utility pole) with clear sky behind it (and preferably > 45 meters
away.)
6) Aim to the right of the object, and pull the trigger.
7) While keeping the trigger pulled, slowly sweep the crosshair sight to
the left. Press (D) Done when completed.
8) The distance should be displayed in the HUD only when the target
edge is in view of the crosshair.
9) Vertical Alignment Test – Turn the unit 90 degrees sideways.
Repeat steps 5 – 8. Press MENU to exit Test Mode.
the LEFT
Sweep from
the RIGHT
Sweep from
18

RANGE MEASUREMENT
To make a range measurement:
1. Press Power.
2. Align the HUD Sighting Reticule on the target that you wish to
measure the range to.
3. Squeeze and hold the Handle Trigger.
4. Release the Handle Trigger to stop measurement and lock the
measurement data temporarily in the HUD and on the LCD.
Notice that the distance displayed in the HUD is always rounded to the
nearest meter.
HUD
Ran
g
e
R12
HUDLCD
A B C D
FIRE
PWR BACK MENU
19
