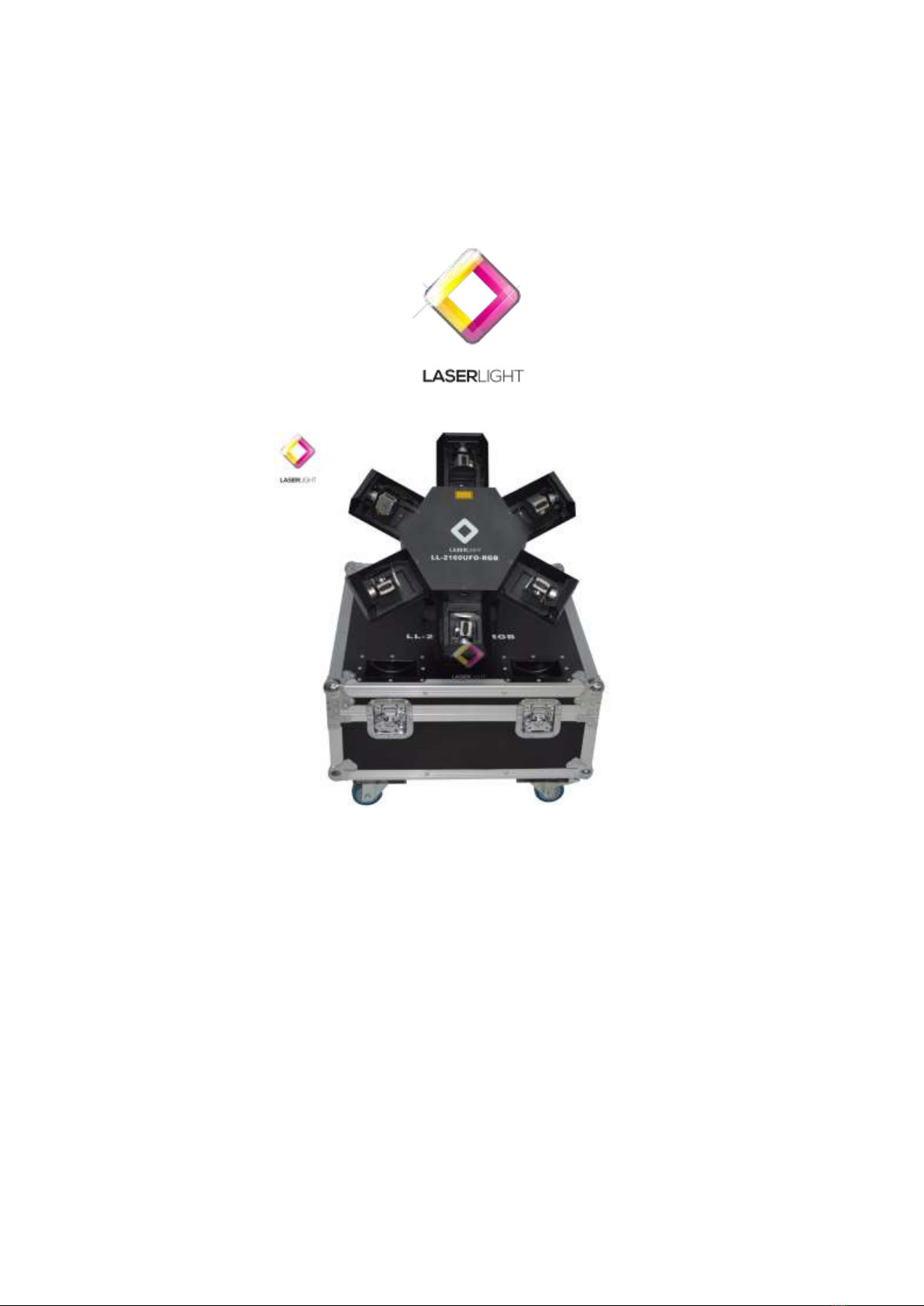

LaserLight Mini Laser UFO User manual

1
Laser Show System
User Manual
Mini Laser UFO

2
Please read this manual carefully before use!
Thank you for purchasing this product. To optimize the performance of this
product,prior to use,please read these operating instructions carefully to
familiarise yourself with the basic operation of this unit.Please keep the manual
in safe price for future reference.
This unit has been tested at our factory before being shipped to you, there is
no assembly required.
Once after received this product , please take and put carefully. And check
cautiously that whether the product was damaged or not during the
transportation.
Checking Parts
Please check if the following parts are included:
1 x Laser ufo
1 x Power cable
1 x User manual
Danger Laser Radiation!
Avoid direct eye exposure!
Laser radiation can cause eye damage or skin damage
All protective measures for a safe operation of this laser must be applied.
Installation
1. Please check the voltage whether is the same with the one showed on the
equipment or not.
2. It must ask for the technical person and set the light safety when installation.
And let the light beam at the suitable angle.
3. When install this equipment please make sure there's no flammable
surfaces (decorated things, etc) within at least 2.5M and maintain minimum
distance of 0.5M from the equipment to the walls.

3
4. Please make sure that there's no other equipment or decorating materials
obstructed the exhaust fan and the vent-pipe.
5. Products should be install immobility.
6. In case of safety, it's very important that to connect the earth with line.
Attention
1.Please do not open the bottom cover yourself without permission.Operate it
accord the user manual. Call the technician when the machine breaks down.
2.Please do not see the laser beam directly to avoid any damage.
3.Before connect or disconnect the power, please adjust the luminance of the
laser diode to the least to avoid any damage to the laser diode.
4.This unit should be keep dry, do not use in the rain and dusty environment. It
can be use in the outdoor with the water-proof cover protector.
5. Set the light immobility and try to avoid strong shake or hit.
6.Prevent dust into the equipment to avoid problems.
7.Please keep that there's no other equipment or decorating materials
obstructed the exhaust fan and the vent-pipe when the equipment was
working.
8.Before connect power, check the plug is immobility or not, power line should
be connect well.
9.Please do not open or close the equipment frequently that's to avoid any
affect to the life span of the laser diode, and try the best to avoid the long time
working.
10.Due to the characteristic of the laser diode, after four hours working, it
should be close at least 25 minutes until the laser diode cooling then work
again.
11.Don't touch the light or draw the power line when your hand was wet. And
do not pull the electronic power line.
12.Maintain the distance at least 3M above from the equipment to the object.
13.This equipment does not have any parts can repair for the users, please do
not open the equipment.
14.When the laser diode became dim or damaged please contact the dealer
timely.
15.When you want to retransfer the products,you'd better use the original
package to shockproof.
Display Function Instruction
No.
Display
Function Instructions
1
d001
Set DMX address

4
2
CHXX
Choose 8/26 channels
3
Auto
Auto Play
4
Soud
Sound Active
5
SdXX
Set sound active sensitivity （00-99）
Channel Instructions
26 channels
Channels
Value
Function
CH1
Function
0-49
Invalid
50-99
Low Speed Auto Play
100-149
Medium-high Speed Auto Play
150-199
Fast Speed Auto Play
200-255
Sound Active
CH2
Whole light
0-127
Whole light off
128-255
Whole light on
CH3
Strobe
0-9
Choose strobe
10-127
1:1 strobe
127-255
1:2 strobe
CH4
Dimmer
0-35
Invalid
36-255
Dimmer
CH5
Dimmer Speed
0-255
Dimmer Speed
CH6
X-axis whole
action
0
Invalid
1-255
Change all X-axis position
CH7
Y-axis whole
action
0
Invalid
1-255
Change all Y-axis position
CH8
Built-in effect
0
Invalid
1-255
Invoke built-in effect
CH9
No.1 laser diode
0-127
Close No.1 laser diode
128-255
Open No.1 laser diode
CH10
No.1 laser
diode’s X-axis
motor position
0-255
Choose motor’s scan angle
CH11
No.1 laser
0-255
Choose motor’s scan angle

5
diode’s Y-axis
motor position
CH12
No.2 laser diode
0-127
Close No.2 laser diode
128-255
Open No.2 laser diode
CH13
No.2 laser
diode’s X-axis
motor position
0-255
Choose motor’s scan angle
CH14
No.2 laser
diode’s Y-axis
motor position
0-255
Choose motor’s scan angle
CH15
No.3 laser diode
0-127
Close No.3 laser diode
128-255
Open No.3 laser diode
CH16
No.3 laser
diode’s X-axis
motor position
0-255
Choose motor’s scan angle
CH17
No.3 laser
diode’s Y-axis
motor position
0-255
Choose motor’s scan angle
CH18
No.4 laser diode
0-127
Close No.4 laser diode
128-255
Open No.4 laser diode
CH19
No.4 laser
diode’s X-axis
motor position
0-255
Choose motor’s scan angle
CH20
No.4 laser
diode’s Y-axis
motor position
0-255
Choose motor’s scan angle
CH21
No.5 laser diode
0-127
Close No.5 laser diode
128-255
Open No.5 laser diode
CH22
No.5 laser
diode’s X-axis
motor position
0-255
Choose motor’s scan angle
CH23
No.5 laser
diode’s Y-axis
motor position
0-255
Choose motor’s scan angle
CH24
No.6 laser diode
0-127
Close No.5 laser diode
128-255
Open No.5 laser diode
CH25
No.6 laser
diode’s X-axis
motor position
0-255
Choose motor’s scan angle

6
CH26
No.6 laser
diode’s Y-axis
motor position
0-255
Choose motor’s scan angle
8 channels
Channels
Value
Function
CH1
Function
0-49
Invalid
50-99
Low Speed Auto Play
100-149
Medium-high speed Auto Play
150-199
Fast Speed Auto Play
200-255
Sound Active
CH2
Light on/off
and colors
0-9
Whole light on/off
10~27
R2
28~45
G1
46~63
B1
64~81
R1
82~99
G2
100~117
B2
118~136
R1，R2
137-154
G1，G2
155-172
B1，B2
173-190
R2，G1，B1
191-208
R1，G2，B2
209-226
R2，G2，B1
227-244
R1，G1，B2
245-255
R1，G1，B1, R2，G2，B2
CH3
Strobe
0-9
Close strobe
10-127
1:1 strobe
127-255
1:2 Strobe
CH4
Dimmer
0-35
Invalid
CH5
Dimmer
speed
0-255
Change dimmer speed
CH6
Y-axis
whole
action
0
Invalid
1-255
Change all X-axis position
CH7
Y-axis
0
Invalid

7
Maintenance
Maintenance should be performed every 15-day period, by using a sponge
which is dipped with alcohol, rather than wet cloth or other chemical liquid, to
clean the mirror.
Always disconnect from the mains when the device is not in use or before
cleaning it.
Warning
Power must be disconnected before maintenance or repair. Do not look at the
light source directly
Note
Don't separate laser machine from laser power and repair them by yourself ,
otherwise no good repair service will be supplied.
Technical Specifications
1.Power Supply: AC 100-240V 50/60Hz
2.Rated Power: 80W
3.Laser Power: 100mw@638nm*2,50mw@532nm*2,500mw@445nm*2
4.Working Mode: Sound Active/ Auto-play/DMX512/Master-Slave
5.Control Signal: DMX512 signal
6.DMX Control Channels: 8/26
7.Operating Temperature: -1º--35º
8.Storage Temperature: -10º--60º
9.Warm-Up Time :<15 min
10.Laser Classification: 3b
11.Modulation: TTL
Declaration
whole
action
1-255
Change all Y-axis position
CH8
Built-in
effect
0
Invalid
1-255
Invoke built-in effect

8
This device has left our premises in absolutely perfect condition. In order to
maintain this condition and to ensure a safe operation, it is absolutely
necessary for the user to follow the safety instructions and warning notes
written in this user manual.
We cannot be made liable for damages caused by incorrect installations and
unskilled operation!
Warranty Card
This product is made of high-brightness transistor. We will provide 1 year
warranty under the condition that user has operated the light normally and
lifetime service. We won't provide warranty if the damage is caused by
artificial or force majeure event. Cost of fittings should be charged by user
if product need maintenance after 1 year .Please cut this warranty card
and shipped it along with the product to our factory when applying for
warranty.
Product：Purchasing date：Code of invoice：
Warranty date: From To
User’s name：Add：
Company：Tel：
