OPERATION MANUAL
MODEL: ANQ-401
TURNTABLE AM/FM RADIO /
CD AND CASSETTE PLAYER WITH LINE OUT

2
IMPORTANT SAFETY INSTRUCTIONS FOR
AUDIO PRODUCTS-READ CAREFULLY ALL THE
FOLLOWING IMPORTANT SAFEGUARDS
When using electrical products, basic precautions should always be followed including:
1. Read Instructions - All the safety and operating instructions should be read before the product is
operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Instructions - All warnings on the product and in the operating instructions should be adhered
to.
4. Follow Instructions - All operating and user instructions should be followed.
5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments - Do not use attachments not recommended by the product manufacturer as they may
cause hazards.
7. Water and Moisture - Do not use this product near water-for example, near a bath tub, wash bowl,
kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.
8. Accessories - Do not place this product on an surface. The product may fall, causing serious injury to
a child or adult and serious damage to the product. Use only with a stand, bracket, or table
recommended by the manufacturer, or sold with the product. Any mounting of the product should follow
the manufacturer’s instructions, and should use a mounting accessory recommended by the
manufacturer.
9. Transporting - This product should be moved with care to avoid damage or
injury.
10. Ventilation - Slots and openings in the cabinet are provided for ventilation,
to ensure reliable operation of the product and to protect it from overheating.
These openings must not be blocked or covered. The openings should never
be blocked by placing the product on a bed, sofa, rug, or similar surface. This
product should not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
11. Power Sources - This product should be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power supply to your home, consult your product
dealer or local power company. For products intended to operate from battery power, or other sources,
refer to the operation instructions.
12. Power - Cord Protection - Power-supply cords should be routed so that they are not likely to be
trapped in any way.

3
13. Lightning - For added protection for this product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the product due to lightning and power-line
surges.
14. Power Lines - An outside antenna system should not be located in the vicinity of overhead power
lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be taken to keep from touching such power
lines or circuits as contact with them might be fatal.
15. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as
this can result in a risk of fire or electric shock.
16. Object and Liquid Entry - Never push objects of any kind into this product through openings as they
may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never
spill liquid of any kind on the product.
17. Servicing - Do not attempt to service this product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
18. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions, as an improper adjustment of other controls
may result in damage and will often require extensive work by a qualified technician to restore the
product to its normal operation.
e. If the product has been dropped or damaged in any way, and the product exhibits a distinct change in
performance-this indicates a need for service.
19. Replacement Parts - When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
20. Safety Check - Upon completion of any service or repairs to this product, ask the service technician
to perform safety checks to determine that the product is in proper operating condition.
21. Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended
by the manufacturer.
22. Heat - The product should be situated away from heat sources such as radiators, heat registers,
stoves or other products (including amplifiers) that produce heat.

4
Precautions
Safety Information
CAUTION
1. IN ORDER TO SHUT OFF THE POWER TO THIS PRODUCT COMPLETELY, UNPLUG THE
POWER CORD FROM THE WALL OUTLET. BE SURE TO UNPLUG THE UNIT IF YOU DO NOT
INTEND TO USE IT FOR AN EXTENDED PERIOD OF TIME SUCH AS A VACATION.
2. DO NOT REMOVE THE PROTECTIVE HOUSING.
3. USE OF CONTROLS AND ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
4. IF THIS PRODUCT DEVELOPS TROUBLE, CONTACT A QUALIFIED SERVICE CENTER, AND DO
NOT USE THE PRODUCTIN A DEFECTIVE STATE.
Safety Precautions
WARNING:
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION:
Use of controls or adjustments or performance of procedures other than those specified may result in
hazardous radiation exposures.
CAUTION
RISK OF ELECTRIC SHOCK- DOES NOT OPEN!
To reduce the risk of electric shock, do not remove cover or back.
No user serviceable parts inside. Refer servicing to qualified service personnel.
The light flash with arrowhead symbol, within an equilateral triangle, is intended to alert user
to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert user to the presence
of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
CAUTION:
FOR COMPACT DISC UNITS ONLY: INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCK FAILED OR DEFEATED. AVOID DIRECT EXPOSURE TO LASER BEAM.

5
(See markings on the back of the unit)
CAUTION:
To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Before Use
Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a source of heat.
Also avoid locations subject to vibrations and excessive dust, cold or moisture. Keep away from
sources that hum, such as transformers or motors.
Do not open the cabinet as this might result in damage to the circuitry or electrical shock, if a foreign
object should get into the set, contact your dealer.
Be sure not to handle discs with dirty fingers. Never insert a disc that has a crack on the surface.
When removing the power plug from the wall outlet, always pull directly on the plug, never pull the cord.
To keep the laser pickup clean, do not touch it, and do not forget to close the disc tray.
Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use a clean,
dry cloth.
In order to shut off the power to this product completely, unplug the power cord from the wall outlet. Be
sure to unplug the unit if you do not intend to use it for an extended period of time, such as a vacation.
Keep this manual in a safe place for future reference.
Beware of Condensation
When the player (or a compact disc) is moved from a cold to a warm place or is used after a sudden
temperature change, there is a danger of condensation. Water vapor in the air could condense on the
mechanism or the laser pickup. If droplets of water form on these parts, correct playback will be
impossible because the laser cannot read the information from the disc correctly. To prevent this, if you
are going to use the player in a condition where condensation could occur, you should leave the player
for 1 or 2 hours after plugging it into an AC outlet depending on the amount of condensation. If this is
done, the player will stabilize at the temperature of its surroundings.
For U.S.A.
To the user
This equipment has been tested and found to comply with the limits for a Class 1 digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against interference in a residential area. This device generates and uses radio frequency energy and if
not installed and used in accordance with the instructions, it may cause interference to radio or TV
reception. If this unit does cause interference with TV or radio reception you can try to correct the

6
interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and
receiver. Plug the equipment into a different outlet so that it is not on the same circuit as the receiver. If
necessary, consult the dealer or an experienced radio/TV technician for additional suggestions.
CAUTION:
Changes or modifications to this equipment not expressly approved by the manufacturer for
compliance could void the user authority to operate this equipment.
Listening to a Tape or Compact Disc
Cassette Tape
Tape Handling:
Do not store tapes in the following places:
1. On top of heaters, exposed to direct sunlight or in any other places with high temperatures.
2. Near speakers, on TV sets or amplifiers or where they would be exposed to strong magnetic fields.
3. Where humidity is high and in dirty, dusty places.
4. Avoid dropping or subjecting cassettes to excessive shocks.
5. As C-120 tapes are physically weak and could become entangled in the transport mechanism, do not
use them.
Listening to TAPE
1. Load Cassette Tape into the unit (located on side of the
unit). Playback will automatically begin.
2. Press button halfway to Fast Forward the Tape. Press
button lightly and playback will resume.
3. Press button all the way to end Playback and eject Tape.

7
Compact Disc
Handing the Discs:
This unit has been designed specifically for sound
reproduction from compact discs bearing the mark.
No other discs can be used.

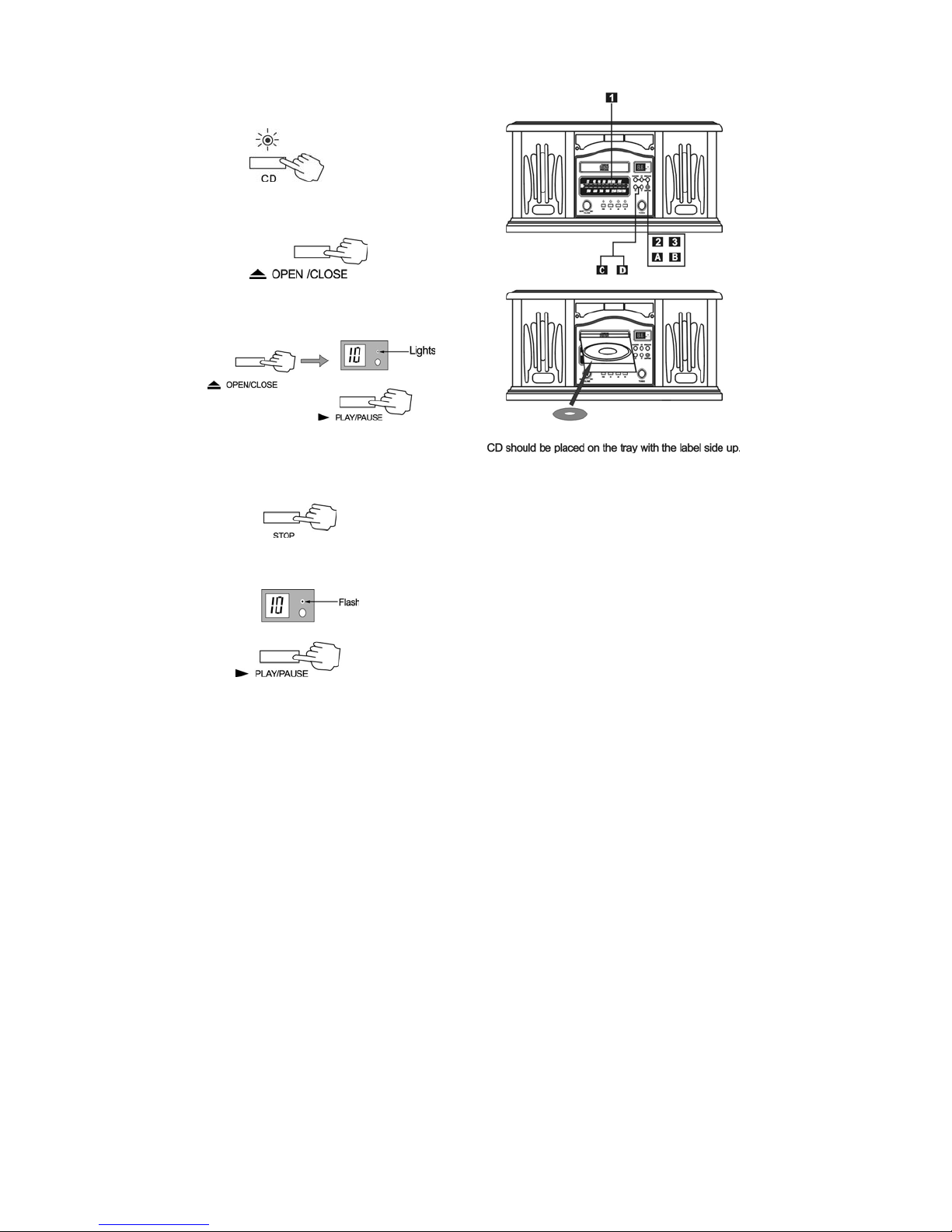

1. Always place the compact disc in the disc tray with the
label facing upward. (Compact discs can be played only on
one side).
2. To remove a disc from its storage case, press down on
the centre of the case and lift the disc out, holding it
carefully by the edge.
3. Fingerprints and dust should be carefully wiped off the
disc recorded surface with a clean cloth (not included).
4. Never use chemicals such as: record sprays, anti-static
sprays or fluid, benzene or thinner to clean compact discs.
Such chemicals will do irreparable damage to the disc’s
plastic surface.
5. Discs should be returned to their cases after use to avoid serious scratches that could cause the
laser pick up to skip.
6. Do not expose discs to direct sunlight or high humidity and temperature for extended periods.
7. Do not stick paper or write anything with a ballpoint pen on the surface of the label side.
8. Do not use irregular shaped CD’s (octagonal, heart-shape, etc.), all of which can damage the unit.

8
Preparation for Use to the mains
1. Connect the AC power cord to the mains.
2. The silver screw protects the phonograph chassis during transportation. If the speed of your
phonograph seems slow or you hear a rubbing sound, adjust the screw with a coin to correct the
balance of the turntable.

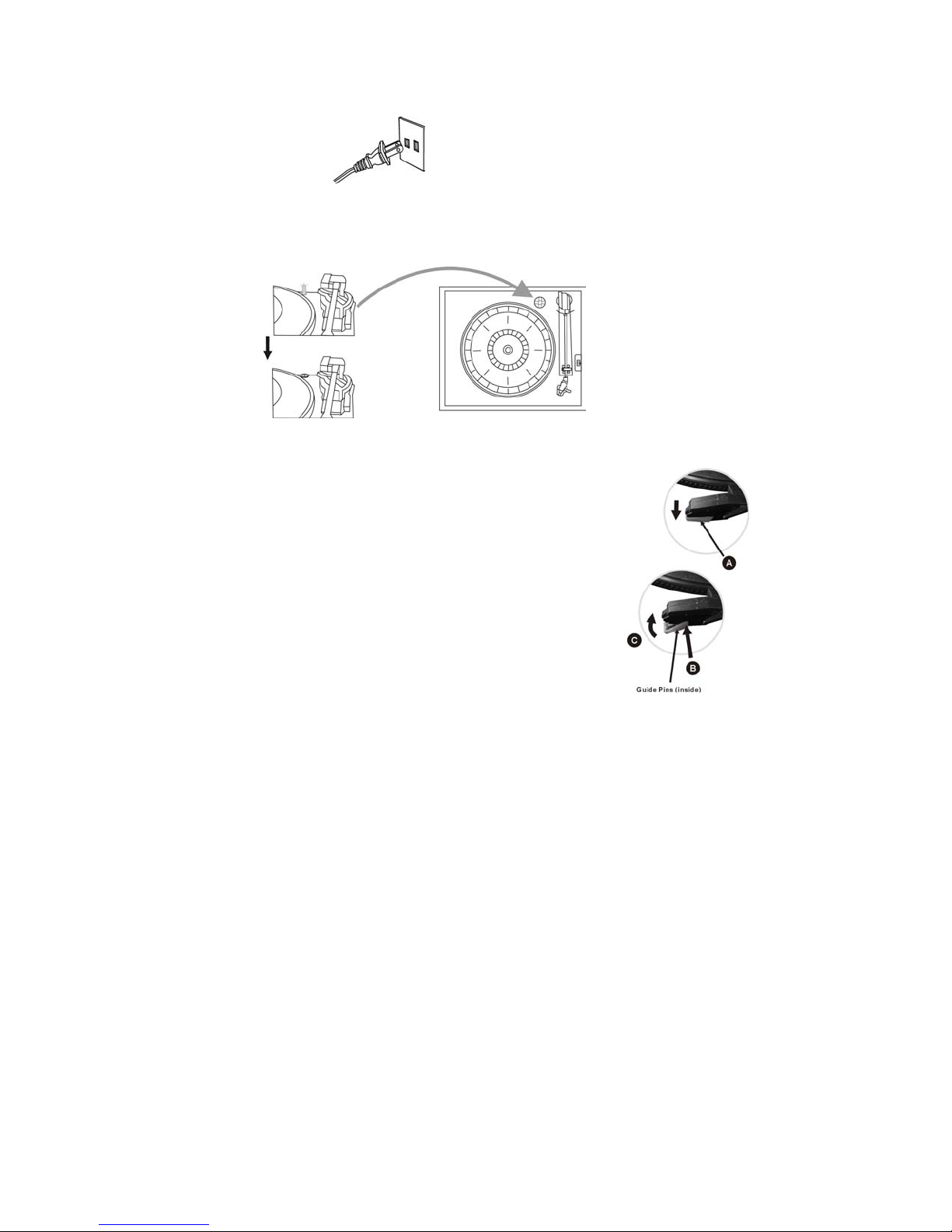

How to Replace the Turntable Stylus
Removing old stylus
1. Set a screwdriver at the tip of the stylus and push down to the
direction "A".
2. Remove the stylus by pulling it down and forward.
Installing a new stylus
1. Hold the tip of the stylus and insert the other edge by pressing in
the direction "B".
2. Push up in the direction "C" until it locks at the tip.

9
Basic Operation
1. Power on.
Connect the power plug into the wall outlet.
2. Select the source.
3. Adjust the volume.
4. Listening through Earphones/Headphones
(not included).

10
Listening to a Record
1 Press the PHONO button.
2.Select player speed.
3. Put a record onto the turntable (use the 45 rpm
adaptor provided when playing a single record).
4. Remove the tone arm-rest holder.
5. Lift the Que-lever and move the tone arm gently
to the desired position over the record.
6. Lower the Que-lever slowly.
7. Never interfere with the tone arm when it is
moving automatically. To do so will cause severe
damage to the product. The tone arm will
automatically return to the tone arm rest at the end
of the record. You can also return the tone arm
manually. Use the Que-lever to raise or lower the
tone arm. Do so SLOWLY. Once raised, gently
move the raised tone arm to the center of the
record and release it, it will automatically return to
the tone arm rest. Once returned, slowly lower the
Que-lever.

11
Listening to a CD
1. Press the CD button.
2. Open the tray, and place the CD on the tray.
3. Close the tray and start playing the CD.
The CD will start playing from the first track.
4. Stopping the CD play.
5.PausingtheCDplay.
Pressing the PLAY/PAUSE button will restart the CD
where it was paused.

12
Do not switch the unit off while playing a CD as this will damage the unit.
6. Press the F.F button once to go the start of the next track.
Press the F.R button once to go back to the start of the current
track. Press the F.R button twice to go back to the start of the
previous track.
7. Fast Reverse (F.R) and Fast Forward (F.F)
You can reverse or forward to any point in a selected track by
pushing and holding the F.R or F.F button.
NOTE: Do not push both buttons together as this may damage the
unit.
As the unit is tracking quickly, forward or backward you will hear your selection playing at a distorted
speed. Simply release the depressed button to continue playing at normal speed at the desired position
in the selected track.
NOTE: If an unplayable CD-type is in the unit, “NO” will be shown in the CD display window. Please
make sure you only play regular (CD-DA)-type CD’s in this unit.

13
Listening to the Radio
1. Press the TUNER button to select the desired
band (AM/FM).
2. Tune to the desired frequency.
3. FM reception
Any strong FM station will cause the FM stereo
indicator (FM ST ) light to illuminate. Weaker
stations cannot be received in stereo so the light
will not illuminate and reception will automatically
switch to mono.
4. Antenna
For optimal FM reception be sure to stretch the
built-in FM
antenna wire located at the lower back of the unit and move
it around until the station you have tuned in is being received clearly.
LINE OUT
(1) Plug the Power Cord into a standard 120V~60Hz outlet.
2) Plug the RCA Cables into the Line Out jacks located at the rear of the unit making sure that the red
RCA Cable is inserted into the red jack and the white RCA Cable is inserted into the white jack.
3) Plug the other ends of the RCA Cable into the auxiliary input (AUX) on your TV, home entertainment
receiver or other music system, again being sure that the correct color coded jacks are used.
4) Turn the unit on using the On/Off/Volume Knob. Do not turn up the volume on your Unit. Instead
adjust the volume on your TV or home entertainment receiver.

14
Specifications
AMPLIFIER section
Output Power……………………………....2.5 W + 2.5 W
Frequency Response………………….….60 TO 20, 000 Hz
TUNER section
FM Section
Frequency Range…………………………88 to 108 MHz
AM Section
Frequency Range……………………..…..530 to 1710 KHz
CD PLAYER section
Frequency Response…………………….60 to 20, 000 Hz +/-4 dB
Signal-to-Noise Ratio……………….……55 dB (IEC-A)
CASSETTE DECK section
Track System………………………….….4 Track, 2 channel stereo
Tape Speed………………………………..4.8 cm/sec
Wow and Flutter………………………….0.4% (WRMS)
Frequency Response……………..……..125 to 6300 Hz +/-6 dB
RECORD PLAYER section
Motor……………………………………....DC servo motor
Drive System………………………..…….Belt Drive
Speeds……………………………….……33-1/3 rpm, 45 rpm and 78 rpm
Wow &Flutter………………………...……Less than 0.25% (WTD)
S/N Ratio…………………………….…….More than 50 dB
Cartridge Type…………………………….Ceramic Stereo Cartridge
Stylus………………………………………402-M208-165
Output Level………………………………160-380 mV (5 cm/sec at 1 KHz)
SPEAKER SYSTEM section
Type…………………………………….….1-way
Impedance………………………………..8 ohms
Input Power……………………………….Max. 5 W
GENERAL
Power Requirements……………….……AC 120 V~ 60 Hz
Power Consumption……………………..19 W
Dimensions (W x H x D)………………….20.5’’x10.8’’x13.6’’(approx.)
Weight……………………………….……..24.9 Ibs. (approx.)
Standard Accessories……………...…….Operating Instruction Booklet

15
Troubleshooting Guide
In case of trouble with the unit, please look through this chart and see if you can solve the problem by
yourself before calling your dealer.
THE WHOLE UNIT
Problem Cause Solution
Power does not come on
when the power switch is
pressed.
Unit is unplugged. Connect the unit to the AC
power supply.
No sound comes out of the
speakers.
The volume is turned down
(to MIN).
The input selector does not
match the playback source.
Adjust the volume.
Re-select the desired input
source.
The sound is noisy.
The unit is too close to a TV
set or another similar
appliance.
Turn off the TV or other
appliance, and relocate the
unit.
TAPE DECK
The cassette deck door
cannot be closed.
The cassette tape is not
inserted properly.
Insert the cassette tape
correctly.
The tape does not move.
The cassette tape is not
inserted properly.
The tape has reached the
end.
Insert the cassette tape
correctly.
Flip the cassette.
No sound from tape. The tape heads are dirty. Clean the tape heads.
Cannot record.
The write-protect tabs on the
cassette have been broken
off.
The tape heads are dirty.
You are trying to record on
metal (Type IV) tape.
Tape over the holes with
cellophane tape.
Clean the tape heads.
Use a normal (Type I) tape.
When recording over a
previously recorded tape,
the original signal can still
be heard.
The tape heads are dirty.
You are trying to record on
metal (Type IV) tape.
Clean the tape heads.
Use a normal (Type I) tape.
The sound is distorted or
faint. The tape heads are dirty. Clean the tape heads.
TUNE
R
Cannot listen to any
station, or signal appears
The station is not tuned-in
properly.
Properly tune-in the desired
station.

16
weak.
A TV set is being used nearby
and is interfering with the
radio reception.
Turn-off the interfering TV
set.
The sound is distorted.
The antenna is not oriented
properly.
Re-orient the antenna until
reception improves.
CD PLAYER
CD stops immediately after
starting, or unit pauses or
stops during play.
The CD is inserted upside
down.
The CD is dusty or dirty or
there is condensation on the
CD.
Insert the CD with the
printed side right-side up.
Carefully clean and dry the
CD.
No sound. The CD player is paused. Press the PLAY/PAUSE
button.
Specific CD is noisy, or
playback stops or skips.
The CD is scratched,
damaged or warped.
The disc is very dirty.
The CD should be
changed.
Carefully clean the CD.
Table of contents
