Lava Lava SSerial-550 User manual

Lava SSerial-550
Installation Manual
Rev. B00
LAVA COMPUTERS

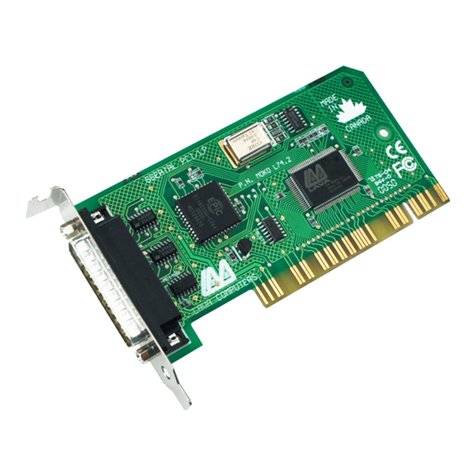

SSERIAL BOARD
MOKO L16.3E
MADE
IN
CANADA

Address Block Configuration
(COM Settings)
COM-1
03F8h
default
COM-2
02F8h
COM-3
03E8h
COM-4
02E8h
IRQ Block Configuration
IRQ-4
default IRQ-3
IRQ-5 IRQ-7
Hardware Set-Up
Address Block
IRQ Block

Serial Configuration
1. Put only one jumper on each
jumper block, to represent
the desired Com & IRQ
setting.
2. If you have only one Com
port, set up the SSerial-550
for Com 2 and IRQ 3.
3. It is recommended that each
Com Port be assigned a
unique IRQ by the user.
1. Afin d'obtenir les "COM" et
"IRQ" désirés, veuillez
n'installer qu'un connecteur
par bloc de connecteurs.
2. Si vous avez un "COM,"
ajoutez la SSerial-550 pour
"COM" 2 et "IRQ" 3.
3. On veut avoir l' "IRQ" unique
pour chaque "COM" Port.

Lava Computer MFG Inc.
Lava
Technical Support
9:00 am to 5:30 pm Monday to Friday (Eastern Time)
Tel: [phone]
Fax: + 416 674-8262
E-mail: [e-mail]
Internet: www.lavalink.com
This device complies with part 15 of the FCC Rules. Operation is subject
to the following conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Lava Computer MFG Inc. 908 Niagara Falls Blvd. #629. North Tonawanda NY 14120-2060
