Lavex 687FM1506SS User manual
INSTRUCTION MANUAL • 2
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
A. Always disconnect, lock, and tag power source before installing or servicing. Failure to
disconnect power source can result in fire, shock, or serious injury.
B. Installation work and electrical wiring must be done by qualified person(s) in accor-
dance with all applicable codes and standards, including fire-rated construction.
C. When cutting or drilling into walls or ceilings, do not damage electrical wiring and
other hidden utilities.
D. To reduce the risk of fire or electric shock, do not use this fan with any solid-state
speed control device.
E. Repair and maintenance operations can only be performed by qualified personnel.
F. Verify and ensure the rated voltage and frequency (please refer to the rating label) of
the air curtain is in compliance with the main supply.
TABLE OF CONTENTS
PRODUCT INTRODUCTION ................................................................................... Page 3
INSTALLATION DIMENSIONS ................................................................................. Page 3
INSTALLATION CAUTIONS .................................................................................... Page 4
INSTALLATION INSTRUCTIONS ......................................................................... Page 5–6
TECHNICAL PARAMETERS ................................................................................... Page 6
WIRING DIAGRAM ................................................................................................ Page 7
OPERATING INSTRUCTIONS ................................................................................. Page 7
MAINTENANCE AND CLEANING ........................................................................... Page 8
INSTRUCTION MANUAL • 3
PRODUCT INTRODUCTION
Air curtains are widely installed at the entrances of supermarkets, theaters, meeting
rooms, hotels, oces, storerooms, etc. They can reduce penetration of insects, dust,
and unconditioned air into a conditioned space by forcing an air stream over the
entire entrance to create a comfortable environment.
INSTALLATION DIMENSIONS
MODEL A B C D E F G H I J
687FM1506SS 23.62 0.98 21.65 --- ---
2.05 5.71 10.24 8.58 5.04
687FM1509PC/SS 35.43
1.18
11.42 22.05 ---
687FM1510PC/SS 39.37 11.42 22.05 ---
687FM1518SS 70.87 11.42 46.30 11.42
NOTE: Measurements are subject to change without notice due to product development.
UNIT MEASUREMENTS (INCHES):
INSTRUCTION MANUAL • 4

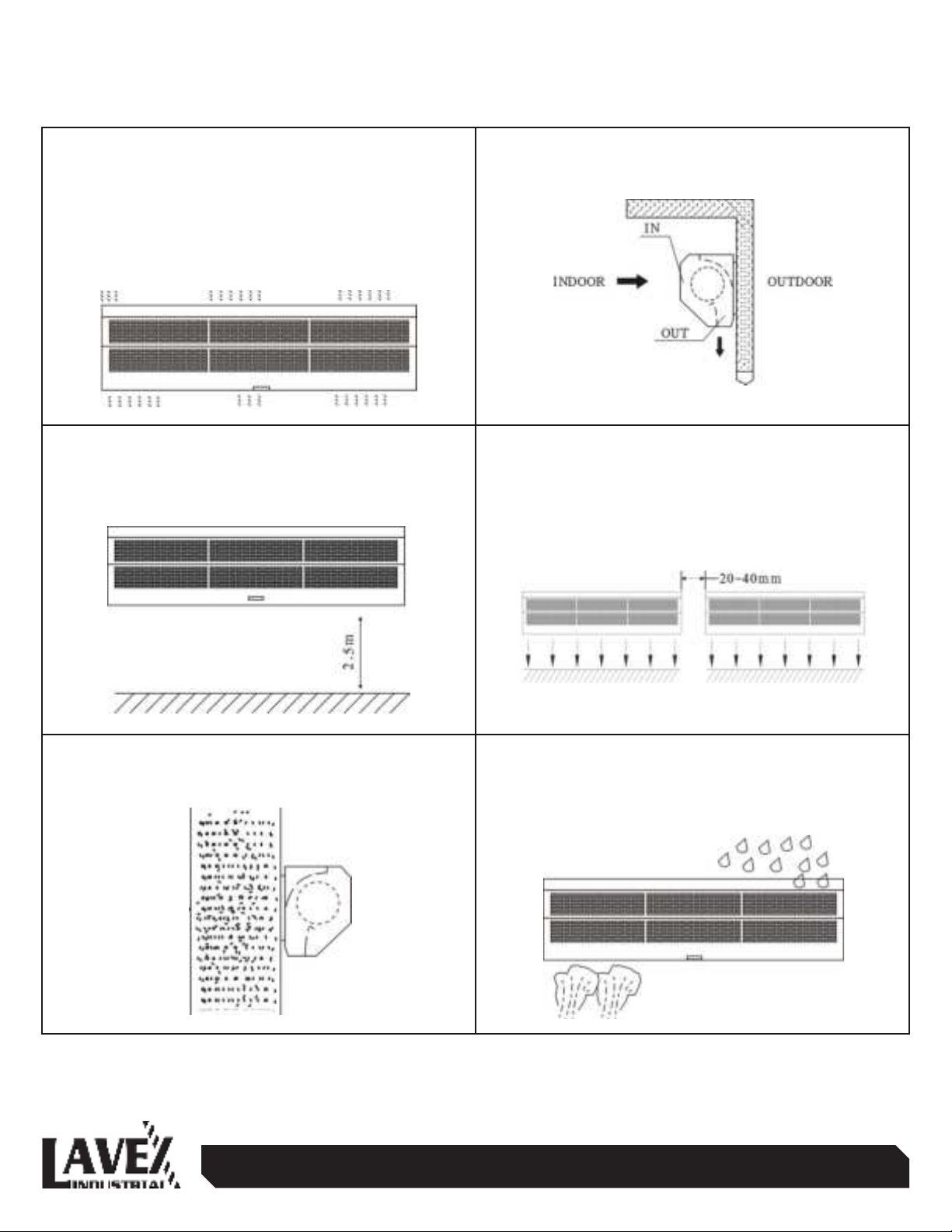

INSTALLATION CAUTIONS
Observe the following when installing air curtains:
1. Please install the unit on a firm support-
ing structure. The mounting plate should be
mounted to at least one wall stud to avoid
shaking and to ensure its security as the unit
running may cause it to become loose or
shake and make noise.
4. When then entrance is wider than the
unit, it is recommended to install two or
more units. In this case, provide 1" to 1½"
gaps between the units.
6. Don’t install the unit at a place where it
is splashed by water, exposed to excessive
steam, explosive gas, or corrosive gas.
2. Please install the unit inside the room.
3. Install the unit no more than 108" from
the ground.
5. Don’t allow gaps between the unit and
the wall.
INSTRUCTION MANUAL • 5

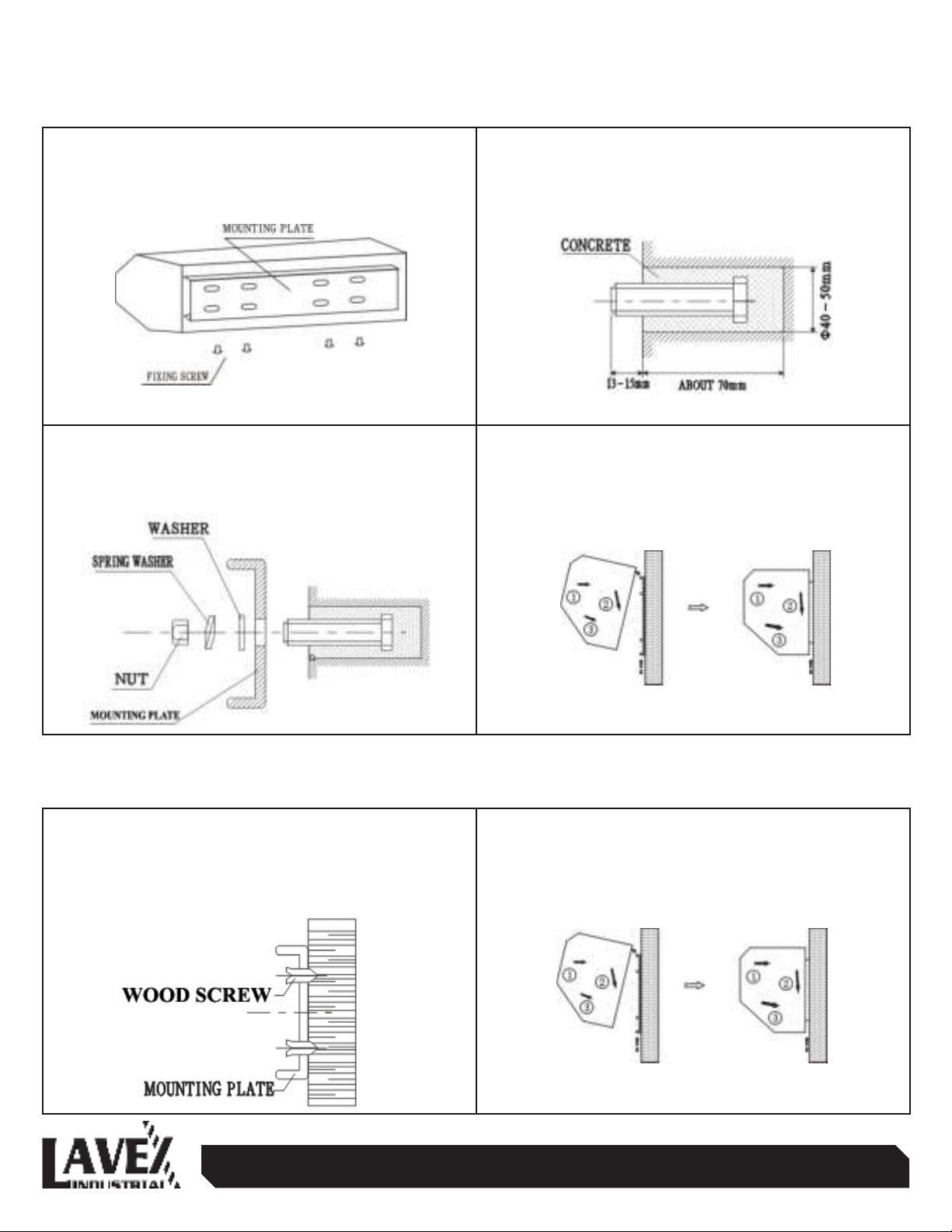

INSTALLATION INSTRUCTIONS
A. Installing on a concrete wall:
B. Installing on a wooden wall:
1. Unscrew the mounting plate and remove
it from the back of the main body.
3. Fix the mounting plate to the wall after
the cement sets (use the washers and nuts
as shown below).
1. Remove the mounting plate from the
back of the main body. Determine the
mounting location and fix the mounting plate
to the wooden wall with tapping screws.
2. Determine the mounting location with
the mounting plate. Fix the bolts in place and
pour cement into the bolt holes.
4. Mount the main body onto the mounting
plate as shown below and screw it back to
the mounting plate.
2. Mount the main body onto the mounting
plate as shown below and screw it back to
the mounting plate.
INSTRUCTION MANUAL • 6
TECHNICAL PARAMETERS
NOTE: Technical parameters are subject to change without notice due to product
development.
C. Installing on a ceiling:
MODEL VOLTAGE
(V~Hz) POWER (W)
MAX AIR VE-
LOCITY (FPM)
AIR VOLUME
(CFM)
NOISE LEVEL
(dB) NET WEIGHT
(LB)
H L H L H L
687FM1506SS
120~60
260
3150 2559
1177 883 67 65 26.5
687FM1509PC/SS 380 1471 1177 69 67 33.1
400
687FM1510PC/SS 1648 1354 71 69 37.5
760
687FM1518SS 2943 2354 76 74 71.7
1. Remove the mounting plate from the
back of the main body.
3. Fix the mounting plate to the ceiling
brackets and tighten it securely as shown
below. The position of the mounting plate
can be adjusted in vertical direction accord-
ing to need, but the max distance is 100mm.
2. Fix the ceiling brackets as shown below.
4. Mount the main body onto the mounting
plate as shown below and screw it back to
the mounting plate.
INSTRUCTION MANUAL • 7
WIRING DIAGRAM
The wires marked “SW” in the wiring diagram are used for the connection of an optional
door limit switch. A 2-wire extension cable (not included) is needed. Please use a cable
gland and a knockout on one side of the air curtain to fix the 2-wire
extension cable.
OPERATING INSTRUCTIONS
1. Connect power to the unit.
2. Push the power switch to the left/right to power on the unit. [L] - Low speed
[H] - High speed.
3. Adjust the air deflector to obtain optimum eect.
INSTRUCTION MANUAL • 8
MAINTENANCE AND CLEANING
WARNING
A. Any service is to be performed only by qualified personnel who are
familiar with local codes and regulations and are experienced with this type
of product.
B. Always unplug or disconnect the appliance from the power supply before
servicing or cleaning the unit.
C. Never use petrol, benzene, thinners, or any other such chemicals to clean
the unit.
D. Don’t allow water or any liquid to enter the motor.
1. Routine maintenance must be done every year.
2. Plastic parts should be cleaned with mild soap and water, thoroughly remove
soap with a clean, damp cloth.
3. Wipe the exterior surfaces of the fan with a moistened cloth with a solution of
mild detergent and water.
4. Dry the case with a soft, dry cloth before operating the unit.
