Lavex 274AFS9ELC User manual

User Manual
PLEASE READ ENTIRE MANUAL BEFORE USE 10/2023
17" 9 Gallon Walk-Behind
Auto Floor Scrubber
#274AFS9ELC

WWW.LAVEX.COM 2
User Manual
Table of Contents
General Safety Rules ....................................................................................................................... 3
Specific Safety Rules ....................................................................................................................... 4
Technical Specifications ................................................................................................................... 5
Installation Instructions ................................................................................................................... 6
Operation & Maintenance ................................................................................................................ 7
Safety Information ......................................................................................................................... 10
Electrical Ground Instructions ............................................................................................................ 10
Component Structure...................................................................................................................... 11
Wiring Diagram ............................................................................................................................. 12
Brush Assembly Diagram.................................................................................................................. 13

WWW.LAVEX.COM 3
User Manual
General Safety Rules
WARNING: Read all safety warnings and instructions prior to use.
Failure to follow all warnings and instructions may result in electric shock, fire, and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term “floor scrubber” in the warnings refers to your corded floor scrubber.
1. WORK AREA SAFETY
a. Keep work area clean and well lit during operation.
b. Do not operate floor scrubber in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust.
c. Keep children and bystanders away while operating a floor scrubber to avoid potential injury.
2. ELECTRICAL SAFETY
a. Floor scrubber plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with
grounded floor scrubbers. Using unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with grounded surfaces, such as pipes, radiators, ranges, and refrigerators.
c. Do not expose floor scrubbers to rain or wet conditions. Water entering the floor scrubber will increase the risk of
electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the floor scrubber. Keep cord away
from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock. Never
operate this unit with a damaged cord.
e. When operating a floor scrubber outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable
for outdoor use reduces the risk of electric shock.
f. If operating a floor scrubber in a damp location is unavoidable, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.
3. PERSONAL SAFETY
a. Stay alert, watch what you are doing, and use common sense when operating a floor scrubber. Do not use a floor
scrubber while you are tired or under the influence of drugs, alcohol, or medication.
b. Always use appropriate personal protective equipment. Always wear eye protection. Protective equipment such as
a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions can reduce
personal injuries.
c. Ensure the switch is in the o-position before connecting to power source, picking up, or carrying the tool.
Carrying floor scrubbers with your finger on the power switch may cause accidents.
d. Make sure that you are balanced and stable before operation. Keep proper footing and balance at all times.
This enables better control of the floor scrubber in unexpected situations.
e Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing, and gloves away from moving
parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
f. Always stay alert during machine operation. A lack of awareness while in use can cause severe injury.

WWW.LAVEX.COM 4
User Manual
4. FLOOR SCRUBBER USE AND CARE
a. Use the correct floor scrubber for your application. The correct floor scrubber will do the job better and safer at
the rate for which it was designed.
b. Do not use the floor scrubber if the switch does not turn it on and o. Any floor scrubber that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect your floor scrubber from the power source before making any adjustments, changing accessories,
or storing the unit. Such preventive safety measures reduce the risk of starting the floor scrubber accidentally.
d. Store idle floor scrubbers out of the reach of children and do not allow persons unfamiliar with the floor scrubber
or these instructions to operate the floor scrubber.
e. Maintain floor scrubbers and accessories. Check for misalignment or binding of moving parts, breakage of parts,
and any other condition that may aect the floor scrubber’s operation. If damaged, have the floor scrubber
repaired before use. Accidents may be caused by poorly maintained floor scrubbers.
f. Only use the floor scrubber and accessories in accordance with these instructions. Always take into account the
working conditions and the work to be performed. Use of the floor scrubber for unintended functions could result
in hazardous situations.
g. Keep handles and grasping surfaces dry, clean, and free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. SERVICE
a. Have your floor scrubber serviced by a qualified repair person using only identical replacement parts. This will
ensure that the safety of the floor scrubber is maintained.
b. If the replacement of the power cord is necessary, this has to be done by the manufacturer or a designated
service organization.
Specific Safety Rules
• For your safety, do not plug in your floor scrubber or try to use it until it is completely assembled according to these
instructions, and until you have completely read and understood this user manual.
• Always keep hands out of the path of floor scrubber. Avoid awkward hand positions where a sudden slip could cause your
hand to move into the floor scrubber.
• Make sure there are no nails or foreign objects in the area that is being cleaned.
• Protect your eyes. Always wear safety goggles while machine is in use to avoid potential eye damage.
• Everyday glasses only have impact resistant lenses and ARE NOT safety glasses. For your own protection, make sure your
safety glasses or goggles comply with the ANSI Z87.1 Safety Standard.
• Never use this floor machine without the provided GFCI.
• Always verify that the GFCI is working correctly before starting work.
• Replacement of the plug or the power cord shall always be carried out by the manufacturer or a designated service orga-
nization.
• Keep liquid clear of the parts of the machine and away from persons in the working area.

WWW.LAVEX.COM 5
User Manual
Technical Specifications
Description Unit Data
Protection Level IPX 3
Operating Voltage VAC 110
Power Frequency VAC 210–230
Vacuum Motor W 550
Suction Vacuum mmH2O 2200
Brush Motor W 600
Brush Speed rpm 180
Noise Level dB ≤75
Solution Tank Capacity Gallon 8
Recovery Tank Capacity Gallon 9
Maximum Solution Supply Gal / min .68
Squeegee Width inch 29.5
Theoretical Working Capacity sq. ft. / hr 1900
Brush Diameter inch 17
Cleaning Width inch 17
Brush Pressure kg.f ≥20
Maximum Gradient % 2
Minimum Turning Radius inch 29.5
Machine Dimension (Without Squeegee) inch 49 x 19.7 x 39.8
*Protection Type: Overload current protection, short circuit, power-down protection, reversed polarity protection

WWW.LAVEX.COM 6
User Manual
Installation Instructions
ASSEMBLING THE SQUEEGEE
• Turn star knobs counterclockwise to loosen from squeegee assembly.
• Insert squeegee assembly blots through squeegee lifting plate slots.
• Tighten star knobs clockwise to fasten assembly.
ASSEMBLING THE BRUSH / PAD DRIVER
• Push down on scrubber handle to lift the front of the scrubber.
• Position brush directly under the clutch plate.
• Rotate brush / pad driver 30 degrees to the left to attach.
• To remove brush / pad driver, rotate 30 degrees to the right.
Fig. 1
Spline Bolt
Squeegeee Lifting Plate
Slot
Bumper Wheel
Wing Nuts
Squeegee Height
Regulating Nut
Suction Inlet
Suction Hose
Star Nuts
Squeegee Height
Regulating Nut
Squeegee
Assembly
Bolt of Star Screw
Three-blade
Plate
Rotate 30° to
the right
Fig. 5Fig. 4
Brush
Assembly
Brush
Motor
Switch
Brush
Rear
Wheel
Brush
Cover
Fig. 3Fig. 2
Rotate 30° to
the left

WWW.LAVEX.COM 7
User Manual

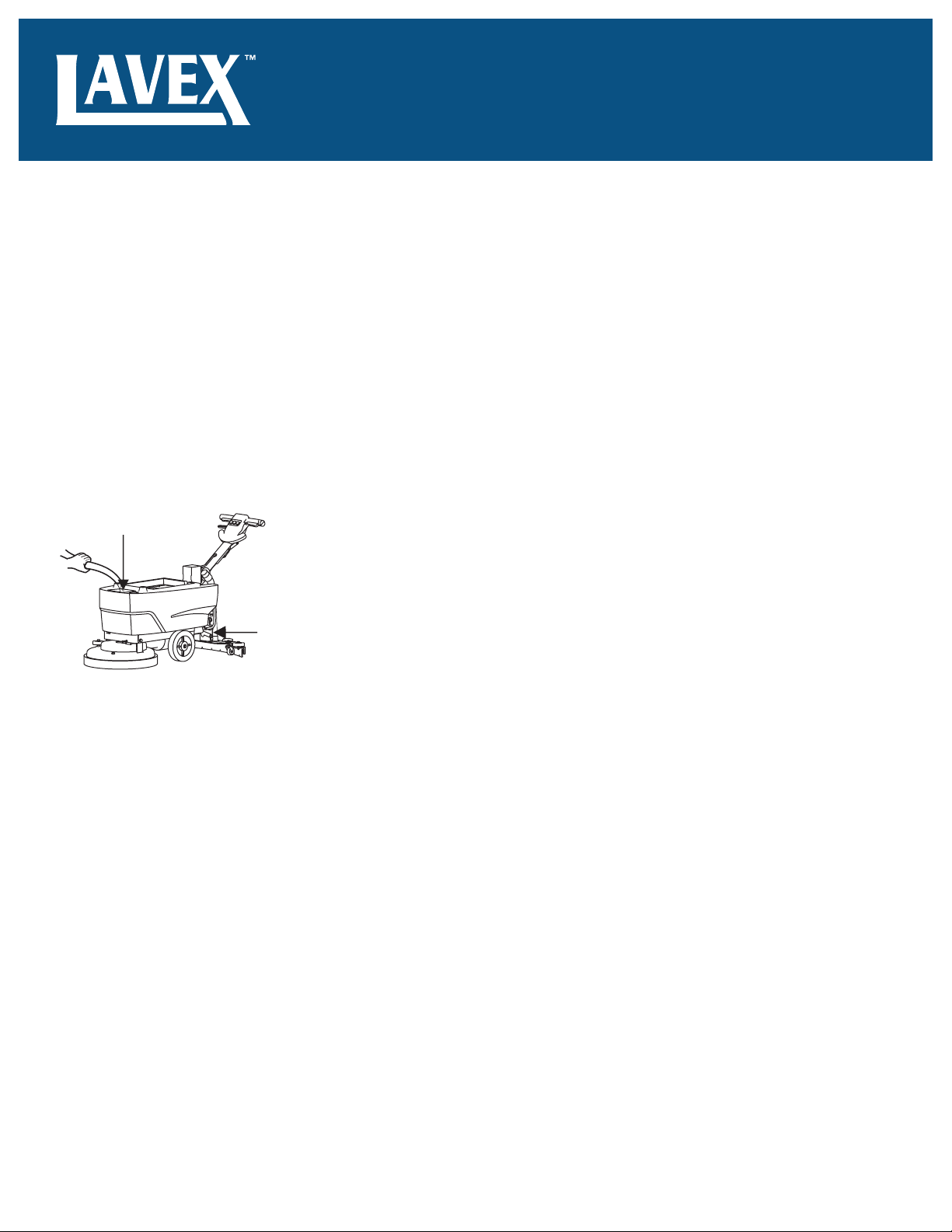

Operation & Maintenance
WARNING: Be sure to read and understand this manual in its entirety before operation.
Failure to do so may result in damage or injury.
PROPER SETUP AND PREPARATION
Ensure that all components are assembled tightly and secured, and that power source matches voltage of your unit.
WARNING: Do not operate this unit near flammable or combustible objects.
For Scrubbing or Polishing:
PREPARATION
OPERATION
• Plug scrubber into properly specified wall outlet.
• Insert machine key and turn.
• Press the power button on the scrubber.
• Press the water button to activate the dispensing pump.
• Press the vacuum switch to activate the vacuum.
• Push squeegee lever down till squeegee is contacting the floor.
• Hold both brush motor switches in the handle to activate the motor.
• Walk slowly when cleaning and pay attention to potential obstacles.
• Always keep power cord behind the machine and do not run over it.
• Check that the brush / pad driver is properly attached to the scrubber.
• Confirm that the squeegee assembly is properly attached and moving freely with the scrubber.
Solution Tank Cover
Solution
Gauge

WWW.LAVEX.COM 8
User Manual
• When complete, lift up the squeegee lever.
• Turn o water.
• Turn o vacuum.
• Turn o machine power.
TO EMPTY WASTE WATER TANK
• Remove discharge hose from scrubber frame.
• Lay hose on appropriate floor drain or sink basin.
• Open Hose.
B. Squeegee Lever
D. Start Switch
Water
ON/OFF
Switch
Vacuuming
C. Function Switches
Squeegee
Lever
1. Take down 2. Bend the hose
4. Lay the hose horizontally 3. Open the hose

WWW.LAVEX.COM 9
User Manual
MAINTENANCE
To clean the recovery tank:
• Place discharge hose over floor drain or sink basin.
• Drain all soiled water.
• Use a hose to flush out recovery tank.
• Allow to air dry.
• Clean strainer.
• Remove debris and any obstructions from cleaning surface before operation.
• Adjust handle to a comfortable position.
• Both hands should always be on the unit when in use.
• Fill solution tank with water or diluted detergent with a maximum temperature of 122°F.
• To extend scrubber life, use detergents with a neutral PH and low foam.
To replace or rotate squeegee:
• Turn star nuts counterclockwise to release squeegee assembly.
• Remove wing nuts to change or rotate squeegees.
• Re-tighten wing nuts and star nuts.
Strainer
Clean the recovery tank
Fig. 12 Fig. 13
Retaining Plate
Front Squeegee
Star Nuts
Rear Squeegee
Retaining Plate
Wing Nuts

WWW.LAVEX.COM 10
User Manual
Safety Information
Failure to follow the instructions below could lead to damage or personal injury
1. This unit is for commercial janitorial use only, you must be trained before operating unit.
2. Do not operate unit unless it is completely assembled, and you have ensured that every component is
secured tightly.
3. This unit is intended for use with 110–120V power sources only. Always use a 3-wire grounded power supply.
4. Ensure that the unit is unplugged and dry before performing maintenance or repairs. Never leave the unit plugged into
a power source while unattended.
5. Ensure that the unit is kept dry at all times during operation. Store unit in a dry area, and only perform cleaning with a
dry cloth.
6. Do not use unit near flammable objects, liquids, or vapors. Do not use flammable compounds to clean the unit.
7. Maintenance is to be performed by qualified professionals only.
8. Ensure that the unit's power cord is free of damage before each use. Do not run the machine over the power cord, and
avoid abruptly pulling or tugging on the power cord while unit is in use.
Electrical Ground Instructions
Ensure that this rotary floor scrubber is grounded while in use to protect the user from electric shock. The unit is
equipped with a three-conductor cord and three-prong plug that is to be connected to a grounded electrical outlet. The
green (or green and yellow) conductor in the power cord is the grouding wire – ensure that this wire is only plugged in
to the grounding pin of the plug.

WWW.LAVEX.COM 11
User Manual
Component Structure
Operation Handle
Star Switch
Handle Adjustment Switch
Squeegee Lever
Drain Hose
Suction Hose
Vacuum Hose
Power Cable Head
Solution Gauge
Squeegee Assembly
Rear Wheel
Bumper Wheel
Front Wheel
Brush
Solution Tank
Recovery Tank
Recovery Tank Lid
1
1
6
6
11
11
16
16
2
2
7
7
12
12
17
17
3
3
8
8
13
13
4
4
9
9
14
14
5
5
10
10
15
15

WWW.LAVEX.COM 12
User Manual

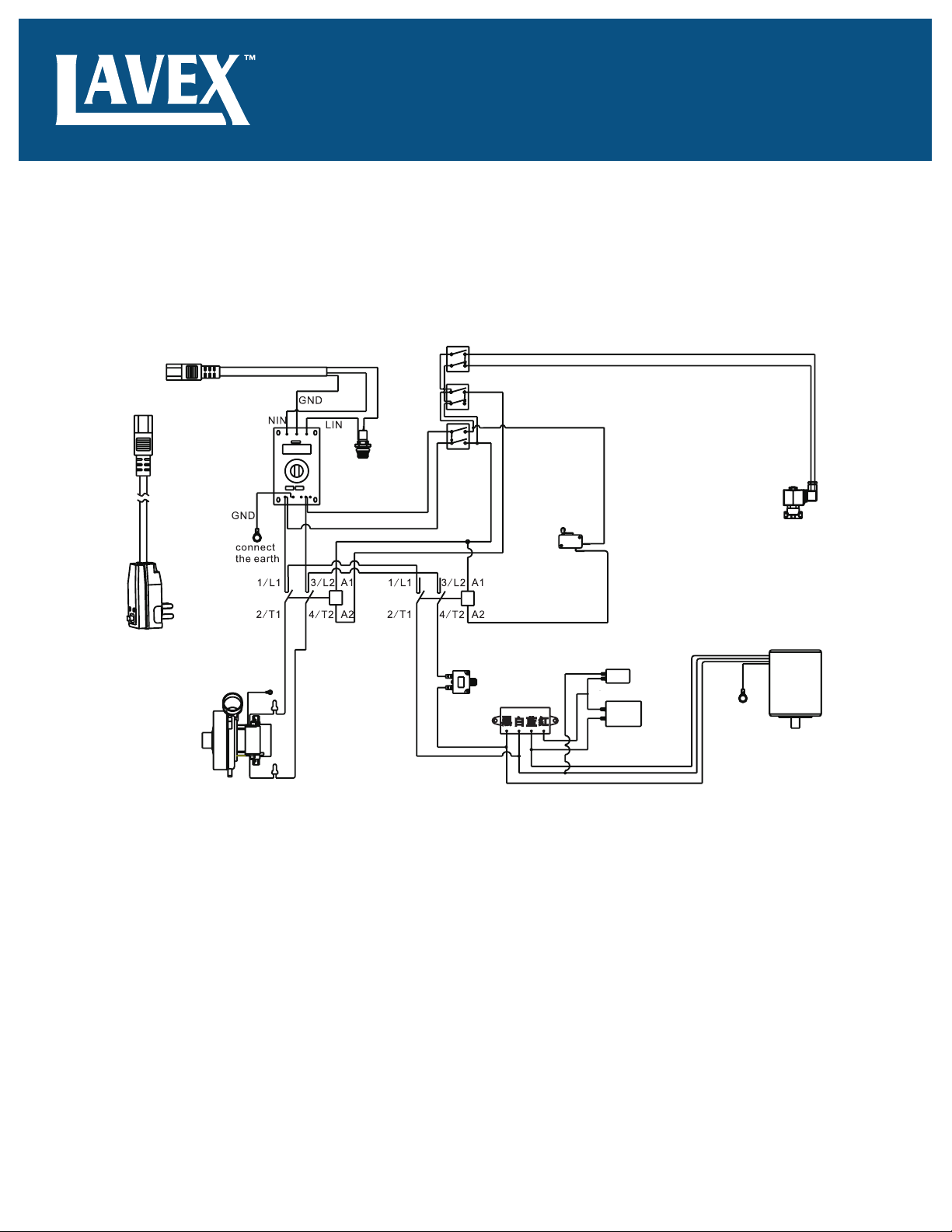

Wiring Diagram
Vacuum Motor
Brush Motor
Connect
the Earth
Solenoid
Valve
Running
Capacitor
Brush
Motor
Switch
ON/OFF
Switch
Fuse
Vacuum
Switch
Solenoid
Valve Switch
Overload
Protector
Starting
Capacitor
Electric Leakage
Protection Plug
Brown
Brown
Brown
Red
Black
White
Blue
Brown
Blue
Yellow Green
Blue
L OUT
N OUT

WWW.LAVEX.COM 13
User Manual
Brush Assembly Diagram
Bumper Wheel
Brush Motor
Fixed Buckle
Brush Plate
Brush
Brush Cover
