Lavor FF45 Training manual

Model Numbers
FF70 / FF125 / FF175 / FF215
© 2020 Lavorwash Australia Pty Ltd
7/76 Rushdale Street, Knoxfield, Vic. 3180
User’s Manual &
Operating Instructions
CONSUMER: READ AND SAVE THESE INSTRUCTIONS
GENERAL HAZARD WARNING:
READ AND UNDERSTAND ALL OF THE INSTRUCTIONS IN THIS MANUAL
BEFORE ASSEMBLING, STARTING, OR SERVICING THE HEATER. Be sure to comply with the
instructions and warnings provided with this heater. Failure to comply can result in fire or explosion
that can cause property loss, bodily injury, or loss of life. Only persons who can follow and
understand these instructions should operate or service this heater.
DANGER
NOT FOR USE IN RESIDENTIAL LIVING AREAS OR IN ENCLOSED SPACES
WITHOUT ADEQUATE VENTILATION. INDOOR USE PERMITTED ONLY FOR
THE TEMPORARY HEATING OF BUILDINGS OR STRUCTURES UNDER CONSTRUCTION,
ALTERATION OR REPAIR. This is an unvented portable heater that uses air (Oxygen) from within
the area in which it is used. Failure to provide adequate combustion and ventilation air will result in
asphyxiation, carbon monoxide poisoning, bodily injury or death. Refer to “Ventilation” on Page 7.
DANGER
This appliance shall be installed in accordance with the rules in force,
and used only in sufficiently ventilated space. Consult instructions before
installation and use of this appliance.
WARNING
FACTORY ID: 500
LWKF-400
FF70 FF125 FF175

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
1
Table Of Contents
Safety Information.............................................1-2
Features and Specications.................................3
FF45 and FF70 Assembly....................................4
125 / 175 / FF215 Assembly...........................5-6
Operation..............................................................8
Ventilation.............................................................7
Maintenance....................................................9-11
Wiring Diagram...................................................11
Troubleshooting Guide.......................................12

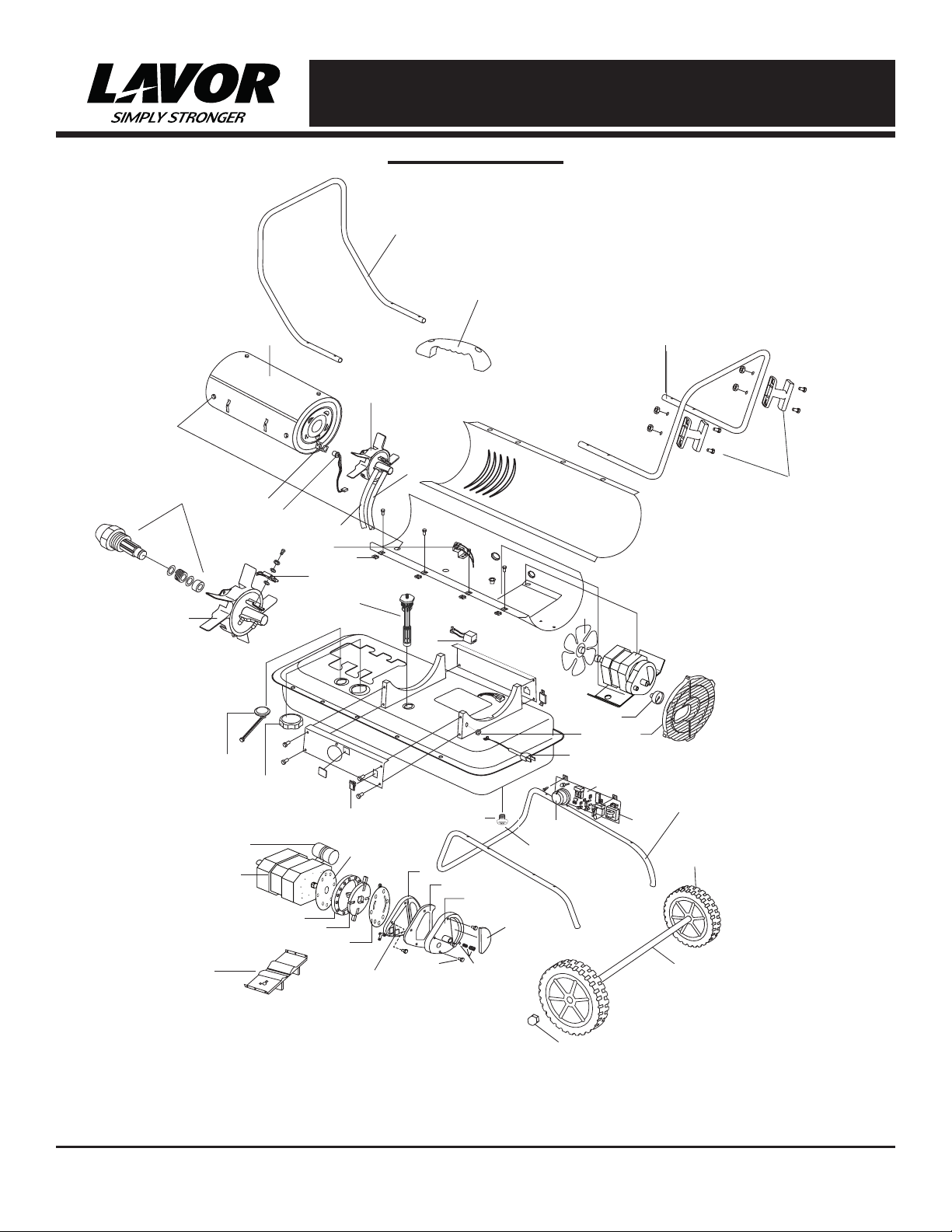

Exploded View...................................................13
Parts List............................................................14
Safety Information
FIRE, BURN, INHALATION AND EXPLOSION HAZARD. Keep combustibles such
as; building materials, paper or cardboard a safe distance away from the heater
as recommended by these instructions. Never use the heater in spaces which contain products
such as gasoline, solvents, paint thinners, dust particles, volatile or airborne combustibles or any
unknown chemicals. This is an unvented portable heater. It uses air (Oxygen) from the area in
which it is used. Adequate combustion and ventilation air must be provided. Refer to “Ventilation”
on page 7. Bulk fuel storage should be a minimum of 25 feet from heater.
WARNING
DO NOT OPERATE THIS HEATER UNTIL YOU HAVE READ AND THOROUGHLY
UNDERSTAND THESE SAFETY AND OPERATING INSTRUCTIONS.
Failure to comply with the precautions and instructions provided with this heater can result in death,
serious bodily injury, property loss or damage from the hazards of fire, soot production, explosions,
burns, asphyxiation or carbon monoxide poisoning. Only persons who can read and understand
these instructions should use or service this heater.
WARNING
Look for this icon throughout the manual for helpful tips on how to
assemble, use and clean your KFA Heater.
DO NOT START THE HEATER WHEN EXCESS OIL HAS ACCUMULATED.
WARNING
DO NOT START THE HEATER WHEN THE CHAMBER IS HOT.
WARNING
THE INSTALLATION OF THIS HEATER SHALL COMPLY WITH THE REGULATIONS OF THE
AUTHORITIES HAVING JURISDICTION.
Read The Instruction manual: When this symbol is
marked on a product, it means that the instruction
manual must be read.
WARNING! Never touch heater until heater
has cooled off.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience or and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
2
Safety Information
The products described in this manual are
parafn direct-red, forced air heaters. Kerosene
forced air heaters are primarily intended for
use for temporary heating of buildings under
construction, alteration or repair. Direct-red
means that all of the combustion products of the
heater enter the heated space. This appliance
is rated at 98% combustion efciency, but does
produce small amounts of carbon monoxide.
Carbon monoxide is toxic. Humans can tolerate
only small amounts of carbon monoxide and so
precautions should be taken to provide proper
ventilation. Failure to provide proper ventilation
in accordance with the instructions in this manual
can result in death.
People with breathing problems should consult a
physician before using this heater.
Early signs of carbon monoxide poisoning
resemble the u. Symptoms of improper
ventilation / carbon monoxide poisoning are:
Headache • Dizziness • Nausea • Dry Mouth
Sore Throat •Burning of Nose and Eyes
If you experience any of these symptoms:
GET FRESH AIR AT ONCE! Have your heater
serviced and check for proper ventilation. Some
people are more affected by carbon monoxide
than others. These include: pregnant women,
those with heart or lung problems, anemia or those
under the influence of alcohol or at high altitudes.
Not For Indoor Use. Indoor use permitted only
for the temporary heating of buildings under
construction, alteration or repair!
Provide at least a three square foot (2,800 sq
cm) opening of outside air for every 100,000
Btu / Hr heater rating. Refer to “Ventilation” on
page 7 for further instructions.
ALWAYS use only the electrical power (voltage and
frequency) specified on the model plate of the heater.
ALWAYS use only approved, grounded socket and
properly rated extension cables.
ALWAYS unplug the heater when not in use.
ALWAYS install the heater so that it is not directly
exposed to water spray, rain, dripping water, or wind.
If the supply cord is damaged, it must be
replaced by a special cord or assemble available
from the manufacturer, its service agent or
similarly qualied persons in order to avoid a
hazard
NEVER use fuels such as gasoline, benzine, paint
thinners or other oil compounds in this heater.
NEVER refill the heater’s fuel tank while the
heater is operating or still hot. This heater is
EXTREMELY HOT while in operation.
NEVER block air inlet (rear) or air outlet (front).
NEVER use duct work in front or rear of heater.
NEVER move or handle heater while still hot.
NEVER transport heater with fuel in tank.
NEVER use with an external fuel tank.
Keep all combustible materials away from this heater.
Minimum Clearance From Combustibles
FF45 FF70 FF125 FF175 FF215
Top 4 ft (122 cm) 4 ft (122 cm) 4 ft (122 cm) 4 ft (122 cm) 4 ft (122 cm)
Sides 4 ft (122 cm) 4 ft (122 cm) 4 ft (122 cm) 4 ft (122 cm) 4 ft (122 cm)
Front 8 ft (244 cm) 8 ft (244 cm) 8 ft (244 cm) 8 ft (244 cm) 8 ft (244 cm)
ALWAYS locate heater on a stable and level surface.
If your heater is equipped with a thermostat,
once it is plugged in, it can start at anytime in
accordance with the thermostat setting.
RISK OF INDOOR AIR
POLLUTION!
WARNING
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
WARNING
RISK OF BURNS, FIRE AND
EXPLOSION!
WARNING
RISK OF ELECTRIC SHOCK!
WARNING
CAUTION! HOT WHILE IN
OPERATION. DO NOT TOUCH.
KEEP CHILDREN, ANIMALS, CLOTHING AND
COMBUSTIBLES AWAY FROM HEATER.
WARNING

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
3
Specications
Features
Model # FF45 FF70 FF125 FF175 FF215
Rating: kW 13.2 20.5 36.6 51.3 63.0
Fuel Consumption: L/Hr 1.32 2.00 3.60 5.07 6.17
Fuel Tank Capacity: Liters 19 19 38 49 49
Pump Pressure: PSI /BAR 3.0 / 0.21 3.7 / 0.26 4.5 / 0.31 7.5 / 0.52 8.0 / 0.55
Volts: AC/Hz 240VAC / 50Hz 240VAC / 50Hz 240VAC / 50Hz 240VAC / 50Hz 240VAC / 50Hz
Phase Single Single Single Single Single
Specications subject to change without notice.
Hot Air Outlet Upper Shell
Lower Shell
Fuel Tank
Fan Guard
Pressure Gauge
Fuel Gauge
Fuel Cap
Side Cover
Thermostat Knob
(HK070F only)
Lamp
Power Cord
Power/Reset Switch
Handle Extension
Cord Wrap
Hot Air Outlet
Lower Shell
Upper Shell Digital
Temperature
Display
Front Handle
Extension
Cord Wrap
Rear Handle
Fan Guard
Pressure
Gauge
Fuel
Gauge
Fuel Cap
Power Cord
Power/Reset Switch
Lamp
Side Cover
Thermostat Knob
Fuel Tank
Drain Bolt
Models: FF45 / FF70
Models: FF125 / FF175 / FF215
Figure 1
Figure 2

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
4
Assembly Instructions
Models: FF45 / FF70
What’s In The Box
Cord Wraps (2) Carry Handle (1) Black Screws (2); White Screws (2)

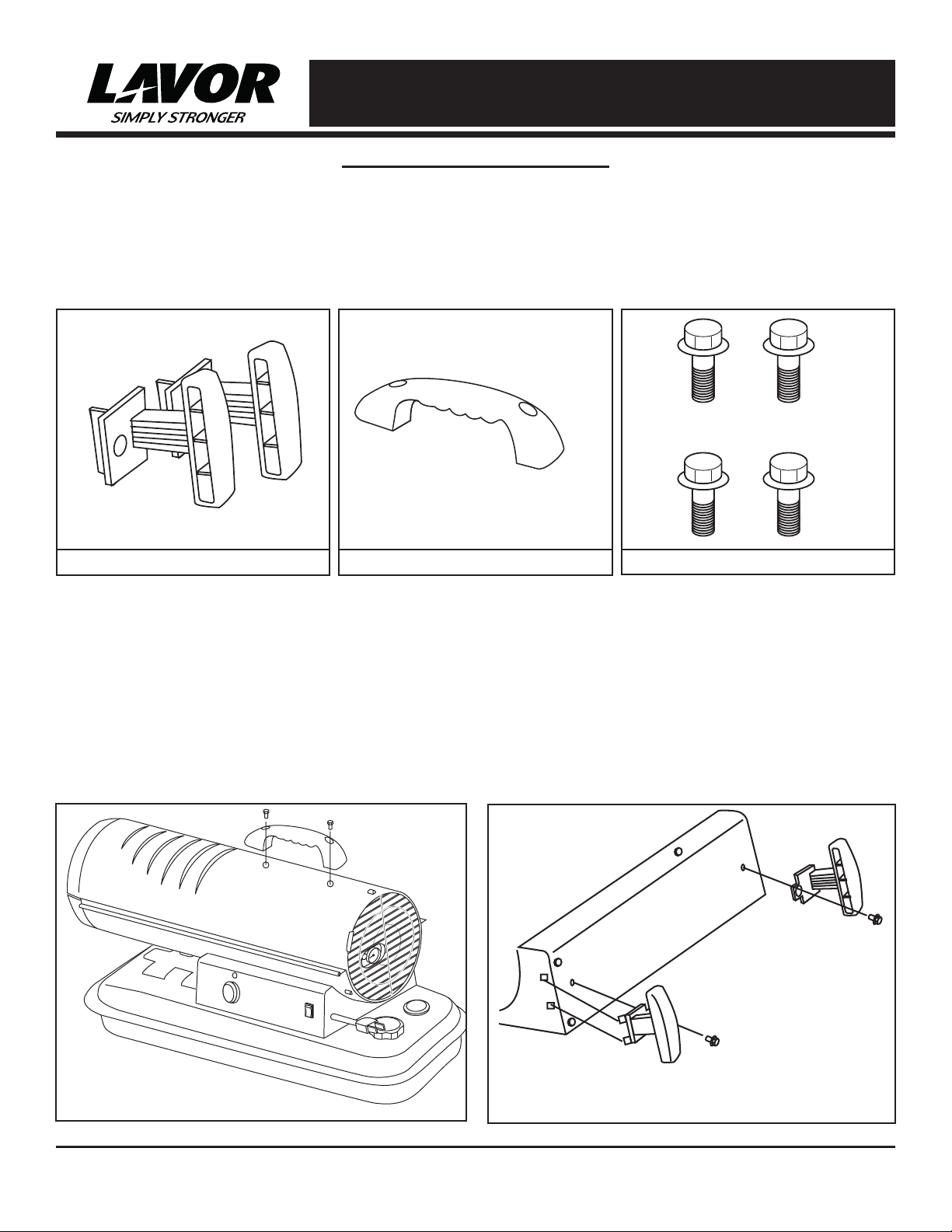

Carry Handle Assembly
1. Align holes in the upper housing with the 2
holes in the handle as shown in Figure 3.
2. Insert screws and tighten firmly.
Cord Wrap Assembly
1. Insert tabs into square slots in shell support
and line up screw holes as shown in Figure 4.
2. Insert screws and tighten firmly.
Tools Needed:
- Phillips Head Screw Driver
Figure 3 Figure 4
- Remove the heater and all packaging materials
from the shipping carton
Note: Save the box and packaging materials
for future storage.

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
5
- Remove the heater and all packaging
materials from the shipping carton.
Tools Needed:
- Phillips Head Screw Driver
- 8 mm open end wrench
- 19 mm open end wrench
Assembly Instructions
Models: FF125 / FF175 / FF215
What’s In The Box
Wheels (2) Axle Nuts (2) Spacers (2)
Front Handle
Axle
Rear Handle
Wheel Support Frame
Tip: Be sure to remove the axle from the
side of the Styrofoam packaging. Tip: Use a power screwdriver and
locking wrench for easier assembly.
8mm Nuts (8)30mm Screws (4)
50mm Screws (4)

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
Assembly Instructions
Models: FF125 / FF175 / FF215

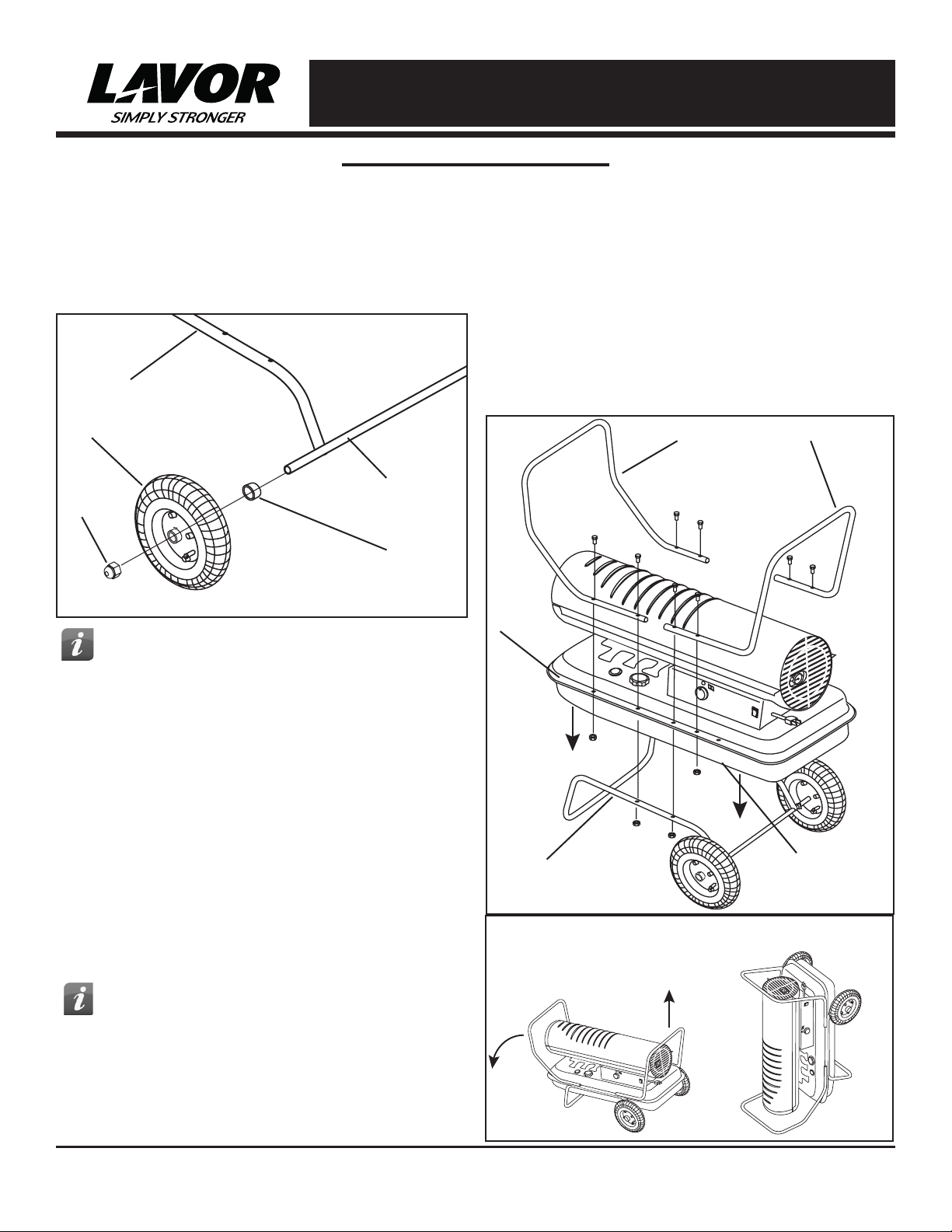

1. Insert axle through holes in wheel support.
2. Slide washer, then spacer onto axle.
3. Slide wheel onto axle and hold in place with the
axle nuts. (See Figure 5).
4. Place heater on wheel support and line up holes
on the fuel tank lip.
5. Attach front handle with (2) long screws
(50 mm) and (2) nuts through the second hole
from the front on both sides of the tank lip and
wheel support frame and tighten firmly.
6. Insert (2) short screws (30 mm) through the first
hole from the front in the tank lip and tighten
firmly. Make certain all (4) screws are secure.
7. Attach rear handle with (2) long screws
(50 mm) and (2) nuts through the third hole from
the rear of the heater on either side. (See Figure
6)
8. Tilt the heater up gently so it is resting on the
front handle.
NOTE: DO NOT do this if there is fuel in the tank.
9. Remove the wheels to secure the second set of
screws through the rear handle.
10. Secure the rear handle with (2) short screws (30
mm) and (2) nuts and tighten firmly
11. Replace wheels and tighten with the wheel nuts.
12. Tilt heater back down onto wheels and check all
screws and nuts to make sure they are secure.
Figure 5
Axle
Axle Nut
Spacer
Tire
Wheel Support Frame
6
Tip: Do not tighten the nuts fully. You will
need to remove the wheels in a later step.
Tip: You will secure the back of the rear
handle in a later step by tilting the heater
up the front handle as shown in figure 7
Figure 6
Front Handle Rear Handle
Unused Hole
Wheel Support Frame
Tank Lip
Figure 7
1 2

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
Operation
Fueling The Heater:
Parafn
For optimal performance of this heater, it is
strongly suggested that parafn be used.
parafn has been rened to virtually eliminate
contaminants, such as sulfur, which can cause
a rotten egg odor during the operation of the
heater. Using diesel fuel can cause excess soot
production. Do not use Bio-Diesel as this fuel will
damage your heater’s seals and lter.
- NEVER use fuel such as benzene, alcohol, white
gas, camp stove fuel, paint thinners, or other oil
compounds in this heater. THESE ARE VOLATILE
FUELS THAT CAN CAUSE A FIRE OR
EXPLOSION.
- NEVER store kerosene in the living space.
Kerosene should be stored in a well ventilated area
outside the living area.
- NEVER store kerosene in direct sunlight or near a
source of heat.
- NEVER use kerosene that has been stored from
one season to the next. Kerosene deteriorates
over time. OLD Kerosene WILL NOT BURN
PROPERLY IN THIS HEATER.
NOTE: Kerosene should only be stored in a blue
container that is clearly marked “Kerosene.”
Never store kerosene in a red container. Red is
associated with gasoline.
Ventilation:
- Risk of indoor air pollution and Carbon
Monoxide Poisoning. Use heater only in well
ventilated areas.
- Refer to Safety Information on pages 1-2 for
information about Carbon Monoxide Poisoning.
- ALWAYS provide a fresh air opening in the heated
space of at least 2,800 cm
2
for each 29 kW of
heater output. Provide a larger opening if more
heaters are being used.
Minimum Ventilation Opening Needed
FF45 FF70 FF125 FF175 FF215
1.4 ft.² 2.1 ft.² 3.8 ft.² 5.3 ft.² 6.5 ft.²
1300 cm² 1951 cm² 3530 cm² 4924 cm² 6039 cm²
NEVER FILL THE FUEL TANK
INDOORS. ALWAYS FILL
THE TANK OUTDOORS. BE SURE THAT
THE HEATER IS ON LEVEL GROUND WHEN
FUELING, AND NEVER OVERFILL THE TANK.
CAUTION
NEVER REFUEL THIS HEATER
WHILE IT IS HOT OR
OPERATING. FIRE OR EXPLOSION COULD
RESULT.
DANGER
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
DANGER
7
DO NOT USE GASOLINE OR
CRANKCASE DRAININGS.
WARNING
This appliance is designed to
operate safely at a minimum
ambient temperature of -20° C.
WARNING
Use caution when servicing in
wet areas. Disconnect power
from the power mains and keep all electrical
components from becoming wet. Only a
qualified technician should service the
heater
WARNING
A qualified technician is
required to install, adjust and,
where necessary, convert this heater for use
with other fuel types.
WARNING

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
Operation
Starting the Heater: (Ignition)
1. Fill the tank with kerosene or other approved
fuel until needle on fuel gauge points to “F”.
2. Replace fuel cap and tighten firmly.
3. Connect the heater to a three prong
(grounded) power source. You must use a
three prong (grounded) extension cord that is
at least 1.8 meters long and is properly rated
for this service.
Model FF45:
1. Complete steps 1-3 above.
2. Move power switch to “On” position. The
power indicator light will illuminate and the
heater will ignite. (See Figure 9)
NOTE: If if the heater still does not ignite, refer to
“Troubleshooting Guide” on page 12.
Stopping / Restarting Heater:
- To stop the heater, move the power switch to the
“Off” position and unplug the power cord.
- To restart the heater; wait 10 seconds and follow
ignition steps.
Models FF70 / FF125 /
FF175 / FF215:
1. Complete “starting heater ignition” steps 1-3
above.
2. Turn thermostat control knob to desired
temperature setting. The thermostat set range
is from 4.5 ºC to 43.4 ºC.
3. Move power switch to “On” position. The
power indicator light and room temperature
display will illuminate and heater will ignite.
(See Figure 10)
NOTE: If if the heater still does not ignite, refer to
“Troubleshooting Guide” on page 12.
NOTE: The FF45 and FF70 do not have
a room temperature display feature.
The room temperature display will indicate the
following:
- When the temperature is less than -17.8 ºC the
display says “LO”.
- When the temperature is more that 37.3 ºC the
display says “HI”.
- Between -17.8 °C and 37.3 °C the display shows
actual temperature.
Stopping / Restarting Heater:
- To stop the heater, move the power switch to the
“Off” position and unplug the power cord.
- To restart the heater; wait 10 seconds and follow
ignition steps.
Figure 9
Power Switch
Power Switch
Thermostat Knob
Temperature Display
Figure 10
8
TIP: If the heater does not ignite; move
switch to “Off” position, check steps 1-3
above and then move switch to “On” position.
TIP: If the heater does not ignite, the
thermostat may be set too low. Turn
the control knob to a higher setting until the
heater ignites. If the heater does not ignite;
move switch to “Off” position, check steps 1-3
above and then move switch to “On” position.

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
Maintenance
Long Term Storage:
Models FF45 / FF70:
1. Use an approved siphon to drain fuel through the
fuel cap opening.
Models FF125 / FF175 / FF215:
1. Drain fuel through the drain hole in the bottom
of the fuel tank.
2. To remove the drain bolt, unsrew the drain
bolt counterclockwise and remove from the
drain hole in the tank. (See Figure 11)
3. Using a small amount of parafn, rinse and
swirl the kerosene inside of the fuel tank,
empty the tank fully.
4. To replace the drain bolt; push the drain head
fully into the drain hole and screw clockwise.
(See Figure 12)
IMPORTANT: Never store leftover parafn between
seasons, using old fuel can damage heater.
Service:
DO NOT TAMPER WITH THE UNIT. HAVE
A COMPETENT SERVICEMAN MAKE ANY
NECESSARY ADJUSTMENT OR REPAIRS.
Use only original equipment parts. The use of
alternate or third party components can cause unsafe
operating conditions.
We suggest following a maintenance schedule as follows:
FUEL / FUEL TANK:
Flush tank every 200 hours of operation or as needed.
DO NOT ush with water, use fresh parafn only.
AIR FILTERS:
The air intake lter should be replaced or washed
with soap and water and dried thoroughly every 500
hours of operation or less depending on conditions.
The output and lint lters should be replaced
every 500 hours of operation or less depending
on conditions.
NOTE: Use of diesel fuel may require
additional maintenance
Drain Bolt
Figure 11
Drain Bolt
Drain Bolt
(Bottom-Back of Fuel Tank)
Figure 12
Air Output Filter
Intake Filter
Lint Filter End Filter
Figure 13
9
TIP: Follow the long term storage
instructions to ush the tank.
Never service heater while it is
plugged in or hot!
WARNING

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
Maintenance
Service (Continued):
FAN BLADES:
Blades should be cleaned at least once per
heating season, depending on conditions.
Remove all accumulated dust and dirt with a
damp cloth, taking care not to bend any of the
fan blades. Be sure the blades are dry before
re-starting the heater. For fan assembly removal
see Figure 14.
FUEL FILTER:
The fuel filter should be cleaned at least
twice per heating season. Clean the filter by
rinsing it in clean kerosene. Contaminated fuel
could make cleaning the fuel filter necessary
immediately.
NOTE: To remove the filter from models
45 / FF70 turn filter 90º clockwise. To remove
the filter from models 125 / 175 / FF215 turn
filter 90º counter-clockwise. See Figure 15.
SPARK PLUG:
Clean and re-gap every 600 hours of operation, or
replace as needed. After removing the spark plug,
clean the terminals with a wire brush. Re-gap the
terminals to 0.140” (3.5mm) See Figure 16.
PHOTOCELL:
The photocell should be cleaned using a cotton
swab dipped in alcohol or water at least once
per heating season, or more depending on
conditions. See Figure 17.

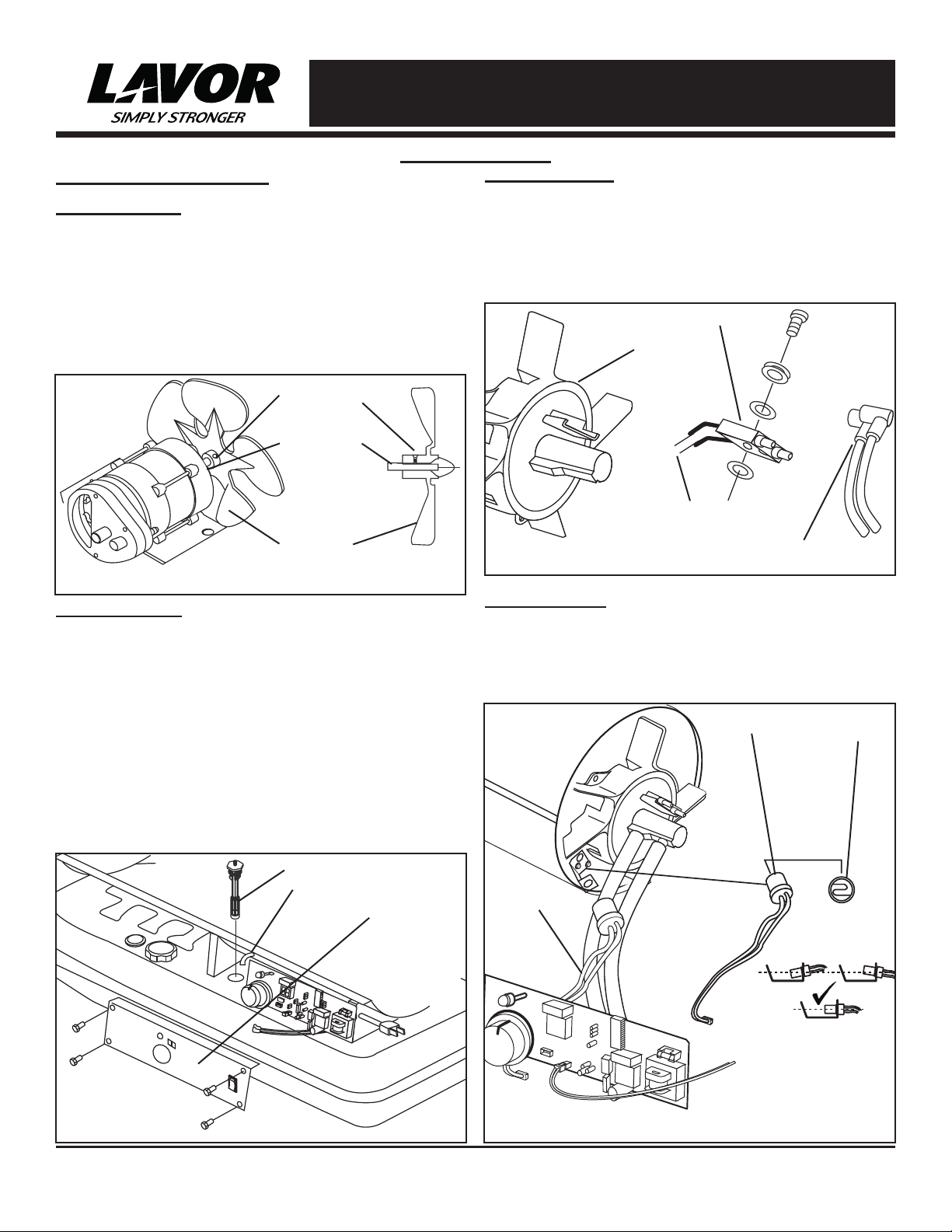

Figure 14
Fan Blade
Motor Shaft
Set Screw
Figure 15
Fuel Filter
Fuel Line
Side Cover
Figure 16
Ignitor Wire
Spark Plug
Gap
Burner Head
XX
Figure 17
Photocell Photocell lens
Photocell Wire
10

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
Wiring Diagram
CONTROL PCB
POWER LAMP
(LED)
CN1 RED
RED
BLACK
BLUE
BLACK
BLACK
BLUE
RED
EARTH
GREEN
SPARK PLUG
IGNITOR
PUMP
MOTOR
CAPACITOR
3.5UF/450VAC
FAN 1
FAN 2
ACIN 1
WHITE
WHITE
EARTH
BLACK
WHITE
BLACK
GREEN
POWER
PLUG
AC 240V
50Hz
LIMIT
CONTROL
POWER
SWITCH
PHOTOCELL
BLACK
BLACK
CDSCN2
YELLOW
FUSE
5A/250AVC
ACIN 2
Maintenance
PUMP PRESSURE:
While heater is operating, turn adjusting screw
clockwise to increase, counter-clockwise to
decrease pressure. Correct pump pressure is as
follows:
Model Number Pump Pressure
FF45 3.0 PSI / 0.21 BAR
FF70 4.0 PSI / 0.28 BAR
FF125 4.5 PSI / 0.31 BAR
FF175 7.5 PSI / 0.52 BAR
FF215 8.0 PSI / 0.55 BAR
Tolerance ± 10%
NOZZLES:
Nozzles should be cleaned or replaced at least
once per heating season. Contaminated fuel could
make this necessary immediately. To clean dirt
from nozzle, blow compressed air through nozzle
front. It may be necessary to soak the nozzle in
paraffin to loosen any dirt particles.

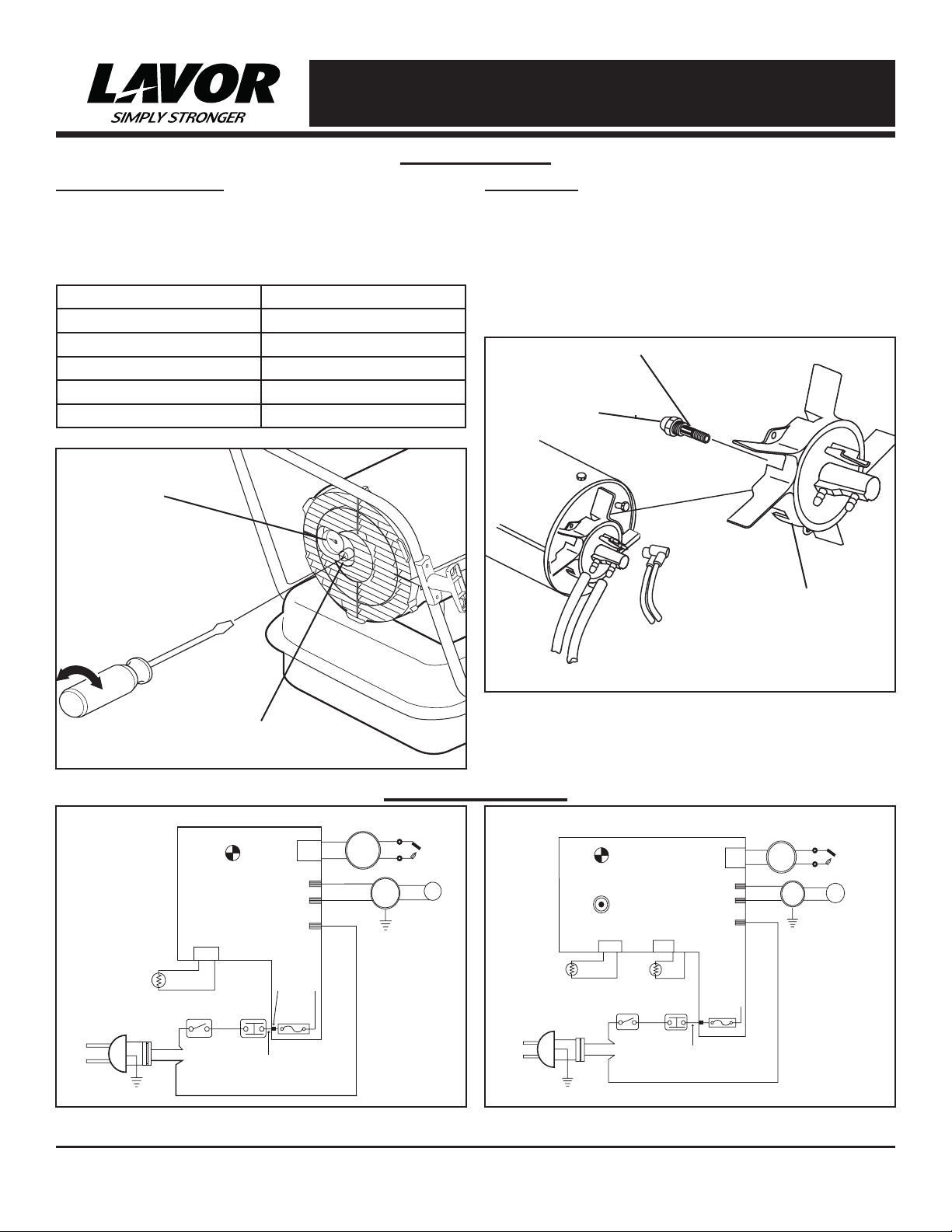

Figure 18
Adjusting Screw
Pressure Valve
Figure 19
Nozzle
Nozzle Face
Burner Head
11
Figure 20: FF45 Figure 21: FF70 / FF125 / FF175 /
FF215
CONTROL PCB
CN1
ORANGE
PINK
BLACK
BLACK
BLACK
WHITE
EARTH
GREEN
SPARK PLUG
IGNITOR
PUMP
MOTOR
CAPACITOR
3.5UF/450VAC
(HK070F)
7uF/450VAC
(HK125FW)
(HK175FW)
(HK215FW)
MOTOR 1
MOTOR 2
ACIN 2
*
*
*
BLUE: HK070F
RED: HK125FW / HK175FW /
HK215FW
ACIN 1
FUSE
5A/250VAC
GREEN
EARTH
BLACK
WHITE
AC 240V
50Hz
POWER
PLUG
BLACK
POWER
SWITCH
LIMIT
CONTROL
PHOTOCELL
BLACK
BLACK
YELLOW
WHITE
WHITE
BLACK
BLACK
ROOM
SENSOR
R-TH
CN2CN3 CDS
POWER LAMP
(LED)
THERMOSTAT
(TEMP. CONTROL
NOTE:
Models 125 / 175 / HK215FW-A
have a digital display.
FF70
FF125 / FF175 / FF215
(FF70)
(FF125)
(FF175)
(FF215)
FF125, FF175, FF215

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
12
Troubleshooting Guide
Problem Possible Cause Solution
Heater Ignites, but main PCB shuts
off after a short period of time.
Lamp ickers and LED display
shows “E1”.
1. Incorrect pump pressure.
2. Dirty input, output or lint lter.
3. Dirty fuel lter.
4. Nozzle is dirty.
5. Photocell lens is dirty.
6. Photocell not installed properly.
7. Photocell is defective.
8. Improper electrical connection
between main PCB and photocell.
1. Adjust pump pressure.
2. Clean / replace air or lint lter.
3. Clean / replace fuel lter.
4. Clean / replace Nozzle.
5. Clean / replace photocell.
6. Adjust photocell position
7. Replace photocell
8. Check wiring connections
(see wiring diagrams on page 11).
Heater will not operate or motor
runs for a short time.
Lamp ickers and LED display
shows “E1”.
1. No parafn in the fuel tank.
2. Incorrect pump pressure.
3. Corroded spark plug or incorrect
plug gap.
4. Dirty fuel lter.
5. Dirty nozzle.
6. Moisture in fuel tank.
7. Improper electrical connection
between transformer and circuit
board.
8. Ignitor wire not connected to spark
plug.
9. Defective ignitor.
1. Fill tank with fresh parafn.
2. Adjust pump pressure.
3. Clean / replace spark plug.
4. Clean / replace fuel lter.
5. Clean / replace nozzle.
6. Rinse fuel tank with clean, fresh
parafn.
7. Inspect all electrical connections.
(See wiring diagrams on page 11.)
8. Re-attach ignitor wire to spark plug.
9. Replace ignitor.
Fan does not operate when heater
is plugged in and power switch is
in the “ON” position. The lamp is
ickering or and LED display shows
“E1” or “E2”.
1. Thermostat is set too low (does not
apply to FF45 model).
2. Broken electrical connection
between main PCB and motor.
1. Rotate thermostat to a higher
setting
2. Inspect all electrical connections
(see wiring diagrams on page 11).
Lamp is ickering and LED display
shows “E3”.
1. Thermostat switch has failed. 1. Replace thermostat switch (see
Wiring diagrams on page 11).
Poor combustion and / or excess
soot production.
1. Dirty input, output or lint lter.
2. Dirty fuel lter.
3. Poor quality of fuel.
4. PSI is too high or too low.
1. Clean / replace air or lint lter.
2. Clean / replace fuel lter.
3. Flush fuel tank and refuel heater.
4. Use proper pressure.
Heater does not turn on and the
lamp is not lit.
1. Temperature limit sensor has
overheated.
2. No electrical power.
3. Fuse is blown.
4. Improper electrical connection
between temperature limit sensor
and circuit board.
1. Push power switch to “OFF and
allow heater to cool for 10 minutes.
Restart heater.
2. Check power cords for proper
connection and test the power
supply.
3. Check / replace the fuse.
4. Inspect all electrical connections
(see wiring diagrams on page 11).

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
24
17
10
14
1113
8
12
930
26
3
16
17
2
1**
4
67
22
18
19
21
43
44
21
21
30
20
15
41**
33*
35**
36
29
28
5
32
31
25
27
38**
37**
39**
34**
42
23
Exploded View
13
*FF45 / FF70 Only
**FF125 / FF175 / FF215 Only
1**

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
14
Parts List
ALWAYS contact the manufacturer of this heater before replacing any parts
other than those specified or recommended in the servicing instructions.
WARNING
# FF45 FF70
Part Previous Current Previous Current
1Drain Bolt N/A N/A N/A N/A
2Fuel Gauge 70-007-0110 01.04.70.004510001 70-007-0115 01.04.70.004510001
3Fuel Filter 70-003-0100 01.02.70.004510003 70-003-0100 01.02.70.004510003
4Fuel Cap - Large Plastic 70-006-0120 70-006-0140 70-006-0120 70-006-0140
5Power Cord 70-034-0270 01.04.70.404520223 70-034-0270 01.04.70.404520223
6Power Switch 70-038-0110 01.04.70.004510015 70-038-0110 01.04.70.004510015
7Thermostat Control Knob N/A N/A On PCB On PCB
8Air Line 70-035-0100 01.03.70.004510005 70-035-0200 01.03.70.004510005
9Thermostat Limit Control 70-019-0100 01.04.22.004010173 70-019-0100 01.04.22.004010173
10 Combustion Chamber Assembly 70-011-0100 70-011-0100 70-011-0200 70-011-0200
11 Photocell Bracket 70-010-0101 01.01.70.004510020 70-010-0101 01.01.70.004510020
12 Fuel Line 70-036-0100 70-036-1010 70-036-0200 70-036-1010
13 Photocell 70-016-0100 01.04.70.004510008 70-016-0100 01.04.70.004510008
14 Burner Head Assembly 70-014-0101 01.01.70.004510017 70-014-0101 01.01.70.004510017
15 Nozzle Kit 70-015-0100 70-015-0100 70-015-0200 70-015-0200
16 Spark Plug Kit 70-052-0100 70-052-0100 70-052-0100 70-052-0100
17 Motor 70-021-0501 01.04.70.104520034 70-021-0501 01.04.70.104520034
18 Pump Body 70-020-0101 01.01.70.004510021 70-020-0101 01.01.70.004510021
19 Rotor Kit 70-022-0100 70-022-0100 70-022-0100 70-022-0100
20 End Pump Cover 70-020-0102 01.01.70.004510023 70-020-0102 01.01.70.004510023
21 Filter Kit 70-054-0100 70-054-0100 70-054-0100 70-054-0100
22 End Filter Cover 70-020-0103 01.02.70.007010022 70-020-0103 01.02.70.007010022
23 Pump Adjustment Kit 70-055-0100 70-055-0100 70-055-0100 70-055-0100
24 Capacitor On Motor On Motor On Motor On Motor
25 Fan 70-024-0100 01.01.70.004510025 70-024-0200 01.01.70.007010034
26 Ignitor 70-037-0120 01.04.70.104520033 70-037-0120 01.04.70.104520033
27 Fan Guard 70-016-0700 01.02.70.004510014 70-016-0700 01.02.70.004510014
28 Main PCB Assembly 70-027-0160 01.04.70.104520037 70-027-0160 01.04.70.407020169
29 Fuse 70-027-0120 01.04.70.104520039 70-027-0120 01.04.70.104520039
30 Clip Nut 70-001-0105 70-001-0106 70-001-0105 70-001-0106
31 Air Pressure Gauge N/A N/A 70-025-0100 01.04.70.007010016
32 Cord Bushing 70-033-0100 01.02.70.004510002 70-033-0100 01.02.70.004510002
33 Handle 70-001-0103 01.02.70.004510015 70-001-0103 01.02.70.004510015
34 Front Handle N/A N/A N/A N/A
35 Rear Handle N/A N/A N/A N/A
36 Wheel Support Frame N/A N/A N/A N/A
37 Wheel Axle N/A N/A N/A N/A
38 Wheel N/A N/A N/A N/A
39 Wheel Nut N/A N/A N/A N/A
40 Hardware Kit (not pictured) 70-056-0100 70-056-0100 70-056-0100 70-056-0100
41 Cord Wrap N/A N/A N/A N/A
42 Motor Supporter N/A N/A 70-020-0600 01.01.70.004510703

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
# FF125 FF175
Part Previous Current Previous Current
1Drain Bolt 70-002-0115 01.01.70.012510246 70-002-0115 01.01.70.012510246
2Fuel Gauge 70-007-0210 01.04.70.012510020 70-007-0210 01.04.70.012510020
3Fuel Filter 70-003-0200 01.02.70.012510020 70-003-0200 01.02.70.012510020
4Fuel Cap - Large Plastic 70-006-0140 70-006-0140 70-006-0140 70-006-0140
5Power Cord 70-034-0270 01.04.70.412520228 70-034-0270 01.04.70.412520224
6Power Switch 70-038-0110 01.04.70.004510015 70-038-0110 01.04.70.004510015
7Thermostat Control Knob On PCB On PCB On PCB On PCB
8Air Line 70-035-0300 01.03.70.004510005 70-035-0400 01.03.70.004510005
9Thermostat Limit Control 70-019-0205 01.04.70.112520047 70-019-0100 01.04.22.004010173
10 Combustion Chamber Assembly 70-011-0300 70-011-0300 70-011-0400 70-011-0400
11 Photocell Bracket 70-010-0101 01.01.70.004510020 70-010-0101 01.01.70.004510020
12 Fuel Line 70-036-0300 70-036-1020 70-036-0400 70-036-1030
13 Photocell 70-016-0100 01.04.70.004510008 70-016-0100 01.04.70.004510008
14 Burner Head Assembly 70-014-0301 01.01.70.012510045 70-014-0401 01.01.70.012510045
15 Nozzle Kit 70-015-0300 70-015-0300 70-015-0400 70-015-0400
16 Spark Plug Kit 70-052-0200 70-052-0200 70-052-0200 70-052-0200
17 Motor 70-021-0511 01.04.70.412520219 70-021-0521 01.04.70.421520220
18 Pump Body 70-020-0101 01.01.70.019010089 70-020-0101 01.01.70.019010089
19 Rotor Kit 70-022-0200 70-022-0200 70-022-0200 70-022-0200
20 End Pump Cover 70-020-0102 01.01.70.004510023 70-020-0102 01.01.70.004510023
21 Filter Kit 70-054-0100 70-054-0100 70-054-0100 70-054-0100
22 End Filter Cover 70-020-0103 01.02.70.007010022 70-020-0103 01.02.70.007010022
23 Pump Adjustment Kit 70-055-0100 70-055-0100 70-055-0100 70-055-0100
24 Capacitor 70-020-0201 01.04.70.112520051 70-020-0201 01.04.70.112520051
25 Fan 70-024-0300 01.01.70.012510049 70-024-0400 01.01.70.017510077
26 Ignitor 70-037-0320 01.04.70.104520033 70-037-0320 01.04.70.104520033
27 Fan Guard 70-016-0200 01.02.70.012510024 70-016-0200 01.02.70.012510024
28 Main PCB Assembly 70-027-0220 01.04.70.412520222 70-027-0320 01.04.70.412520222
29 Fuse 70-027-0120 01.04.70.104520039 70-027-0120 01.04.70.104520039
30 Clip Nut 70-001-0105 70-001-0106 70-001-0105 70-001-0106
31 Air Pressure Gauge 70-025-0100 01.04.70.007010016 70-025-0100 01.04.70.007010016
32 Cord Bushing 70-033-0200 01.02.70.012510019 70-033-0200 01.02.70.012510019
33 Handle N/A N/A N/A N/A
34 Front Handle 70-042-0100 01.01.70.012510055 70-042-0200 01.01.70.017510082
35 Rear Handle 70-043-0100 01.01.70.012510056 70-043-0200 01.01.70.017510083
36 Wheel Support Frame 70-041-0101 01.01.70.012510057 70-041-0201 01.01.70.017510084
37 Wheel Axle 70-041-0115 01.01.70.012510053 70-041-0205 01.01.70.017510081
38 Wheel 70-041-0150 01.03.90.003610031 70-041-0150 01.03.90.003610031
39 Wheel Nut 70-041-0550 01.01.70.012510054 70-041-0550 01.01.70.012510054
40 Hardware Kit (not pictured) 70-056-0210 70-056-0210 70-056-0210 70-056-0210
41 Cord Wrap 70-032-0200 01.02.70.012510028 70-032-0200 01.02.70.012510028
42 Motor Supporter 70-020-0610 01.01.70.012510710 70-020-0610 01.01.70.012510710
43 Motor End Pump Gasket N/A N/A N/A 01.01.70.021510097
44 Pump End Gasket N/A 01.01.70.021510098 N/A 01.01.70.021510098
15

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
16
# FF215
Part Previous Current
1Drain Bolt 70-002-0105 01.02.70.012510018
2Fuel Gauge 70-007-0215 01.04.70.012510020
3Fuel Filter 70-003-0200 01.02.70.012510020
4Fuel Cap - Large Plastic 70-006-0140 70-006-0140
5Power Cord 70-034-0270 01.04.70.412520224
6Power Switch 70-038-0110 01.04.70.004510015
7Thermostat Control Knob On PCB On PCB
8Air Line 70-035-0500 01.03.70.004510005
9Thermostat Limit Control 70-019-0200 01.04.70.021510031
10 Combustion Chamber Assembly 70-011-0500 70-011-0500
11 Photocell Bracket 70-010-0101 01.01.70.004510020
12 Fuel Line 70-036-0500 70-036-1040
13 Photocell 70-016-0100 01.04.70.004510008
14 Burner Head Assembly 70-014-0401 01.01.70.012510045
15 Nozzle Kit 70-015-0500 70-015-0500
16 Spark Plug Kit 70-052-0200 70-052-0200
17 Motor 70-021-0521 01.04.70.421520220
18 Pump Body 70-020-0401 01.01.70.019010089
19 Rotor Kit 70-022-0200 70-022-0200
20 End Pump Cover 70-020-0102 01.01.70.004510023
21 Filter Kit 70-054-0100 70-054-0100
22 End Filter Cover 70-020-0103 01.02.70.007010022
23 Pump Adjustment Kit 70-055-0100 70-055-0100
24 Capacitor On Motor On Motor
25 Fan 70-016-0220 01.02.70.012510024
26 Ignitor 70-037-0320 01.04.70.104520033
27 Fan Guard 70-016-0220 01.02.70.012510024
28 Main PCB Assembly 70-027-0320 01.04.70.412520222
29 Fuse 70-027-0120 01.04.70.104520039
30 Clip Nut 70-001-0105 70-001-0106
31 Air Pressure Gauge 70-025-0100 01.04.70.007010016
32 Cord Bushing 70-033-0200 01.02.70.012510019
33 Handle N/A N/A
34 Front Handle 70-042-0200 01.01.70.017510082
35 Rear Handle 70-043-0200 01.01.70.017510083
36 Wheel Support Frame 70-041-0201 01.01.70.017510084
37 Wheel Axle 70-041-0205 01.01.70.017510081
38 Wheel 70-041-0150 01.03.90.003610031
39 Wheel Nut 70-041-0550 01.01.70.012510054
40 Hardware Kit (not pictured) 70-056-0210 70-056-0210
41 Cord Wrap 70-032-0200 01.02.70.012510028
42 Motor Supporter 70-020-0610 01.01.70.012510710
43 Motor End Pump Gasket N/A 01.01.70.021510097
44 Pump End Gasket N/A 01.01.70.021510098

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2020, Lavorwash Kerosene Forced Air Heater User’s Manual
17
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
