Goldair GCV100 User manual

Operating Instructions
2000W Convector Heater
Model: GCV100

CAUTION: In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they are supervised or have been given instruction
concerning the use of the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the
appliance.
•If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
WARNING: You must not cover this appliance. Covering this appliance
presents fire risk and will activate the safety fuse; permanently disabling the
unit.
WARNING: Do not use this appliance in small rooms when they are
occupied by persons not capable of leaving the room on their own, unless
constant supervision is provided.
WARNING: To reduce the risk of fire, keep textiles, curtains, or any
flammable material a minimum distance of 1 metre from the air outlet.
General Care and Safety Guide
•Use only the voltage specified on the rating label of the appliance.
•Keep all objects at least 1 metre from the front, sides and rear of the
appliance.
•This appliance is intended for household use only and not for commercial or
industrial use.
•Indoor use only.
•Use this appliance only as described in this manual. Any other use is not
recommended by the manufacturer and may cause fire, electric shock or
injury.
•Do not use the appliance if it has been dropped or damaged.
•The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE
INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.

•Never use the appliance to dry clothes.
•Always unplug appliance when not in use.
•When the appliance has been unpacked, check it for transport damage and
ensure all parts have been delivered. If parts are missing or the appliance has
been damaged, contact the Customer Services Team.
•Do not use if there are visible signs of damage to the appliance.
•Do not connect the appliance to mains supply until completely assembled and
adjusted.
•Ensure hands are dry before handling the plug or main unit.
•Ensure appliance is on a flat, stable, heat-resistant surface.
•Do not operate with cord set coiled up as a heat build up is likely, which could
be sufficient to become a hazard.
•Carry out regular checks of the supply cord to ensure no damage is evident
•Do not operate this appliance with a damaged cord, plug or after the appliance
malfunctions or has been dropped or damaged in any manner. Take to a
qualified electrical person for examination, electrical service or repair.
•Do not twist, kink or wrap the cord around the appliance, as this may cause the
insulation to weaken and split. Always ensure that all cord has been removed
from any cord storage area and is unrolled before use.
•It is recommended that this appliance is plugged directly into the wall socket.
Power boards are not rated to supply power to high wattage appliances.
•A correctly specified, undamaged extension cord may be used with this
appliance provided it is used in a safe manner.
•Do not remove plug from power socket until the appliance has been switched
off.
•Do not remove plug from power socket by pulling cord; always grip plug.
•Do not place cord under carpet or cover with rugs or furniture. Arrange the cord
so it cannot be tripped over.
•Don’t place appliance on bedding or on thick & long carpet where the openings
may get blocked.
•Switch off and use handle provided when moving
•Do not place appliance close to radiant heat source.
•Do not insert or allow foreign objects to enter any ventilation or exhaust
opening, as this may cause an electric shock, fire or damage to the appliance.
•Do not sit on the appliance.
•Do not use abrasive cleaning products on this appliance. Clean with a damp
cloth (not wet) rinsed in hot soapy water only. Always remove plug from the
mains supply before cleaning.
•Do not operate in areas where petrol, paint or other flammable liquids are used
or stored.
•Do not use this appliance in the immediate surrounds of a bath, a shower, or a
swimming pool or other liquids.
General Care and Safety Guide

•The appliance must not be immersed in any liquids.
•There are no user serviceable parts installed in the unit.
•Do not place the unit in wardrobes or other enclosed spaces as this may cause
fire hazards.
•This unit is not supposed to be used in or around locations where foodstuffs,
works of art or delicate articles of science, etc. are stored.
•If your appliance does not work, or is not working properly, contact the place of
purchase or the Customer Services Team.
General Care and Safety Guide

Assembling your Convector Heater
WARNING: Heater must not be used without the feet fitted.
This appliance has been supplied with ‘1 way screws’ for permanent installation of the
feet. This is a safety requirement for the New Zealand and Australian market.
ASSEMBLY OF HEATER

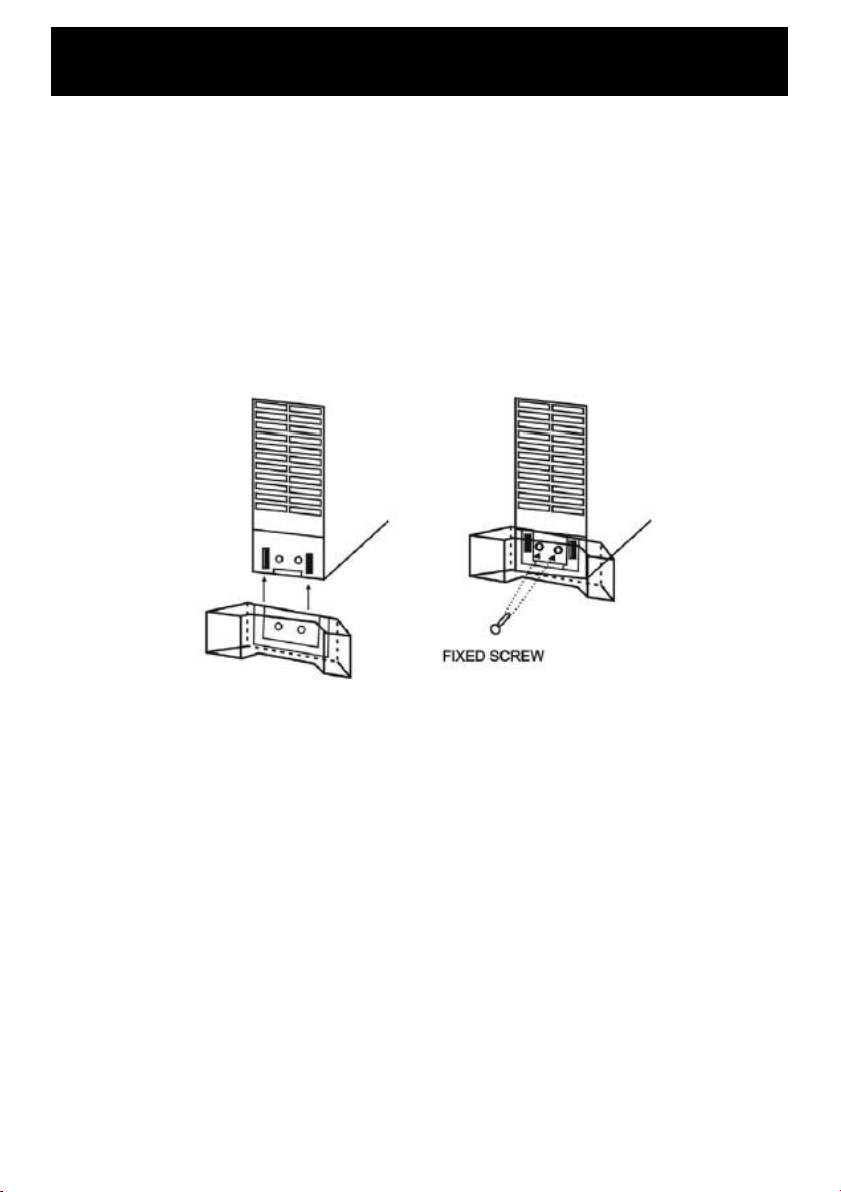

Carefully turn the main body upside-down on a scratch-free and stable surface. Be
careful to prevent damage to the cosmetic finish or your floor surfacing.
Attach the feet to the base of the heater by aligning the built-in position pins with the
position holes on the base of the heater and fixing a screw into the hole between the
two position holes. Use one screw for each foot.

Operating Your Heater
Always choose a safe location for the heater, keeping in mind the safety precautions
outlined. Ensure all packaging has been removed from the unit before use. Please
follow the below instructions.
WARNING: In order to avoid overheating or fire, do not cover the heater.
WARNING: Keep all objects at least 1 metre from the front, sides and rear
of the appliance.
WARNING: Do not use this heater with a programmer, separate timer,
remote-control system or any other device that switches the heater on
automatically, since a fire risk exists if the heater is covered or positioned
incorrectly.
WARNING:Never leave this heater unattended when in use.
Ensure heater is on a flat, stable, heat-resistant surface.
Once the heater is in a safe operating position and all switches are in the off
position, insert the power plug into the mains outlet and switch on.
CAUTION: Ensure the power cord is not tight because if pulled it may
partially pull the plug from the socket. A partially inserted plug will overheat
the plug and socket and could result in fire.
Note: When the appliance is turned on for the first time, it may release a
slight odour or smoke. This odour or smoke is a normal occurrence caused by
the initial heating of the internal heating elements and should not occur
again.

Operating your Convector Heater

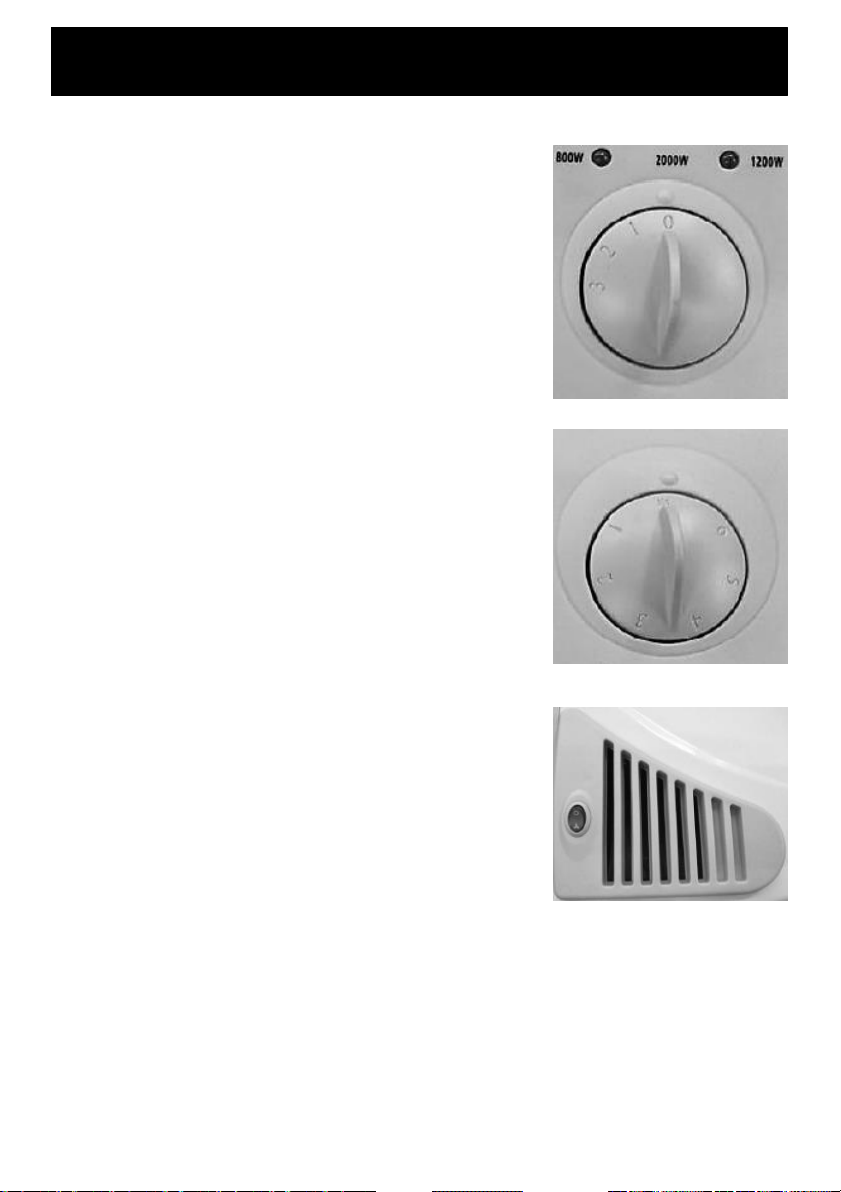

HEAT CONTROL SWITCH
The control switch positions are:
O Off
I Low Heat
II Medium Heat
III High Heat
Check that the heat control switch is set to Off position
before plugging the heater into the mains supply. For
greater economy, use the High Heat setting initially and
then switch to the Low Heat setting.
THERMOSTATIC CONTROL
1. Rotate thermostat knob clockwise until you reach the
maximum position.
2. When the room reaches a temperature that is
comfortable for you, slowly turn the knob anti-
clockwise until the heater just turns off (you will hear
a click).
3. The heater will now cycle on and off to maintain the
comfort level you have set.
4. Take note of this setting position for future use.
FAN BOOST
Additional to the three heat settings there is a fan with a
separate On/Off switch located on the front of the heater
by the fan outlet. The fan function is for distributing heat
into the room at a faster rate.

Operating your Convector Heater
TIMER
The heater will always be ON when the slide switch is in the “I” position.
The heater will always be OFF when the slide switch is in the “O” position.
To set the Timer; set the slide switch to the Timer position.
(This function can only be used once a heat level has been selected.
You must set the time prior to programming the Timer. To do this; turn the outer dial of the
timer in a clockwise direction until the time of the day (24-hour clock) corresponds with the
triangular marking. Example if it is 2pm (1400 hours) then set the triangular mark in line with 14.
One complete turn of the dial corresponds to 24 hours.
There are 96 ‘riders’, positioned around the dial, each rider represents 15 minutes.
Where all the ‘riders’ are pushed to the outside of the timer the heater will be ON continuously.
To set a specific time for example:
If you want the heater to be on from 6pm to 10pm, then set all the riders from 18 to 22 (1800
hours to 2200 hours) to the outside of the rim and all other riders to the inside of the timer. The
unit will then turn on automatically at 6pm and off again at 10pm.
Mode switch positions
OFF
TIMER ON
OVERRIDE
Indicates actual time
Riders pushed to the
outside rim to turn ON

Operating Your Heater
PROOF OF PURCHASE
To receive warranty retain receipt as proof of purchase.
TECHNICAL SPECIFICATION
Model No: GCV100
Supply: 220-240VAC 50Hz
Wattage: 2000W
SUPPORT AND TECHNICAL ADVICE
Goldair –New Zealand
Monday –Friday 8am-5pm
Phone [phone]
Phone [phone]
[email protected]
Goldair –Australia
Monday –Friday 8am-5pm
Phone [phone]
Phone [phone]
[email protected]u
SAFETY DEVICES
This appliance has three protection devices:
•Tilt Switch - this will automatically turn the appliance off if the appliance is not in
the correct operating position.
•Resettable Thermal Link - this will automatically disconnect the power to the
appliance at a pre-set overheat temperature. After cooling down it will reset and
power on again. If this occurs, investigate what is causing the appliance to
overheat.
•Thermal Fuse - this disconnects the appliance permanently in case of overheating.
(It is non resettable).
CAUTION: The heater generates heat during use. Precautions must be
taken to prevent the risk of burns, scalds, fires or other damage to persons.
CARE AND CLEANING
•The heater requires regular cleaning to ensure trouble free operation:
•Unplug the heater from the mains supply before cleaning.
•Ensure that the heater has been allowed to cool down completely before cleaning.
•The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
•Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and
dirt.
•Never use solutions such as petrol, thinners or polishing agents.
•Ensure the heater is dry before plugging back into the mains supply.
•Do not attempt to dismantle the appliance.
•There are no user serviceable parts. For service or repair, contact an authorised
electrical service technician

Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when used in normal
domestic use for a period of two years. In non-domestic use Goldair limits the voluntary warranty to three months.
Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the
warranty period.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone
other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits given to you by this warranty are in addition to other rights and remedies available to you under law in relation to the
goods or services to which this warranty relates.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
Two Year Warranty
Goldair Two Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase Date Of Purchase
Name Of Product Model Number
Attach a copy of the purchase receipt to this warranty card
Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.
Goldair –New Zealand
CDB Goldair
PO Box 100-707
N.S.M.C
Auckland
Phone [phone]
Phone [phone]
www.goldair.co.nz
Goldair –Australia
CDB Goldair Australia Pty
PO Box 574
South Morang
Victoria, 3752
Phone [phone]
Phone 1300 GOLDAIR (1300 465 324)
www.goldair.com.au

New Zealand
PO Box 100707,
North Shore Mail Centre,
Auckland, 0745
www.goldair.co.nz
Australia
PO Box 574,
South Morang,
Victoria, 3752
www.goldair.com.au
