LawnMaster FD1501 User manual

CHIPPER FD1501
3084514
Read all safety rules and instructions carefully before operating this tool.
Distributed By Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
Note: This chipper is
designed for dry material only.
Never place green material or
bamboo into chipper.
Nota: Esta trituradora está
diseñada solo para materiales
secos. Jamás coloque materiales
verdes o bambú en la trituradora.
FD1501_V2
EN p. 2
TRITURADORA FD1501
ES p. 23
Operators Manual / Manual de uso
Lea todas las reglas e instrucciones de seguridad cuidadosamente antes de utilizar esta herramienta.
Distribuido por Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432

2
CONTENTS 2
PRODUCT SPECIFICATIONS 2
SAFETY INFORMATION 3-5
SYMBOLS 6-7
ELECTRICAL 8-9
KNOW YOUR YARD CHIPPER 10
ASSEMBLY INSTRUCTIONS 11-13
OPERATION 14-16
MAINTENANCE 17-18
WARRANTY 19
EXPLODED VIEW 20
PARTS LIST 21
NOTES 22
CONTENTS
PRODUCT SPECIFICATIONS
CHIPPER FD1501
Nominal Current 15 A
Nominal Voltage
120 V~60Hz
Speed
3800 rpm
Maximum Cutting Diameter
1-1/2 in. max
Volume Of Collection Bag
15.85 gal
Weight 29.75lbs
The max. branch thickness that can be chipped is dependent on the type of wood and the quality of
the goods being cut, but never thicker than 1-1/2" in diameter.
For hard wood (e.g. oak/beech branches), the max. branch thickness that can be chipped is less than
for soft wood (e.g. pine/spruce wood). For dry or knotted wood, the cutting thickness may also be less.
This chipper is not intended for bamboo.
Helpful Tip!

3
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below
may result in electric shock, fire, and/or serious personal injury.
IMPORTANT
TO AVOID MISTAKES THAT COULD CAUSE SERIOUS INJURY, DO NOT PLUG IN THE CHIPPER
UNTIL THE FOLLOWING STEPS HAVE BEEN READ THOROUGHLY.
• Avoid Dangerous Environment – Don’t use appliances in damp or wet locations.
• Don’t Use In Rain.
• Keep Children Away – All visitors should be kept at a distance from work area.
• Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts.
Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear
protective hair covering to contain long hair.
• Use Safety Glasses – Always use face or dust mask if operation is dusty.
• Use Right Appliance – Do not use appliance for any job except that for which it is intended.
• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s)
to be used for the gardening appliance. Receptacles are available having built-in GFCI protection
and may be used for this measure of safety.
• Warning – To reduce the risk of electric shock, use only with an extension cord intended for outdoor
use, such as an extension cord of cord type SW-A, SOW-A,STW-A, STOW-A, SJW-A, SJOW-A,
SJTW-A. or SJTOW-A.
• Extension Cord – Make sure your extension cord is in good condition. When using an extension
cord, be sure to use one heavy enough to carry the current your product will draw. An undersized
extension cord will cause a drop in line voltage resulting in loss of power and overheating. If in
doubt, use the next heavier gage. The smaller the gage number, the heavier the cord. To reduce
the risk of disconnection of appliance cord from the extension cord during operating:
i) Make a knot; or
ii) Use one of the plug-receptacle retaining straps or connectors described in this manual.
• Avoid Unintentional Starting – Don’t carry plugged-in appliance with finger on switch.
Be sure switch is off when plugging in.
• Don’t Abuse Cord – Never carry appliance by cord or yank it to disconnect from receptacle.
Keep cord from heat, oil, and sharp edges.
• Don’t Force Appliance – It will do the job better and with less likelihood of a risk of injury at the rate
for which it was designed.
• Don’t Overreach – Keep proper footing and balance at all times.
WARNING

SAFETY INFORMATION
4
• Stay Alert – Watch what you are doing. Use common sense. Do not operate appliance when you
are tired.
• Disconnect Appliance – Disconnect the appliance from the power supply when not in use, before
servicing, when changing accessories such as blades, and the like.
• Store Idle Appliances Indoors – When not in use, appliances should be stored indoors in dry, and
high or locked-up place – out of reach of children.
• Maintain Appliance With Care – Keep cutting edge sharp and clean for best performance and to
reduce the risk of injury. Follow instructions for lubricating and changing accessories. Inspect
appliance cord periodically, and if damaged, have it repaired by an authorized service facility.
Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free
from oil and grease.
• Check Damaged Parts – Before further use of the appliance, a guard or other part that is damaged
should be carefully checked to determine that it will operate properly and perform its intended
function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting,
and any other condition that may affect its operation. A guard or other part that is damaged should
be properly repaired or replaced by an authorized service center unless indicated elsewhere in
this manual.
• When servicing use only identical replacement parts.
• To reduce the risk of electric shock, this appliance has a polarized plug (one blade is
wider than the other) and will require the use of a polarized extension cord. The appliance plug will
fit into a polarized extension cord only one way. If the plug does not fit fully into the extension cord,
reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized
extension cord will require the use of a polarized wall outlet. This plug will fit into the polarized wall
outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still
does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the
equipment plug, extension cord receptacle, or extension cord plug in any way.
ALWAYS WEAR EYE PROTECTION.
A yard chipper can throw foreign objects into your eyes which could cause
permanent eye damage.
ALWAYS wear safety goggles (not glasses). Ordinary eyeglasses have only
impact-resistant lenses—they are NOT safety goggles.

5
SAFETY INFORMATION
SPECIFIC SAFETY RULES FOR YARD CHIPPERS
• Be thoroughly familiar with the operation of the chipper before initial use.
• NEVER put your hands into the hopper. Always use the push stick supplied with your chipper to
push items into the hopper.
• DO NOT try to force objects that exceed the recommended diameter and capacity of the chipper:
1-1/2" (38 mm).
• AVOID ACCIDENTAL START-UPS. Be sure switch is OFF when plugging in.
• DO NOT FORCE THE CHIPPER. It will do the job better and with less likelihood of injury at the
rate for which it was designed.
• Before putting objects into the hopper, remove any stones, debris, or objects that could damage
the blades.
• During operation, ensure that there are no other persons or animals within a radius of 50 feet.
Stop using the machine while people, especially children, or pets, are nearby.
• NEVER reach under the chipper until it has completely stopped. The blade may continue to rotate
for a time after being switched OFF.
• MAKE all adjustments with the power OFF and the chipper disconnected from the power source.
• ALWAYS use accessories provided or recommended by the manufacturer. Do not use substitutes.
• KEEP guards in place and in working order. Keep blades sharp. Keep hands and feet away from
cutting areas.
NEVER PLACE HANDS NEAR DISCHARGE CHUTE. FAILURE COULD RESULT IN SERIOUS
INJURY.
WARNING
WARNING
NEVER REACH INTO THE HOPPER UNTIL THE CHIPPER HAS COME TO A COMPLETE STOP
AND IS UNPLUGGED. THE CHIPPER WILL CONTINUE TO ROTATE FOR A FEW SECONDS
AFTER IT IS SWITCHED OFF

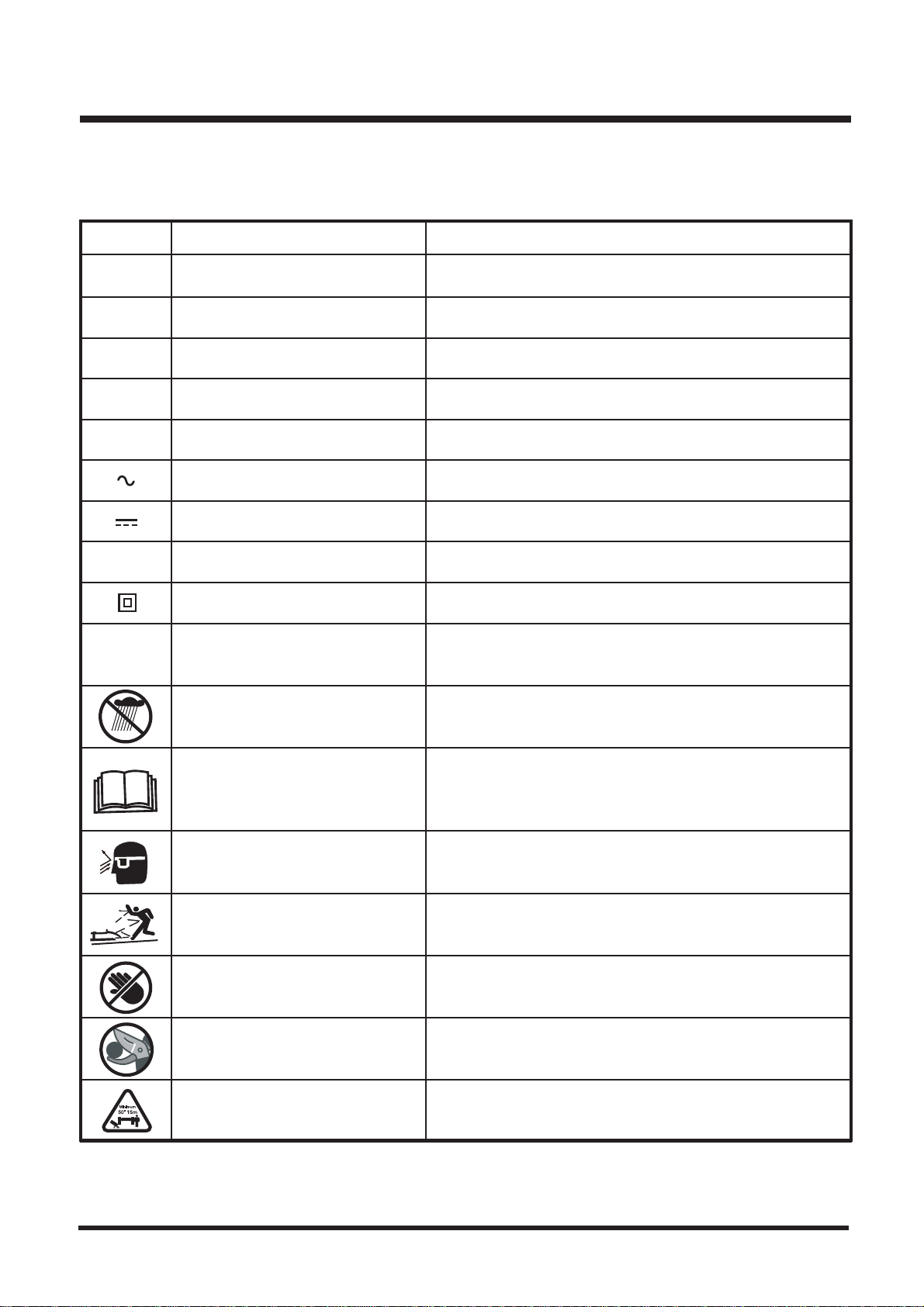

SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to operate the product better and safer.
6
n
o
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watts Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
No Load Speed Rational speed, at no load
Class II Construction Double-insulated construction
/min Per Minute Revolutions, strokes, surface speed, orbits etc.,
per minute
Wet Conditions Alert Do not expose to rain or use in damp locations
Read The Operator’s Manual To reduce the risk of injury user must read and
understand operator’s manual before using this
product.
Eye Protection Wear eye protection when operating this equipment.
Ricochet Thrown objects can ricochet and result in personal
injury or property damage.
Sharp Blade Danger – Keep hands and feet away from blade.
Cutting Capacity Cutting capacity: 1-1/2" (38 mm)
Keep Bystanders Away Keep all bystanders at least 50 ft. away.
1-1/2"

SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with
this product.
7
Servicing requires extreme care and knowledge and should be performed only by a qualified service
technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE
CENTER for repair. When servicing, use only identical replacement parts.
SERVICE
To avoid serious personal injury, do not attempt to use this product until you have read this Owner's
Manual thoroughly and understand it completely. If you do not understand the warnings and
instructions in this Owner's Manual, do not use this product.
Call the Toll-free Helpline (1-866-384-8432) for assistance.
WARNING
WARNING
SAVE THESE INSTRUCTIONS
The operation of any power tool can result in foreign objects being thrown into your eyes,
which can result in severe eye damage. Before beginning power tool operation, always wear
safety goggles or safety glasses with side shields and, when needed, a full face shield. We
recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses
with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.
SYMBOL SIGNAL MEANING
DANGER Indicates an imminently hazardous situation, which, if
not avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that
may result in property damage.

8
ELECTRICAL
TO AVOID ELECTRIC SHOCK HAZARDS, FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE
PROPER CIRCUIT PROTECTION. YOUR CHIPPER IS WIRED AT THE FACTORY FOR 12O-V
OPERATION. CONNECT TO 120-V, 15-Amp CIRCUIT AND USE A 15-Amp CIRCUIT BREAKER.
TO AVOID SHOCK OR FIRE WHEN THE POWER CORD IS WORN, CUT, OR DAMAGED IN
ANYWAY, REPLACE IT IMMEDIATELY
This yard chipper has a plug that looks like the one shown in Fig. 1. The yard chipper is double
insulated to provide a dual thickness of insulation between you and the tool’s electrical system.
All exposed metal parts are insulated.
DOUBLE INSULATED (See Figure 1)
WARNING
DOUBLE INSULATION DOES NOT TAKE THE PLACE OF NORMAL SAFETY PRECAUTION WHEN
OPERATING THIS TOOL.
WARNING
TO AVOID ELECTRIC SHOCK:
1. Use only identical replacement parts when serving a tool with double insulation. Servicing should be
performed by a qualified technician.
2. Do not use in wet or damp or expose to rain.
WARNING
IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION IS PROPERLY GROUNDED.
IF YOU ARE NOT SURE, HAVE A CERTIFIED ELECTRICIAN CHECK THE RECEPTACLE.
C A U T I O N
1) 2-prong plug
2) Properly grounded extension cord
Fig. 1

ELECTRICAL
9
GUIDELINES FOR USING EXTENSION CORDS
MINIMUM GAUGE FOR EXTENSION CORDS (AWG)
(WHEN USING 120 V ONLY)
THIS LAWN TOOL IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN
DAMP LOCATIONS.
Make sure your extension cord is in good condition. When using an extension cord, be sure to use
one of heavy enough gauge to carry the current your product will draw. An undersized cord will
cause a drop in line voltage resulting in loss of power and overheating. The table below shows the
correct size to be used according to cord length and nameplate ampere rating. If in doubt, use the
next heavier gauge. The smaller the gauge number, the heavier the cord.
Be sure your extension cord is properly wired and in good condition. Always replace a damaged
extension cord or have it repaired by a qualified person before using it. Keep your extension cords
away from sharp objects, excessive heat and damp or wet areas. Use a separate electrical circuit
for your tools. This circuit must not be less than 12-gauge cord and should be protected with a
15-amp time delayed fuse. Before connecting the motor to the power line, make sure the switch is
in the OFF position and the electric current is rated the same as the current stamped on the motor
nameplate. Running at a lower voltage will damage the motor.
WARNING
THIS TOOL MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRICAL SHOCK.
WARNING
SAVE THESE INSTRUCTIONS
Amp Rating Total Length of Cord in Feet (meters)
More Than Not More Than 25' (7.6 m) 50' (15 m) 100' (30.4 m) 150' (45.7 m)
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended

10
KNOW YOUR YARD CHIPPER
Read this operator's manual and safety rules before operating your yard chipper. Compare the
illustration in Figure 2 to your yard chipper in order to familiarize yourself with the location of various
controls and adjustments. Save this manual for future reference.
Hopper Chute Push Stick
Transport Handle
Motor Reset Button
Hopper Locking Knob
On/ Off Switch
Power Cord
Hex Key
Chassis
Wheel
Collection Bag
Mounting Hook
Lower Hopper
Base Section
Removable Upper
Hopper Panel
Collection Bag
Fig. 2

ASSEMBLY INSTRUCTIONS
UNPACKING
PACKING LIST (See Figure 3)
11
• Carefully remove the product and any accessories from the box. Make sure that all items listed in
the packing list are included.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily operated
the product.
• If any parts are damaged or missing, please call (866)-384-8432 for assistance.
Fig. 3
1
5
6
2
38
7
Part.1 Housing With Hopper 1 pcs
Part.2 Hub Cap 2 pcs
Part.3 Transport Wheel
2 pcs
Part.4 Frame Assembly 2 pcs
Part.5 Axle 1 pcs
Part.6 Push Stick
1 pcs
Part.7 Washer 2 pcs
Part.8 Cotter Pin 2 pcs
Part.9 Collection Bag 1 pcs
Part 10 Hex Key 1 pcs
Part.11 Screws 2 pcs
9
10 11
4

ASSEMBLY INSTRUCTIONS
Assembling this YARD Chipper need the follows tools:
• 6mm Hex Key (included)
• wrench
• Phillips screwdriver
12
If any parts are damaged or missing, do not operate this product until the parts are replaced. Failure to
heed this warning could result in serious personal injury.
WARNING
Do not connect to power supply until assembly is complete. Failure to comply could result in accidental
starting and possible serious personal injury.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with this product.
Any such alteration or modification is misuse, and could result in a hazardous condition leading to
possible serious personal injury.
WARNING
NOTE: Do not over tighten the screws.
ATTACHING LEGS TO CHIPPER (See Figures 4 & 5)
The legs are attached to the bottom of the chipper.
• Place the legs (1) into the holes (4) on the housing.
• Push firmly into place.
• Using a screwdriver tighten the two supplied screws (3) to the small holes (2) in the housing and the legs.
• Slide the axle through the two holes found at the curves of legs.
• Slide a transport wheel over the axle, support ribs directed in.
• Place washer over axle, push straight end of the cotter pin hole in axle and press into hole until
it is secured.
• Repeat transport wheel installation on other side.
• Align and push hub cap into place on both sides.

13
ASSEMBLY INSTRUCTIONS
Fig. 5
1
44
Fig. 4
32

OPERATION
14
CONNECTING TO POWER SUPPLY (See Figure 6)
This product is designed with a cord lock that prevents the extension cord from being pulled loose
during use.
• Form a loop with the end of the extension cord.
• Insert loop portion of extension cord through half moon shaped opening on the retainer and place
over the rectangular tab on cord lock.
• Slowly pull loop against tab until all slack is removed.
• Plug product into extension cord.
NOTE: Make a loop at the end of the extension cable and hang the loop onto the strain relief on the mains cable.
Fig. 6
STARTING AND STOPPING THE CHIPPER (See Figure 7)
ON/OFF SWITCH:
The ON/OFF switch (1) A circuit breaker/reset button (2) is located beside the switch.
TO OPERATE THE CHIPPER:
• Plug the chipper into a properly grounded 2-prong outlet.
• Turn the switch (1) to the ON position. If the chipper does not start, turn the switch to the OFF
position and press the reset button (2), then turn the switch to the ON position.
• Turn the switch (1) to the OFF position to turn off the chipper. Allow at least 5 seconds for the
blade to stop rotating.

OPERATION
15
Fig. 7
21
Do not attempt to chip material that exceeds the capacity of the chipper.
C A U T I O N
WARNING

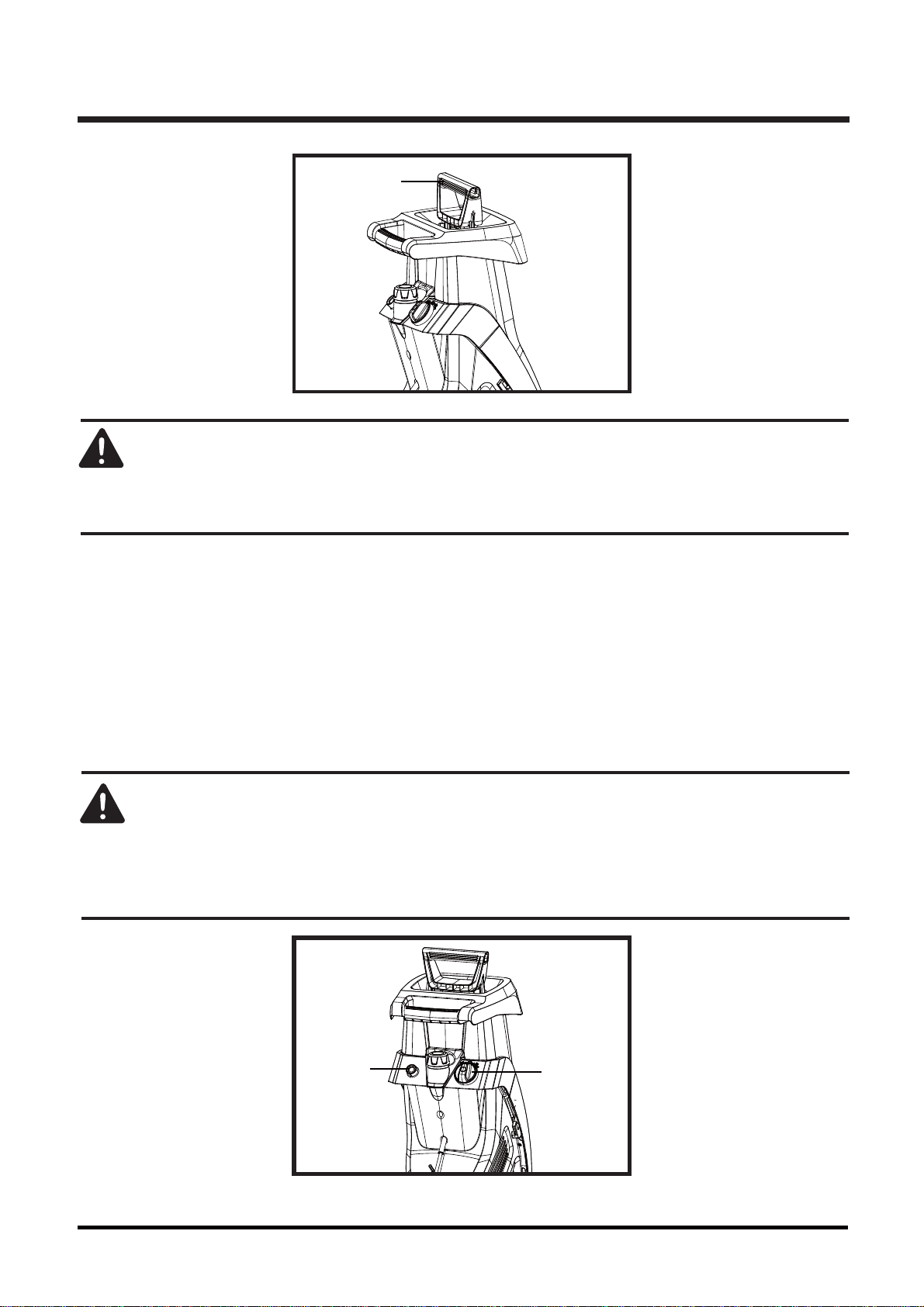

USING YOUR CHIPPER (See Figure 8)
The chipper is designed to work on yard waste, debris, sticks and twigs up to 1-1/2" (38 mm) in
diameter. Chipper material will accumulate directly in chipper collection bag.
• Turn ON chipper.
• Place sticks/yard debris into narrow hopper opening. NEVER place your hands inside hopper.
• Use push paddle (1) only to help feed yard material into hopper.
• ALWAYS turn chipper OFF and allow it to come to a complete stop.
NOTE: This chipper is designed for dry material only. Never place green material or bamboo into chipper.
DO NOT TRY TO CHIP ANY MATERIAL THAT EXCEEDS THE CAPACITY OF THIS TOOL.
DOING SO MAY CAUSE THE MOTOR TO JAM AND OVERHEAT. NEVER PUT YOUR HANDS IN
THE HOPPER OR NEAR THE BLADE WHEN THE TOOL IS RUNNING.

16
OPERATION
TO PREVENT AN ACCIDENTAL START-UP IF THE RESET BUTTON IS PUSHED, THE ON/OFF
SWITCH SHOULD BE IN THE OFF POSITION AND THE PLUG SHOULD BE REMOVED FROM
THE POWER SOURCE WHILE COOL DOWN TAKES PLACE.
WARNING
ALWAYS ALLOW 5 SECONDS OR MORE FOR THE BLADE TO A SPACE BETWEEN STOP AND
ROTATING AFTER TURNING OFF THE CHIPPER.
WARNING

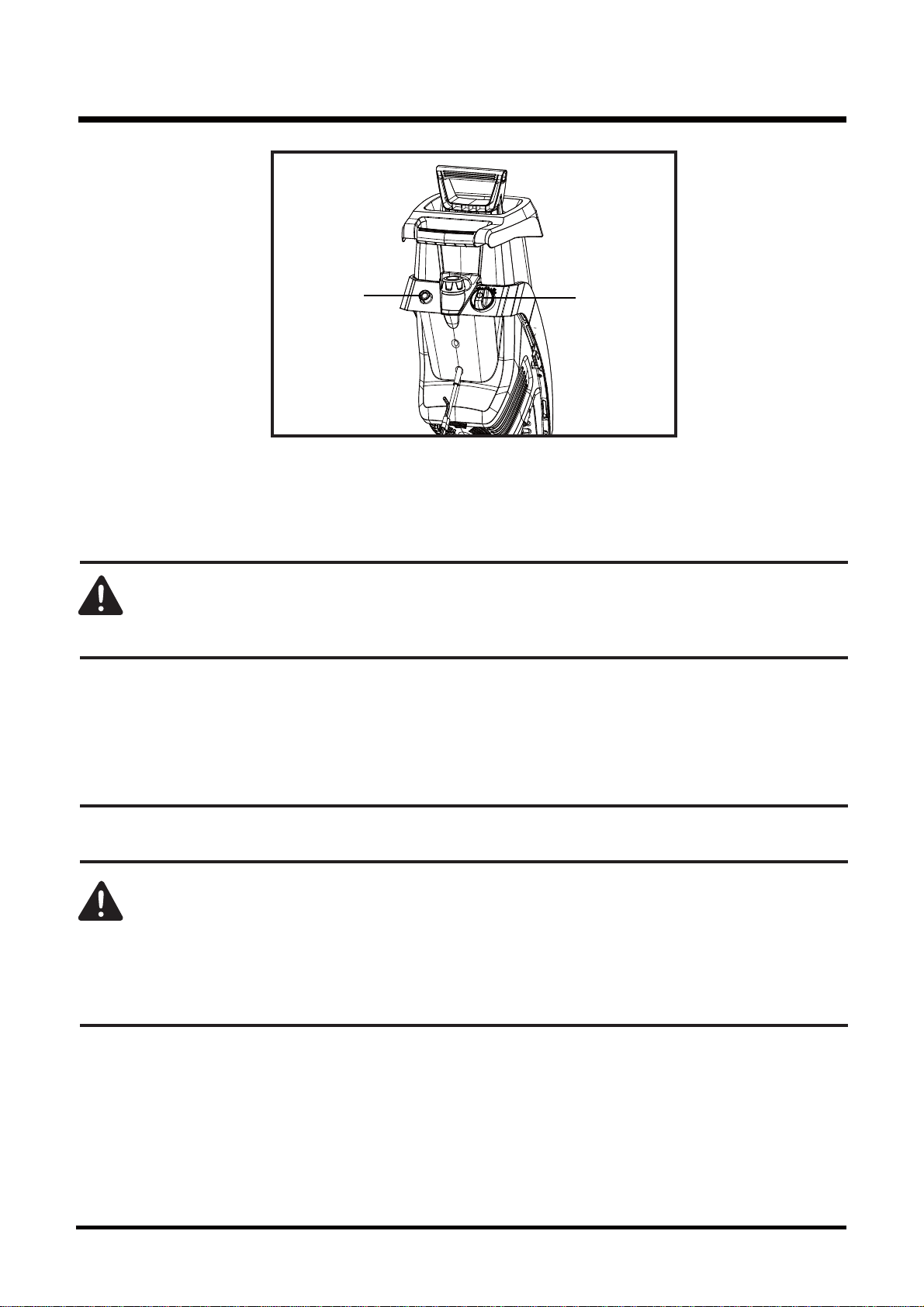

MOTOR OVERLOAD PROTECTION (See Figure 9)
This yard chipper has a reset overload feature.
The reset button will restart the motor after it shuts off due to overloading or low voltage.
If the motor stops during operation:
• Turn the ON/OFF (1) switch to the OFF position.
• Wait about five minutes for the motor to cool.
• Push in on the reset button (2) .
• Turn the switch (1) to the ON position.
Fig. 9
21
1
Fig. 8

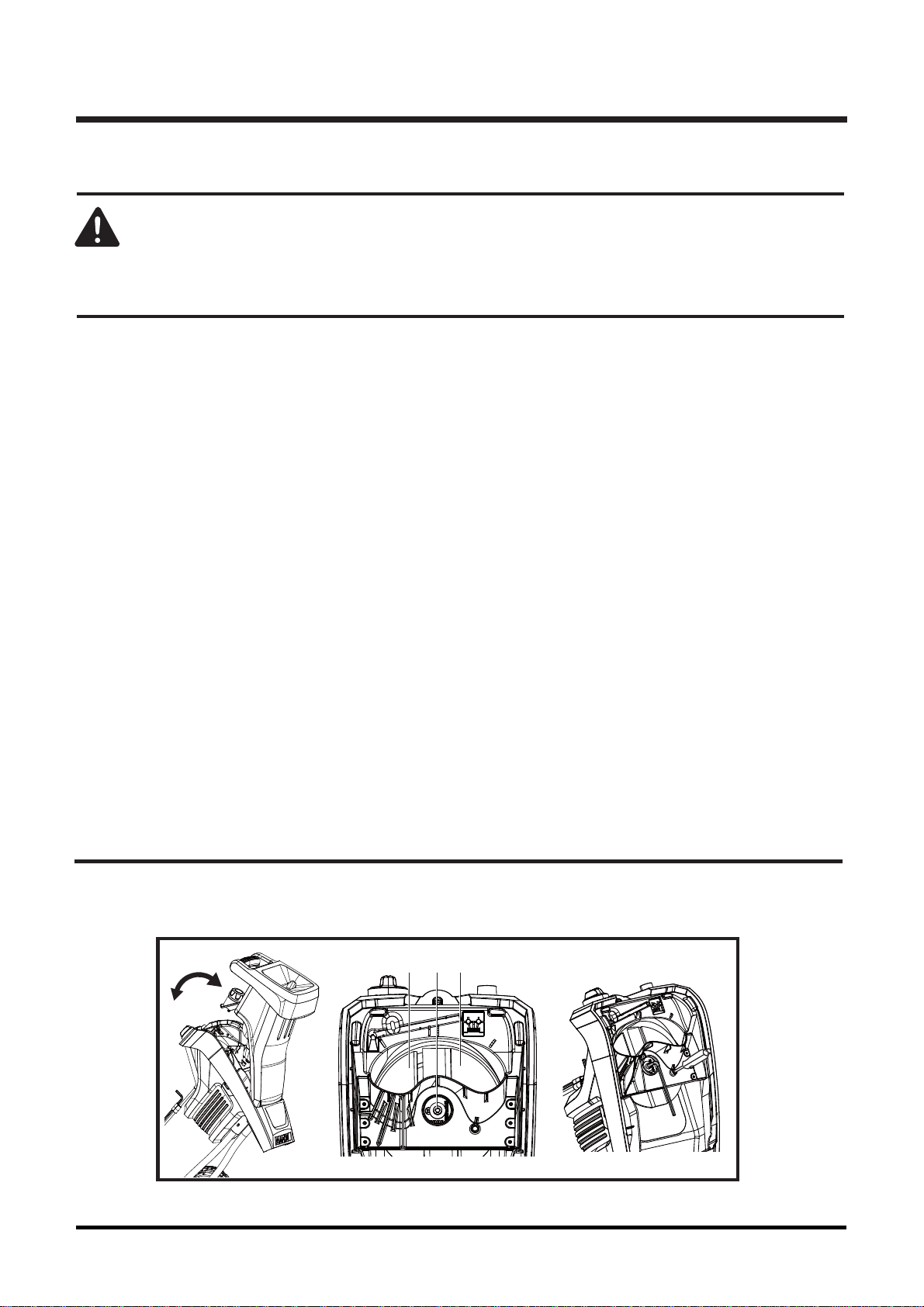

BLADE MAINTENANCE ( See Figure 10 )
MAINTENANCE
17
ALWAYS TURN OFF THE TOOL AND UNPLUG THE POWER CORD FROM THE OUTLET BEFORE
PERFORMING ANY MAINTAINANCE TO THE CHIPPER.
WARNING
NOTE: Only for dry branch chipping, not designed for leaves, vines, or bamboo.
NOTE: ALWAYS handle blade with care as it is sharp.
The chipper has a two sided reversible blade that is attached to a rotating support plate.
When one side of the blade becomes dull, it can be turned over in order to use the other side.
Replace or properly sharpen any dull blade.
HOW TO REPLACE CHIPPER BLADE
• Turn off chipper and remove power plug from outlet;
• Turn the upper housing’s lock knob counterclockwise until the housing cover can be opened;
• Lift up the housing cover to expose the 2 side reversible blade (1);
• Using a screwdriver or wooden dowel，align the upper screw hole of the gear box with the hole on
rotating blade support (2) and slide through
to secure blade support (2) from rotating.
• Use the supplied 6mm Hex Key found on the power cord to loosen and remove the screw (3) that
holds
blade to rotating blade support;
• Take out the old blade. Either reinsert the blade with the sharp edge in position as the cutting surface
or insert a replacement blade.
• Replace and tighten blade screw to secure the new blade to the rotating blade support.
• Position the removable upper hopper panel onto the lower hopper base section of unit and lock
into place using the hopper locking knob (4). Return hex key to power cord location for future use.
4
Fig. 10
31
2

CLEANING
18
MAINTENANCE
TO AVOID INJURY, ELECTRIC SHOCK, OR DAMAGE TO THE CHIPPER, NEVER ALLOW A LIQUID
TO FLOW INSIDE THE TOOL.
WARNING
WARNING (PROPOSITION 65)
GENERAL MAINTENANCE
• Keep the chipper clean and in good repair for maximum performance and machine longevity.
• Before each use, inspect the switch and cord for damage.
• Check for damaged, missing, or worn parts. Check for loose screws, moving parts that are jammed
or any other conditions that may affect the operation.
• If abnormal vibration or noise occurs, turn OFF the tool immediately and correct the problem before
further use.
• Do not use the chipper until it is properly repaired or replaced.
• Wipe the outside of the chipper with a dry soft cloth.
• Remove the hopper from the housing body before washing the inside of the hopper.
• Do not hose down or wash the tool with water.
WARNING
TO AVOID DAMAGE OR ELECTRIC SHOCK, DO NOT USE STRONG SOLVENTS OR DETERGENTS
ON THE PLASTIC HOUSING OR PLASTIC COMPONENTS. CERTAIN HOUSEHOLD CLEANERS
MAY CAUSE DAMAGE AND MAY ALSO CAUSE A SHOCK HAZARD.
Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains
chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemical: work in a well ventilated area, and work with approved safety equipment,
such as those dust masks that are specially designed to filter out microscopic particles.

WARRANTY
19
We take pride in producing a high quality, durable product. This Lawnmaster®product carries a
limited two (2) year warranty against defects in workmanship and materials from date of purchase
under normal household use. Warranty does not apply to defects due to direct or indirect abuse,
negligence, misuse, accidents, repairs or alterations and lack of maintenance. Please keep your
receipt/packing list as proof of purchase. This warranty gives you specific legal rights, and you
may have other rights, which vary from state to state. For product service call Customer Service at
[phone].
Items not covered by warranty :
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect, accident,
improper maintenance, or alteration;
2. The unit, if it has not been operated and/or maintained in accordance with the owner's manual;
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade sharpening;
5. Normal deterioration of the exterior finish due to use or exposure.
Transportation Charges : Transportation charges for the movement of any power equipment unit or
attachment are the responsibility of the purchaser. It is the purchaser’s responsibility to pay
transportation charges for any part submitted for replacement under this warranty unless such
return is requested in writing by LawnMaster.
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.

20
EXPLODED VIEW
