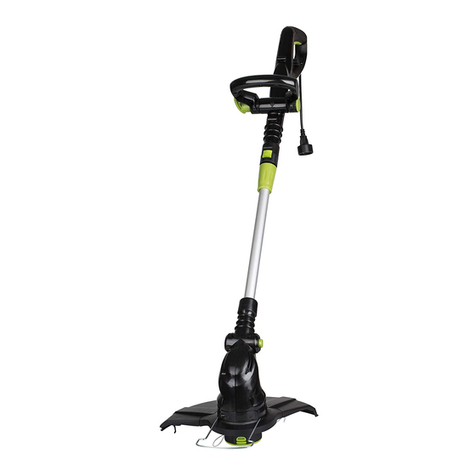

LawnMaster GT1313 User manual

13” Corded Grass Trimmer GT1313
Débroussailleuse à cordon 13 po GT1313
3084514
Conforms to UL STD 82
Certified to CAN/CSA STD.
C22.2 No. 147-M90
Read all safety rules and instructions carefully before operating this tool.
Distributed By Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
Lisez attentivement les règles de sécurité et les instructions avant d’utiliser cet outil.
Distribué par Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
Lea cuidadosamente todas las normas de seguridad e instrucciones antes de utilizar esta herramienta.
Distribuida por Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
Desbrozadora de hierba con cable GT1313
MNL_GT1313_V1
Operators Manual
EN p. 2
FR p. 20
SP p. 39

2
Contents 2
Product Specifications 2
General Safety Rules 3-4
Electrical Information 5-7
Symbols 8
Know Your String Trimmer 9
Assembly 10-11
Operation 12
Maintenance 13-14
Troubleshooting 15
Warranty 16
Exploded View 17
Parts List 18
Notes 19
CONTENTS
SPECIFICATIONS
13” CORDED GRASS TRIMMER
Type Corded
Voltage 120 V~60Hz
Amp 4.2 A
Speed 8000 RPM
Line Size 0.065 inch(1.65mm)
Cutting Swath 13 inch(330mm)
Cutting Line Length 0.08 x 0.16 inch(2×4 m)
Weight 5.1lbs (2.31 Kg)

3
GENERAL SAFETY RULES
WARNING
When using the grass trimmer the safety rules must be followed. For your own
safety and bystanders please read these instructions before operating the grass trimmer.
Do not use the grass trimmer without reading the instruction sheet. Please keep the
instructions safe for later use.
This grass trimmer is designed for cutting grass and similar soft vegetation and for trimming
grass edges in private and hobby garden areas which are not accessible with a grass trimmer.
The device is not allowed to be used in public gardens, parks, sports centers or at roadsides as
well as in agriculture and forestry.
This grass trimmer is not allowed to be used for cutting or chopping, otherwise, there is a risk of
injury.
- Hedges, shrubs and bushes,
- Flowers,
- In terms of composting.
This grass trimmer is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Wear protective glasses or goggles.
Never allow children or people unfamiliar with the instructions to use the grass trimmer.
Stop using the grass trimmer while people, especially children, or pets are nearby
Only use the grass trimmer in daylight or good artificial light
Before using the grass trimmer and after any impact, check for signs of wear or damage and
repair as necessary.
Never operate the grass trimmer with damaged guards or without the guards in place
Keep hands and feet away from the cutting means at all times and especially when switching on
the motor.
Take care against injury from any device fitted for trimming the filament line length. After
extending new cutter line always return the grass trimmer to its normal operating position before
switching on.
Never fit metal cutting elements.
Never use replacement parts or accessories not provided or recommended by the manufacturer.
Disconnect the grass trimmer from the mains before checking, cleaning or working on the grass
trimmer and when it is not in use.
Always ensure that ventilation openings are kept clear of debris.

WARNING
4
GENERAL SAFETY RULES
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR GRASS TRIMMER
Do not expose to moisture.
Use only on AC mains supply voltage shown on the product rating label.
Avoid operating your trimmer in wet grass, where feasible.
Take care in wet grass, you may lose your footing.
On slopes, be extra careful of your footing and wear nonslip footwear.
Do not walk backwards when trimming, you could trip. Walk never run.
Switch off before pushing the trimmer over surfaces other than grass.
Never pick up or carry a trimmer by the cable.
Do not lean over the trimmer guard objects may be throw by the cutting line.
Keep all nuts, bolts and screws tight to be sure the trimmer is in safe working condition.
To avoid the risk of injury keep fingers and hands clear of the line cutter on the leading edge of
the guard.
MAINTENANCE
After use, disconnect the machine from the mains and check for damage
When not in use store the machine out of the reach of children
Mains powered trimmers should only be repaired by an authorised repairer
Use only manufacturers recommended replacement parts and accessories.
The preparation for use, operation and maintenance of the appliance:
- Read the instructions carefully;
- Be familiar with the controls and proper use of the equipment;
- Before use check the supply and extension cord for signs of damage or ageing,
- If the cord becomes damaged during use, disconnect the cord from the power supply
immediately.
DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY;
- Do not use the lawn trimmer (edge trimmer), if the cords are damaged or worn.
- Cutting elements continue to rotate after the motor is switched off;
- Keep extension cords away from cutting elements;
- It is recommended that appliances should be supplied via a residual
current device (RCD) with a tripping current of not more than 30mA.

WARNING
WARNING
5
ELECTRICAL INFORMATION
DOUBLE INSULATED
TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR DAMAGE TO THE
TOOL, USE PROPER CIRCUIT PROTECTION. YOUR GRASS TRIMMER IS
WIRED AT THE FACTROY FOR 120 V OPERATION. CONNECT TO A 120 V,
15 A CIRCUIT, AND USE A 15 A TIME-DELAYED FUSE OR CIRCUIT
BIREAKER. TO AVOID SHOCK OR FIRE, IF THE EXTENSION CORD IS
WORN, CUT OR DAMAGED IN ANY WAY, REPLACE IT IMMEDIATELY.
This grass trimmer has a plug that looks like the one shown in Fig. 1
The grass trimmer is double insulated to provide a double thickness of insulation between you and
the tool’s electrical system. All exposed metal parts are isolated from the internal metal motor
components with protective insulation.
USE ONLY IDENTIFICAL REPLACEMENT PARTS WHEN SERVICING THE
GRASS TRIMMER, TO AVOID INJURY.
WARNING
DOUBLE INSULATION DOES NOT TAKE THE PLACE OF NORMAL SAFETY
PRECAUTIONS WHEN OPERATING THIS GRASS TRIMMER
WARNING
TO AVOID ELECTROCUTION:
1. Use only identical replacement parts when servicing a tool with double
insulation. Servicing should be performed by a qualified technician.
2. Do not use in wet or damp areas or expose to rain.
Fig. 1

CAUTION
ALWAYS MAKE SURE THAT YOUR OUTLET IS PROPERLY GROUNDED.
IF UNCERTAIN, HAVE IT CHECKED BY A CERTIFIED ELECTRICIAN.
WARNING
THIS GRASS TRIMMER IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE
TO RAIN OR USE IN DAMP LOCATIONS.
6
ELECTRICAL INFORMATION
GUIDELINES FOR USING EXTENSION CORDS
USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry the current your product
will draw. An undersized cord will cause overheating. The table below shows the correct size to use
depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
GROUNDING INSTRUCTIONS
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least
resistance for electric current, and reduces the risk of electric shock. This tool is equipped with a
POLARIZED plug. The plug MUST be plugged into a matching grounded extension cord in
accordance with All local codes and ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the properly grounded extension cord,
have the proper outlet installed by a qualified electrician.
Minimum Gauge for Extension Cords (AWG)
(when using 120 V only)
Ampere Rating
More Than
0
6
10
12
Not More Than
6
10
12
16
25’ (7.6 m)
18
18
16
14
50’ (15 m)
16
16
16
12
100’ (30.4 m)
16
14
14
Not Recommended
150’ (45.7 m)
14
12
12
Total Length of Cord in Feet (meters)

WARNING
ALTHOUGH THIS GRASS TRIMMER IS DOUBLE INSULATED, THE
EXTENSION CORD AND RECEPTACLE MUST STILL BE GROUNDED
WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRICAL
SHOCK.
7
Make sure your extension cord is properly wired and in good electrical condition. Always replace a
damaged extension cord or have it repaired by a qualified person befor ues. Keep extension cords
away from sharp objects, excessive heat and damp or wet areas.
ELECTRICAL INFORMATION
Use a separate electrical circuit for your tools. This circuit should comprise a wire of at least 12
gauge and should be protected with a 15 A time-delayed fuse. Before connecting the motor to the
power line, make sure the switch is in the OFF position and the electric current is identical to that
stamped on the motor nameplate. Running at a lower voltage will damage the motor.

8
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOLS
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watts Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
Class II Construction Double-insulated construction
No Load Speed Rational speed, at no load
/min Per Minute Revolutions, strokes, surface speed, orbits etc.,
per minute
Wet Conditions Alert Do not expose to rain or use in damp locations
Read The Operator’s Manual
To reduce the risk of injury user must read and
understand operator’s manual before using this
product.
Eye Protection Wear eye protection when operating
this equipment.
Safety Alert Precautions that involve your safety.
Long Hair Failure to keep long hair away from the air inlet
could result in personal injury.
Loose Clothing Failure to keep loose clothing from being drawn
into air intake could result in personal injury.
Keep Bystanders Away Keep all bystanders at least 50 ft. away.

9
KNOW YOUR STRING TRIMMER
KNOW YOUR STRING TRIMMER (See Figure 1.)
The safe use of this product requires an understanding of the information on the product and in this
operator’s manual as well as a knowledge of the project you are attempting. Before use of this
product, familiarize yourself with all operating features and safety rules.
Fig.1
Line Spool
Flower Guard
Motor Housing
Height Adjustment
Locking Collar
Rotational Lock
Button
Auxilliary Handle
ON/OFF Switch
Upper Handle
Trimming Line
Safety Guard
Pivot Button
Cord Retainer Hook

WARNING
WARNING
10
ASSEMBLY
Fitting the guard (See Figure 2 & Figure 3.)
Before assembly, make sure that the grass trimmer is switched off and
unplugged.
1. Secure the guard with 3 screws.
2. Place the safety guard onto the motor housing as shown, pivot the guard anti-clockwise to the
position of figure 3. Secure the guard with the screw.
Never use the grass trimmer unless the guard is properly fitted.
Fitting the secondary handle (See Figure 4 & Figure 5.)
1. Place the handle on the grass trimmer as shown.
2. Adjust the handle to the most comfortable position. Use the marking as a guide.
3. Pass the bolt through the secondary handle and the main handle.
4. Screw the nut into the other side of the bolt. Do not over tighten the bolt.
Fig. 2
Fig. 4 Fig. 5

ASSEMBLY
Preparing the trimmer for use (See Figure 6 & Figure 7.)
1. Turn the adjustment collar clockwise to unlock, you can slide the telescopic tube up or down to
achieve comfortable working height.
2. Turn the adjustment collar anti-clockwise till the shaft lock into place.
Never attempt to lock the trigger lever in the on position.
11
WARNING
Fig. 3
Fig. 6 Fig. 7

12
OPERATION
Hint for optimum use (See Figure 8.)
,QRUGHUWRDFKLHYHRSWLPXPFXWWLQJUHVXOWVRQO\FXWGU\JUDVV
Trimming
+ROGWKHJUDVVWULPPHUDVVKRZ
*HQWO\VZLQJWKHWULPPHUIURPVLGHWRVLGH
:KHQFXWWLQJORQJJUDVVZRUNLQVWDJHVIURPKDUGREMHFWVDQGGHOLFDWHSDQWV
,IWKHJUDVVWULPPHUVWDUWVUXQQLQJVORZO\UHGXFHWKHORDG
Adjusting cutting head angle (See Figure 9.)
Depress the button and move the shaft to the lowest position, the shaft will rotate to the 4
position, while release the button. When the shaft is in position, the button will lock into place.
Using the Flower Guard (distance bracket) (See Figure 10.)
If necessary the distance bracket can be swung down until it engages. Use the distance bracket,
for example, to cut around plants.
Fig. 10
Fig. 9
Fig. 8

13
Your grass trimmer has been designed to operate over a long period of tome with a minimum of
maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
MAINTENANCE
Fitting a new spool of cutting line (See Figure 11 & Figure 12.)
8QSOXJWKHJUDVVWULPPHU
.HHSWKHWDEV
①depressed and remove the spool cover ②from the housing
③Remove the empty. spool ④from the spool cover .
5HPRYHDQ\GLUWDQGJUDVVIURPWKHVSRROFRYHUDQGKRXVLQJ
7DNLQJWKHQHZVSRRODQGSXVK,WLQWRWKHERVVLQWKHVSRROFRYHU5RWDWHWKHVSRROVOLJKWO\
until it is seated.
8QFOLSWKHHQGRIRQHRIWKHFXWWLQJOLQHVDQGJXLGHWKHOLQHLQWRRQHRIWKHH\HOHWV⑤. The
line should protrude approx. 4 inches from the spool cover.
8QFOLSWKHHQGRIWKHRWKHUFXWWLQJOLQHDQGJXLGHWKHOLQHLQWRWKHRWKHUH\HOHW7KHOLQH
should produce approx. 4 inches from the spool corner.
$OLJQWKHWDEV①on the spool cover with the cut outs ④in the housing.
3XVKWKHFRYHURQWRWKHKRXVLQJXQWLOLWVQDSVVHFXUHO\LQWRSODFH
Fig. 11 Fig. 12
ĺ
Ļ
ķ
ĸ
Ĺ
ĺ
Ļ
ķ
ĸ
Ĺ
WARNING
Before performing any maintenance, switch off and unplug the tool.
Regularly clean the ventilation slot in your grass trimmer using a soft brush or
dry cloth.
Regularly clean the cutting line and spool using a soft brush or dry cloth.
Regularly use a blunt scraper to remove grass and dirt from the underneath
of the guard.

Winding new line onto a spool (See Figure 13 & Figure 14 & Figure 15.)
2QO\XVHUHSODFHPHQWOLQH
You may wind new cutting line onto an empty spool.
Replacement packs of cutting line are available from dealer.
Remove the empty spool from the grass trimmer as described above.
Remove any remaining cutting line from the spool.
First feed 4 inches of cutting line ⑥into the two eyelet ⑦in the upper section of the spool as show
Wind the cutting line onto the spool in the direction of the arrow. make sure to wind the line on
neatly and in layers. Do not criss-cross.
Feed cutting line ⑥into the two eyelet ⑦in the upper section of the spool as show
Finish winding, Produce as described above to fit the spool on the grass trimmer. Do not forget to
release the cutting line from the parking slot.
Use LawnMaster replacement spool; part # RS0101
MAINTENANCE
14
If the cutting lines protrude beyond the trimming blade, cut them off so that they
just reach the blade.
WARNING
Only use the appropriate type of cutting line.
WARNING
Fig. 13 Fig. 14 Fig. 15
Ľ
ķ
ļļ

If your grass trimmer seems not to operate properly, follow the instruction below.
If this does not solve the problems, please contact your local repair agent.
TROUBLESHOOTING
Tool runs slowly
&KHFNWKDWWKHVSRROKRXVLQJFDQURWDWHIUHHO\&DUHIXOO\FOHDQLWLIQHFHVVDU\
&KHFNWKDWWKHFXWWLQJOLQHGRHVQRWSURWUXGHPRUHWKDQLQFKHVIURPWKHVSRROKRXVLQJ,ILW
does, cut it off so that it just reaches the line trimming blade.
Automatic line feed does not work.
.HHSWKHWDEVGHSUHVVHGDQGUHPRYHWKHVSRROFRYHUIURPWKHKRXVLQJ
3XOOWKHFXWWLQJOLQHXQWLOLWSURWUXGHVLQFKHVIURPWKHKRXVLQJ,ILQVXIILFLHQWFXWWLQJOLQHLVOHIWRQ
the spool, install a new spool of cutting line as instructed above.
$OLJQWKHWDEVRQWKHVSRROFRYHUZLWKWKHFXWRXWVLQWKHKRXVLQJ
3XVKLQJWKHFRYHURQWRWKHKRXVLQJXQWLOLWVQDSVVHFXUHO\LQWRSODFH
,IWKHFXWWLQJOLQHSURWUXGHVEH\RQGWKHWULPPLQJEODGHFXWLWRIIVRWKDWLWMXVWUHDFKHVWKHEODGH
,IWKHDXWRPDWLFOLQHIHHGVWLOOGRHVQRWZRUNRUWKHVSRROLVMDPPHGWU\WKHIROORZLQJVXJJHVWLRQ
&DUHIXOO\FOHDQWKHVSRROFRYHUDQGKRXVLQJ
5HPRYHWKHVSRRODQGFKHFNLIWKHOHYHUFDQPRYHIUHHO\
5HPRYHWKHVSRRODQGXQZLQGWKHFXWWLQJOLQHWKHQZLQGLWRQQHDWO\DJDLQDVGHVFULEHDERYH
Replace the spool as instructed.
15
Before proceeding, switch off and unplug.
WARNING

WARRANTY
16
We take pride in producing a high quality, durable product. This Lawnmaster® product carries a
limited two (2) year warranty against defects in workmanship and materials from date of purchase
under normal household use. If product is to be used for commercial, industrial or rental use, a 30
day limited warranty will apply. Batteries carry a one-year warranty against defects in workmanship
and materials. Batteries must be charged in accordance with the operator's manuals directions and
regulations in order to be valid. Warranty does not apply to defects due to direct or indirect abuse,
negligence, misuse, accidents, repairs or alterations and lack of maintenance. Please keep your
receipt/packing list as proof of purchase. This warranty gives you specific legal rights, and you
may have other rights, which vary from state to state. For product service call Customer Service at
[phone].
Items not covered by warranty :
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect, accident,
improper maintenance, or alteration;
2. The unit, if it has not been operated and/or maintained in accordance with the owner's manual;
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade sharpening;
5. Normal deterioration of the exterior finish due to use or exposure.
Transportation Charges : Transportation charges for the movement of any power equipment unit or
attachment are the responsibility of the purchaser. It is the purchaser’s responsibility to pay
transportation charges for any part submitted for replacement under this warranty unless such
return is requested in writing by LawnMaster.

17
EXPLODED VIEW

18
Parts List
ITEM NO. PART NO. DESCRIPTION QTY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
GT13FM.A0.01 right handle assembly 1
GT01FM.12.00 knob assembly 1
GE50DC.10.50 circumvolve control assembly 1
GT01FM.20.05 Locking Knob 1
GT02FM.00.04 connector of left and right shell 1
GT01FM.00.15 filter 2 2
GT01FM.00.14 filter 1 2
GT02FM.A0.05 right motor shell assembly 1
GT15FM.A0.03 safty guard assembly 1
GT15FM.A0.04 spool assembly 1
GT15FM.20.20 spool line 1
GT15FM.20.01 spool cover 1
GT15FM.20.03 Spare spool lock 1
TOTHYY.07.05spring 1
GT01FM.00.11 spacer guard 1
TM6558.00.00 motor assembly 1
TOTHYY.03.12 pressed spring 1
GT02FM.00.06 bushing button 1
GT02FM.00.07 left motor shell 1
GT13FM.10.30 left handle 1
GF01BL.10.11 assistant handle assembly 1
WODQ10.03.06 switch 1
TOQTGX.A0.01 Impacted Plate assembly 1
GT01FM.A0.02 switch button 1
aluminum tube assembly 1
wire plug assembly 1

19
NOTES

Sommaire 20
Caractéristiques Du Produit 20
Règles De Sécurité Générales 21-23
Informations Électriques 23-26
Symbols 27
Connaissez Votre Débroussailleuse 28
Montage 29-30
Fonctionnement 31
Maintenance 32-33
Dépannage 34
Garantie 35
Vue Éclatée 36
Liste Des Pièces 37
Notes 38
SOMMAIRE
CARACTÉRISTIQUES
DÉBROUSSAILLEUSE À CORDON 13 po
À Cordon
Tension 120 V~60Hz
Intensité 4.2 A
Vitesse 8000 tr/min
Taille De Ligne 0,065 po (1,65 mm)
Largeur De Coupe 13 po (330 mm)
Longueur De La Ligne De Coupe 2°—4 m
Poids 5,1 lb (2,31 kg)
20
