LawnMaster CLHT2452 User manual

Instruction Manual

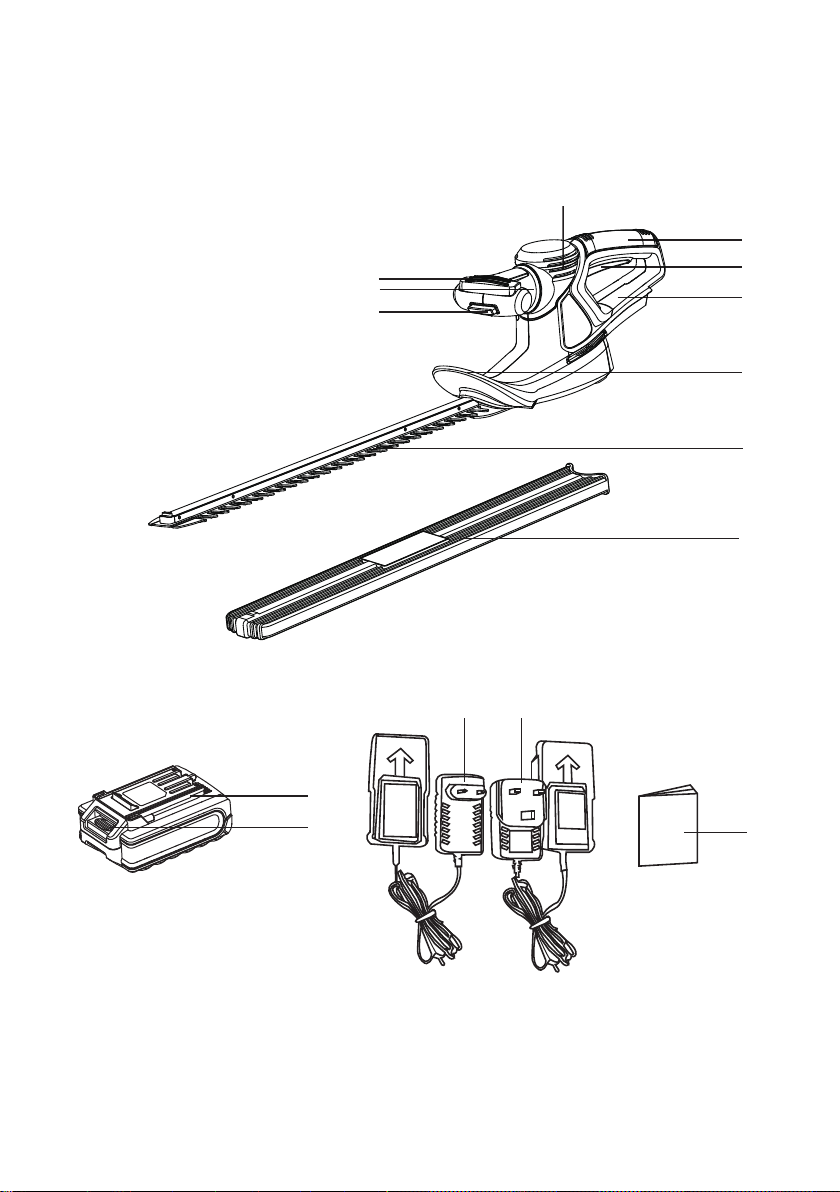

24V Lithium-Ion Cordless Hedge Trimmer CLHT2452
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.
WARNING:
Original Instructions

1
2
11
12
4
5
3
15
13 14
6
10
7
8
9

4
TABLE OF CONTENTS
Section Page
Symbols
Safety Information
In the Box
Assembly
Operation
Maintenance
Troubleshooting
Technical Data
Recycling and Disposal
5-6
7-16
16
17
18-21
22-23
24
25
26

5
SYMBOL DESIGNATION/EXPLANATION
Caution.
Read instruction manual.
Wear eye and ear protection.
Do not use the hedge trimmer in the rain or on wet hedges.
Noise level specication LWA in dB(A).
Cutting length.
Protection Class II.
The product complies with the applicable European directives and an evaluation
method of conformity for these directives was followed.
Only recharge battery packs with the supplied charger indoors.
Do not dispose of electrical equipment in domestic waste.
Batteries contain Li-ion, waste batteries should be sorted for ecofriendly disposal.
Do not dispose of waste batteries as unsorted municipal waste.
Do not dispose of battery packs in rivers or immerse in water.
Do not dispose of battery packs in re.
Do not subject the battery to direct sunlight over long periods and do not leave it
on or near a heat source (max. 60°C).
Recycle electrical waste products in an environmentally safe way where facilities
exist.
SYMBOLS
The following warning symbols appear throughout this manual and indicate the
appropriate safety measures you should take when operating and maintaining the
appliance.
Li-ion

6
SYMBOLS
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and
understand completely the instruction manual.
If you do not understand the warnings and instructions in the instruction manual, do not use this
product.
WARNING

7
SAFETY INFORMATION
READ CAREFULLY BEFORE USE. KEEP FOR FUTURE
REFERENCE.
WARNING
Work Area Safety
■ Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
■ Do not operate power tools in explosive atmospheres, such
as in the presence of ammable liquids, gasses or dust.
Power tools create sparks which may ignite the dust or
fumes.
■ Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
Electrical Safety
■ Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body is earthed or
grounded.
■ Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
Personal Safety
■ Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the inuence of drugs,
alcohol or medication. A moment of inattention white
operating power tools may result in serious personal injury.
■ Use personal protective equipment. Always wear eye

8
SAFETY INFORMATION
protection. Protective equipment such as dust mask,
nonslip safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the
off-position before connecting to power source and/or
battery pack, picking up or carrying the tool. Carrying power
tools with your nger on the switch or energising power
tools that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
■ Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
■ If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust-
related hazards.
Power Tool Use and Care
■ Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of re when used with
another battery pack.
■ Use power tools only with specically designed battery
packs. Use of any other battery packs may create a risk of

9
SAFETY INFORMATION
injury and re.
■ When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery terminals
together may cause burns or a re.
■ Under abusive conditions, liquid may be ejected from the
battery; avoid contact. If contact accidentally occurs, ush
with water. If liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause irritation or
burns.
■ Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
■ Do not use the power tool if the switch does not turn it on
and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
■ Disconnect the battery pack from the power tool before
making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
■ Store power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
■ Maintain power tools. Check for misalignment or binding
of moving parts, breakage of parts and any other condition
that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.

10
SAFETY INFORMATION
■ Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
■ Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account the
working conditions and the work to be performed. Use of
the power tool for operations different from those intended
could result in a hazardous situation.
Service
■ Have your power tool serviced by a qualied repair person
using only identical replacement parts. This will ensure that
the safety of the power tool is maintained.
Special Safety Information for Hedge Trimmers
■ Keep all body parts away from the blade. Do not attempt
to remove clippings while the blade is operating or to hold
on to material which is to be cut. Only remove trapped
clippings when the tool is switched off and battery is
removed. One moment of carelessness in the usage of the
hedge trimmer can lead to severe injury.
■ Carry the hedge trimmer by the handle with the blade
stopped. Always put on the protective cover during
transport and storage of the hedge trimmer. Careful
handling of the tool reduces the risk of injury from the
blade.
■ Hold the power tool only on the insulated handle surfaces,
as the cutting blade may come into contact with concealed
power cables. Contact between the cutting blade and a live
cable may render metallic components live and result in an

11
SAFETY INFORMATION
electric shock.
■ For your personal safety: Wear suitable work clothes such
as boots with non-slip soles, sturdy long trousers, gloves
and goggles. Do not use this tool while walking barefooted
or while wearing open sandals.
■ Do not use the hedge trimmer in the rain.
■ The appliance is designed for trimming hedges. Do not use
to cut twigs, hard wood or other objects.
■ Do not attempt to dislodge a blocked/trapped blade before
switching the tool off.
■ Before commencing with the trimming check the hedge for
hidden objects such as wire etc.
■ When operating the appliance, always hold it well with both
hands and at some distance away from your body.
■ Do not use the tool in the vicinity of ammable liquids or
gasses. Fire-and explosion risk in the event of a short
circuit.
■ The blades have to be checked for wear in regular intervals
and re-sharpened. Blunt blades will overload the machine.
Resulting damages are not covered by warranty.
■ Do not attempt to repair the tool yourself, unless you are
qualied to do so. All works, which are not described in this
manual, may only be performed by a qualied person.
■ Ensure that the device is switched off before inserting the
battery. Inserting a battery into a power tool that is switched
on may result in accidents.
■ The device must not be used by people (including children)
with limited physical, sensory or mental faculties or who
lack the necessary experience and/or knowledge - other
than they are supervised by a person responsible for safety

12
SAFETY INFORMATION
or are being instructed to operate the appliance by such a
person.
■ Children must be supervised in order to ensure that they do
not play with the equipment.
Residual Risks
Even if properly operating and handling this electric tool, some
residual risks will remain. Due to its construction and build,
this electric tool may present the following hazards:
■ Cuts
■ Ear damage if working without ear protection.
■ Damage to your health caused by swinging your hands
and arms when operating the appliance for longer periods
of time or if the unit is not held or maintained properly.
WARNING
During operation, this electric tool generates an
electromagnetic eld which, under certain circumstances, may
impair the functionality of active or passive medical implants.
To reduce the risk of serious or lethal injuries, we recommend
that persons with medical implants consult their doctor and
the manufacturer of their medical implant before operating the
machine.
WARNING
Before use, check that the blades are sharp. Ensure that
the blades are sharpened whenever blunt, in order to avoid
overstressing of the machine. Damages caused by cutting
with blunt blades are not covered by the guarantee.

13
SAFETY INFORMATION
Battery Safety Information
■ Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of re when used with
another battery pack. Incorrect use may result in electric
shock, overheating or leakage of corrosive liquid from the
battery.
■ Do not place appliances or their batteries near re or heat
sources. Continuous intense sunlight, re or other heat
sources may cause an increased danger of explosion.
■ Do not crush, drop or damage the battery pack. Do not
use a battery pack or charger that has been dropped or
received a sharp blow. A damaged battery is subject to
explosion. Properly dispose of a dropped or damaged
battery immediately.
■ Batteries can explode in the presence of a source of
ignition, such as a pilot light.
■ To reduce the risk of serious personal injury, never use
any cordless product in the presence of an open ame.
An exploded battery can propel debris and chemicals. If
exposed, ush with water immediately.
■ Do not charge battery in a damp or wet location. Following
this rule will reduce the risk of electric shock.
■ For best results, your battery tool should be charged in a
location where the temperature is more than 4°C but less
than 40°C.
■ Under extreme usage or temperature conditions, battery
leakage may occur. If liquid comes in contact with your
skin, wash immediately with soap and water. If liquid gets
into your eyes, ush them with clean water for at least 10

14
SAFETY INFORMATION
minutes, then seek immediate medical attention.
■ When the battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys, nails,
screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause sparks, burns, or a
re.
■ Do not open up the battery and avoid mechanical damage
to the battery. Risk of short circuit and fumes may be
emitted. Ensure fresh air and seek medical assistance in
the event of discomfort.
■ Always remove battery pack before storing the device.
When battery becomes fully charged, unplug the charger
from the power supply and remove the battery pack from
the charger.
■ Keep battery pack dry, clean, and free from oil and grease.
Always use a dry cloth when cleaning. Never use brake
uids, gasoline, petroleum-based products, or any solvents
to clean battery pack.
Charger Safety Information
■ Ensure the battery pack is charged indoors only, in a dry,
cool and well ventilated environment.
■ Do not use non-rechargeable batteries!
■ Do not operate the charger with a damaged cord or plug,
which could cause shorting and electric shock. If damaged,
immediately discontinue use. Replace the charger with the
identical unit as listed in the Product Specications in this
manual. If the power cord for this equipment is damaged, it
must be replaced by the manufacturer, a customer service

15
SAFETY INFORMATION
agent of the same or a fully qualified person in order to
prevent hazards.
■ The plug of the charger must match the outlet. Never
modify the plug in any way. Unmodied plugs and matching
outlets will reduce the risk of electric shock.
■ Allow a hot battery to cool before charging.
■ Before each use, check the charger, cable and plug. Do
not use a defective charger and do not disassemble the
charger. Incorrect reassembly may result in the risk of re,
electric shock or electrocution.
■ Protect the charger against moisture and wet conditions.
There is a danger of electric shock.
■ Operate the charger only with the appropriate original
batteries. Charging other batteries may result in injuries
and risk of re.
■ Keep the cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
■ Do not use a charger that has been dropped or received a
sharp blow.
■ The voltage indicated on the charger rating plate must
correspond to the voltage of the power source.
■ Never touch the mains plug with wet hands
Intended Use
This product is intended for private domestic use only, not
for any commercial trade use. It must not be used for any
purposes other than those described. Any use of the machine
that deviates from its intended use and is not included in these
instructions is considered unauthorised use and relieves

16
SAFETY INFORMATION
IN THE BOX
1. Rear Handle
2. On/Off Switch, Rear
3. Rear Safety Guard
4. Hand Protection
5. Hedge Trimmer Blade
6. Safety Switch
7. Front Handle
8. On/Off Switch, Front
9. Ventilation Slots
10. Blade Guard
11. Battery Pack
12. Release Button
13. Battery Charger with VDE plug (included in
mainland EU products only)
14. Battery Charger with BS plug (included in
UK products only)
15. Instruction Manual
the manufacturer from his or her legal liability.

17
ASSEMBLY
Assembly Preparation
■ Carefully remove all contents from the product packaging.
■ Ensure you have all the accessories and tool(s) needed for assembly and operation. This also
includes suitable personal protective equipment.
Installing/Removing the Battery Pack (See Fig. 1)
IMPORTANT! Before using the hedge trimmer, read all safety precautions and follow the
instructions in the Battery Pack and Charger section. If storing for a prolonged period of time,
remove the battery.
■ Replace the battery pack or the charger immediately if the battery case or charger cord is
damaged.
■ Verify that the switch is in the OFF position before inserting or removing the battery pack.
■ Verify that the battery pack is removed and the switch is in the OFF position before inspecting,
adjusting, or performing maintenance on any part of the hedge trimmer.
■ Read, understand, and follow the instructions contained in the section entitled Battery Pack
Operation and Charger Operation.
To Install the Battery Pack (Fig. 1)
■ Align the support rails located on the battery chamber with the guide rails on the battery pack.
■ Slide the battery pack fully towards the handle until the latch locks into place. Ensure it is
secured.
To Remove the Battery Pack
Press the release button on the battery pack and remove it from the hedge trimmer.
NOTE: The battery pack ts onto the hedge trimmer snugly in order to prevent accidental
dislodging.
Follow these instructions in order to avoid injury and to reduce the risk of electric shock or re:
WARNING

18
■ Align the battery pack to the slots on the charger. Slide the battery pack in until it locks into
place (Fig. 2).
■ Connect the charger to the power supply.
■ After the battery is charged, it is suggested that the charger be disconnected from the power
supply.
■ Press the release button on the battery pack and remove it from the charger.
NOTE: It is normal for the battery pack and the charger to become warm during charging process.
If the battery does not charge properly, check to make sure the electrical outlet is operational.
Always charge the battery before storage!
Use only with 24V Lawnmaster® HYCH0132400500B or HYCH0132400500G battery charger.
WARNING
OPERATION
Battery Pack Operation
The battery charger supplied is specically designed for the lithium-ion battery used in this garden
appliance and may cause risk of re if used with a non-compatible battery pack.
Check the power voltage! Battery chargers operate on 100-240V AC.
Ensure the battery is charged between 4°C and 40°C. This ensures an optimum battery service
life.
Protect the battery from heat, from continuous exposure to sun and keep away from radiation
or other heat sources. Do not leave the battery in the hedge trimmer in direct sunlight over long
periods. The battery is supplied partially charged. To ensure full capacity of the battery, charge
the battery before using your appliance for the rst time. The lithium-ion battery can be charged at
any time without reducing its service life. Interrupting the charging procedure does not affect the
battery.
Charger Operation (See Fig. 2)
Use only with 24V Lawnmaster® 24LB2004 or 24LB4005 battery.
If any part of the charger is missing or damaged, do not operate it! Replace the charger with a new
one. Failure to pay attention to this warning could result in possible serious injury.
Check the voltage! The voltage must comply with the information on the rating label.
WARNING

19
OPERATION

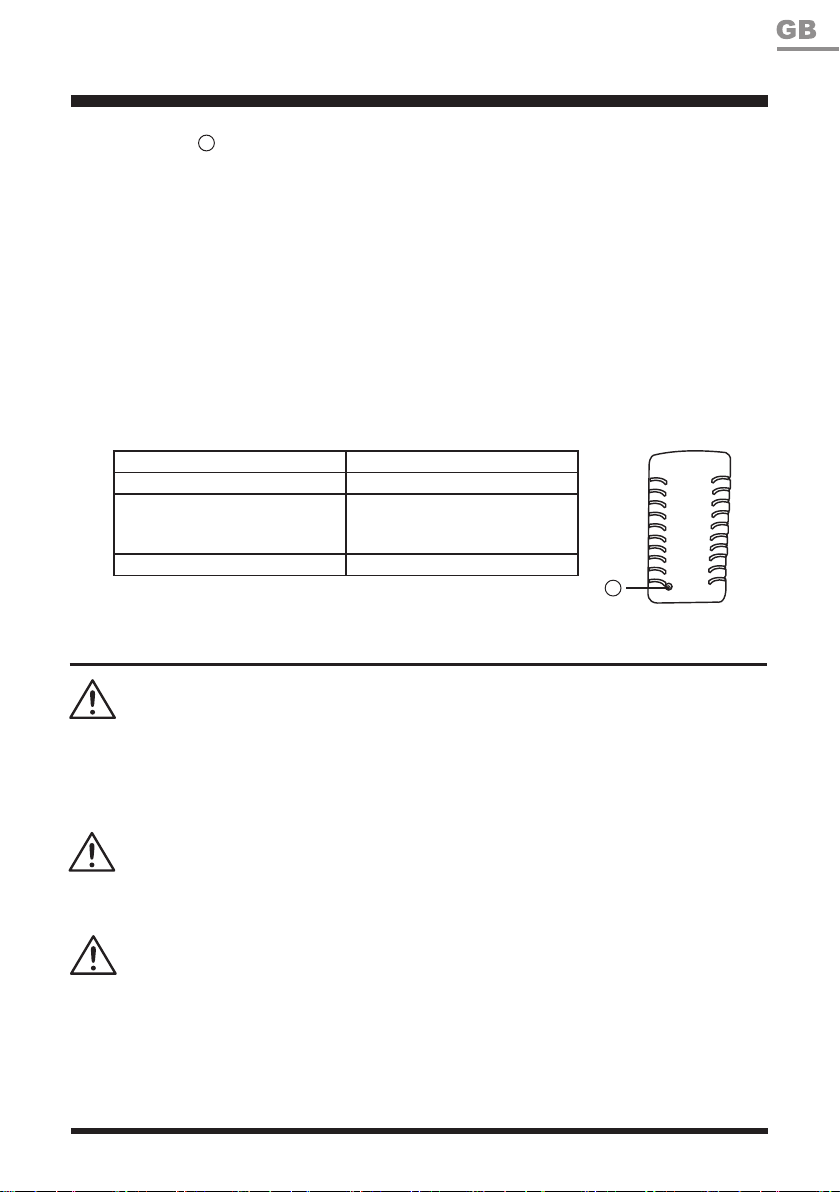

■ Charger LED ( 1)
• If the battery is not connected to the charger, a continuous green LED light indicates that
the plug is plugged into an outlet socket and the battery charger is ready for operation.
• Charging: a continuous red LED on the charger indicates that the battery is charging
normally.
• Charged: a continuous green LED on the charger indicates that the battery is ready for use.
• Charging Paused: a ashing red LED light on the charger indicates that charging is
paused. Battery temperature is not within the charging temperature range of 4°C and 40°C
or the charging voltage is too low. As soon as the permitted temperature is reached, the
battery charger will automatically switch to charging.
• After continuous or repeated charging cycles without interruption, the charger may warm up.
This is normal and does not indicate a technical defect of the battery charger.
The indicator lights on the charger show the charger status:
Wear suitable clothing and work gloves when working with the equipment. Ensure that the
equipment is functional before each use. The on/off switch and the safety switch must not be held
closed. They must switch off the motor when on is released. Should a switch be damaged, stop
working with the equipment.
WARNING
Starting / Stopping the hedge Trimmer (See Fig. 3 & 4)
INDICATOR LIGHT STATUS
Red, continuous Charging
Green, continuous Fully charged / Connected to
power supply (Standby)
Red, ashing Charging paused
1
WARNING
After turning off the appliance, the blades will keep moving for some time. Allow the blades to
come to a standstill. Neither touch nor slow down the moving blades. Risk of injury!
WARNING
Ensure that you are standing in a rm position with both hands gripping the hedge trimmer away

20
from the body. Ensure that the hedge trimmer is in contact with no other objects before switching
on.
OPERATION
This hedge trimmer features a two-hand power switch to ensure safe starting.
■ Make sure that the battery is installed properly.
■ Carefully remove the blade guard from the hedge trimmer blade (Fig. 3).
■ Press the safety switch at the front handle (Fig. 4).
■ Press the front and rear On/Off switches. The hedge trimmer will run at top speed (Fig. 4).
■ To turn the hedge trimmer off simply release the front or rear On/Off switch.
General Operation
■ Check the product, its battery pack and charger as well as accessories for damage before each
use. Do not use the product if it is damaged or shows wear.
■ Always hold the product by its handles. Keep the handles dry to ensure safe support.
■ Ensure that the air vents are always unobstructed and clear. Clean them if necessary with a soft
brush. Blocked air vents may lead to overheating and damage the product.
■ Switch the product off immediately if you are disturbed while working by other people entering
the working area. Always let the product come to complete stop before putting it down.
■ Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and
have full control over the product.
WARNING
To avoid personal injury:
■ Handle the blade with care.
■ Do not place your ngers or hand between the notches in the blade or in any position where
they could get pinched or cut.
■ Never service the blade or hedge trimmer unless the battery pack is removed.
■ Do not use if the blade assembly is damaged or bent. Take hedge trimmer to a qualied service
dealer for blade replacement using identical parts as specied in the Parts List of this manual.
■ Always keep both hands on the hedge trimmer handles to prevent your hand from touching the
blade.
