LCN LCN-NH12 User manual

LCN-NH12/-NH24
Installation guide Local Control Network
1
Low voltage power supply (12V/24V) for DC motors
Regulated with built in current sensor.
The LCN-NH12/-NH24 module converts 230V outputs for shutter and blind motors into low
voltage. (12V DC or 24V DC, module description: LCN-NH12 or LCN-NH24, (please be
aware when ordering.) The LCN-NH12/-NH24 module has an intregated direction toggler
(+/-) with locking: controlling both direction inputs at the same time, is no problem. Apart
from that, the power supply has an internal current sensor, that can be evaluated over an
external binary sensor (LCN-B3I/ -BU4L).
How it works with DC motors:

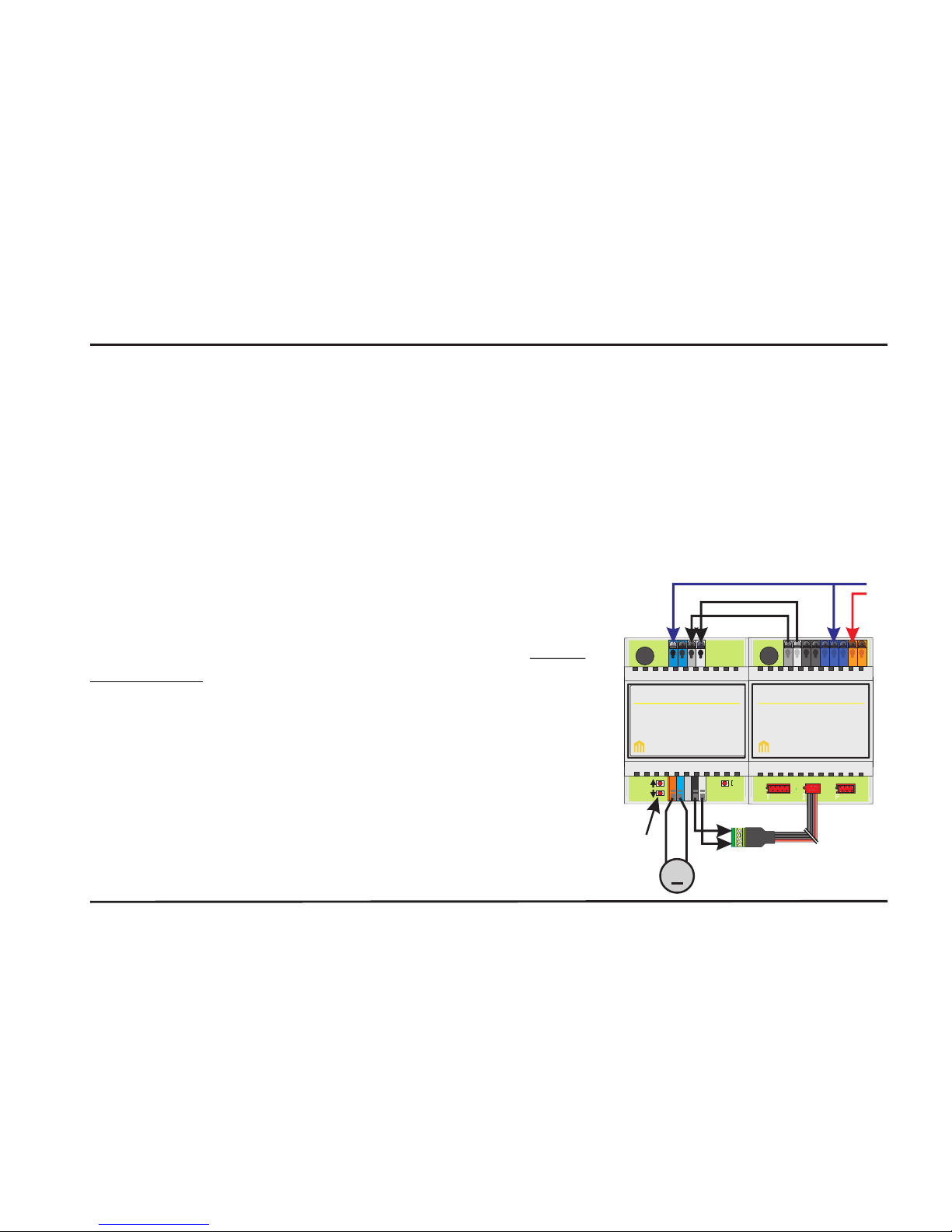

The LCN-NH12/-NH24 is connected to the outputs of an
LCN-SH, -SHS or -HU module (see illustr.) The outputs
of the module must be set to motor switch and filters
deactivated (see data sheet LCN-SH / -HU). The motor
is to be connected to terminals as described in the
illustration. The controlling of the electrical motors is
carried out over the commands motor / shutter (move
UP, move DOWN or single control mode). Alternatively
the power supply input feeds can be carried out through
any other contacts, e.g. LCN-R8H.
NN
R1R2
E
S
U
F
Low voltage power supply (12V/24V) for DC motors
Regulated with built in current sensor.
The LCN-NH12/-NH24 module converts 230V outputs for shutter and blind motors into low
voltage. (12V DC or 24V DC, module description: LCN-NH12 or LCN-NH24, (please be
aware when ordering.) The LCN-NH12/-NH24 module has an intregated direction toggler
(+/-) with locking: controlling both direction inputs at the same time, is no problem. Apart
from that, the power supply has an internal current sensor, that can be evaluated over an
external binary sensor (LCN-B3I/ -BU4L).
How it works with DC motors:
The LCN-NH12/-NH24 is connected to the outputs of an
LCN-SH, -SHS or -HU module (see illustr.) The outputs
of the module must be set to motor switch and filters
deactivated (see data sheet LCN-SH / -HU). The motor
is to be connected to terminals as described in the
illustration. The controlling of the electrical motors is
carried out over the commands motor / shutter (move
UP, move DOWN or single control mode). Alternatively
the power supply input feeds can be carried out through
any other contacts, e.g. LCN-R8H.
Low voltage power supply (12V/24V) for DC motors
Regulated with built in current sensor.
The LCN-NH12/-NH24 module converts 230V outputs for shutter and blind motors into low
voltage. (12V DC or 24V DC, module description: LCN-NH12 or LCN-NH24, (please be
aware when ordering.) The LCN-NH12/-NH24 module has an intregated direction toggler
(+/-) with locking: controlling both direction inputs at the same time, is no problem. Apart
from that, the power supply has an internal current sensor, that can be evaluated over an
external binary sensor (LCN-B3I/ -BU4L).
How it works with DC motors:
The LCN-NH12/-NH24 is connected to the outputs of an
LCN-SH, -SHS or -HU module (see illustr.) The outputs
of the module must be set to motor switch and filters
deactivated (see data sheet LCN-SH / -HU). The motor
is to be connected to terminals as described in the
illustration. The controlling of the electrical motors is
carried out over the commands motor / shutter (move
UP, move DOWN or single control mode). Alternatively
the power supply input feeds can be carried out through
any other contacts, e.g. LCN-R8H.
Low voltage power supply (12V/24V) for DC motors
Regulated with built in current sensor.
The LCN-NH12/-NH24 module converts 230V outputs for shutter and blind motors into low
voltage. (12V DC or 24V DC, module description: LCN-NH12 or LCN-NH24, (please be
aware when ordering.) The LCN-NH12/-NH24 module has an intregated direction toggler
(+/-) with locking: controlling both direction inputs at the same time, is no problem. Apart
from that, the power supply has an internal current sensor, that can be evaluated over an
external binary sensor (LCN-B3I/ -BU4L).
How it works with DC motors:
The LCN-NH12/-NH24 is connected to the outputs of an
LCN-SH, -SHS or -HU module (see illustr.) The outputs
of the module must be set to motor switch and filters
deactivated (see data sheet LCN-SH / -HU). The motor
is to be connected to terminals as described in the
illustration. The controlling of the electrical motors is
carried out over the commands motor / shutter (move
UP, move DOWN or single control mode). Alternatively
the power supply input feeds can be carried out through
any other contacts, e.g. LCN-R8H.
LCN
Local Control Network
Netzteil
power supply
U =230V, U =+/- (x)V=, P =12VA
N out V
LCN-NH(x)
3Af
A1A2L
LNNNDD
F
3
,
1
5
A
2
5
0
V
E
S
U
F
Low voltage power supply (12V/24V) for DC motors
Regulated with built in current sensor.
The LCN-NH12/-NH24 module converts 230V outputs for shutter and blind motors into low
voltage. (12V DC or 24V DC, module description: LCN-NH12 or LCN-NH24, (please be
aware when ordering.) The LCN-NH12/-NH24 module has an intregated direction toggler
(+/-) with locking: controlling both direction inputs at the same time, is no problem. Apart
from that, the power supply has an internal current sensor, that can be evaluated over an
external binary sensor (LCN-B3I/ -BU4L).
How it works with DC motors:
The LCN-NH12/-NH24 is connected to the outputs of an
LCN-SH, -SHS or -HU module (see illustr.) The outputs
of the module must be set to motor switch and filters
deactivated (see data sheet LCN-SH / -HU). The motor
is to be connected to terminals as described in the
illustration. The controlling of the electrical motors is
carried out over the commands motor / shutter (move
UP, move DOWN or single control mode). Alternatively
the power supply input feeds can be carried out through
any other contacts, e.g. LCN-R8H.
Low voltage power supply (12V/24V) for DC motors
Regulated with built in current sensor.
The LCN-NH12/-NH24 module converts 230V outputs for shutter and blind motors into low
voltage. (12V DC or 24V DC, module description: LCN-NH12 or LCN-NH24, (please be
aware when ordering.) The LCN-NH12/-NH24 module has an intregated direction toggler
(+/-) with locking: controlling both direction inputs at the same time, is no problem. Apart
from that, the power supply has an internal current sensor, that can be evaluated over an
external binary sensor (LCN-B3I/ -BU4L).
How it works with DC motors:
The LCN-NH12/-NH24 is connected to the outputs of an
LCN-SH, -SHS or -HU module (see illustr.) The outputs
of the module must be set to motor switch and filters
deactivated (see data sheet LCN-SH / -HU). The motor
is to be connected to terminals as described in the
illustration. The controlling of the electrical motors is
carried out over the commands motor / shutter (move
UP, move DOWN or single control mode). Alternatively
the power supply input feeds can be carried out through
any other contacts, e.g. LCN-R8H.
Low voltage power supply (12V/24V) for DC motors
Regulated with built in current sensor.
The LCN-NH12/-NH24 module converts 230V outputs for shutter and blind motors into low
voltage. (12V DC or 24V DC, module description: LCN-NH12 or LCN-NH24, (please be
aware when ordering.) The LCN-NH12/-NH24 module has an intregated direction toggler
(+/-) with locking: controlling both direction inputs at the same time, is no problem. Apart
from that, the power supply has an internal current sensor, that can be evaluated over an
external binary sensor (LCN-B3I/ -BU4L).
How it works with DC motors:
The LCN-NH12/-NH24 is connected to the outputs of an
LCN-SH, -SHS or -HU module (see illustr.) The outputs
of the module must be set to motor switch and filters
deactivated (see data sheet LCN-SH / -HU). The motor
is to be connected to terminals as described in the
illustration. The controlling of the electrical motors is
carried out over the commands motor / shutter (move
UP, move DOWN or single control mode). Alternatively
the power supply input feeds can be carried out through
any other contacts, e.g. LCN-R8H.
LCN
Local Control Network
Sensor-/Aktor Modul
intelligent controller
U =230V, P =1.5W
N V
LCN-SH
Down
Up
M
control
LED´s
ISSENDORFF ISSENDORFF
L
N
D
3
2
1
N
N terminal
LCN-BU4L or
LCN-B3I
input
direction DOWN
direction UP
®

LCN-NH12/-NH24 Installation guide
Local Control Network
2
A special feature is the intregated current sensor, that can be evaluated over an external
binary sensor (LCN-B3I/LCN-BU4L). This type of monitoring can be used for example for
error messages like (motor is running / is not running!). For this, the binary sensor is
connected to the terminals as shown on page 1.
the white terminal on the common (N/M) connection from the LCN-B3I/-BU4L, the black
terminal on the desired input (motor is running = input is activated).
Note:
A parallel connection from LCN-NH12/-NH24 modules, is only possible over an
interposing relay. (e.g. LCN-R4M2H)
Polarity:
when phase (L) on terminal R1 then orange = minus (-), blue = plus (+)
when phase (L) on terminal R2 then orange = plus (+), blue = minus (-)
®

NN
R1 R2
E
S
U
F
LCN
Local Control Network
LCN-NH24
Down
Up
N
L
M terminal
LCN-BU4L
inputs 1-4
LCN-BU4L
Netzteil
power supply
U =230V, U =+/- 24V=, P =10VA
N out V
ISSENDORFF
+ -
3
Connecting as power supply:
The LCN-NH24 can also be used as a simple power supply,
as query voltage for a sensor module (LCN-BU4L) .
The power supply offers an electrical isolation from the
query voltage to the mains power.
The power supply is connected primary side on the R2
(phase) and to the N terminal. On the secondary side, the
blue terminal (see illustr. on the right) is connected to the
M terminal of the LCN-BU4L. The orange terminal then
branches off to the single push-buttons/switches.
LCN-NH12/-NH24
Installation guide Local Control Network
®

ISSENDORFF KG, 31157 Sarstedt
LCN-NH12/-NH24 D12/2012
4
Technical information and images are non binding. Changes are reserved.
Technical hotline: [phone] or www.LCN.de
Technical data:
connection:
power supply:
2
terminals/wire type (mains side) screwless, solid max. 2,5mm or fine wire with
2
wire eind-sleeves max 1,5mm
loop through current max. 16A
terminals/wire type (load side) solid or fine wire max. 0,5-1,5mm²
nominal voltage NH12: 12V DC (stable)
nominal voltage NH24: 24V DC (stable)
nominal power: 10VA
fuse: fine-wire fuse 2,5AF
installation:
o o
operating temperature: -10 C..+ 40 C
air humidity: max. 80% rel., non condensing
environmental conditions: use as stationary installation accord. to VDE632, VDE637
protection art: IP20
dimensions: 68mm (4HP) x 113mm x 66mm
installation: on DIN rail 35mm (DIN50022)
230V AC 15%, 50/60Hz±
