BEL TEC800-12-074NA User manual

READ THIS CAREFULLY BEFORE
INSTALLATION!
VOR DER INSTALLATION BITTE FOLGENDE
SICHERHEITSHINWEISE BEACHTEN!
LEGGERE ATTENTAMENTE PRIMA
DELL’INSTALLAZIONE!
A LIRE ATTENTIVEMENT AVANT
L’INSTALLATION!
Before operating, read this document
thoroughly and retain it for future reference.
Non-respect of these instructions may reduce
performances and safety of the devices and
cause danger for people and property.
The products must be installed, operated,
serviced and maintained by qualified personnel
in compliance with applicable standards and
regulations.
Do not open the device, it does not contain
replaceable components, the tripping of the
internal fuse (if included) is caused by an
internal failure.
Do not repair or modify the device, if
malfunction or failure should occur during
operation, send unit to the factory for
inspection.
No responsibility is assumed by Bel Power
Solutions for any consequences deriving from
the use of this material.
Lesen Sie dieses Dokument vor der Inbetriebnahme
sorgfältig durch und bewahren Sie es zum späteren
Nachschlagen auf.
Die Nichtbeachtung dieser Anweisungen kann die
Funktion und Sicherheit der Geräte beeinträchtigen
und birgt Gefahren für Personen und Eigentum.
Die Geräte müssen von qualifiziertem Personal unter
Einhaltung der geltenden Normen und Vorschriften
installiert, betrieben, gewartet und instand gehalten
werden.
Öffnen Sie das Gerät nicht, es enthält keine
austauschbaren Komponenten, das Auslösen der
internen Sicherung (falls vorhanden) ist stets auf
tiefergehende Fehler im Schaltkreis zurück zu führen.
Reparieren oder modifizieren Sie das Gerät nicht.
Sollte während des Betriebs eine Fehlfunktion oder
ein Defekt auftreten, schicken Sie das Gerät zur
Überprüfung ins Werk.
Bel Power Solutions übernimmt keine Haftung für die
Folgen, die sich aus dem Einsatz dieses Gerätes
ergeben.
Prima dell’installazione, leggere attentamente
questo documento istruzioni e conservarle per
future consultazioni.
L’inosservanza delle presenti istruzioni può
compromettere le caratteristiche e la sicurezza
dell’apparecchio e causare pericolo per le persone
e le cose.
Il prodotto deve essere installato, utilizzato e
riparato da personale qualificato e nel rispetto
delle normative vigenti.
Non aprire il prodotto, esso non contiene
componenti sostituibili, il guasto del fusibile
interno (se previsto) è causato da un guasto
interno.
Non tentare di riparare o modificare il prodotto, se
durante il funzionamento si verificano guasti o
anomalie, inviarlo al produttore per il controllo.
Bel Power Solutions non si assume nessuna
responsabilità per qualunque conseguenza
derivante dall’uso di questo materiale.
Lire ces instructions avant l'installation, conserver
ce manuel pour référence future.
Défaut de se conformer à ces instructions peut
affecter les caractéristiques et la sécurité du
dispositif, et causer du danger aux personnes ou
aux biens.
Les produits doivent être installés, exploités et
entretenus par du personnel qualifié et en
conformité avec les règlements.
N'ouvrez pas le produit, il ne contient aucune
pièce réparable, le déclenchement du fusible
interne (le cas échéant) est causé par un défaut
interne.
Ne pas essayer de réparer ou modifier le produit ;
si des défaillances se produisent pendant le
fonctionnement, retourner le produit au fabricant
pour inspection.
Bel Power Solutions n'assume aucune
responsabilité des conséquences éventuelles
découlant de l'utilisation des produits.
CAUTION
ACHTUNG
ATTENZIONE
AVVERTISSEMENT
RISK OF BURNS, EXPLOSION, FIRE,
ELECTRICAL SHOCK, PERSONAL INJURY.
Never carry out work on live parts! Danger of
fatal injury!
The product’s enclosure may be hot, allow time
for cooling product before touching it.
Do not allow liquids or foreign objects to enter
into the products.
To avoid sparks, do not connect or disconnect
the device before having previously turned-off
input power and wait for internal capacitors
discharge (minimum 2 minutes).
GEFAHR VON VERBRENNUNGEN,
EXPLOSIONEN, FEUER, STROMSCHLAG,
PERSONENSCHÄDEN.
Führen Sie niemals Arbeiten an spannungsführenden
Teilen durch! Gefahr von tödlichen Verletzungen! Das
Gehäuse des Gerätes kann heiß sein, lassen Sie Zeit
zum Abkühlen des Gerätes, bevor Sie es berühren.
Lassen Sie keine Flüssigkeiten oder Fremdkörper in
die Geräte eindringen.
Um Überschläge zu vermeiden, schließen Sie das
Gerät nicht an oder trennen Sie es nicht ohne vorher
die Eingangsspannung abgeschaltet zu haben, und
warten Sie die Entladung der internen
Kondensatoren ab (mindestens 2 Minuten).
RISCHIO USTIONI, ESPLOSIONE, INCENDIO,
SCOSSA, LESIONI GRAVI.
Non effettuare mai operazioni sulle parti sotto
tensione! Pericolo di lesioni letali!
Il contenitore può scottare, lasciar quindi
raffreddare il dispositivo prima di toccarlo.
Non far entrare liquidi o oggetti estranei nel
dispositivo.
Per evitare scintille, non collegare o scollegare
l'apparecchiatura prima di avere tolto tensione di
ingresso e prima che sia avvenuta la scarica dei
condensatori interni (min. 2 minuti).
RISQUE DE BRULURES, EXPLOSION,
INCENDIE, ELECTROCUTION, DOMMAGE
AUX PERSONNES.
Ne jamais effectuer des opérations sur les parties
sous tension! Danger de mort!
Le boîtier peut produire des brûlures, le laisser
refroidir avant de toucher l'appareil. Ne faire pas
pénétrer des liquides ou des corps étrangers
dans l'appareil.
Pour éviter des étincelles, ne pas connecter ou
déconnecter l'équipement jusqu'à ce que la
tension d'entrée a été supprimée et avant qu'il
n'ait eut lieu la décharge des condensateurs
internes (minimum 2 minutes).
INTENDED USE
BESTIMMUNGSGEMÄSSER BETRIEB
USO PREVISTO
UTILISATION
These are component type devices for internal
installation within system equipment. They are
isolated from hazardous voltages and with
outputs under 60 Vdc or connected to
protective earth. The devices can be used for
general applications such as ITE
network/servers, industrial and medical.
This product may cause interference if used in
residential areas. Such use must be avoided
unless the user takes special measures to
reduce electromagnetic emissions to prevent
interference to the reception of radio and
television broadcast.
Do not use these devices in applications where
malfunction may cause injury or death. Please
see full spec of unit for further details.
Dies sind Komponenten für die interne Installation in
Systemgeräten. Sie sind gegen gefährliche
Spannungen isoliert und haben Ausgänge unter 60
VDC oder sind mit Schutzerde verbunden. Die
Geräte können für allgemeine Anwendungen wie ITE-
Netzwerke / Server, Industrie und Medizin verwendet
werden.
Dieses Gerät ist nicht für den Betrieb in Wohnräumen
konzipiert. Für den Betrieb in solchen Umgebungen
müssen zusätzliche EMV Schutzmassnahmen
erbracht werden.
Verwenden Sie diese Geräte nicht in Anwendungen,
bei denen eine Fehlfunktion zu Verletzungen oder
zum Tod führen kann. Weitere Informationen finden
Sie in der vollständigen Spezifikation des Geräts.
I dispositivi sono di tipo componente per
l’installazione all’interno
dell’apparecchiatura. Sono isolati da una tensione
pericolosa e hanno tensione in uscita sotto 60Vdc
o sono collegati a terra protettiva. I dispositivi son
per l’utilizzo generale per applicazioni come rete
ITE/ server, industriali e medici. Questo prodotto
può causare interferenze se usato in aree
residenziali. Tale uso deve essere evitato a meno
che l’utente non prenda misure speciali per ridurre
le emissioni elettromagnetiche atte ad evitare
interferenze alla ricezione alle trasmissioni
radiotelevisive.
Non utilizzare in applicazioni in cui un eventuale
guasto può comportare rischio di lesioni o di
morte. Vedere le specifiche complete del
dispositivo per ulteriori dettagli
Ce sont des types de composant pour une
installation interne d'équipement de système. Ils
sont isolés des tensions dangereuses et avec des
sorties inférieures à 60 Vdc ou connectés au terre
de protection. Les appareils peuvent être utilisés
pour des applications générales telles que les
réseaux / serveurs ITE, industriels et médicaux.
Ce produit peut provoquer des interférences s'il
est utilisé dans un environnement résidentielles.
Nous ne recommandons pas son utilisation dans
de telles conditions à moins que l'utilisateur
prenne des mesures spécifiques pour réduire les
émissions électromagnétiques afin d'éviter les
interférences avec les systèmes à réception tel
que radio et de télévision.
Ne pas utiliser ces dispositifs dans une
application où un dysfonctionnement pourrait
entraîner le risque des blessures ou de mort.
Pour de plus amples informations, se référer à la
fiche technique du produit
ENVIRONMENTAL CHARACTERISTICS
UMGEBUNGSBEDINGUNGEN
CARATTERISTICHE AMBIENTALI
CARACTÉRISTIQUES
ENVIRONMENTALES
Installation in a Pollution Degree 2 environment.
Do not use in wet area or subject to moisture.
Carefully recycle the product and related
batteries according to local regulations.
Installation in einer Umgebung mit
Verschmutzungsgrad 2.
Nicht in nassen Bereichen oder unter Feuchtigkeit
verwenden.
Das Gerät und die zugehörigen Batterien sind
entsprechend den lokalen Vorschriften zu recyceln
bzw. zu entsorgen.
Usare in ambienti con Grado di Inquinamento 2.
Non far funzionare l'apparecchio in un ambiente
umido o soggetto a formazione di condensa.
Riciclare il prodotto e le batterie collegate, nel
rispetto delle normative locali vigenti.
Utiliser les produits dans des environnements
avec degré de pollution 2.
Ne pas employer l'appareil dans un
environnement humide ou soumis à la
condensation. Recycler les produits et les
batteries, conformément à la réglementation
locale.

2
INSTALLATION INSTRUCTION
Manufacturer
Bel Fuse Inc.
206 Van Vorst St.
Jersey City
NJ 07302, USA
Asia-Pacific
[phone]
Europe, Middle East
[phone]
North America
[phone]
belfuse.com/power-solutions
© 2023 Bel Fuse Inc.
BCM.20095_A
INPUT(S)
PART NUMBER
AC INPUT
AC INPUT CURRENT
AC INPUT FREQUENCY
DC INPUT
DC INPUT CURRENT
TEC800-12-074NA/RA
100 –127 V ~
200 –240 V ~
10 A MAX
5 A MAX
50 –60 Hz
50 –60 Hz
240 V
5 A MAX
TEC1300-12-074NA/RA
100 –127 V ~
200 –240 V ~
12 A MAX
8 A MAX
50 –60 Hz
50 –60 Hz
240 V
7 A MAX
TEC1600-12-074NA/RA
100 –127 V ~
200 –240 V ~
12 A MAX
10 A MAX
50 –60 Hz
50 –60 Hz
240 V
8 A MAX
TEC2000-12-074NA/RA
100 –127 V ~
200 –220 V ~
220 –240 V ~
13 A MAX
10 A MAX
10 A MAX
50 –60 Hz
50 –60 Hz
50 –60 Hz
240 V
10 A MAX
Note: Input selection is automatic; no manual change is required.
OUTPUT(S)
PART NUMBER
Vo1 (12 V)
Io1
Po1 max
Vo2 (12 V aux)
Io2 aux
Po aux
INPUT RANGE
TEC800-12-074NA/RA
12.2 V
65 A
800 W
12.2 V
3 A
36.6 W
200 –240 VAC; 240 VDC nominal; 204 –288 VDC
100 –127 VAC
TEC1300-12-074NA/RA
12.2 V
12.2 V
106 A
82 A
1300 W
1000 W
12.2 V
12.2 V
3 A
3 A
36.6 W
36.6 W
200 –240 VAC; 240 VDC nominal; 204 –288 VDC
100 –127 VAC
TEC1600-12-074NA/RA
12.2 V
12.2 V
132 A
82 A
1600 W
1000 W
12.2 V
12.2 V
3 A
3 A
36.6 W
36.6 W
200 –240 VAC; 240 VDC nominal; 204 –288 VDC
100 –127 VAC
TEC2000-12-074NA/RA
12.2 V
12.2 V
12.2 V
164 A
148 A
82 A
2000 W
1800 W
1000 W
12.2 V
12.2 V
12.2 V
3 A
3 A
3 A
36.6 W
36.6 W
36.6 W
220 –240 VAC, 240 VDC nominal; 204 –288 VDC
200 –220 VAC;
100 –127 VAC
.
SAFETY APPROVALS
Approved to the latest version of the following safety standards: CSA/UL 62368-1 and IEC 62368-1.
CAUTION
These component level power supplies are intended exclusively for installation within other equipment by an industrial assembly operation or by professional installers.
This is a Class I power supply; the unit must be properly connected to earth ground in end use. A component power supply should be installed in end-use equipment
according to the requirements of the safety standard used for that equipment. This power supply is not designed to be operated outside of an enclosure which provides
a means of mechanical, electrical, and fire protection. To maintain ES1 requirements, the outputs should not be connected together in any manner which causes the total
output voltage to exceed 60 VDC.
PROTECTIVE EARTHING
The Power Supply must be properly grounded to mains protective earthing termination at end use.
WARNING
Operation of this equipment in a residential environment could cause radio interference.
警告：在居住环境中， 运行此设备可能会造成无线电干扰.
警告：為避免電磁干擾，本產品不應安裝或使用於住宅環境。
ENVIRONMENTAL CONDITIONS
TRANSPORTATION & STORAGE:
Ambient Temperature Range: -40 °C to +70 °C (all models)
Relative Humidity Range: 5% to 95 %, non-condensing (all models)
Altitude: 0 to 15 200 m above sea level L (all models)
OPERATION:
Ambient Temperature Range:
-5°C to +50°C (TEC800-12-074NA/RA)
-5°C to +50°C (TEC1300-12-074NA/RA)
-5°C to +50°C (TEC1600-12-074NA/RA)
-5°C to +50°C (TEC2000-12-074NA/RA)
Relative Humidity Range: 5% to 85 %, non-condensing (all models)
Altitude: 0 to 5 000 m above sea level L (all models)
FUSING
CAUTION: SINGLE POLE/NEUTRAL FUSING.
Fuses F1 are rated 12.5 or 15 A (800 W), 16 A (1300 W), 16 A (1600 W), 16 A (2000 W), 250 V~(fast acting). There are no user serviceable parts in the Power Supply.
SERVICING
In case of failure, the Power Supply must be returned to a Bel Power Solutions Authorized Service Center. There are no user serviceable parts in the Power Supply.
LIMITED WARRANTY
Bel Power Solutions warrants each power supply of its manufacture for a period of two years from the date of original shipment. This warranty applies to defects in
materials and workmanship that result in non-performance to published specifications. The product(s) must be returned to a Bel Power Solutions Authorized Service
Center for repair with a Bel Power Solutions preassigned RMA number.
Bel Power Solutions assumes no liabilities for consequential damages of any kind through the use or misuse of its products by any user. No other obligations are
expressed or implied. Please note that the specifications, terms, and conditions stated are subject to change without notice.

3
INSTALLATION INSTRUCTION
Manufacturer
Bel Fuse Inc.
206 Van Vorst St.
Jersey City
NJ 07302, USA
Asia-Pacific
[phone]
Europe, Middle East
[phone]
North America
[phone]
belfuse.com/power-solutions
© 2023 Bel Fuse Inc.
BCM.20095_A
NUCLEAR AND MEDICAL APPLICATIONS
Bel Power Solutions products are not designed, intended for use in, or authorized for use as critical components in life support systems, equipment used in hazardous
environments, or nuclear control systems without the express written consent of the respective divisional president of Bel Power Solutions.
TECHNICAL REVISIONS
The appearance of products, including safety agency certifications pictured on labels, may change depending on the date manufactured. Specifications are subject to
change without notice.

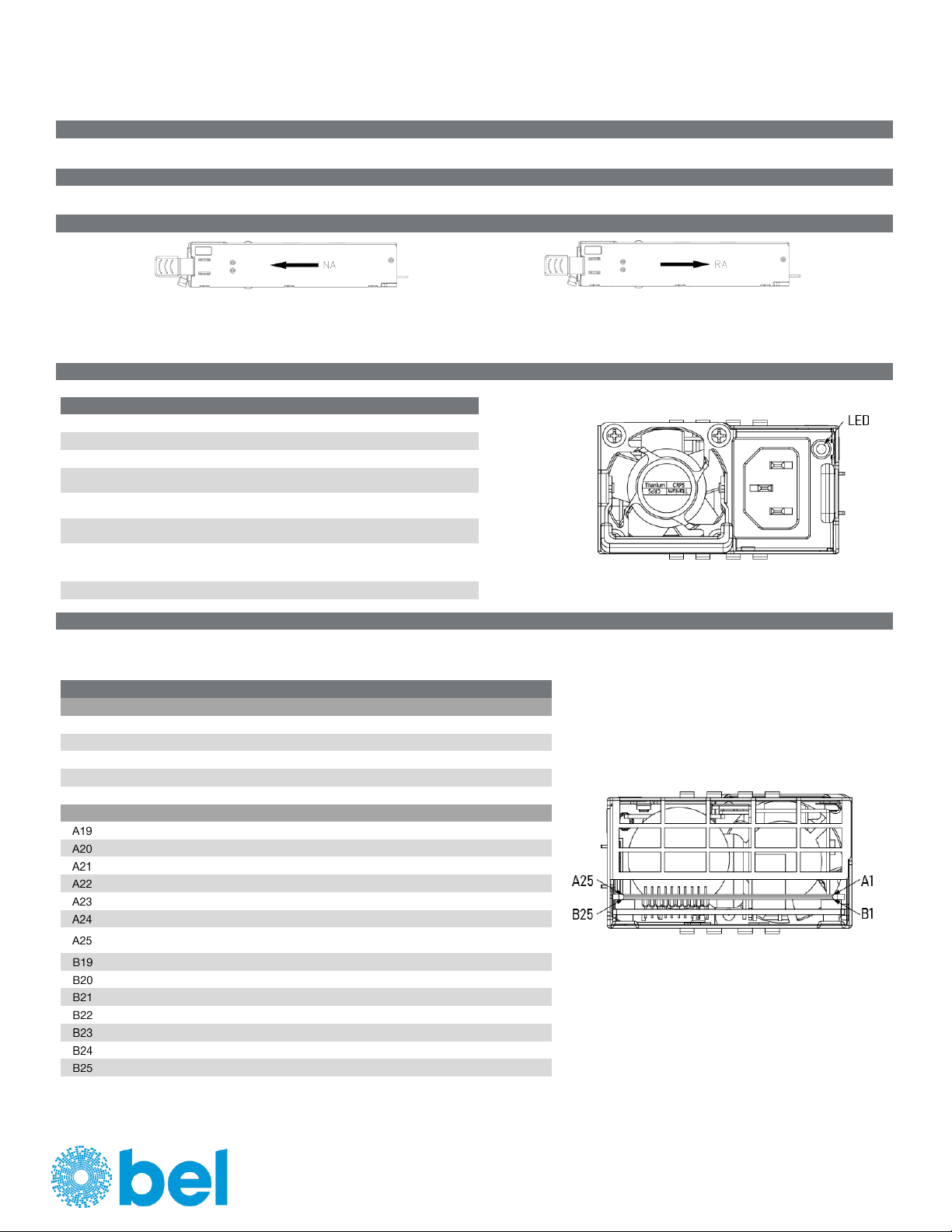

AIR FLOW DIRECTION
TECXXXX-12-074NA Side view and Airflow direction
As shown in the figure above, the airflow direction shall be from
the card edge connector side to the DC inlet side of the power supply
TECXXXX-12-074RA Side view and Airflow direction
As shown in the figure above, the airflow direction shall be from
the DC inlet side of the power supply to the card edge connector side.
LED INDICATORS
OPERATING CONDITION
LED SIGNALING
12V Output is normal
GREEN
No AC power to all power supplies
OFF
AC present / Only VSB on (PS off)
1 Hz Blink GREEN
Slave PSU is set as active standby mode
(SMART_ON Redundant)
1 Hz Blink GREEN
AC cord unplugged or AC power lost; with a second power
supply in parallel still with AC input power.
AMBER
Power supply critical event causing a shutdown; failure,
OCP, SCP, OVP, Fan Fail and OTP
AMBER
Power supply warning events where the power supply
continues to operate; high temp, high power, high current
and slow FAN.
1 Hz Blink AMBER
Power supply FW updating
2 Hz Blink GREEN
sPIN ALLOCATION
Unit: Golden finger
Counterpart: FCI Connectors 10035388102LF/9393-F4P50N11ACB30DA
Note: SDA, SCL, PSON#, SMBAlert#, PRESENT# and Vin_good are Trailing Pins (short pins)
PIN
NAME
DESCRIPTION
Output
A1-9
GND
12V Main and 12Vsb output return
A10-18
12V Output
12 VDC main output
B1-9
GND
12V Main and 12Vsb output return
B10-18
12V Output
12 VDC main output
Control Pins
SDA
I²C /SMBus/ Power Management Bus Data Line
SCL
I²C /SMBus/ Power Management Bus Clock Line
PSON#
Active low; 12V main output on/off control
SMBAlert#
Active low; I2C alert signal (interrupt)
Return Sense
12V main output Remote Sense Return
+12V Remote Sense
12V Output Remote Sense
PWOK
Active high; indicates 12V Main is valid and within
operational limits
A0
Power Management Bus address A0
A1
Power Management Bus address A1
12VSTBY
12VSTANDBY output
SMART_ON
SMART_ON Redundancy Bus
12V Load Share Bus
12V Main Output Current Share Signal (bus)
PRESENT#
Power Supply Present; passive signal to Signal Return
Vin_good
Indicate the status of input voltage
