LD systes CURV 500 SERIES User manual

CURV 500®SERIES
INSTALL SOLUTIONS
CONFIGURATION GUIDE
CURV 500 iAMP
CURV 500 SPEAKERS

BISTRO
Bistros, cafés, clubs or
restaurants often require
audio systems with a mul-
tizone layout. The modular
design of the CURV 500
installation system enables
individual configurations
for each zone ranging from
subtle background music
to dancefloor levels while
keeping the same excellent
sonic signature throughout
the installation.

CURV 500®INSTALL
BISTRO MEDIUM BUNDLE / 12 SATELLITES AND 2 SUBWOOFERS
CH A PRESET: 2xC500-SAT
CH C PRESET: 2xC500-SAT CH D PRESET: 1xC500ISUB
CH B PRESET: 1xC500ISUB
ZONE 1
ZONE 2
+ - + -
+ - + -
CURV 500 iAMP OUTPUT
4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.

CURV 500®INSTALL
BISTRO MAX BUNDLE / 12 SATELLITES AND 2 SUBWOOFERS
CH A PRESET: 1xC500-SAT CH B PRESET: 1xC500ISUB
CH C PRESET: 1xC500-SAT CH D PRESET: 1xC500ISUB
ZONE 1
ZONE 2
+ - + -
+ - + -
CURV 500 iAMP OUTPUT
4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.

CONFERENCE
In addition to excellent speech in-
telligibility, conference and meeting
room audio systems must deliver
superb sound reproduction for
multimedia applications.
With its modular design and ele-
gant appearance, the CURV 500 is
the perfect choice for all installati-
on sizes from small meeting rooms
to large multipurpose spaces.

CURV 500®INSTALL

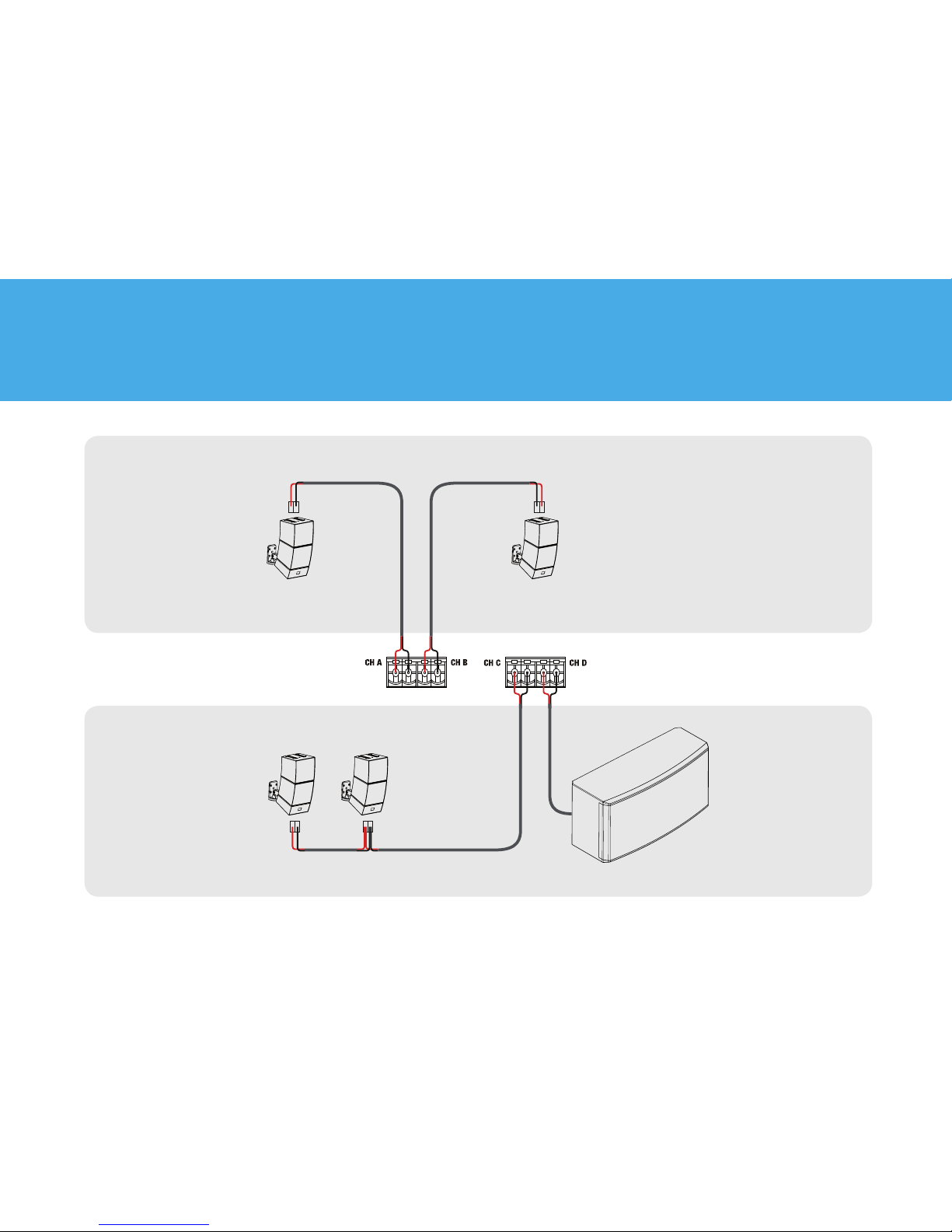

CONFERENCE MEDIUM BUNDLE / 8 SATELLITES AND 1 SUBWOOFER
CH A PRESET: 2xC500-SAT CH B PRESET: 2xC500-SAT
CH C PRESET: 2xC500-SAT CH D PRESET: 1xC500ISUB
FRONT
REAR
+ - + -
+ - + -
CURV 500 iAMP OUTPUT
4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.

CURV 500®INSTALL
CONFERENCE MAX BUNDLE / 12 SATELLITES AND 2 SUBWOOFERS
CH A PRESET: 3xC500-SAT
CH B PRESET: 1xC500ISUB
CH C PRESET: 3xC500-SAT
CH D PRESET: 1xC500ISUB
ZONE 1 / FRONT
ZONE 2 / REAR
+ - + -
+ - + -
CURV 500 iAMP OUTPUT
4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.

VOICE
Audio installations for
speech reproduction only such
as those in lecture rooms
typically do not require sub
frequency reinforcement.
The CURV 500 system’s iAMP
provides delay compensation
per channel to ensure ma-
ximum speech intelligibility,
imaging and sound quality
throughout the installation.

CURV 500®INSTALL

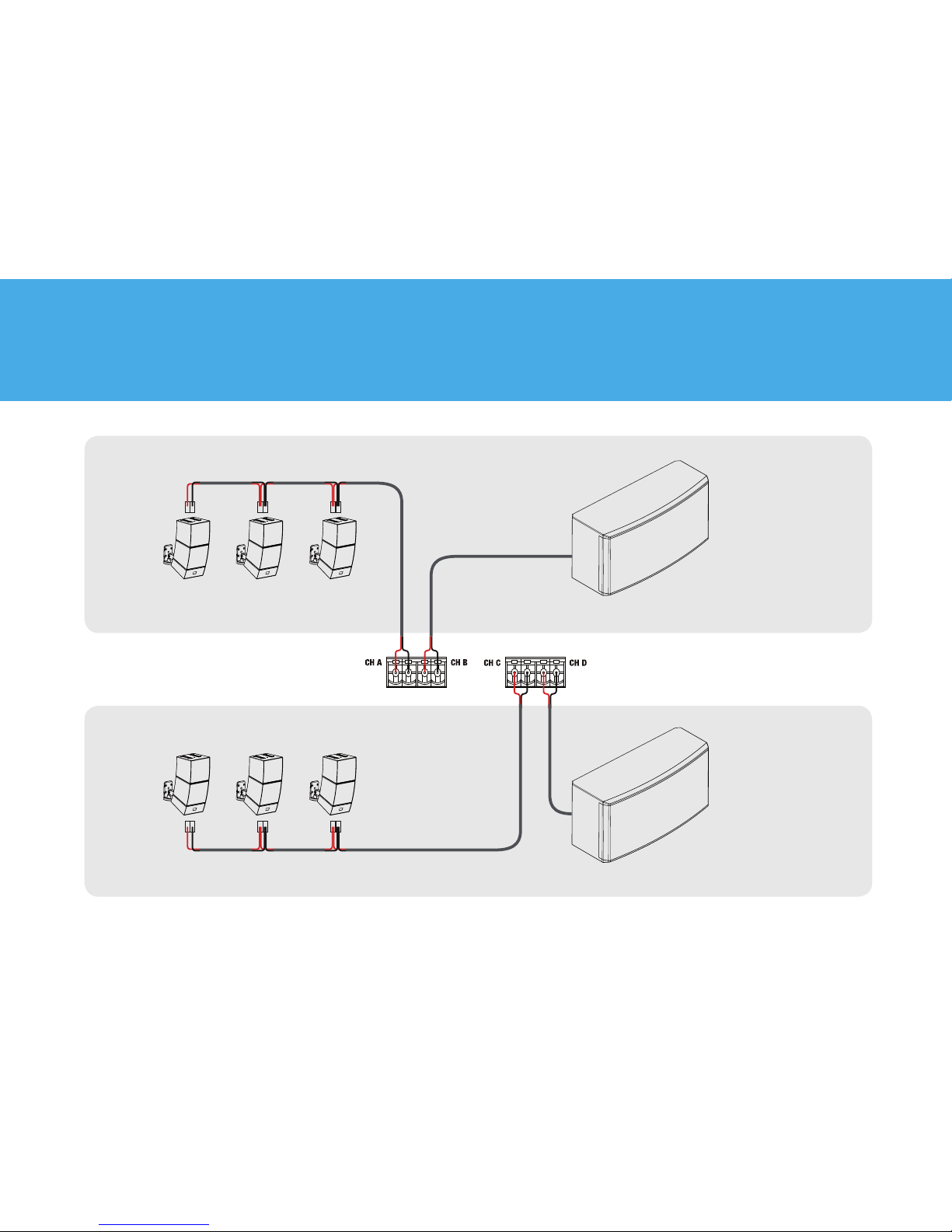

VOICE BUNDLE / 24 SATELLITES
CH A PRESET: 3xC500-SAT CH B PRESET: 3xC500-SAT
CH C PRESET: 3xC500-SAT CH D PRESET: 3xC500-SAT
ZONE 1
ZONE 3
+ - + -
+ - + -
CURV 500 iAMP OUTPUT
4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.

CURV 500®INSTALL

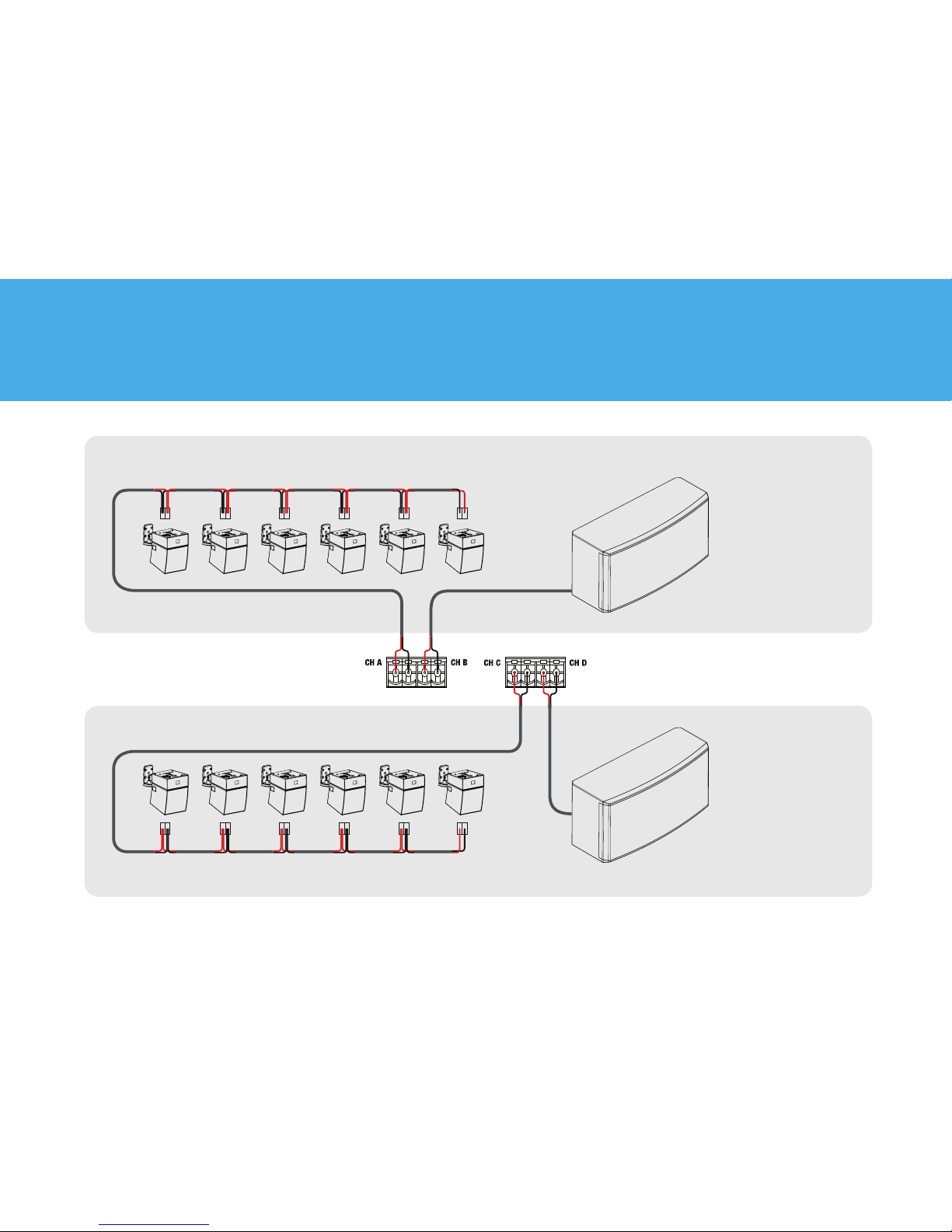

VOICE MAX BUNDLE - 24 SATELLITES
CH A PRESET: 1xC500-SAT
CH C PRESET: 1xC500-SAT
CH B PRESET: 1xC500-SAT
CH D PRESET: 1xC500-SAT
+ - + -
+ - + -
CURV 500 iAMP OUTPUT
4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.

70V
The CURV 500’s iAMP includes
70V output to deliver audio to a
large number of speakers.
This permits setting up a distri-
buted system by daisy-chaining
a maximum of 24 satellites to
bridged channel A and B out-
puts, or bridged channel C and
D outputs. The satellites can be
wired individually or in groups
of 2, 3 or 4 units.

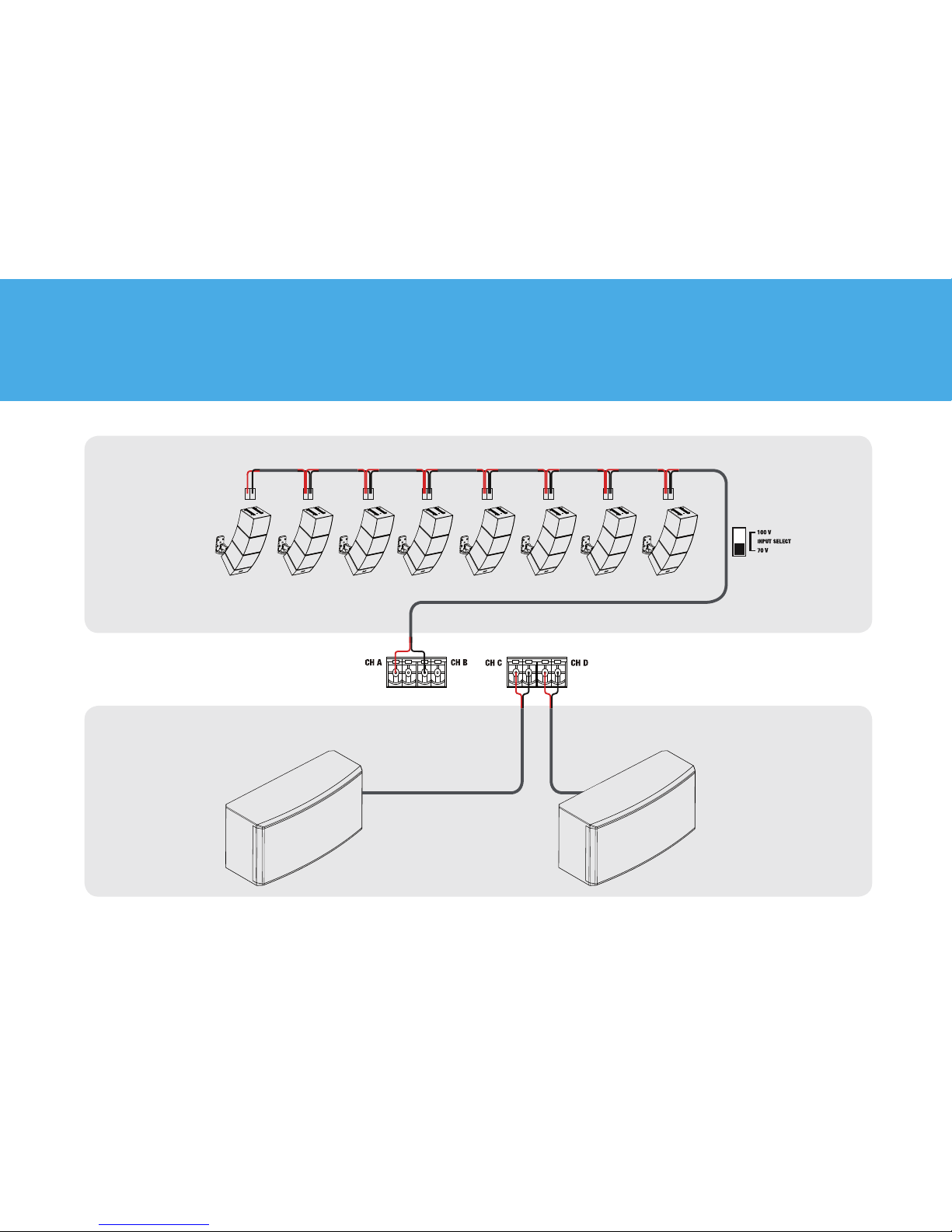

CURV 500®INSTALL

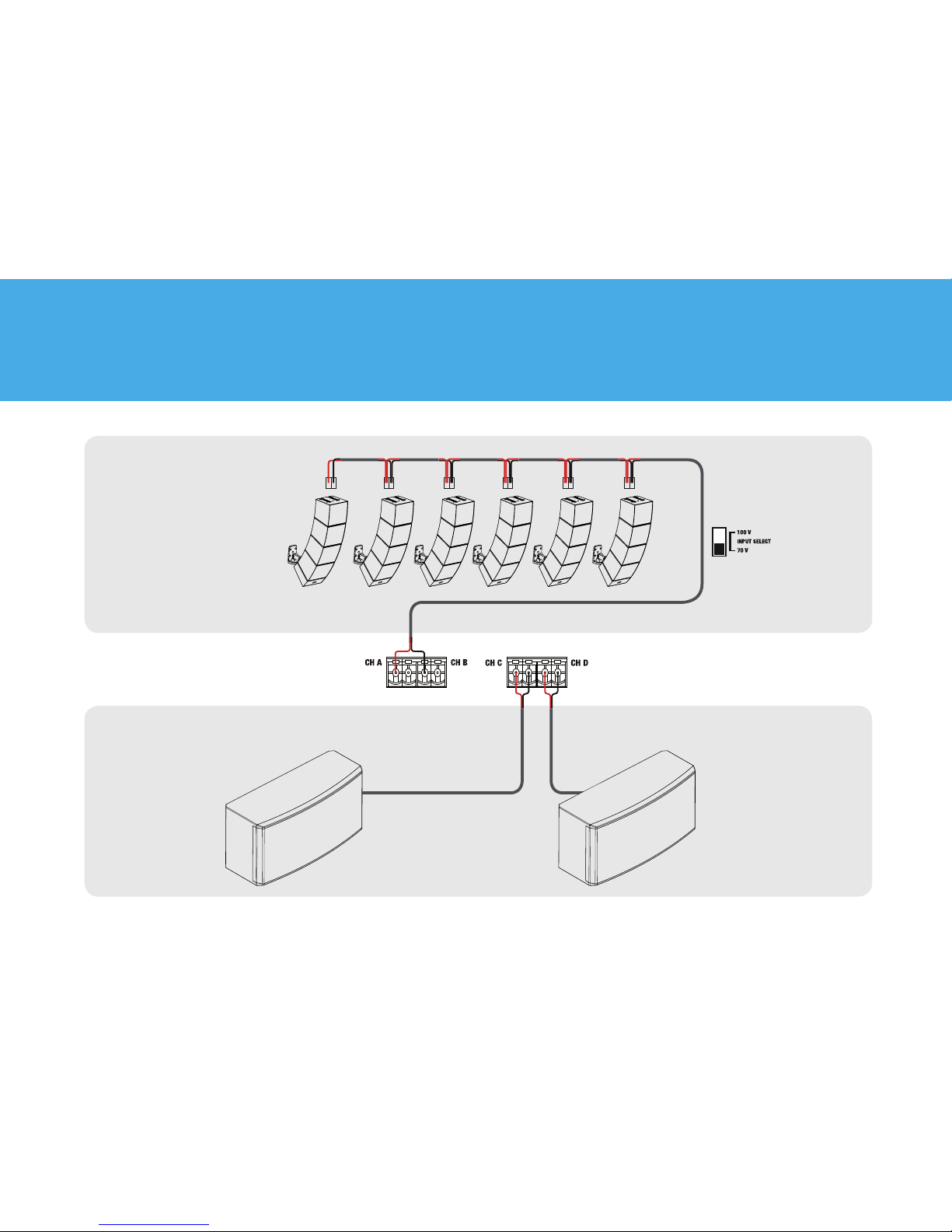

70V EXAMPLE - 1 SATELLITE SET / MAX. 24 SATELLITES PER BRIDGED OUTPUT
CH A PRESET: 1xC500-70V
+
+
-
-
+
+
-
-
CH C PRESET: 1xC500ISUB CH D PRESET: 1xC500ISUB
ZONE 1 - SATELLITES
ZONE 1 - SUBWOOFERS
CURV 500 iAMP OUTPUT
4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.
SLAT
SETTINGS

CURV 500®INSTALL
70V EXAMPLE - 2 SATELLITE SETS / MAX. 24 SATELLITES PER BRIDGED OUTPUT
CH A PRESET: 2xC500-70V
ZONE 1 - SATELLITES
ZONE 1 - SUBWOOFERS
+ - + -
+ - + -
CH C PRESET: 1xC500ISUB CH D PRESET: 1xC500ISUB
CURV 500 iAMP OUTPUT
4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.
SLAT
SETTINGS

CURV 500®INSTALL
70V EXAMPLE - 3 SATELLITE SETS / MAX. 24 SATELLITES PER BRIDGED OUTPUT
CH A PRESET: 3xC500-70V
ZONE 1 - SATELLITES
ZONE 1 - SUBWOOFERS
+ - + -
+ - + -
CH C PRESET: 1xC500ISUB CH D PRESET: 1xC500ISUB
CURV 500 iAMP OUTPUT
4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.
SLAT
SETTINGS

CURV 500®INSTALL
70V EXAMPLE - 4 SATELLITE SETS / MAX. 24 SATELLITES PER BRIDGED OUTPUT
CH A PRESET: 4xC500-70V
ZONE 1 - SATELLITES
ZONE 1 - SUBWOOFERS
+ - + -
+ - + -
CH C PRESET: 1xC500ISUB CH D PRESET: 1xC500ISUB
CURV 500 iAMP OUTPUT
4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.
SLAT
SETTINGS

BISTRO MEDIUM
Devices
QTY Model Article Nr. Comments
1 CURV 500 IAMP LDCURV500IAMP
2 CURV 500 ISUB LDCURV500ISUB Black and white colours available
6 CURV 500 SLA LDCURV500SLA Black and white colours available
6 CURV 500 S2 LDCURV500S2 Black and white colours available
This bundle requires six mounting accessories. Please check pages 19 and 20 for information about our wall, ceiling and truss
mounting accessories.
BISTRO MAX
Devices
QTY Model Article Nr. Comments
1 CURV 500 IAMP LDCURV500IAMP
2 CURV 500 ISUB LDCURV500ISUB Black and white colours available
12 CURV 500 SLA LDCURV500SLA Black and white colours available
6 CURV 500 S2 LDCURV500S2 Black and white colours available
This bundle requires 12 mounting accessories. Please check pages 19 and 20 for information about our wall, ceiling and truss
mounting accessories.
CONFERENCE MEDIUM
Devices
QTY Model Article Nr. Comments
1 CURV 500 IAMP LDCURV500IAMP
1 CURV 500 ISUB LDCURV500ISUB Black and white colours available
4 CURV 500 SLA LDCURV500SLA Black and white colours available
4 CURV 500 S2 LDCURV500S2 Black and white colours available
This bundle requires 4 mounting accessories. Please check pages 19 and 20 for information about our wall, ceiling and truss
mounting accessories.
CONFERENCE MAX
Devices
QTY Model Article Nr. Comments
1 CURV 500 IAMP LDCURV500IAMP
2 CURV 500 ISUB LDCURV500ISUB Black and white colours available
4 CURV 500 SLA LDCURV500SLA Black and white colours available
6 CURV 500 S2 LDCURV500S2 Black and white colours available
This bundle requires 4 mounting accessories. Please check pages 19 and 20 for information about our wall, ceiling and truss
mounting accessories.
VOICE
Devices
QTY Model Article Nr. Comments
1 CURV 500 IAMP LDCURV500IAMP
8 CURV 500 SLA LDCURV500SLA Black and white colours available
12 CURV 500 S2 LDCURV500S2 Black and white colours available
This bundle requires 8 mounting accessories. Please check pages 19 and 20 for information about our wall, ceiling and truss
mounting accessories.
VOICE MAX
Devices
QTY Model Article Nr. Comments
1 CURV 500 IAMP LDCURV500IAMP
24 CURV 500 SLA LDCURV500SLA Black and white colours available
12 CURV 500 S2 LDCURV500S2 Black and white colours available
This bundle requires 24 mounting accessories. Please check pages 19 and 20 for information about our wall, ceiling and truss
mounting accessories.
SHOPPING LIST CURV 500®INSTALL SOLUTIONS

CURV 500®INSTALL PRODUCTS

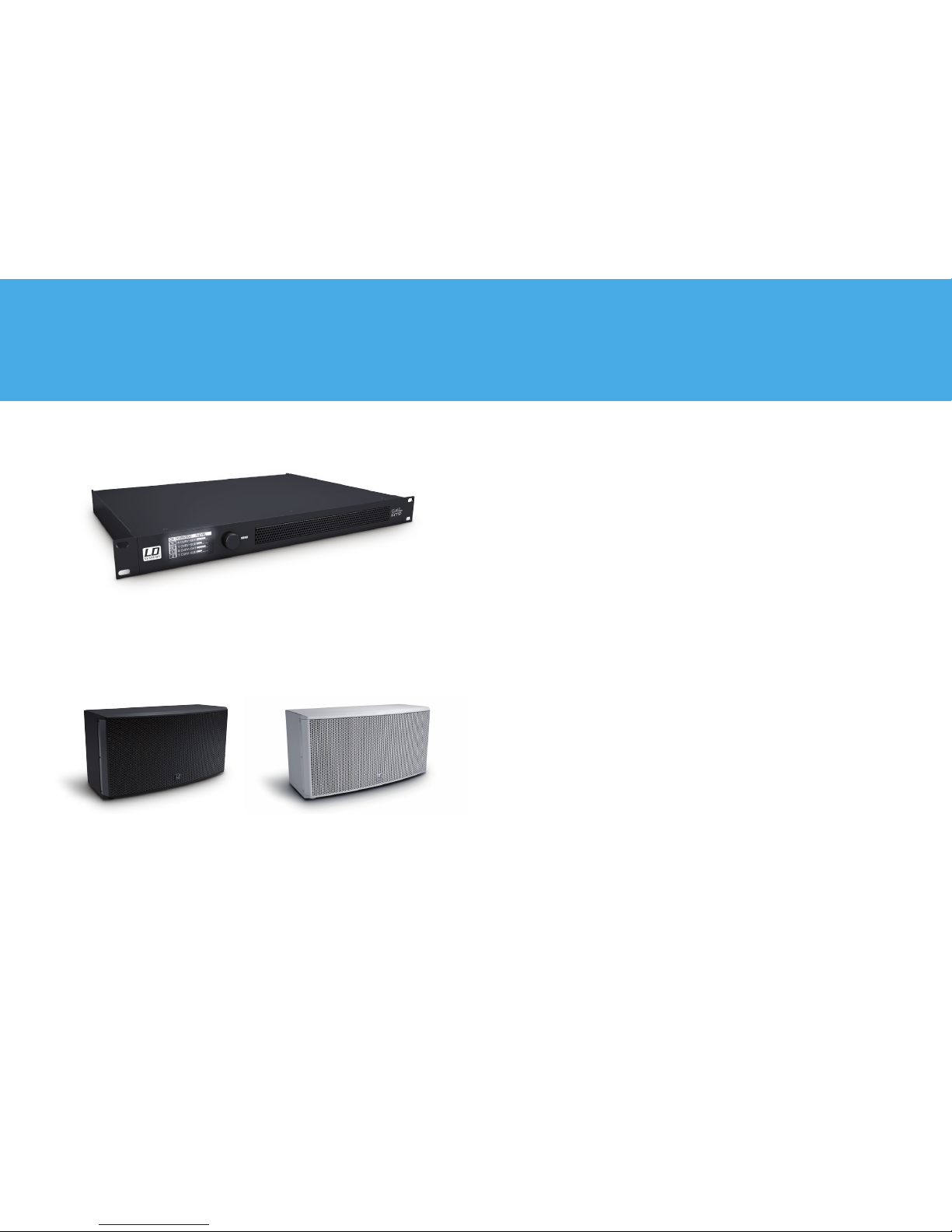

CURV 500®iAMP
4-CHANNEL CLASS D INSTALLATION AMPLIFIER
•4-Channels with DSP control
•Purpose-designed for CURV 500 installations
•Low-profile 1U 19“ rackmount construction
•Drives up to 24 CURV500 satellites per bridged output in 70V mode
•Single push encoder operation
•High-contrast OLED display
•Temperature controlled low-noise fan
•High-efficiency switch mode power supply
•Only 6.8 kg
CURV 500®iSUB (W)
10“ INSTALLATION SUBWOOFER 200 W IN BLACK OR WHITE
•10“ bass reflex construction
•Purpose-designed for CURV 500 installations
•Shallow-depth enclosure
•200 watts RMS power handling
•47 – 150 Hz frequency response
•Available in black or white textured paint finish
•Includes low-profile wall and ceiling mounting bracket

CURV 500®INSTALL PRODUCTS
CURV 500®S2 (W)
TWO ARRAY SATELLITES FOR THE CURV 500 ARRAY SYSTEM IN BLACK OR WHITE
•Bundle consisting of two array satellites
•Compact cabinet made of black die-cast aluminium, rugged and resilient
•A single 4-inch midrange driver and three 1-inch high-frequency drivers
with patented WaveAhead® technology delivers excellent sound
•SmartLink® system allows for cable-free assembly of up to four array satellites
•16 ohm impedance per satellite
CURV 500®SLA (W)
SMARTLINK®ADAPTER
IN BLACK OR WHITE
•For up to six CURV 500 satellites
•Base for CURV 500® system
•2 x 16 mm flange for an optimised dispersion angle
•4 x M6 threads for wall mounting
•4 x M3 threads for ceiling mounting
•4 rubber feet for desktop applications
•Speakon-compatible connection for usual speaker cables
•Rotating logo for ceiling mounting
•2 pole - Euro Style terminal block connector (2 x 1.5 mm2speaker cable recommended)

CURV 500®INSTALL PRODUCTS

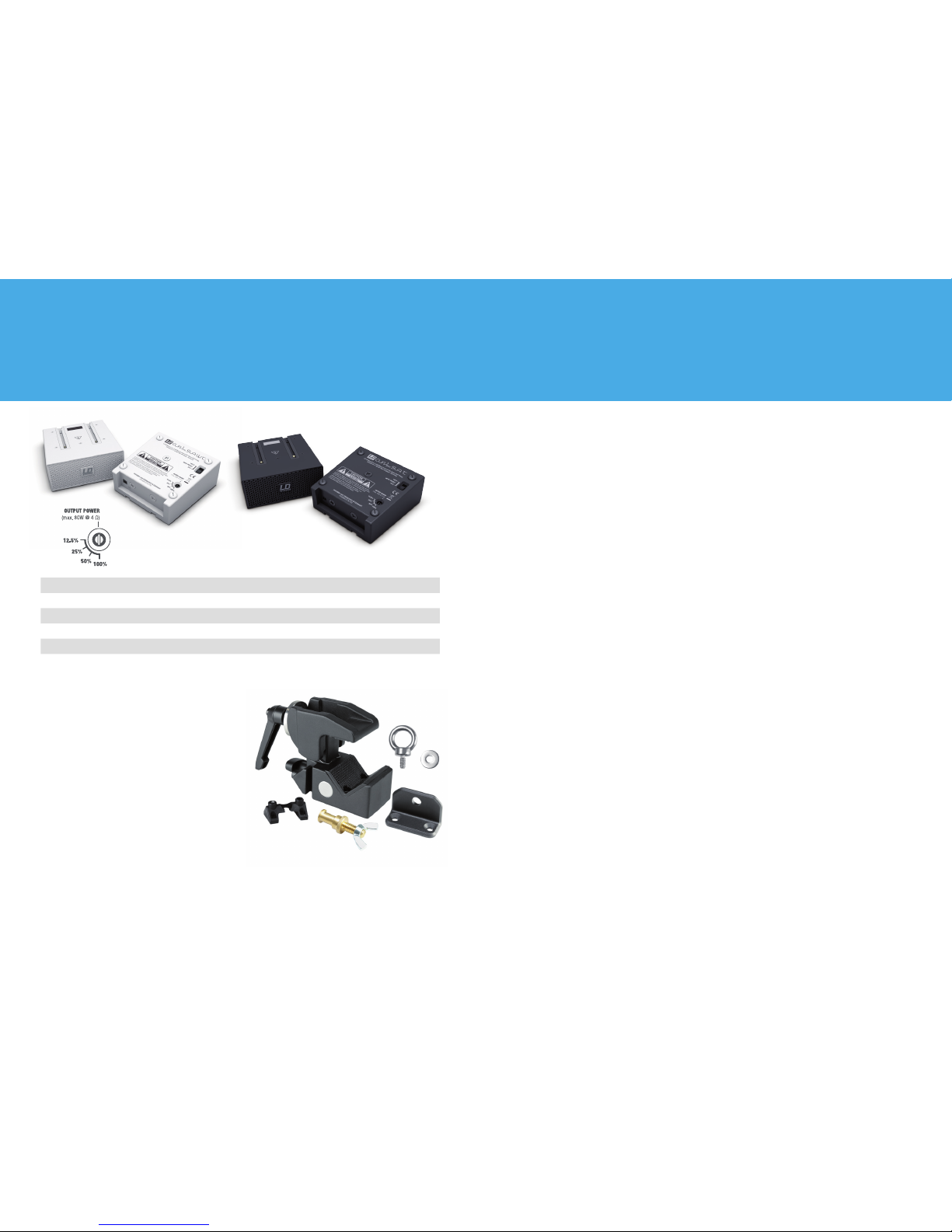

CURV 500®SLA(W)T
70 / 100 VOLT SMARTLINK® ADAPTER IN BLACK OR WHITE
•70 / 100 V SmartLink® adapter for up to four LD CURV 500® satellites
•Integrated transformer with 10, 20, 40 and 80 W output taps @ 4 ohms
•Switchable for 70 or 100 V operation
•2 x M6 threads for wall mounting
•4 x M3 threads for ceiling mounting
•4 rubber feet for desktop applications
•2 pole - Euro Style terminal block connector (2 x 1.5mm2 speaker cable recommended)
•Rotating logo for ceiling mounting
•Output power selector with four settings available
•If used in combination with an IAMP amplifier, INPUT SELECT should be set to 70V.
CURV 500®TMB
TRUSS CLAMP FOR CURV 500 SATELLITES
•Clamps to trusses and crossbars
•Tough black powder coating finish
•Includes Eyebolt M6 x 12 mm and washer
•Maximum load: 20 kg. It can hold up to six CURV 500 satellites plus one
CURV 500 SLA adapter.
POWER SETTINGS IN TAP SELECTOR
No. of CURV 500 satellites 12,50% 25% 50% 100%
1 2W 5W 10W 20W
2 5W 10W 20W 40W
3 8W 15W 30W 60W
4 10W 20W 40W 80W

CURV 500®INSTALL PRODUCTS

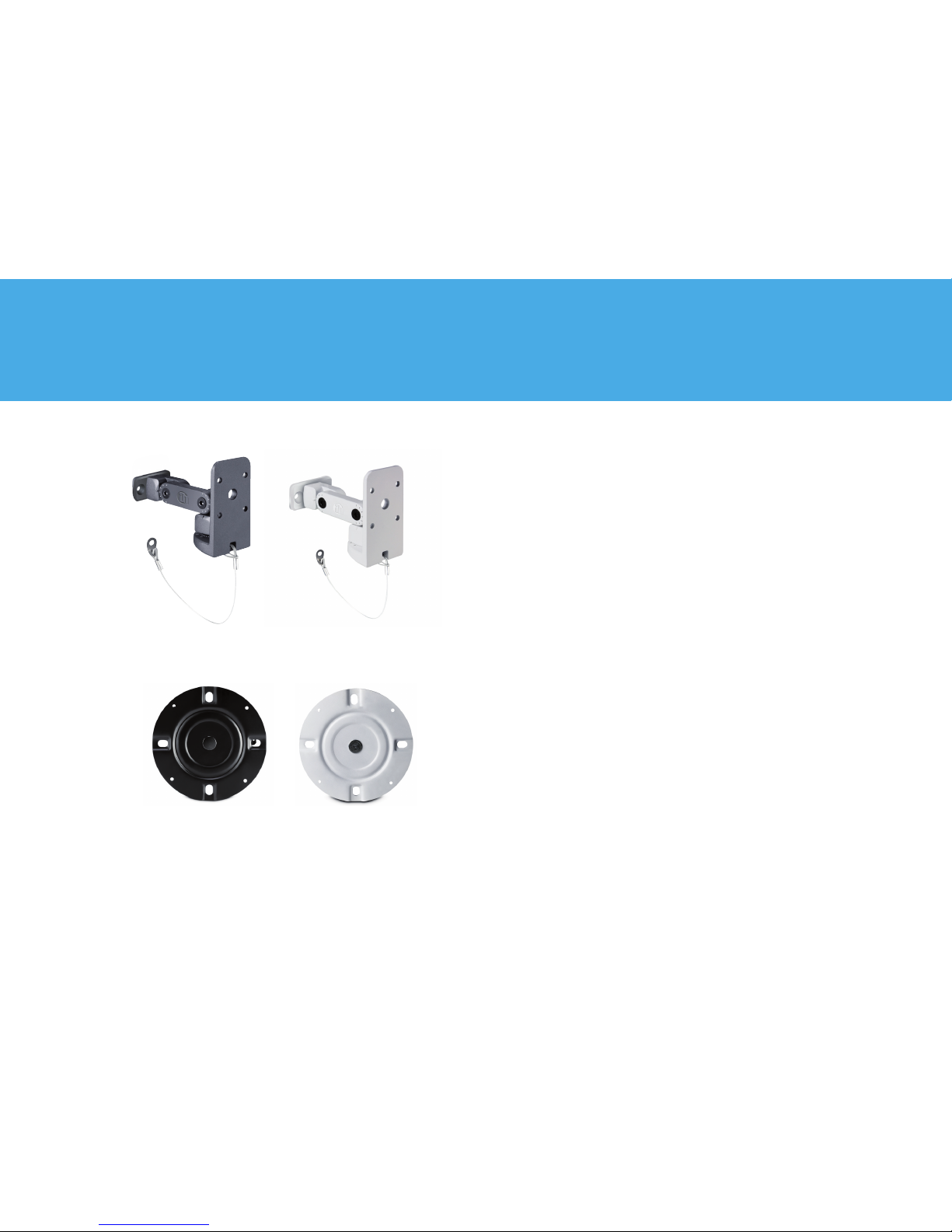

CURV 500®WMB (W)
WALL MOUNTING BRACKET FOR CURV 500 SATELLITES IN BLACK OR WHITE
•Fully adjustable on all axes
•Tough black powder coat finish
•Comes with safety rope
•Maximum load: 10 kg. It can hold up to five CURV 500 satellites
plus one CURV 500 SLA adapter.
CURV 500®CMB (W)
CEILING MOUNTING BRACKET FOR CURV 500 SATELLITES BLACK
•360° rotatable
•Tough black or white powder coat finish
•Includes 20 cm steel safety rope
•Maximum load: 10 kg. It can hold up to five CURV 500 satellites
plus one CURV 500 SLA adapter.
