LDDE Nano*Pix 1440 HP / 2880 HP User manual

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 1
o ffi ce
Nano*Pix 1440/2880 HP RGB+WW+CW
User Manual

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 2
Product Description
Thank you for choosing this LDDE Nano*Pix 1440 HP / 2880 HP fixture. The Nano*Pix LED - Softlight
battens present a milestone in the area of modern lighting for stage, events and studio use. The
revolutionary LED-Softlight technology is the ideal solution to substitute conventional battens using RGBW
fluorescent tubes. The linear design integrates high performing LEDs in red, green, blue, warm white and
cool white. The packing density of 1440 (or 2880) LED's facilitates an extremely even distribution of light at
an emission angle of 150° and countless colour combinations add to the impressive performance features.
Features
output of up to 16.000 Lumen
RGB+WW+CW colour mixing system
high-performance LEDs with density of 1440 or 2880 LED-pixels
high colour rendering quality of CRI >93
150° emission beam
continuous colour temperature calibration from 2700°K - 9000°K
perfect dimming qualities due to 16bit resolution
Suitable for HDTV (flicker free)
multiple control modes
Quiet-Mode for use in theatre and TV
Multicore Power/Data connector system
compact dimensions (610mm and 1206mm)
durable continuous-cast housing (aluminium)
Scope of Delivery
The following items are included in the delivery of the Nano*Pix 1440 HP / 2880 HP:
1 x LED Softlight batten Nano*Pix 1440 HP or 2880 HP
1 x Manual

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 3
Safety Guidelines
Please read these safety guidelines carefully before you take the Nano*Pix 1440 HP / 2880 fixture into
service.
Check the suitability of the product for the intended use.
The Nano*Pix 1440 HP / 2880 HP fixture is not suitable for outdoor use (IP20).
Never expose your eyes to direct beam of the LED light source
Do not use optical devices or other means of focussing the LED beam apart from products supplied for this purpose by
LDDE
Do not attempt to repair or dismantle the Nano*Pix 1440 HP / 2880 HP fixture: Opening and removing the internal covers
can result in electrocution or other serious injuries.
In case of product failure, please contact LDDE or an authorised LDDE-dealership
Do not touch the fixture while it is in use.
Disconnect the fixture from the power supply before re-positioning and cleaning
Protect the Nano*Pix 1440 HP / 2880 HP fixture from shocks and impacts.
Protect the fixture from moisture and water and avoid contact with moist or wet appliances.
Relative air humidity during operation should be between 20 % and 85 %.
Ensure that the fixture is not covered and adequate ventilation is in place.
Do not insert objects into openings of the housing that are connected to live parts as this can lead to short circuiting.
Danger of electric shock and risk of fire.
The fixture is to be removed from service if:
othere is visible damage
oparts have become lose
othere is visible damage to cable connections
LDDE products are manufactured and delivered in concordance with EU directive 2002/96/EU of the European Parliament
and the Council on Waste Electrical and Electronic Equipment WEEE). Help protect the environment and dispose of used
products at your local recycling station. Your dealership can offer further advice on correct disposal.

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 4
Table of Contents
Product Description .........................................................................................................................................2
Features ........................................................................................................................................................... 2
Scope of Delivery .............................................................................................................................................2
Safety Guidelines .............................................................................................................................................3
Table of Contents............................................................................................................................................. 4
System Overview ............................................................................................................................................. 5
Installation using mounting bracket................................................................................................................ 6
Wiring .............................................................................................................................................................. 7
Initial Start-up.................................................................................................................................................. 7
Menu Structure................................................................................................................................................8
Operation: .............................................................................................................................................8
DMX Address ......................................................................................................................................... 9
Channelmode Nano*Pix 2880 HP..........................................................................................................9
Channelmode Nano*Pix 1440 HP..........................................................................................................9
Quiet Mode ...........................................................................................................................................9
Control Channel...................................................................................................................................10
Factory Default ....................................................................................................................................10
Manual Mode ......................................................................................................................................10
Standalone Mode ................................................................................................................................11
Fade to Zero ........................................................................................................................................11
PWM Frequency ..................................................................................................................................11
Temperature........................................................................................................................................11
Display Rotate ..................................................................................................................................... 11
Test Mode............................................................................................................................................12
Maintenance and Service .............................................................................................................................. 12
Warranty and Liability ...................................................................................................................................12
Technical Specifications.................................................................................................................................13

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 5

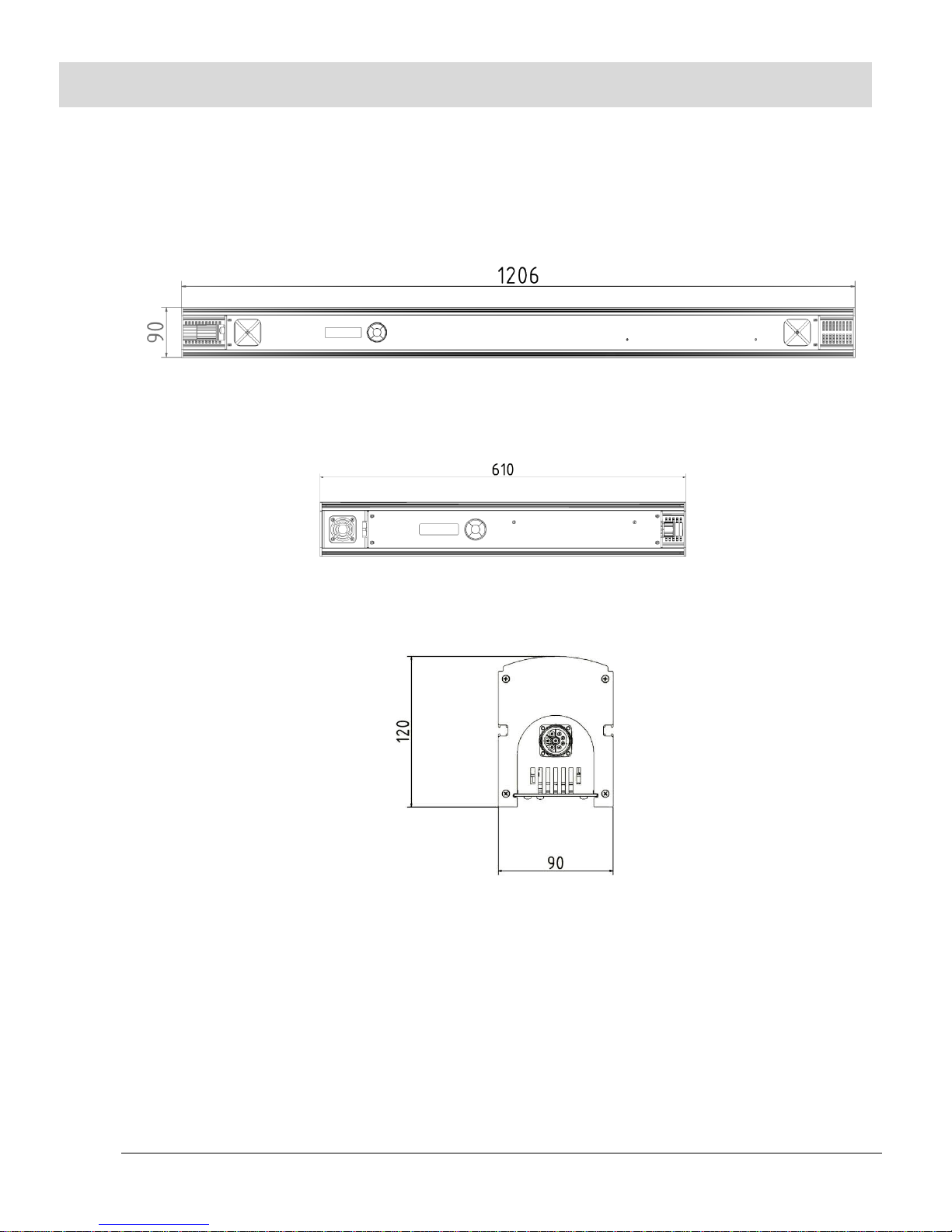

System Overview
Nano*Pix 2880 HP
Nano*Pix 1440 HP

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 6
Installation using mounting bracket
 The Nano*Pix 1440 HP / 2880 HP is fitted as standard with two mounting brackets on the back of the housing. These
can be positioned along any point of the profile and offer maximum flexibility.
 The mounting brackets come pre-drilled with a 11mm hole to receive a DIN 16 spigot or a stage lighting hook.
Alternatively, floor stands (not included in the delivery) can be mounted on the brackets.
For even more flexibility, we recommend the optional quick release fastener system "Slide" to facilitate frequent changes
from floor-based to overhead operation. See figures 1-3

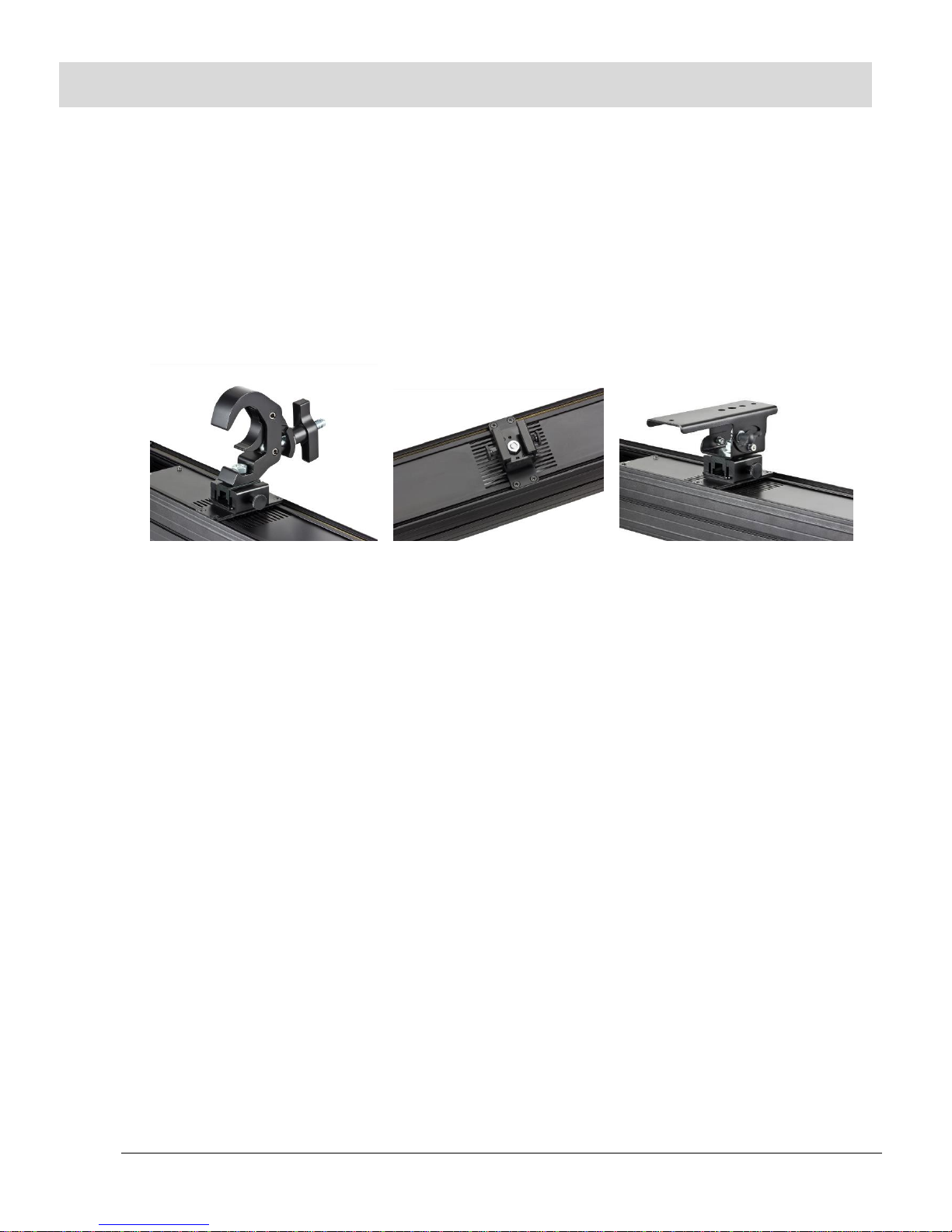

Figure 1 Figure 2 Figure 3
 Secure the Nano*Pix 1440 HP / 2880 HP fixture with a safety cable, using the eyelet provided.

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 7
Wiring
The Nano*Pix 1440 HP / 2880 HP battens are supplied with data and power by an 8pin Multicore-Connector.
This connector system is compatible with the following products:
- Nano*Pix 1620/3240 RGB+WW+KW
- SpectraConnecT5 and SpectraConnecT5LED
- SpectraLED72 and SpectraLED144
This offers the possibility to use cables that you may alreadyhave in stock with the Nano*Pix 1440 HP / 2880 HP
fixtures. Different fixtures can be connected using the samecabling system.
Please note that a maximum 10 Nano*Pix 1440 HP or 5 Nano*Pix 2880 HP fixtures can be serially
connected using one power supply cable.
Initial Start-up
Attach a stage lighting hook or a mounting clamp to the mounting bracket and suspend the Nano*Pix batten from a
pipe or truss. Tighten the hook or clamp only when you have determined the fixture's final position.
Connect the output multicore cable of one batten to the input connection on another batten. Once this connection
has been made, you can position the battens in the required locations.
Tighten the hook or clamp securely and attach a safety cable, using the eyelet on the batten, to the pipe or truss.
Connect the power supply cable to the first batten. This comes with an earth contact plug and a 5 pin XLR
connector. Plug the power connector into a live circuit and the XLR connector into a DMX output socket.
ENSURE THAT THE BATTENS ARE NEVER CONNECTED TO A DIMMABLE POWER CIRCUIT!!!
Once the Nano*Pix batten is supplied with power, the integrated OLED Display will be illuminated. Calibrate the
system, using the control panel at the back of the fixture. We recommend configuring your fixtures before mounting
them in the rig. The different modes of configuration are explained in detail on the following pages of this manual.

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 8
Menu Structure
Nano*Pix
www.ldde.com
DMX Address
1-512
Channelmode
__channelmode
PWM Frequency
___ Hz
Quiet Mode
ON / OFF
Manual
Mode
Test
Mode
Standalone
Mode
Control channel
ON / OFF
Fade to Zero
ON / OFF
Reset to
Factory Default?
Temperature
___ °C
Software Version
V 4.4
Display Rotation
ON / OFF
Tech Support
[email protected]
DMX Address DMX address, 1 - 512
Channelmode see table
PWM Frequency PWM Frequency, 750Hz, 1500Hz, 3000Hz
Quiet Mode deactivates fan
Manual Mode Manual 7 channel mode (including Strobe)
Test Mode Single Colour Test / adjustable speed
Standalone Mode 10 set colours, adjustable intensity
Control Channel Remote control of Quiet Mode / Frequency / Fade
Fade to Zero Automatic fade to 0
Factory Default Reset to factory defaults
Temperature Current temperature –updated every 10 sec
Software Version Current Software Version
Display Rotate Rotates the display (180 °)
Operation:
The menu is controlled with the following 5 keys: Up, Down, Left, Right and OK
You can alternate between items in the main menu with the keys Left / Right.
If you want to change a setting, press OK and menu item will begin flash. Change the setting with Up / Down
and press okay to save.
While the system saves the new setting, the word "Saving…" will appear in the lower half of the display.
OK
Up
Down
Left
Right
Display

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 9
DMX Address
This menu allocates the DMX start address between 1 and 512.
Channelmode Nano*Pix 2880 HP
Channelmode
Description
5
R, G, B, joint WW and CW, no master, no strobe
7
Master, R, G, B, joint WW and CW, strobe
10
16 bit mode, R, G, B, joint WW and CW, 2 channels, no master, no strobe
60
R, G, B, WW, CW, no master, no strobe
120
16 bit mode, R, G, B, WW, CW, 2 channels, no master, no strobe
62
Master, R, G, B, WW, CW, strobe
30
R, G, B, WW, CW joined in each upper and lower bank, no master, no strobe
31
Master, R, G, B, WW, CW joined in each upper and lower bank, no strobe
11
16 bit mode, R, G, B, joint WW and CW, strobe 8 bit
121
16 bit mode, R, G, B, WW, CW, strobe 8 bit
Activating the control channel adds 1 DMX channel to these addresses.
Channelmode Nano*Pix 1440 HP
Channelmode
Description
5
R, G, B, joint WW and CW, no master, no strobe
7
Master, R, G, B, joint WW and CW, strobe
10
16 bit mode, R, G, B, joint WW and CW, 2 channels, no master, no strobe
30
R, G, B, WW, CW, no master, no strobe
60
16 bit mode, R, G, B, WW, CW, 2 channels, no master, no strobe
32
Master, R, G, B, WW, CW, strobe
15
R, G, B, WW, CW joined in each upper and lower bank, no master, no strobe
16
Master, R, G, B, WW, CW joined in each upper and lower bank, no strobe
11
16 bit mode, R, G, B, joint WW and CW, strobe 8 bit
61
16 bit mode, R, G, B, WW, CW, strobe 8 bit
Activating the control channel adds 1 DMX channel to these addresses.
Quiet Mode
OFF
Nano*Pix 1440 HP: The cooling fans operate at 100% from temperatures of 40° C
and more and are deactivated for temperatures below 35° C. When temperatures
reach 56° C and above, the master is reduced by a DMX value of 4 per degree of
temperature. Maximum reduction is 96.
Nano*Pix 2880 HP: The cooling fans engage from temperatures of 50° C and above
with the lowest fan stage and are then controlled per degree of temperature. Maximum
fan capacity is reached at temperature of 75° C.
When temperatures reach 56° C and above, the master is reduced by a DMX value of
4 per degree of temperature. Maximum reduction is 96.
ON
Master is set at the maximum value of 159, the cooling fan are deactivated. If
temperature rises above 79° C, cooling fans engage at 100%.

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 10
Control Channel
Activation of the control channel allows the remote control of a variety of functions, using an additional DMX
channel. The "Channel Mode" menu displays this message: "xx Ch +Contr Ch".
Controls:
1. Set Control Channel to the desired value (see table below)
2. Leave value unchanged for a minimum of 3 sec
3. Then jump to zero
4. New setting is saved
PWM Frequency 750Hz 11-20 DMX
PWM Frequency 1500Hz 21-30 DMX
PWM Frequency 3000Hz 31-40 DMX
Quiet Mode ON 101-110 DMX
Quiet Mode OFF 111-120 DMX
Fade to Zero ON 201-210 DMX
Fade to Zero OFF 211-220 DMX
Factory Default
Reset will restore the NanoPix to its factory settings
Start Address 1
Channelmode 7
Quiet Mode OFF
Frequency 750 Hz
Control Channel OFF
Fade to Zero ON
Display Rotate OFF
Manual Mode
Manual mode allows the fixture to be configured for a 7 channel mode of any desired colour and strobe:
Intensity I
Red R
Green G
Blue B
Warm White WW
Cool White KW
Strobe St

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 11
Standalone Mode
Standalone Mode facilitates the configuration of 10 different set colours
R
G
B
WW
KW
Magenta
255
0
255
0
0
Lavender
255
0
255
0
255
CT Blue
0
115
255
0
255
Light Green
0
255
84
118
0
Cyan
0
255
255
0
0
Yellow
255
255
0
0
0
Light Yellow
255
255
0
255
0
Amber
255
166
0
0
0
Warm White
255
216
0
255
255
Cold White
176
255
255
255
255
Fade to Zero
OFF
New DMX value of 0 (below DMX value 15)
causes snap to 0
ON
New DMX value of 0 (below DMX value 15)
causes fade to 0
PWM Frequency
750 Hz
PWM Frequency 750 Hz
1500 Hz
PWM Frequency 1500 Hz
3000 Hz
PWM Frequency 3000 Hz
Temperature
This menu displays the current temperature of the Nano*Pix fixture.
< 10°C
Measured temperature is lower than 10° C
XX °C
Measured temperature is being displayed
CHECK SENSOR
Temperature sensor malfunction, cable failure or communication with
sensor interrupted
Display Rotate
This function rotates the display by 180°
OFF
Display in orientation with lettering on housing
ON
Display rotated by 180°

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 12
Test Mode
Test Mode fades up and down individual colours, then all colours up and down.
Fading speed can be altered with the Left/Right key.
Maintenance and Service
Should you encounter problems, please contact LDDE or one of our authorised LDDE-dealerships.
LDDE Vertriebs GmbH
A-1110 Vienna, Austria
Tel.: [phone]
Fax: [phone]
[email protected]
www.ldde.com
Warranty and Liability
We offer a 24 month warranty on this NanoPix fixture. This includes free repair of faults that are verifiably due to
manufacturing defects. Such repairs are solely performed by the manufacturer.
Warranty expires due to:
Alterations and repairs by unauthorised individuals
Damage caused by third parties
Damage resulting from non-compliance with the manual's instructions
Connection to power supply with incorrect voltage
Operating errors or damage caused by improper use or negligence.
LDDE declines any liability for damages to the fixture as well as consequential damages which result from negligence,
improper use and setup, wrong setting into operation and use, ignoring of valid safety regulations and unsuitable use.

Rev 7/2014 V4.4 | Specifications subject to change without notice. Seite 13
Technical Specifications
Illuminant
Nano*Pix 1440 HP: 1440 LEDs 288 each of red, green, blue, warm white and cool white
Nano*Pix 2880 HP: 2880 LEDs 576 each red, green, blue, warm white and cool white
Power Input:
Voltage Input 100-250 VAC / 50/60 Hz
Nano*Pix 1440 HP 115 W full load
Nano*Pix 2880 HP 230 W full load
Control / Wiring
Protocol DMX 512 USITT Protocol
Input/Output Power/Data Multicore-Connector System
Control Technology - HDTV (for TV use)
Resolution 16Bit resolution
Frequency 750Hz /1500Hz / 3000Hz
Response time 20 milli seconds response time
Strobe 1-25Hz
Specifications
Housing Aluminium Continuous Cast (black)
Protection Class IP20
Cooling Sensor-controlled fan system
Temperatures +5°C … +40°C
Dimensions / Weight
Nano*Pix 1440 HP 610 mm x 120 mm x 90 mm (B x H x D)
Weight 5,5 kg
Nano*Pix 2880 HP 1206 mm x 120 mm x 90 mm (B x H x D)
Weight 9,2 kg
Safety Standard
Certificates CE, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 60529
