le club Contest HEZO120Z User manual

USER GUIDE
10408 - Version 1 October 2015
HEZO120Z

English HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 2
1 - Safety information
This symbol signals an important safety
precaution. The CAUTION symbol signals a risk of product deterioration.
The WARNING symbol signals a risk to the user’s physical integrity.
The product may also be damaged.
Important safety information
Symbols used
Any maintenance procedure must be performed by a CONTEST
authorised technical service. Basic cleaning operations must tho-
roughly follow our safety instructions.
This product contains non-isolated electrical components. Do not
undertake any maintenance operation when it is switched on as
it may result in electric shock.
This unit is intended for indoor use only. Do not use it in a wet,
or extremely cold/hot locations. Failure to follow these safety ins-
tructions could result in fire, electric shock, injury, or damage to
this product or other property.
WARNING : This unit contains no user-serviceable parts. Do not open the
housing or attempt any maintenance by yourself. In the unlikely even your unit
may require service, please contact your nearest dealer.
In order to avoid any electrical malfunction, please do not use any multi-socket,
power cord extension or connecting system without making sure they are
perfectly isolated and present no defect.
Risk of electrocution
To prevent the hazard of electric shocks, do not use
extension cords, multi-socket or any other connection
system without making sure metal parts completely are
out of reach.
Recycling your device
• As HITMUSIC is really involved in the environmental cause, we only commercialise clean, ROHS compliant products.
• When this product reaches its end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your
product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the
environment.
Note : The legislation requires that every device set up in a public space features a double
fixation bracket. This security system must hold 10 times the weight of the device.
Warning
This product is equipped with Class 2 LEDs.
Please avoid looking directly at the beam as it may
cause severe eye injuries.

English
HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 3
1 - Please read carefully :
We strongly recommend to read carefully and understand
the safety instructions before attempting to operate this unit.
2 - Please keep this manual :
We strongly recommend to keep this manual with the unit for
future reference.
3 - Operate carefully this product :
We strongly recommend to take into consideration every
safety instruction.
4 - Follow the instructions:
Please carefully follow each safety instruction to avoid any
physical harm or property damage.
5 - Avoid water and wet locations :
Do not use this product in rain, or near washbasins or other
wet locations.
6 - Installation :
We strongly encourage you to only use a
fixation system or support recommended by
the manufacturer or supplied with this product.
Carefully follow the installation instructions and
use the adequate tools.
Always ensure this unit is firmly fixed to avoid
vibration and slipping while operating as it may result in
physical injury.
7 - Ceiling or wall installation :
Please contact your local dealer before attempting any ceiling
or wall installation.
8 - Ventilation :
The cooling vents ensure a safe use of this product, and avoid
any overheating risk.
Do not obstruct or cover these vents as it may result in
overheating and potential physical injury or product damage.
This product should never been operated in a closed non-
ventilated area such as a flight case or a rack, unless cooling
vents are provided for the purpose .
9 - Heat exposure :
Sustained contact or proximity with warm surfaces may cause
overheating and product damages. Please keep this product
away from any heat source such as a heaters, amplifiers, hot
plates, etc...
10 - Electric power supply :
This product can only be operated according to
a very specific voltage. These information are
specified on the label located at the rear of the
product.
11 - Power cords protection:
Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at lugs, convenience receptacles
and the point where they exit from the fixture.
Instructions and recommendations
12 - Cleaning precautions :
Unplug the product before attempting any cleaning
operation. This product should be cleaned only with
accessories recommended by the manufacturer.
Use a damp cloth to clean the surface. Do not
wash this product.
13 - Long periods of non use :
Disconnect the unit’s main power during long
periods of non use.
14 - Liquids or objects penetration :
Do not let any object penetrate this product as it
may result in electric shock or fire.
Never spill any liquid on this product as it may
infiltrate the electronic components and result in
electric shock or fire.
15 - This product should be serviced when :
Please contact the qualified service personnel if :
- The power cord or the plug has been damaged.
- Objects have fallen or liquid has been spilled into
the appliance.
- The appliance has been exposed to rain or water.
- The product does not appear to operate normally.
- The product has been damaged.
16 - Inspection/maintenance :
Please do not attempt any inspection or maintenance by
yourself. Refer all servicing to qualified personnel.
17 - Operating environment :
Ambient temperature and humidity: +5 - +35°C,
relative humidity must be less than 85% (when
cooling vents are not obstructed).
Do not operate this product in a non-ventilated,
very humid or warm place..

English HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 4
2 - Technical specifications
Light source
› 12 x 10W 4-in-1 LEDs – 50.000 hours (expected)
› Beamwidth: from 10° to 60°
Low temperature, low power consumption and works many
hours continuously
Colours
› 14 Le Club-compatible colours
› Adjustable white balance settings
› Colour presets
Effects
› Strobe at increasing speed, pulse effect, music-sensitive flash
› Adjustable electronic dimmer from 0 to 100%
› Beamwidth and movement at adjustable speed from 10° to
60%
Control
› Standard DMX-512
› 1 to 17 DMX channels
› Built-in music-sensitive programs (internal mic)
› Simplified control of several units via Master/Slave mode
› Colour LCD drop-down menu to choose and assign the different
modes
Movements
› Whole PAN and TILT movements and independent rotation of
the effect lens
› Ranges: Pan 540° - Tilt 270°
› Adjustable movement speed
› Position memory and PAN/TILT auto repositioning
› Movement macros at increasing speed
Package contents:
The package must contain the following articles:
› Your HEZO120Z
› The user guide
› 1x2-pole + earth power cord / Powercon® socket
› 1 fixation brackets with Omega holders
Additional characteristics
› Adjustable fan speed
› Power consumption: 198 W max.
› Power supply: 100/230V, AC - 50/60Hz

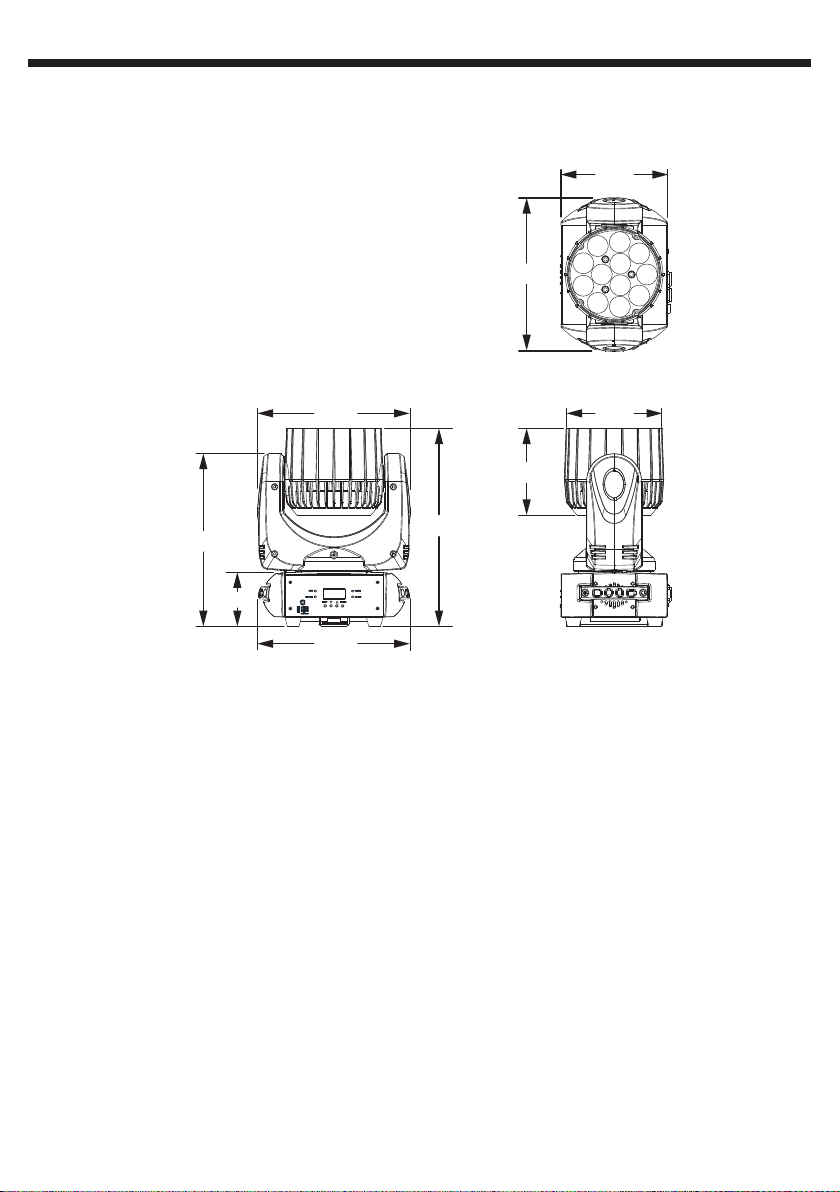

› Dimensions: 263 x 183 x 340 mm
› Net weight: 7.5 Kg

English
HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 5
3 - Description des panneaux
1Indicator LEDs
These 4 LEDs indicate the status of your device.
LED Indication
DMX Lights up when your device is in DMX mode
MASTER Lights up when your device is in MASTER
mode
SLAVE Lights up when your device is in SLAVE mode
SOUND Flashes when your device is in music-sensitive
mode
2MENU Buttons
MENU button
Allows you to browse through menus and select a function.
ENTER button
Allows you to browse through menus and change values via the
UP and DOWN buttons.
UP and DOWN buttons
Allows you to browse through menus and change values.
3Display
Allows you to configure your projector.
Please refer to next chapter for more details.
The back-light can be deactivated from the menu via the Back
Light function.
4Fuse
If need to replace this fuse, please make sure the new one has
the exact same characteristics.
5Power output
Allows you to daisy-chain projectors via their Powercon©IN/
OUT output.
You can daisy-chain up to 8 projectors with identical power
requirements.
6Power input socket
Allow you to connect your projector to the mains via a 2-pole /
earth Powercon©cord.
Please read the instructions carefully and make sure the
voltage matches them.
75-pin DMX input
5-pin female XLR plug hardwired as follows:
- Mass: 1
- Negative signal: 2
- Positive signal: 3
Pins 4 and 5 are not connected.
8DMX Input /Output
3-pin XLR plugs hardwired as follows:
- Mass: 1
- Negative signal: 2
- Positive signal: 3
Mains IN
max 16A
Mains OUT
max 16A
AC250V/T6.3A
1
234567
8

English HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 6
4 - Internal menu
MENU UP and DOWN Action ENTER
DMX address selection.
Press ENTER, then use the UP and DOWN buttons to configure the address.
Saves
changes
1channel: built-in programs (1 to 4) selection
Press ENTER,
select a mode
with UP and
DOWN.
Saves
changes
12 channels: Pan, Tilt, PAN and TILT movement speed, Dimmer, Shutter, Red,
Green, Blue, White, Colour wheel, Zoom, Special functions
17 channels: Pan, precise Pan, Tilt, precise Tilt, PAN and TILT movement speed,
Dimmer, Shutter, Red, Green, Blue, White, Colour wheel, Zoom, Temperature
correction, Movement macros, Movement macros speed, Special functions
Show 1 :
PAN = 180° / TILT = 100° Shows are music-sensitive.
Please make sure the music-sensitive mode is
activated (Sound State menu) and the microphone
sensitivity has been set (Sound Sense menu).
Please refer to chapter 4.3 for more details about the
shows.
Saves
changes
Show 2 :
PAN = 180° / TILT = 100°
Show 3 :
PAN = 540° / TILT = 180°
Show 4 :
PAN = 540° / TILT = 100°
Allows you to activate the Master mode and adjust the behavior of slave devices:
- Slave 1: The slave device reproduces precisely the movement of the master device.
- Slave 2: The slave device reverses movements of the master device.
Saves
changes
Allow you to configure the dimmer.

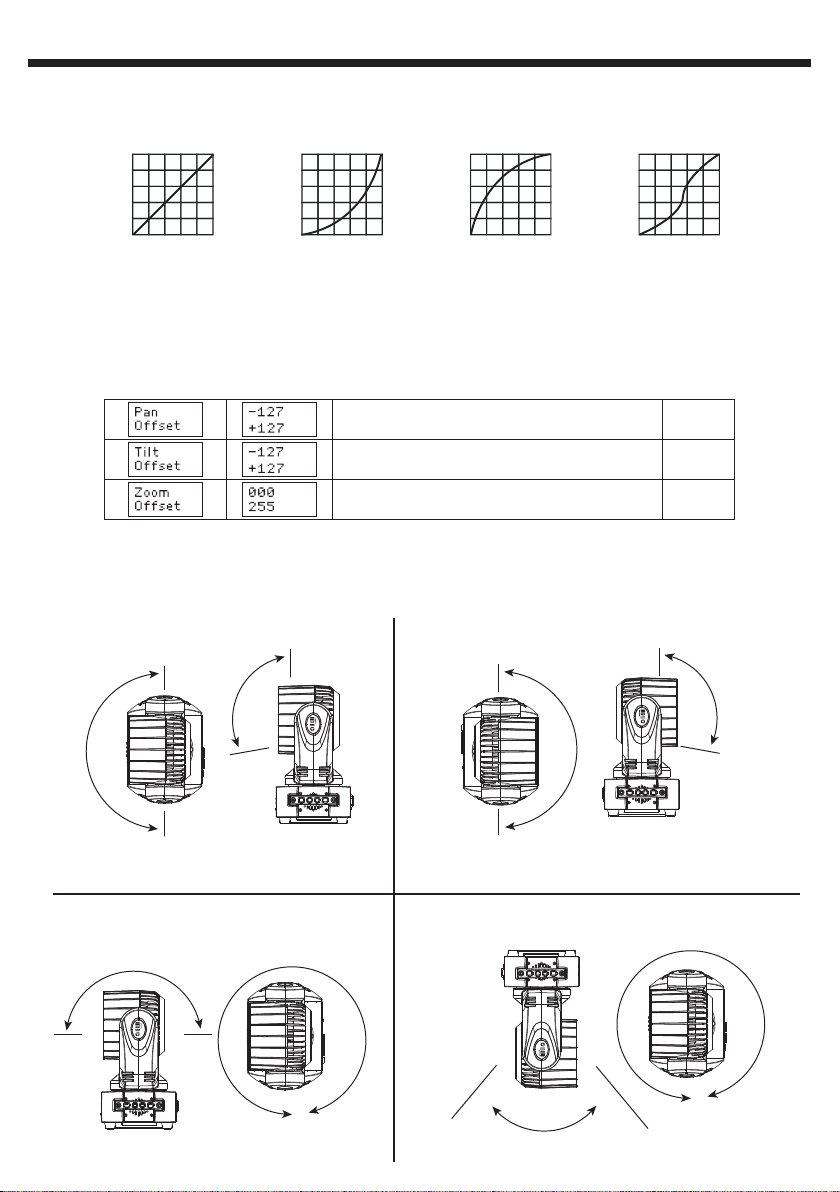

Please refer to paragraph 4.2 for more details about these curves.
Saves
changes
Allows you to adjust the dimmer speed. Saves
changes
Activates or deactivates the music-sensitive mode.
Press ENTER and select On or Off via the UP and DOWN buttons.
Saves
changes
Allows you to adjust the microphone sensitivity for music-sensitive modes.
000 indicates the microphone is deactivated.
Saves
changes
4.1 - Menu tree and description of the functions
Your moving head will initialise the position of each motor upon activation.
The display will indicate at this stage. The display will then indicate and you will be able to access the menu by pressing MENU or
ENTER. After a 30-second period of inactivity, the display will indicate again and lock. Press ENTER to access it again.

English
HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 7
MENU UP and DOWN Action ENTER

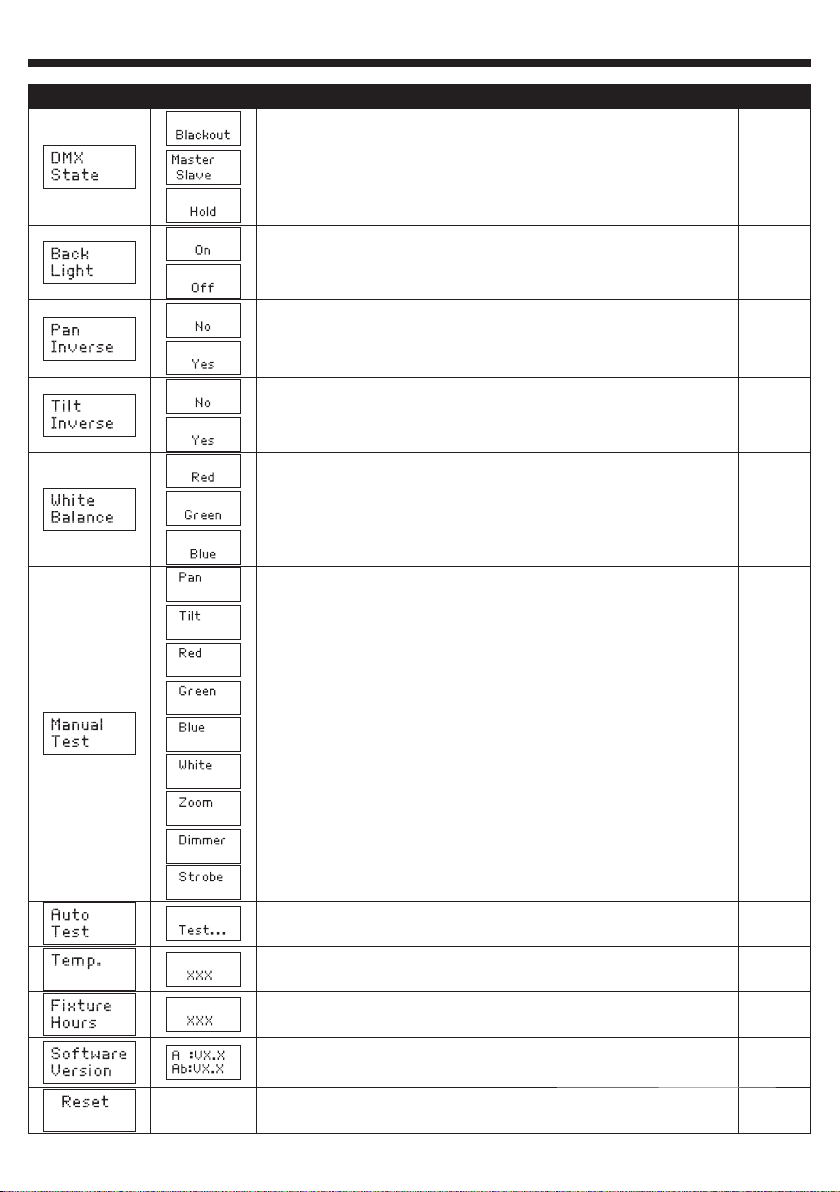

Configure the behaviour of your projector in the event of DMX signal failure:
• Blackout: The projector blacks out
• Master / Slave: The projector enters slave mode
• Hold: The projector holds onto the last information received
Activates or deactivates the screen backlight.
Press ENTER and select On or Off via the UP and DOWN buttons.
When Off, the display will automatically turn off after a 30-second period of inactivity.
Saves
changes
Reverses the PAN movement when the slave and show modes are activated, or in DMX mode.
Press ENTER and select Yes or No via the UP and DOWN buttons.
Saves
changes
Reverses the TILT movement when the slave and show modes are activated, or in DMX mode.
Press ENTER and select Yes or No via the UP and DOWN buttons.
Saves
changes
The «White balance» function allows you to calibrate the colours of your projector by adjusting
the maximum level of each shade of red, green, blue and white which will then apply to all
colours.
Saves
changes
Allow you to manualy test each function.
Select the function to be tested, then press ENTER and adjust the values from 000 to 255 via
the UP and DOWN buttons.
Saves
changes
Launches an automatic test of every function. Launches
test
Displays the temperature (°C) of the head of your projector. No action
Displays the total running time of your device since its very first initialisation. No action
Displays the current version of the internal software.
Ais the current main software version.
Ab is the current booting software version.
No action
Resets your device. Resets

English HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 8
PAN initial position settings. Saves
changes
TILT initial position settings. Saves
changes
Central lens initial position settings. Saves
changes
4.2 - More details about the 4 DIMMER CURVE modes
4.3 - Adjusting initial positions
Output level Output level Output level Output level
% DMX
Mode 1 : Linear Mode 2 : Exponential Mode 3 : Parabolic Mode 4 : S-shaped
% DMX % DMX % DMX
Upon initialisation, your moving head will adjust its motors onto their initial positions.
You can modify such positions so they meet your needs.
To do so, enter the DMX Address menu, then press ENTER for 3 seconds. Adjustable positions are listed below:
The DIMMER CURVE modes allow you to configure the behaviour of the dimmer.
Please find below 4 drawings indicating the output level based on the mode and DMX level of the dimmer channel.
4.3 - Movement limitations based on programs used
Show 1 Show 2
Show 3 Show 4
In order to prevent your moving head from projecting beams over unwanted areas (ceilings, room angles, etc.) when automatic mode is activated, each
show features its own PAN and TILT ranges. Please find below the movement limitations for each show.
180°
PAN TILT
100°
PAN TILT
180°
100°
PANTILT
540°
180°
PAN
TILT
540°
100°

English
HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 9
5 - Dmx channels and their functions
Your projector will automatically enter DMX mode when a signal is detected via its DMX input.
5.1 - 1-channel mode
Channels Values Action
1
000 - 007 Black-out
008 - 057 Show 1 in auto mode
058 - 107 Show 2 in auto mode
108 - 157 Show 3 in auto mode
158 - 207 Show 4 in auto mode
208 - 255 Show 1 to 4 in music-sensitive mode
5.2 - 12-channel mode
Channels Values Action
1PAN movement
000 - 255 PAN movement settings
2Mouvement TILT
000 - 255 TILT movement settings
3PAN and TILT movement speed
000 - 255 Increasing speed
4Main dimmer
000 - 255 Intensity from 0 to 100%
5
Shutter
000 - 019 Black-out
020 - 024 Open
025 - 064 Fast to slow strobe effect
065 - 069 Open
070 - 084 Fast to slow pulse effect
085 - 089 Open
090 - 104 Fast to slow reversed pulse effect
105 - 109 Open
110 - 124 Fast to slow random strobe effect
125 - 129 Open
130 - 144 Fast to slow random pulse effect
145 - 149 Open
150 - 164 Fast to slow, reversed and random pulse effect
165 - 169 Open
170 - 184 Fast to slow, explosive pulse effect
185 - 189 Open
190 - 204 Fast to slow, random explosive pulse effect
205 - 209 Open
210 - 224 Fast to slow sine wave effect
225 - 229 Open
230 - 244 Fast to slow explosion effect
245 - 255 Open
6Red
000 - 255 Intensity from 0 to 100%
7Green
000 - 255 Intensity from 0 to 100%
8Blue
000 - 255 Intensity from 0 to 100%
9White
000 - 255 Intensity from 0 to 100%

English HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 10
6.2 - 12-channel mode
10
Colour wheel
000 - 013 Open
014 - 025 Red
026 - 037 Orange
038 - 049 Cyan
050 - 061 Green
062 - 073 Light green
074 - 085 Lilac
086 - 097 Pink
098 - 109 Yellow
110 - 121 Magenta
122 - 133 Blue
134 - 145 Temperature correction 1
146 - 157 Temperature correction 2
158 - 169 Temperature correction B
170 - 182 Congo
Colour wheel rotation effects
183 - 201 Clockwise, fast to slow rotation
202 - 207 No rotation (The wheel maintains the current colour)
208 - 229 Counterclockwise, slow to fast rotation
230 - 234 Open
Random colours
235 - 239 Fast
240 - 244 Regular
245 - 249 Slow
250 - 255 Open
11 Zoom
000 - 255 From 60° to 10°
12
Special functions
000 - 079 No function
080 - 087 PAN and TILT movements reset
088 - 090 Main reset
091 - 160 No function
161 - 180 Show 1 in auto mode
181 - 200 Show 2 in auto mode
201 - 220 Show 3 in auto mode
221 - 240 Show 4 in auto mode
241 - 255 Show 1 to 4 in music-sensitive mode

English
HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 11
5.3 - 17-channel mode
Channels Values Action
1PAN movement
000 - 255 PAN movement settings
216-bit PAN movement
000 - 255 Very precise PAN movement settings
3TILT movement
000 - 255 TILT movement
416-bit TILT movement
000 - 255 Very precise TILT movement settings
5PAN and TILT movements speed
000 - 255 Increasing speed
6Main dimmer
000 - 255 Intensity from 0 to 100%
7
Shutter
000 - 019 Black-out
020 - 024 Open
025 - 064 Fast to slow strobe effect
065 - 069 Open
070 - 084 Fast to slow pulse effect
085 - 089 Open
090 - 104 Fast to slow reversed pulse effect
105 - 109 Open
110 - 124 Fast to slow random strobe effect
125 - 129 Open
130 - 144 Fast to slow random pulse effect
145 - 149 Open
150 - 164 Fast to slow, reversed and random pulse effect
165 - 169 Open
170 - 184 Fast to slow, explosive pulse effect
185 - 189 Open
190 - 204 Fast to slow, random explosive pulse effect
205 - 209 Open
210 - 224 Fast to slow sine wave effect
225 - 229 Open
230 - 244 Fast to slow explosion effect
245 - 255 Open
8Red
000 - 255 Intensity from 0 to 100%
9Green
000 - 255 Intensity from 0 to 100%
10 Blue
000 - 255 Intensity from 0 to 100%
11 White
000 - 255 Intensity from 0 to 100%
12
Colour wheel
000 - 013 Open
014 - 025 Red
026 - 037 Orange
038 - 049 Cyan
050 - 061 Green
062 - 073 Light green
074 - 085 Lilac
086 - 097 Pink

English HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 12
5.3 - 17-channel mode (continuation)
12
(continuation)
098 - 109 Yellow
110 - 121 Magenta
122 - 133 Blue
134 - 145 Temperature correction 1
146 - 157 Temperature correction 2
158 - 169 Temperature correction B
170 - 182 Congo
Colour wheel rotation effects
183 - 201 Clockwise, fast to slow rotation
202 - 207 No rotation (The wheel maintains the current colour)
208 - 229 Counterclockwise, slow to fast rotation
230 - 234 Open
Random colours
235 - 239 Fast
240 - 244 Regular
245 - 249 Slow
250 - 255 Open
13 Zoom
000 - 255 From 60° to 10°
14
Colour temperature correction
000 - 019 Function
020 - 255 Temperature correction from 10 000°K to 2 500°K
15
PAN and Tilt macros
000 - 007 No function
008 - 015 Macro 1
016 - 023 Macro 2
024 - 031 Macro 3
032 - 039 Macro 4
040 - 047 Macro 5
048 - 055 Macro 6
056 - 063 Macro 7
064 - 071 Macro 8
072 - 079 Macro 9
080 - 087 Macro 10
088 - 095 Macro 11
096 - 103 Macro 12
104 - 111 Macro 13
112 - 119 Macro 14
120 - 127 Macro 15
128 - 135 Macro 16
136 - 143 Macro 17
144 - 151 Macro 18
152 - 159 Macro 19
160 - 167 Macro 20
168 - 175 Macro 21
176 - 183 Macro 22
184 - 191 Macro 23
192 - 199 Macro 24
200 - 207 Macro 25
208 - 215 Macro 26
216 - 223 Macro 27
224 - 231 Macro 28
232 - 239 Macro 29
240 - 247 Macro 30
248 - 255 Macro 31

English
HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 13
5.3 - 17-channel mode (continuation and end)
16
Movement macros speed
000 - 245 Increasing speed
246 - 255 Music-sensitive mode
17
Special functions
000 - 079 No function
080 - 087 PAN and TILT movements reset
088 - 090 Main reset
091 - 160 No function
161 - 180 Show 1 in auto mode
181 - 200 Show 2 in auto mode
201 - 220 Show 3 in auto mode
221 - 240 Show 4 in auto mode
241 - 255 Show 1 to 4 in music-sensitive mode
7 - Cabling, addressing and daisy chaining
DMX controller
DMX line termination
Unit 1 Unit 2 Unit 3 Unit 4
DMX Mode Unit 1 address Unit 2 address Unit 3 address Unit 4 address
1 channel 1234
12 channels 1 132537
17 channels 1 183552

English HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 14
7 - Dimensions
183
171263
259
263
297
340
93
150

English
HEZO120Z - 12 x 10W RGBW LEDs moving head with zoom
Page 15
8 - Notes

Because CONTEST®takes the utmost care in its products to make sure you only get the best possible quality, our products are
subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ
from the illustrations.
Make sure you get the latest news and updates about the CONTEST®products on www.contest-lighting.com
CONTEST®is a trademark of HITMUSIC S.A. - Zone Cahors sud - 46230 FONTANES - FRANCE
