USER MANUAL
LL LED FLOOD NEO Z-POWER RGBAW
Leader Light s.r.o.
M.Gorkeho 33
SK-052 01 Spisska Nova Ves
Slovakia
www.leaderlight.eu
LL44 200
Content:
01 SAFETY INFORMATION
01.1 Risk of eyes damage
01.2 Protection from electric shock
01.3 Fire prevention
02 PRODUCT SPECIFICATION
02.1 Technical Specification
02.2 Dimensions
02.3 Back panel
03 INSTALLATION
03.1 Unpacking
03.2 Physical installation
03.3 Connecting to AC power
03.4 Control data connecting
03.5 DMX channels
04 MAINTENANCE
All dimensions are in milimeters
Following items are included:
Additional items needed:
ENVIRONMENT
Do not throw away the appliance with the normal household waste at the end of its life,
but hand it in at an official collection point for recycling. By doing this, you help to preserve
the environment.
WARNING!!!
Carefully read before installing, powering or servicing.
Nothing to do if anything misunderstand!
Only for professional use!
01 SAFETY INFORMATION
01.1 Risk of eyes damage
- Do not look directly into LED lamps.
- Do not look into light beam from a distance of less than 40 cm (16 inches)!
01.2 Protection from electric shock
- Shut down power before installation or maintenance.
- Luminaries and recommended power supply must be installed by a qualified professional in
accordance with relevant local codes.
Only acceptable source of AC power and frequency that complies with local buidling and electrical
codes to use.
- Do not use or do not connect the products if the power cable, power plug or fixtures are any way
damaged, wet, or if they are overheating.
- Do not modify, alter, or attempt to service the LeaderLight appliance.
Doing so will void the warranty.
- Before removing or installing any cover or part of appliance disconnect it from AC power.
- Appliance allways connect to earth (eltech.).
01.3 Fire prevention
- Follow all safety consideration.
- Thermostatic switches or fuses never to bypass.
- Device never shield. Around the axis of the fitting (180°) must be maintained space for cooling.
Minimum distance from the surrounding objects must be 100mm (4 in.) (figure 1.1).
- LEDs never direct cover with filters or other materials.
- Allowing max. ambient temperature is 40°C (104°F).
- Luminaries never use without mounting brackets. The housing never install directly to the surface.
02 PRODUCT SPECIFICATION
02.1 Technical Specification
Lamp type:
Lifetime:
Optic:
Control data Input:
Input power:
Power Connection:
Net weight:
Dimensions LxWxH:
IP:
Ambient temp. (Ta):
Cooling:
Materials and finish:
Installation:
120 x RGBAW P4
(Red, Green, Blue, Amber and White - 6300K)**
Long 60 000 hrs 60% degradation
25mm standard 25°
optional 10°, 40° and 15°x90° - on request
DMX 512 in/out with XLR 5PIN
max. 200W
100-260V AC 50-60Hz in/out PowerCon
11kg
1000mm x 120mm x 80mm without bracket
IP20
Maximum 40°C
Conventional
Housing: powder-painted anodized aluminium RAL9006 (other
colours on request)
Cover: clear or frosted PMMA
Any position for ceiling, wall and surface-mounting
LED INDICATION STATUS
POWER (Red) blinking – 2Hz OK - inside fixture is everything correct
DATA (Green) light off NO DMX512 signal
DATA (Green) blinking – 4Hz OK- income correct DMX512 signal
DATA (Green) fast blinking NON correct digital signal
POWER (Red)
alternate blinking Autotest function
DATA (Green)
Control LEDs Indication POWER DATA
03 INSTALLATION
03.1 Unpacking
- Unpack carefully.
- This is electronic equipment and should be handled carefully.
- Damaged delivered package or if are any mechanical parts
broken – it must be claim
immediately by the transport company.
Photo pictures as evidence are valuable for future claim.
03.2 Physical installation
-
Loading capacity of bearing area has to be at least 10 times the weight of all device clusters
(luminaries, clamps, cables, ...).
- Heigrbreadth from combustible materials is 0,5m.
03.3 Connecting to AC power
- To tackle all Safety Information- 01!
-
For protection from electric shock, the device must be grounded (earthed)!
- It is not necessary to open the fixture before power supply.
Power supply is sovled simple with Neutrik PowerCon connectors.
- The fixture is equipped with auto-switching power supply that automatically adjusts
to any 50-60 Hz AC power source from 100-260 Volts.
- Cord plug connections:
©MMVIII - Leader Light – All right reserved
02.2 Back panel
DMX OUT
XLR-5PIN
DMX IN
XLR-5PIN
Power IN
PowerCon
Power OUT
PowerCon
Dip options » Rotating DIP address 000÷511
Control LEDs
If you have any question please, contact [email protected]
COMPLIMENTS ON YOUR PURCHASE!
Symbol Pin Wire Colour Screw (US)
Llive brown yellow or brass
Nneutral blue silver
ground (earth) yellow/green green
03.4 Control data connecting
- Control data cable length is specified by Norm IEC929 Annex E4.
- It is not necessary to open the fixture before connecting of
DMX512 control signal.
Interconnections are realized by Neutrik
XLR 5 PIN IN/OUT connectors.
- Pin connections :
Pin 1 – ground
Pin 2 – signal negative
Pin 3 – signal positive
“100“ “10“ “1“
- LL LED FLOOD NEO Z-POWER RGBAW 5m power cable with PowerCon 1 pc.
- PowerCon type “A“ 1 pc.
- PowerCon type “B“ 1 pc.
- Adjustable mounting bracket 2 pcs.
- User manual 1 pc.
- Data cables with XLR 5PIN Female/Male 1 pc.
- Controller compatible with DMX 1 pc.
80
120
xx
x x
xx
Edition: A - 2008
1000

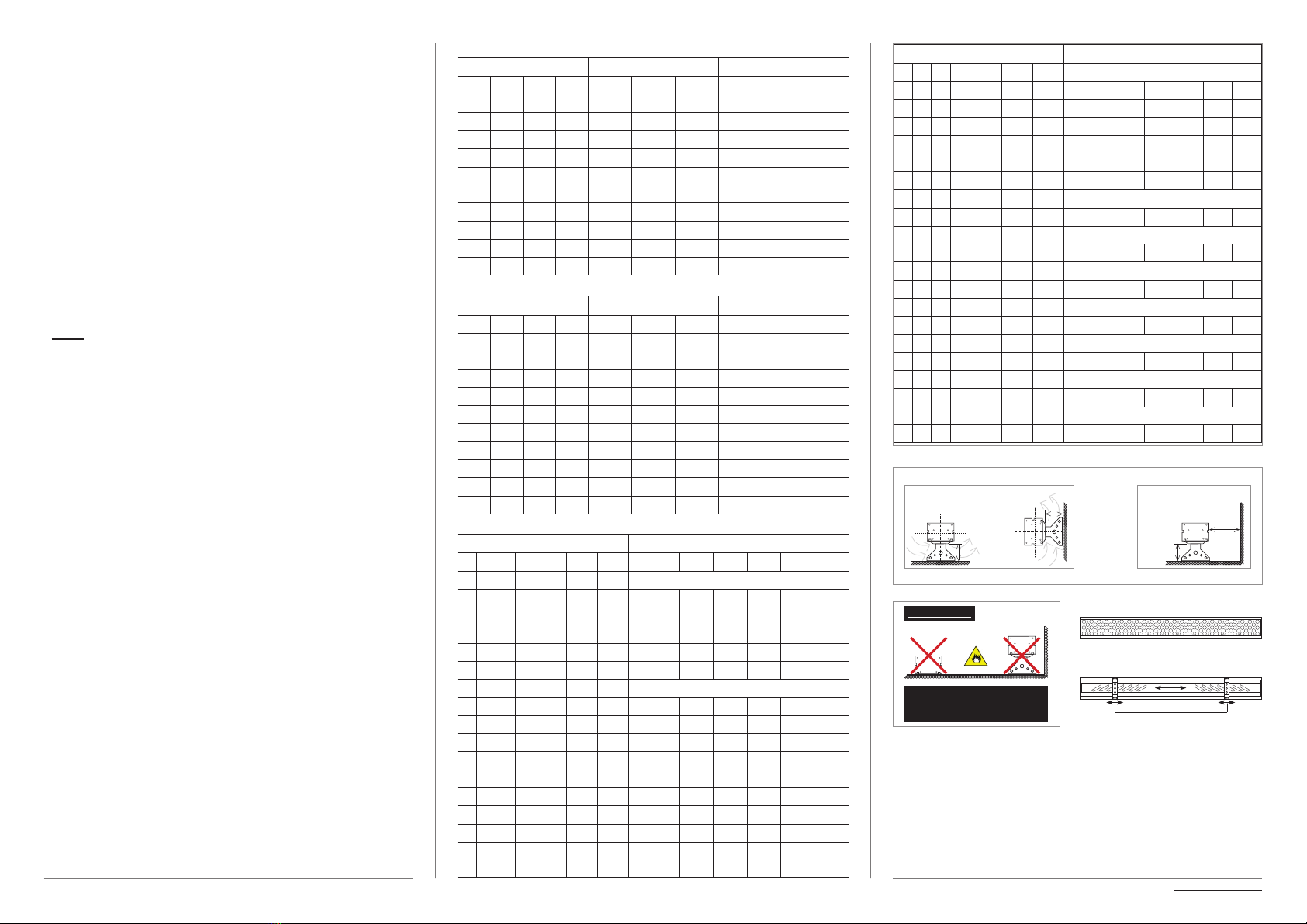

03.5 DMX channels
DMX channels and DIP Switch:
ROTATING DIP switch:
Start DMX address is setup by rotating switch.
Rotating switch (RSx) use for DMX start address (RS1-100, RS2-010, RS3 -001) from 001 to 511.
*** DIP1=Off a DIP4=On switch on AutoRun – table functions
Dip Rotating Dip
1 2 3 4 “100“ “10“ “1“ Step Time:
0 0 0 1 x0x1s
0 0 0 1 x1x3s
0 0 0 1 x2x5s
0 0 0 1 x3x10s
0 0 0 1 x4x15s
0 0 0 1 x5x20s
0 0 0 1 x6x30s
0 0 0 1 x7x40s
0 0 0 1 x 8 x 60s
0 0 0 1 x 9 x 90s
Dip Rotating Dip
1 2 3 4 “100“ “10“ “1“ Fade Time:
0 0 0 1 x x 0 1s
0 0 0 1 x x 1 3s
0 0 0 1 x x 2 5s
0 0 0 1 x x 3 10s
0 0 0 1 x x 4 15s
0 0 0 1 x x 5 20s
0 0 0 1 x x 6 30s
0 0 0 1 x x 7 40s
0 0 0 1 x x 8 60s
0 0 0 1 x x 9 90s
Dip Rotating Dip
1 2 3 4 “100“ “10“ “1“ R G B A W
0 0 0 1 0 x x Program Nr. 0:
step 1 100 0 0 0 0
step 2 0 100 0 0 0
step 3 0 0 100 0 0
step 4 0 0 0 100 0
step 5 0 0 0 0 100
0 0 0 1 1 x x Program Nr. 1:
step 1 100 0 0 0 0
step 2 100 100 0 0 0
step 3 0 100 0 0 0
step 4 0 100 100 0 0
step 5 0 0 100 0 0
step 6 0 0 100 100 0
step 7 0 0 0 100 0
step 8 0 0 0 100 100
step 9 0 0 0 0 100
step 10 100 0 0 0 100
Mode 4 (30+2 channels): DIP2=On and DIP3=On
channel 1 = Red 1 channel 11 = Red 3 channel 21 = Red 5
channel 2 = Green 1 channel 12 = Green 3 channel 22 = Green 5
channel 3 = Blue 1 channel 13 = Blue 3 channel 23 = Blue 5
channel 4 = Amber 1 channel 14 = Amber 3 channel 24 = Amber 5
channel 5 = White 1 channel 15 = White 3 channel 25 = White 5
channel 6 = Red 2 channel 16 = Red 4 channel 26 = Red 6
channel 7 = Green 2 channel 17 = Green 4 channel 27 = Green 6
channel 8 = Blue 2 channel 18 = Blue 4 channel 28 = Blue 6
channel 9 = Amber 2 channel 19 = Amber 4 channel 29 = Amber 6
channel 10 = White 2 channel 20 = White 4 channel 30 = White 6
channel 31 = Master 0-100% control only if DIP1=On and DIP4=Off
channel 32 = Strobo 0-15 fl/sec control only if DIP1=On and DIP4=Off
(If is DIP1=Off and DIP4=Off is control fixtures only by 30 channels mode)
Mode 1 (5+2 channels): DIP2=Off and DIP3=Off
channel 1 = 0-100% Red 1-6 together
channel 2 = 0-100% Green 1-6 together
channel 3 = 0-100% Blue 1-6 together
channel 4 = 0-100% Amber 1-6 together
channel 5 = 0-100% White 1-6 together
channel 6 = Master 0-100% control only if DIP1=On and DIP4=Off
channel 7 = Strobo 0-15 fl/sec control only if DIP1=On and DIP4=Off
(If is DIP1=Off and DIP4=Off is control fixtures only by 5 channels mode)
If you have any question please, contact [email protected]
Extention and control functions:
Dip4=Off, Dip1=Off => DipBCD: use rotating switch for DMX start address
(RS1-100, RS2-010, RS3-001) from 001 to 511
Dip4=Off, Dip1=On: address +2ch (Master+Strobo)
Dip4=On, Dip1=Off: switch on AutoRun-table functions:
“100“=Prg.0-9, “10“=StepTime, “1“=FadeTime
Dip4=On, Dip1=On: switch all channels on 50% - test function.
Dip2=Off: Mode 1 (5+2ch)
Dip2=On: Mode 4 (30+2ch)
Dip3=Off: Standard curve
Dip3=On: UltraSoft curve
Dip Rotating Dip
0 0 0 1 2 x x Program Nr. 2:
step 1 100 0 0 0 0
step 2 100 100 0 0 0
step 3 0 100 0 0 0
step 4 0 100 100 0 0
step 5 0 0 100 0 0
step 6 100 0 100 0 0
0 0 0 1 3 x x Program Nr. 3:
step 1 100 0 0 0 0
0 0 0 1 4 x x Program Nr. 4:
step 1 0 100 0 0 0
0 0 0 1 5 x x Program Nr. 5:
step 1 0 0 100 0 0
0 0 0 1 6 x x Program Nr. 6:
step 1 0 0 0 100 0
0 0 0 1 7 x x Program Nr. 7:
step 1 0 0 0 0 100
0 0 0 1 8 x x Program Nr. 8:
step 1 min. min. min. min. min.
0 0 0 1 9 x x Program Nr. 9:
step 1 max. max. max. max. max.
04 MAINTENANCE
- To tackle all Safety Information- 01!
- Damage caused by inadequate cleaning or maintenance is not coverd by warranty.
- Regular cleaning is demand (dust, dirt, ...).
Maintenance policy:
- Unplug mains befor maintenance and at least 10 minutes cool off.
- Cleanup dust from scuttle, diffuser and lens.
- Use vacuum or dampy duster (warm watter).
- Before reinstalling to check failure-free state – no wet parts!
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
ventilating slots
sliding mounting brackets
Ventilation space 180° free
Minimal mounting distance from surface
Ventilation space 90° free
INSTALLATION
1.1
xx
x x
xx
minimal.
80mm
minimal.
100mm
minimal.
80mm
xx
x x
xx
!!
WARNING!!!
Non-minimum distance and / or
non-use the original brackets is
at your own risk!
xx
x x
xx
xx
x x
xx
xx
x x
xx
minimal.
80mm
