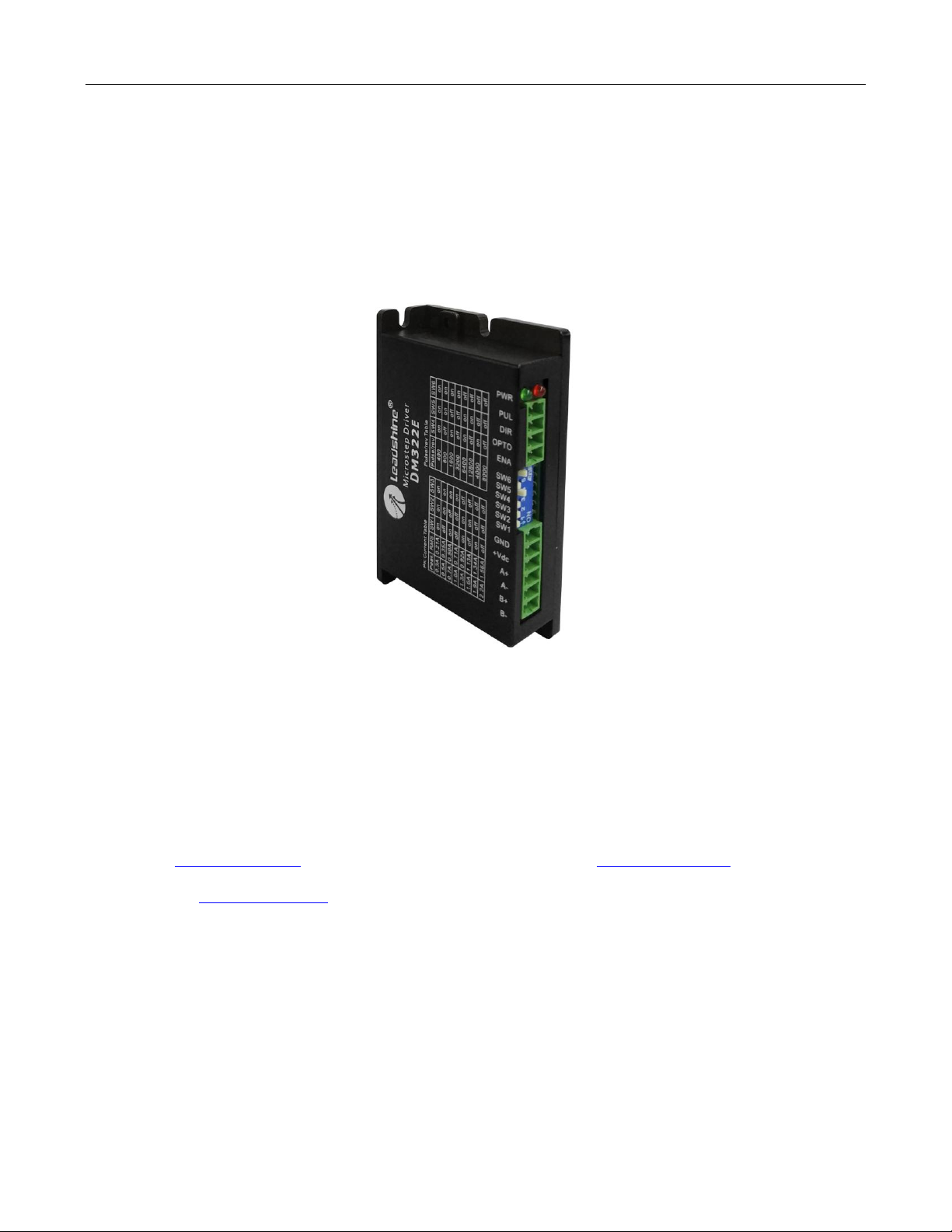

Leadshine Technology Co. DM322E User manual

User Manual
DM322E
2-Phase Digital Stepper Drive
Revision 1.0
© 2016 China Leadshine Technology Co., Ltd.
Address: Floor 11, Block A3, Nanshan iPark, Xueyuan Avenue 1001, Shenzhen, Guangdong, 518055, China
Tel: [phone] Fax: [phone]
Web: www.leadshine.com Sales: [email protected]m
Support: [email protected]m

DM322E Digital Stepper Drive User Manual
Notice
Read this manual carefully before any assembling and using. Incorrect handling of products in this manual can result
in injury and damage to persons and machinery. Strictly adhere to the technical information regarding installation
requirements.
This manual is not for use or disclosure outside of Leadshine except under permission. All rights are reserved. No part
of this manual shall be reproduced, stored in retrieval form, or transmitted by any means, electronic, mechanical,
photocopying, recording, or otherwise without approval from Leadshine. While every precaution has been taken in
the preparation of the book, Leadshine assumes no responsibility for errors or omissions. Neither is any liability
assumed for damages resulting from the use of the information contained herein.
This document is proprietary information of Leadshine that is furnished for customer use ONLY. Information in this
document is subject to change without notice and does not represent a commitment on the part of Leadshine.
Therefore, information contained in this manual may be updated from time-to-time due to product improvements,
etc., and may not conform in every respect to former issues.
Record of Revisions
Revision
Date
Description of Release
1.0
Dec, 2016
Initial Release

DM322E Digital Stepper Drive User Manual
Table of Contents
1. Introductions................................................................................................................................................................ 1
1.1 Features................................................................................................................................................................ 1
1.2 Applications......................................................................................................................................................... 1
2. Specifications................................................................................................................................................................ 1
2.1 Electrical Specifications ...................................................................................................................................... 1
2.2 Environment ........................................................................................................................................................ 2
2.3 Mechanical Specifications................................................................................................................................... 2
2.4 Elimination of Heat.............................................................................................................................................. 2
3. Connection PinAssignments and LED Indication.................................................................................................... 3
3.1 Connector P1 Configurations............................................................................................................................... 3
3.2 Connector P2 Configurations............................................................................................................................... 3
3.3 LED Light Indication........................................................................................................................................... 4
4. Control Signal Connector (P1) Interface................................................................................................................... 4
5. Motor Connection........................................................................................................................................................ 5
5.1 Connections of 4-lead Motor............................................................................................................................... 5
5.2 Connections of 6-lead Motor............................................................................................................................... 5
5.2.1 Half Coil Configuration.......................................................................................................................... 5
5.2.2 Full Coil Configuration.......................................................................................................................... 5
5.3 Connections of 8-lead Motor............................................................................................................................... 6
5.3.1 Series Connection.................................................................................................................................... 6
5.3.2 Parallel Connection................................................................................................................................. 6
6. Power Supply Selection............................................................................................................................................... 6
6.1 Regulated or Unregulated Power Supply............................................................................................................. 7
6.2 Power Supply Sharing ......................................................................................................................................... 7
6.3 Selecting Supply Voltage..................................................................................................................................... 7
7. DIP Switch Configurations ......................................................................................................................................... 7
7.1 Microstep Resolution Configurations.................................................................................................................. 7
7.2 Current Configurations........................................................................................................................................ 8
7.2.1 Dynamic Current Configurations ......................................................................................................... 8
7.2.2 Standstill Current Configuration .......................................................................................................... 8
7.3 Automatic Motor Matching & Self Configuration............................................................................................... 8
8. Wiring Notes................................................................................................................................................................. 9
9. Typical Connection...................................................................................................................................................... 9
10. Sequence Chart of Control Signals .......................................................................................................................... 9
11. Protection Functions................................................................................................................................................ 10
12. Troubleshooting ....................................................................................................................................................... 11
13. Warranty .................................................................................................................................................................. 12
14. Contact Us................................................................................................................................................................ 12

DM322E Digital Stepper Drive User Manual
Page | 1
1. Introductions
The DM322E is a digital stepper drive with simple design and easy setup. By implementing Leadshine advanced
stepper control technology, this stepper drive is able to power 2-phase and 4 phase stepper motors smoothly with
optimal torque and low motor heating & noise. Its operating voltage is 18-30VDC and it can output up to 2.2A current.
All the micro step and output current are done via DIP switches. Therefore, the DM322E are ideal choices for
applications requiring simple step & direction control of NEMA11, 14, 16, 17 stepper motors.
1.1 Features
Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors
Step & direction (PUL/DIR) control
Multi-Stepping for smooth motor movement
Optically isolated inputs
Input voltage 18-30VDC
8 selectable micro-step resolutions of 400-12800 via DIP switches
8 selectable output current settings of 0.3 –2.2A via DIP switches
Soft-start with no “jump” when powered on
Pulse input frequency up to 70 KHz.
Automatic idle-current reduction
Protections for over-voltage and over-current
1.2 Applications
The DM322E stepper drive are designed to power 2 phase (1.8°) or 4-phase (0.9°) NEMA11, 14, 16, 17 hybrid stepper
motors. It can be easily adopted in many industries (CNC, medical, automation, packaging…), such as X-Y tables,
engraving machines, labeling machines, mills, plasma, laser cutters, pick and place devices, and so on. Its excellent
performance, simple design, and easy setup make it ideal for many step & direction control type applications.
2. Specifications
2.1 Electrical Specifications
Parameters
DM322E
Min
Typical
Max
Unit
Output Current
0.3
-
2.2 (1.6 RMS)
A
Supply Voltage
18
24
30
VDC
Logic signal current
7
10
16
mA
Pulse input frequency
0
-
70
kHz
Minimal pulse width
7.5
-
-
μS
Minimal direction setup
7.5
-
-
μS
Isolation resistance
100
MΩ

DM322E Digital Stepper Drive User Manual
Page | 2
2.2 Environment
Cooling
Natural Cooling or Forced cooling
Operating Environment
Environment
Avoid dust, oil fog and corrosive gases
Ambient Temperature
0°C －65°C (32°F - 149°F)
Humidity
40%RH－90%RH
Operating Temperature
0°C －50°C (32°F - 122°F)
Vibration
10-50Hz / 0.15mm
Storage Temperature
-20°C －65°C (-4°F - 149°F)
Weight
Approx. 90g (3.5 oz)

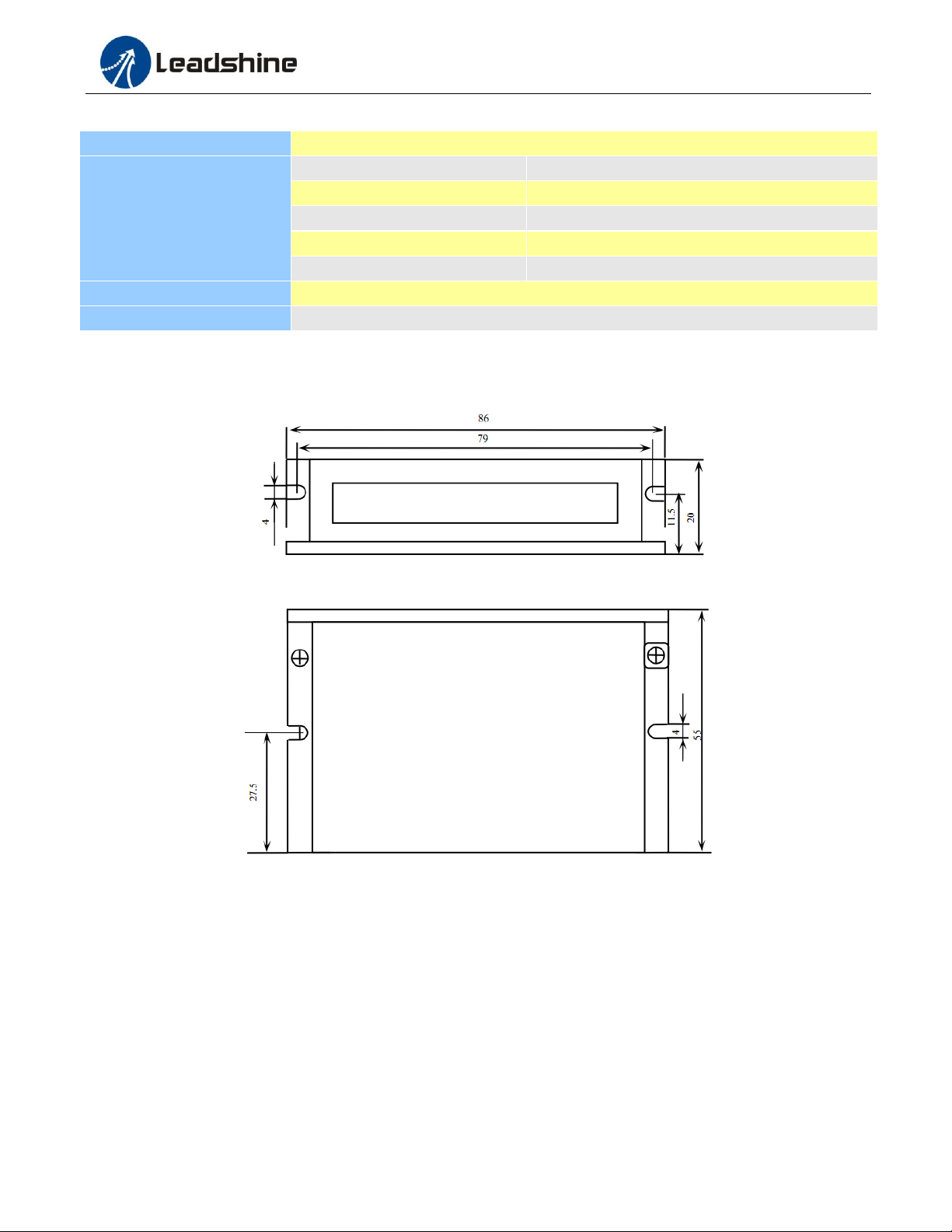

2.3 Mechanical Specifications
(unit: mm [1inch=25.4mm])
Figure 1: Mechanical specifications
* Side mounting recommended for better heat dissipation
2.4 Elimination of Heat
DM322E reliable working temperature should be < 60℃(140°F)
It is recommended to mount the drive vertically to maximize heat sink area. Use forced cooling method to cool if
necessary.

DM322E Digital Stepper Drive User Manual
Page | 3
3. Connection PinAssignments and LED Indication
The DM322E has two connector blocks P1&P2 (see above picture). P1 is for control signals connections, and P2 is for
power and motor connections. The following tables are brief descriptions of the two connectors. More detailed
descriptions of the pins and related issues are presented in section 4, 5, 9.
3.1 Connector P1 Configurations
Pin Function
Details
PUL
Pulse signal: Pulse active at rising edge; 4-5V when PUL-HIGH, 0-0.5V when PUL-LOW.
Minimal pulse width of 2.5μs. Add a resistor for current-limiting at +12V or +24V input logic
voltage (1K for +12V, 2k for +24V). The same as DIR and ENA signals.
DIR
DIR signal: This signal has low/high voltage levels to represent two directions of motor
rotation.. Minimal direction setup time of 5μs. Also swapping the connection of two wires of a
coil (e.g. A+ and A-) to the drive will reverse motor direction.
OPTO
Opto-coupler power supply, and the typical voltage is +5V. Series connect resistors (at the
PUL, DIR, ENA terminals) for current-limiting when +12V or +24V used.
ENA
Enable signal: This signal is used for enabling/disabling the drive. High level +5V (NPN
control signal) for enabling the drive and low level for disabling the drive. PNP and
Differential control signals are on the contrary, namely Low level for enabling. By default it
is left UNCONNECTED (ENABLED).
!
Notice
Notes: (1) shielding control signal wires is suggested; (2) To avoid interference, don’t tie PUL/DIR control
signal and motor wires together
3.2 Connector P2 Configurations
Pin Function
Details
GND
Power supply ground connection.
+Vdc
Power supply positive connection. Suggest 24VDC power supply voltage
A+, A-
Motor Phase A connections. Connect motor A+ wire to A+ Pin; motor A- wire to A-
B+, B-
Motor Phase B connections. Connect motor B+ wire to B+ Pin; motor B- wire to B-

DM322E Digital Stepper Drive User Manual
Page | 4
!
Warning
Warning: Don’t plug or unplug the P1 & P2 terminal block to avoid drive damage or injury when DM322E
is powered on.
3.3 LED Light Indication
There are two LED lights for DM322E. The GREEN one is the power indicator which will be always on generally. The
RED one is a protection indicator which will flash 1-2 times in a 3-second period, when protection enabled for a
DM322E. Different number of flashes indicates different protection type (read section 11 for detail).
4. Control Signal Connector (P1) Interface
The DM322E can accept differential and single-ended inputs (including open-collector and PNP output). The DM322E
has 3 optically isolated logic inputs which are located on connector P1 to accept line drive control signals. These inputs
are isolated to minimize or eliminate electrical noises coupled with the drive control signals. Recommend using line
Qdrive control signals to increase noise immunity for the drive in interference environments. In the following figures,
connections to open-collector and PNP signals are illustrated.
DM422 Driver
Controller
VCC PUL
VDC
270Ω
270Ω
270Ω
OPTO
ENA
R=0 if VCC=5V;
R=1K(Power>0.125W) if VCC=12V;
R=2K(Power>0.125W) if VCC=24V;
R must be connected to control signal terminal.
R
R
R
PUL
DIR
ENABLE
DIR

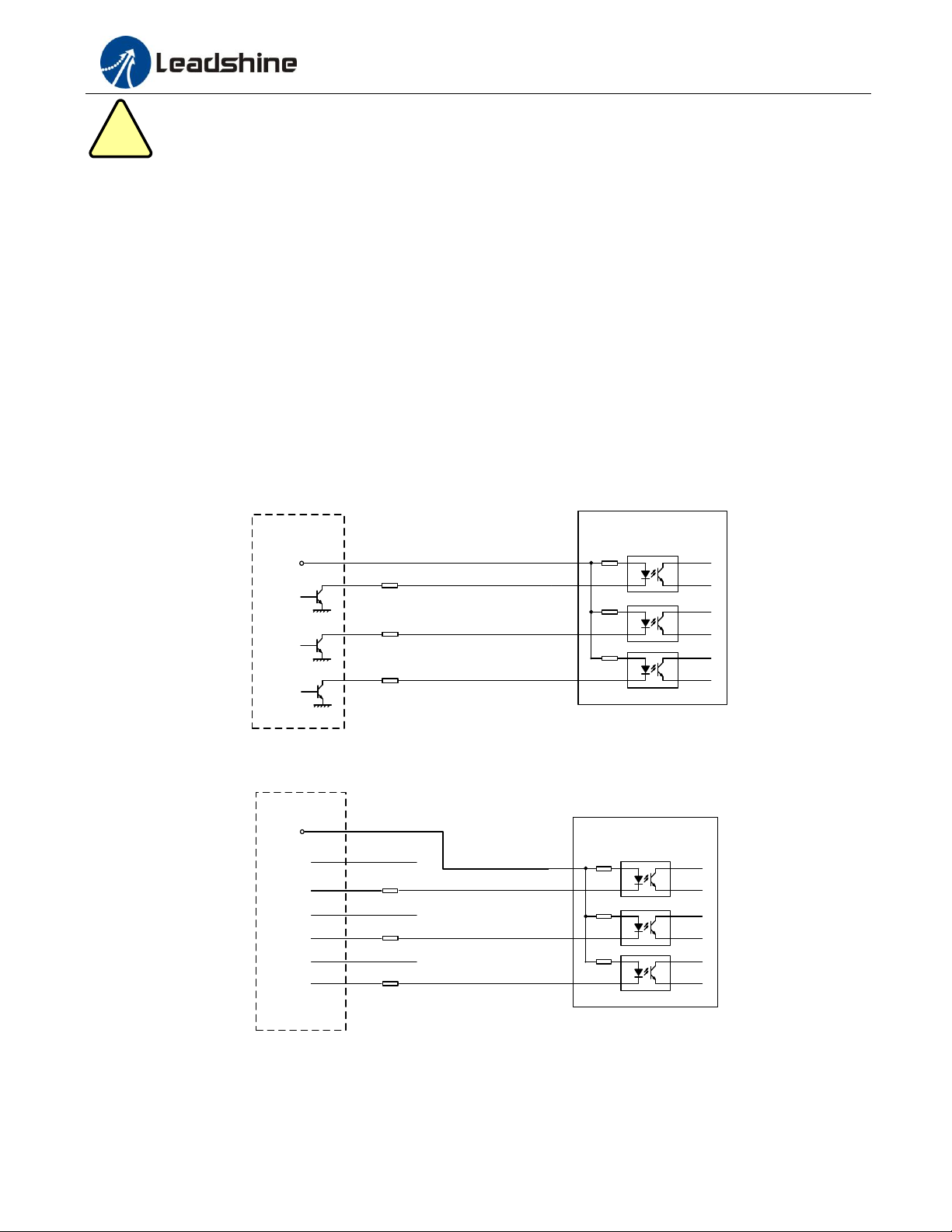

Figure 2: Connections to open-collector signal (common-anode)
DM322E Driver
Controller
VCC
PUL
270Ω
270Ω
270Ω
OPTO
ENA
R=0 if VCC=5V;
R=1K(Power>0.125W) if VCC=12V;
R=2K(Power>0.125W) if VCC=24V;
R must be connected to control signal terminal.
R
R
R
PUL+
DIR
PUL-
DIR+
DIR-
ENA+
ENA-
Figure 3: Connections to difference control signal

DM322E Digital Stepper Drive User Manual
Page | 5
5. Motor Connection
The DM322E can drive 2-phase and 4-pahse bipolar hybrid stepper motors with 4, 6, or 8 wires.
5.1 Connections of 4-lead Motor
The 4 lead motors are the least flexible and easy to connect. And the Speed –torque of motor depends on winding
inductance. The output current from drive that is multiply the specified phase current by 1.4 to determine the peak
output current.

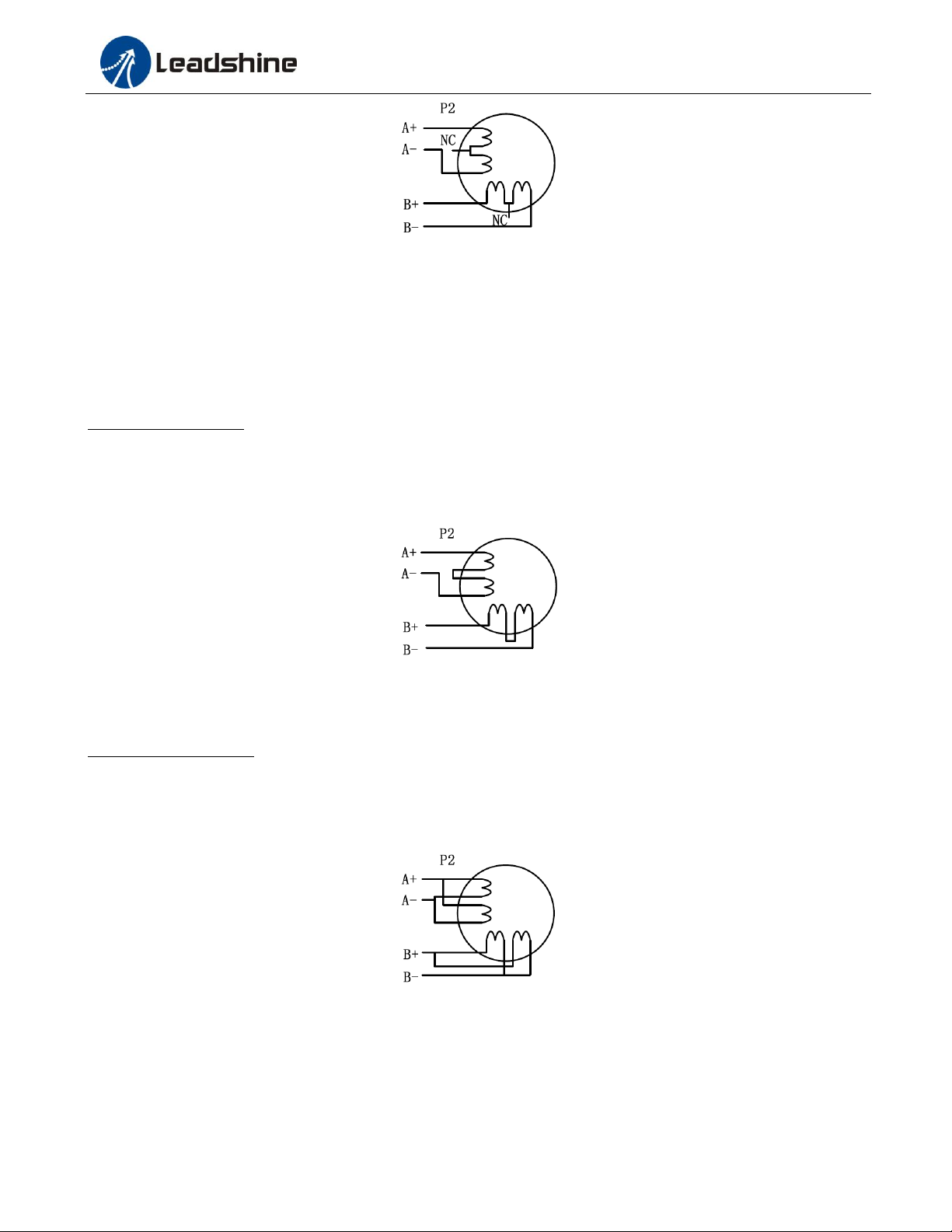

Figure 4: 4-lead Motor Connections
5.2 Connections of 6-lead Motor
Like 8 lead stepping motors, 6 lead motors have two configurations available for high speed or high torque operations.
The higher speed configuration, or half coil, is described, because it uses one half of the motor’s inductor windings.
The higher torque configuration, or full coil, uses the full coil windings.
5.2.1 Half Coil Configuration
As previously stated, the half coil configuration uses 50% of the motor phase windings. This gives lower inductance,
hence, lower torque output. Like the parallel connection of 8 lead motor, the torque output will be more stable at higher
speeds. This configuration is also referred to as half chopper. In setting the drive output current multiply the specified
per phase (or unipolar) current rating by 1.4 to determine the peak output current.
Figure 5: 6-lead motor half coil (higher speed) connections
5.2.2 Full Coil Configuration
The full coil configuration on a six lead motor should be used in applications where higher torque at lower speed is
desired. This configuration is also referred to as full copper. In full coil mode, the motors should be run at only 70% of
their rated current to prevent overheating.

DM322E Digital Stepper Drive User Manual
Page | 6
Figure 6: 6-lead motor full coil (higher torque) connections
5.3 Connections of 8-lead Motor
8 lead motors offer a high degree of flexibility to the system designer in that they may be connected in series or parallel,
thus satisfying a wide range of applications.
5.3.1 Series Connection
A series motor configuration would typically be used in applications where a higher torque at lower speed is required.
Because this configuration has the most inductance, the performance will start to degrade at higher speed. In series
mode, the motors should also be run at only 70% of their rated current to prevent overheating.
Figure 7: 8-lead motor series connections
5.3.2 Parallel Connection
An 8 lead motor in a parallel configuration offers a more stable, but lower torque at lower speeds. But because of the
lower inductance, there will be higher torque at higher speeds. Multiply the phase (or unipolar) current rating by 1.96,
or the bipolar current rating by 1.4, to determine the peak output current.
Figure 8: 8-lead motor parallel connections
6. Power Supply Selection
The DM322E can power medium and small size stepping motors (frame size from NEMA11 to 17) made by Leadshine
or other motor manufacturers. To get good driving performances, it is important to select supply voltage and output

DM322E Digital Stepper Drive User Manual
Page | 7
current properly. Generally speaking, supply voltage determines the high speed performance of the motor, while output
current determines the output torque of the driven motor (particularly at lower speed). Higher supply voltage will allow
higher motor speed to be achieved, at the price of more noise and heating. If the motion speed requirement is low, it’s
better to use lower supply voltage to decrease noise, heating and improve reliability.
6.1 Regulated or Unregulated Power Supply
Both regulated and unregulated power supplies can be used to supply the drive. However, unregulated power supplies
are preferred due to their ability to withstand current surge and fast response for current change. If you prefer to a
regulated power supply, it is suggested to choose such a power supply specially designed for stepper/servo controls
such as Leadshine RPS series (http://www.leadshine.com/producttypes.aspx?producttype=regulated-switching). Or, in
the case when only normal switching power supplies are available, it is important to use “OVERSIZE” high current
output rating power supplies (for example, using a 4A power supply for 3A stepper motor) to avoid problems such as
current clamp. On the other hand, if unregulated supply is used, one may use a power supply of lower current rating
than that of motor (typically 50%～70% of motor current). The reason is that the drive draws current from the power
supply capacitor of the unregulated supply only during the ON duration of the PWM cycle, but not during the OFF
duration. Therefore, the average current withdrawn from power supply is considerably less than motor current. For
example, two 3A motors can be well supplied by one power supply of 4A rating.
6.2 Power Supply Sharing
Multiple DM322E drives can share one power supply to reduce cost, if that power supply has enough power capacity.
To avoid cross interference, connect each stepper drive directly to the shared power supply separately. To avoid cross
interference, DO NOT daisy-chain connect the power supply input pins of the Drivers. Instead connect them to power
supply separately.
6.3 Selecting Supply Voltage
The DM322E is designed to operate within 18-30VDC voltage input. When selecting a power supply, besides voltage
from the power supply power line voltage fluctuation and back EMF voltage generated during motor deceleration
needs also to be taken into account. Ideally it is suggested to use a power supply with the output voltage of 24VDC,
leaving room for power line voltage fluctuation and back-EMF.
Higher supply voltage can increase motor torque at higher speeds, thus helpful for avoiding losing steps. However,
higher voltage may cause bigger motor vibration at lower speed, and it may also cause over-voltage protection or even
drive damage. Therefore, it is suggested to choose only sufficiently high supply voltage for intended applications.
7. DIP Switch Configurations
This drive uses an 6-bit DIP switch to set microstep resolution, and motor operating current, as shown below:
1
Dynamic Current Microstep Resolution
23456
7.1 Microstep Resolution Configurations
Microstep resolution is set by SW4, 5, 6 of the DIP switches as shown in the following table:

DM322E Digital Stepper Drive User Manual
Page | 8
Microstep
Steps/rev.(for 1.8°motor)
SW4
SW5
SW6
2
400
ON
ON
ON
4
800
OFF
ON
ON
8
1600
ON
OFF
ON
16
3200
OFF
OFF
ON
32
6400
ON
ON
OFF
64
12800
OFF
ON
OFF
20
4000
ON
OFF
OFF
40
8000
OFF
OFF
OFF
7.2 Current Configurations
For a given motor, higher drive current will make the motor to output more torque, but at the same time causes more
heating in the motor and drive. Therefore, output current is generally set to be such that the motor will not overheat for
long time operation. Since parallel and serial connections of motor coils will significantly change resulting inductance
and resistance, it is therefore important to set drive output current depending on motor phase current, motor leads and
connection methods. Phase current rating supplied by motor manufacturer is important in selecting drive current,
however the selection also depends on leads and connections.
The first three bits (SW1, 2, 3) of the DIP switch are used to set the dynamic current. Select a setting closest to your
motor’s required current.
7.2.1 Dynamic Current Configurations
Peak Current
RMS Current
SW1
SW2
SW3
0.3A
0.21A
ON
ON
ON
0.5A
0.35A
OFF
ON
ON
0.7A
0.49A
ON
OFF
ON
1.0A
0.71A
OFF
OFF
ON
1.3A
0.92A
ON
ON
OFF
1.6A
1.13A
OFF
ON
OFF
1.9A
1.34A
ON
OFF
OFF
2.2A
1.56A
OFF
OFF
OFF
Notes: Due to motor inductance, the actual current in the coil may be smaller than the dynamic current setting,
particularly under high speed condition.
7.2.2 Standstill Current Configuration
The standstill current is set to be 50% of the selected output current. It means standstill current automatically reduced
to 50% of the selected dynamic current 0.4 second after the last pulse.
7.3 Automatic Motor Matching & Self Configuration
When powered on a DM322E will automatically configure itself with the best settings to match the driven stepper
motor for optimal performance. No action is needed.

DM322E Digital Stepper Drive User Manual
Page | 9
8. Wiring Notes
In order to improve anti-interference performance of the drive, it is recommended to use twisted pair shield cable.
To prevent noise incurred in PUL/DIR signal, pulse/direction signal wires and motor wires should not be tied up
together. It is better to separate them by at least 10 cm, otherwise the disturbing signals generated by motor will
easily disturb pulse direction signals, causing motor position error, system instability and other failures.
If only one power supply serves multiple DM322E drives, separately connecting the drives to the power supply is
recommended instead of daisy-chaining.
It is prohibited to pull and plug connector P2 while the drive is powered ON, because there is high current flowing
through motor coils (even when motor is at standstill). Pulling or plugging connector P2 with power on will cause
extremely high back-EMF voltage surge, which may damage the drive.
9. Typical Connection
A complete stepping system should include stepping motor, stepping drive, power supply and controller (pulse
generator).A typical connection is shown as figure 9.
DM322E Driver
Controller
VCC PUL
18-30 VDC
Stepping Motor
VDC
GND
A+
A-
B+
270Ω
270Ω
270Ω
OPTO
ENA
R=0 if VCC=5V;
R=1K(Power>0.125W) if VCC=12V;
R=2K(Power>0.125W) if VCC=24V;
R must be connected to control signal terminal.
R
R
R
PUL
DIR
B-
DIR
Figure 9: Typical connection
10. Sequence Chart of Control Signals
In order to avoid some fault operations and deviations, PUL, DIR and ENA should abide by some rules, shown as
following diagram:

DM322E Digital Stepper Drive User Manual
Page | 10
Figure 10: Sequence chart of control signals
Remark:
a) t1: ENA must be ahead of DIR by at least 5s. Usually, ENA+ and ENA- are NC (not connected). See
“Connector P1 Configurations” for more information.
b) t2: DIR must be ahead of PUL effective edge by 5s to ensure correct direction;
c) t3: Pulse width not less than 7.5s;
d) t4: Low level width not less than 7.5s.
11. Protection Functions
To improve reliability, the drive incorporates some built-in protections features.
Priority
Time(s) of
Blink
Sequence wave of red LED
Description
1st
1
Over-current protection activated when peak
current exceeds the limit.
2nd
2
Over-voltage protection activated when drive
working voltage is greater than 34VDC
3nd
3
Reserved.
When above protections are active, the motor shaft will be free or the red LED blinks. Reset the drive by repowering it
to make it function properly after removing above problems.

DM322E Digital Stepper Drive User Manual
Page | 11
12. Troubleshooting
In the event that your drive doesn’t operate properly, the first step is to identify whether the problem is electrical or
mechanical in nature. The next step is to isolate the system component that is causing the problem. As part of this
process you may have to disconnect the individual components that make up your system and verify that they operate
independently. It is important to document each step in the troubleshooting process. You may need this documentation
to refer back to at a later date, and these details will greatly assist our Technical Support staff in determining the
problem should you need assistance.
Many of the problems that affect motion control systems can be traced to electrical noise, controller software errors, or
mistake in wiring.
Problem Symptoms and Possible Causes
Symptoms
Possible Problems
Motor is not rotating
No power
Microstep resolution setting is wrong
DIP switch current setting is wrong
Fault condition exists
The drive is disabled
Motor rotates in the wrong direction
Motor phases may be connected in reverse
The drive in fault
DIP switch current setting is wrong
Something wrong with motor coil
Erratic motor motion
Control signal is too weak
Control signal is interfered
Wrong motor connection
Something wrong with motor coil
Current setting is too small, losing steps
Motor stalls during acceleration
Current setting is too small
Motor is undersized for the application
Acceleration is set too high
Power supply voltage too low
Excessive motor and drive heating
Inadequate heat sinking / cooling
Automatic current reduction function not being utilized
Current is set too high

DM322E Digital Stepper Drive User Manual
Page | 12
13. Warranty
Twelve Month Warranty
Leadshine Technology Co., Ltd. warrants its products against defects in materials and workmanship for a period of 12
months from shipment out of factory. During the warranty period, Leadshine will either, at its option, repair or replace
products which proved to be defective.
Exclusions
The above warranty does not extend to any product damaged by reasons of improper or inadequate handlings by
customer, improper or inadequate customer wirings, unauthorized modification or misuse, or operation beyond the
electrical specifications of the product and/or operation beyond environmental specifications for the product.
Obtaining Warranty Service
To obtain warranty service, please contact your seller to obtain a returned material authorization number (RMA) before
returning product for service.
Shipping Failed Products
If your product fail during the warranty period, please contact your seller for how and where to ship the failed product
for warranty or repair services first, you can also e-mail customer service at [e-mail] to obtain a returned material
authorization number (RMA) before returning product for service. Please include a written description of the problem along with contact
name and address.
14. Contact Us
China Headquarter
Address: Floor 11, Block A3, Nanshan iPark, Xueyuan Avenue 1001, Shenzhen, Guangdong, 518055, China
Web: http://www.leadshine.com
Sales Hot Line:
Tel: [phone] (for All)
86-755-2641-7674 (for Asia, Australia, Africa areas)
86-755-2640-9254 (for Europe, America areas)
Fax: [phone]
Email: sa[email protected]m.
Technical Support:
Tel: [phone] and 86-755-2647-1129
Fax: [phone]
Email: t[email protected].
Leadshine U.S.A
Address: 26050 Towne Centre Dr. Foothill Ranch, CA 926 USA
Tel: [phone]
Fax: [phone]
Web: http://www.leadshineusa.com
Email: [e-mail] and [e-mail].
