leadsun AE3C User manual

Made in China
Solar Street Light
User Manual
AE3C
A3C.045-B
Thank you for choosing LEADSUN's solar street light.
If you have any question, please consult our customer services
[email protected].
LEADSUN reserves the right to update product appearance, function
and construction without notice.
For any discrepancies in illustration or description, please refer to
individual/real objects.
LEADSUN assures the accuracy and reliability of this manual, but is
not responsible for any loss or damage related to any operation of the
products.

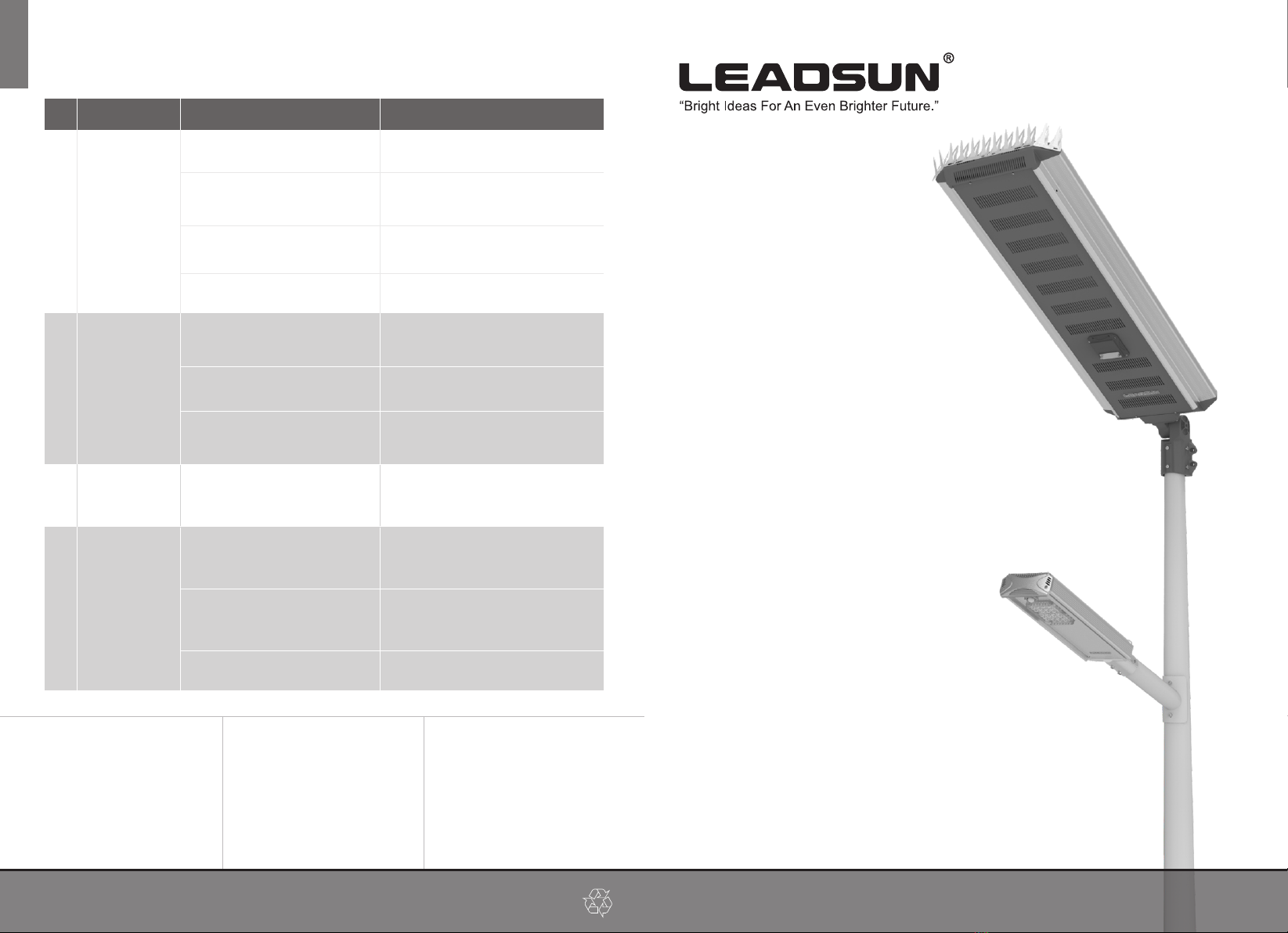

Troubleshooting
No.
Symptoms
Troubleshooting steps
Process
1
No light at night
Check that the lamp can be manually
activated.
Refer to “Activation and Installation” section
on this user guide and run activation tests.
Check if the solar panel is blocked
from the sunlight by houses, trees and
other obstacles.
Clear obstructions or change installation
location.
Check if there is any artificial light
source(s) shining on the solar panel
during the night.
Remove the artificial light source(s) of
interference or change the installation
location.
Examine status of each component
based on the repair guide.
Replace the damaged component(s).
2
A serious shortage
of working time
Check if the solar panel is blocked
from the sunlight by houses, trees and
other obstacles.
Clear obstructions or change installation
location.
Check if the surface of the solar panel
is dusty or covered.
Clean the surface of solar panels as
detailed above.
Examine if the battery pack is
damaged as per the repair guide
instructions.
Replace damaged battery.
3
Lighting does not
follow the normal
operating mode of
turning on and off
Check if the working mode setting
correct
Contact the dealer/supplier
4
Lights fail to turn
on properly when
humans approach
Check if the air temperature close to
human body temperature.
When the air temperature is close to human
temperature, motion detection may slow
down. It will return to normal after the air
temperature changes.
Check if the installation height is too
high.
It is out of motion detection range when
installation height exceeds 8m. It is
recommended to reduce the height or use
other operating modes.
Replace damaged motion sensor or
controllers.
www.leadsunglobal.com
Address: 1920 S. Archibald Ave.
Suite I, Ontario, CA 91761
Phone: [phone]
Fax: [phone]
Email: [email protected]
LEADSUN Australia PTY LTD LEADSUN Global Limited
LEADSUN INC.
Address: 42 Greens Road,
Dandenong South, Victoria 3175
Phone: [phone]
Fax: [phone]
Email: [email protected]
Address: No.1 Workshop, No.15, Pingbei
2nd Road, Nanping, Zhuhai City,
Guangdong Province, P.R. China,
China 519060.
Phone: [phone]
Fax: [phone]
Email: [e-mail]

Product maintenance
In order to assure that the solar panel receive the light efficiently, please use clear water
to clean the dirt mark on the surface of the panel regularly and prohibit the use of
chemical or abradant which includes chlorobenzene.
Only manufacturer, service agent or qualified personnel can replace the light source or
other circuit components of the lighting device. Without authorization, using the third
party component to replace is prohibited or it would cause serious damage to the
product. if the user disassembles the product without authorization, warranty becomes
void.
If you need to replace the components /accessories, please go to
www.leadsunglobal.com, or contact the local distributor.
The product is made of recyclable high-performance materials and components, please
don't dispose with other household garbage.
Please understand the local rules about the separate collection of electronics and
electrical products, dispose the waste products in the right way that avoids potential
negative effects to environment and human health.
Product recycling
Cautions
Transportation and storage
Working condition
Attention to the electric shock
To avoid electric shock, street light with AC adapter must be installed by qualified
electricians and constructors.
The street light with AC adapter is customized product, please confirm the street light
AC adapter is in accord with the local electric supply standard.
Make sure the electric supply power is cut off during the installation and implement
waterproof and insulation protection.
Please read the below cautions carefully before using the AE series solar street
light to avoid physical injury and product failure caused by improper use.
Product protection grade IP65
High tensile structure design can withstand level 3 typhoon (58m/s), beyond this level
damage might be caused to the street light.
Working temperature range from -20℃ to 60℃ ( charging temperature is limited within
0℃ to 60℃). The product with heating function can work from -40℃ to 60℃.
The product contains high capacity lithium-ion battery components, please follow the
aviation transport law. Please regard the product as the flammable and explosive
hazardous substance and store it separately from other goods.
The solar panel of the product is fragile, tier limitation is two layers. No stacking out of
limits and No press with heavy stuff.
Store the product under the temperature from 0℃ to 45℃
It should be charged every six months if the product is stored for long time. please use
the special charger to charge the product (the charger needs additional purchase) in
order to avoid battery or device damage.
12
All internal parts of AE3C are waterproof and rated IP65. Holes and slits on the
luminaires are designed for heat dissipation and drainage. Metal parts are made of
anodized rustproof aluminum, which can withstand high temperatures and humid
weather. However, it is recommended that you avoid installing the street light in areas
with heavy acid mist or salt influx. The strong structural design can withstand wind
speeds upto 180km/hr.

No.
Name
Brief Function
1
Solar module
To absorb solar energy and convert into electricity
2
PIR sensor
Motion detection
3
LED module
Illumination
4
Heat-sink hole
Heat dissipation
5
Type B USB connector female
For program input
6
Switch button
ON/OFF or Turn ON/OFF the light
7
Type A USB connector female
For battery charging via 14VDC 1.5A power supply
8
Bird spike
Prevents solar panel contamination from bird droppings
9
Mounting bracket
Fix AE3C unit
10
Street light bracket
Use to fasten the LED street light
11
Reset button
Restart the gateway
12
SIM card slot
Insert 2G/4G card
13
Gateway indicator light
Red: gateway working, indicator keeps on;
Green: 4G working, indicator keeps on;
Blue: 4G data transfers, lamp flashing;
Yellow: 4G connect success, indicator keeps on.
14
LORA Antenna
Network group communication
Part Description
34
The Part list is the whole product series functions instruction. The user can look up the corresponding
function according to the purchased product.
1
2
3
4
8
9
5
6
7
11
12
14
14
10
Standard
Gateway type
LORA terminal
14
13

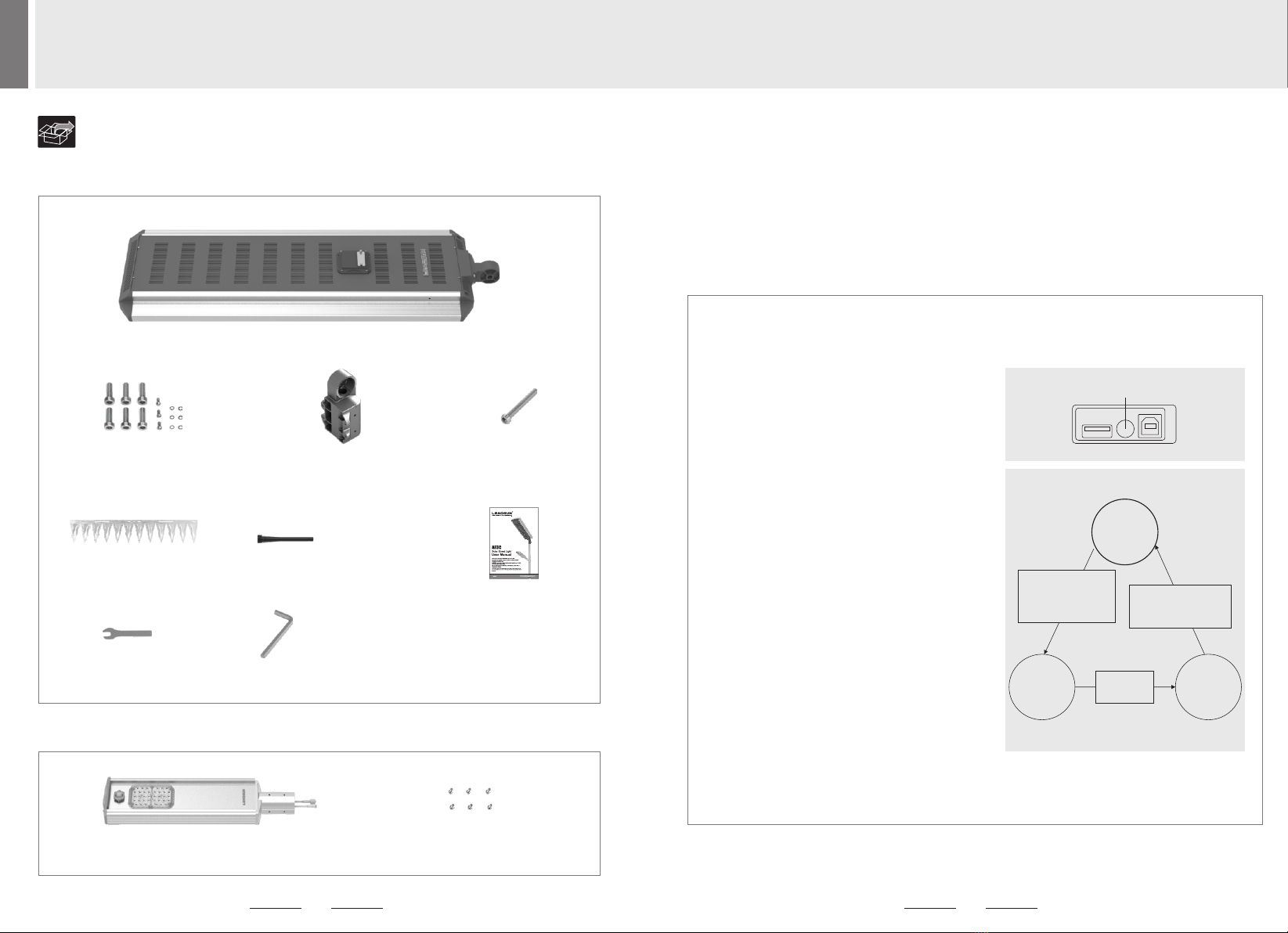

Check if you have all the components listed below before installation, the components and
quantity of each set as follows:
Solar Engine：
Lighting：
LED street light
Bird spike
M8×16 Screw 6pcs
Part List
Solar Engine (Take gateway for example)
Daytime: While connect the LED street light to solar engine, it lights 20 seconds and then Off. It
means the AE3C has been activated automatically.
At Night : Press the button for 5s , the light is on. Short press the button, the light will be switched
between ON and OFF.
Tips:
ON mode: the system will work normally,
charging in the daytime and discharging at
night.
Transport (idle) mode: the system will power
off in an hour and goes to the OFF mode, for
transport packing or maintenance status.
OFF mode: The system will not work, charge
or discharge.
*
Turn ON the light:
a. Connect the street light to solar engine in
daytime, it will be activated automatically
(lights 20s and then OFF).
b. Long press 5s to turn on the light when it
is OFF.
Turn OFF the light:
Press the button 5s when it is On, the light
comes into TRANSPORT MODE. Second
press the button 5s or no operation in one
hour, the light turns off.
OFF
Mode
ON
Mode
Button Switch
Transport
Mode
Product Activation
6
5
Press 5 seconds
or no operationfor
more than an hour
Long press
5 seconds
Mounting bracket
M12×85 screw
bolt 1pc
M8×16 screw 6pcs
M4×8 screw 3pcs
M4 lock washer 3pcs
M4 flat washer 3pcs
Open spanner
User manual
Special
spanner (Optional)
*
* **
At daytime
automatically ON or
press till the light is
ON.
LORA Antenna (Gateway Type 2pcs)

Before Installation
8
1. Installation Direction of Solar Panel
Please choose the appropriate model depending on the sunlight intensity of the place and
required working time.
If the installation site is on the northern hemisphere, the solar panel should face to the south as
far as possible and if it is on the southern hemisphere, the panel should face to the north as much
as possible. (See 1)Picture
Make sure the sunlight is not blocked by any construction or trees during the installation or it will
affect the charging and discharging efficiency of the solar power system and the operation of the
street light. (See 2)Picture
Picture 1
Equator
Picture 2
1
2
It is suggested to choose the cantilever light pole for the LED street light and the cantilever should
be no wider than 60mm diameter. The diameter of the light pole top which is used to install the
solar power supply system should no more than 75mm.
Cantilever Top of the light pole
75mm
60mm
7
3.How to place the Gateway ?
Road installation
Build wireless solar street light along the road, lamps have to divided into one or several
groups. Each group contains a Gateway and max 120 slave units. The Gateway should
be on the middle of each group.
Village/Factory/Park installation:
For installation at village/factory/park location, the Gateway is recommended placement
on the center of the area.
Gateway street light
120 street lights 120 street lights
Each Gateway covers a range from 800m to 3000m, depends if there are barriers to block signal
transmission. One Gateway can control 120 slave units.
Gateway street light
Gateway street light
2. How to choose the right lamp pole?
2
1

Product Installation
10
9
3. Mount the AE3C unit
Picture 6
4. Mount the LED street light
1
Thread two pieces of waterproof cables
through the light pole and then out from
Ф25 the pole.hole on
Connect all cables together and lock the
terminals. Mount the AE3C unit on the
pole by 6pcs M8×16 screws. Make sure
one of screws is screwed into the Ф10
hole. (See Picture 6)
1
2
Thread two pieces of LED light waterproof cables through the cantilever. Mount the LED street light
on the pole by 6pcs M8×16 screws. The maximum torque for those M8 bolts is 14Nm. Do not
surpass this torque specification.(See Picture 7)
Use 2 sets M4×8 s, lock washers and flat washers to fix the bird spike along the rim of the screw
top of the light. (See Picture 3)
Picture 3
1. Install the bird spike
2 Drill holes on the pole and . Install the bracket
88
Ø10
Ø75±1
Ø25
610
Picture 4
Drill holes on the pole. Firstly, determine
and mark the and LED street light AE3C split
position according to the optimum sun
radiation and road condition. Then drill a
Ф10mm hole at the position which is 88mm
away from the top of pole for fixing bracket.
Drill the other Ф25 hole on the pole where
the light is to be installed for threading
waterproof cables. (See Picture 4)
Joint the bracket to the AE3C unit. Thread
cables from the hole of bracket and set a
proper angle that solar panel can obtain
maximum energy from the sun (each scale
on the bracket is 6 degree). Fix the bracket
by fastening a M12 85 bolt. × (See Picture 5) Picture 5
Picture 7

Product Installation
1. Please confirm if the 2G/4G module in the gateway supports the data network covered by the
local carrier before installation.
2. When using the inbuilt 2G/4G module gateway, you need to insert a SIM card which has the
data service. The data service will cause the service fee, and you need to pay the relevant
service fee to the local carrier.
Cautions:
5. Wireless system installation (Suitable for wireless type)
12
11
LORA Terminal antenna installation
Gateway antenna intallation
Insert SIM Card
Insert the 2G/4G SIM card into the slot according to the picture. Press the button next to it to
restart the gateway and then cover with the waterproof plug.
Connect the antenna to the corresponding positions according to the picture below.
Antenna installation
1
2
Ensure the SIM card cutting edge is face down and the
magnetic stripe is away from the indicator light.
Cautions:
2Connect the LED light with corresponding cables. Mount the LED street light on the pole. (See
Picture 8)
Picture 8
At factory setting, AE3C units turn on at dusk and off at dawn automatically (light photosensitivity is
around 30lx). In the evening, AE3C units operate at dim mode when no one is not around, and
increase light output immediately when motion is detected, to conserve battery power. It ensures that
the light can work normally through days with limited sunlight.
Dim mode
(30% Brightness)
Full Brightness
(100% brightness)
Working Mode Description
LORA Antenna
Silicone Sleeve
Dust Cover
LORA Antenna

Software operation instruction
14
13
With LEADSUN EDGE, you can do the following operation:
1. Register to become a member
2. lighting control
3. History data query
4. Working mode configuration
5. Real-time view.
For detail instructions, please see the "APP User Guide" under "More Functions" in the
software.
Please use LEDSUN EDGE APP to remotely control and configure the street light, visit
www.leadsunglobal.com and follow the steps to Download the LEADSUN EDGE.
A. For APPLE users please go to the APP STORE and install the APP 'LEADSUN
EDGE' .
B. Android cellphone please visit www.leadsunglobal.com or go to the software
platforms like Google Play to download and install 'LEADSUN EDGE'.
C. PC App please visit http://47.52.88.104:8083/Home/Login
Product Installation
Transportation and Storage
· This product contains lithium batteries. Please follow air transport regulations when shipping. It
should be regarded as potentially flammable and explosive, and be isolated from other goods
when stored, so as to avoid any damage.
· The solar panels of this product should be considered as fragile. There should never be more
than 4 layers of boxes when stacked. To avoid damage to the panels, make sure no heavy
pressure is applied to the boxes.
· Please store the product in temperature between 0℃ to 45℃.
· If stored for a long period, the product should be recharged every 6 months. Please only use the
special charger (purchased from manufacturer) to avoid damage to the battery or device.
· When repackaging the product after inspection or charging, set the light into sleep mode by
holding the On/Off button for 5 sec. The light will flash three times, to signal that it has properly
entered sleep mode. You may now repackage the product into its box. To exit sleep mode, either
press the On/Off button one more time, or wait an hour for the street light to reboot automatically
when exposed to sunlight.
Clean
To clean, apply mild detergent with a damp cloth and gently wipe the surface of the solar panel.
Replacement of Parts / Spare Parts:
Please contact LEADSUN or your local distributor/dealer.
Maintenance and Products Care
