LeakSmart Snap Valve Controller System User manual

Snap Valve Controller System
User Manual

2 3
Installation Overview:
System Components...........................................................................................................4
Setup Requirements............................................................................................................6
Important Installation Information ...............................................................................6
Section I:
LeakSmart App Setup........................................................................................................ 7
Section II:
LeakSmart Hub 3.0 Installation......................................................................................9
Connect the Hub to Wi-Fi Network............................................................................ 11
LeakSmart Hub LED Guide ............................................................................................ 14
Performing a Factory Reset........................................................................................... 15
Section III:
Snap Valve Controller Setup......................................................................................... 16
Ball Valve Type Installation ............................................................................................ 18
Table of Contents Table of Contents
Leveling & Fine Adjustment............................................................................................22
Calibration ............................................................................................................................ 25
Battery Installation.............................................................................................................26
Gate Valve Type Installation.........................................................................................27
Pair the Snap Valve Controller to the Hub 3.0 ....................................................30
Test Local and Remote Control of the Snap Valve Controller.....................32
Section IV:
LeakSmart Sensor Setup and Operation.............................................................. 34
Name and Test Sensors.................................................................................................. 38
Alert Setup ............................................................................................................................ 42
Adding Alert Contacts .................................................................................................... 42
Test Leak Simulation......................................................................................................... 43
Clearing Test Leaks........................................................................................................... 43
Encuentra nuestro manual en español en LeakSmart.com/support/manuals/
Register your system at LeakSmart.com/support/registration/
Troubleshooting: LeakSmart.com/frequently-asked-questions/
LeakSmart is compatible with other smart home products. Check out LeakSmart.com/integrations

4 5

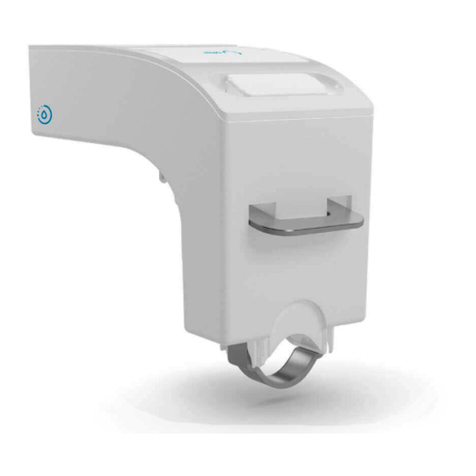

Snap Valve Controller
Pre-Assembled Ball Valve U-Bracket
Standard Ball Valve Adapter
M10 Ball Valve Adapter
Gate Valve Adapter
Gate Valve U-Bracket
Hub 3.0 with Pre-Installed Rechargeable Lithium Battery*
Sensors (3)*
AA Batteries (4)
AAA Batteries (9)*
Valve Control Head AC Power Adapter
Hub AC Power Adapter*
Setup Manual
*Hub 3.0 and Sensors may be sold separately
1
1a
System Components:
1
1a
3
5
7
2
4
6
8
9
10
11
12
2
4
3
5
8 9
12
6
7
10 11

6 7
CAUTION:
• The LeakSmart Snap Valve Controller is designed to be installed
on an existing main water shut o valve.
• To avoid injury, never place your ngers near the snap valve
controller while it is operating.
• Do not install on re suppression systems/re sprinkler water lines.
• For indoor use only.
To set up the LeakSmart System, you need:
• Wi-Fi
• An iOS or Android phone or tablet
• A free LeakSmart account
Setup Requirements
Important Installation Information
Note: LeakSmart devices include Wi-Fi and a local RF
network called Zigbee. If power or Wi-Fi goes down,
the devices continue to communicate through Zigbee
to protect your home.
Password Requirements:
• Is between 8-19 characters
• Has at least one number or special character
• Has at least one capital letter and one lower case letter
Download the LeakSmart app from the Apple App Store or
Google Play on your smart phone or tablet.
Open the app and tap create an account.
Follow the instructions in the app to create your account.
Review your information and agree to the terms of use.
After you create the account, check your email to activate and verify
the account.
LeakSmart App Setup
2
3
4
1

8 9
Activate Account
Go to your email.
Open the email from [e-mail].
Tap the activate your account link in the email.
Look for the on-screen conrmation.
Log in to your account in the LeakSmart app.
LeakSmart App Setup
2
4
5
1
3
Place the hub in a location central to the other LeakSmart
devices.
Plug the hub 3.0 in, using the AC power adapter cord (6’ reach).
• The hub 3.0 contains a rechargeable lithium battery,
intended to be a backup in the event of a power outage.
• The hub 3.0 cannot be registered/activated on battery
power; it must be plugged in.
LeakSmart Hub 3.0 Installation
Central location:
place hub in a
location central to
other devices.
2
1
1
Note: Your email will be your LeakSmart account name.
1

10 11
Log into the LeakSmart app.
Tap Add Hub.
Back out of - but do not close - the LeakSmart app.
Open the phone or tablet settings.
Open Wi-Fi settings.
• The LeakSmart Hub should appear in your list of available
networks as LeakSmart-XXXX.
• The four-digit code is the last four digits of the MAC address
of LeakSmart Hub. (You can nd this number on the bottom
of the Hub).
Conrm that you have successfully connected your phone or
tablet to the LeakSmart-XXXX network.
Return to the LeakSmart app.
LeakSmart Hub 3.0 Installation
Slide the
on/o
button to
the ON
position.
Plug in AC adapter cord.
Slide the on/o button on the back of hub to the ON position.
• A solid red light on top of the hub indicates that it’s on.
3
3a
Connect the LeakSmart Hub 3.0 to Wi-Fi Network
1
2
3
4
5
Note: If the LeakSmart Hub network does not
appear, perform a factory reset. (page 14)
7
6
Solid red light:
hub is on.
2
3
3a

12 13
Tap the name of the your Wi-Fi network.
(Network must be 2.4GHz in order to work).
Type your Wi-Fi password in the password eld.
Tap Connect.
• A solid green light on top of the hub indicates the hub is
updating software. The light will turn blue when the update
is complete.
• A solid blue light indicates that the hub is connected to your
Wi-Fi network.
Connect the LeakSmart Hub 3.0 to Wi-Fi Network
8
9
10
Note: After connecting to Wi-Fi, the hub will register
itself on the cloud and should appear in the app.
Connect the LeakSmart Hub 3.0 to Wi-Fi Network
Solid green light:
hub software update
is in progress. Light
will turn blue when
update is complete.
Solid blue light: hub
is connected to the
home Wi-Fi network.
10

14 15
Use a pin (or something with a thin tip) to press and hold the
factory reset button on the back of the LeakSmart hub for
fteen-seconds.
• A purple light on top of the hub indicates that the hub is
ready for factory reset.
Turn the hub o, then back on.
The LeakSmart hub will then show up on the Wi-Fi network.
Tap LeakSmart-XXXX to join the network.
Performing a Factory Reset (If Needed)LeakSmart Hub LED Guide
2
3
4
1
1a
Press and hold
the reset button
to perform a
factory reset.
Turn the hub
o/on.
Note: Performing a factory reset will clear all devices
from your system. You will need to add previously
paired valve controllers, sensors, or range extenders
to the hub after the reset.
Purple light:
factory reset is
complete.
1a
2
1
LED Light Indicator on Hub What It Means
Solid Blue Light Hub is connected
Flashing Green Light Hub is in pairing mode
Solid Green Light Hub is updating software
Solid Purple Light Factory reset is complete
Flashing Red Light Hub is connected to Wi-Fi, but not the
cloud
Solid Red Light Hub is disconnected from Wi-Fi

16 17
Determine valve type.
Locate the main water supply valve in your home.
Determine whether the valve is a 1/4 turn ball valve or
a multi-turn gate valve using the photos below.
Snap Valve Controller Setup
2
1
Note: If your shut-o valve has a round body, it is
considered a globe valve and should not be used
with the Snap Valve Controller due to a risk of
damaging the rubber seals.
Ball Valve Gate Valve
Ensure your water supply valve functions normally.
• Manually turn the valve to its closed position.
• Turn on the closest faucet and make sure the ow of the
water completely stops.
• Turn o faucet.
• Manually turn the valve to its open position.
Snap Valve Controller Setup
3
a
b
c
d
Note: If the valve is dicult to turn, requires a tool to
operate, or is not completely shutting o the ow of
water, we strongly recommend calling a plumber to
have the valve replaced.

18 19
Locate the standard ball valve adapter.
Place the standard ball valve adapter on the nut attached to
the main water supply valve.
Ensure the adapter fully covers the nut as shown.
If the standard ball valve adapter does not fully cover the nut,
locate the M10 adapter and repeat steps 1-3 to ensure the
correct t.
Ball Valve Type Installation (For Gate Valve instructions refer to page 27)
1
2
3
4
Ball valve nut is NOT fully covered:
use M10 adapter included
separately.
Ball valve nut IS fully covered:
continue to use standard
adapter.
4
3
Determine the handle size on the main water supply valve and
t the adapter to the corresponding side.
Make a mark with a pencil or marker on the correct side of the
adapter so you can reference it later in the assembly process.
Push the adapter onto the Snap Valve drive shaft:
• Push the spring clip on the adapter while sliding the
adapter on to the shaft.
• Ensure the spring clip engages the notch in the shaft by
pushing up and down on the adapter with slight pressure.
Ball Valve Type Installation
5
6
7
Adapter handle sizes
larger
handle
smaller
handle
5
7a
7b
Spring clip:
push in spring clip while
slipping adapter on to shaft.
7a

20 21
Connect the jack of the AC adapter to the bottom of the Snap
Valve Controller. Then, plug the AC adapter into an outlet.
Align the adapter in preparation for valve installation.
• Press and release the OPEN (counterclockwise) or CLOSE
(clockwise) button on the top of the Snap Valve Controller
to rotate the ball valve adapter.
• Orient the adapter so the side marked is facing the battery
chamber on the Snap Valve Controller as pictured.
Ball Valve Type Installation
8
9
9a
9B
Battery chamber
Mark on adapter:
faces the battery
chamber.
9a
Attach the Snap Valve Controller to the main water supply
valve.
• Lift up the release lever and remove U-bracket from Snap
Valve Controller.
• Place the Snap Valve Controller onto the main water supply
valve.
• Apply slight pressure to the Snap Valve Controller and
ensure the adapter fully covers the nut (as done in step 3).
Ball Valve Type Installation
Release
lever:
lift up
U-bracket:
pull down
10
10a
10c
10b
Ball valve nut IS fully covered
10a 10c

22 23
• Slide U-bracket up to secure the Snap Valve Controller to
main water valve and pipe.
• Do not push the U-bracket all the way in so that ne
adjustment can be made.
U-bracket:
slide up, but
leave room for
ne adjustment
(next page).
Ball Valve Type Installation
10d
10e
10d
Pull up T-handle on Snap Valve Controller.
• Rotate T-handle clockwise until the bottom of the Snap
Valve Controller appears to be level with the pipe.
Once level, push the U-bracket the rest of the way in.
Pull up and rotate T-handle until Snap Valve Controller is rmly
clamped to the main water line pipe.
Push T-handle back down when nished.
Do not over-tighten.
Leveling & Fine Adjustment
T-handle:
pull up
1
2
3
4
5
1a
1

24 25
Leveling & Fine Adjustment
T-handle:
rotate until level.
Level line:
indicates when at bottom of
Snap Valve Controller is level
with pipe.
Level line
1a
Press and hold both the OPEN and CLOSE buttons on top of
the Snap Valve Controller for 10 seconds. Then, let go.
LEDs on the OPEN and CLOSE buttons will illuminate for a
few seconds, indicating the calibration sequence has been
initiated.
Allow the valve to complete its calibration cycle - expect
approximately 3-9 full valve movements, consisting of
open/close cycles.
Look at the OPEN and CLOSE buttons to verify success.
• SUCCESS: OPEN and CLOSE LEDs will turn o and stay o.
• FAILED: OPEN LED stays green. If calibration fails, return
to the “Leveling & Fine Adjustment” section (page 22-23)
to ensure the Snap Valve Controller has been properly
installed and try the calibration process again.
1
2
3
4
Calibration
4a
4b
Note: If the Snap Valve Controller shifts o the pipe’s axis
during calibration, quickly remove all power to stop the
motion and remove the Snap Valve Controller by pushing the
release lever and pulling the U-bracket out. Revisit Adapter
Installation and Leveling & Fine Adjustment instructions.

26 27
Remove battery compartment door and install (4) AA batteries.
Replace battery compartment door.
Battery Installation
1
2
Note: Batteries are installed to keep the Snap Valve
Controller running if power goes down; they are not
intended to support the controller at all times. Keep
the AC power cord connected and plugged into an
outlet at all times to protect your home.
Remove gate valve handle with wrench.
• Hold gate valve handle while turning the nut counterclockwise
using the wrench.
• Lift o the gate valve handle to expose the gate valve stem.
Examine gate valve stem to ensure it has a square shape.
The gate valve adapter will not work with a at or round stem.
1
Gate Valve Type Installation (For Ball Valve instructions refer to page 17)
1b
1a
Remove nut with wrench.
Remove ball valve handle.
Ensure stem is square.
1c
1a
1b
1c
Note: The gate valve adapter will only work on square
gate valve stems.

28 29
• Place the Snap Valve Controller onto the main water supply
valve.
• Slide U-bracket up to secure the Snap Valve Controller to
main water valve and pipe.
• Do not push the U-bracket all the way so ne adjustment
can be made.
Locate the Gate Valve Adapter Kit.
Push the adapter onto the Snap Valve drive shaft.
• Push the spring clip on the adapter while sliding the
adapter on to the shaft.
• Ensure the spring clip engages the notch in the shaft by
pushing up and down on the adapter with slight pressure.
Attach the Snap Valve Controller to the main water supply
valve.
• Lift up the release lever and remove U-bracket from Snap
Valve Controller. Set this U-bracket aside and use the
longer U-bracket that is included in the Gate Valve Adapter
Kit.
Gate Valve Type Installation Gate Valve Type Installation
Proceed to instructions on Page 22 to complete installation.
4b
4a
4c
4d
Release
lever:
lift up
U-bracket:
pull down
U-bracket:
slide up
4a
4c
4
3b
3
2
3a
Spring clip:
push in spring clip while
slipping adapter on to shaft.
3a

30 31
Open and login to LeakSmart app.
Tap Add Device.
Tap Next in the LeakSmart app to initialize a three-minute
pairing mode.
• A ashing green light on top of the hub indicates that it’s in
pairing mode.
• A solid green light indicates that the hub is updating
software. The light will turn blue when the update is
complete.
• A solid blue light on top of the hub indicates that the three-
minute pairing mode has ended.
A ashing blue light on the snap controller head indicates that
it’s ready to be paired.
Tap Next in the LeakSmart app.
Press and release the center SYNC button to pair it to the hub.
When the Snap Valve Controller rapidly ashes blue, or all the
lights turn o, you’ve successfully paired it to the hub.
• Verify that the valve controller appears in the app before
moving on.
Pair the Snap Valve Controller to the Hub 3.0
1
2
3
4
5
6
7
Note: The valve controller may take up to one
minute to pair.
OPEN
CLOSE
SYNC
Pair the Snap Valve Controller to the Hub 3.0
Flashing green light: pairing mode is active.
Solid blue light: pairing mode has ended.
Steady blue light:
ready to pair.
Rapid blue light:
pairing mode is
active.
No light:
successfully paired.
1
7

32 33
Test local control using the buttons on the Snap Valve Controller.
Press the OPEN button on the top of the Snap Valve Controller.
• A steady green light indicates the valve is open.
Press the CLOSE button on the top of the Snap Valve Controller.
• A steady red light indicates the valve is closed.
Test remote control using the LeakSmart app.
On the home screen:
Tap the OPEN button.
Then tap the CLOSE button.
Test Local and Remote Control of the Snap Valve Controller
2
2a
4
1
1a
3
OPEN
CLOSE
SYNC
Test Local and Remote Control of the Snap Valve Controller
Green light: indicates
valve opening.
Red light: indicates
valve closing.
Press CLOSE
Press OPEN
1a
2
1
2a
Note: OPEN and CLOSE function from the app
will not operate until the Snap Valve Controller
has been successfully calibrated.

34 35
Take sensors, batteries and equipment to the location
your sensor will be placed.
We recommend placing the sensors near old pipes,
toilets, washing machines, water heaters, bathtubs,
crawl spaces, utility closets, or anywhere you want to
monitor water leaks.
Use the Phillips head screwdriver to remove the battery
compartment door from the LeakSmart Sensor.
Install the three provided AAA batteries, but
DO NOT REPLACE THE BATTERY DOOR.
• A chirp from the sensor indicates that the batteries
have been installed.
• A ashing blue light from the sensor indicates that
it’s ready to pair.
LeakSmart Sensor Setup and Operation
Note: To complete the setup, you will need a Phillips
head screwdriver, a damp cloth and a dry cloth.
1
2
3
4
LeakSmart Sensor Setup and Operation
Battery compartment: temporarily remove
door using Phillips head screwdriver.
AAA batteries: install three batteries after
temporarily removing battery door.
3
4

36 37
Open the LeakSmart app on your phone or tablet.
Tap Add Devices from the home screen.
Tap Next in the LeakSmart app until you see the pairing mode
screen showing device count.
To pair the sensor to the hub, press the black button inside the
battery compartment of the LeakSmart Sensor one time.
• When the pairing is successful, the light on top of the sensor
will blink slowly ve times, and you’ll hear three quick beeps.
In the LeakSmart app, watch for the total device count and the
sensor count to each increase by one.
Tap All My Devices are Paired.
With the sensor successfully paired, replace the battery
compartment door.
LeakSmart Sensor Setup and Operation
6
8a
7
8
9
10
11
Note: Pairing mode will last for three minutes. If
you don’t successfully pair the sensor(s) before the
three-minute pairing mode ends, you’ll have to
start over at step 4.
LeakSmart Sensor Setup and Operation
Black button: to pair the sensor to
the hub, press this button once.
Battery compartment: replace door
once sensor is successfully paired.
Sensor: ve slow ashes from the LED
light and three quick beeps indicate
that the pairing is successful.
8
8a
11
5

38 39
Newly paired sensors are displayed under Untested
Sensors with a indicating that the sensor needs to be
named and tested.
Tap on a sensor from the untested sensors list. The selected
sensor will beep to identify itself.
When you hear the sensor, tap Ok, I have the sensor in the
app.
In the app, name the sensor to identify its location, e.g.,
master bath toilet (the sensor name can have a maximum
of 20 characters).
Tap Add Location to initiate test mode.
Press and hold the damp cloth to the gold pins on the
back of the sensor to trigger a leak (it will beep).
Keeping the damp cloth on the gold pins, tap My Sensor
is Beeping in the app. Hold damp cloth until it displays
Success.
Name and Test Sensors
1
2
3
4
5
6
7
Name and Test Sensors
Note: If “success” does not display, refer to the website
for additional troubleshooting tips.
Gold pins: hold damp cloth on these to trigger
a leak until “success” is displayed. Once
conrmed, remove damp cloth and dry pins.
76
