Lectron EVC27 User manual

USER MANUAL
48A AC Charging Station
(4G)

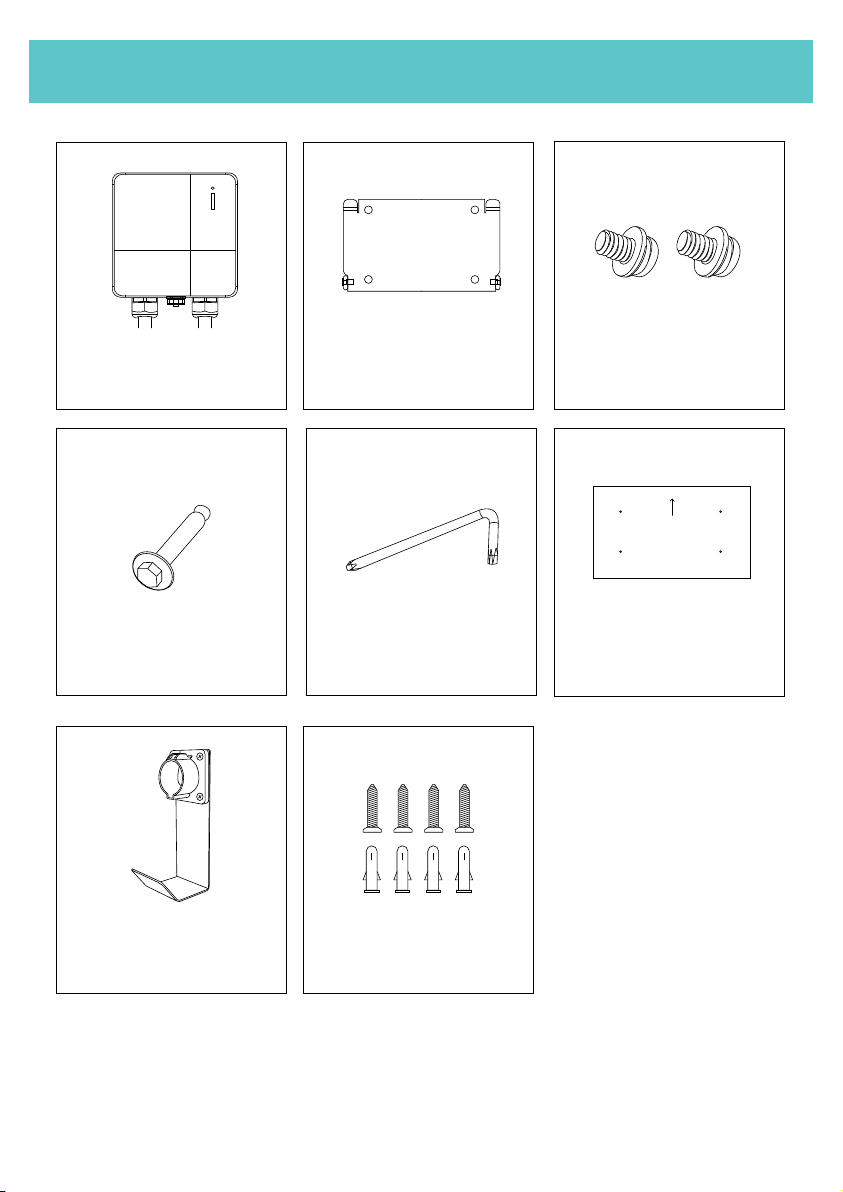

In the box
Page 1
AC charging station Wall-mounted
bracket
2 x M5 anti-theft
round head screws
4 x M6 hexagonal
expansion screws
EV cable
organizer holster
Set screws +
anchors (holster)
Allen wrench Corrugated
mounting template

Warnings
Page 2
• To avoid fire, injury, or death, carefully read and follow the instructions
during installation, operation, and maintenance.
- DO NOT put your fingers into the electric vehicle connector.
- DO NOT use this product if the flexible power cord or EV cable is
frayed, has broken insulation, or displays any other signs of damage.
- DO NOT use this product if the enclosure or the EV connector is
broken, cracked, open, or shows any other indication of damage.
- DO NOT remove the cover or attempt to open the enclosure
resulting in the risk of electric shock.
• This device should be supervised when used around children.
• This device must be grounded.
• Do not use this device with an extension cord to avoid the risk of fire
or electric shock.
• The suitability of the use of flexible cord in accordance with CE
code, part I, rule 4-012, is to be determined by the local
inspection authority.
• To reduce the risk of fire, connect only to a circuit provided branch
circuit over-current protection in accordance with the CSA C22.1–15
Canadian Electrical Code, Part 1 (Canada) or NOM-001-SEDE
Electrical installations (utility) (Mexico) or ANSI / NFPA 70 National
Electrical Code (USA).
Circuit breaker options table
Output amperage (A) 16 A 32 A 40 A 48 A
20 A 40 A 50 A 60 ACircuit breaker options (B)

Page 3
Installation requirements
• Disconnect electrical power prior to installing the charging station.
• Be sure to preview the user manual and ensure local building and
electrical codes are reviewed before installing the AC charger.
• The AC charger should be installed by a qualified technician
according to the user manual and local safety regulations.
• Use appropriate protection when connecting to the main power
distribution cable.
• Type B, C or D breaker with the rating current for table should be
installed in the upstream AC distribution box.
• The device shall be mounted at height between 2 ft and 4 ft from
the ground.
• Please keep the charger in a clean area with low humidity. Not
recommended to be installed in coastal environments with high
humidity or high dust.
Daily maintenance
• Avoid moisture or water in the charger. If there is water or moisture
ingress in the charger, it is necessary to immediately power off to avoid
immediate mishap and notify the professionals to carry out maintenance
before the subsequent use.
• Please use the charger properly. Do not hit or press hard on the
enclosure. If it is damaged, please contact a professional technician.
• Avoid placing the charger near hot objects and at high-temperature
locations, and away from dangerous substances such as flammable
gases and corrosive materials.
• Do not put heavy objects on the charger to avoid any accident.

Page 4
Introduction to parts
CAUTION: Avoid placing the charger near hot objects and at
high-temperature locations and away from dangerous substances such as
flammable gases and corrosive materials.
Basic Interface
Signal check
indicator
LED light
indication
LAN cable
inlet
Rear notch
Charging cable
AC power
cable
Basic Dimensions
3.7 in
8.7 in

Page 5

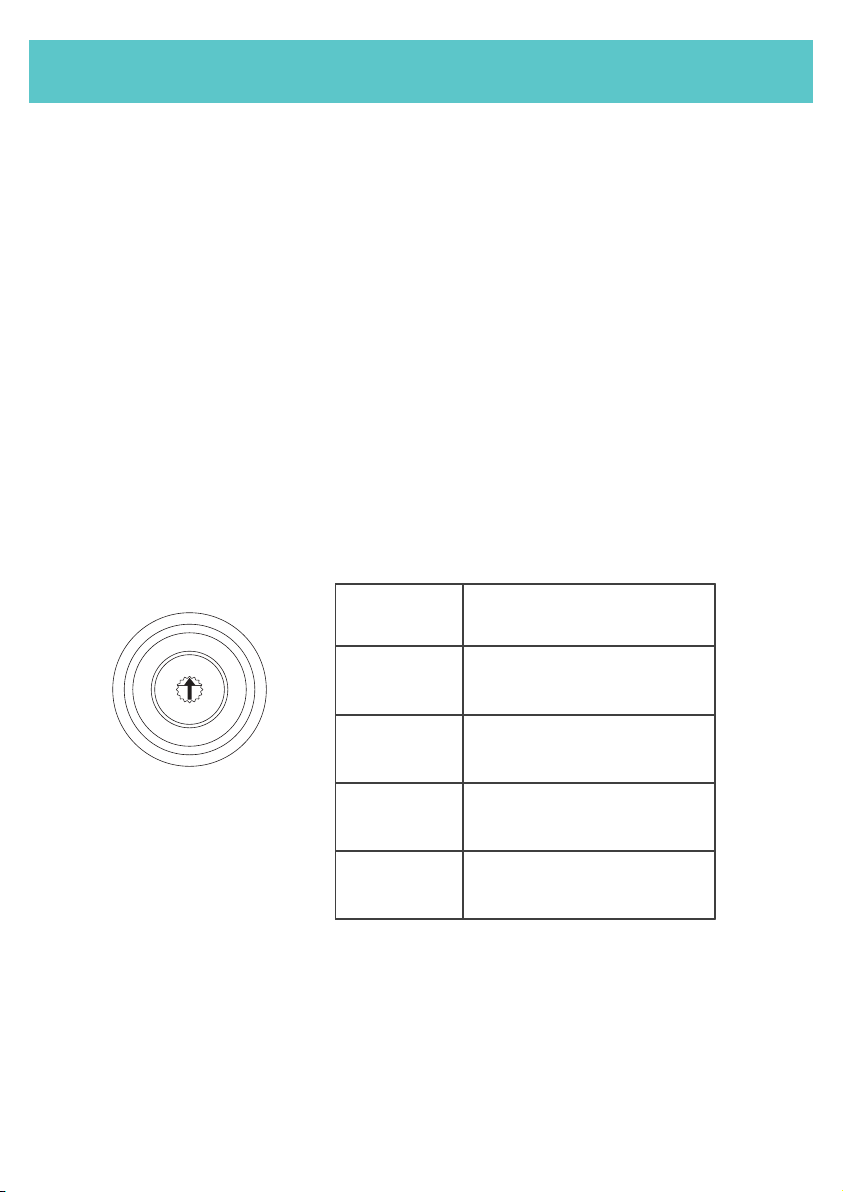

Dial position Current (A)
016 A
32 A
40 A
48A (Default, hardwire
installation needed）
1
2
3
Plan the mounting
WARNING: In areas with frequent thunderstorms, add surge
protection at the service panel for all circuits. Ensure all power and ground
connections, especially those at the breaker and bus bar, are clean and
tight.
CAUTION: Not recommended to be installed in coastal environments with
high humidity or high dust
1. By default, the AC charger has been set to 3 (48A). To adjust the amps,
unscrew and remove the plastic cover from the back of the AC charger,
and turn the dial on the inside to your preferred setting. Note: 48A
requires hardwired installation.
0
1
2
3

Page 6

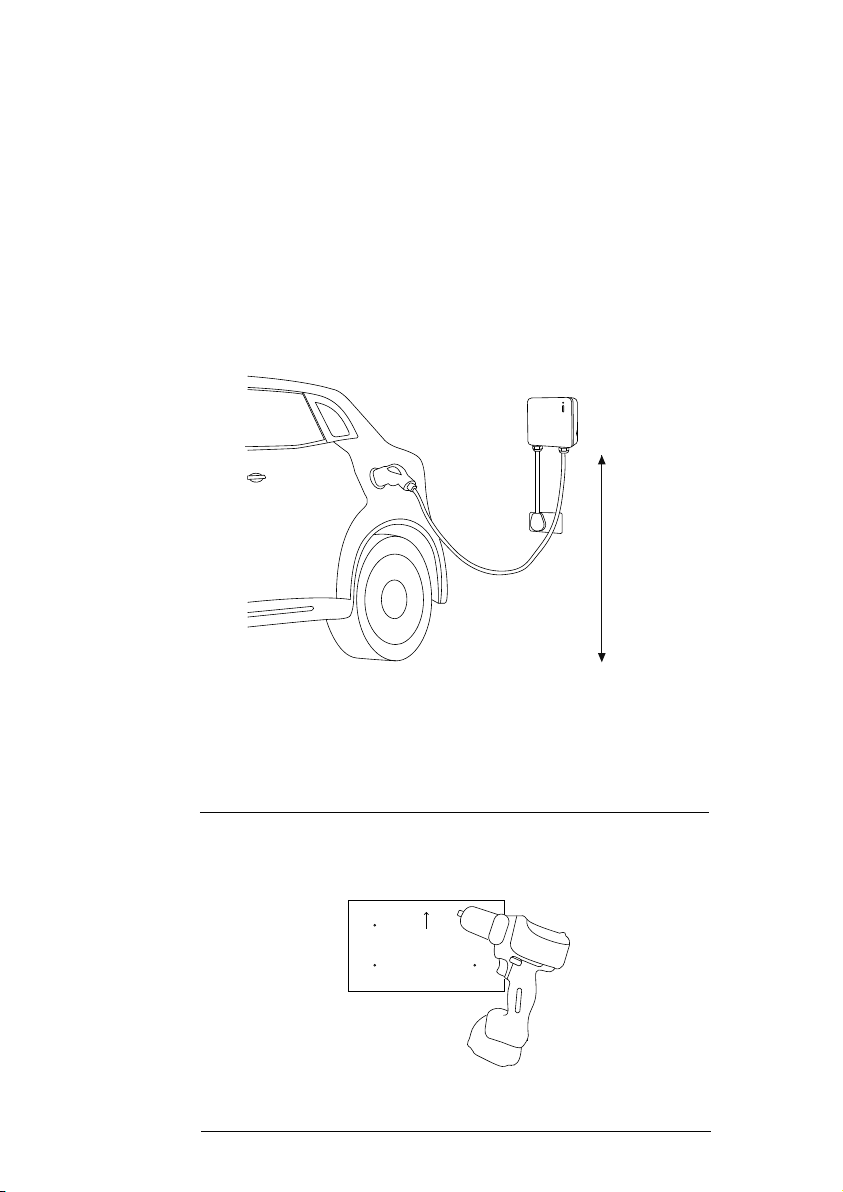

2. Select the appropriate mounting location with electrical capacity:
1. Ensure the owner has chosen a mounting location allowing the
charging cable to reach the car’s charging port while providing slack.
2. The device must be anchored into mounting such as 2 x 6 in stud or a
solid wall.
3. The device shall be mounted at height between 2 feet (600 mm) and
4 feet (1200 mm) from the ground.
3. Drill 4 screw holes with a diameter of 0.35 in and a depth of 2.05 in by
using mounting templates. Please drill screw holes in the direction of
the template arrow.
2-4 ft

Page 7
Mount the charging station
4. Fix the cable organizer holster to the wall, approximately 8 inches from
the far right end of the punched hole.
5. Use 1 set (4 pcs in total) of hexagonal expansion screws to secure the
wall-mounted bracket on the wall. Then level the brackets.

Page 8

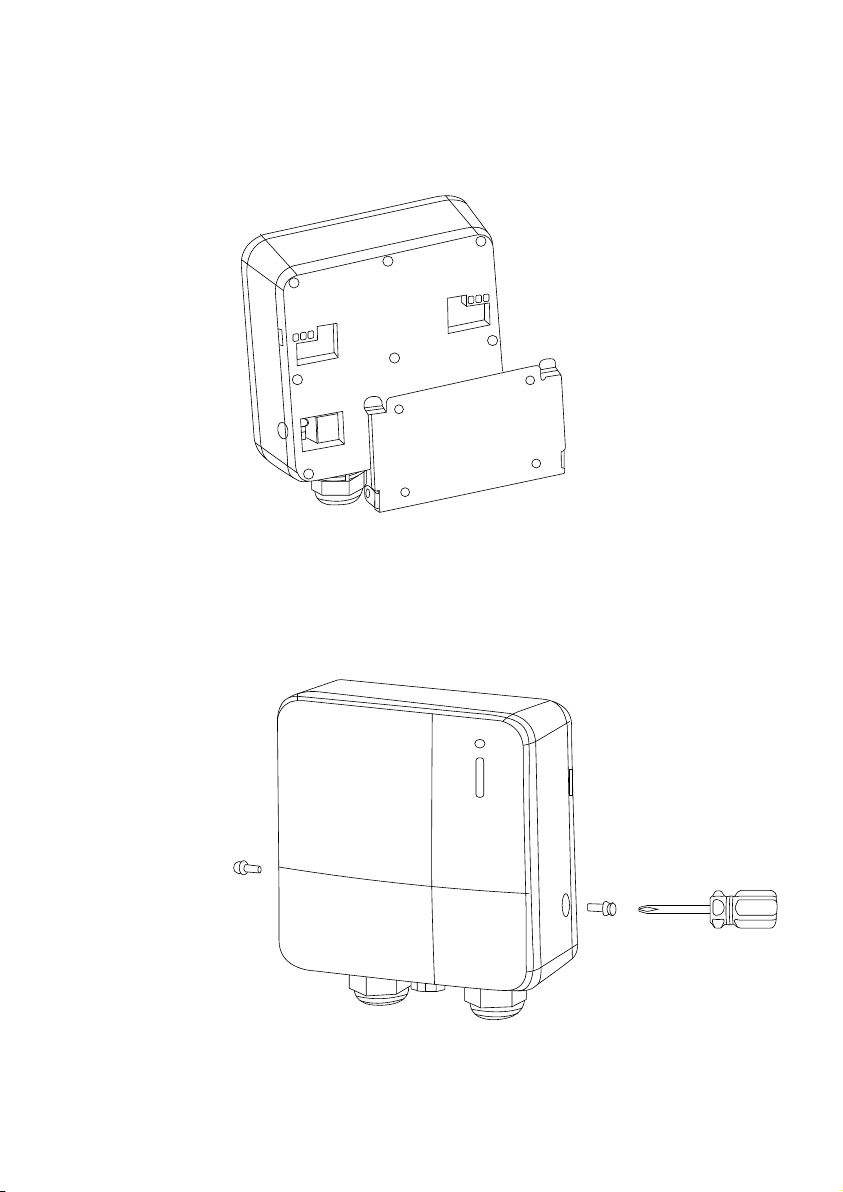

6. Attach the AC charging station to the mounting plate.
7. Insert the short screws at the sides of the AC charging station.

Page 9
Wiring the circuits
WARNING: This device must be grounded. Disconnect electrical power
before installing the charging station.
Improper connection of the equipment-grounding conductor would result
in a risk of electric shock. Check with a qualified electrician or serviceman if
you are not sure whether the product is properly grounded. Do not modify
the plug provided with the product – if it doesn’t fit the outlet, have a
proper outlet installed by a qualified electrician.
CAUTION: Use appropriate protection when connecting to the main power
distribution cable.

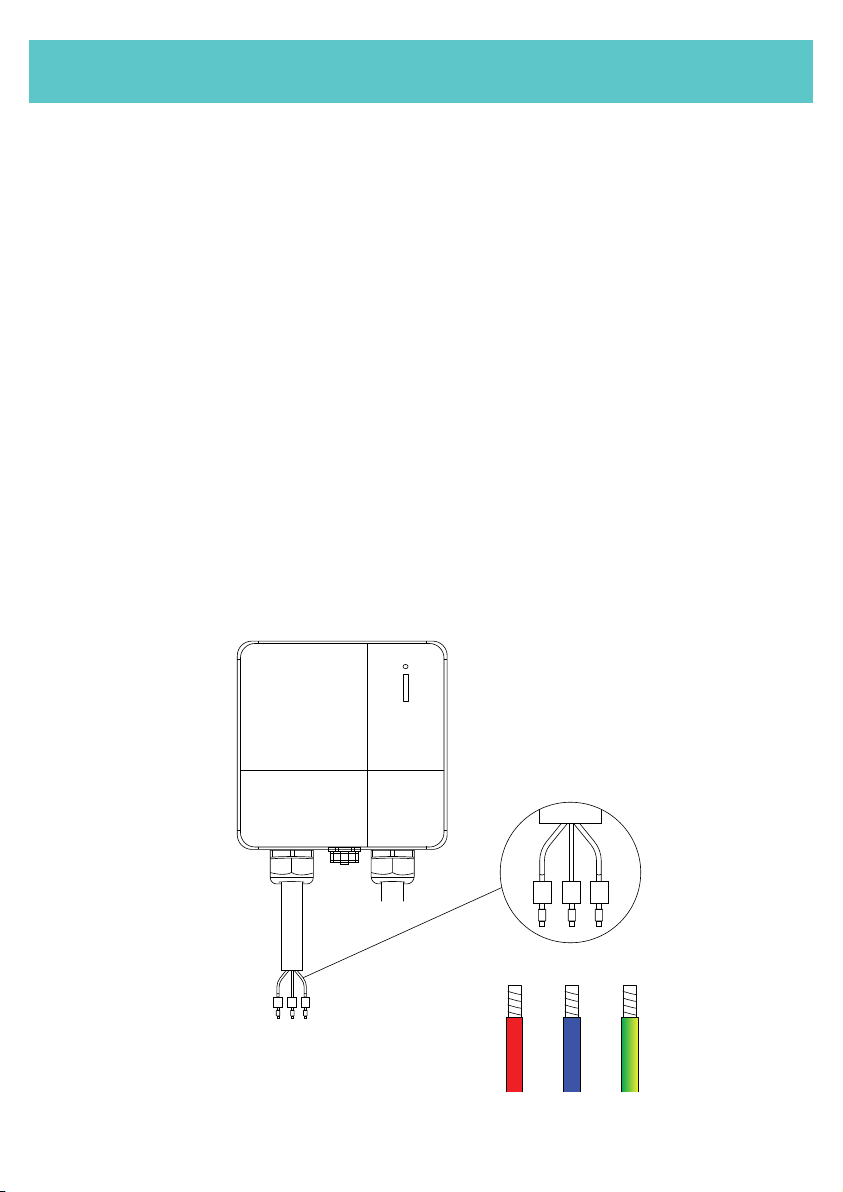

8. For safe use of electricity, please set circuit breaker protection in the
input part of the EV Charger. The wiring is not complicated; you just
need to follow the instructions below: Connect the L1 lead to the grid
L1, connect the L2 lead to the grid L2, connect the PE lead to
the grid PE.
L1 L2 PE
L1 L2 PE

Page 10
Operating your device
WARNING: This device should be supervised when used around children.
CAUTION: Please use the charger properly. Do not hit or press hard on the
enclosure. If the case is damaged, please contact a professional technician.
Do not put heavy objects on the charger to avoid accidents.

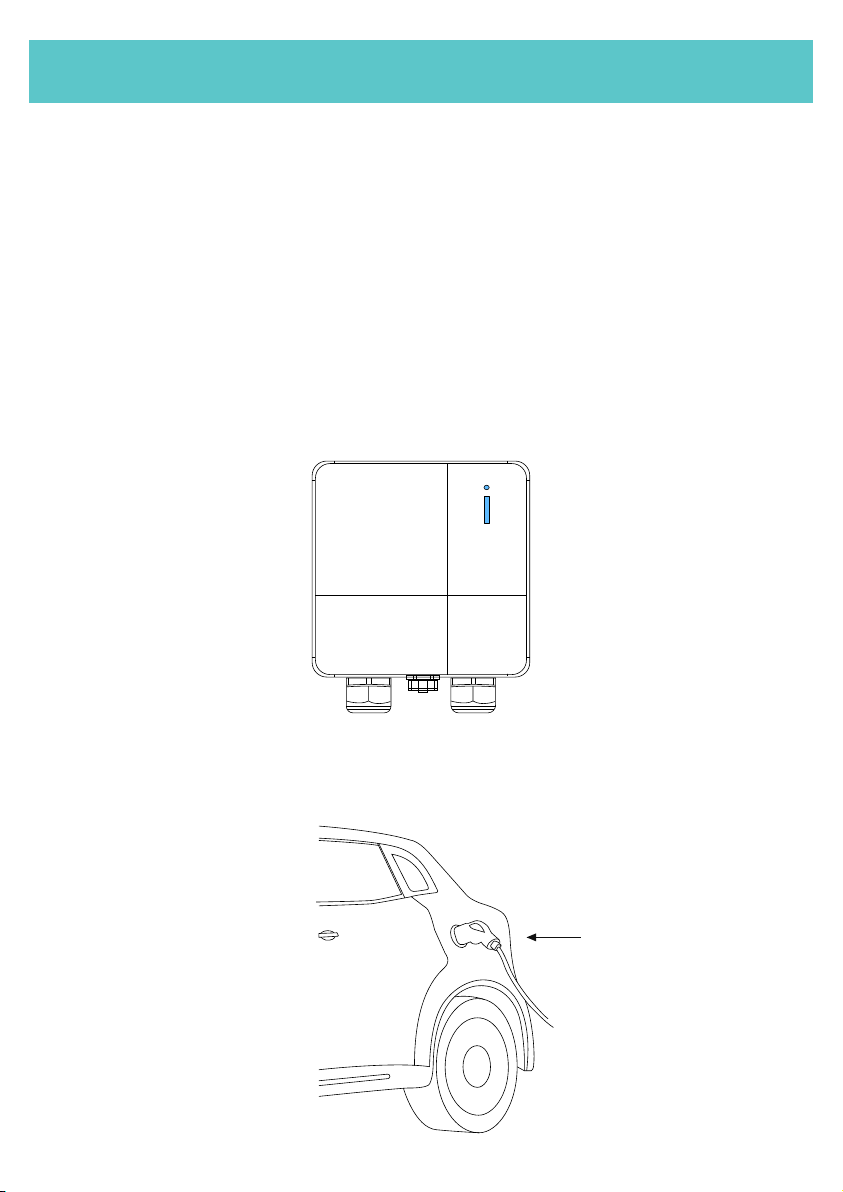

1. Standby Mode: After being powered on, the lights will be all switched
on; blue light (READY), green light (CHARGE) and red light (FAULT).
The blue light (READY) will stay on in standby mode.
2. Plug the charging handle into your EV charging inlet..

Page 11
3. Smart APP Guide:
1. Download the ‘Lectron’ APP.
2. Scan the QR code below, follow the tutorial in the link
to connect your device, and operate the charger.

Page 12
4. Charging: The green light (CHARGE) flashes automatically when
charging is in progress. If the red light (FAULT) is on, plug the vehicle
connector again. If the red light stays on, please refer to
"Error and Warning Messages".
5. Charging completed: The green light (CHARGE) remains on when the
battery level reached 100%. Please press the button on the connector
and pull out the charging connector.

Page 13
Light codes
Signal indicator
Remark: Signal indicator and status indicator are in the same color for plug
& charge mode.

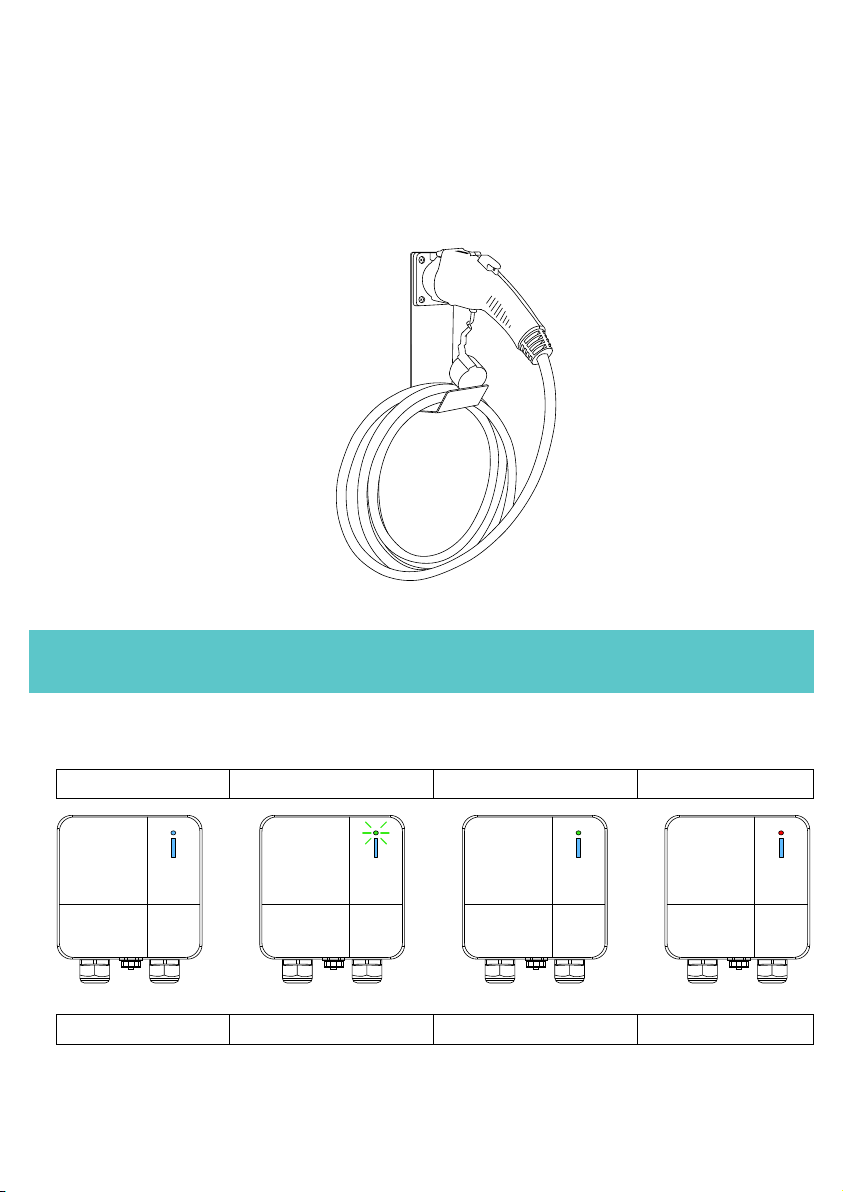

6. Put away: After unplugging the charging gun, neatly wrap up your
charging cable and hang it on the cable organizer holster. Place the
handle in the holster at the top.
Not connected Connecting Connected Connection fail
Solid blue Green blinking Solid green Solid red

Page 14

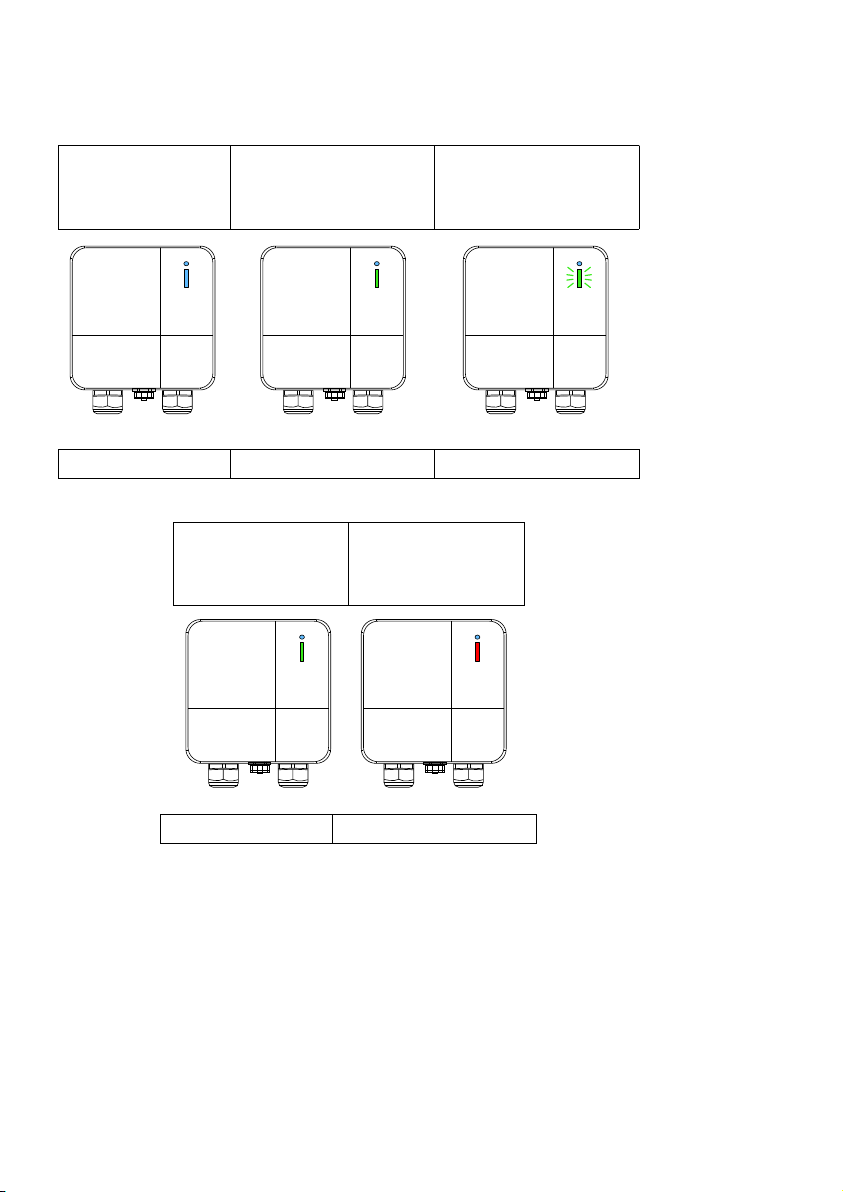

Status indicator
Standby, waiting
to plug in
Waiting to charge,
communicating
with vehicle
Charging in progress
Solid blue Solid green Green blinking
Solid green Solid red
Charging
completed Fault

Page 15
Error and warning messages
Fault status Red Remark
Voltmeter fault 1 flash followed by
3 sec pauses
2 flash followed by
3 sec pauses
3 flash followed by
3 sec pauses
4 flash followed by
3 sec pauses
5 flash followed by
3 sec pauses
6 flash followed by
3 sec pauses
Auto recover
Auto recover (pull out the
charging connector)
Control pilot fault
Auto recover
Input UVP
Auto recover
Input OVP
Auto recover
OTP
Auto recover (pull out the
charging connector)
OCP
7 flash followed by
3 sec pauses
Auto recover (pull out the
charging connector)
Ground fault
8 flash followed by
3 sec pauses
Auto recover (pull out the
charging connector)
Relay fault
9 flash followed by
3 sec pauses
Auto recover (pull out the
charging connector)
RCD abnormal
10 flash followed by
3 sec pauses Reboot recoverRCD self-test fault

Page 16
Warranty and maintenance
• The warranty period for this charger is two years.
• During the warranty period for any malfunction under normal use
according to the User Manual and Service Instructions (to be determined
by certified maintenance technicians of sellers), the product shall be
repaired free of charge. Except for the following situations, the charger
shall be subject to the above warranty terms:
1. The warranty certificate cannot be provided, or the contents of the
warranty certificate are modified or inconsistent with the label indication
of the repaired product.
2. Individuals who cannot present valid evidence of purchase.
3. Customers who exceed the warranty period specified
by the manufacturer.
4. Individuals who cause product damage by failing to adhere to the
service instructions regarding usage, maintenance, and storage.
5. Any damage or malfunction resulting from the entry of
an external object.
6. Unauthorized repair, disassembly, or modification.
7. Damage caused by force majeure (such as lightning, excessive voltage,
earthquake, fire, flood, etc.).
8. Malfunction and damage caused by other unavoidable external factors.
9. Malfunction and damage caused by improper use of the equipment,
such as water or other solutions entering the equipment.
10. Malfunction and damage caused by the grid power supply and voltage,
which is not specified for use with the charger equipment.
The above guarantees shall be made solely, and no other express or
implied warranties shall be made (including the implied warranties of
merchantability, particular and applicable reasonableness and adaptability,
etc.) whether in the contract, civil negligence, or other aspects,
Lectron shall not be responsible for any special, incidental
or consequential damages.

Page 17
Specications
Model number:
Rated input voltage:
Rated output current:
AC power frequency:
Input protection:
Plug:
Output protection:
Output interface:
Storage temperature:
Operation temperature:
Relative operation humidity:
Relative storage humidity:
Network connection:
4G supported frequency bands:
4G transmission rate:
Cable length:
Protection level:
Installation type:
Altitude:
Status indication:
EVC27
200-240 V ±10% AC
16/32/40/48 A（48 A requires
hardwired installation)
50 / 60 Hz
UVP, OVP, RCD (CCID20), SPD,
ground fault protection
NEMA 14-50 or hardwired (only for 48A)
OCP, OTP, control pilot fault protection
SAE J1772 AC charging connector
-40°F to 158°F
-22°F to 122°F
Up to 95% non-condensing
Up to 95% non-condensing
LAN version / 4G version
LTE FDD: B2/4/5/12/13/17/66/71
WCDMA: B2/4/5
LTE FDD (Mbps):150(DL)/50(UL)
DC-HSPA+(Mbps): 42(DL)/5.76(UL)
WCDMA(kbps): 384(DL)/384(UL)
18 ft standard, (25 ft optional
with surcharge)
Type 3
Wall-mounted
≤ 6561 ft
Red, green, blue LED

Made in China
Get more support
Scan the QR code below or email us at [e-mail].
