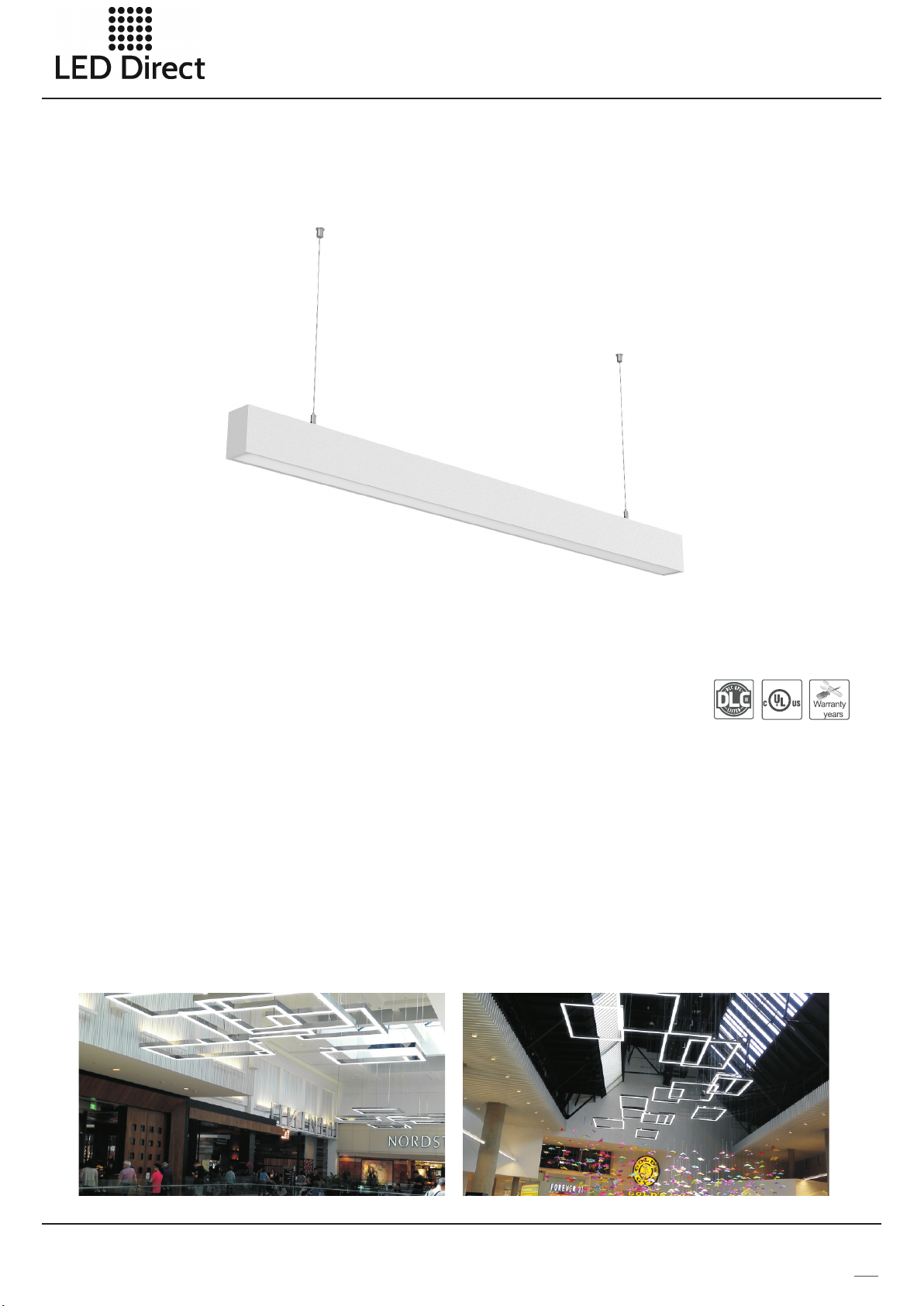

LED Direct SL8456 User manual

LED Linear Light
Description
Applications
Can be widely used in home, school, shopping mall, hotel and other indoor public places.
P1
Sl8456 linear light is combination of separated structures, it is convenient to dismantle and maintain because of its
replaceable power supply and lightingemitting parts(PCB+LEDs), simple shape and random jointing can be realized
IP40 waterproof, it is can be widely used in home, school,shopping mall, hotel and other indoor public placesand it is
mainly made of aluminum alloy, PC.
5
8456 in single run (0-10V Dimming)SL
Kansas City: 735 Southwest Blvd Ste B • Kansas City, KS 66103 | 913.912.3760 www.LED-KC.com
Wichita: 327 N Hydraulic Ave, Ste 100 • Wichita, KS 67214 | 316.712.7614 www.LED-Wichita.com

4.PC diffusor and AL6063 aluminum
profile,with good heat distribution
and high light efficiency.
5.The end cap, power supply,emitting
parts can be disassembled, convenient
to maintain.
6.2 installation methods, suspendent
installatione ceiling installation.
P2
White grey Black
Suspendent
installation
Ceiling
installation

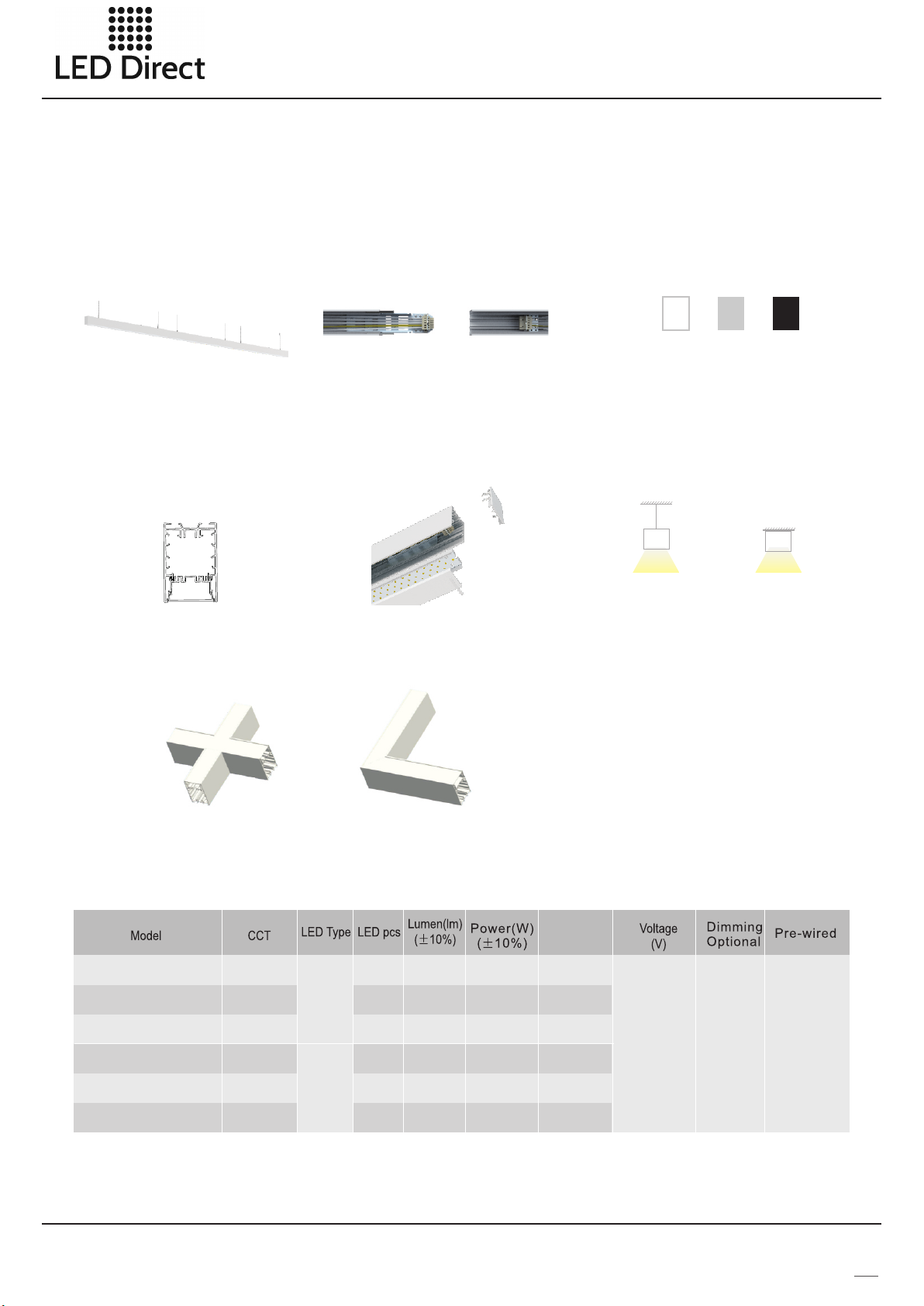

3.Lamp body adopt 6063 aluminum
profile, optional white, black and
silver
Features
1. The product can operate in single
run or continuous runs seamless,
when input voltage is AC277V, Max
3600W(350feet) can be connected;
when input voltage is 110V, Max
1500W(150feet) can be connected.
2.The lamp and power supply is connected
with high-voltage live part via connector; it
is very convenient to install and disassemble,
and it is also safe and reliable to use
7. Multiple jointing can realized via”十” “L” shape connecting accessories
SC-SL8456-040-AW-A02-03CW
SC-SL8456-040-AW-A02-03NW
SC-SL8456-040-AW-A02-03WW
SC-SL8456-075-AW-A02-03CW
SC-SL8456-075-AW-A02-03NW
SC-SL8456-075-AW-A02-03WW
2835
2835
5000K
3000K
4000K
5000K
3000K
4000K
260
260
462
462
462
260
4320lm
7650lm
7725lm
7875lm
4120lm
4280lm
40W
75W
75W
75W
40W
40W
4
8
8
8
4
4
AC100-277V
50/60Hz
0-10V
Dimming
5 wires,
14AWG
copper
core,L,N,G,
DIM+,DIM-
Length
(feet)
Lamp body
Kansas City: 735 Southwest Blvd Ste B • Kansas City, KS 66103 | 913.912.3760 www.LED-KC.com
Wichita: 327 N Hydraulic Ave, Ste 100 • Wichita, KS 67214 | 316.712.7614 www.LED-Wichita.com

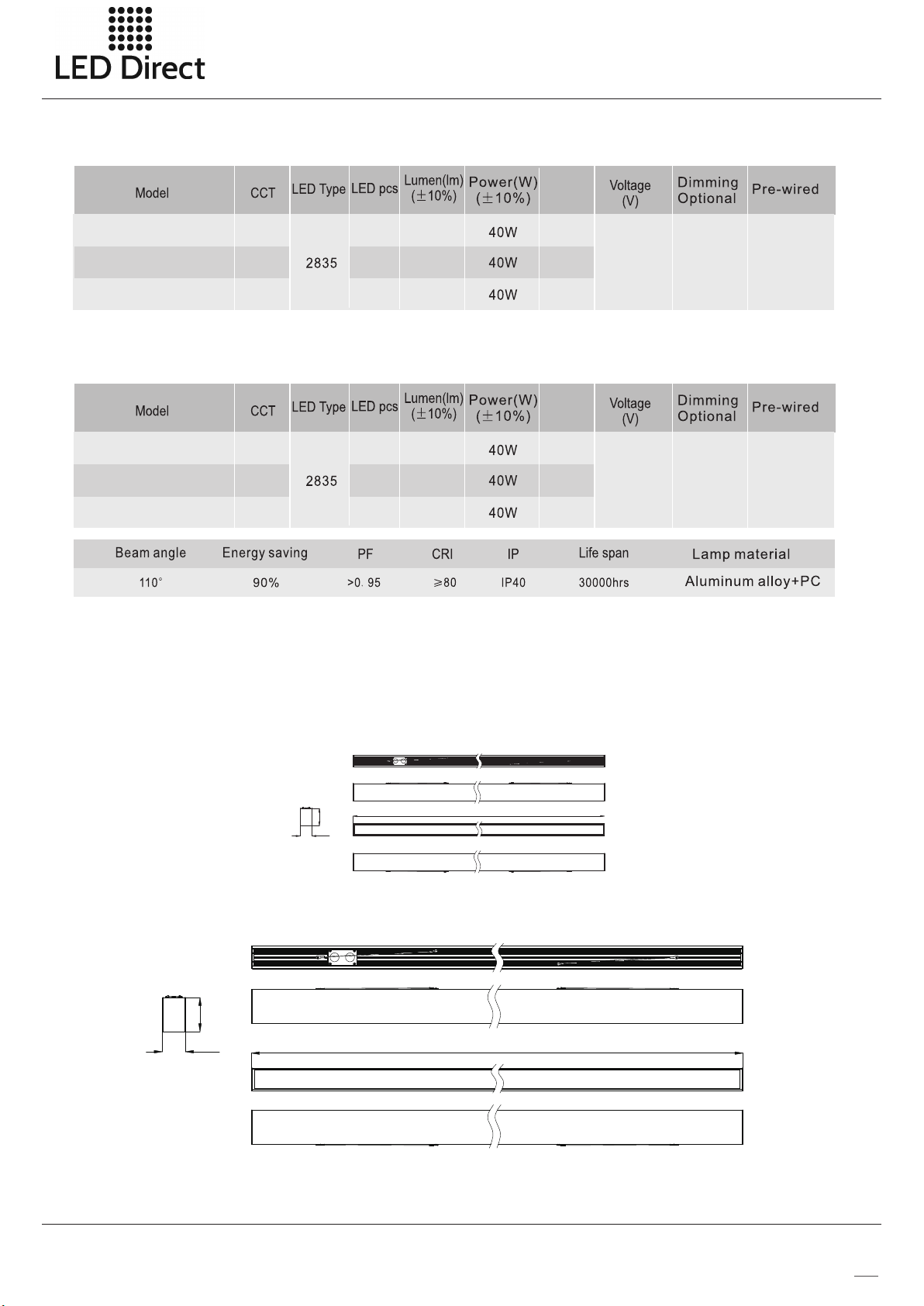

P3
SC-SL8456R-040-AW-A02-03CW
SC-SL8456R-040-AW-A02-03WW
SC-SL8456R-040-AW-A02-03NW
5000K
3000K
4000K
216
216
216
4400lm
4320lm
4240lm
AC100-277V
50/60Hz
0-10V
Dimming
5 wires,
14AWG
copper
core,L,N,G,
DIM+,DIM-
Remark: 3500K and 4500K is provided for optional
1203mm/47.36"
84mm/3.3 0"
56mm/2.2 0"
84mm/3.30"
56mm/2.20"
Length
(feet)
2*2
2*2
SC-SL8456T-040-AW-A02-03CW
SC-SL8456T-040-AW-A02-03WW
SC-SL8456T-040-AW-A02-03NW
5000K
3000K
4000K
216
216
216
4280lm
4120lm
4080lm
AC100-277V
50/60Hz
0-10V
Dimming
5 wires,
14AWG
copper
core,L,N,G,
DIM+,DIM-
Length
(feet)
2*2
2*2
2*2
2*2

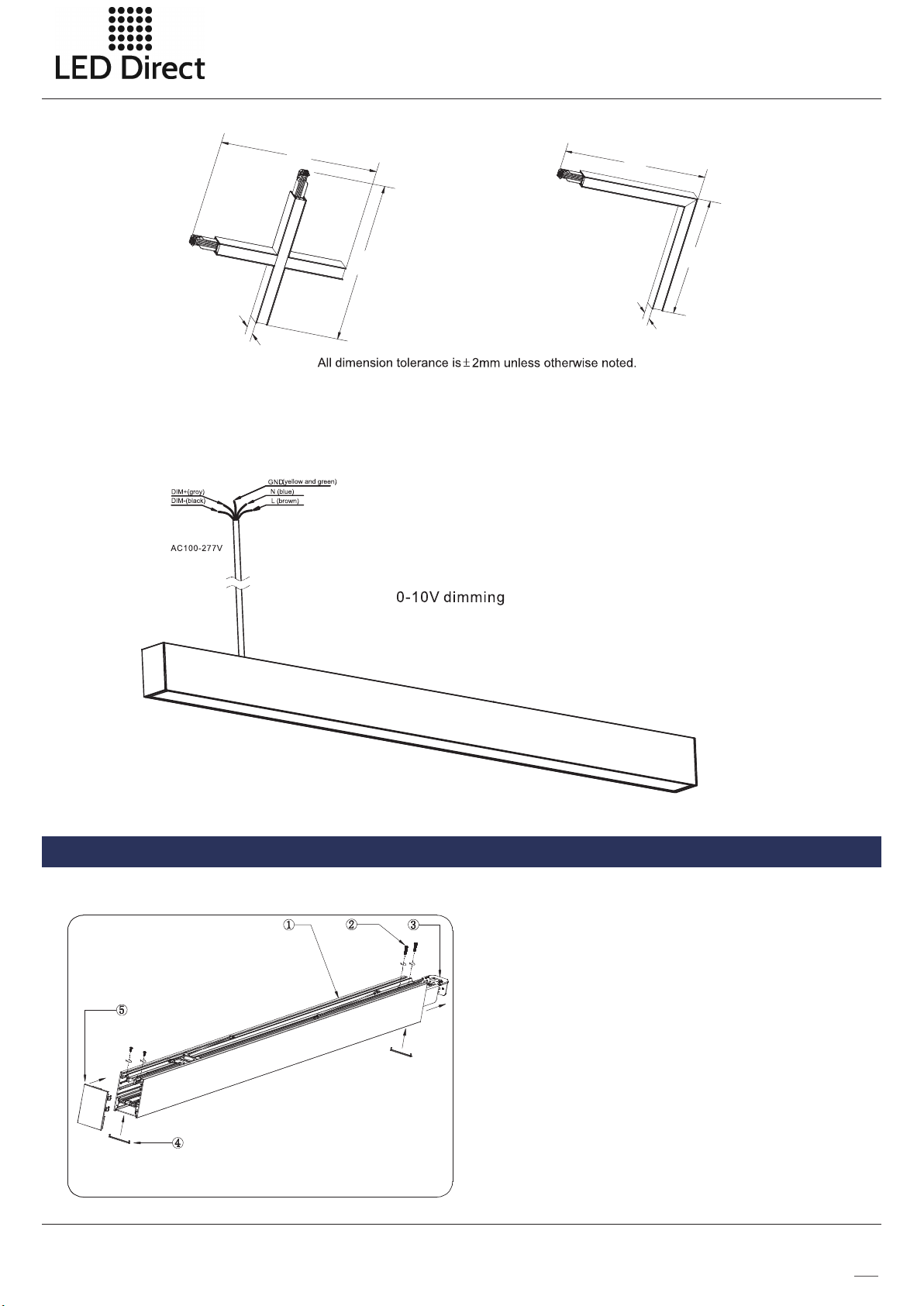

“L” shape lamp
“+” shape lamp
Dimensions(Unit:mm/inch)
All dimension tolerance is± 2mm unless otherwise noted.
All dimension tolerance is± 1mm unless otherwise noted.
2400mm/94.48″
Kansas City: 735 Southwest Blvd Ste B • Kansas City, KS 66103 | 913.912.3760 www.LED-KC.com
Wichita: 327 N Hydraulic Ave, Ste 100 • Wichita, KS 67214 | 316.712.7614 www.LED-Wichita.com

P4
717.50mm
(29.28″)
84.00mm
(3.30″)
600.00mm
(23.62″)
717.50mm
(29.28″)
717.50mm
(29.28″)
84.00mm
(3.30″)
Installation instruction
How to make the first run?
Firstly, loose the 2 screws at the lamp end, and pull
out the inner connector from the lamp body, then fix
the inner connector by 2 screws again. After
finishing the wiring connection(see the steps on the
continuous connection),fix the end cap by screws
and insert the inner end caps at both sides.
1. SL8456 lamp boby 1pc
2. screws 2pcs
3. inner connector 1pcs
4. inner end cap 2pcs
5. end cap without knockout
(for suspending installation)
Or End cap with knockout(for ceiling installation)
1pc,this end cap needs to be ordered separately
1pc
Electrical Connection
Kansas City: 735 Southwest Blvd Ste B • Kansas City, KS 66103 | 913.912.3760 www.LED-KC.com
Wichita: 327 N Hydraulic Ave, Ste 100 • Wichita, KS 67214 | 316.712.7614 www.LED-Wichita.com

P5
Suspendent Installation Instructions
Exploded drawing of the middle run
Lamp BOM
1. 8456 lamp 1PC
2. square head screw 2PCS
3. safety rope 2PCS
4. clamp 2PCS
5. wire lock 2PCS
6. suspendent rope 2PCS
7. fixing head1 2PCS
8. 4X30PA screw 2PCS
9. fixing head2 2PCS
10. rubber plug 2PCS
1
2
3
4
5
6
7
8
9
10
Exploded drawing of the first run
Lamp BOM
1.8456 end cap 1PC
2. 8456 lamp 1PC
3. square head screw 2PCS
4. safety rope 2PCS
5. clamp 2PCS
6. wire lock 2PCS
7. suspendent rope 2PCS
8. fixing head1 2PCS
9. 4X30PA screw 2PCS
10. fixing head2 2PCS
11. rubber plug 2PCS
12. input wire 1PC
1
2
3
4
5
6
7
8
9
10
12
1111
How to make the middle run?
loose the 2 screws at the lamp end, and pull out the
inner connector from the lamp body, then fix the
inner connector by 2 screws again, insert the inner
end caps at both sides.
How to make the last run?
Just fix the end cap at the last end by screws,
and insert the two inner end caps.
1. SL8456 lamp boby 1pc
2. screws 2pcs
3. inner connector 1pc
4. inner end cap 2pcs
1. SL8456 lamp body 1pc
2.screws 2pcs
3.end caps 1pc
4.inner end caps 2 pcs
Kansas City: 735 Southwest Blvd Ste B • Kansas City, KS 66103 | 913.912.3760 www.LED-KC.com
Wichita: 327 N Hydraulic Ave, Ste 100 • Wichita, KS 67214 | 316.712.7614 www.LED-Wichita.com

P6
Installation diagram
2″(reference dimension)
33″(reference dimension)
Exploded drawing of the end run
Lamp BOM
1.8456 end cap 1PC
2. 8456 lamp 1PC
3. square head screw 2PCS
4. safety rope 2PCS
5. clamp 2PCS
6. wire lock 2PCS
7. suspendent rope 2PCS
8. fixing head1 2PCS
9. 4X30PA screw 2PCS
10. fixing head2 2PCS
11. rubber plug 2PCS
1
2
3
4
5
6
7
8
9
10
11
Drill hole
Drill hole according to corresponding dimension,
and hammer the rubber plug into hole.
Disassemble pendant rope and fasten
fixing head of pendent rope
1.Counterclockwise rotate and dismantle
fixing head and square screw by hand;
2.Thread the fixing head through pendant rope, and
fasten the fixing head of pendant rope in the plastic
anchor with screw driver.
Install the first run-disassemble
lamp body
1. Loose the screws on the top of end
cap with screwdriver;and pull the end cap out with hand;
2. Dismantle inner side cover and PC cover;
3. Rotate two screws of fixing card counter-clockwise by 90°, and
dismantle cooling panel.
Install shell of the first run lamp body
1. Thread square-head screw through fixing hole
of safey rope, clamp, then fasten it with wire lock;
2. Snap the clamp into profile slot;
3. Tightening the lamp with fixing head 1 and fixing head 2.
.
Connect the input cable
conduit
connector
1. Break through knockout
hole on splicing profile;
2. Fix the conduit in the knockout hole;
3. Insert the female connector into male
connector of lamp;
4. Thread AC connecting wire through conduit, and
respectively connect N,GND,L, DIM+,DIM- of connector.
Install the first run lamp body
1. Install the cooling panel into shell of lamp body, and rotate screws
of fixing card clockwise by 90°;
2. Press and mount the PC cover and inside cover plate on lamp;
3. Clip the end cap on the lamp,and fasten screws on the top of end cap.
Kansas City: 735 Southwest Blvd Ste B • Kansas City, KS 66103 | 913.912.3760 www.LED-KC.com
Wichita: 327 N Hydraulic Ave, Ste 100 • Wichita, KS 67214 | 316.712.7614 www.LED-Wichita.com

P7
Install lamp body of the middle run
1.Install ceiling lamp into profile slot of the
middle run lamp;
2.Insert female connector of the first middle
run into the male connector of the first run ;
and insert female connector of the next
middle run into male connector of previous
middle run;
3.Fasten the screws on joining with screwdriver;
4. Splicing quantity
When input voltage is 110V, N*P <1500W
When input voltage is 277V, N*P <3600W
N is total run, and P is power of single lamp
Install lampbody of the end run
1.Snap the clamp of suspendent rope into
slot of lamp profile;
2.Insert female connector of end run into
male connector of previous run;
3. Fasten the screws on joining with
screwdriver.
Ceiling Installation Instructions of SL8456
Exploded drawing of the first run
BOM
1. end cap of inlet wire 1pc
2. 8456 lamp 1pc
3. 4*25PA screw 2pcs
4. clamp 2pcs
5. rubber plug 2pcs
6. input wire 1pc
Exploded drawing of the middle run
BOM
1.8456 lamp 1pc
2.4*25PA screw 2pcs
3.clamp 2pcs
4.rubber plug 2pcs
33″(reference dimension)
Installation diagram
Exploded drawing of end run
BOM
1. 8456 end cap 1pc
2. 8456 lamp 1pc
3. 4*25PA screw 2pcs
4. clamp 2pcs
5. rubber plug 2pcs
Installation drawing for “+”shape lamp Installation drawing for "L“ shape lamp
Kansas City: 735 Southwest Blvd Ste B • Kansas City, KS 66103 | 913.912.3760 www.LED-KC.com
Wichita: 327 N Hydraulic Ave, Ste 100 • Wichita, KS 67214 | 316.712.7614 www.LED-Wichita.com

Install lampbody of the end run
1.Snap the clamp of suspendent rope into
slot of lamp profile;
2.Insert female connector of end run into
male connector of previous run.
Install lamp body of the middle run
1.Install ceiling lamp into profile slot of the
middle run lamp;
2.Insert female connector of the first middle run
into the male connector of the first run ; and
insert female connector of the next middle run
into male connector of previous middle run.
3. Splicing quantity
When input voltage is 110V, N*P <800W
When input voltage is 277V, N*P <2270W
N is total run, and P is power of single lamp
P8
Install the first run lamp body
1. Install the cooling panel into shell of lamp body, and rotate screws of
fixing card clockwise by 90° to fasten the cooling panel into the lamp;
2. Press and mount the PC cover and inside cover plate on lamp;
3. Clip the end cap on the lamp,and fasten screws on the top of end cap.
1. Break through knockout hole on splicing profile;
2. Fix the conduit in the knockout hole;
3. Insert the female connector into male
connector of lamp;
4. Thread AC connecting wire through conduit,
and respectively connect N,GND,L, DIM+,DIM- of
connector.nsion, and hammer the rubber plug into hole
connector
Connect the input cable
Install the clamp of the first run lamp body
Thread the screw through fixing holes of safety rope and clamp, and
fasten the screw with rubber plug in the ceiling
Install the first run lamp body
According to the figure, install the clamp on one
side, then rotate and press mounting to another
side of the clamp;
Drill hole
Drill hole according to corresponding dimension,
and hammer the rubber plug into hole
Installation of the first run-disassemble lamp body
1. Unscrew the screws on the side of
end cap with screwdriver;pull the end
cap out by hand;
2. Dismantle inner side cover and PC cover;
3. Rotate two screws of fixing card counter-clockwise by 90°, and
dismantle cooling panel.
Kansas City: 735 Southwest Blvd Ste B • Kansas City, KS 66103 | 913.912.3760 www.LED-KC.com
Wichita: 327 N Hydraulic Ave, Ste 100 • Wichita, KS 67214 | 316.712.7614 www.LED-Wichita.com

“L” lamp “+” lamp:
P9
Notice
1. Please read the specification first, to make sure the service environment matches the condition in the
specification before using.
2. Please confirm the input voltage, frequency before using.
3.The lamp must be installed by professional personnel
4. If there is any damage on the power line or the shell of the product, it should be taken as defective product and do
not use it.;
5. Dangerous high voltage, Non-professionals are not allowed to maintain the products.
6. If the exterior flexible cable or wire is damaged, it must be exchanged by the supplier, its agent or other similar
qualified personnel to avoid dangers.
net weight/pc:3.294kg
gross weight/CTN:16.631kg
inner size: 735*105*683mm
carton size: 750*225*701mm
2pcs/inner box,2 inner boxes/ carton
net weight/pc:3.667kg
gross weight/CTN:9.818kg
inner size: mm
carton size: 647*225*584mm
1pcs/inner box,2 inner boxes/ carton
632*105*566
1.2m lamp: 2.4m lamp:
net weight/pc:3.24kg
gross weight/CTN:24.8kg
inner size: 1274*130*106mm
carton size: 1288*404*230mm
1pcs/inner box,6 inner boxes/ carton
net weight/pc:6.5kg
gross weight/CTN:33kg
inner size: 2448*133*106mm
carton size: 2462*413*230mm
1pcs/inner box,4 inner boxes/ carton
Product packaging information:
Kansas City: 735 Southwest Blvd Ste B • Kansas City, KS 66103 | 913.912.3760 www.LED-KC.com
Wichita: 327 N Hydraulic Ave, Ste 100 • Wichita, KS 67214 | 316.712.7614 www.LED-Wichita.com
