LED Horizon DMX 203-RGBW User manual

FLASH-BUTRYM
LED Horizon DMX 203-RGBW User’s Manual - 1 - www.flash-butrym.pl
LED HORIZON DMX SERIES
USER’S MANUAL
203-RGBW

FLASH-BUTRYM
LED Horizon DMX 203-RGBW User’s Manual - 2 - www.flash-butrym.pl
THANK-YOU
Fist of all, we thank you for having chosen the LED Horizon DMX . The LED Horizon DMX is a great and reliable
device that can meet most of your requirements for entertainment markets. It can be just plug-and-play, and also
can be controlled via standard DMX512 for sophisticated requirements.
All of our products are made on our business philosophy:
lwe believe that satisfied customers are the key to a successful business and that controlled growth is the
only path to sustained profitability.
lWe believe that there is no point in supplying products that are substandard or inadequate. In the long run, it
never pays
You can always rely on us.
Thanks again!
Flash-butrym

FLASH-BUTRYM
LED Horizon DMX 203-RGBW User’s Manual - 3 - www.flash-butrym.pl
CATALOG
Warning 4
Safety instructions 4
Riggi ng 6
Desc ription 7
In stallation 7
Op eration 8

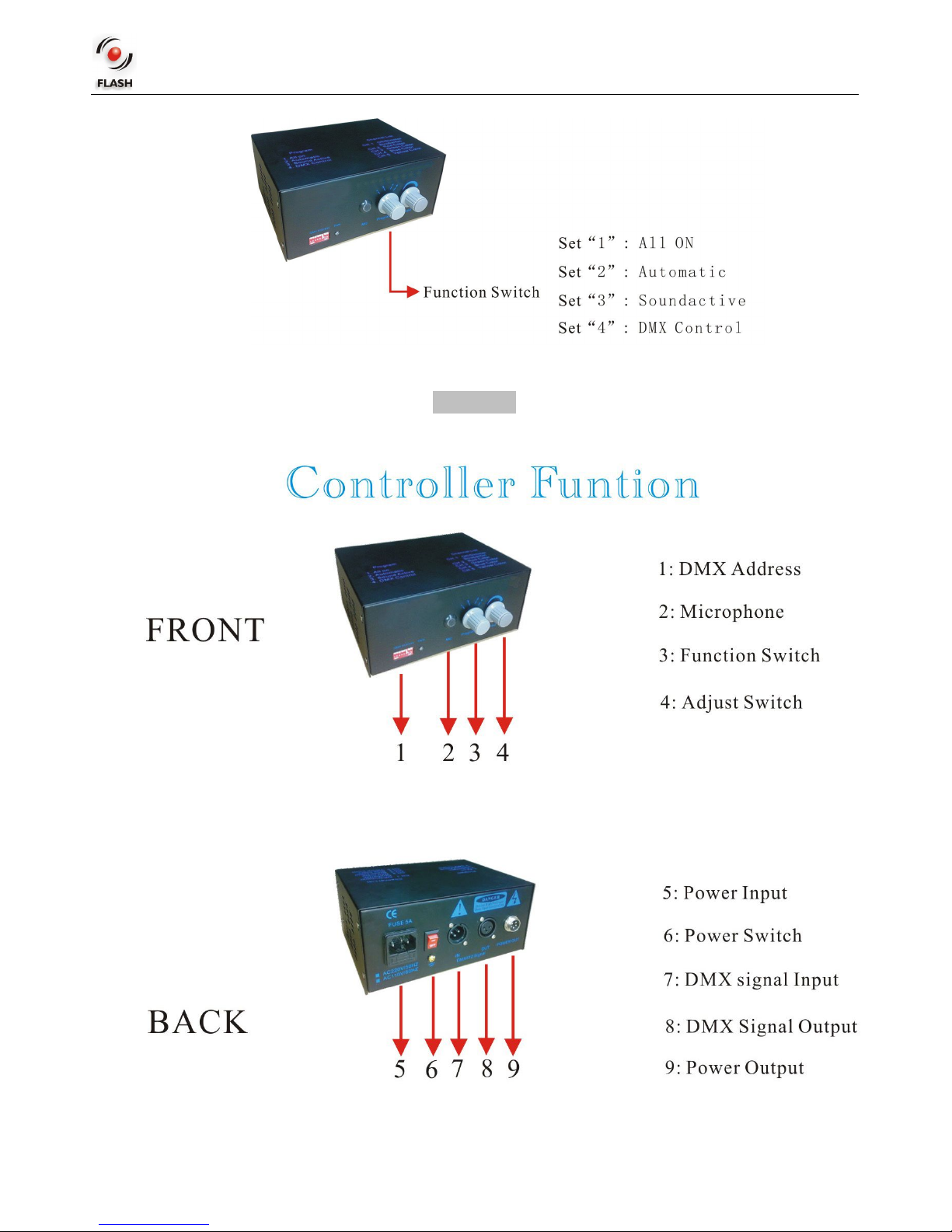

Controller f unction 8
All on control system 9
Automatic control system 9

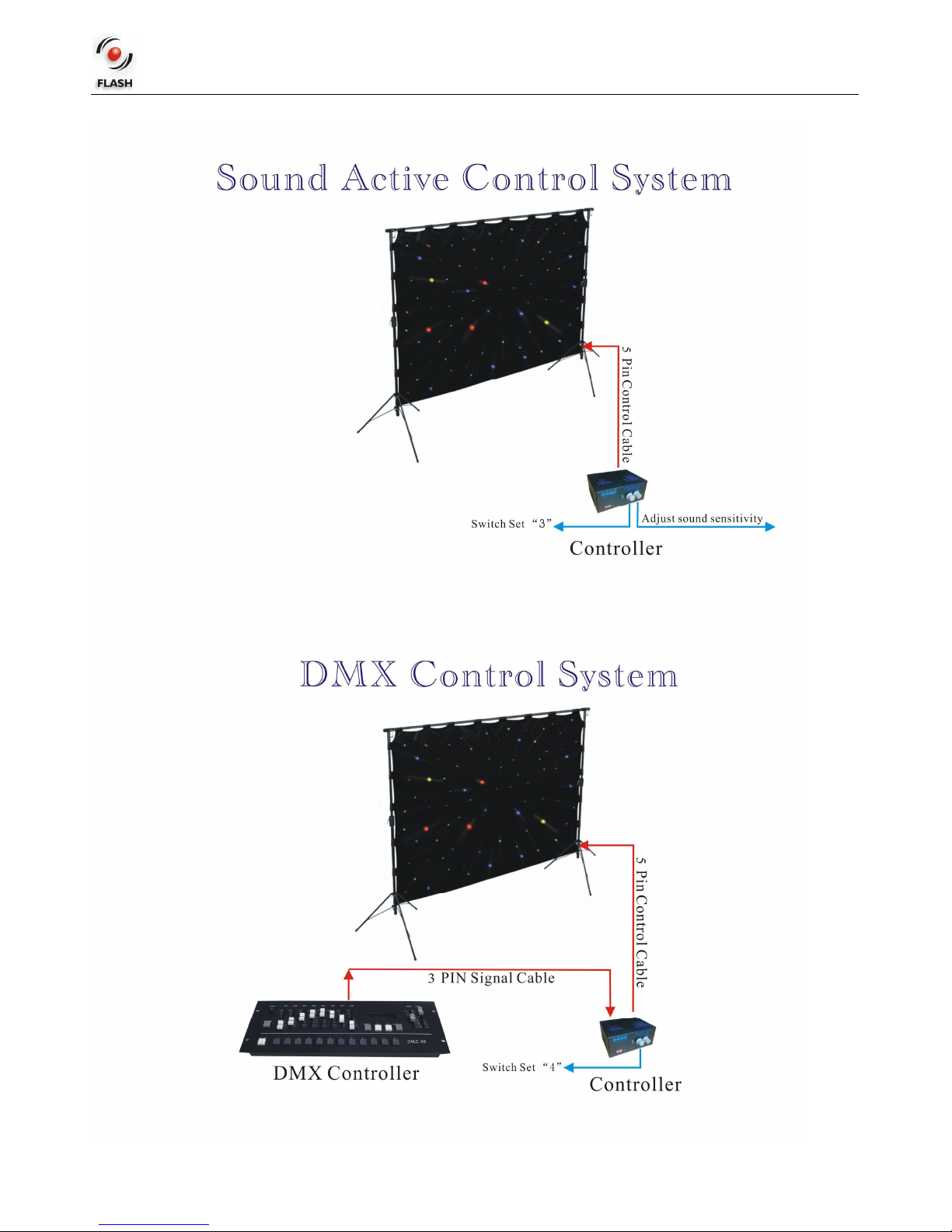

Sound activated control system 10
DMX control system 10
Main funciton 11
Automatic function setting 11
DMX addre ss setting 12
DMX channel chart 12
Ma intenance 12
Specif ications 12

FLASH-BUTRYM
LED Horizon DMX 203-RGBW User’s Manual - 4 - www.flash-butrym.pl
WARNING
Safety Instructions:
This product guidel contains important information about the safe installation and use of this device. Please read
and follow these instructions carefully and keep this manual in a safe place for future reference.
When unpacking and before disposing of the carton, check there is no transportation damage before using the
device. Should there be any damage caused by transportation, consult your dealer and do not use the device.
The device is for indoor use only. Use only in dry locations. Keep this device away from rain and moisture,
excessive heat, humidity and dust. Do not allow contact with water or any other liquids. The device is not
designed or intended to be mounted directly on to inflammable surfaces.
The device is only intended for installation, operation and maintenance by qualified personnel.
The device must be installed in a location with adequate ventilation, at least 50cm from adjacent wall surfaces.
Be sure that no ventilation slots are blocked.
Do not attempt to dismantle and/or modify the device in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power requirements of the
device.
It is essential that each device is correctly earthed and that electrical installation conforms to all relevant
standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into
contact with other cables. Only handle the power-cord by the plug.
Never pull out the plug by tugging the power-cord.
The device should always be installed with a secondary safety fixing. A safety cord is supplied for this; it should
be attached as shown in “installing the device” section.
There is no user serviceable parts inside the device do not open the housing and never operate the device with
the covers removed.
This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will
serve you for a long time without defects.
Prevent this product from strong vibration or impact. Don’t use it in shaking conditions.
The maximum ambient temperature ta = 45 °C must never exceeded.
The relative humidity must not exceed 50% with an ambient temperature of 45°C.
If this device is operated in any other way other than the one said in this manual, this device may suffer damages
and thus the warranty becomes void.

FLASH-BUTRYM
LED Horizon DMX 203-RGBW User’s Manual - 5 - www.flash-butrym.pl
Always disconnect from the mains, when the device is not in use or before cleaning it or
before attempting any maintenance work.
If you have any questions, don’t hesitate to consult your dealer.
IMPORTANT:
Every unit is tested completely and packed properly by the supplier. Please make sure the packing and / or the
unit is in good condition before installation and use. Should there be any damage caused by transportation,
consult your dealer and do not use the unit. Any damage caused by improper use will not be assumed by the
supplier and / or dealer.
The supplier will not accept liability for any resulting damages caused by the non-observance of this manual or
any unauthorized modification to the device.

FLASH-BUTRYM
LED Horizon DMX 203-RGBW User’s Manual - 6 - www.flash-butrym.pl
CAUTION! EYEDAMAGES!
Avoid looking directly into the light source,
Meant especially for epileptics!
Rigging
Concerning rigging, trussing for this device, please follow the European and national guidelines.
Only the qualified technicians are allowed for the device installation,
The device must never be mounted for a possible swinging position, and a safety cord attached must always be
used.
IMPORTANT:
Improper installation can lead to serious damage to people and property.
This device is not supplied with a plug, and it has an open power cable. So when connecting the device to the
mains with a power plug, ensure that the right color cable is connected to the right place. The following table is for
your reference.
IMPORTANT:
Please ensure that the device is always connected to the earth properly.
PLEASE recycle the shipping carton whenever possible.
International EU Cable The U.K. Cable US Cable Pin
L Brown Red Yellow/Copper Fase
N Blue Black Silver Nul
⊥Yellow/Green Green Green Earth

FLASH-BUTRYM
LED Horizon DMX 203-RGBW User’s Manual - 7 - www.flash-butrym.pl
Description
When you receive this product, please check if there are any problems caused by transportation. And also check
if you have received all parts as follows:
1. LED Horizon DMX: 1 pcs
2. Controller: 1 pcs
3. Power cable 1 pcs
4. 5 pin Controller Cable: 1 pcs
5. LED Lamp: 20 pcs lamp (spare parts)
6. This manual: 1 pcs
The -203RGBW is one of the LED Horizon DMX series.All LED Horizon DMX are made of high brightness LEDs,
and fire retardant cloth. Its control system is designed friendly for operation. The LED Horizon DMX can be
produced for various ways of installation, and can be connected one to another easily and freely.
The LED Horizon DMX can work to produce a lot effect: strobe, dimming, all LED on and off. 120 pcs LEDs work
in four groups, and each group can be control separately by standard DMX 512.
The LED Horizon DMX has multifunctional operation modes to meet various requirements.
Each mode can be operated by turning the knob on left side of the control box panel, meanwhile, you can also
adjust effect speeds by turning the knob on the right side.
Installation
1、Please make sure the voltage matches with this product.
2、The installation can be carried out by qualified technicians only.
3、Please make sure there isn’t any flammable material at the range of 0.5M when installing. Keep the space
between the cloth and the wall 15CM minimum.
4、Please avoid strong wind and ventilation in the operation area.

FLASH-BUTRYM
LED Horizon DMX 203-RGBW User’s Manual - 8 - www.flash-butrym.pl
Operation

FLASH-BUTRYM
LED Horizon DMX 203-RGBW User’s Manual - 9 - www.flash-butrym.pl

FLASH-BUTRYM
LED Horizon DMX 203-RGBW User’s Manual - 10 - www.flash-butrym.pl

FLASH-BUTRYM
LED Horizon DMX 203-RGBW User’s Manual - 11 - www.flash-butrym.pl
Main function
1.All on
2.Automatic (Pls refer to the “Address setting” in the “for our pro controller )
3.Sound active
4.DMX (DMX address in the controller set to :1)
Automatic Function Setting
FOR KONE PRO CONTROLLER [2.(Automactic)] FOR DMX CONTROLLER
Program
Address Setting
Program Effect DMX Date (CH2) Adjust
P1 “1”+ ”8” Four color change 10~26 Four color change
P2 “2”+ ”8” Four color shade 27~43 Four color shade
P3 “3”+ ”8” Four color strobe and change
44~60 Single color srobe
P4 “4”+ ”8” Four color strobe 61~77 Four color strobe
P5 “5”+”8” All color shade 78~94 All on
P6 “1”+ ”7” Red on 95~111 Red
P7 “2”+ ”7” Green on 112~128 Green
P8 “3”+ ”7” Blue on 129~145 Blue
P9 “4”+ ”7” White on 146~162 White
P10 “5”+ ”7” Four color all on 163~179 All on
P11 “1”+ ”6” Red strobe 180~196 Red Strobe
P12 “2”+ ”6” Green strobe 197~213 Green Strobe
P13 “3”+ ”6” Blue strobe
214~230 Blue Strobe
P14 “4”+ ”6” White strobe
231~255 White Strobe

FLASH-BUTRYM
LED Horizon DMX 203-RGBW User’s Manual - 12 - www.flash-butrym.pl
DMX Channels Function
Channel NO. Function Controller Date
CH 1 Dimmer 0~255
CH 2 Program Select (P1~P12) 0~255
CH 3 Autorun Speed 0~255
DMX Address Setting
Pro Controller No. Address Setting Pro Controller No Address Setting
1st 1 5th 1+7
2nd 1+5 6th 1+5+7
3rd 1+6 7th 1+6+7
4th 1+5+6 8th 1+5+6+7
Maintenance
The LED Horizon DMX is almost free of maintenance. If some of LEDs been damaged, you just need to replace
the dead ones with the spare LEDs attached in the package.
To replace the LEDs, first of all, unplug the device from the power supply. Unzip the cloth and find the dead LEDs.
Hold the dead LED, and remove the clip from front side of the cloth. Change the LED, and put back the clip. Zip
the cloth, and connect the device to the power supply.
To ensure the reliability of the LED Horizon DMX, it should be kept clean. Keep it away from oil and other stains.
Specifications
Voltage:AC 90V-260V, 50Hz
Fuse: 3A (Power Supply), 10A (Control PCB)
Lamp: 120 pcs φ5 high power LEDs,
Channels: 3 channels
Operation modes:All LEDs on; DMX Control; SoundActivated;Auto run
Weight: 7 kg
Size: 2 x 3 meter
NOTE: Due to improvement, the product specifications and this manual are subject to change
without prior notice.
