XAL BASO 1.5 User manual

DO NOT DISCARD!
XAL After Sales
Service Hotline
The XAL After Sales Service Hotline
is available from
Monday to Friday, 8 AM - 6 PM (EST)
Hotline: [phone]
Email: [e-mail]
SIGN LEGEND REQUIRED TOOLS (not included)
POWER OFF
POWER ON
DON´T TOUCH
THE LED
pencil
drill
screws
screwdriver
ATTENTION
USE ESD
GLOVES
L 72" / 1828.8mm
feeder position
2" / 50.8mm
L 96" / 2438.4mm
feeder position
2" / 50.8mm
L 48" / 1219.2mm
feeder position
2" / 50.8mm
MI-V01 4/20/21
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.262.9990 www.xalusa.com 1
MOUNTING INSTRUCTIONS
BASO 1.5 /2.5 /4.0 GRID Please see next pages for trim and trimless versions

58.7mm
2 ⁄"
77.7mm
3 ⁄"
101.6mm
4
"
99mm
3
⁄
"
BASO 4.0 GRID TYPES
BASO 2.5 GRID TYPES
BASO 1.5 GRID TYPES
⁄ T-GRID ⁄ T-GRID ⁄ SLOT GRID ⁄ SLOT GRID
⁄ T-GRID ⁄ T-GRID ⁄ SLOT GRID ⁄ SLOT GRID
⁄ T-GRID ⁄ T-GRID ⁄ SLOT GRID ⁄ SLOT GRID
68.3mm
2 ⁄"
58.7mm
2 ⁄"
58.7mm
2 ⁄"
77.7mm
3 ⁄"
77.7mm
3 ⁄"
77.7mm
3 ⁄"
99mm
3
⁄
"
99mm
3
⁄
"
76.2mm
3"
99mm
3 ⁄"
85.7mm
3 ⁄"
76.2mm
3"
76.2mm
3"
111.1mm
4 
"
101.6mm
4
"
101.6mm
4
"
99mm
3 ⁄"
99mm
3 ⁄"
99mm
3 ⁄"
99mm
3
⁄
"
1. Remove surrounding tiles from ceiling 2. Remove inset and cover from channel

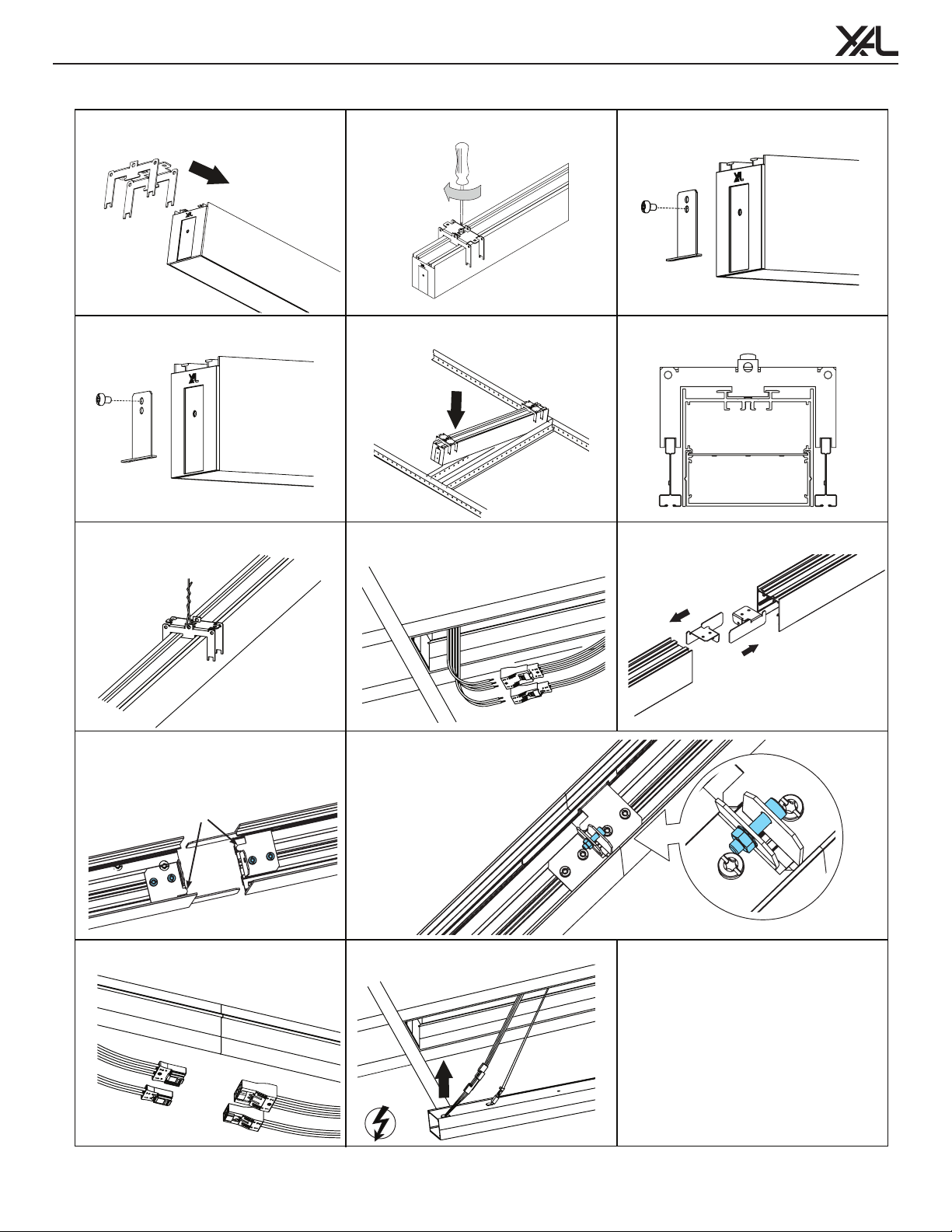

3. Slide bracket(s) on top of channel 5A. Use screw(s) to secure side
bracket(s) (⁄ SLOT GRID ONLY)
7. Confirm that channel is sitting in
grid properly
4. Use screw(s) to secure bracket(s)
5B. Use screw(s) to secure side bracket(s)
(⁄ T-GRID and ⁄ T-GRID ONLY)
6. Drop channel(s) into grid ceiling
Turn OFF power source before
installation
10. Bring channels together via connector8. Secure channel bracket(s) with cable(s) 9. Make primary connections via flex
conduit (supplied by others)
13. Insert inset(s) and covers to complete
the installation
11. Use screws to secure connector. For
continuous runs, follow steps 10 - 12
12. Make connection between segments
(continuous runs: follow steps 10 - 12)
*insert screw through BOTTOM HOLE*
*insert screw through TOP HOLE*
MI-V01 4/20/21
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.262.9990 www.xalusa.com 2
MOUNTING INSTRUCTIONS
BASO 1.5 /2.5 /4.0 GRID

After Sales Service Hotline
Call the XAL After Sales Hotline from
Monday to Friday, 8 AM - 6 PM (EST)
Hotline:
[phone]
Or 24/7 via email:
[email protected]
3. Slide bracket(s) on top of channel 5A. Use screw(s) to secure side
bracket(s) (⁄ SLOT GRID ONLY)
7. Confirm that channel is sitting in
grid properly
4. Use screw(s) to secure bracket(s)
5B. Use screw(s) to secure side bracket(s)
(⁄ T-GRID and ⁄ T-GRID ONLY)
6. Drop channel(s) into grid ceiling
8. Secure channel bracket(s) with cable(s) 9. Make primary connections via flex
conduit (supplied by others)
14. Insert inset(s) and covers to complete
the installation
13. Make connection between segments
(continuous runs: follow steps 9 - 13)
*insert screw through BOTTOM HOLE*
*insert screw through TOP HOLE*
10. Slide connectors into channels
11. SYSTEMS: Use screws to secure
connectors to channels
tab should not be past
end of the channel
12. SYSTEMS: Slide channels
together. Secure connectors
with screw and nut.
MI-V01 4/20/21
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.262.9990 www.xalusa.com 3
MOUNTING INSTRUCTIONS
BASO 1.5 /2.5 /4.0 GRID

DO NOT DISCARD!

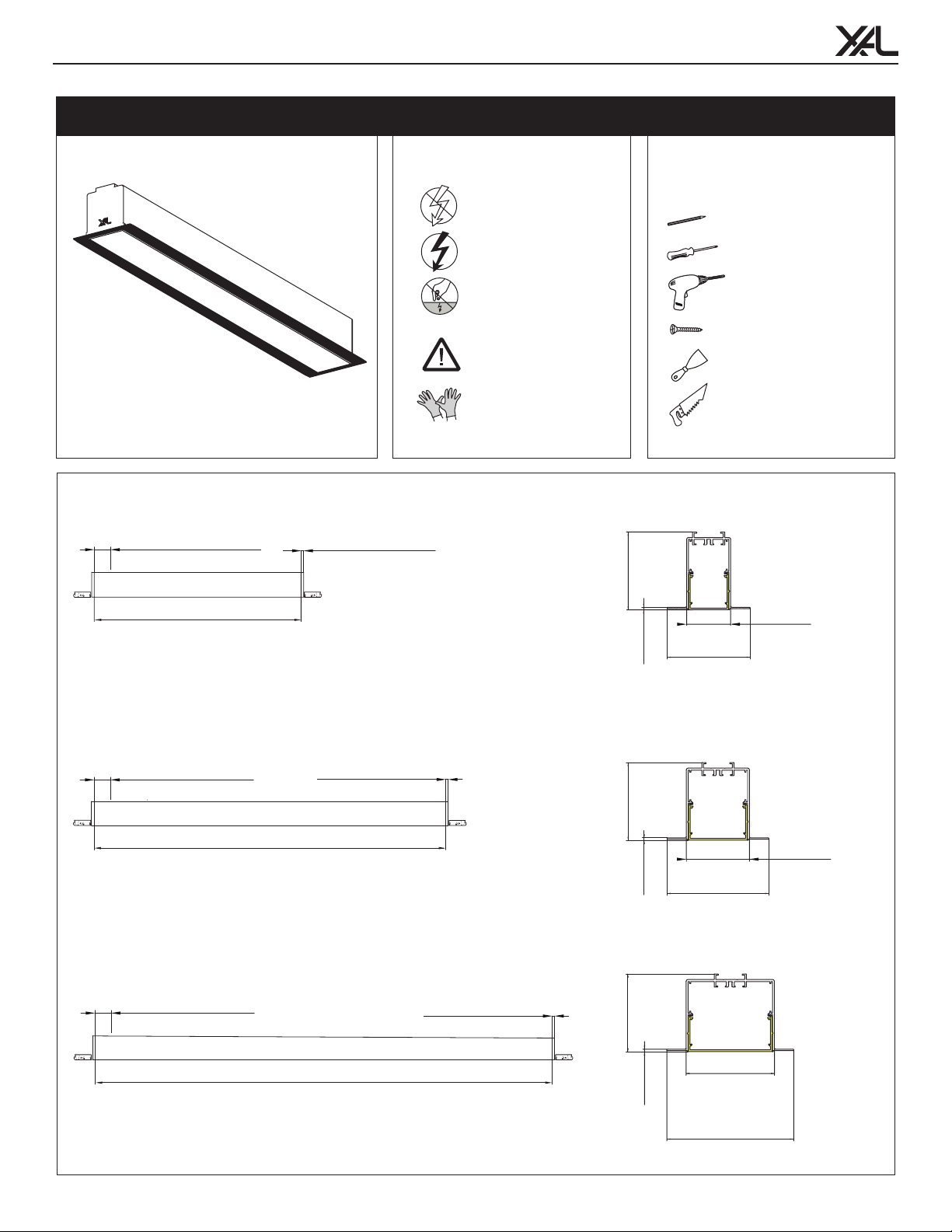

BASO 1.5 DIRECT TRIMLESS
BASO 2.5 DIRECT TRIMLESS
BASO 4 DIRECT TRIMLESS
L 48"
1219.2mm
L 96"
2438.4mm
L 72"
1828.8mm
ENDCAP WIDTH
3/32" / 2.4mm
Cutout
48.4mm
1 /"
79.5mm
3 ⅛"
3.2mm
⅛"
3.2mm
⅛"
3.2mm
⅛"
74.7mm
2 15/16"
74.7mm
2 15/16"
98.6mm
3 ⅞"
Cutout
67.2mm
2 /"
122.2mm
4 13/16"
Cutout
91.5mm
3 /"
SIGN LEGEND
POWER OFF
POWER ON
DO NOT TOUCH
THE LED
ATTENTION
USE ESD
GLOVES
REQUIRED TOOLS
(not included)
ENDCAP WIDTH
3/32" / 2.4mm
ENDCAP WIDTH
3/32" / 2.4mm
FEEDER POSITION
2" / 50.8mm
FEEDER POSITION
2" / 50.8mm
FEEDER POSITION
2" / 50.8mm
74.7mm 2 15/16"
pencil
drill
screws
screwdriver
spackle knife
drywall saw
MI-V01 4/20/21
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.262.9990 www.xalusa.com 4
MOUNTING INSTRUCTIONS
BASO 1.5 /2.5 /4.0 recessed trimless

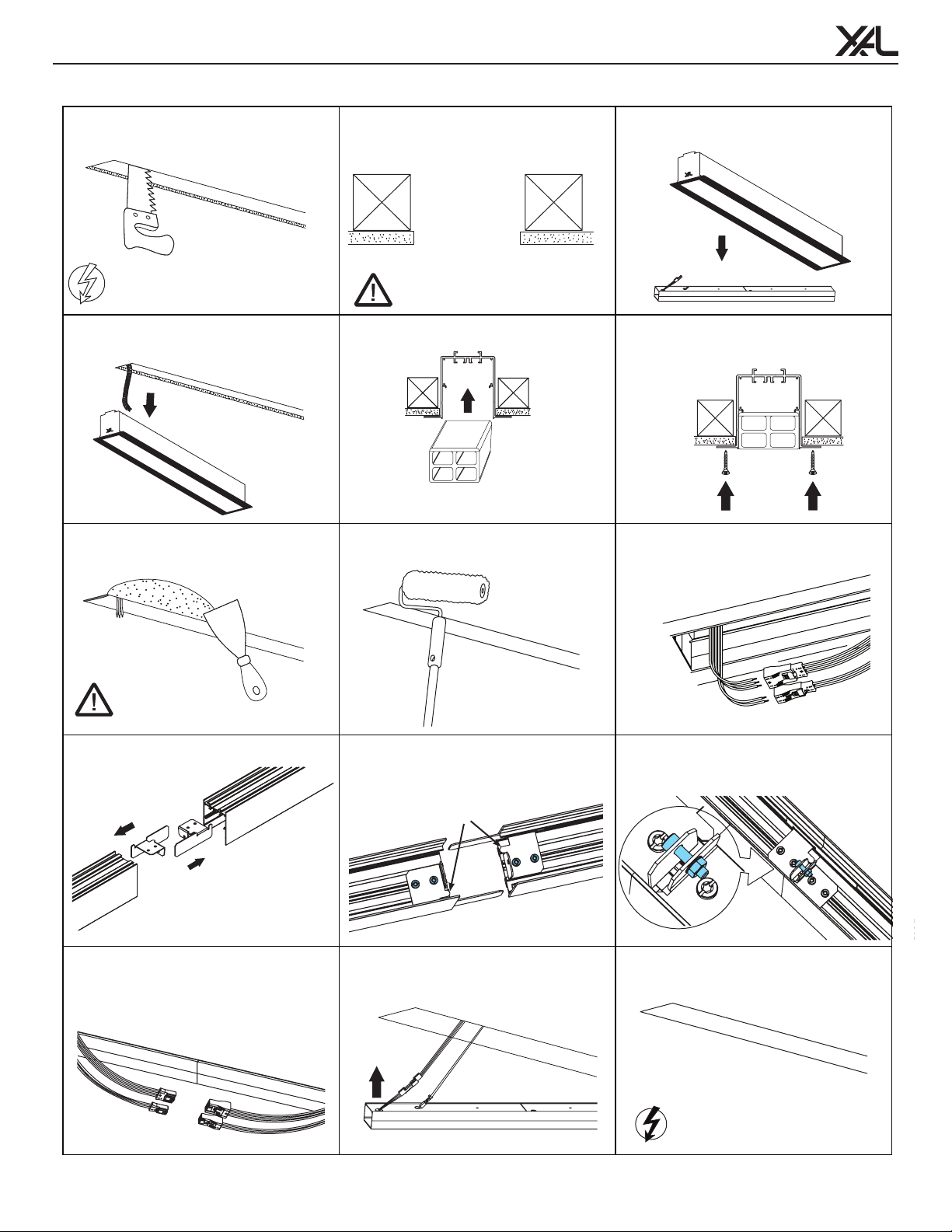

1. Cut out hole in ceiling 2. Insert blocking into ceiling (supplied
by others)
4. Thread conduit through top of channel
(conduit supplied by others)
7. Cover gaps and flange with spackle
15. Cover should be flush to channel
6. With spacer block inserted, screw
channel to blocks through drywall
(screws by others)
8. Once dry, paint over spackle
14. Make connections & insert inset
should hear “click” once secure
3. Remove inset and cover from channel
*cutout dimension above
5. Use spacer block to maintain channel
width
9. Make primary connections via flex
conduit (supplied by others)
10. Slide connectors into channels 11. SYSTEMS: Use screws to secure
connectors to channels
tab should not be past
end of the channel
12. SYSTEMS: Slide channels together.
Secure connectors with screw and nut.
13. SYSTEMS: Establish connection
between segments. (continuious runs,
follow steps 9-13)
*See pg. 6 for further detail on
spacer block fits.
MI-V01 4/20/21
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.262.9990 www.xalusa.com 5
MOUNTING INSTRUCTIONS
BASO 1.5 /2.5 /4.0 recessed trimless

XAL After Sales
Service Hotline
The XAL After Sales Service Hotline
is available from
Monday to Friday, 8 AM - 6 PM (EST)
Hotline: [phone]
Email: [e-mail]
DO NOT DISCARD!

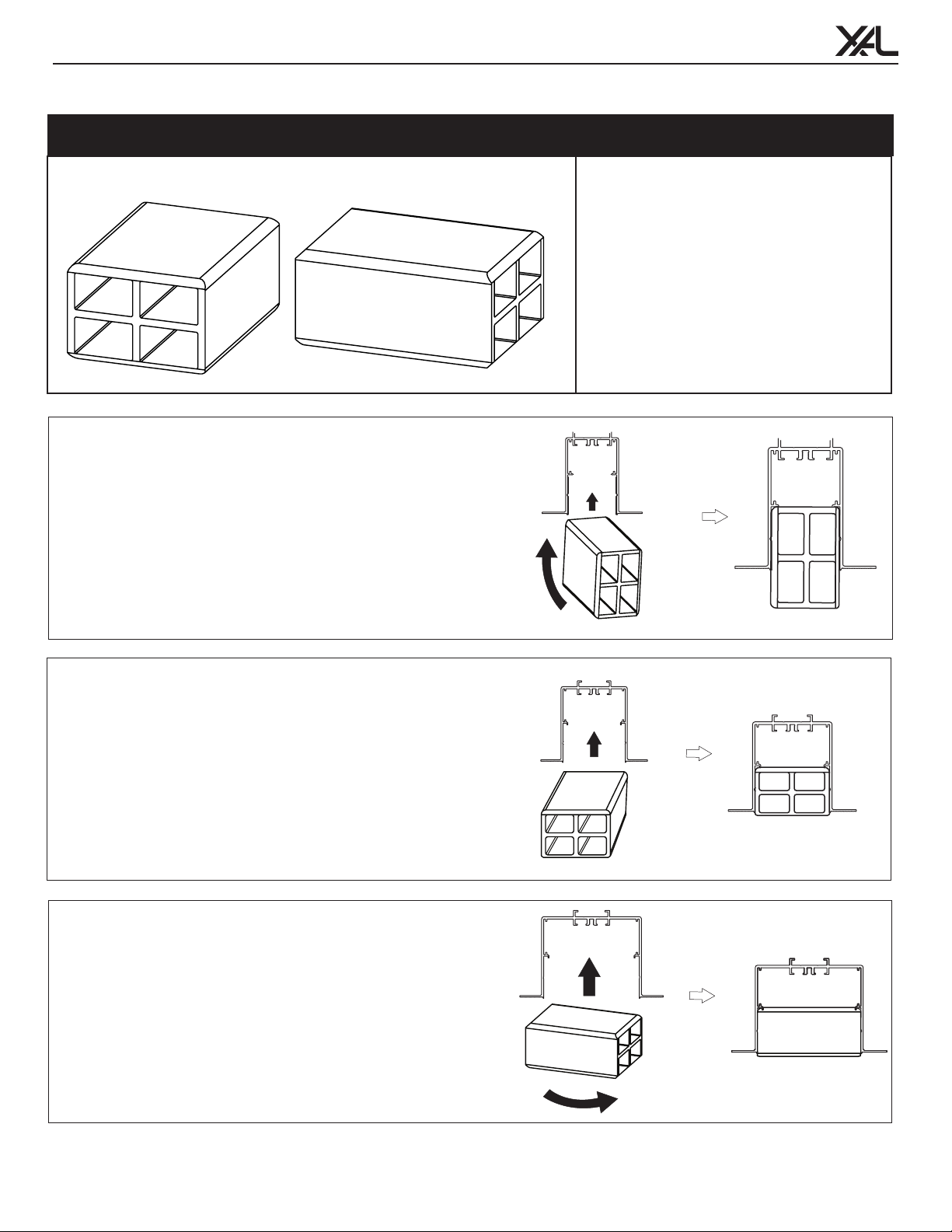

Turn spacer block on its side and insert into
the channel. Leave spacer inside channel while
screwing channel to block.
BASO 1.5
Turn spacer block flat and insert into the
channel. Leave spacer inside channel while
screwing channel to block.
BASO 2.5
Turn measuring block sideways and insert into
the channel. Leave spacer inside channel while
screwing channel to block.
BASO 4.0
Spacer Block
MI-V01 4/20/21
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.262.9990 www.xalusa.com 6
MOUNTING INSTRUCTIONS
BASO 1.5 /2.5 /4.0 recessed trimless

DO NOT DISCARD!

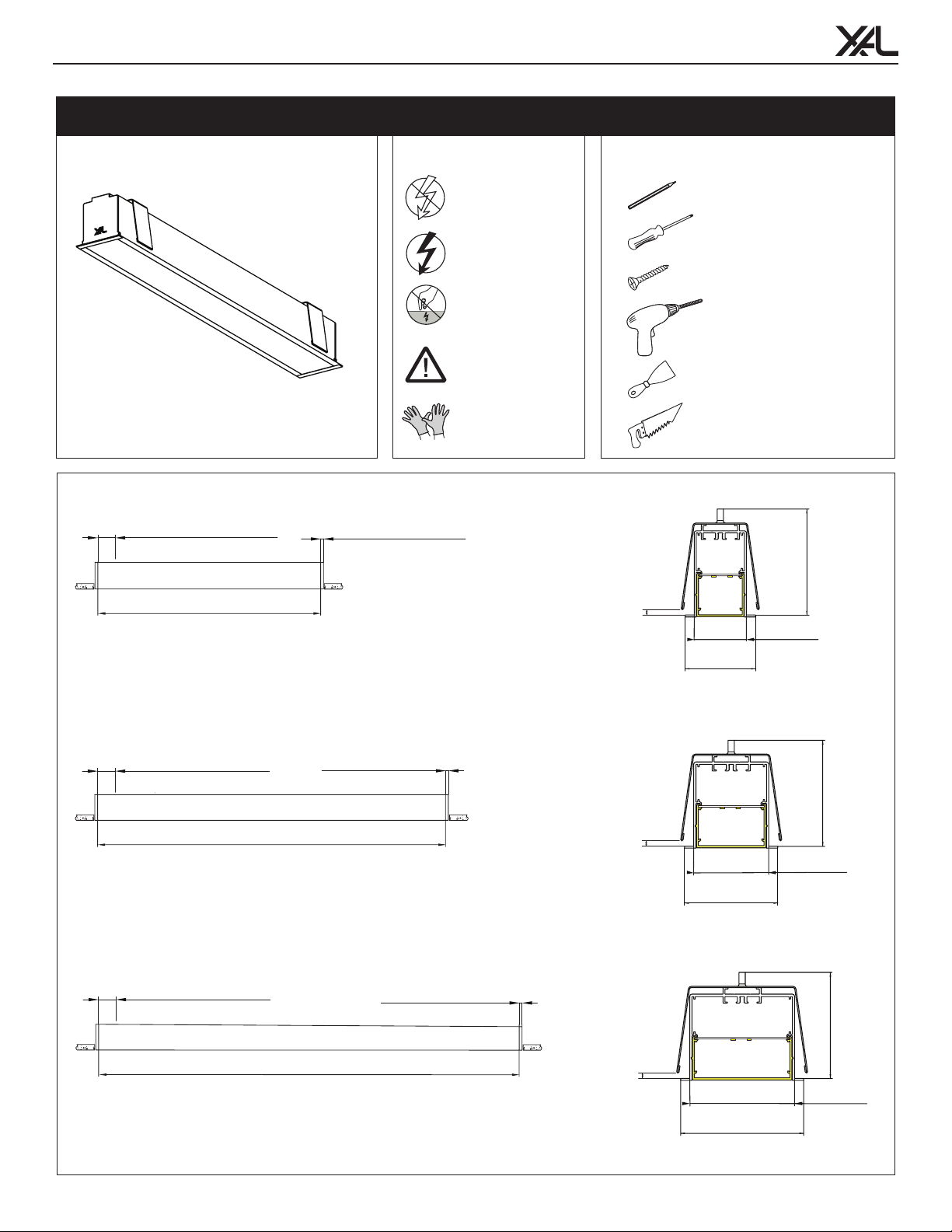

DIMENSIONS
100.1mm
3 15/16"
Cutout
48.4mm
1 /"
57.2mm
2 ¼"
75.8mm
3"
100.7mm
3 15/16"
100.7mm
3 15/16"
100.7mm
3 15/16"
max. 27.2mm
1 /"
min. 4.3mm
/"
max. 27.2mm
1 /"
min. 4.3mm
/"
max. 27.2mm
1 /"
min. 4.3mm
/"
L 48"
1219.2mm
L 96"
2438.4mm
L 72"
1828.8mm
ENDCAP WIDTH
3/32" / 2.4mm
ENDCAP WIDTH
3/32" / 2.4mm
ENDCAP WIDTH
3/32" / 2.4mm
FEEDER POSITION
2" / 50.8mm
FEEDER POSITION
2" / 50.8mm
FEEDER POSITION
2" / 50.8mm
BASO 1.5 DIRECT TRIM
BASO 2.5 DIRECT TRIM
BASO 4 DIRECT TRIM
Cutout
91.5mm
3 /"
Cutout
67.2mm
2 /"
SIGN LEGEND TOOLS REQUIRED (not included)
POWER OFF
POWER ON
DON´T TOUCH
THE LED
PENCIL
DRILL
SCREWS
SCREWDRIVER
SPACKLE KNIFE
DRY WALL SAW
ATTENTION
USE ESD
GLOVES
MI-V01 4/20/21
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.262.9990 www.xalusa.com 7
MOUNTING INSTRUCTIONS
BASO 1.5 /2.5 /4.0 recessed trim

EN
-

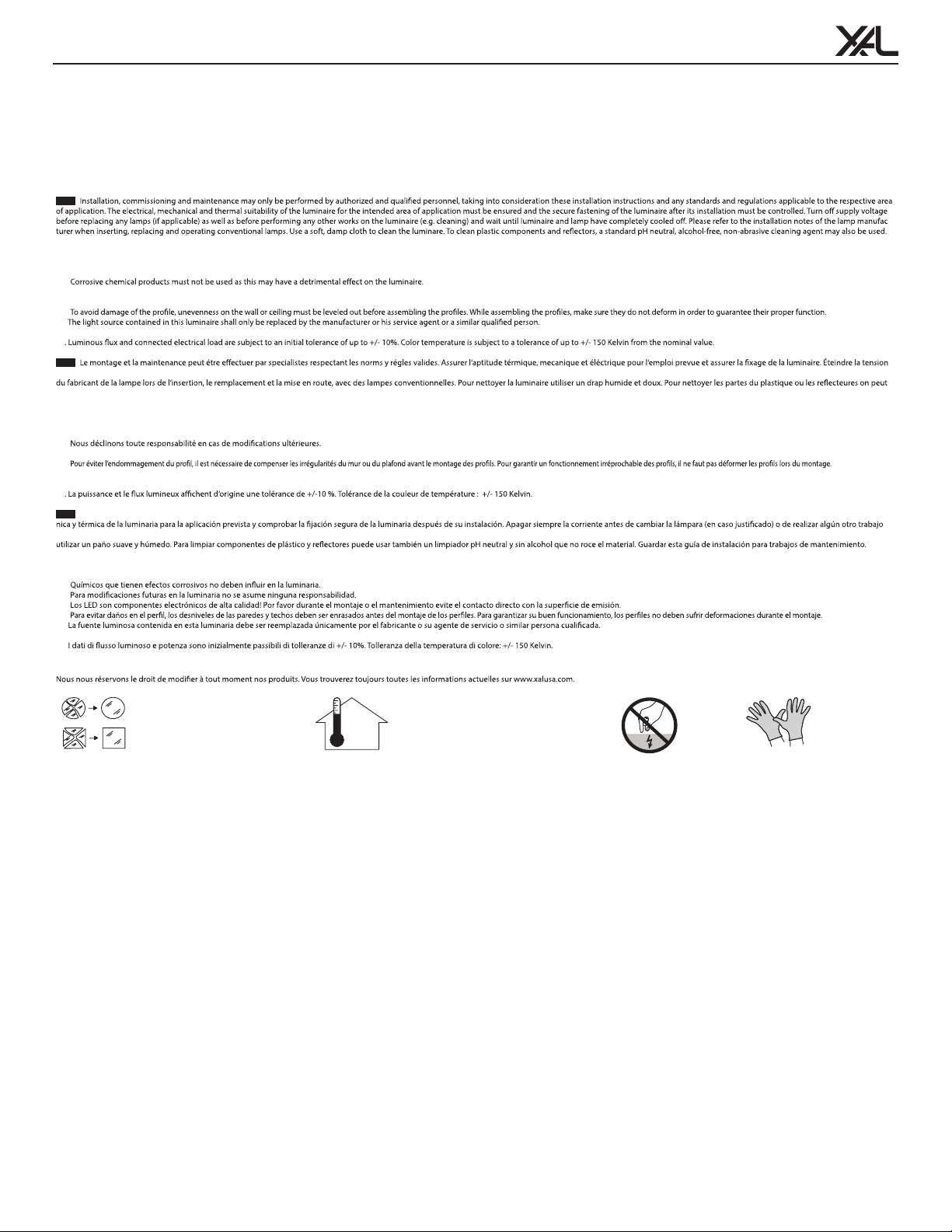

Keep these installation instructions in a safe place as reference for any future maintenance works.
1. The lamp is not suitable for outdoor use.
2. The lamp may only be used with a safety guard.
3. Damaged protection glasses and covers have to be replaced immediately.
4.
5. No liability is accepted for any subsequent change of the luminaire.
6. LEDs are high-quality electronic components! Please avoid touching by hand the LED light emitting surface while assemblying or replacing parts and during maintenance work.
7.
8.
9.
10
The LED circuit must always be closed, before the converter is connected to the main power. XAL does not assume any liability for damages resulting from nonobservance of this rule.
FR
avant de changer les lampes (si applicable) ou avant de realiser travaux (p.ex nettoyage) a la luminaire. Attendre jusqu‘à ce que la luminaire et les lampes ont frâichit completement. Merci de bien vouloir vous référer aux notes d‘installation
utiliser encore un produit de nettoyage sans alcol qui ne fraye pas le material. Garder cette notice de montage pour possiblestravaux de maintenance.
La luminaire n‘ est pas apte pour l‘utilizage extrerieur.
Utilizer la luminaire seulement avec un dispositif de sécurité
Changer immédiatement des verres de sécurité defectes ou bien des écrans de protection.
Evitez tout contact de la lampe avec de produits chimiques corrosifs.
Des LEDs sont des composants électroniques de haute qualité! Eviter tout contact direct de la surface de sorti de lumière de la LED avec les mains lors du montage ou des les travaux de maintenance de la lampe.
La source du luminaire peut être remplace uniquement par le fabricant ou un tiers habilité.
Il faut que le circuit de LED soit fermé avant de connecter le convertisseur. XAL ne assume pas la garantie si cette norme ne se respecte pas.
ES La instalación, la puesta en marcha y el mantenimiento sólo deben realizarse por personal especializado considerando esta guía de instalación y todas las normas y reglamentaciones vigentes. Asegurarse de la aptitud eléctrica, mecá-
en esta (p.ej. Limpieza). Esperar hasta que se enfríen la luminaria y la lámpara completamente. Tener en cuenta las instrucciones de montaje del fabricante al colocar, cambiar y utilizar lámparas convencionales. Para la limpieza de la luminaria
La luminaria no es apta para utilizarla en el exterior.
La luminaria sólo debe accionar con un dispositivo de seguridad.
Cambie de inmediato los vidrios y las tapas de protección dañados.
El circuito LED debe ser cerrado antes de conectar el convertidor. XAL no asume garantía si esta norma no se respete.
We reserve the right to change our products at any time. Current information is available at www.xalusa.com.
Nos reservamos en todo momento el derecho de realizar cambios en nuestros productos. n nuestra página web www.xalusa.com siempre se encontrarán datos actuales.
The lamp may only be operated with
its full protective cover!
L‘apparecchio necessita del relativo
vetro di protezione!
Sólo usar la luminaria con su cobertura
de seguridad completa!
Recommended room temperature: 77 °F.
Temperatura ambiente recomendada: 77 °F.
Température ambiante recommandée: 77 °F.
Use gloves.
Use guantes.
Utiliser des gants.
Don‘t touch the LED
After Sales Service Hotline
Call the XAL After Sales Hotline from
Monday to Friday, 8 AM - 6 PM (EST)
Hotline:
[phone]
Or 24/7 via email:
[email protected]
1.
2.
3.
4.
5.
6.
7.
8.
9.
10
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

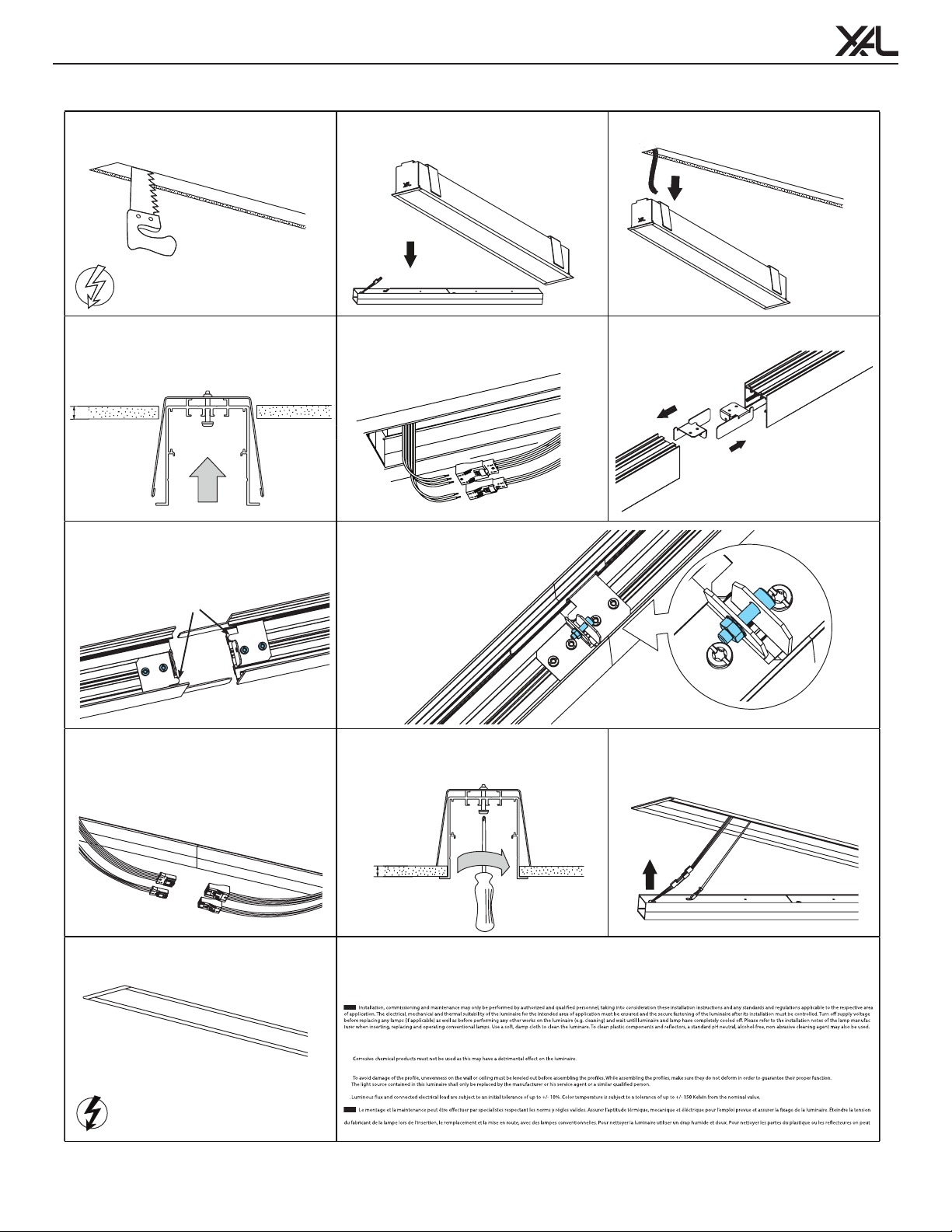

1. Cut out hole in ceiling 2. Remove inset(s) and cover from
channel(s)
4. Insert first channel into ceiling. Repeat
step for additional channels
12. Cover should be flush to channel
10. Turn screw(s) clockwise to secure
bracket(s). Repeat steps for additional
channels
should hear “click” once secure
3. Thread conduit through top of channel
(conduit supplied by others)
max. 27.2mm
1 /"
min. 4.3mm
/"
max. 27.2mm
1 /"
min. 4.3mm
/"
*cutout dimension above
5. Make primary connections via flex
conduit (supplied by others)
6. Slide connectors into channels
7. SYSTEMS: Use screws to secure
connectors to channels
tab should not be past
end of the channel
8. SYSTEMS: Slide channels
together. Secure connectors
with screw and nut.
(continuious runs, follow
steps 6-10)
9. SYSTEMS: Establish connection
between segments. Repeat steps
for multiple channels
11. Make connections and insert inset(s)
MI-V01 4/20/21
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.262.9990 www.xalusa.com 8
MOUNTING INSTRUCTIONS
BASO 1.5 /2.5 /4.0 recessed trim

EN
-
Keep these installation instructions in a safe place as reference for any future maintenance works.
1. The lamp is not suitable for outdoor use.
2. The lamp may only be used with a safety guard.
3. Damaged protection glasses and covers have to be replaced immediately.
4.
5. No liability is accepted for any subsequent change of the luminaire.
6. LEDs are high-quality electronic components! Please avoid touching by hand the LED light emitting surface while assemblying or replacing parts and during maintenance work.
7.
8.
9.
10
The LED circuit must always be closed, before the converter is connected to the main power. XAL does not assume any liability for damages resulting from nonobservance of this rule.
FR
avant de changer les lampes (si applicable) ou avant de realiser travaux (p.ex nettoyage) a la luminaire. Attendre jusqu‘à ce que la luminaire et les lampes ont frâichit completement. Merci de bien vouloir vous référer aux notes d‘installation
utiliser encore un produit de nettoyage sans alcol qui ne fraye pas le material. Garder cette notice de montage pour possiblestravaux de maintenance.
La luminaire n‘ est pas apte pour l‘utilizage extrerieur.
Utilizer la luminaire seulement avec un dispositif de sécurité
Changer immédiatement des verres de sécurité defectes ou bien des écrans de protection.
Evitez tout contact de la lampe avec de produits chimiques corrosifs.
Des LEDs sont des composants électroniques de haute qualité! Eviter tout contact direct de la surface de sorti de lumière de la LED avec les mains lors du montage ou des les travaux de maintenance de la lampe.
La source du luminaire peut être remplace uniquement par le fabricant ou un tiers habilité.
Il faut que le circuit de LED soit fermé avant de connecter le convertisseur. XAL ne assume pas la garantie si cette norme ne se respecte pas.
ES La instalación, la puesta en marcha y el mantenimiento sólo deben realizarse por personal especializado considerando esta guía de instalación y todas las normas y reglamentaciones vigentes. Asegurarse de la aptitud eléctrica, mecá-
en esta (p.ej. Limpieza). Esperar hasta que se enfríen la luminaria y la lámpara completamente. Tener en cuenta las instrucciones de montaje del fabricante al colocar, cambiar y utilizar lámparas convencionales. Para la limpieza de la luminaria
La luminaria no es apta para utilizarla en el exterior.
La luminaria sólo debe accionar con un dispositivo de seguridad.
Cambie de inmediato los vidrios y las tapas de protección dañados.
El circuito LED debe ser cerrado antes de conectar el convertidor. XAL no asume garantía si esta norma no se respete.
We reserve the right to change our products at any time. Current information is available at www.xalusa.com.
Nos reservamos en todo momento el derecho de realizar cambios en nuestros productos. n nuestra página web www.xalusa.com siempre se encontrarán datos actuales.
The lamp may only be operated with
its full protective cover!
L‘apparecchio necessita del relativo
vetro di protezione!
Sólo usar la luminaria con su cobertura
de seguridad completa!
Recommended room temperature: 77 °F.
Temperatura ambiente recomendada: 77 °F.
Température ambiante recommandée: 77 °F.
Use gloves.
Use guantes.
Utiliser des gants.
Don‘t touch the LED
After Sales Service Hotline
Call the XAL After Sales Hotline from
Monday to Friday, 8 AM - 6 PM (EST)
Hotline:
[phone]
Or 24/7 via email:
[email protected]
1.
2.
3.
4.
5.
6.
7.
8.
9.
10
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
MI-V01 4/20/21
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.262.9990 www.xalusa.com 9
MOUNTING INSTRUCTIONS
BASO 1.5 /2.5 /4.0
