HUEDA™ RF Wireless RGBW/Dimmer Remote
1. Product Introduction:
Before you begin, read all warnings and installation instructions and save for future use.
1/2 Copyright © 2017 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
Model: H-2858Z4
The HUEDA™ RGBW and CCT control handheld
remote controller can control 4 different zones
wirelessly and has 4 color save buttons. You can
choose any color through color wheel. Color can be
selected through the color wheel. Requires 3 AAA
ALKALINE batteries(not included).
1-800-387-4081
ledworldlighting.com ledworld.ca |
4. Product Specications:
Operation Voltage
Operation Frequency
Dimensions
4.5V DC (3 x AAA battery)
434 MHz / 868 MHz / 915 MHz
152.67L x 51.87W x19H mm (6.0 x 2.04 x 0.74 inch)
Transmitting Distance 50ft (15.2m) max (Line of sight, No walls)

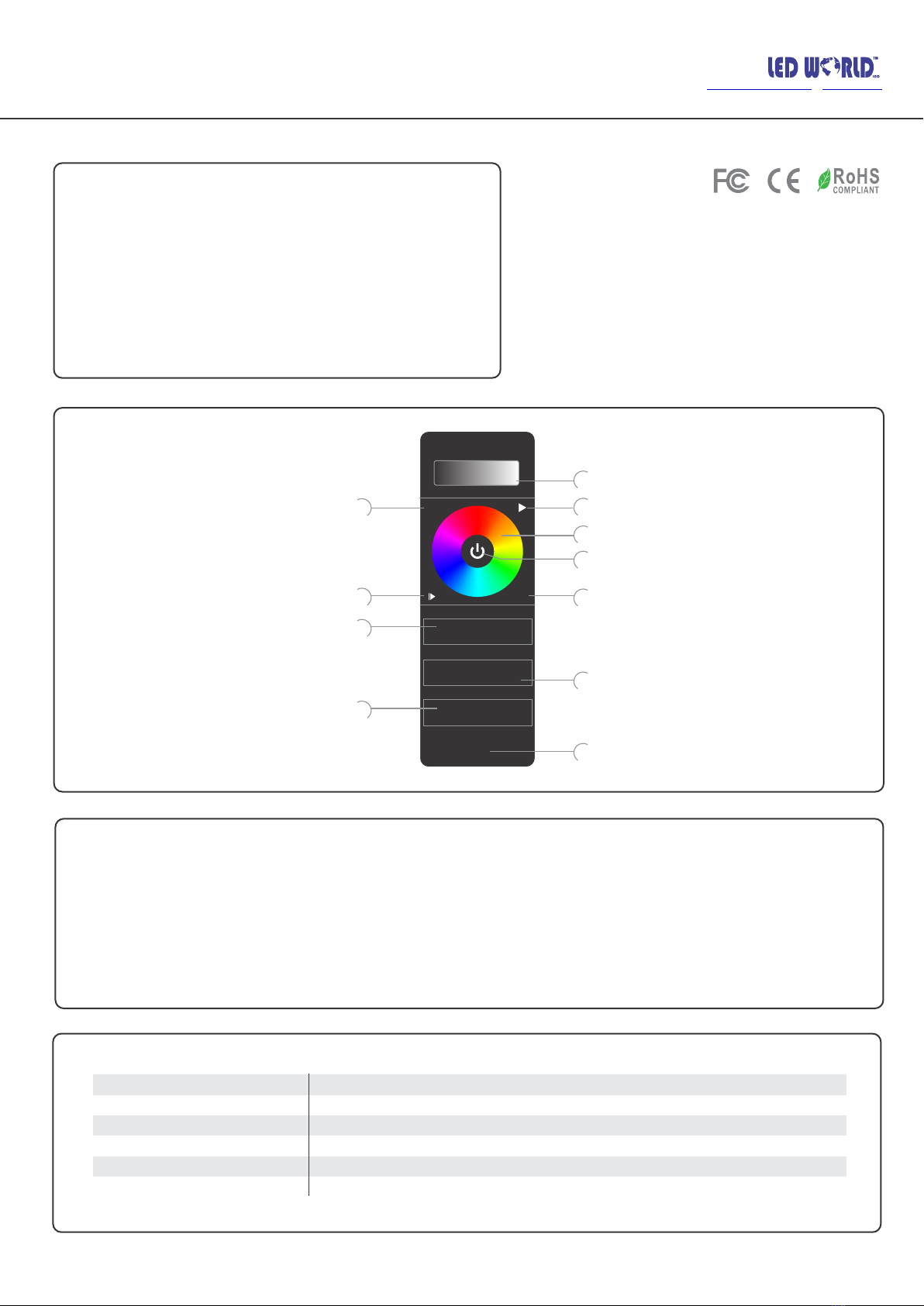

2. Buttons Instructions:
Brightness control slider
Switch White Color variations
ON/OFF Device or Zones
4 zones button. Click to ON/OFF individual zone.
Press and hold to increase/decrease light intensity
of corresponding zone
Running button/Speed button
for running program
Red, Green, Blue and White color Control. Click
to ON/OFF corresponding channel. Press and
Hold to increase/decrease light intensity
Color save button
(press and hold to save
desired color)
Color wheel
Batteries (Back side)
3. Pair/Unpair Guide:
Pair : Press the learning button on HUEDA™ RF Receiver, and then on HUEDA™ Remote Controller press
the desired zone button and then change the color via color wheel on Remote. Connected LED light will
blink that confirms Pairing.
Unpair : Press the learning button on HUEDA™ RF Receiver for about 3 seconds, then Connected LED light
will blink twice that confirms Unpairing.
ŸFour zones/areas
ŸEasy and User friendly interface
ŸRGBW and CCT (Single Color LED Strip) Control
ŸPaired by max 8 different remote controls
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 1.1 03/02/17
Program Setting: Click button, light on receiver will
flash once. Then touch the color wheel and choose
colors(max. 5 colors) and click P button again.
Light on receiver will flash again to confirm
programming
Recall program by 4 different
running mode(jump, flash, fade, strobe)
Operating Temperature 0°C~40°C (32°F~104°F)
Output RF signal

2/2
RF RGBW Receiver
(Outdoor)
(H-R009FA(W))
RF RGBW Receiver
(H-R009PD)
7. Compatible HUEDA™ Series Color Controllers
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Note: The manufactures is not responsible for any radio or tv interference caused by unauthorized modications to this equipment.
Such modications will void the user's authority to operate the equipment and warranty.
THREE YEAR LIMITED LIGHTING WARRANTY
LED WORLD INC. warranties this product for three year (some exceptions may apply) from the date of shipping unless otherwise noted in writing. This warranty is expressly in lieu of all other
warranties expressed or implied. Under this Limited Warranty, the obligation of the company is limited to replacing on a prorated basis, at its option, any component found to be defective.
This Limited Warranty does not apply to damage caused by buyer or alteration to the product or incorrect power supply. Factory warrantees are covered by the original manufacturer and
claims must be submitted to them. Use only with LED World’s regulated class 2 power supply.
LED World Inc. And its providers will never be liable to you or any other person for any indirect, incidental, consequential, special, punitive or exemplary loss or damage arising from,
connected with, the purchase of products, including but not limited to loss of data, business, markets, cost of labour, savings, income, profits, use, production, reputation or goodwill,
anticipated or otherwise, or economic loss, under any theory of liability (whether in contract, tort, strict liability or any other theory or law or equity), regardless of any negligence or other fault
or wrongdoing (including without limitation gross negligence and fundamental breach) by led world inc. Or any person for whom led world inc. Is responsible, and even if led world inc. Has
been advised of the possibility of such loss or damage being incurred.
If a product is defective, we will replace the product with similar or identical product or at our option a credit towards a future purchase. To make a claim under this warranty, obtain a return
authorization number.
1-800-387-4081
ledworldlighting.com ledworld.ca |
5. Product Dimension:
Model: H-2858Z4
51.87mm (2.04”)
152.67mm (6.0”)
19mm (0.67”)
6. Operation Single Zone/Multizone
HUEDA™ RF Wireless RGBW/Dimmer Remote
WR G B
41 2 3
S4S1 S2 S 3
W+
P
P
zon e
sce ne
WR G B
41 2 3
S4S1 S2 S 3
W+
P
P
zon e
sce ne
Zone 1 Zone 1 Zone 2 Zone 3
