Ledah 240 User manual

1
INSTRUCTION MANUAL
Before operating this unit please read and follow
all instructions
240
PAPER FOLDER

2
Thank you for purchasing the LEDAH240 Paper Folding Machine.
Please read these instructions before operating the machine and
observe the listed safety precautions.
CONTENTS
SAFETY PRECAUTIONS 3
KNOW YOUR PAPER FOLDER 4
SPECIFICATIONS 4
CONTROL PANEL 4
INSTALLATION & SETUP 5
INSTALL FOLD PLATES 6 - 7
SETTING UP THE FOLD SIZE & TYPE 8
SETTING UP THE OUTFEED ROLLER 9
SETTING UP THE PAPER FOR FOLDING 9
OUTFEED ROLLER POSITION 9
OPERATION & COUNTER FUNCTION 10
SETTING UP CUSTOM FOLDS 11
TROUBLESHOOTING 12
ERROR MESSAGES 13
CONTACT 14

3
1. Your safety as well as the safety of others is important to LEDAH. In this manual are important safety
instructions. Please read and retain these instructions.
2. Read all instructions before use. Save these instructions for later use.
3. Follow all warnings and instructions marked on the product.
4. Unplug this product from the wall outlet before cleaning. If needed, the housing can be cleaned with a
cloth, dampened with a mild soap and water solution.
5. Paper Folder should never be placed near or over a radiator, heat register or water source.
6. Do not rest anything on the power cord. Do not place machine where people may walk or trip on the
cord.
7. If an extension cord is use, make sure that the total ampere ratings of the products plugged into the
extension cord do not exceed the extension cord’s ampere rating and/or does not exceed 15 amperes.
8. Do not alter the unit or power cord in any way. Do not operate the unit if it or the power cord appears
damaged in any way.
9. Do not service this product yourself. Opening/removing covers may expose you to dangerous voltage
points or other risks, and will void the manufacturer’s warranty. Unplug the machine from the outlet and refer
servicing to qualified service personnel.
10.Keep out of reach of children and pets
11.This folder should be operated only with an operator in attendance
12.BE SURE THE ON/OFF MASTER SWITCH (AT THE BACK OF THE UNIT) IS IN THE “OFF” POSITION BEFORE PLUG-
GING THE POWER CORD INTO AN OUTLET
This machine must not be operated by children. Keep children and
pets away from the machine
Avoid touching the paper feed slot. Never insert hands or ngers
into the machine
Keep personal and loose objects (clothing, jewelry, ties, etc)
away from paper feeding slot
Avoid hair touching the paper feed slot. Keep hair/face away from
the paper feed slot.
Keep aerosol products away from letter folding machine. Do not
use ammable, petroleum-based or aerosol cleaners on or near
this product. Some agents may combust causing serious injury.
SAFETY PRECAUTIONS

4

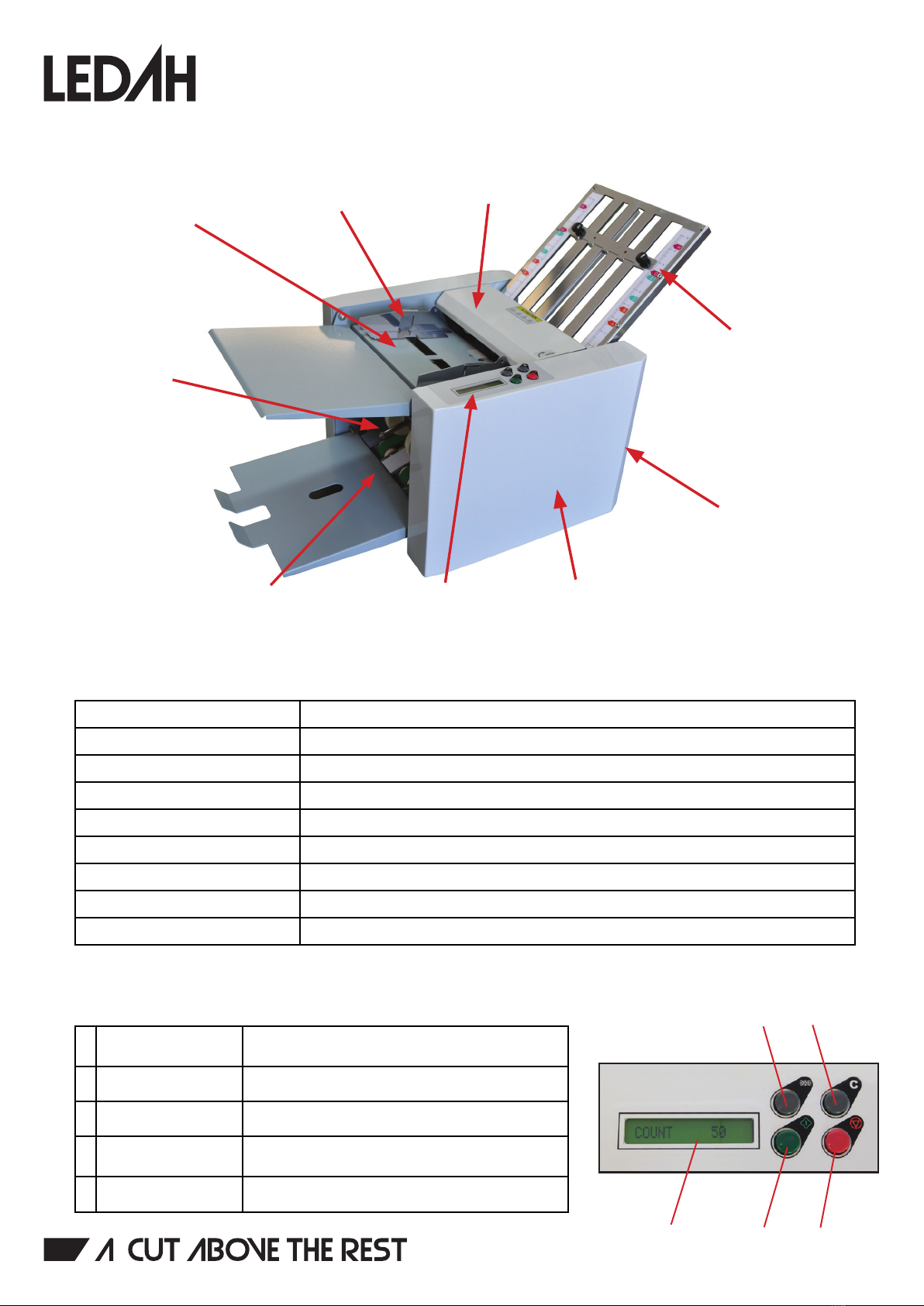

KNOW YOUR PAPER FOLDER
Control Panel
Infeed Tray
Front Cover
Paper Guides
Outfeed Conveyor
Lower Fold Plate
Upper Fold Plate
Outfeed Roller
SPECIFICATIONS
Paper Tray Capacity Up to 300 sheets
Speed 7200 sheets per hour | 120 sheets per minute
Paper Width 128mm - 210mm
Paper Length 182mm - 297mm
Sheet Thickness 35 - 120gsm
Fold Types C - Letter | Z - Zigzag | V - Half | Double Parallel| Custom
Machine Dimension 670 (W) x 360 (D) x 425 (H)mm
Machine Weight 18kg
Machine Power Voltage: 220-240VAC~50Hz Current: 0.4A
CONTROL PANEL
1 LCD Screen Displays status, counter, batch counter, error
messages
2 START Button Press to start operation
3 STOP Button Press to stop operation
4 BATCH Button Press to change batch counting quantity and
interval
5 CLEAR/RESET Button Press to clear counter
123
4 5
Top Cover

5

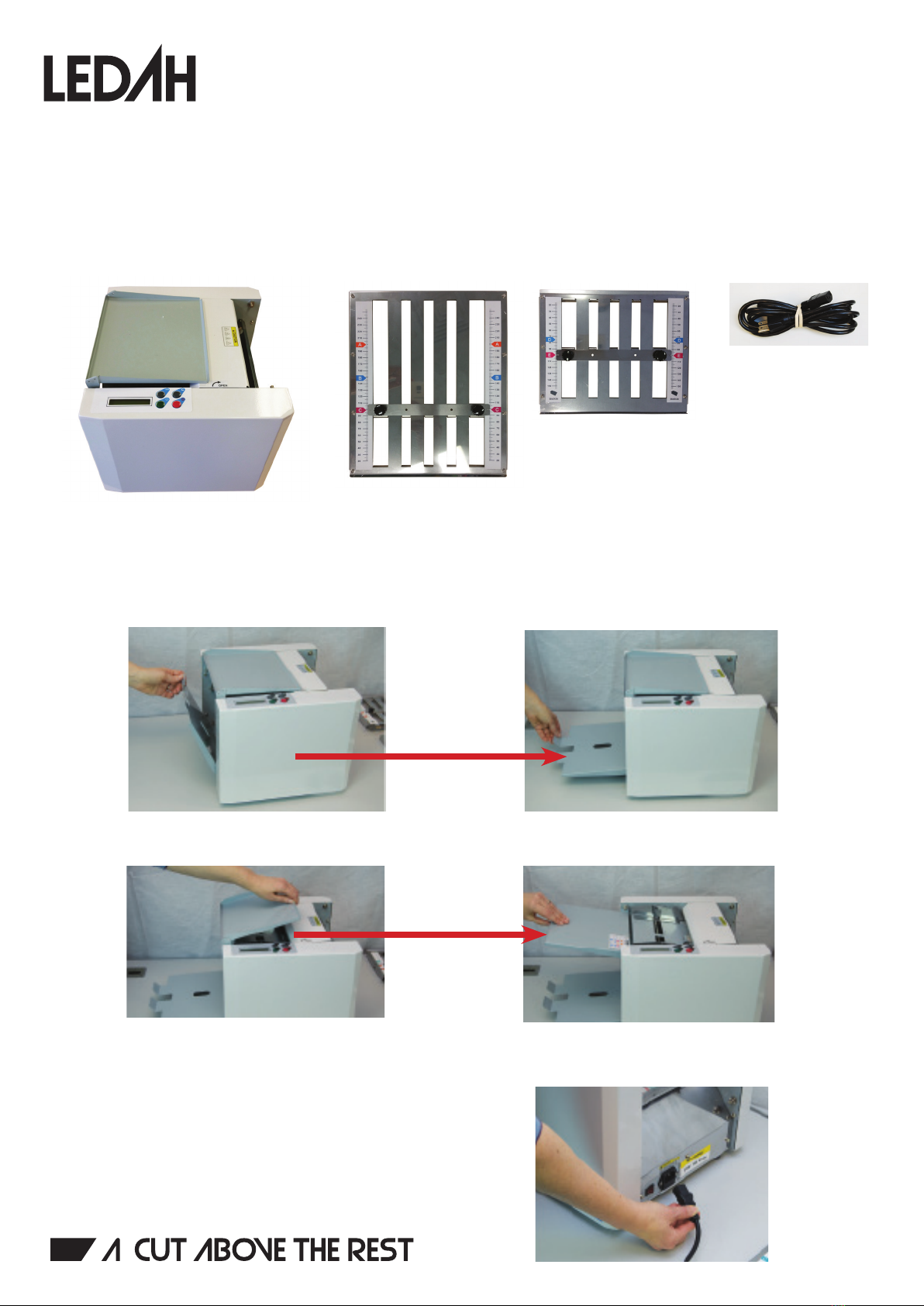

INSTALLATION & SETUP
Inspect your machine and its associated parts for damage.
Ensure you have all components after unpacking:
1. LEDAH240 Paper Folding Machine 2. Upper and Lower Fold Plate 3. Power Cord
1. 2.
3.
4.
Place the LEDAH240 on a sturdy, level surface. Lower the output conveyor tray into its fully open position
SETUP
Open the Paper Infeed Tray
Attach power cable to back of the machine and plug into appropriate wall outlet

6
INSTALL FOLD PLATES
Fold Stop Fold Stop Knobs
Half Fold Diverter
Fold Stop
Lower Fold Plate
Upper Fold Plate

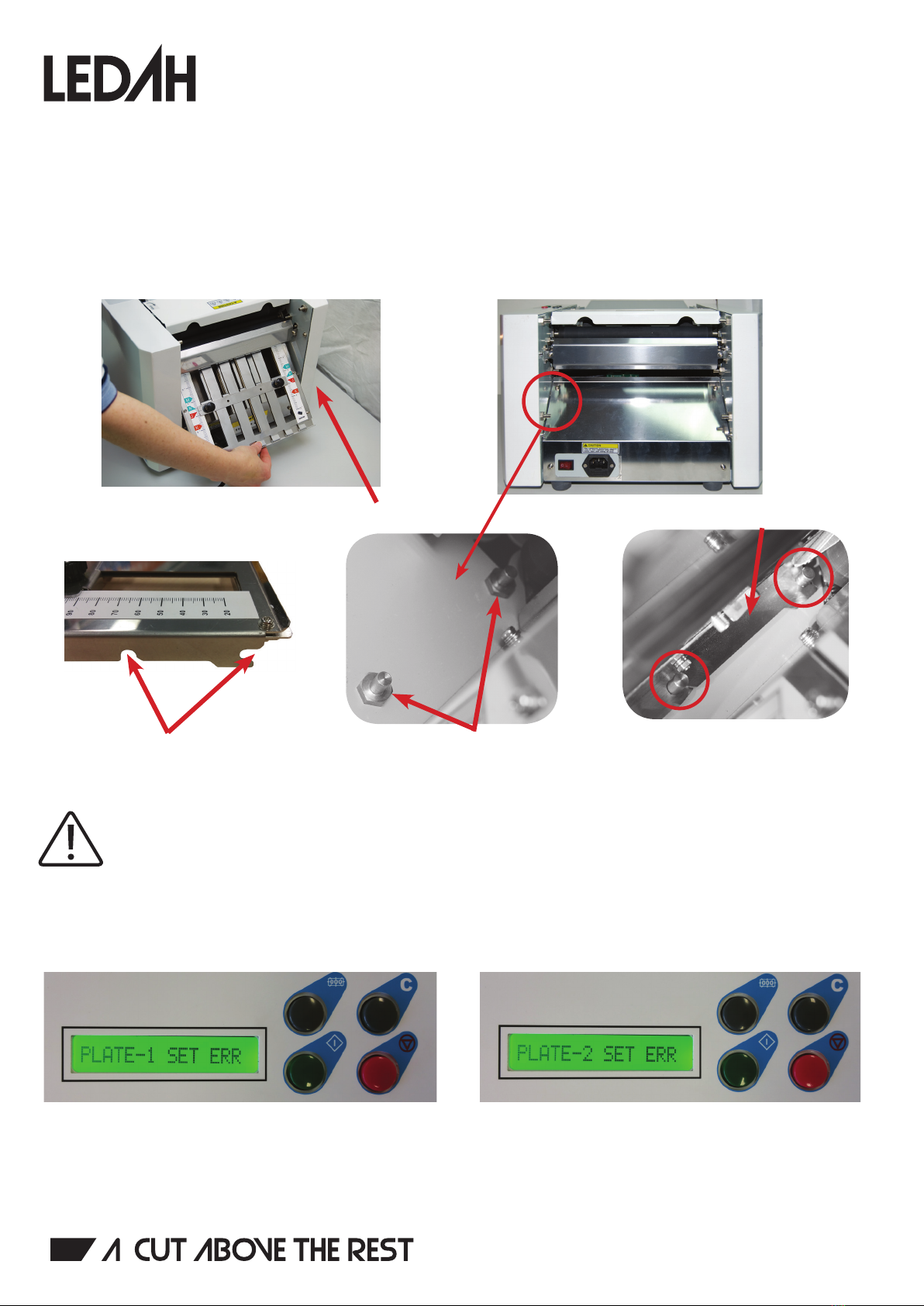

UPPER FOLD PLATE
Install the upper fold plate at an angle, as shown below. Align the notches on each side of the fold plate with
the pins on each side of the machine body. Push gently on the fold plate to lock it into position.
Note - If the fold plate is not installed correctly once the machine is turned on - it will display an error
message
Upper Fold Plate Pins
Upper Fold Plate
Upper Fold Plate seated on pins
Insert Upper Fold Plate at an angle
Upper Fold Plate
Notches

7
LOWER FOLD PLATE
Install the lower fold plate at an angle, as shown below. Align the notches on each side of the fold plate with
the pins on each side of the machine body. Push gently on the fold plate to lock it into position.
Note - If the fold plate is not installed correctly once the machine is turned on - it will display an error
message
Lower Fold Plate
Notches
Insert Upper Fold Plate at an angle
Lower Fold Plate Pins
Lower Fold Plate
Lower Fold Plate seated on pins
TROUBLESHOOTING
If either of the Fold Plates are not installed correctly, an error message will show on the LCD display as below.
Please recheck that the Fold Plates are seated correctly on the machine pins as per the instructions for their
installation.
Upper Plate is not installed correctly.
Remove Plate and reinstall.
Lower Plate is not installed correctly.
Remove Plate and reinstall.

8

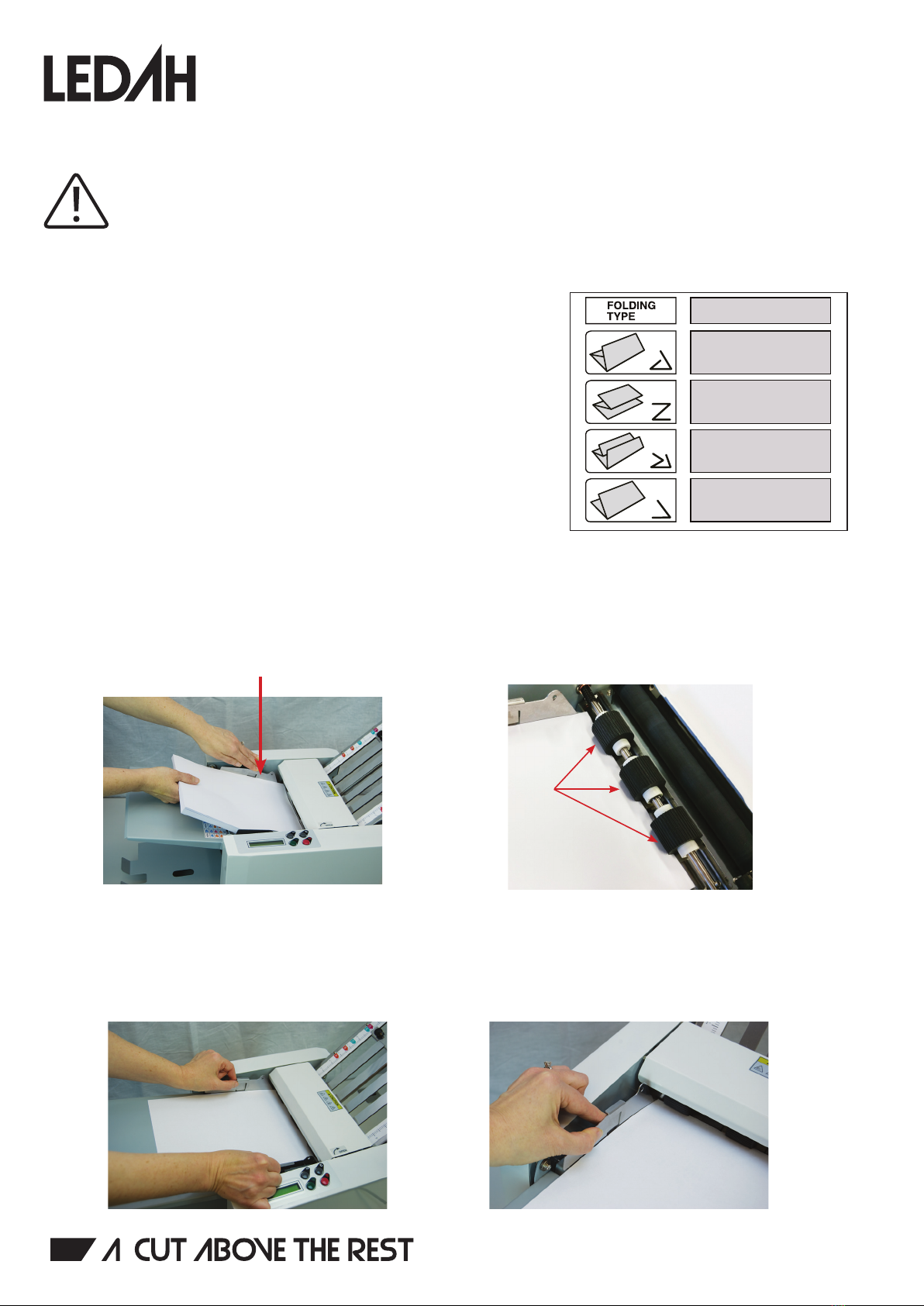

SETTING UP THE FOLD SIZE & TYPE
• Determine the Fold Type desired from the Fold Chart
C
A4
There are 4 Fold Types to choose from:
The C Fold or Letter Fold
The Z Fold or Zig Zag Fold
The Double Parallel or Gate Fold
The V Fold or Half Fold
1. Set the Upper and Lower Fold Plate Stops according to the Fold Chart above.
For example, if wanting a Z Fold, set the Upper Plate Fold Stop to “C” and the Lower Fold Plate Stop to “E”.
2. To adjust the Fold Plate Stops, loosen the two thumbscrews and slide the Fold Stop up or down accordingly.
Once the correct position has been reached, tighten the thumbscrews.
• V Fold or Half Fold
Please Note. To set a V Fold or Half Fold:
1. Set the Upper Plate Stop to “B”
2. Remove the Lower Fold Plate (if inserted already), rotate it 180oand re-install it.
Fold Stop
Fold Stop Knobs
Align the Fold Stop notch
with the matching letter

9
SETTING UP THE OUTFEED ROLLER
Please note - A zip tie is used to hold the Outfeed Roller in place during transportation.
Please cut and remove the tie before using the machine.
The Outfeed Roller needs to be in the correct position to ensure the folded paper is fed out properly and does
not stack/jam inside the machine.
1. Loosen the thumbscrew
2. Slide the Outfeed Roller up or down to the desired position
3. Refer to the Outfeed Roller Chart for the correct position
4. Tighten the thumbscrew
OUTFEED ROLLER POSITION
4
3
3
2
SETTING UP THE PAPER FOR FOLDING
1. Load the paper by pressing down on the spring-loaded infeed tray. Make sure the leading edge of the paper
is underneath the rubber feed wheels.
2. Adjust the side paper guides by gently pinching them and sliding them inward toward the paper stack. Be
sure they are not too snug/tight against the paper stack. The paper sheets should be able to be moved freely.
The paper should lie flat.

10
OPERATION & COUNTER FUNCTION
If you wish to fold all available paper in the paper tray,
press the START button. The machine will begin folding
paper and the counter will record the number of sheets
folded. The machine will stop automatically once all
paper has been folded.
START Button
SIMPLE COUNT
To pre-set the number of sheets to be folded:
1. Press the BATCH button. The LCD display will increase
in number until the user reaches the desired sheet
number.
2. Press the START button to begin folding paper. Please
ensure the required amount of sheets are in the paper
tray.
To rest the counter to ZERO, press and hold the C button
for 3 seconds.
BATCH Button
CLEAR Button
BATCH COUNT
To fold a set number of sheets with a pause between
sets, use the Batch Count function.
1. Press the BATCH button repeatedly until the number
of sheets to fold is reached.
2. Press the STOP button to set the time delay between
each sheet (up to 30 seconds).
3. Press the BATCH button to adjust the time delay
between each set (up to 30 seconds)
4. Press the START burron to begin folding paper.
BATCH Button
CLEAR Button
