LedGlow 2pc LED Tailgate Light Bar User manual

Tech Support 856-768-5700 Ext. 2 • [e-mail]
INSTALLATION GUIDE
1
• Alcohol prep pads
• Zip Ties
• Electrical tape
• Cordless Drill
• Phillips head #2 Drill Bit
• 7/64” Drill Bit
• Ratchet
• Socket set (variety sizes)

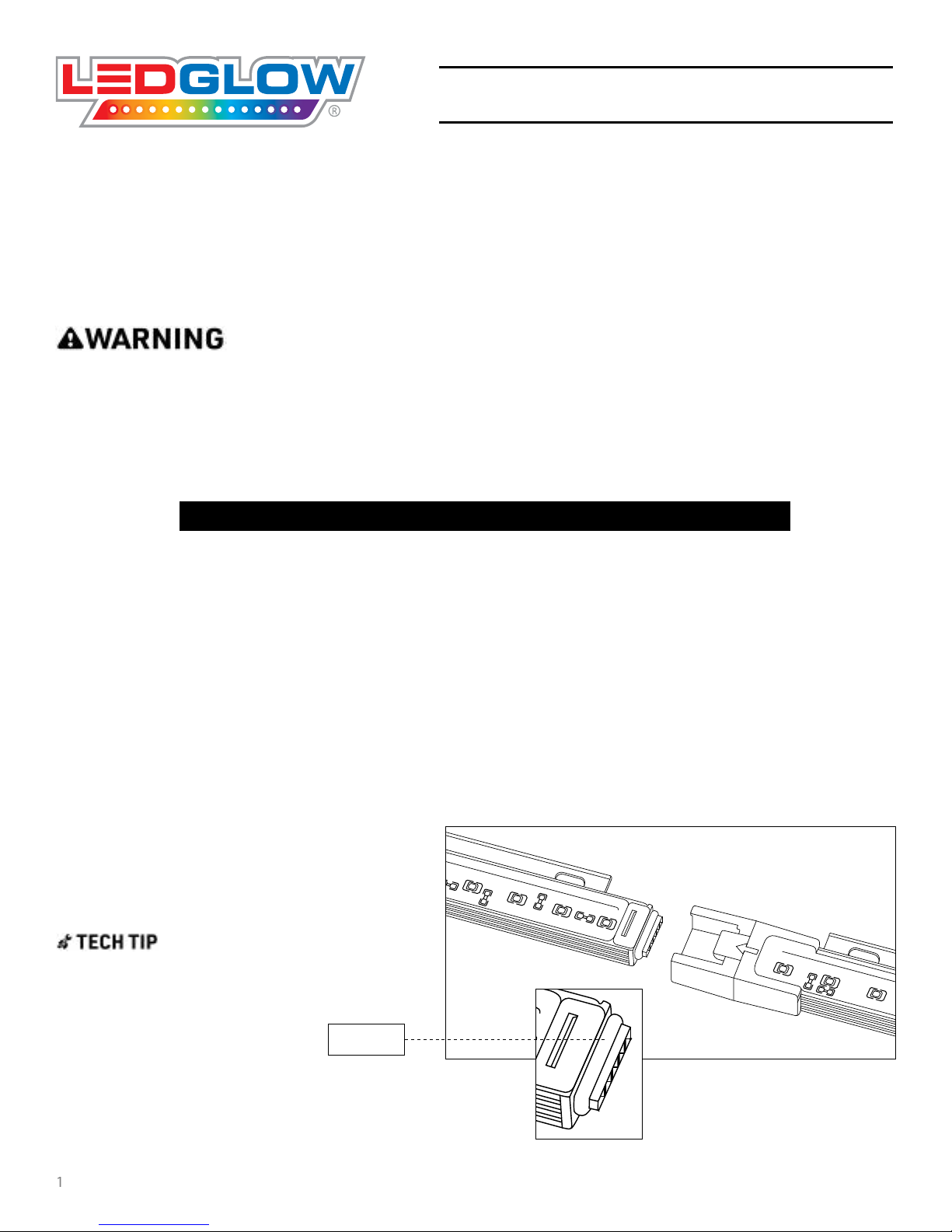

1. Assemble the 2pc LED Tailgate Light Bar by
joining the two halves of the Light Bar together.
Conrm the O-Ring is seated on the male end
of the connector. The interlocking design will
lock into place.
: If disassembly of the Tailgate Light
Bar is required, use a at head
screwdriver to help release the
retainer clip.
:LEDGlow is not responsible for any nes that you may receive while using this
lighting kit. Please check your state and local laws before installing this LED
lighting kit. Every state has dierent policies and procedures in place regarding
aftermarket vehicle accessories. The installation of this kit is recommended to
be installed by a licensed professional. The improper installation of this kit will
void all warranties.
2pc LED Tailgate Light Bar Installation Guide
• Test light
• Pliers
• Tape Measure (recommended)
• Marker (recommended)
• Wire strippers (if hard-wiring)
• Splice connectors
(if hard-wiring)
• Wire crimpers (if hard-wiring)
Tools Needed
Lightbar Assembly
O-Ring
Revised July. 2018

Tech Support 856-768-5700 Ext. 2 • [e-mail]
INSTALLATION GUIDE
2
LEDGlow Lighting, LLC • LEDGlow.com
2. We recommend that you power and test your kit
with a 12V power source for full functionality
prior to installation.
• Test power and function of LEDs by
connecting the Flat 4 Pin Wire Connector
to a trailer tow harness.
• If the vehicle is equipped with a 7 pin trailer
connector, a 4 pin adapter is required.
If a trailer harness is not available, test power
by performing the following steps:
oUse wire cutters to cut o the Flat 4 Pin
Trailer connector.
oConnect the white ground wire to the
negative side on the battery.
Wiring Diagram can be found on page 4
oThen, connect each of the remaining
wires one by one to the positive side
of the battery to ensure all LED’s and
functions are working correctly.
oRemove the Tailgate Light Bar from
power once testing is complete.
Test Your Kit
Mounting
3. Mount the Tailgate Light Bar.
• Remove the truck tailgate, if possible
• Prep the mounting surface on the truck and
the back of the LED Light Bar by thoroughly
cleaning with an alcohol prep pad.

Tech Support 856-768-5700 Ext. 2 • [e-mail]
INSTALLATION GUIDE
3
LEDGlow Lighting, LLC • LEDGlow.com
• Using a tape measure and marker, mark
mounting locations on the truck for the
Tailgate Light Bar to ensure it is level and
positioned evenly.
• Peel o the protective backing on the
double-sided adhesive mounting pads.
Evenly adhere 2 pieces per side to the back
of the Tailgate Light Bar.
:Use Adhesion Promoter on adhesive
contact areas to allow for the
strongest bond available at www.
LEDGlow.com
• Align the LED Tailgate Light Bar with the
marks created on the truck and connect
to the wires on the driver side of the truck.
• Press the Light Bar onto the mounting surface.
• Drill pilot holes through the mounting slots
on the light bar using a 7/64” drill bit.
• Screw the self-tapping screws into
the pilot holes.
4. Connect the Tailgate Light Bar to power by
choosing your preferred power option:
Then proceed to Step 5 to wire the Reverse Light.
Flat 4-Pin Connector Power Option
• Plug in the at 4 pin wire connector to a
trailer tow harness. Routing the wires behind
the rear bumper to hide them.
: Dielectric Grease is suggested to
provide a barrier to reduce corrosion.
Apply a small amount of Dielectric
Grease across the female connection
points of the 4 Pin Trailer Connector
on both the LED Tailgate Bar and the
truck.
• Use a Y-Splitter harness to allow for (2)
trailer tow harnesses, available
at www.LEDGlow.com.
Connecting To Power

Tech Support 856-768-5700 Ext. 2 • [e-mail]
INSTALLATION GUIDE
4
LEDGlow Lighting, LLC • LEDGlow.com

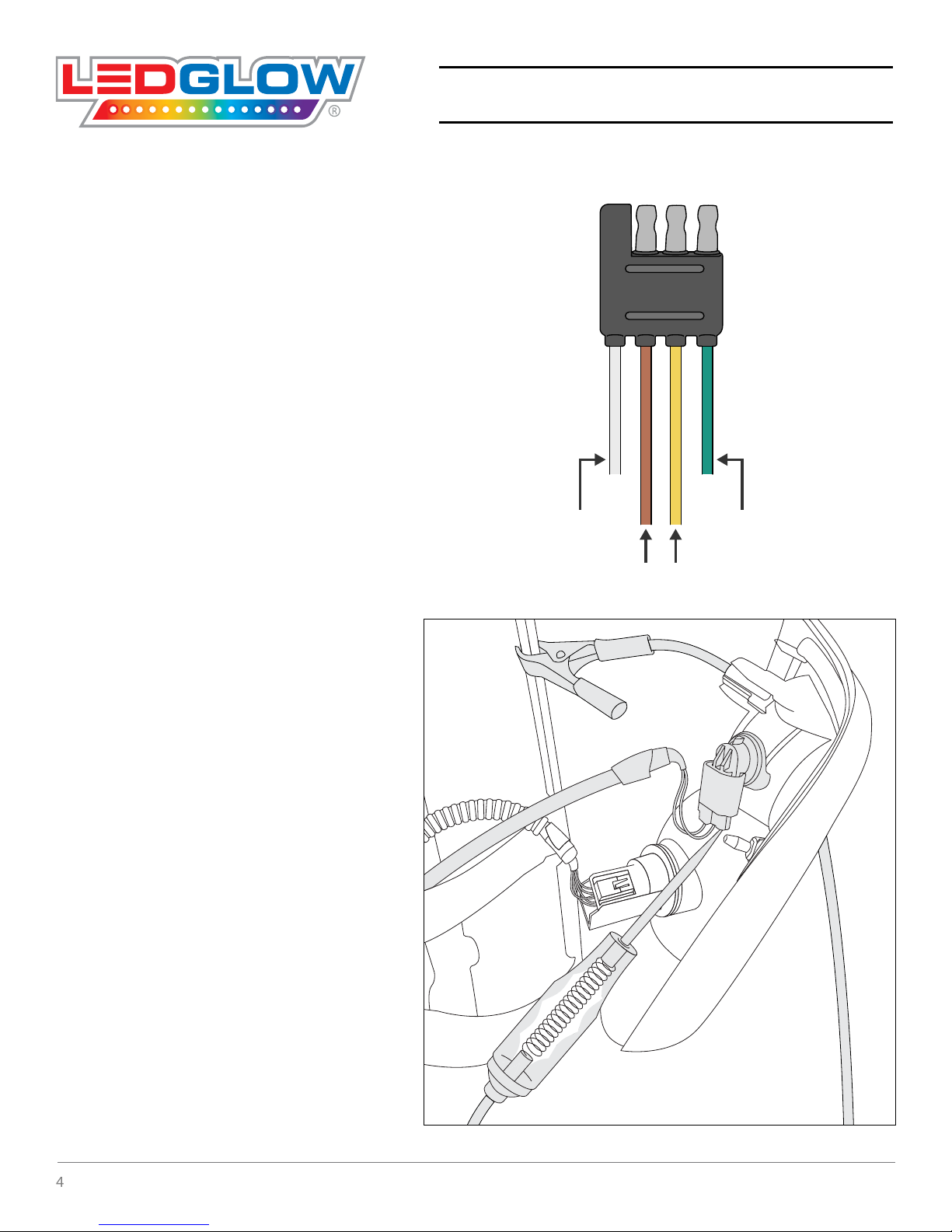

Hardwiring Power Option
White Wire – Ground
Brown Wire – Running Light
Yellow Wire – Left Turn Signal
Green Wire – Right Turn Signal
White Wire w/ Spade Connector - Reverse Light
• Use wire cutters to cut o the Flat 4 Pin
Trailer connector.
• Connect the Light Bar White Ground Wire
to a reliable unpainted ground source.
• Refer to the LED Light Bar wire schematics
depicted above. Connect each wire from
the Light Bar accordingly to the vehicle
source wires. Use proper technique such
Ground
Running Light Left Turn Signal
Right Turn Signal
as wiretaps, soldering or splicing.
5. Connect the White Reverse Light Wire to the truck
reverse light 12 volt power source.
• Peel the additional White Reverse Light Wire
from the wire harness, then run the lead
power harness through the bumper and
place it into the 4 Pin Trailer Connector on
the back side of the truck.
• To enable the reverse light feature, place the
vehicle in reverse so the reverse lights are
illuminated. Remove the driver’s side tail light
to gain access to the tail light wiring. Using
the test light, located the 12 Volt power wire
for the reverse light.
• Clamp the wiretap onto the truck’s Reverse
Light Wire. Insert the spade connector
from the LED Light Bar Reverse Wire into
the wiretap.
6. Reassemble truck components as necessary, such
as the tailgate or tail lights.
7. Secure any excess wire with zip ties. Conrm
connections are secure and check for proper
function of the LED Tailgate Light Bar.
Reverse Light Wire

Tech Support 856-768-5700 Ext. 2 • [e-mail]
INSTALLATION GUIDE
5
LEDGlow Lighting, LLC • LEDGlow.com
