LedGlow Million Color SMD LED Slimline RV User manual

Rev. May-21
Million Color SMD LED Slimline RV Underbody Kit
Warning: Please check your state and local laws before installing this Million Color SMD LED Slimline RV Underbody Kit. Every state has
different policies and procedures in place regarding aftermarket vehicle accessories. LEDGlow is not responsible for any fines that you may
receive while using this underbody kit. This kit is for off road use only.
Warning: We recommend using a licensed professional to install this kit. The improper installation of this kit will void all warranties.
The control box that powers the underbody tubes must be installed in a dry location inside of the vehicle. Having this part exposed to water
or the elements will cause the kit’s controller to fail. Any water damage or corrosion to this part will VOID all warranties.
PLEASE READ THE FOLLOWING INSTRUCTIONS THOROUGHLY BEFORE INSTALLING AND OPERATING THIS UNDERBODY KIT.
RV Underbody Kit Includes:
(Quantity for parts will vary depending on the kit you
have.)
•24 Inch Tubes (45 Individual LEDs)
•36 Inch Tubes (60 Individual LEDs)
•46 Inch Tubes (90 Individual LEDs)
•Control Box
•Wireless Remote
•Connection Hub
•Cable Extension
•Connector Endcap
•Underbody Tube Brackets
•Zip Ties
•Screws
RV Underbody Kit Installation:
1. This kit is designed to be expandable, and you can add onto the system using
Connection Hubs. Each Connection Hub is designed to hold a max of 8) 46” tubes,
which is 720 individual LEDs. If you are using smaller tubes, you can connect more
tubes if you do not exceed the 720 individual LED count.
2. Temporarily power your kit with any 12-volt source and test for full functionality before
you move forward with the installation. Simply connect the red wires from the Control
Box and Connection Hubs to the positive terminal on the vehicle’s battery and the black
wires from the Control Box and Connection Hubs to any reliable ground source. Power
the kit and test all the colors and modes. If everything is good, remove power.
3. Be extremely aware of the location of the brake lines and fuel lines and do not mount
any of the underbody tubes too close to the location of any fold down steps,
compartments that open, slide outs, exhaust from the engine or generator, and any other potential obstructions. Leave at least 8
inches between the exhaust and the underbody tubes. Keep the tubes and the power wires away from any moving parts.
•When arranging the tubes around the RV lay the longer 46” tubes out first looking under the RV for potential mounting
locations. Different obstructions will play a big part in the configuration of short and long tubes. Plan to have a shorter
24” tube next to the stairs on either side as the width of the stairs will take away some area where you can safely mount
lighting.
•Keep in mind the configuration of the tubes may be different from the left and right sides of the RV.
•Due to the width of your RV, you should be able to mount 2) 36” tubes in both the front and the rear. Keep in mind any
obstructions that could distort the light as well as moving parts and heat and avoid these areas.
Note: 3 brackets are provided for each tube: one for each end of the tubes and one for the center of the tubes.
•If you have a location where the bracket will not fit or cannot be mounted, we recommend using wire ties and attaching
to a conduit or a bracket that is already in place.
4. When you are laying out the tubes and determining the Control Box and Connection Hub
locations, keep in mind that you can connect 2 hubs directly off of the Control Box to create
zones. For instance, you can utilize the driver side and passenger side, front and rear, or any
other locations that best suit your installation.

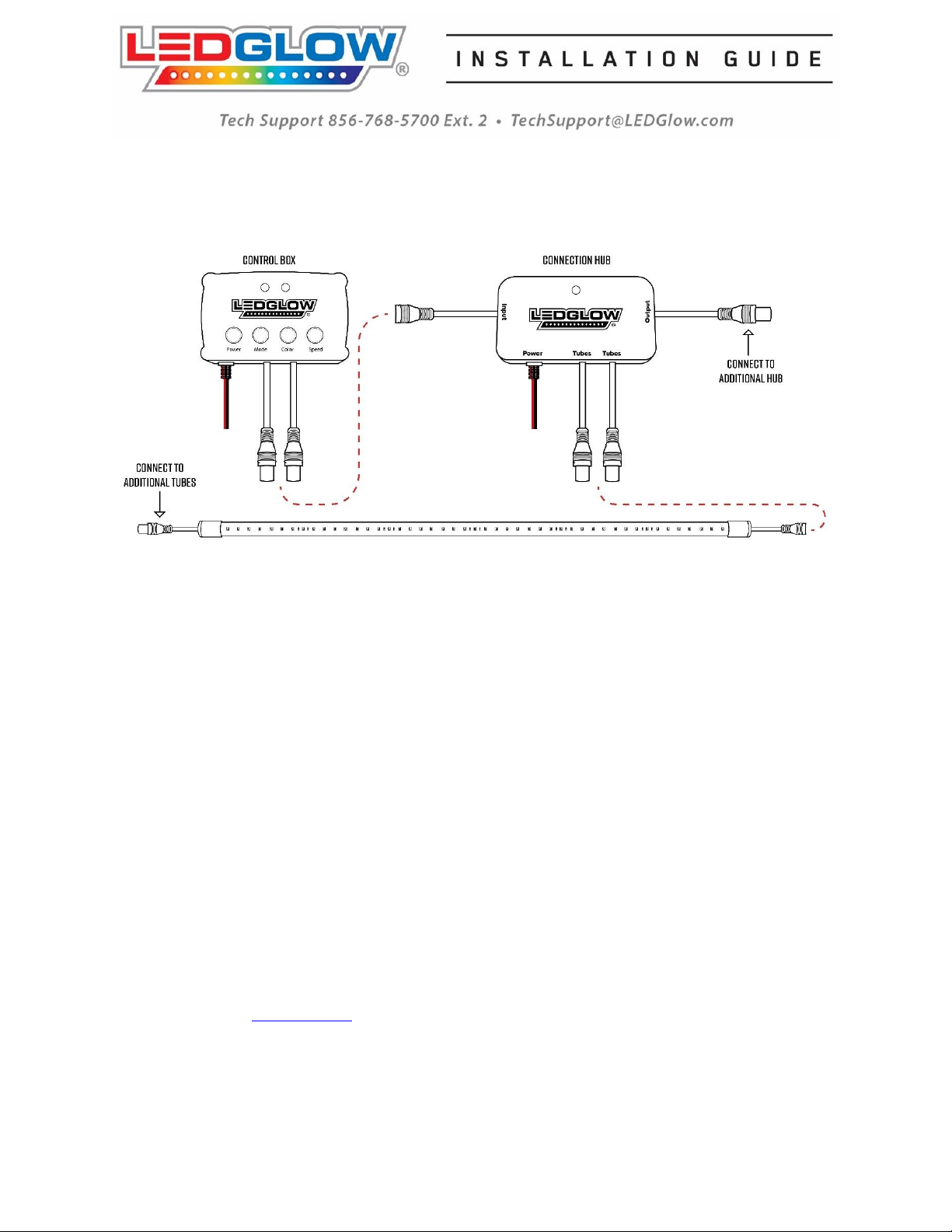

•Attach the male connector coming from one of the harnesses on the bottom of
the Controller to the female connector coming from the left of the Connection
Hub.
•Attach the male connector coming from one of the harnesses on the bottom of
the Connection Hub to the female connector of the light tube. Then daisy chain
the rest of the tubes. Be sure to evenly split the tube count between the two
harnesses when possible, Max is 360 individual LED’s per harness.

Rev. May-21
•If you need to add another Connection Hub to connect the rest of your light tubes, attach the male connector coming
from the right of the Connection hub to the female connector coming from the left of the new Connection Hub. Then
continue connecting the light tubes as you did before.
•Extension cables are included in the kit and can be used to extend the length between the Control Box and the
Connection Hub, Connection Hub and Connection Hub, Connection Hub and Light Tube, or Light tube and Light Tube.
5. When mounting the tubes be sure that the female end is facing the direction of the Connection Hub. The rest of the tubes will daisy
chain off of that tube. Also keep inmind the max number of LED’s per hub. Secure the tubes using the included mounting brackets
and screws. Make sure the tube is at least 8 inches away from any direct heat source and away from all moving parts. IMPORTANT:
DO NOT MOUNT THE TUBE TO THE RADIATOR.
6. Mount the underbody kit’s Control Box and Connection Hubs in a safe and secure location on your RV. The Control Box should be in
an accessible area to be able to control the functions. But the Connection Hubs can be mounted discreetly as long as they are away
from moving parts, heat and moisture.
7. Run the harness from the Connection through a pre-existing hole with a grommet in your firewall to the control box. If you do not
have a pre-existing hole in the firewall, you can drill one, but just be sure to add a rubber grommet to ensure the lead wire is not cut
or pinched.
8. Finish making all of you connections between the Control Box, Connection Hubs and Light tubes and secure all loose wires with zip
ties, be sure not to overtighten the zip tie and pinch the wire.
9. This underbody kit’s Control Box can be powered one of two ways:
•Connect all the red power wires to any 12-volt source. If you need to extend the power wires, be sure to only use 16
or 18 gauge automotive grade wire. If you are running the power wire to the battery, it must go through the firewall
by using an existing grommet or by drilling a hole and adding a new grommet. Be sure to install a fuse within 6
inches of the power source. If you connect the power wire to a switched 12 volt source, the underbody kit may not
remember the color and pattern it was last on before turning the vehicle off. If you connect the power wire to a
constant 12 volt source, the underbody kit will remember the last color and pattern it was on prior to powering the
vehicle down.
•This underbody kit can also be powered directly from your vehicle’s fuse box. If you are powering the kit via the fuse
box, we recommend that you install the wire using LEDGlow’s Expandable Circuit, which is available at
www.LEDGlow.com.
10. Connect all the black wires to a reliable, unpainted ground source. Some ground source options include under the dash at any main
bracket or grounding block, the negative post on your battery, or any engine ground.
11. Be sure to use the included zip ties to secure and mount any bundles of wires from the underbody tubes under the vehicle in a safe
location away from any direct heat sources or moving parts.

Rev. May-21
12. DO NOT SHORTEN OR CUT ANY OF THE UNDERBODY TUBE POWER WIRES. This will damage the kit and void all warranties.
13. Power on and test the underbody kit for full functionality.
14. Turn the steering wheel as far as it can go in both directions to ensure the tubes and/or wires are not coming in contact with your
tires or any other moving parts.
Control Box and Wireless Remote Operation:
•Button A: Power Button
oThis button is used to power your kit on and off.
•Button B: Mode Change
oPressing this button on the Control Box or Wireless Remote allows you to select from 14
distinct patterns. The 14 available patterns are listed below.
•Button C: Color
Change
oPressing this button on the Control Box or Wireless Remote allows you to select between 10 distinct color modes. The
available solid color modes are listed below.
•Button D: Speed Change
oPressing this button on the control box or wireless remote will allow you
to select from 5 different speeds for your selected pattern. If your kit is
in music mode, this button will adjust the sensitivity of the selected
music mode.
Auto On/Off Function:
•Enable Auto On/Off Function: Turn the kit off. Press and hold down the Mode and
Color buttons on the control box. After the Pink color lights up, turn on the kit and
test for functionality.
•Disable Auto On/Off Function: Turn the kit off. Press and hold down the Mode and Speed buttons on the control box. After the
Orange color lights up, turn on the kit and test for functionality.
Adding or Replacing a Wireless Remote:
1. Your kit is already pre-programmed for the included Wireless Remote. This setup is only needed when replacing an
existing Remote or by adding additional Wireless Remotes to your system. You can program up to 2 Wireless Remotes to
1 Control Box.
2. In order to program the Remote to the Control Box, you must turn the kit off.
•Press and hold the Mode button on the Remote and any button on the Wireless Remote simultaneously for 5-
7 seconds to turn the kit off. The LEDs on the kit will illuminate green if successful. Test the operation with the
remote.
For accessories, replacement parts and/or technical support, please visit www.LEDGlow.com for more information
Demo
Solid
Double Color Chase
Double Color Scan
Random Color Fade
Rainbow Run
Solid Color Scan
Solid Color Spread
Solid Color Pulse
Section Strobe
SOS
Music Scan
Music Chase
Music Section Strobe
Red
Pink
Lavender
Purple
Orange
Yellow
Green
Teal
Blue
White
Rainbow 1*
Rainbow 2*
*Will not work on all Modes

Rev. May-21
