LedGlow Million Color LED Wheel Ring User manual

Rev. Jun-18
Million Color LED Wheel Ring Lighting Kit Installation
•Please check your state and local laws before installing this Million Color LED Wheel Well Kit. Every
state has different policies and procedures in place regarding aftermarket vehicle accessories. LEDGlow is
not responsible for any fines that you may receive while using this lighting kit. This kit is for off-road use
only.
•The installation of this kit is required to be installed by a licensed professional. The improper installation
of this kit will void all warranties.
•Prior to installation, ensure the vehicle you are installing this product on has brake dust shields that are in
good condition behind the rotors. The rotor diameter must be 13.5”or smaller and the wheel diameter 18”
or larger for the 14”kit. The rotor diameter must be 15”or smaller and the wheel diameter 20” or larger
for the 15.5”kit. Please include your caliper when measuring for fitment as larger calipers may interfere
with wheel ring mounting.
•Part of the brake system will have to be removed and reinstalled during the installation of the light kit.
Future service of the brake system will require removal of the kit.
Tool List
Drill and Drill Bit
Felt-tip Marker
Screwdriver
Pliers (Optional)
Various Tools to Remove Brake
Components
Pop Rivet Gun (optional)
Jack and Jack Stands
Cutting Wheel or Metal Saw (Optional)
Tape Measure
Safety Gloves
Center Punch
Protective Eyewear
Wheel Ring Lighting Kit Includes
Wheel Rings (4)
Clip-on Brackets (8)
Mounting Brackets (20)
Screws (20)

Rev. Jun-18
Installation Instructions:
1. Temporarily connect the Wheel Ring Lighting Kit to a 12-volt power source and test for full functionality
prior to installation.
2. Disconnect the negative side of the vehicle’s battery.
3. Using a jack and jack stands, or an automotive lift, safely raise and support the vehicle.
4. Remove the wheels from the vehicle.
5. Inspect the dust shields for corrosion. Once thoroughly inspected, test fit the wheel ring to ensure you will
have proper clearance from all moving parts, as well as the brake caliper.
6. Remove the brake caliper and rotor in order to gain full access to the brake dust shield. Remove the caliper
bolts and secure the caliper so that it does not fall. Do not remove the brake line from the caliper.
Remove the rotor and set aside. Do not use a hammer to remove the rotor as this can cause severe damage
to the rotor.
7. All brackets must be mounted to the backside of the dust shield. All hardware must go through the dust
shield from the front and into the wheel ring bracket. Ensure there is enough clearance between the
mounting screws and the brake rotor. Modification and
adjustments of the brackets may be necessary for clearance
of brake and suspension components.
8. The mounting brackets can be installed using self-tapping
screws, through bolts, or rivets. Mark the hardware
mounting locations on the brake dust shield with a marker
and a punch. Drill the necessary holes in the correct size for
the hardware that you are using. Ensure there is proper
clearance between the rotor and the hardware you are using,
and install these brackets to the brake dust shield. Not all
brackets are going to be used, but be sure to use at least 4
brackets in order to keep the ring secure.
:There are clamp-on brackets
included in the kit that will enable you to install a
bracket in a position that does not match up with the pre-threaded holes.
:Thoroughly clean any metal shavings off of the brake and bearing surfaces.

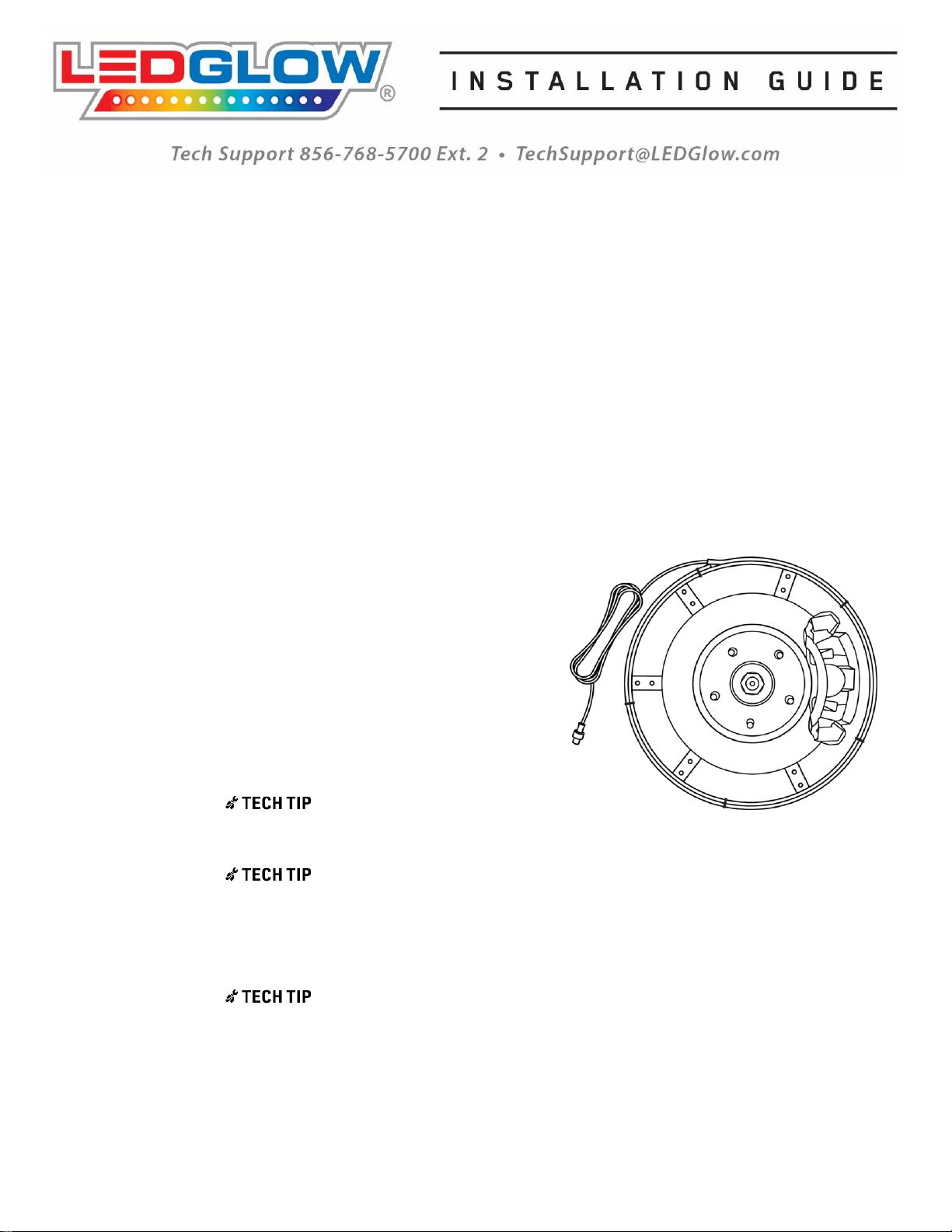

9. Prior to mounting the ring to the installed brackets, ensure the attached wire is in an upward position facing
forward. (See image above) Check to ensure you have maintained clearance from the caliper and any
moving parts. There are extra pre-drilled holes on the ring which will allow you to adjust the location of
the mounting brackets, if necessary.
:When the ring is mounted there should be a minimum of a ¼” gap between the
caliper and the wheel ring.
10. Once clearance is verified, mount the wheel ring to the installed brackets using the included screws. If you
used the clamp-on brackets, snap the wheel ring into the brackets in the recommended position, and tighten
the brackets.

Rev. Jun-18
11. Secure the wheel ring wires to the flex brake line and safely route this wire to the firewall. Use wire ties to
keep the wires away from moving parts and heat. Ensure there is at least 6 inches between any moving
parts or heat sources and the wheel ring wires.
12. Repeat installation steps 8-11 for the remaining 3 brake dust shields.
13. Once all wheel rings are installed, reinstall any brake components that were removed. Torque all brake
components to manufacturer specifications.
14. Reinstall the wheels. Rotate the wheel to ensure your rim and wheel ring have proper clearance, paying
close attention to the location of any wheel weights.
15. Safely lower the vehicle.
16. Mount the junction cable on the firewall away from heat, in a dry location. Corrosion to the junction cable
will void all warranties and may cause the control box to fail.
17. If this kit is being utilized as an add-on and is being added to a control box that has already be installed,
plug the distributor cable into the correct port on the control box. Please follow the original instruction
guide for further control information.
Million Color Wheel Ring Controller Installation:
1. Connect the red power wire to a positive (+) 12 volt source. Be sure to use 16 or 18 gauge automotive
grade wiring if you need to extend the red and black wires.
a. If you are running the wires to your vehicle’s battery, the wires must go through the firewall
by using an existing grommet or by drilling a hole and adding a new grommet. A grommet is
available at any auto parts store. Be sure to install the fuse within 6 inches of the battery.
: If you connect the power wires to a switched source, the control box will not
retain the color and pattern the kit was last on. If you connect the power wires to a constant
source, the control box will retain the color and pattern the kit was last on. Also, when
connected to a constant source, you will need to physically turn the kit off as it will not power
down with your vehicle.
: If you want to tap power from your vehicle’s fuse box, we recommend using
LEDGlow’s Expandable Circuit, which is available at www.LEDGlow.com.
2. Connect the black wire to a suitable, unpainted metal surface under the dash at any main bracket or
grounding block. If you are connecting the wires to your vehicle’s battery, connect the black wire to
the negative (-) terminal of the battery or any engine ground.
3. Reconnect the battery.
4. Test for operation.

Rev. Jun-18
Adding or Replacing your Wireless Remote:
1. Your kit is already pre-programmed for the included wireless remote. This setup is only needed when
replacing an existing remote or by adding additional wireless remotes to your system. You can program up
to 3 wireless remotes to one control box.
2. To program the remote to the control box, you must turn the kit off.
a) First Remote - Press and hold the mode button on the wireless remote and the mode button on the
control box for 5-7 seconds. Test the operation with the remote.
b) Second Remote - Press and hold the speed button on the wireless remote and the speed button on
the control box for 5-7 seconds. Test the operation with the remote.
c) Third Remote - Press and hold the color button on the wireless remote and the color button on the
control box for 5-7 seconds. Test the operation with the remote.
For accessories, replacement parts and technical support, please visit www.LEDGlow.com for more information.

Rev. Jun-18
