GT 320-350
STEERI G WHEEL
USER GUIDE
Made in Italy

Thanks
We would like to thank you for choosing GT
Steering Wheel, the new wheel showing
real time data sampled by EVO4 logger.
With GT Steering Wheel you can view va-
lues coming from the ECU, from accelero-
meters, as well as from the GPS built into
the EVO4, while also receiving information
from the on-board camera SmartyCam.
GT Steering Wheel also shows data coming
from your Engine Control Unit via ECU
Bridge, the interface module connecting
the ECU to AiM visors and steering wheels.
You can also activate up to four external
units from the GT Steering Wheel.
Its graphic display allows a more precise
and enjoyable visualization of data.
Size and make have been specifically
designed for GT and Touring cars use.
02 03
GETTI G STARTED
HOW TO CO FIGURE GT STEERI G WHEEL
SHIFT LIGHTS CO FIGURATIO
ALARMS CO FIGURATIO
PAGE CO FIGURATIO
E GAGED GEAR
POWERI G O /OFF DATA RECALL
I TERACTIO WITH SMARTYCAM
ACCESSORIES
TECH ICAL DRAWI GS
04
12
18
22
26
30
32
34
37
38
GT 320-350 Steering Wheel

CHAPTER 1
04 05
GETTI G STARTED GT STEERI G WHEEL
Multifunctional Pushbuttons
The four buttons beside the Steering wheel
display can be used to activate external
units.
In the Appendix 1 you can see the related
wirings.
Shift Lights
Horn
Horn
Display
Multifunctional
Pushbuttons
Paddleshift (+)
Paddleshift ( - )
Alarms Leds
Function Button 1
Function Button 2
Function Button 3
Function Button 4

CHAPTER 1 GETTI G STARTED GT STEERI G WHEEL
06 07

How To install and Connect GT Steerin Wheel
to EVO4 and ECU Brid e

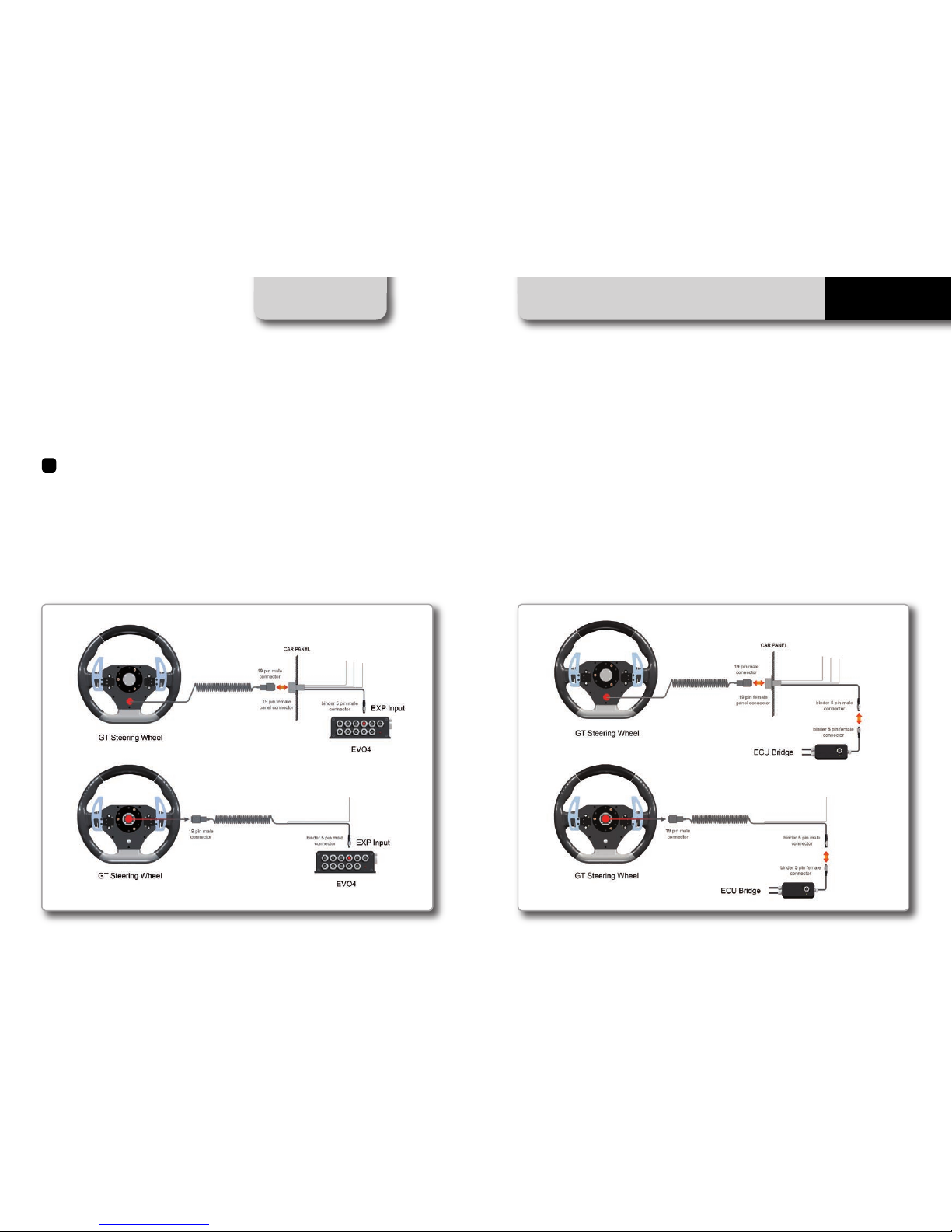

GT Steering Wheel must be connected via
CA bus to your EVO4 (by plugging the
CA cable into the logger “EXP” port).
Its firmware version must be 43.05.02 or
newer.
CHAPTER 1 GETTI G STARTED
08 09
GT STEERI G WHEEL
1
The wheel can also be connected to your
ECU Bridge using its CA connector.
Its firmware version must be 45.02.02.

Please check the firmware version of your
EVO4.
Connect it to PC via USB, open the Race
Studio 2 software and press
‘Device Info’ button (1).
CHAPTER 1 GETTI G STARTED
10 11
If the firmware is out of date:
If the EVO4 firmware is older than
43.05.02, open aim-sportline.com and se-
lect Download>>Firmware and dow-
nload the current version onto your
computer.
GT STEERI G WHEEL
3
42
Alternatively, with GT Steering wheel on,
SELECT ME U>>SYSTEM MA AGEME T
>> DEVICE I FO (2).
3
Then run the firmware update program by
following the included instructions.
2
1

CHAPTER 2 HOW TO CO FIGURE GT STEERI G WHEEL
12 13
How to Confi ure GT Steerin Wheel
GT STEERI G WHEEL
GT Steering Wheel receives its configura-
tion parameters from EVO4, so you must
configure EVO4 in order to make
GT Steering Wheel display your data
correctly.
1
GT Steering Wheel pages, shift lights and
alarms configuration is done using the Race
Studio 2 software.
Therefore, select GT Steering Wheel as the
display in EVO4 configuration.

n Lap Time:
shows the lap time of the previous lap;
n +/- Best Time
Shows a prediction of the current lap time
compared with the best lap of the session.
n Predictive Time:
Shows a forecast of the current lap time;
n Rolling Time:
shows the lap time for ten seconds, then
shows the rolling time;
CHAPTER 2 HOW TO CO FIGURE GT STEERI G WHEEL
14 15
GT STEERI G WHEEL
Pa es Confi uration
GT Steering Wheel is able to fully configure
up to nine pages, allowing you to view your
data in user definable and very customiza-
ble ways.
2
Select the “Pages” tab to enter the Pages
Configuration panel.
Custom pages are all disabled by default.
2
1

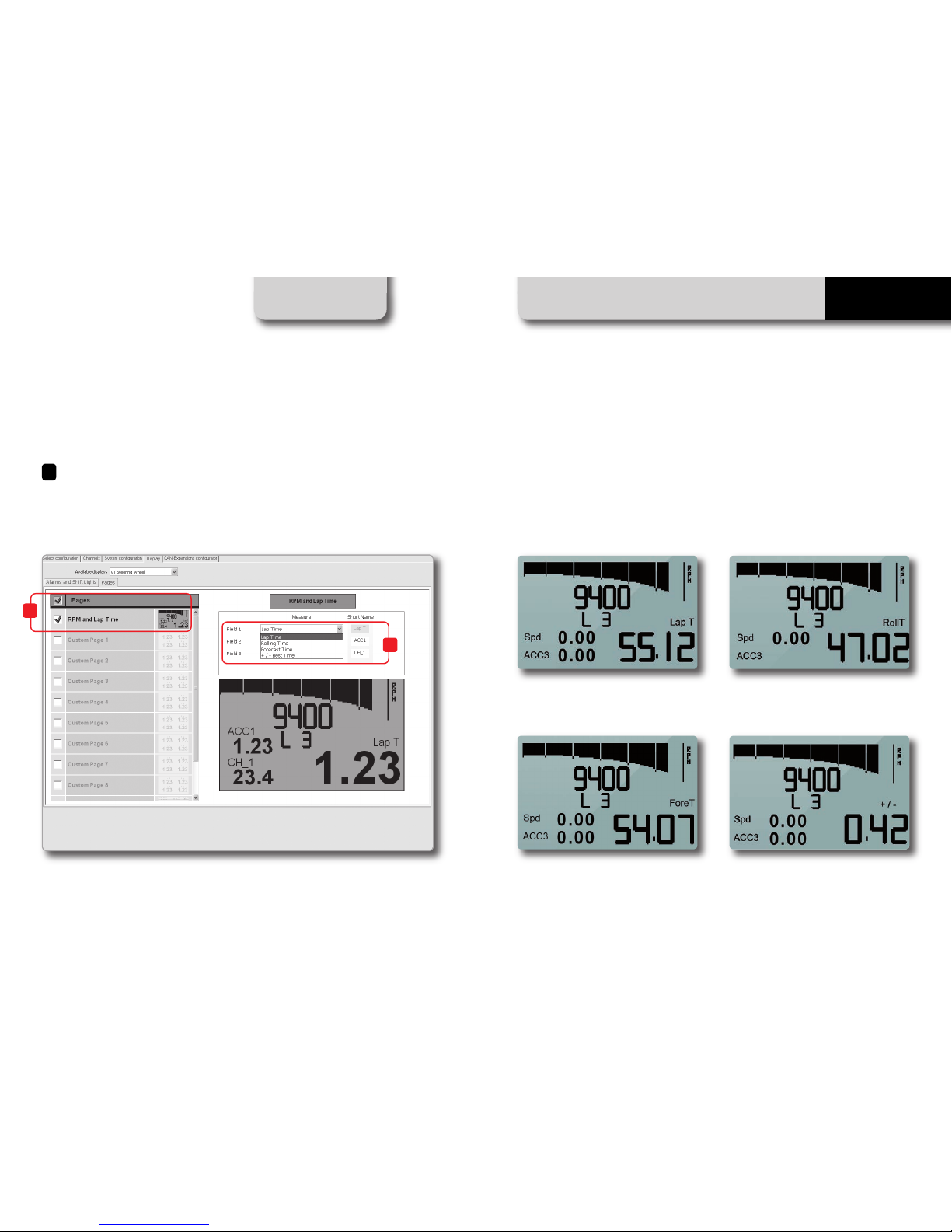

The first available page is:
RPM and lap time. (1) Here you can configure two channels and choose one of the different
Lap Time visualizations: (2)

CHAPTER 2 HOW TO CO FIGURE GT STEERI G WHEEL
16 17
GT STEERI G WHEEL
Eight Freely Configurable Pages.
You can add up to four fields per page,
defining also the short name that will
describe that field.
Of course, you can enable or disable each
of these pages, simply clicking on the
checkbox:
n Satellites
Satellites shows the level of GPS signal.
For the sake of precision, it is best to acquire
data from at least eight satellites.
At the bottom of the list are the pages for Satellites and SmartyCam.
n SmartyCam
SmartyCam status shows the status of the
camera, when connected to the system.

1
Shift Li hts Confi uration
Click “Configure Shift Lights” to manage
the Shift Light LEDs.

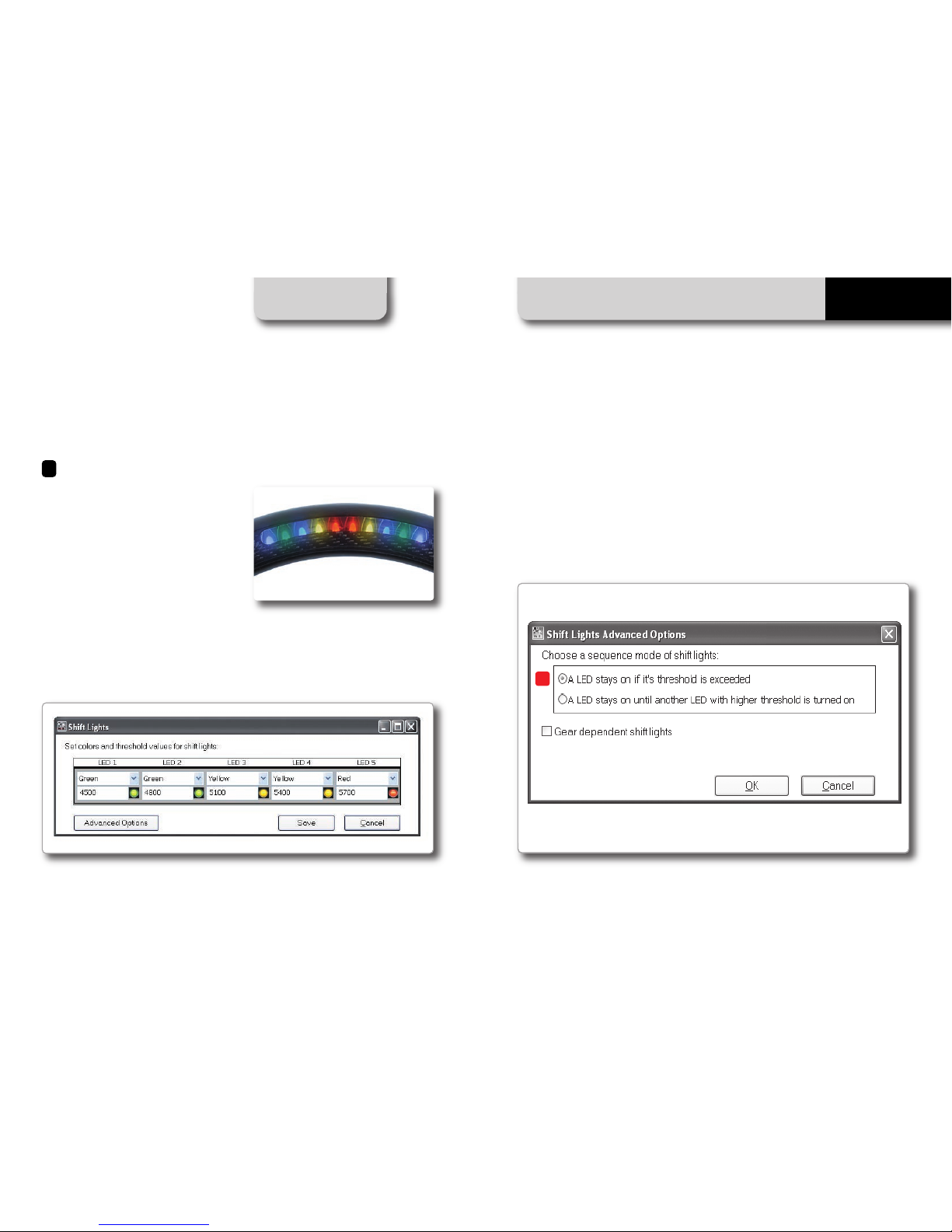

The panel shown below appears and you
can manage the color of each LED and the
RPM threshold value at which it will turn on.
GT Steering wheel features ten LEDs, which
are symmetrically managed by the five cells
of the dedicated Race Studio window (see
below):
3
By selecting the “Advanced options”
function, you can more deeply configure
your Shift Light LEDs.
The available options are:
n The sequence mode of the shift lights:
you can choose to leave an individual shift
light LED O or turn it OFF when the
following LED has been turned O (1).
CHAPTER 3 SHIFT LIGHTS CO FIGURATIO
18 19
GT STEERI G WHEEL
Shift Lights
