Leedarson Water Leak Sensor User manual

LEEDARSON Water Leak Sensor
Content:
Water Leak Sensor .............................................................................................................................................1
1. Product Introduction............................................................................................................................2
2. Product Profile .....................................................................................................................................2
3. Specification.........................................................................................................................................3
4. Features/Capabilities ...........................................................................................................................3
5. Installation Notice ................................................................................................................................4
6. Installation ...........................................................................................................................................4
7. Product usage ......................................................................................................................................4
8. Note......................................................................................................................................................6
9. Command List ......................................................................................................................................6
We build your success in IoT.

Water Leak Sensor
User Manual
1. Product Introduction
Water Sensor is a wireless water leak sensor powered by CR123A battery, you can receive immediate alerts
if there is unwanted water in your home (such as in a basement, near a water heater, under an old pipe, or
in a bathroom), helping you prevent leaks from turning into flood. This sensor integrates Z-Wave
communication module to connect with Z-Wave gateway, and this device can be adapted to
EU(868.42Mhz) or US(908.42MHz). Water leak sensor is an important part of home automation, and it can
be set different modes according to different scenes.
2. Product Profile1

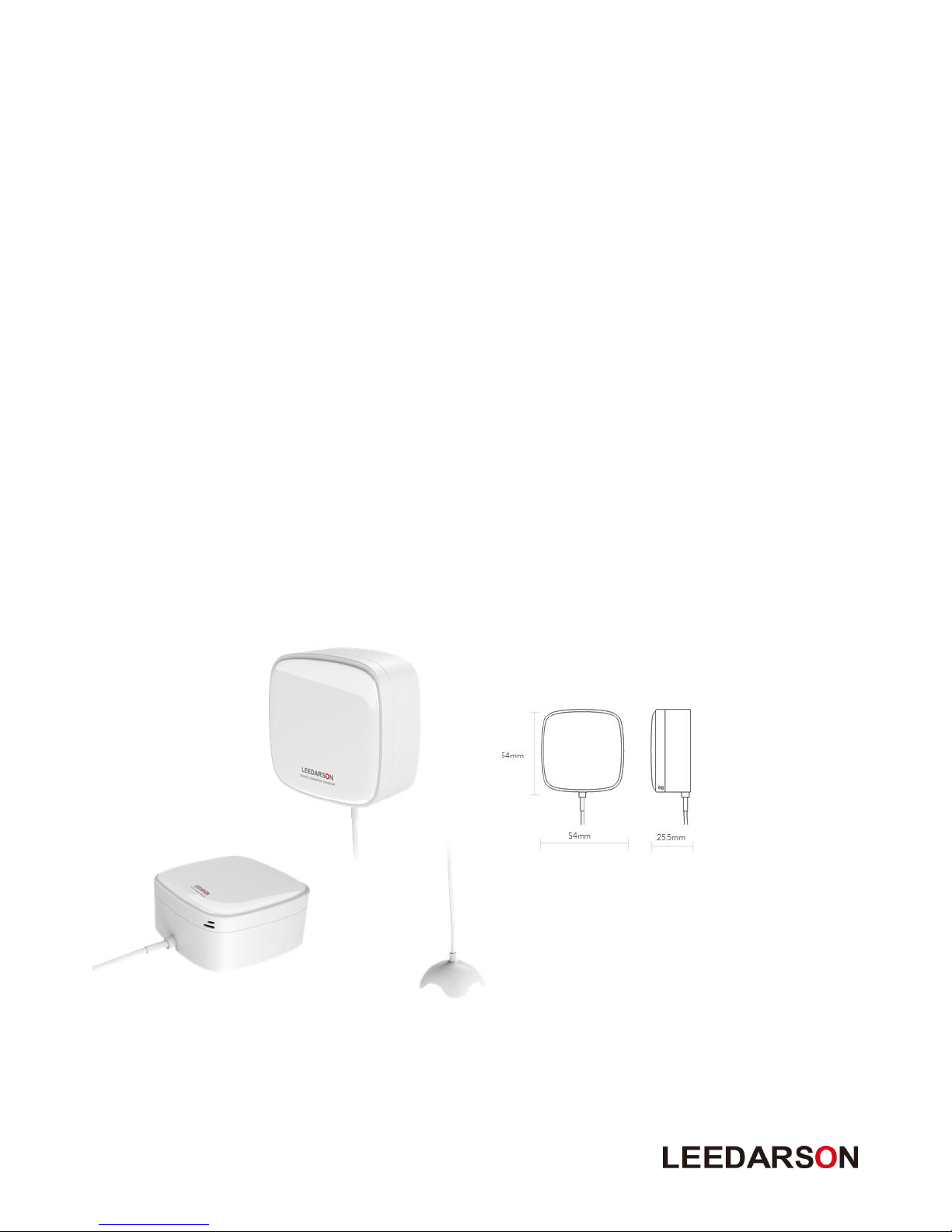

①LED ②Probe ③Sensor
①
②
③

3. Specification
Power Supply
Battery
Power Source
3V, CR123A *1
Battery Life
3 years
Communication Protocol
Z-Wave
Radio Frequency
908.42MHz (US)
868.42MHz (EU)
Wireless Range
More than 100m outdoors
About 30m indoors (depending
on building materials)
Operational Temperature
-10℃~+ 45℃
Operating Humidity
Up to 85% non-condensing
Dimensions (mm)
54(L)*54(W)*25.5(H)
Mounting
Screws or 3M Tape
Standards Compliance
FCC/ IC/CE/ Z-Wave
OTA
Yes
4. Features/Capabilities
The LEEDARSON Water Sensor is a Z-Wave compatible sensor.
The LEEDARSON Water Sensor “alarm” can be sent to controller.
The LEEDARSON Water Sensor is designed to be mounted on the wall with sensor probes extended
by connected wire.
The LEEDARSON Water Leak Sensor has a built-in LED indicator and an acoustic alarm, notifying the
user of:
oWater leak
oOperating mode
The LEEDARSON Water Sensor is powered by CR123A battery with 3 years battery life. Suggest to use
CR123A battery with 1600 mAH capacity.
The LEEDARSON Water Sensor Support low battery alarm function.
The LEEDARSON Water Sensor Support firmware OTA.

5. Installation Notice
If a pool of water form, moisture must contact both leads to trigger an alert.
1. Install the detector where the water is likely to leak, such as place the Water Leak Sensor in areas like
bathrooms, basements, under clogged drains, under older pipes, or in other areas of your home that are
prone to leak so that you can receive an instant alert.
2. Do not locate the detector in cabinet and other places where the alarm sound cannot came out easily.
3. Do not install it at the area with rain, oil smoke and steam of cooking range.
4. Do not install the detector with submersed water.
6. Installation
1. Attach the mounting bracket on the wall firmly with screw or 3M tape.
2. Mount the rest of the detector into the bracket.
3. Put the probe in the floor where the water is likely to leak.
4. Connect the alarm to the power.
7. Product usage
Function of Button Action:
Water Leak Sensor is not in the Z-Wave network:
Trigger
Description
Power On
LED will keep on 1 second.
Short press 1 time
(within 1 second)
1. LED will blink fast for 25 seconds, send Node Info frame.
2. Add for inclusion:
1. Insert the CR123A battery.
2. Set the Z-Wave network main controller into inclusion mode.
3. Triggering this button action.
4. If the add for inclusion is successful, the LED will blink fast and then keep on
3 seconds. Otherwise, the LED will blink 25 seconds and then turn off, in
which case you need to repeat the process from step 2.
Water Leak Sensor is in the Z-Wave network:
Trigger
Description
Power On
Send battery report to associated node, and the buzzer will keep on for 3 seconds.
Short press one
time
(within 1 second)
1. Led will keep on for 25 seconds (sensor will not send wake up cc during these 25
seconds if you short press 3 times z-button), send Node Info frame.
2. Remove for exclusion:
1. Insert the battery.
2. Set the Z-Wave network main controller into exclusion mode.

3. Triggering this button action.
If the remove for exclusion is successful, the LED will blink fast and turn off.
Otherwise, the LED will keep solid for 25 seconds and then turn off, in which
case you need to repeat the process from step 2.
Short press 3 time
(within 1 second)
1. LED will blink one time; sending wake up notification cc.
Press and hold for
5 seconds
Reset Water Leak Sensor to factory Default:
LED will blink for 5 seconds and then keep solid for 3 seconds, after that Water Leak
Sensor will send “Device_Reset_Locally” to the main controller and exclude from the
Z-Wave network.
Use this procedure only in the event that the network primary controller is missing
or otherwise inoperable.
Caution:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
IC Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
IC 20cm RF
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance of 20 cm between the radiator and your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements de la IC établies pour un environnement non contrôé.
Cet équipement doit être installé et fonctionner à au moins 20 cm de distance d’un radiateur ou de votre corps.

Low voltage alarm to remind changing battery.
This product has low voltage detection reminder, when the battery voltage is in low status, the
detector will give out low battery signal to controller.
8. Note
1. Replace the battery timely on low battery warning to ensure the detector works properly.
2. Clean the surface with soft towel regularly.
3. In case the product is failure, do not try to fix it by yourself. Please contact the local distributor.
4. Product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other
manufacturers and/or other applications. All non-battery operated nodes within the network will act as
repeaters regardless of vendor to increase reliability of the network.
5. If you want your product to be a security device that use secure/encrypted message to communicate in a Z-
Wave network, then a security enabled Z-Wave controller is needed.
9. Command List
9.1 SECURITY AND NON-SECURITY FEATURES OF WATER LEAK SENSOR IN Z-
WAVE NETWORK
1. The function of the Water Leak Sensor as a security and non-security device is identical.
2. When a node includes into a S2 Z-Wave network, the node only supports S2 unauthenticated class and so
do the supported CCs.
3. Commands List
Included Non-Secure Network
Included Secure Network
Non-secure
supported
Command
Classes
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
COMMAND_CLASS_SECURITY0_V1
COMMAND_CLASS_SECURITY2_1
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V1
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_CONFIGURATION_V1
COMMAND_CLASS_BATTERY_V1
COMMAND_CLASS_NOTIFICATION_V4
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_SECURITY0_V1
COMMAND_CLASS_SECURITY2_V1

COMMAND_CLASS_WAKE_UP_V2
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4
Security
Supported
Report
Command
Classes
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V1
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_CONFIGURATION_V1
COMMAND_CLASS_BATTERY_V1
COMMAND_CLASS_NOTIFICATION_V4
COMMAND_CLASS_WAKE_UP_V2
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4
9.2 NOTE FOR SPECIAL COMMANDS
9.2.1 Association Command
Water Leak Sensor supports two association groups.
Grouping
Identifier
Max
Nodes
Send Commands
Group 1
0x05
1. Notification Report.
Sensor will send Notification Report when the water probe
is triggered.
2. Battery Report.
Sensor will send Battery Report when the battery level is
low and the battery report’s value is 0xFF.
3. Device Reset Locally.
Group 2
0x05
1.Basic Set
Sensor will send Basic Set when the water probe is
triggered.
9.2.2 Basic Command
There is no relevant commands are available for mapping.
9.2.3 Notification Command
1. Notification Supported Report;
There are only one type notification is supported, Water Alarm (0x05).
2. Event Supported Report;
Water Alarm: Water Leak Detected (0x02), State Idle (0x00).

3. How to trigger the notification;
Water Alarm:
Water Leak Detected (0x02): The water probe part detects water.
State Idle (0x00): The water probe part is pulled out of the water.
9.2.4 Configuration Command
Water Leak Sensor offers a wide variety of advanced configuration settings. Below parameters can be
accessed from main controllers configuration interface.
NOTE: ALL NUMBERS BELOW ARE DECIMAL.
Parameter No.10 Level of low battery
This parameter defines a battery level as the “low battery”.
Available settings: 10-50 (10% - 50%)
Default setting: 10 (10%)
Parameter size: 1[byte]
Parameter No.11
Beeping rate.
0- Buzzer keep on 1s, off 1s.
1- Buzzer keep on 0.5s, off 0.5s
2- Buzzer keep on beeping always
3- Buzzer keep silence

FCC Statement
15.19
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
15.21
Note: The grantee is not responsible for any changes or modifications not expressly approved by
the party responsible for compliance. Such modifications could void the user’s authority to operate
the equipment.
15.105(b)
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help
RF Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm
between the radiator and your body.
IC Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired
operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.

IC 20cm RF
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm
between the radiator and your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements de la IC établies pour un
environnement non contrôé. Cet équipement doit être installé et fonctionner à au moins 20 cm de
distance d’un radiateur ou de votre corps.
