Leedarson 7CA-SS-VE-A0 User manual

LEEDARSON Motion sensor Pet Immunity Z-
Wave™
7CA-SS-VE-A0
We build your success in IoT.

Motion Sensor Pet
immunity
Quick Start Guide
1. Product Introduction
The Motion Sensor lets you know when movement is detected in a certain area and can
trigger different actions in response to that movement (or lack of movement). It supports
the pet immunity up to 80 lbs. This sensor integrated Z-Wave communication module to
connect with Z-Wave gateway, and this device can be adapted to EU(868.42Mhz) or
US(908.42MHz).
If you want your Motion Sensor to be a security device that use secure/encrypted
message to communicate in a Z-Wave network, then a security enabled Z-Wave controller
is needed.
The motion sensor can be included and operated in any Z-Wave network with other Z-
Wave certified devices from other manufacturers and/or other applications. All non-battery
operated nodes within the network will act as repeaters regardless of vendor to increase
reliability of the network.

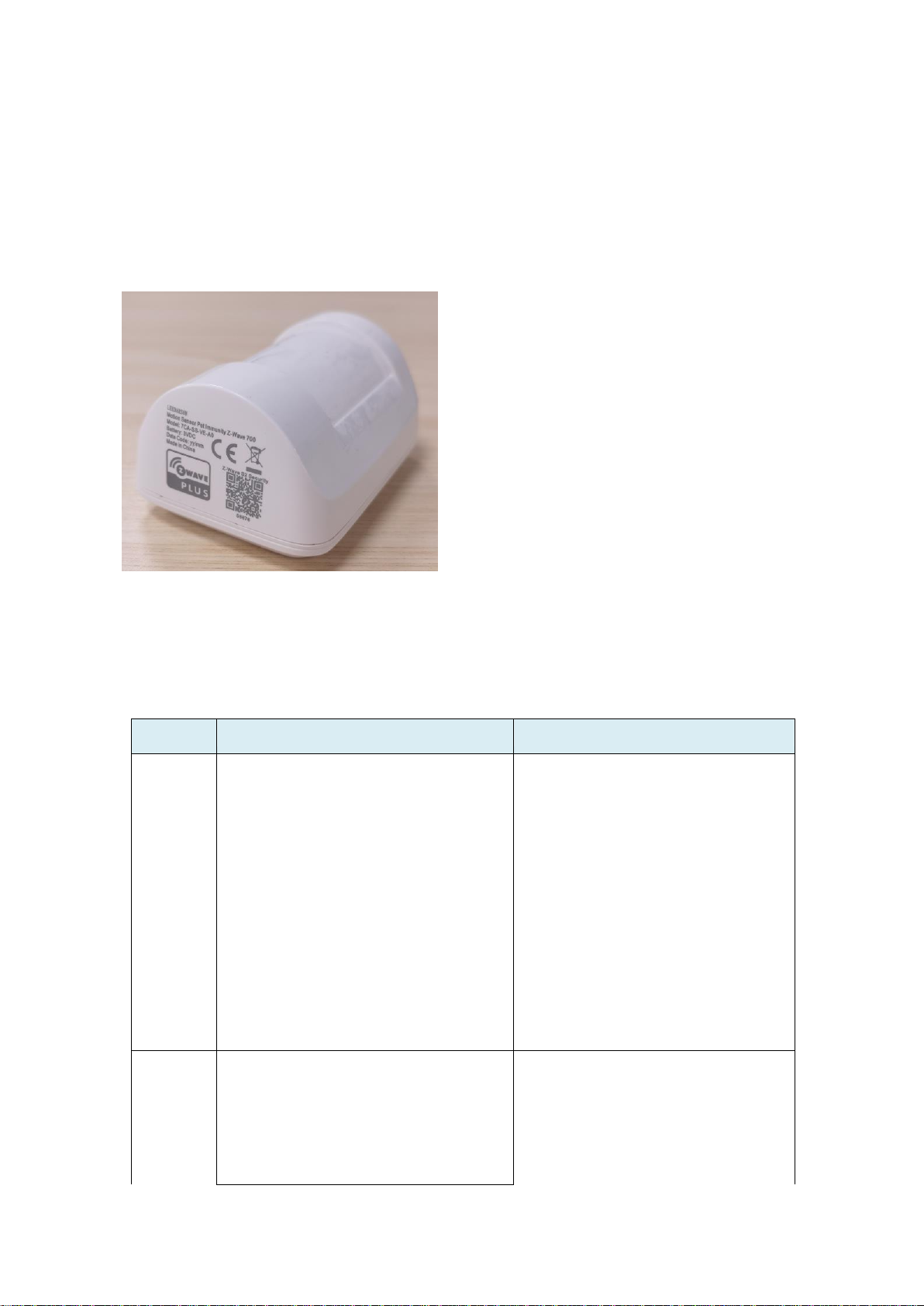

2. Product Appearance
Product appearance and function overview.

LED
Bracket
Reset button
Button:
Short press reset button into learning mode, then the sensor can inclusion or
exclusion from the Z-Wave network.
Hold the key for 5s to reset the sensor, after reset, Sensor will send
“Device_Reset_Locally” to the main controller and exclude from the Z-Wave
network when the Button is released, this procedure will reset the Sensor to
factory default.
Short press button for 3 times then the sensor sending wake up notificati
on to gateway, and LED will fast blink when sending data, send over then the L
ED turn off..
Specification
Detection angle
80 degrees
Detection distance
8 meters / 26.25 feet

Pet immune
80 lbs (36 kgs)
Mounting height
6.23 ft. to 7.55 ft.
(1.9m to 2.3m)
Light sensor
50 lux for day/night(bright/dark)
Protocol
Z-Wave
Frequency
908.42MHz (US)
868.42MHz(EU)
Power source
Battery-powered
Battery type
CR123A X 1
Battery life
3 years
Anti-Tamper
YES
Low power alarm
YES
Certifications
CE/FCC/Z-Wave
3. Features/Capabilities:
Supports pet immunity up to 80 lbs (36 kgs)
Use PIR & Fresnel lens technology
Easy installation with bracket
Low battery alarm
Equipped with an anti-tamper switch that reports any tampering
4. Installation Position and Notes
1. Installation position should be chosen at the area which the bass-by will be across, try
to make the bass-by in the detection area as below.
Side view

Top view
2. Do avoid installation near air-conditioner, electric fans, refrigerators, ovens or other
places where temperature easy change.
3. In order not to affect the detecting result, there should be no object in front of the
produces lens.
4. Building (such as the wall) will shorten the distance of wireless communication.
5. This device can be mounted on the wall only, it cannot be installed on the ceiling.
5. Product Installation
Adding the device as accessories, install it according to the diagram below:
①Choose the installation location on the wall, fix the bracket by screw or 3M
adhesion tape on the wall.
②Take off the bracket in the back, and draw out the battery insulation sheet, then
assembly the bracket.

③Assembly the main body to the bracket.
6. Product Usage
Function of Action Button:
6.1 All functions of each trigger:
Function Of Action
Trigger
Description
Power on
In the network: Send Battery report and Wake up notification, the LED
turn on within 1 second.
Not in the network: Only the LED will be slow blink 3 times.
SmartStart
Inclusion
Add the Motion Sensor into the Z-Wave network via SmartStart:
1. Add your Motion Sensor device to the primary controller’s
SmartStart provisioning list (if you don’t know how to do this, refer
to its manual) by scanning your device’s QR code
2. Power on the motion sensor again.
3. The motion will send “Z-Wave protocol Command Class” frame to
start SmartStart Inclusion.
4. Led will fast blink and solid for 2 seconds to indicate the inclusionis
successful, if inclusion failed, Led will off.
Short press
button one time
Add the Motion Sensor into the Z-Wave network:
5. Power on your Motion Sensor, and let your Z-Wave controllerinto
add/inclusion mode.
6. 3 consecutive clicks in 1.5 seconds, the Motion Sensor will send out
a node info security CC in command class list (Security inclusion),
the LED will be fast blink ,the timeout is 20-40 seconds;
7. If the inclusion is successful, the LED will be turn on within 2 seconds.
If failed, LED will be turn off forever, and please repeat the steps in
above.
Remove Motion Sensor from a Z-Wave network:
1. Power on your Motion Sensor, and let the Z-Wave primarycontroller
into remove mode.
2. 3 consecutive clicks in 1.5 second, the LED will be fast blink ,the
timeout is 20-40 seconds;
3. If Motion Sensor has been successfully removed from your Z-Wave
network, the LED will be turn on 2 seconds. If failed, LED will be
turn off forever, and please repeat the steps in above.

Short press
button there
time
In the network: Send Wake up notification, and LED will fast blink when
sending data, send over then the LED turn off.
Not In the network: NOP.
Press and hold
more than 5
seconds
Reset Motion Sensor to factory default.
1. Triggering this action, in 5 seconds LED will be accelerate blink.
After 5 seconds, the LED will remain on until the key is released.
Motion Sensor will send “Device_Reset_Locally” to the main
controller and exclude from the Z-Wave network when the button is
released, this procedure will reset the sensor to factory default.
2. Please use this procedure only when the network primary controller is
missing or otherwise inoperable.
3. When not in the network,triggering this action, in 5 seconds LED will
be accelerate blink red. After 5 seconds, the LED will remain on red
until the key is released. this procedure will reset the sensor to
factorydefault.
Motion is
triggered
In the network: Send Notification report and Sensor multilevel report and
Basic set (Setup configuration parameter 0x0E to 0x01), and the LED will
be turn on 0.2 second.
Not in the network: Motion sensor is disable.
Tamper switch is
triggered
In the network: Send Notification report, and the LED will be turn on 0.2
second.
Not in the network: Tamper switch is disable.
6.2 Caution:
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Hereby, Corporation declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU

6.3 Low voltage alarm to remind changing battery.
This product has low voltage detection reminder, when the battery voltage is in low
status, the detector will give out low battery signal to controller.
7. Attention
1. If need to clean the sensor, please use a soft cloth with a little alcohol to wipe it after
you cut off the power.
2. This product is just for indoor use.
3. Replace the battery timely on low battery warning to ensure the detector works
properly. Please remove the battery and safe keeping, if you don’t use this product for
a long time.
4. This device can be mounted on the wall only, it cannot be installed on the ceiling.
5. The reference range template of PIR detection is tested at the indoor temperature (the
range is 20℃～25℃)，the target of the test is 77kg±10kg weight and 1.71m±0.3m
height, the target of the test across movement speed is 4m/s±0.15m/s.
6. In order to prevent the PIR sensor’s abnormal fault, please don’t mounting and
operating sensor in the bellow conditions,
Firstly, product mounting should prevent installed in the air flow environment such as
in front of the door, window, heater, air conditioner and so on.
Secondly, the PIR detection area should not be shielded by other screen.
Thirdly, if the operating temperature range is out of the defined range of product
specification may result in some product faults, which is not in the technique
commitment of manufacturer.
Fourthly, this product has mot pet immunity function, so when some animals go
through in front of the product may trigger PIR function reported.
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED
BATTERIES ACCORDING TO THE INSTRUCTIONS

This device supports SmartStart and can be included into a network by scanning the QR
Code on the device
Quick Response Code (QR Code):
The first 16 bytes of the ECDH Public Key and sometimes additional information is
encoded into a QR Code graphic. When referred to in this document, “DSK” applies to the
Full DSK, the combination of Full DSK and QR Code, or the combination of Pin Code and
QR Code. Please refer to the below diagram. the QR code can be found on the bottom of
the sensor" or " The DSK may be located on the back of the packaging.
Command Class List
Non-Included Non-Secure
Included S0 Non-Secure
Node Info
COMMAND_CLASS_ZWAVEPLUS_INFO
COMMAND_CLASS_ZWAVEPLUS_INFO
Frame
COMMAND_CLASS_ASSOCIATION
COMMAND_CLASS_ASSOCIATION_GRP_INFO
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_SECURITY
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_SECURITY_2
COMMAND_CLASS_VERSION
COMMAND_CLASS_SUPERVISION
COMMAND_CLASS_MANUFACTURER_SPECIFIC
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_BATTERY
COMMAND_CLASS_SECURITY
COMMAND_CLASS_SECURITY_2
COMMAND_CLASS_NOTIFICATION_V3
COMMAND_CLASS_SENSOR_MULTILEVEL_V5
COMMAND_CLASS_WAKE_UP
COMMAND_CLASS_SUPERVISION
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
Security
COMMAND_CLASS_VERSION
Command
Supported
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_ASSOCIATION
Report
COMMAND_CLASS_ASSOCIATION_GRP_INFO
Frame
COMMAND_CLASS_MANUFACTURER_SPECIFIC
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_BATTERY

COMMAND_CLASS_NOTIFICATION_V3
COMMAND_CLASS_WAKE_UP
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_SENSOR_MULTILEVEL_V5
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
Included S2 Non-Secure
Node Info
COMMAND_CLASS_ZWAVEPLUS_INFO
Frame
COMMAND_CLASS_TRANSPORT_SERVICE
COMMAND_CLASS_SECURITY
COMMAND_CLASS_SECURITY_2
COMMAND_CLASS_SUPERVISION
Security
COMMAND_CLASS_VERSION
Command
Supported
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_ASSOCIATION
Report
Frame
COMMAND_CLASS_ASSOCIATION_GRP_INFO
COMMAND_CLASS_MANUFACTURER_SPECIFIC
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_BATTERY
COMMAND_CLASS_NOTIFICATION_V3
COMMAND_CLASS_WAKE_UP
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_SENSOR_MULTILEVEL_V5
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
Association Command Class
Motion Sensor supports 2 association groups and max 5 nodes for each group.
Association Group Info Command Class
Association Group Info
Grouping identifier
Group Name
Profile MS
Profile LS
01
Lifeline
0x00
0x01
02
On/Off control
0x71
0x07
Association Group Command List
Group 1
Command List Support
Command Class
COMMAND_CLASS_NOTIFICATION_V8(0x71)
Command
NOTIFICATION_REPORT_V8(0x05)
Command Class
COMMAND_CLASS_BATTERY(0x80)
Command
BATTERY_REPORT(0x03)
Command Class
COMMAND_CLASS_DEVICE_RESET_LOCALLY(0x5A)
Command
DEVICE_RESET_LOCALLY_NOTIFICATION(0x01)
Command Class
COMMAND_CLASS_SENSOR_MULTILEVEL_V5(0x31)
Command
SENSOR_MULTILEVEL_REPORT(0x05)
Group 2
Command List Support

Command Class
COMMAND_CLASS_BASIC(0x20)
Command
BASIC_SET(0x01)
Notification Commands
Notification Type
Notification Event
HOME_SECURITY (0x07)
(0x00) NO_EVENT

(0x03) TAMPERING_COVERING_REMOVED
(0x08) MOTION_DETECTION_UNKNOWN_LOCATION
POWER_MANAGEMENT (0x08)
(0x0A) REPLACE_BATTERY_SOON
(0x0B) REPLACE_BATTERY_NOW
(0x00) NO_EVENT
LIGHET_ALARM(0x14)
(0x00) NO_EVENT
(0x01) LIGHETSENSOR_ALARM_DETECTED
Configuration Set Command Class
Command Format
7
6
5
4
3
2
1
0
Command Class = COMMAND_CLASS_CONFIGURATION
Command = CONFIGURATION_SET
Parameter Number
Default
Reserved
Size
Configuration Value 1(MSB)
Configuration Value 2
……
Configuration Value n(LSB)

5.4.1 Parameter Number Definitions (8 bit)
Name
Info
Paramet
er
Number
Default
Value
Max
Value
Min
Value
Size
Rea
d-
only
Format
Altering
capabilit
ies
LowBatPrecent
LowBatAlarm
0x0A
(10)
10
(0x0A)
50
(0x32)
5
(0x05)
1
NOT
Read-
only
UNSIGNED
_INTEGER
Will alters
capabilities
Pironoff
PironoffSet
0x0C
(12)
1
(0X01)
1
(0X01)
0
(0X00)
1
NOT
Read-
only
UNSIGNED
_INTEGER
Will alters
capabilities
PirTimeout
PirTimeoutSet
0x0D
(13)
60
(0X3C)
15300
( 0x3BC
4)
05
(0x05)
2
NOT
Read-
only
UNSIGNED
_INTEGER
Will alters
capabilities
BasicEnable
SendBasic
0x0E
(14)
0
(0X00)
1
(0X01)
0
(0X00)
1
NOT
Read-
only
UNSIGNED
_INTEGER
Will alters
capabilities
BasicReverse
BasicValue
0x0F
(15)
0
(0X00)
1
(0X01)
0
(0X00)
1
NOT
Read-
only
UNSIGNED
_INTEGER
Will alters
capabilities
PirSensitivity
PirSensitivitySet
0x10
(16)
9
(0X09)
10
(0X0A)
0
(0X00)
1
NOT
Read-
only
UNSIGNED
_INTEGER
Will alters
capabilities
PirPetImmunity
PirPetImmunitySet
0x11
(17)
0
(0X00)
1
(0X01)
0
(0X00)
1
NOT
Read-
only
UNSIGNED
_INTEGER
Will alters
capabilities
LightSensorSend
Type
LightSensorSendSet
0x12
(18)
1
(0X01)
3
(0X03)
1
(0X01)
1
NOT
Read-
only
UNSIGNED
_INTEGER
Will alters
capabilities
5.4.2 Parameter Number description
Parameter
Number
Description
0x0A (10)
Low battery power level of alarm threshold values: the
value range are 5~50 for percentage, the battery low
power level can setting 5%~50%.

14
0x0C(12)
Enable/Disable the PIR
0 = Disable the PIR.
1 = Enable the PIR.
0x0D (13)
Setup the wait time of PIR for clear the motion.
Valid values: 0x05~0x3BC4
0x0E (14)
When the Motion Sensor is triggered, if this parameter is
0x01 then it will send Basic set command to group 1.
0 = Don't send.
1 = Send.
0x0F (15)
PIR triggers the correspondence between the value of
the Basic set and the PIR state.
-If this value is 0x00 :
PIR triggers send the basic set with 0xFF, PIR alarm
release send the basic set with 0x00.
-If this value is 0x01 :
PIR triggers send the basic set with 0x00, PIR alarm
release send the basic set with 0xFF.
Only support 0x00 and 0x01 values as valid value.
0x10 (16)
Motion detection sensitivity level is a value between 1
and 10. This value affects the amount of motion energy
required to generate a motion event and also affects the
detection range and angle.
1 = Lowest Motion Sensitivity
10 = Highest Motion Sensitivity
0x11 (17)
Enable/disable pet immunity mode. This feature is lens
dependent and detection range may be reduced
when Pet Immunity is enabled.
0 = Disable the pet immunity mode
1 = Enable the pet immunity mode
0x12 (18)
Configure lightsensor to upload data form
1=Upload lumens value.
2=Upload day or night(By notification).
3=Upload lumens and day/night .
5.5 Sensor_Multilevel
Command
value
Sensor multilevel supported
Air temperature (bit 0),
Luminance (bit 2).

15
