About The Manual
This manual is prepared for the users of Rack Series 1-10 kVA.
Companion Manuals
For further information about this device and its options, please visit www.LEGA.com
Updates
Please visit www.LEGA.com for updates. Always use the latest manuals.
Thanks for using our products.
Please strictly obey all the instructions in this manual and pay attention to all the warning and
operation information. It is not advisable to install or operate the machine before reading this
manual.

5
CONTENTS
1 SAFETY INSTRUCTIONS................................................................................................................ 7
2 INSTALLATION INSTRUCTIONS ................................................................................................. 8
2.1 Unpacking Inspection ........................................................................................................... 8
2.2 Attention Items of Installation .......................................................................................... 9
2.3 UPS and Battery Pack Rear Panel View............................................................................. 9
2.3.1 The Type of 120V (Output could be 100V, 110V, 115V, 127V) ...................................10
2.3.2 The Type of 220V (Output could be 208V, 210V, 220V, 230V, 240V) .........................11
2.4 UPS Output Connection...................................................................................................12
2.5 External Battery Connection Procedure For Long Back Up Type..................................... 12
2.6 Installation.......................................................................................................................13
3 PANEL FUNCTION and OPERATION........................................................................................... 15
3.1 Keys Function .....................................................................................................................15
3.2 LED Function.......................................................................................................................17
3.3 LED Display Function..........................................................................................................17
3.4 Turn On/Off Operation .......................................................................................................19
3.4.1 Turn On Operation..........................................................................................................19
3.4.2 Turn Off Operation..........................................................................................................19
3.5 UPS Self-Test / Mute Operation..........................................................................................20
3.6 Panel Function Setting........................................................................................................20
3.6.1 ECO Mode Setting.............................................................................................................20
3.6.2 Bypass Mode Setting........................................................................................................21
3.6.3 Output Mode Setting ........................................................................................................22
3.6.4 Low Voltage of Battery Setting ........................................................................................23
3.7 Parameters Inquiring Operation .......................................................................................... 24
4WORKING MODE INTRODUCTION ............................................................................................. 26
4.1 Bypass Mode.......................................................................................................................26
4.2 Line Mode............................................................................................................................26
4.3 Battery Mode ......................................................................................................................26
4.4 ECO Mode............................................................................................................................27
4.5 Fault Mode. .........................................................................................................................27
5THE WARNING LIST OF THE LOGHT and DISPLAY PANEL ...................................................28
6TROUBLE SHOOTING................................................................................................................ 31

6
7ATTETTION BOF BATTERY DISPOSAL....................................................................................... 33
8NETWORK COMMUNICATION.................................................................................................... 33
9COMMUNICATION INTERFACE INTRODUCTION....................................................................... 33
10 GUARANTEE..............................................................................................................................39
10.1 Terms of Guarantee ............................................................................................................39
10.2 Cases Not Covered by the Guarantee.................................................................................. 40
11 CONTACT INFORMATION.........................................................................................................44

7
Do not touch the battery connection terminals. Battery loop and input voltage loop is without
isolation, which may cause high voltage risk between the battery terminal and ground.
Do not connect to the equipment like hair dryer or electric heater, to ensure the safety for
UPS
1 SAFETY INSTRUCTIONS
 The power output voltage may still have 220V or 120V even not connect to the mains power.
 For the battery cable or power cord replacement, please contact our service station or
dealer to purchase, in order to avoid fire caused by inadequate capacity or heatignition.
 Do not place the battery or battery pack in the fire, which will injure due to explosion.
 Please do not open the UPS case as you will, there is risk of electric shock
the

8
2 INSTALLATION INSTRUCTIONS

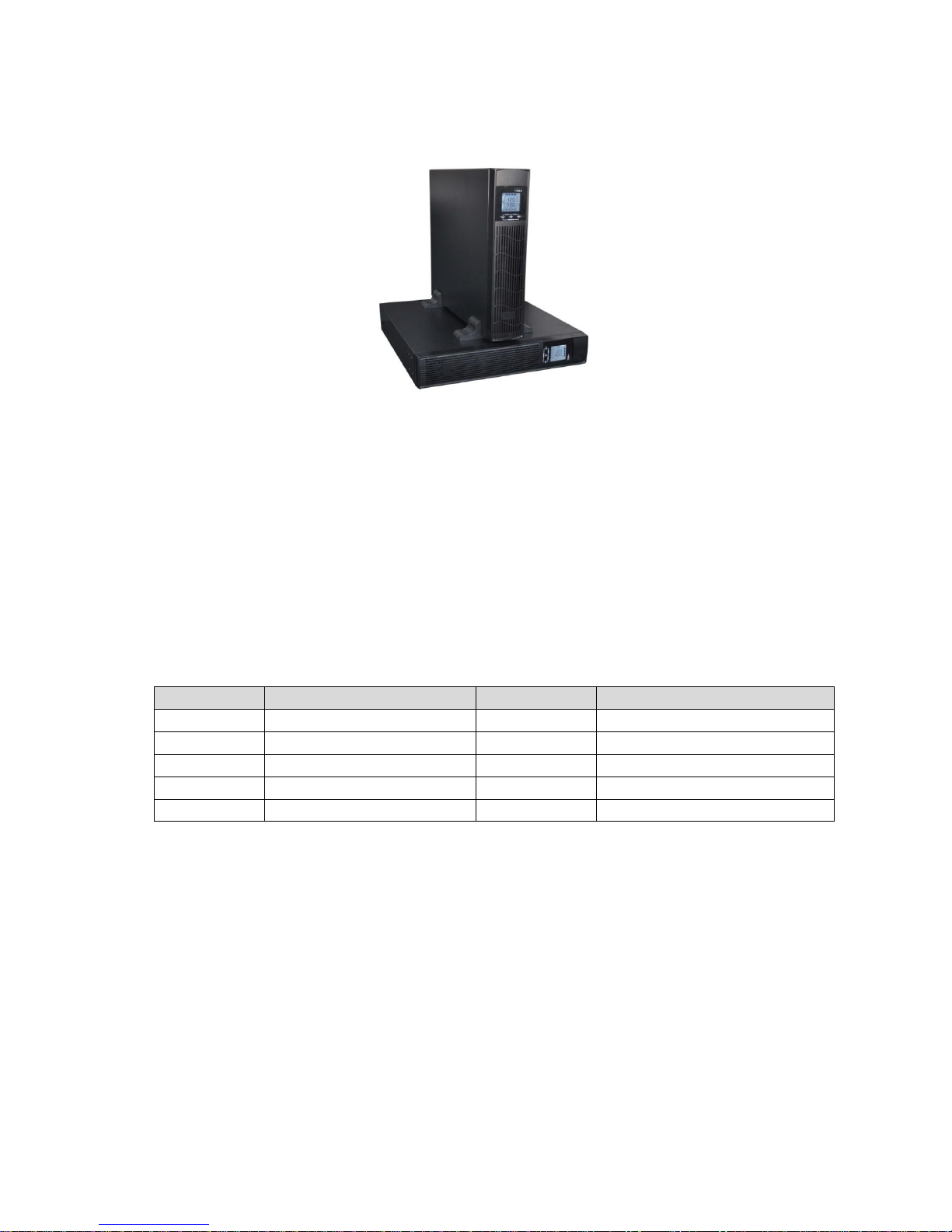

2.1 Unpacking Inspection
 Open the UPS package, please check the enclosed accessories including a user manual,
communication cable, support feet, CD-ROM. The long-back model also includes the cable for
connection to battery bank.
 Check the UPS if any damage in transport. If find it’s damaged or parts missing, do not power
on, please turn to the carrier and dealer.
 To determine whether this UPS is the model you want to buy. Check the model name showed
both on the front panel and rear panel of UPS to confirm.
Model
Type
Model
Type
1KVA
1KVA Standard model
1KVA
1KVA Long backup model
2KVA
2KVA Standard model
2KVA
2KVA Long backup model
3KVA
3KVA Standard model
3KVA
3KVA Long backup model
6KVA
6KVA Standard model
6KVA
6KVA Long backup model
10KVA
10KVA Standard model
10KVA
10KVA Long backup model
NOTE:
Please save the packaging box and packaging materials for future transport use. As heavy
product, please transit the UPS with care.

9
2.2 Attention Items of Installation
 The UPS installation environment must be with good ventilation, away from water, flammable
gases and corrosive entities.
 Do not lie down the UPS against the wall so that front and side panel air intake hole, rear panel
air outtake hole will be unobstructed.
 The peripheral environment temperature around the UPS should be within 0 ℃~ 40 ℃.
 If dismantling the machine at low temperatures, there may be condensation droplets, users can
not install or operate it before UPS completely got dry both inside and outside, otherwise there
will be danger of electric shock.
 Place the UPS near the mains socket to cut off AC mains without any delay at any emergent
case.
ATTENTION:
 Make sure the load behind the UPS is off when users connect the load to UPS, and then turn on
the load one by one later.
 Please connect the UPS with the socket which is over-current protected. Do not connect the
UPS with the socket which rated current is less than the Maximum input current of the UPS.
 All the power socket should be configured with earthling device for safety.
 UPS could be electrified or powered no matter the input power cable is tied or not, even when
the UPS is off. The only way to cut off the output is switching off the UPS, disable the EPO and
disconnecting the mains power supply.
 For all standard type UPS, it is advised to charge the battery over 8 hours before used. Once the
AC mains power energizes the UPS, it will automatically charge the battery. Without prior
charging, UPS output remains as usual but with shorter back-up time than normal.
 When connected to motor, display equipment, laser printer etc, UPS power selection should be
based on the startup power of the load which is usually twice as rated power.

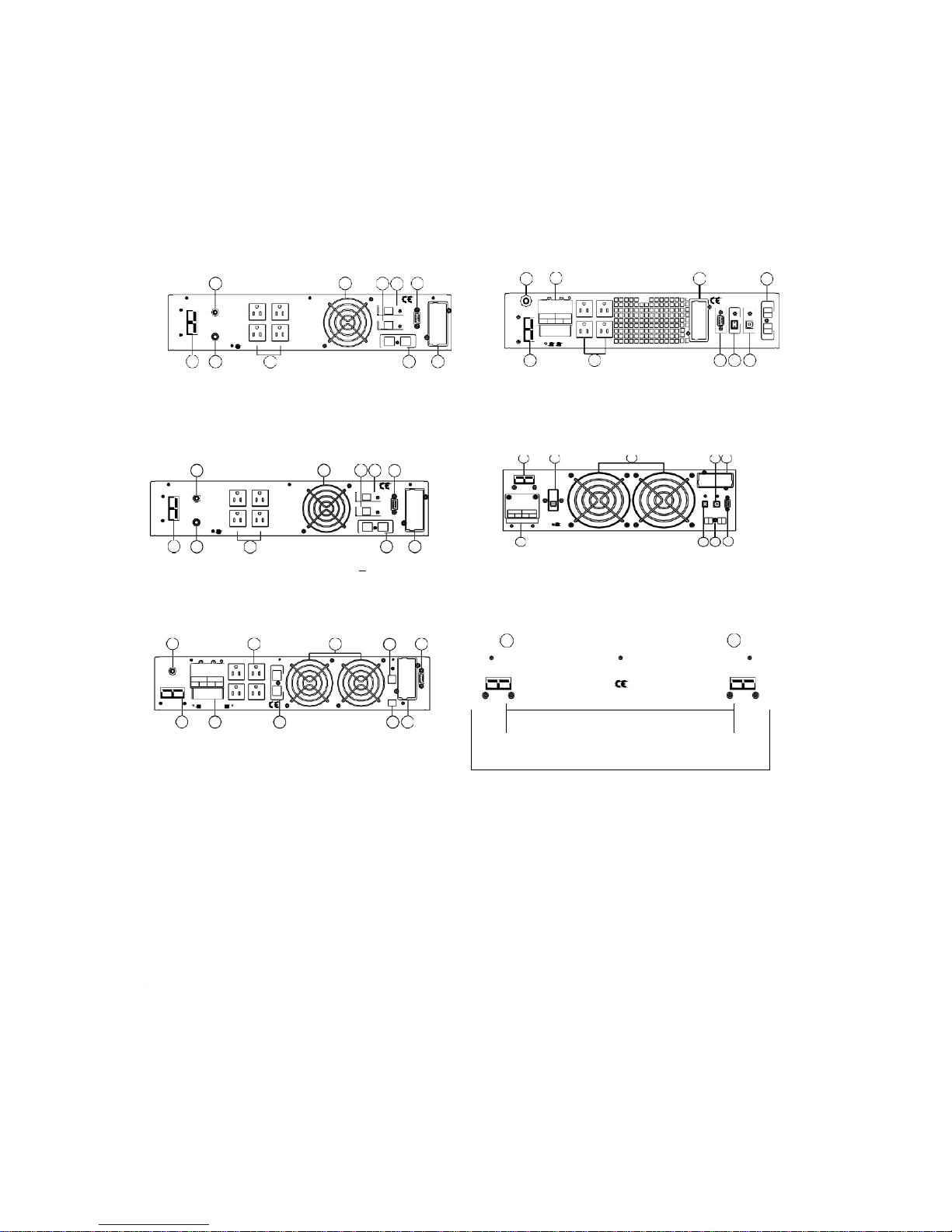

2.3 UPS and Battery Pack Rear Panel View
NOTE:
Following diagrams take the type of 0.9PF for example, the type of 0.8PF is similar.

10

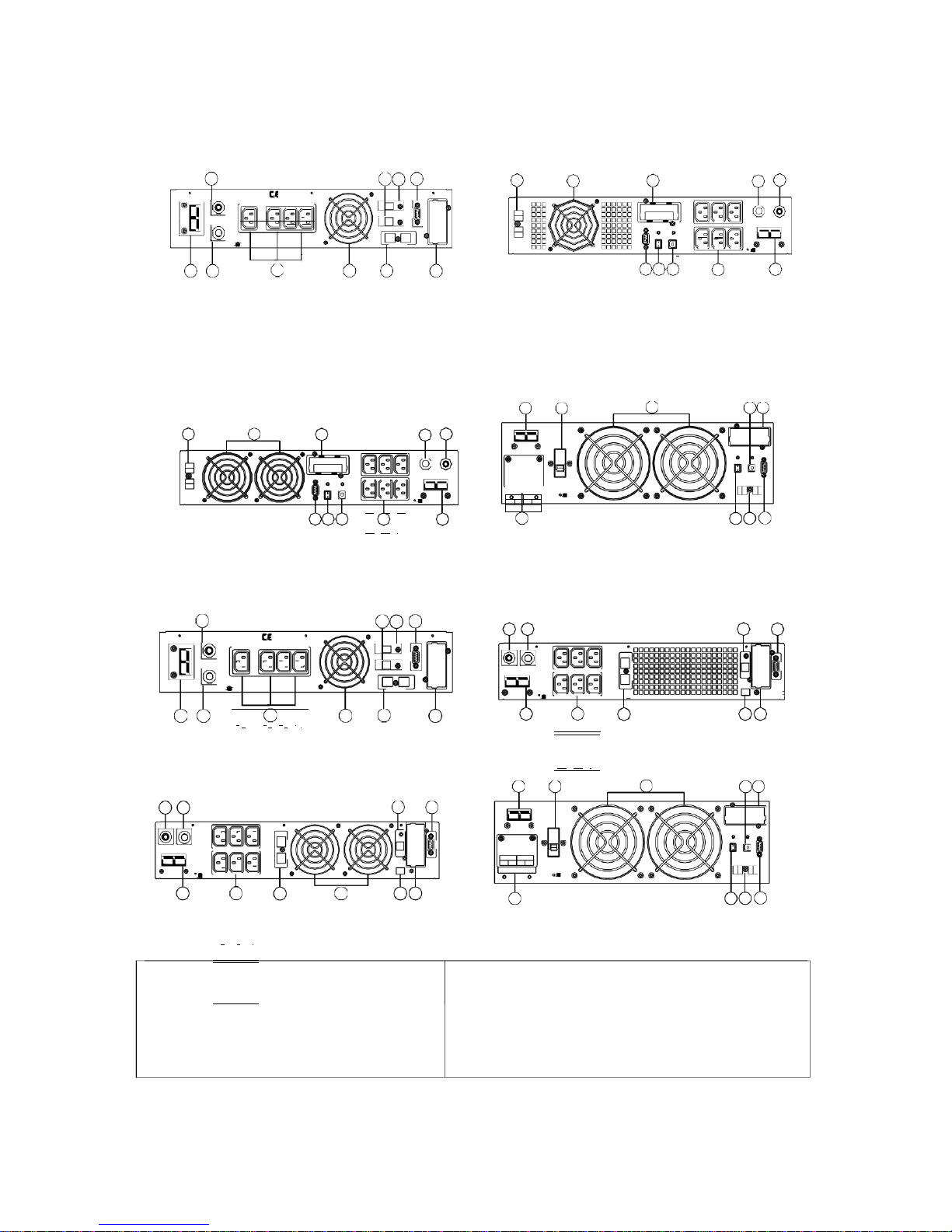

2.3.1 The Type of 120V (Output could be 100V, 110V, 115V,127V)
A. Standard Model
2 3 4 5
6
2 11 7 8
S
S EPO
FUSE 250VA C 35A
RESET
FUSE 125VAC, 15A
RESET
USB
I NP UT O U T P UT
L N N L
INPUT
9
1
OUTPUT SOCKE T
10
IN OUT
TEL/MODEM/FAX
8
7
OUTPUT SOCKET
9 10
6 5 4
a. 0.9PF 1KVA rear panel b. 0.9PF 2KVA&3KVA rear panel
B. Long-Run Model
2 3 4 5 6
9 2 3 4 7
ON
INTEL LIGE N T S L O T
S EPO
FUSE 125VAC, 15A
RESET
USB
INPUT
OUTPUT
OFF
L N L N
INPUT
9 1
OUTPUT SOCKE T
10
IN OUT
TEL/MOD EM/F AX
8 7 11
5 8 6
a. 0.9PF 1KVA rear panel b. 0.9PF 2KVA rear panel
2 10 3 4 6 9 9
S
FUSE 125VAC,35A
RESET
INP U T O U T P UT
L N N L
+ 72VDC 40 A -
EXT.BATTERY
OUTPUT SOCKE T
EPO
INTELLIGENT
SLOT
9 11 8 5 7
c. 0.9PF 3KVA rear panel d. 0.9PF Battery Pack rear panel
+ -
INTELLIGEN T SLOT
INTELLIGENT SLOT
+ 24VDC 40A
-
EXT.BATTERY
+ 24VDC 40A -
EXT.BATTERY
IN
OUT
TEL/MODEM/FAX
RS232
U S B
RS232
RS232
72VDC 40 A
EXT .BATTE RY
EPO
IINNTTEELLLLIIGEENNTT SSLLOTT
USB
RS232
RS232
EPO
USB
IN
OUT
TEL/M OD EM/FAX
DC OU TP UT
DC OU TP UT
+
72VDC -
+
72VDC -
