Legacy LDCS 91 User manual

DVD/VCD/CD/MP3 PLAYER WITH
AUTO REVERSE CASSETTE WITH
AM/FM-STEREO DIGITAL PLL TUNING RADIO
WITH ANTI-THEFT FLIP DOWN DETACHABLE PANEL
OWNER'S MANUAL
Mobile Video System
ENTER
MENU
5
1
6
9
2
7
0
8
+10
34
A/P
VOL
F.FWD
NEXT
F. B W D
PREV.
ANGLE
PLAY/PAUSE
BAND
SEL
TITLE/PBC
ST/MO
MODE
SETUP
CLK
STOP
LO/DX
EQ
REPEAT
POWER
MUTE
VOL
OSD
+
-
UP
DN
SW
CAR DVD/VCD/CD/MP3 CASSETTE RECEIVE
ST
TAPE IN
3 IN 1
DVD & CASSETTE & RADIO
LDCS 91

CONTENTS
1
Safety Information ........................................................................................2
Disc Notes .....................................................................................................3
Tape Notes.....................................................................................................4
Installation .....................................................................................................5
Electric Connection ......................................................................................8
Remote Control.............................................................................................9
Basic Operation ..........................................................................................11
MP3 Disc Play...........................................................................................15
On-Screen Display Function.....................................................................16
Muti-audio Language Function.................................................................17
Title Menu Function .................................................................................17
Multi-subtitle Language Function .............................................................17
Multi-angle Function.................................................................................17
Setup ............................................................................................................18
Initial Setup ...............................................................................................18
General Setup...........................................................................................18
Speaker Setup ..........................................................................................20
Audio Setup ..............................................................................................20
Preferences Setup ....................................................................................21
Defaults Table ...........................................................................................23
Specifications..............................................................................................24
Trouble Shooting.........................................................................................25

SAFETY INFORMATION
2
CAUTION:
THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER
USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER
CORRECTLY AS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE. DO NOT OPEN COVERS AND - DO NOT REPAIR
YOURSELF. REFER SERVICINGTO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering ordisassembly is prohibited.
REGION MANAGEMENT INFORMATION:
This DVD Player is designed and manufactured to respond to the Region Management
Information that is recordedon a DVD disc. If the Region number described on the
DVD disc does not correspond to the Region number of this DVD Player, this DVD
Player cannot play this disc.

Disc formats supported by this player
DVD
12 cm disc
(Single-sided disc only)
Video CD
12 cm disc
CD
12 cm disc
MP3
12 cm disc
Discs which cannot be played with this
player
• DVD-ROM
• DVD-R/DVD-RAM
• CDV
• CD-G
Handling and Cleaning
• Dirt, dust, scratches and warping disc
will cause misoperation.
• Do not place stickers or make
scratches on discs.
• Do not warp discs.
• A disc should always be kept in its
case when not in use to prevent from
damaging.
• Do not place discs in the following
places:
1. Direct sunlight
2. Dirty, dusty and damp areas
3. Near car heaters
4. On the seats or dashboard
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Note:
A disc may become somewhat scratched
(although not enough to make it
unusable) depending on your handle it
and conditions in the usage environment.
Note these scratches are not an
indication of any problem with the player.
Preparing New Discs with Rough
Spots
A new disc may have rough edges on its
inside and outside edges. If a disc with
rough edges is used, the proper setting
will not be performed and the player will
not play the disc. Therefore, remove the
rough edges in advance by using a ball
point pen or pencil as shown on the right.
To remove the rough edges, press the
side of the pen or pencil against the
inside and outside edges of the disc.
DISC NOTES
3
Rough spots
on inside edge
Ball point pen
or pencil
Rough spots on
outside edge
Label side up
Do not touch
the underside
of the disc
Do not bend
Wipe the disc from center
toward the outside edge

1. Take care of your tape cassette to preserve the quality of the recordings. Do not
allow them to be exposed to direct sunlight. Store them in a place protected from
dirt and dust and avoid handing with greasy or oily hands. Also, keep the away
from magnets, and motors of the permanent magnet type.
2. It is not advisable to use cassette tapes longer than C-60 (30 minutes per side) in
automobile players, since the tape is too thin and tends to become easily entangled.
Always remove cartridge from your tape player as soon as play is finished.

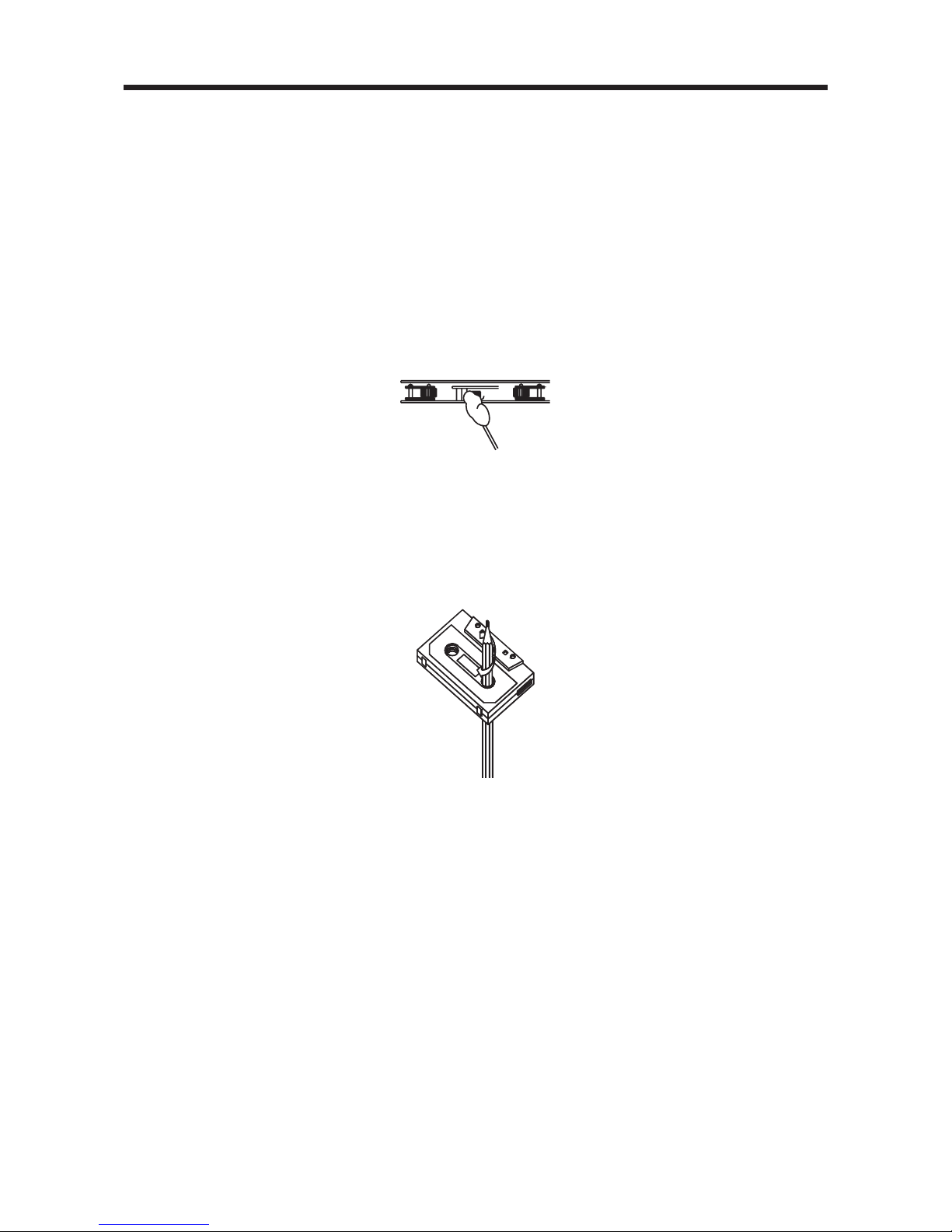

3. The capstan and tape head should be cleaned about once every six months with
a soft cloth or cotton-wool swab, moistened with alcohol. This will serve to maintain
the richness and clarity of sound, and prevent loss of volume. Do not use a
screwdriver, or ferrous metal rod, in carrying out the above cleaning. See illustration.
4. A loosely wound cassette tape will get damaged. Prior to using such tape, tighten
it in a manner as guided by Fig. A carelessly would cassette tape will cause
unnecessary pressure on the tape resulting in the cassette springing out while the
tape is running. For prevention rewind the tape through fast forwarding or rewinding.
TAPE NOTES
4

INSTALLATION
NOTES:
Choose the mounting location where the unit will not interfere with the normal
driving function of the driver.
Before finally installing the unit, connect the wiring temporarily and make sure it is
all connected up properly and the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use of
unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or other
modifications of the vehicle.
Install the unit where it does not get in the driver’s way and cannot injure the
passenger if there is a sudden stop, like an emergency stop.

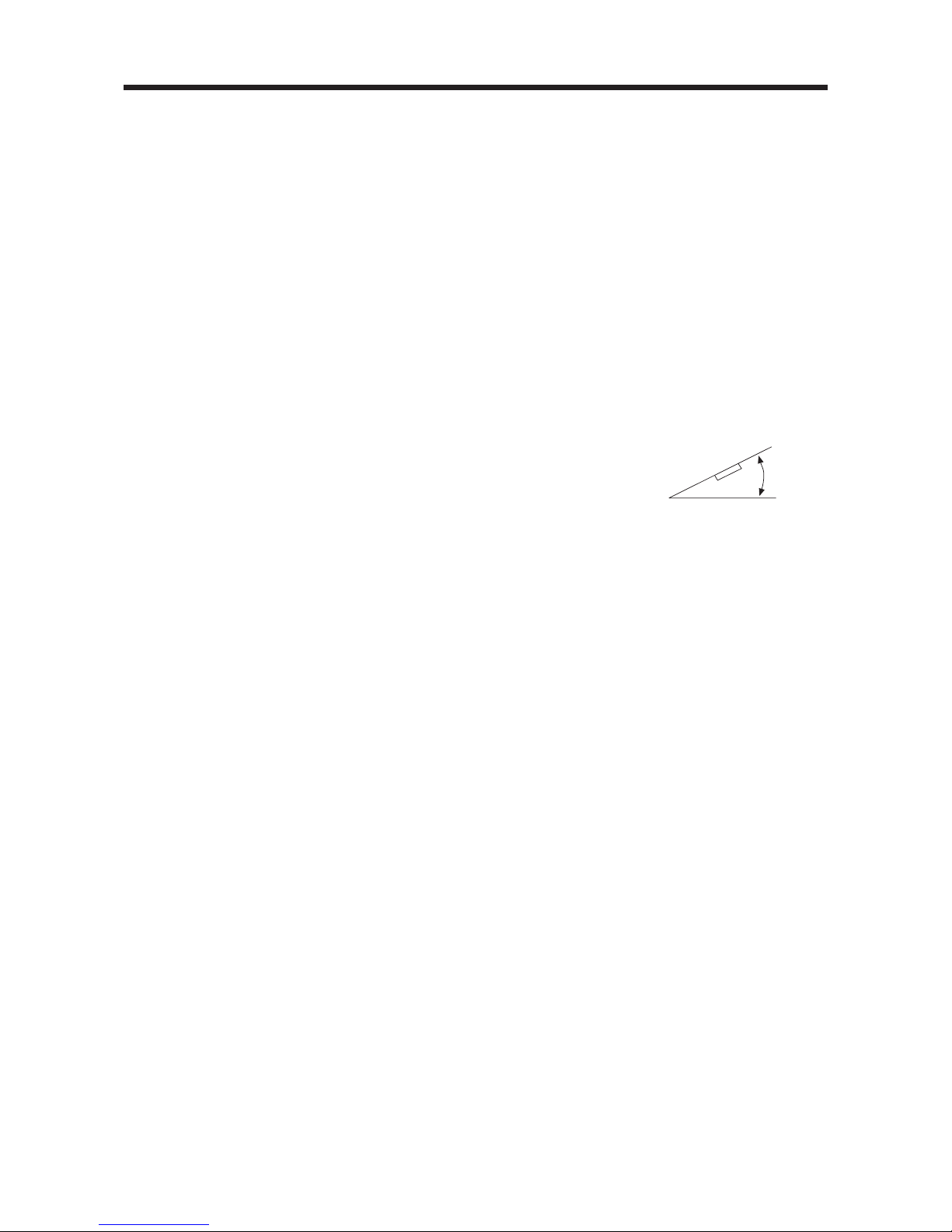

If installation angle exceeds 30˚ from horizontal, the unit might not give its optimum
performance.
Avoid installing the unit where it would be subject to high temperature, such as from
direct sunlight, or from hot air, from the heater, or where it would be subject to dust,
dirt or excessive vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either from “Front” (conventional DIN Front-mount)
or “Rear” (DIN Rear-mount installation, utilizing threaded screw holes at the sides of
the unit chassis). For details, refer to the following illustrated installation methods.
30˚
5

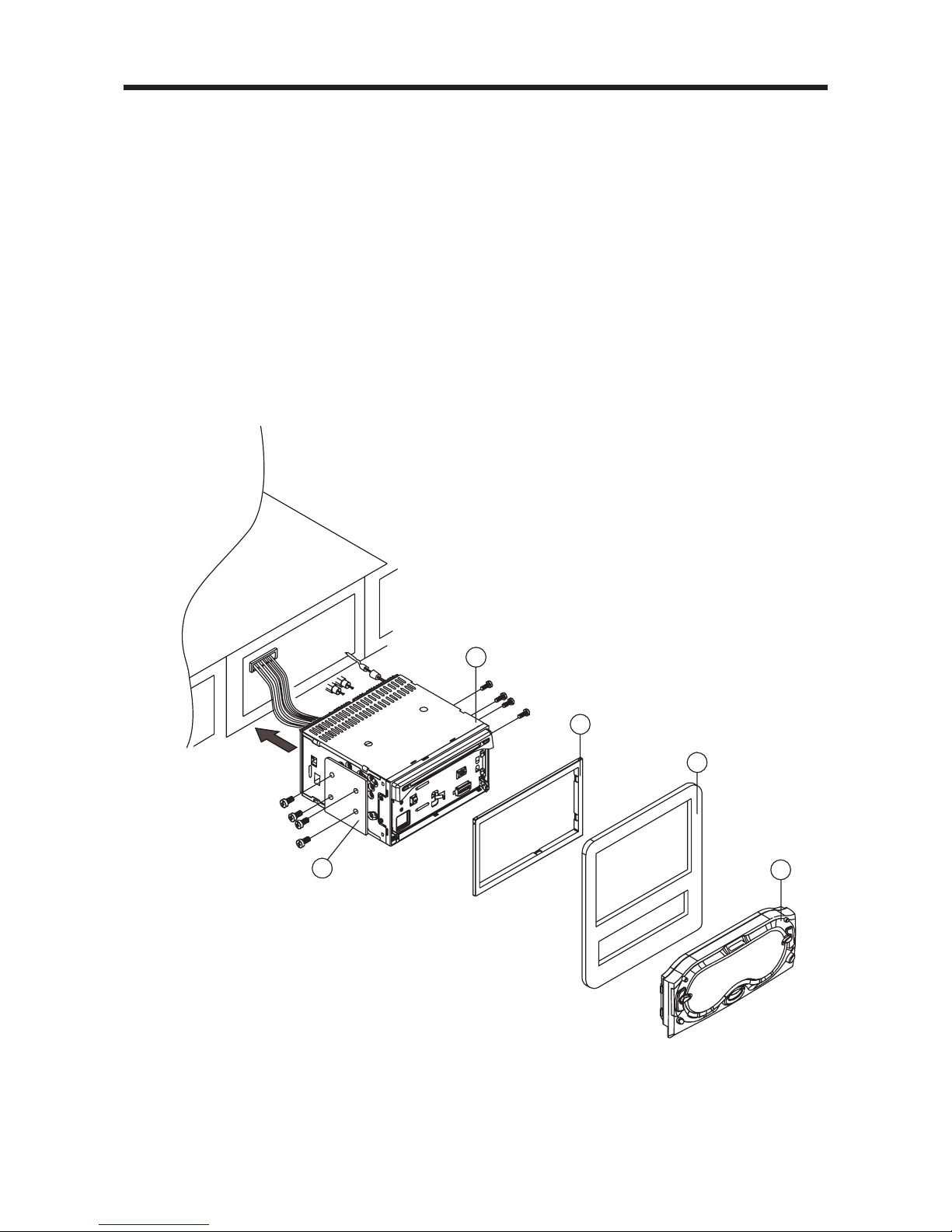

1. Install brackets and screws removed from your old radio (not provided with this
unit).
2. Slide unit and frame into dash opening.
3. Trim ring has precutgrooves on the back of it. The size of the trim ring can be
reduced (made smaller) for different types of installations. Hold the trim ring firmly
in one hand, and using a pair of pliers, grasp the trim ring above the score line
(groove) and bend gently back and forth a couple of times. Then the piece should
break away.
4. Install dash panel.
5. Install faceplate by fitting left edge into position then pushing right edge closed.
6
INSTALLATION
1
2
3
4
5

7
CAUTION: DO NOT INSTALL THE DETACHABLE PANEL BEFORE
CONNECTING THE WIRE.
1. The unit is designed for negative terminal of the battery which is connected to the
vehicle metal. Please confirm it before installation.
2. If the car interior is extremely hot, as after being parked in the sun, do not use the
player until the car has been driven for a while to cool off the interior.

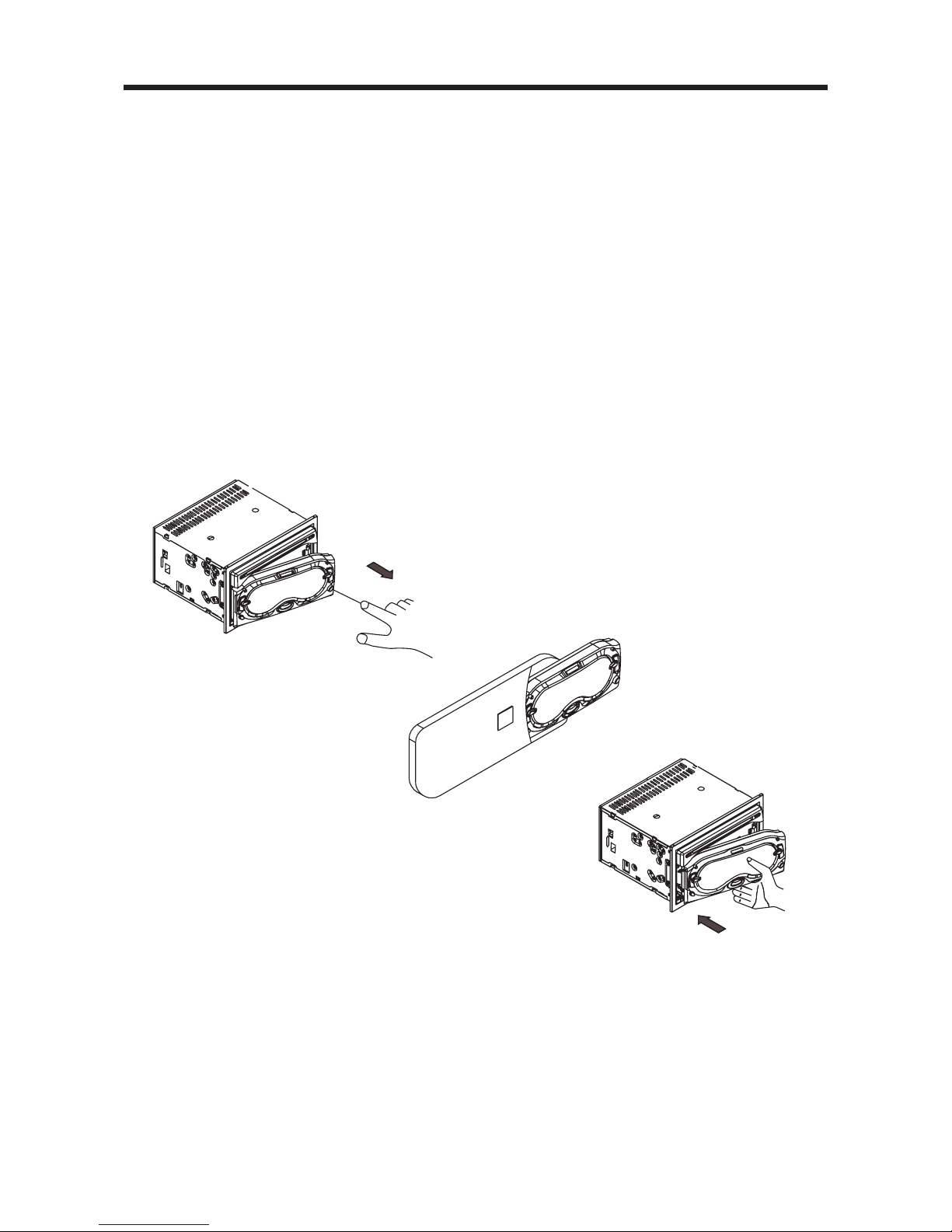

3. Press the REL button to take away the front panel (see fig.1), and put it in the protective
case (see fig.2) safe keeping.
4. Install the front panel back into its bracket and then push it back to the position for
playing (see fig.3).
INSTALLATION
Fig 1
Fig 2
Fig 3

8
ELECTRIC CONNECTION
FRONT RCA OUTPUT
V. OUT = VIDEO OUT
FL OUT = FRONT LEFT AUDIO OUT
FR OUT = FRONT RIGHT AUDIO OUT
REAR RCA OUTPUT
V. OUT = VIDEO OUT
RL OUT = REAR LEFT AUDIO OUT
RR OUT = REAR RIGHT AUDIO OUT
AUXILIARY IN
V. IN = VIDEO IN
L. IN = LEFT AUDIO IN
R. IN = RIGHT AUDIO IN
COX = COAXIAL OUT
SW = SUB-WOOFER OUT
DESCRIPTION OF RCA JACK (ON THE BACK OF THE UNIT)
FRONT Lch
SPEAKER
GREEN
GREEN/BLACK
MEMORY
BACK-UP (B+)
MAIN UNIT
IGNITION
SWITCH (B+)
POWER
ANTENNA
RED
GROUND (B–)
YELLOW
BLACK
FUSE
BLUE
ANTENNA CONNECTOR
WHITE
WHITE/BLACK
REAR Lch
SPEAKER
FUSE
VIOLET
VIIOLET/BLACK
GREY
GREY/BLACK
FRONT Rch
SPEAKER
REAR Rch
SPEAKER
FUSE

1. CLK Press it to change the display to clock display.
2. MODE Press it to change between radio or disc mode.
3. SETUP Display the SETUP menu.
4.
OSD (BAND) Display statistical disc information during playback (To change the
band in radio stations)
5.
ST/MO (AUDIO) Press it to select STEREO or MONO (In disc stations, press it to
changing of the AUDIO soundtrack on multi-audio soundtrack DVD
disc. Changing of the sound mode of the VCD/CD disc)
6. SEL Press it to change audio mode through Volume, Bass, Treble, Balance
and Fader modes.
7. TITLE/PCB Display the TITLE menu that is stored in DVD disc changing
(A/P) between PBC ON and PBC OFF on the VCD disc. (Auto store and
preset scan function in radio stations.)
8. VOL+/VOL- Press it to adjust volume level.
9. / / / Cursor buttons in MENU mode.
10. MENU/ Press it to display the root menu of the DVD disc./ Press and hold for
SUBWOOFER more than 2 seconds can have subwoofer.
11. STOP Press it to stop playback.
12.
PLAY/PAUSE Press once to pause a play, press again to resume playback.
13. POWER Press it to turn on the unit, press it again to turn off.
14. MUTE Press it to mute down the sound.
15. REPEAT Switch the Repeat mode of DVD/VCD/CD disc.
16. ANGLE Changing of the view angle on multi-angle DVD disc
17. EQ Press it to change the equalization as jazz, classic, pop, rock.
18. SUBTITLE Changing of the SUBTITLE language on multi-subtitle language
(LO/DX) DVD disc. In radio mode, press this button for distance reception
when you are located at weak signal location, depress it for stronger
signal.
19 / Press to skip to the next track & press to skip back one track.
20. ENTER Confirm the Track/Chapter selected with the number key or selected
with the cursor buttons on TV screen.
21. 0 - 9 Numeric buttons
22. +10 Press it to select 10th digits
9
REMOTE CONTROL
11
12
13
14
15
16
17
18
19
21
22
1
2
3
4
5
6
7
8
10
20
9
ENTER
MENU
5
1
6
9
2
7
0
8
+10
34
A/P
VOL F. F W D
NEXT
F. B W D
PREV.
ANGLE
PLAY/PAUSE
BAND
SEL
TITLE/PBC
ST/MO
MODE
SETUP
CLK
STOP
LO/DX
EQ
REPEAT
POWER
MUTE
VOL
OSD
+
-
SW
UP
DN

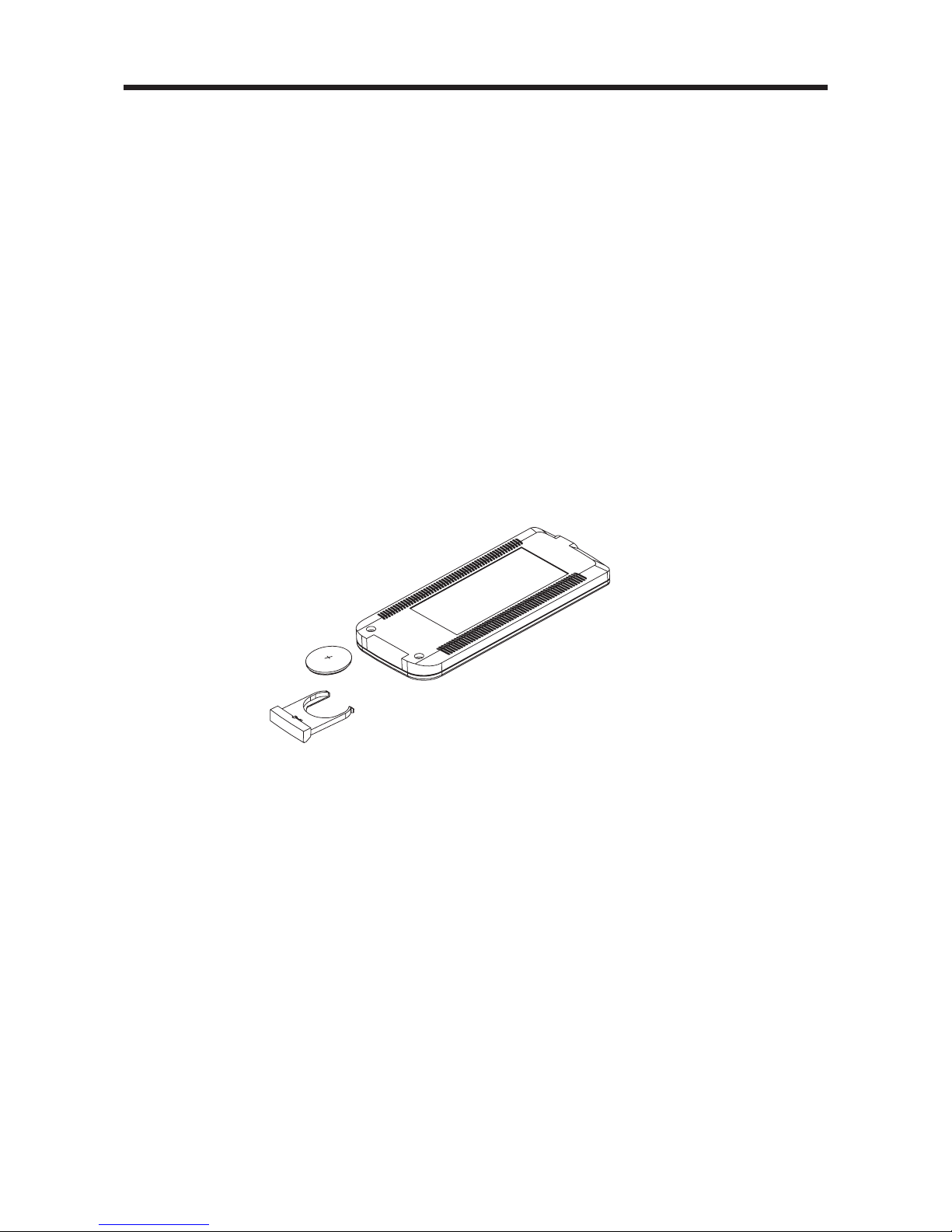

Preparing the Remote Control
Inserting the Batteries
1. Open the battery compartment cover.
2. Insert the new batteries.Make sure that the positive and negative terminals of the
batteries are oriented indicated.
3. Close the cover
Using the Remote Control
Face the remote control towards the player front face IR mark (remote control signal
receiver).
Operation angle: About ±30 degree in each the direction of the front of the IR mark.
To prevent damage to the unit, be sure to follow the connection diagram
(page 8).
REMOTE CONTROL
10

11
BASIC OPERATION
CAR DVD/VCD/CD/MP3 CASSETTE RECEIVE
ST
TAPE IN
1 16 5 19 13
17204111091215148763182
26 24 25 23 21 22

12
BASIC OPERATION
1. OPEN BUTTON
Press it to flip down the front panel then you can insert the TAPE into the tape
compartment.
2-3. VOL +/ VOL- & SEL BUTTON
Press it to change audio mode through volume, bass, treble, balance, and fader
modes. Use VOL +/ VOL- buttons to adjust the selected mode. When mode has
not been adjusted for several seconds, display returns to normal radio or CD display.
A. Volume: Adjust volume level by using VOL +/ VOL- buttons.
Note:The unit is initially set to volume mode.
B. Bass: Press SEL button one time. Adjust bass level by using VOL +/ VOL- buttons.
C. Treble: Press SEL button two times. Adjust treble level by using VOL +/ VOL-
buttons.
D. Balance: Press SEL button three times. Adjust sound balance between left and
right speakers by using VOL +/ VOL- buttons.
E. Fader: Press SEL button four times. Adjust sound balance between front and
rear speakers by using VOL +/ VOL- buttons.
4. BAND BUTTON
In RADIO mode, press the BAND button on the front panel or on the remote controller
to select your desired radio band and word which band is selected will be displayed
on LCD. Press it to change the bands as below:
For 3 Bands (Europe) For 2 Bands (Europe) For 2 Bands (USA)
5. DISC COMPARTMENT
Insert the disc into the disc compartment and the mechanism will now engage into
the disc play mode.
6-7-8-9-10-11. PRESET STATION
A. To memorize the current frequency, press any one of the six preset buttons[1-6]
on the front panel or on the remote controller hold for more than 2 seconds.
B. To recall the preset memory, press one of the preset buttons [1-6].
C. Press 1/TOP button to select the first track/ chapter to play.
a. In the state of VCD/CD/MP3 disc playing, press the button on the front panel
to select the first track/chapter to play. (depend on the disc used for VCD)
b. In the state of DVD disc playing, the 1TOP button is not available.
D. Press 2/RPT button to select repeat mode as follow.
DVD:
VCD/CD:
VOL BAS TRE BAL FAD
REP-ONE REP-ALL
CHAPTER REPEAT ON TITLE REPEAT ON
REPEAT OFF
FM MW FM AM
FM MW LW

13
BASIC OPERATION
a. Continuously repeat at the current chapter/track, when selected REP-ONE
mode.
b. Select REP-ALL mode to continuously repeat all chapter/track on the current
disc.
c. REPEAT feature does not support VCD2.0 (with PBC ON).
E. Press 3/INT button to scan disc.
a. In the state of VCD/CD disc playing, press the 3/INT button on the front panel
to play the previous 10 seconds part of each track/chapter on disc (depend
on the disc used for VCD).
b. In the state of DVD/MP3 disc playing, the 3/INT button is not available.
F. Press 4/RDM to play disc in random.
a. In the state of VCD/CD/MP3 disc playing, press the 4/RDM button on the front
panel to play in random or select DISC REP. (depend on the disc used for VCD)
b. In the state of DVD disc playing, the 4/RDM button is not available.
12. AS/PS BUTTON
When shortly pressing the APS button on the front panel or the A/P button on the
remote controller, the radio searches for each preset station. When the field strength
level is more than the threshold level of stop level, the radio is holding at that preset
number for few seconds with releasing mute, and then searches again.
In FM band, FM 1,FM 2 and FM 3 is checked one at a time. When long pressing
the APS or A/P button (more than 1 second), the radio searches from the current
frequency and checks the signal strength level until 1 cycle search is finished. And
then 6 strongest stations are preset to the corresponding preset number.
The AS operation is implemented in the each band of selected band. When the AS
operation is finished, the radio executes the preset scan.
13. MU BUTTON
Press it to mute down sound. Press it again to release this mode and recover previous
volume level.
14.CLK BUTTON
Press it to change the display to clock display. Press it again to return to previous
display. In clock display, press and hold for about 2 seconds until the hour display
flashes. Press VOL +/ VOL- to adjust hours, press CLK button to flash mintue then
press VOL +/ VOL- to adjust minutes.
15. PWR BUTTON
Press it to turn on the unit. Press it again to turn off.
16. BUTTON
Pressing during playback will stop play temporary. Return to normal playback,
press once again.

14
BASIC OPERATION
17. / BUTTONS
A. When long pressing the / button (more than 2 seconds) during play,
the speed of rapid forward/reverse changes according to the disc as follow.
DVD: VCD/CD:
Normal Playback 2X 4X 6X 8X Normal Playback 2X 3X 4X
MP3:
Normal Playback 2X 4X
B. Shortly press the / button during playback to skip to next track or back
one track.
Note: For some VCD2.0 discs (PBC-playback control), and buttons may
be unavailable.
C. Press UP or DN button on the remote controller or / on the front panel to
manually tune up or down for your desired station. Press them hold for more
than 2 seconds to automatically tune up or down for the stronger station.
18. MOD BUTTON
A. When there is tape and disc in the unit. Press it repeatedly to select AUX IN,
RADIO, DISC, TAPE mode.
B. When there is tape but no disc in the unit, you can select AUX IN, RADIO, TAPE
mode.
C. When there is disc but no tape in the unit, you can select AUX IN, RADIO, DISC
mode.
D. When there is no tape and disc in the unit, you can select AUX IN, RADIO mode.
19. EJECT BUTTON OF DISC
Press it to eject the disc from the CD compartment.
20. RELEASE BUTTON
Press it to detachable the removable faceplate.
21. CASSETTE COMPARTMENT
Holding the cassette tape lengthwise, insert it into the compartment, the tape
mechanism will now engage into the cassette play mode.
22. PROGRAM BUTTON
To fast forward or fast rewind the cassette tape, push down the corresponding button
into the locking position. If fast forward button is pressed, it can be released by
pushing down the rewind button and vice versa.
Push down these two buttons simultaneously to change the playback direction.
23. EJECT BUTTON OF TAPE
Push down to eject the cassette tape.

15
BASIC OPERATION
24. FLASHING LED
If the front panel is not on the main unit, LED will be flashing.
25. RESET BUTTON
RESET button is placed on the housing and must be activated with either a ballpoint
pen or thin metal object. The RESET button is to be activated for the following
reasons:
A. Initial installation of the unit when all wiring is completed.
B. All the function buttons do not operate.
C. Error symbol on the display.
Note: If press RESET button, the unit can’t work yet, please use a cotton swab
soaked in isopropyl alcohol to clean the socket on the back of the front panel.
26. THE CHANGE-OVER SWITCH OF FREQUENCY (option)
Slide it you can select the USA or EUROPE radio frequancy.
MP3 Disc Play
1. MP3 disc is playing as the format of FOLDER by FOLDER.
For example:
ROOT 0
MP3 MUSIC 1
SKY
MP3 HEAR YOUR
ROOT
MP3 PLAYER
Use / / / to select the item or folder, then press ENTER button.
Pressing REPEAT button repeatedly can select three kinds of repeat play mode.
2. REP-ONE:
Play the same song over and over again.
3. FOLDER REPEAT:
Play all songs in the current directory in sequence, over and over again.
4. DISC REPEAT:
Play all songs in the disc over and over again.
In the playback, use or to skip an item ahead or back.
When long pressing the / to fast rapid forward/reverse.
Note: The FOLDER cannot be selected during playing. It can be selected after
(Stop) button pressed.

16
BASIC OPERATION
c. Press OSD for the third time:
T:01/18 P: 00:00:25 LR DISC
TOTAL ELAPSED
d. Press OSD for the fourth time:
T:01/18 P: 00:00:25 LR DISC
TOTAL REMAIN
e. Press OSD for the fifth time:
The message on the screen will be
cleared
for SVCD and VCD.
Note: For CD and Mp3, the
message will always display on
the screen.
C. Example for MP3:
Each time OSD is pressed, the
message displayed on screen
changesas follows:
On-Screen Display Function
Press the OSD button during playback to
display the contents of the current disc
on the screen.
A. Example for DVD:
a. Press OSD for the first time:
TITLE 01/03 CHAPTER 002/025
P:00:00:25 TITLE ELAPSED
Title Number, Total Title Number,
Chapter Number, Total Chapter
Number of this Title of the disc
currently being played will be shown
on the screen, along with the elapsed
time.
b. Press OSD for the second time:
TITLE 01/03 CHAPTER 002/025
P: 00:00:25 TITLE REMAIN
c. Press OSD for the third time:
TITLE 01/03 CHAPTER 002/025
P:00:00:25 CHAPTER ELAPSED
d. Press OSD for the fourth time:
TITLE 01/03 CHAPTER 002/025
P: 00:00:25 CHAPTER REMAIN
e. Press OSD for the fifth time:
The message on the screen will be
cleared.
B. Example for VCD/SVCD/CD:
a. Press OSD for the first time:
T:01/18 P: 00:00:25 LR DISC
SINGLE ELAPSED
b. Press OSD for the second time:
T:01/18 P: 00:00:25 LR DISC
SINGLE REMAIN
SINGLE ELAPSED SINGLE REMAIN

BASIC OPERATION
17
Multi-subtitle Language Function
(For DVD only)
Press SUBTITLE during playback. Each
time the button is pressed, number of the
subtitle language changes in sequential
order.
Notes: The language number is different
according to the disc. Some discs only
contain one subtitle language. When no
different subtitle language are recorded,
will be displayed at screen left top
corner.
Multi-angle Function (For DVD only)
Press ANGLE during playback. Each time
the button is pressed, number of the angle
changes in sequential order.
Notes: The angle number is different
according to the disc.The function only
work for discs having scenes recorded at
different angles. When no different angle
are recorded, will be displayed at screen
left top corner.
Multi-audio Language Function
A. DVD: Press AUDIO during
playback.
Each time the button is pressed,
number of the audio soundtrack
language changes on sequential order.
Notes:The language number is
different according to the disc. Some
disc only contain one language
soundtrack. When no different
language soundtrack are recorded,
will be displayed at screen left top
corner.
B. VCD: Press AUDIO during
playback. It is possible to switch
the sound between monaural and
stereo sound.
C. CD: Press AUDIO during
playback. It is possible to switch
the sound between monaural and
stereo sound.
TITLE Menu Function
A. DVD: If the DVD has multiple titles
recorded on the disc. It can select
preferred title from the title menu
to start playback.
a. Press TITLE during playback.
The title menu is display.
b.Press the cursor button shown
in TV screen, select preferred
title by the cursor button and
confirmed by ENTER key.
B. VCD: Press MENU button while
the disc is playing, you can switch
between "PBC on" and "PBC off"
mode.
LEFTVOCAL RIGHT VOCAL MONO LEFT
STEREO MONO RIGHT
MONO LEFT MONO RIGHT STEREO

Video Material
Normal
TV Screen
Pan Scan Letter-box
4:3 Wide (16:9)
4:3
16:9
GENERAL SETUP
SPEAKER SETUP
AUDIO SETUP
PREFERENCES
EXIT SETUP
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
NORMAL/PS
NORMAL/LB
WIDE
18
SETUP
INITIAL SETUP
--- MAIN PAGE---
1. Press SETUP in the stop mode.
(Press the stop button twice to ensure
the player under STOP mode.)
2. The initial SETUP menu is displayed.
3. Select the preferred item by using the
/ buttons.
4. Press ENTER buttons.
A. GENERAL SETUP
This setup page includes all the
item of TV display & audio output
feature. The detail please refer to
GENERAL SETUP MENU.
B. SPEAKER SETUP
This is to activate the audio output
from DOLBY AC3 5.1 DOWNMIX
to 2 channel mode. Please refer to
SPEAKER SETUP MENU.
C. AUDIO SETUP
This setup page includes all the
items for AUDIO. Please refer to
AUDIO SETUP MENU.
D. PREFERENCE SETUP
This setup page includes all the
configuration of support feature.
The detail please refer to
PREFERENCES SETUP MENU.
GENERAL SETUP
--- GENERAL PAGE ---
1. TV DISPLAY SETUP
This is to select the appropriate TV
aspect (4:3 or 16:9) according to the
connected TV set.
Normal/PS (For 4:3 TV)
Played back in the PAN & SCAN style.
(If connected to wide-screen TV, the
left and right edges are cut off.)
Normal/LB (For 4:3 TV)
Played back in letterbox style.
(If connected to wide-screen TV, black
bands appear at top and bottom of
the screen.)
Wide (For 16:9 TV)
Select when a wide-screen TV set is
connected.

--- GENERAL PAGE ---
2. PIC MODE SETUP
Select AUTO, the player PIC mode will
depend on DVD disc.
Select HI-RES format for best image
resolution.
Select N-FLICKER format on format
on image or picture under noise affect.
--- GENERAL PAGE ---
3. ANGLE MARK DISPLAY SETUP
If it is set to ON, when the multi-angle
DVD disc is playing, (the angle
mark) will appears on the screen; if it
is set to OFF, the mark will not appear.
--- GENERAL PAGE ---
4. OSD LANG TYPE SETUP
Select the preferred OSD language by
using the / buttons.
--- GENERAL PAGE ---
5. CAPTIONS SETUP
Activate the CAPTIONS feature by
selecting ON. And release this feature
by selecting OFF.
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
AUTO
HI-RES
N-FLICKER
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
ENGLISH
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
ON
OFF
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
ON
OFF
19
SETUP
