OWNER’S
MANUAL
LDN27U
www.legacycaraudio.com

2
SAFETY INFORMATION........................................................................................................3
DISC NOTES..................................................................................................................................................................4-5
INSTALLATION....................................................................................................................6-7
ELECTRICAL CONNECTION................................................................................................8
THE PLAYER.....................................................................................................................................................................9
OPERATION...........................................................................................................................10
SETTINGS ..................................................................................................................10
DISC (DVD/VCD/CD/MP3)OPERATION............................................................11-12
RADIO OPERATION..................................................................................................13
USB..............................................................................................................................14
SD................................................................................................................................14
REMOTE CONTROL...................................................................................................... 15-16
PERFORMANCE..................................................................................................................17

3
SAFETY INFORMATION
Use This Product Safely
This set has been designed and manufactured to assure personal safety. Improper use
can resultin electric shock or fire hazard. The safeguards incorporated in this unit protect
you if you observe the following procedures for installation, use and servicing. This unit
doesn’t contain any parts that can be repaired by the user.
When Driving
Keep the volume level lowenough to be aware of road and traffic conditions.
When Car Washing
Do not expose the product to water or excessive moisture. This could cause electrical
shorts, fire or other damage.
When Parked
Parking in direct sunlight can produce very high temperatures inside your vehicle. Give
the interior a chance to cool down before starting playback.
Use the Proper Power Supply
This product is designed to operate with a 12 volt DC
Use Authorized Service Centers
Do not attempt to disassemble or adjust this precision product. Please refer to the
Service Center list included with this product for service assistance.
For Installation
The unit should be installed in a horizontal position with the front end up at a convenient
angle, butnot morethan 300.

4
DISC NOTES
Disc formats supported bythis player
DVD
12 cm disc
(Single-sided disc only)
Video CD
12 cm disc
CD
12 cm disc
MP3
12 cm disc
Handling and Cleaning
Dirt, dust,scratches and warping discs
will cause misoperation.
Do not place stickers or make
scratches on discs.
Do not warp discs.
Adisc should always be kept in its
case when not in use to prevent from
damage.
Do not place discs in thefollowing
places:
1. Direct sunlight.
2. Dirty, dusty and damp areas.
3. Near car heaters.
4. On the seats or dashboard.
Disc Cleaning
Use a dry soft cloth to wipe the
surface. If the disc is quite dirty, use a
soft cloth slightly moistured with
isopropyl (rubbing) alcohol. Never use
solvents such as benzine, thinner or
conventional record cleaners as they
may mar the surface of the disc.
Note:
A disc may become somewhat scratched
(although notenough to make it unusable)
depending on the way it is handled and
conditions in the usage environment.
Note
these scratches are not an indication of
any problemwith the player.

5
DISC NOTES
Preparing New Discs with
Rough Spots
Anew disc may have rough edges on
its inside and outside edges. If a disc
with rough edges is used, the proper
setting will not be performed and the
player will not play the disc.Therefore,
remove the rough edges in advance
by using a ballpoint pen or pencil as
shown on the right. To remove the
rough edges, press the side of the
pen or pencil against the inside and
outside edges of the disc.

6
INSTALLATION
Notes:
Choose the mounting location where
the unit will not interfere with the
normal driving function of the driver.
Before finally installing the unit,
connect the wiring temporarily and
make sure it is all connected up
properly and the unit and the system
work properly.
Use only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
Consult with your nearest dealer if
installation requires the drilling of
holes or other modifications of the
vehicle.
Install the unit where it does not get in
the driver’s way and cannot injure the
passenger if there is an emergency
stop.
If installation angel exceeds 30°from
horizontal, the unit might not give its
optimum performance.
Avoid installing the unit where it would
be subject to high temperature, such
as from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either
from “Front”(conventional DIN
Front-mount) or “Rear”(DIN Rear-mount
installation, utilizing threaded screw holes
at the sidesof the unit chassis). For details,
refer to the following illustrated installation
methods.
Installation Opening
This unit can be installed in anydashboard
having an opening as shown below:
ATTENTIONS OF INSTALLATION
1.This player should be installed by
professional technician.
2. please read the instruction and
operation of equipment carefully before
installing.
3. Make sure to connect other wires
before power connection.
4. To avoid short circuit. Please make
sure all the exposed wire are insulating.
5. Please fix all the wires after
installation.
6. Please make connection to the
player accordingly to this instruction
manual. Wrong connection may cause
damage.
7. This player only fit for 12V DC
device and please make sure your car
belongs to this kind of cathode grounding
electrical system.
8. Please connect the wires rightly.
Wrong connection will cause malfunction
or damage the electrical system.
30

7
INSTALLATION

8
ELECTRICAL CONNECTON
Attention:
1.please make sure “B+”and ”ACC” pin location are correctbefore making connection
These two pins may be different in different cars,wrong connections of these two pins
will burn the fuse outside.
2.”Parking”wire must be connected to “ground” in order to active the video function
3. Thisplayer can only be usedby the12V DC cathode groundingelectrical system.
4. Don’
t connect the terminals of the car battery until the player is absolutely with well erection
joint.
5. Please make sure to connect theyellowwire to the positive of the battery(+).
6. When change the fuse. Please make sure the specifications are same.
7. Using good quality speaker with 4-8 ohmcan result in the besteffectof the equipment.

9
THE PLAYE R
1.BT Mic input（BT optional）.
2. IR Sensor .
3. VOL /Power on/off button.
4. AV IN1 jack.
5. USB port.
6. RESET
7. DISC SLOT
8. “ 7" ” TFT display.
9. (eject button).
10. Navi SD card slot（GPS version only）.
11. DVD SD card slot
10

11
OPERATION.
POWER ON/OFF THE UNIT
Press the PWR button to turn on the unit，
Screen will display the main menu.
Click the correspond icon to select the different
function :DVD，Radio, USB, SD, AVIN1，AVIN2
and SETTINGS . In any mode. Press and hold
button for 2 seconds will turn off the unit.
SETTINGS
AUDIO SETTINGS
In the AUDIO settings，click the L/R，F/R or
+/- to change the corresponding value
you want
PICTURE SETTINGS
In the PICTURE settings，click the +/- to
change the suitable picture display value you
want
TIME
In the TIME settings，click the +/- to set the
right date and time
CAL.
Click itwillauto move to the center,
left up, leftdown, right down and right up
till the calibration is succeed, then click
any where on the screen to save the
calibration and exit to the main menu

12
OPERATION.
automatically. If not save the information,
please wait 30 seconds and it will exit
from current interface automatically.
OTHER
In the OTHER settings，click the ON/OFF to
switch the corresponding function.
Note ：After setup is complete press
button toreturn tothe main menu。
RESET FUNCTION
RESET button must be activated with
either a ballpoint pen or thin metal object. The
RESET button is to be activated for the
following reasons:
Initial installation of the unit when all wiring is
completed. OPERATION Error symbol on the
display.
Note: if press RESET button, the unit
can’t work yet, please use a cotton swab
soaked in isopropylalcohol to clean the socket
on the frontpanel.
Once the reset button is pressed. All the
memory’s information will be lost!
DISC (DVD/VCD/CD/MP3)
OPERATION
Loading/ejecting a disc
Insert the disc facing up into the disc slot.
The player will start playbackautomatically.
Pess EJECT can eject the disc inside.
Stopping playback
Press STOP button on the remote control
to pre-stop the playback.
Pause/ play
Press button on the remote control
to pause the playback. Press again
button continue to play.
Rapid forward / rapid reverse
Press / buttons on the remote
control or press / buttons on the
front panel during playback.
Each time the button is pressed, the speed
of rapid forward /reverse changes according
to the disc asfollows.
DVD/VCD/CD/MP3:
Normal playback X2 X4 X8 X20
Skipping track
Press /buttons on the remote control,
during playback will skip to the next/previous
track.
DVD video menu play
1. When playing a DVD disc, press TITLE
button on the remote control will stop the
playback and return to the TITLE menu
that is stored in DVD disc. The disc will be
played automatically and stop at menu
picture.
2. Press / , / cursor buttons on the

13
OPERATION.
remote control to move between the
highlight bars in the menu.
3. Press OK button on the remote control or
on the front panel to confirm the selected
item.
Zoom function
Allows the picture to be increased in size.
Press ZOOM button on the remote control to
toggle scale among 1, 2, 3, 4, 1/2 , 1/3, and
1/4. When the scale is 1/4, press ZOOM
again will exit zoom operation.
During zoom mode, press / , /
buttons to move the picture left/right,
up/down.

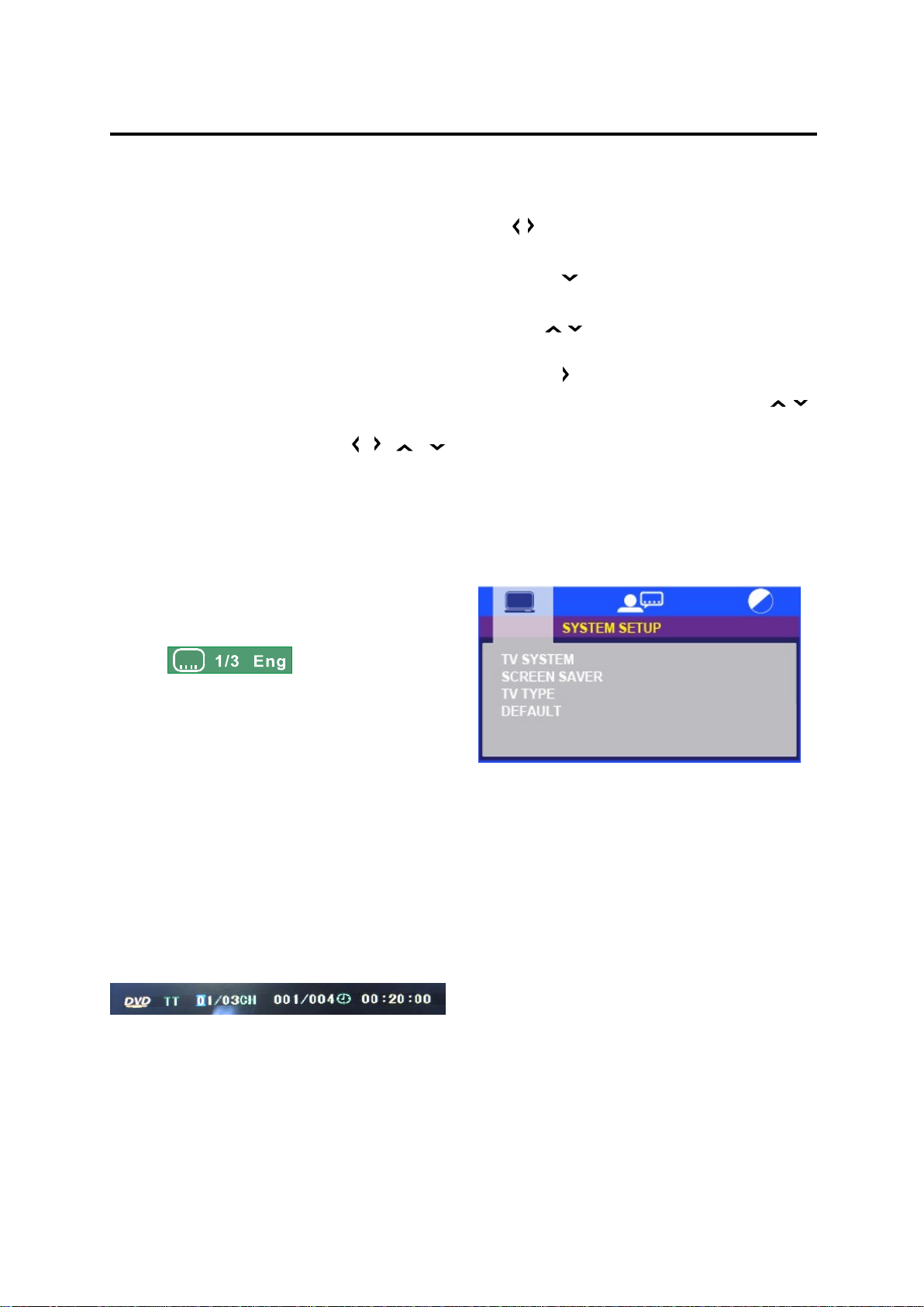

Multi-subtitle language function
Press SUBT button on the remote control
during playback. The following information
will be shown on the screen.
Each time the button is pressed, the subtitle
language changes in sequential order.
Notes:
The language is different according to the
disc. Some discs only contain one subtitle
language.
Goto Function
FORDVD:
Press GOTO button on the remote
control,the screenwilldisplaythe
following message:
Use the number keys to input the
desired Title, Chapter or Time, then press OK
key to confirm.
DVD Setup
In DVD mode, when the disc is playing
or in stop mode, press SETUP button on
the front panel or on the remote control
or on the DVD unit to enter setup menu.
1. When the cursor ison thetopside, use
/ buttons to move between the
different pages.
2. Press button to move the cursor to
the setup page belowand then you can
use / buttons to move between the
different setup options.
3. Press button to display the choicelist
for each setup option and then use /
buttons and OK button tochange your
selection.
SYSTEM SETUP
When you open the setup menu, you will see
the system setup page at first, see below:
1. TV SYSTEM: Change the TV mode
among NTSC, PAL and AUTO.
2. SCREEN SAVER: Change the SCREEN
SAVER on or off.
3. TV TYPE: Change the TVTYPE among
4:3PS, 4:3LB and 16:9.
4. DEFAULT: Restore the system setup to
the default setup.
LANGUAGE SETUP
When you open the language setup menu, you
will see the language setup page:

14
OPERATION.
You can change the OSD/ AUDIO/ SUBTITLE/
MENUlanguage between
ENGLISH/GERMAN/SPANISH/FRENCH/PORTU
GUESE/ITALIAN/OFF.
VIDEO SETUP
When you open the VIDEO menu, you will
see the following picture
Press on remote or panel / , / to adjust
BRIGHTNESS/CONTRAST/HUE/SATURATIO
N/ SHARPNESS corresponding value,after
adjusted,press”OK”to confirm。
RADIO OPERATION
SWITCHING TO THE RADIO MODE
Press MODE button shortly to select the Radio
mode.The following information will appear on
the display.
SELECTINGTHEFREQUENCYBAND
In radio mode, press BAND button to select
the desired band.
The bands will change in the cycles:
FM1---FM2---FM3---AM.
PS
Recall and displaythe radio stations P1 to P6
Preset.
AS
Auto searching the radio station and store
the stations
/
Auto left or right searching the radio station
from the current frequency.
Manual
Enter into manual seek mode, press <</>>
will searching the radio station stepby step
Click any the displayed six radio stations for 3
seconds, it will auto stored inthe clicked place.
AV-INOPERATION
There is a RCA AVIN2 INPUT on the
back of the unit, and an stereo headphone
AVIN1 interface on the front panel of the unit.
When you connect an AV into these jacks,
click AVIN1/ AVIN2 on the main menu to
select them.
USB PLAY OPERATION
In the front panel of the unit, there is an
USB interface . You can connect an USB
driver through this interface
When you connect an USB device, the

15
OPERATION.
unit will search the MP3/ WMAfiles in the USB
driver and start to play MP3/WMA files
automatically. If in other mode,
Click the USB icon in the main menu to entre
this mode。
Note：
The main unit can only support the
standard USB device which is
approved by Microsoft.
When in USB play mode, be sure not
to remove the USB device from the
USB interface.
SD OPERATION
There is a SD interface on the left
of the front panel.
When you insert a SD card in the SD
interface, the unit will search the MP3/WMA
files in the card and start to play
If in other mode, click the SD icon in the main
menu to entre this mode。
When there are important files in the SD
card, donot connect it to the unit to play.
During the DVD/USB/SD playing, tap
the LCD softly, Touch control function will
show on the LCD, you can click the
correspond the icon to operation the
multi-media, such as NEXT,PREVIOUS,
PLAY,PAUSE,Return etc.

16
REMOTE CONTROL

17
REMOTE CONTROL
1. MUTE Press to Mute the sound. Press again to recover the sound.
2.POWER Press it to turn the unit ONor OFF
3. 0-9 Inputs the corresponding number.
4.LOUD/EQ Press and hold to turn on/off Loudness.
Press it to select desired audio equalization
5. SET Access the Bass, Treble, Balance and Fader setting..
6.STOP To stopthe playing.
7.OK Confirm the Track/Chapter selected with the numeric buttons or
selected with the cursor buttons on screen
8. /, /In case of MENU mode, / , / buttons serves as cursor buttons
to select item left/right, ahead/back.
9.DISP To display some information of current status
10. /Press to skip to the next track & press to skip back one
track in navigation mode.
11.GOTO Disc search button in DVD mode, cooperatively used with numeric
buttons
12.TITLE Displays the title menu that is stored on the DVD disc.
13.SUB-T Changing of the SUBTITLE language on multi-subtitle language DVD
disc.
14.AUDIO/MO/ST Changing of the AUDIO soundtrack on multi-audio soundtrack DVD
disc
In radio mode press the button to set thereception between mono
and stereo mode.
15. /In CD/MP3/DVD mode. Press / to search forward rapidly &
to search reverse rapidly. In radio mode, use / for manual
tuning.
16.ZOOM Allows the picture to be increased in size.
17.SETUP In DVD mode, press to display the
SETUP menu
18.RDM Press it to play all tracks in random order
19.REP Repeats playof chapters, titles, tracksanddiscs.
20. Press to pause the playing. Press it again toresume play
21. VOL＋/- increase(+) or decrease(-) the volume level.
22. BAND: To select FM1,FM2,FM3,AUXradio bands.
23.AS/PS In radio mode, press it to activate Automatic Memory
Storing/Program Scanning function.
24. HOME/MENU Back to the main menu / play DVD return time MENU
25..MODE Press to change the source.
26. LOC: Turn on/off the local function.

18
PERFORMANCE.
FM MW(AM) MP3/WMA
Tuning range
USA:87.5~107.9 MHz
EUR:87.5~108 MHz USA:530~1710KHz EUR:522~1620KHz ---
Sensitivity 4uV(S/N=30dB) 63uV(S/N=20dB) ---
S/N ratio 50 dB 45 dB 60 dB
Stereo
separation >25 dB --- 50dB
Freq. Response 40Hz~12KHz 40Hz~2KHz 20Hz~16KHz
