legate SMART AIR PURIFIER STANDARD Assembly instructions

SMART AIR PURIFIER STANDARD
Legate Smart Appliances
Manual Guide

Let’s Get Started.
Install the app
Download the Legate Smart Home app
from Google Play or the App Store on a
compatible phone or tablet.
1
Register and login
Register on the app by using your contact
number or Email address.
2
Connect to wifi
Make sure that your mobile phone and
smart device are connected to 2.4 GHz
wifi network.
3
*note: The distance between the phone and smart device should not be greater
than 4meters while pairing both devices. If the signal is week you’ll need a wifi
booster. (Recommended Wifi Booster Version: TP LINK TL-WA855RE)

Legate Smart Air Purifier Standard
to Legate Smart Home App

Getting the Smart Device Ready
Legate Smart Air Purifier Standard - Connecting the Smart Device to Legate Smart Home app
1
Plug the Power Plug
into the power socket.
2
While the Air Purifier is at OFF Mode,
press & hold the WIFI Button for
5 seconds until the Wifi Indicator
Light blinking.

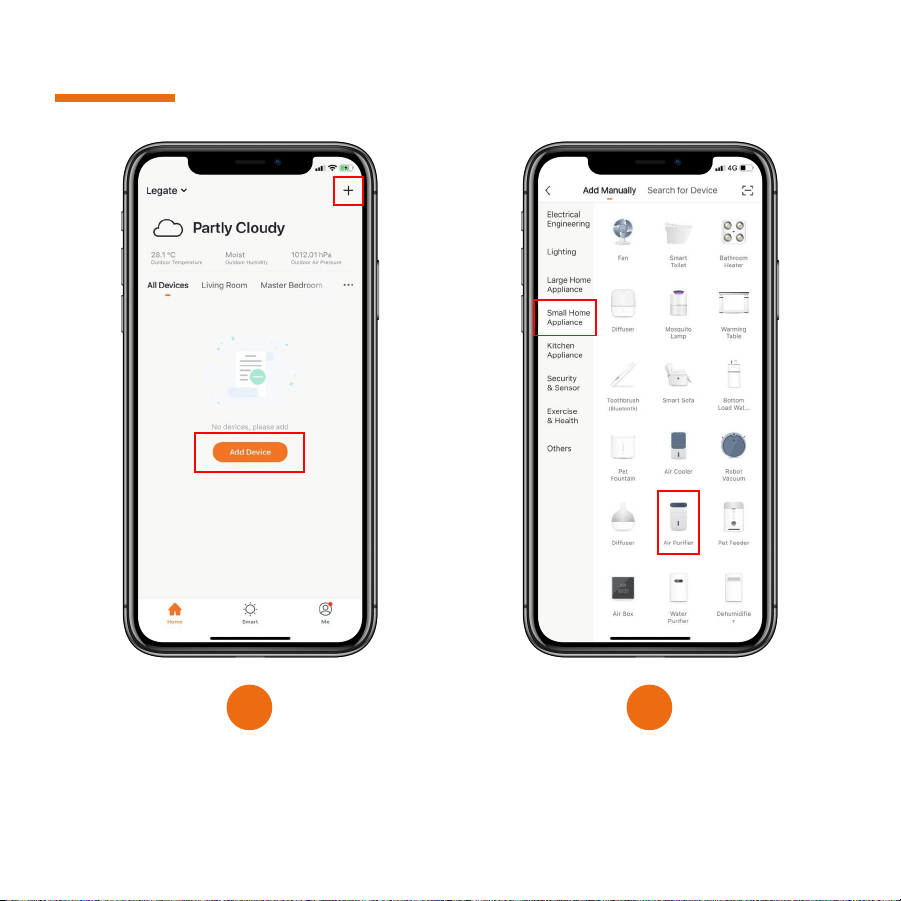

Add Smart Device
3
Open Legate Smart Home app,
Click “+” or Add Device.
4
Under “Small Home Appliances” tab
Click “Air Purifier”.
Legate Smart Air Purifier Standard - Connecting the Smart Device to Legate Smart Home app

Network Configuration
6
Enter your Wifi Password. Then
click “Confirm” button.
(note: Only 2.4 GHz Wifi network are supported)
5
Click “Confirm indicator
rapidly blink”button.
Legate Smart Air Purifier Standard - Connecting the Smart Device to Legate Smart Home app

Network Configuration
7
Wait for the Smart Device
connects to the app.
8
Click “Done” button when the Smart
Device is successfully added.
(note: You can change the device’s name)
Legate Smart Air Purifier Standard - Connecting the Smart Device to Legate Smart Home app

Legate Smart Air Purifier Standard
Features

Adjust the Wind Speed Level
of the Smart Air Purifier.
Set the Mode of the Smart
Air Purifier.
Legate Smart Air Purifier Standard - Features

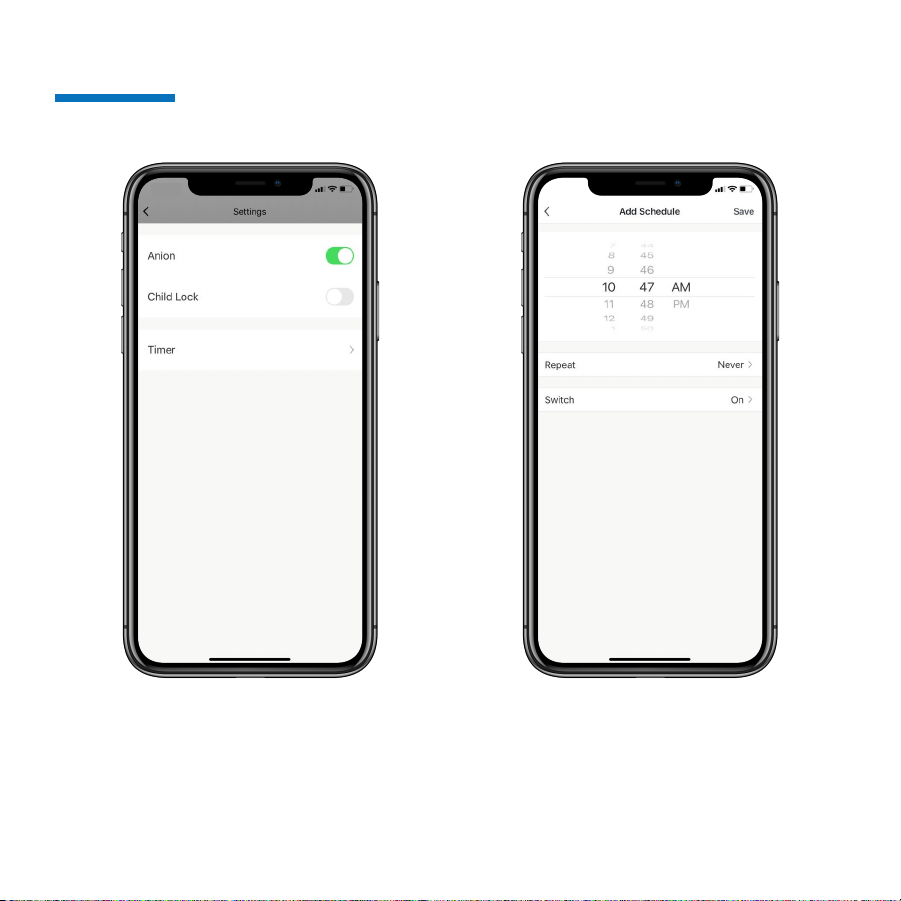

Main Function

Able to turn On/Off the Anion
& Child Lock settings.
Set Schedule to ON/OFF
the Smart Air Purifier.
Main Function
Legate Smart Air Purifier Standard - Features

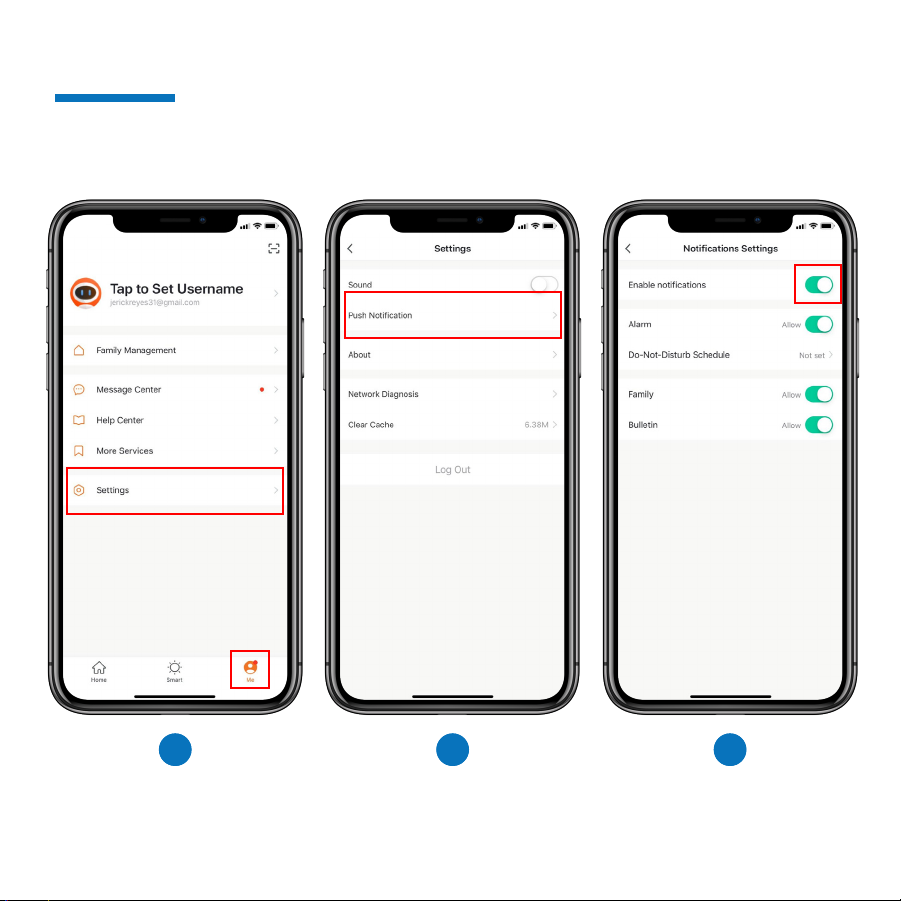

Push Notification
Enable to turn off the notification.
1
Click “Me” button on Legate
Smart Home app. Then click
“Settings”.
2
Click “Push Notification”
tab.
3
Can turn on or turn off the
“Enable notification”
123
Legate Smart Air Purifier Standard - Features

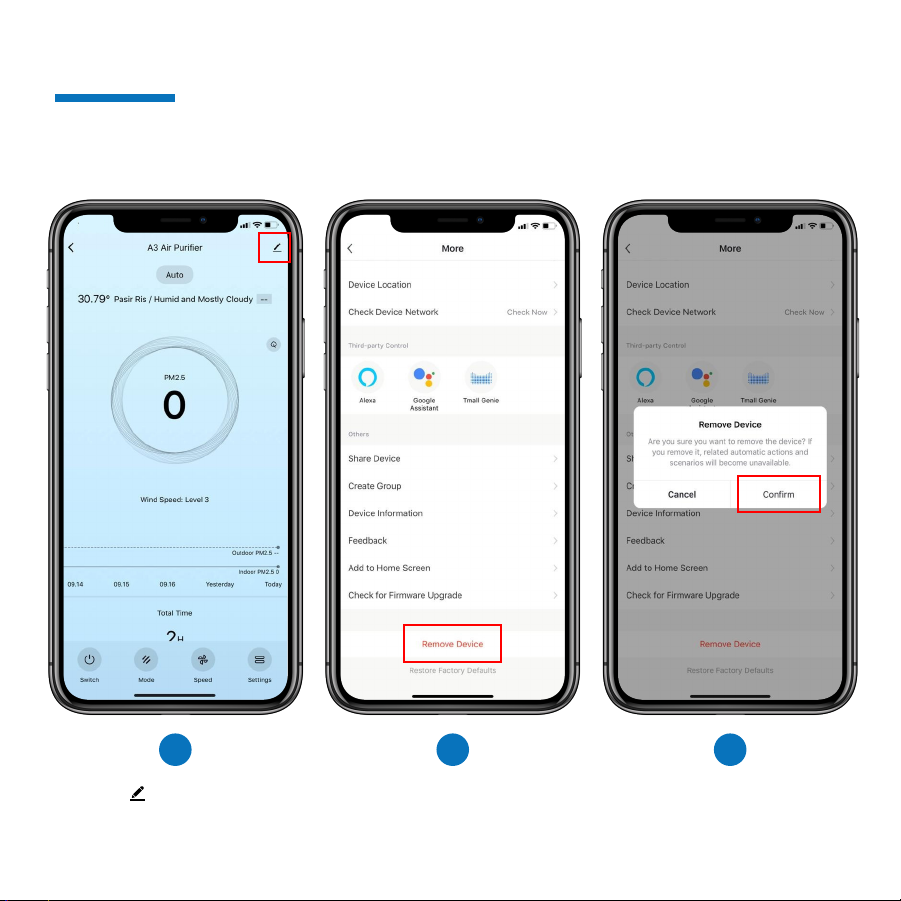

Remove Device from Legate Smart Home app
The device will restore to default settings.
Click “Remove Device”
tab.
Click “Confirm” button to
completely remove the device
from the Legate Smart Home app.
1 2 3
Click “ ” button on upper
right corner of Smart Camera
main page.
Legate Smart Air Purifier Standard - Features

Legate Smart Air Purifier Standard
Product Information

Legate Smart Air Purifier Standard - Product Information
Product Features
The activated carbon filter is based on the standard of filter material for household purifier filtration.
The loose polymer material is used as the carrier, and the high-efficiency catalyst is attached to the
surface of the activated carbon to make the adsorption capacity strong, the wind resistance is
small, and the filter function is good. With high-quality powdered activated carbon as adsorbent
material, it has good adsorption and dust collecting effect, good formability, high strength and low
airflow resistance. Activated carbon can absorb harmful gases such as benzene, toluene, xylene,
formaldehyde and ammonia, harmful gas with good adsorption function .
The HEPA filter filters 0.3 micron particles of bacteria, smoke and dust in the air, and the filtration
efficiency is over 99%. Combined with a multi-purpose filter, the HEPA filter filters out tiny particles
larger than 20 nanometers in diameter, including bacterial molds, dust, allergens and some viruses,
while also filtering out smoke. The World Health Organization publication shows that poultry The flu,
human flu virus, and Legionella bacteria are all larger than 20 nanometers, so this product can be
filtered out

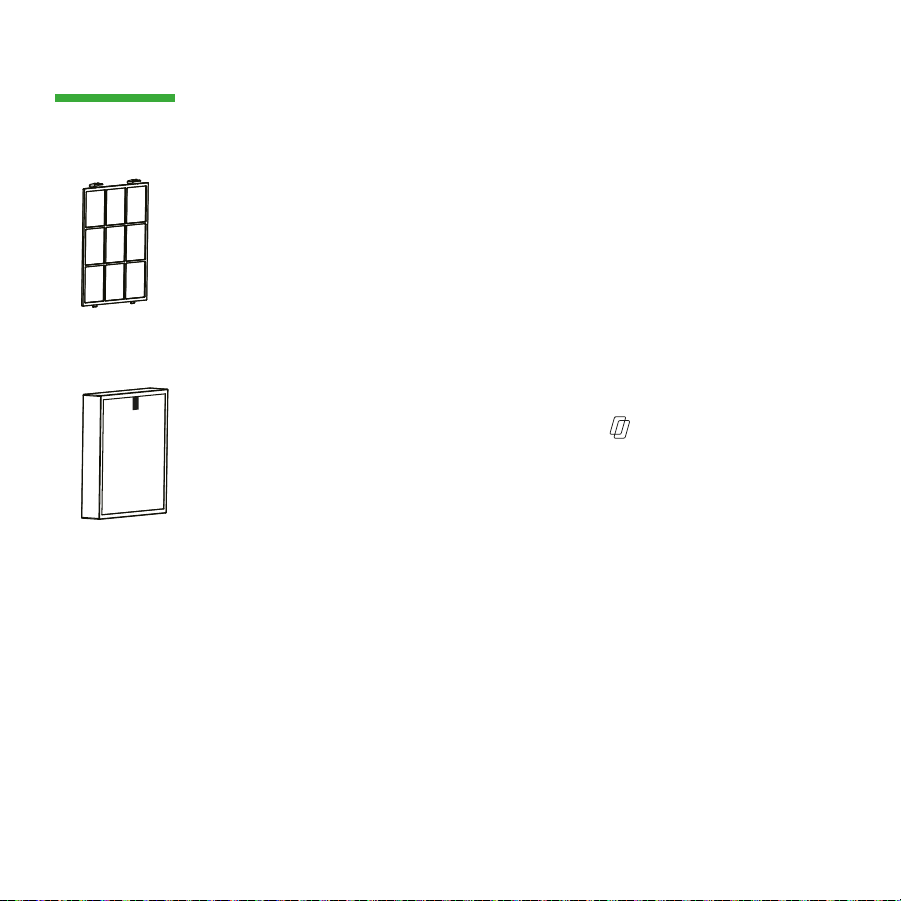

HEPA+ activated carbon composite filter
Pre-filter
The primary filter is the primary filter of the air purifier. It is mainly used to filter dust particles above
5 microns, including large particles of dust, dander, pollen, floating matter and other pollutants. Can
be cleaned and reused multiple times.

Product Performance
Air Purifier
Product Name
220V-240V~
50Hz/60Hz
Rated Voltage
Rated Frequency
Method of Cleaning
Product Usage
Rated Power
Particulates CADR
Removes pollutants such as particulate matter, gas pollutants
and microorganisms in the air.
1.Washable pre-filter
2.Composite carbon cloth filter(HEPA+Activated carbon)
200m3/h
43W
P1Particulates CCM
325x172x510mm
Product size
Weight 5kg
Applicable area 14-24 m2
Noise 57dB(A)
Energy Efficiency Index Qualified (Particulates)

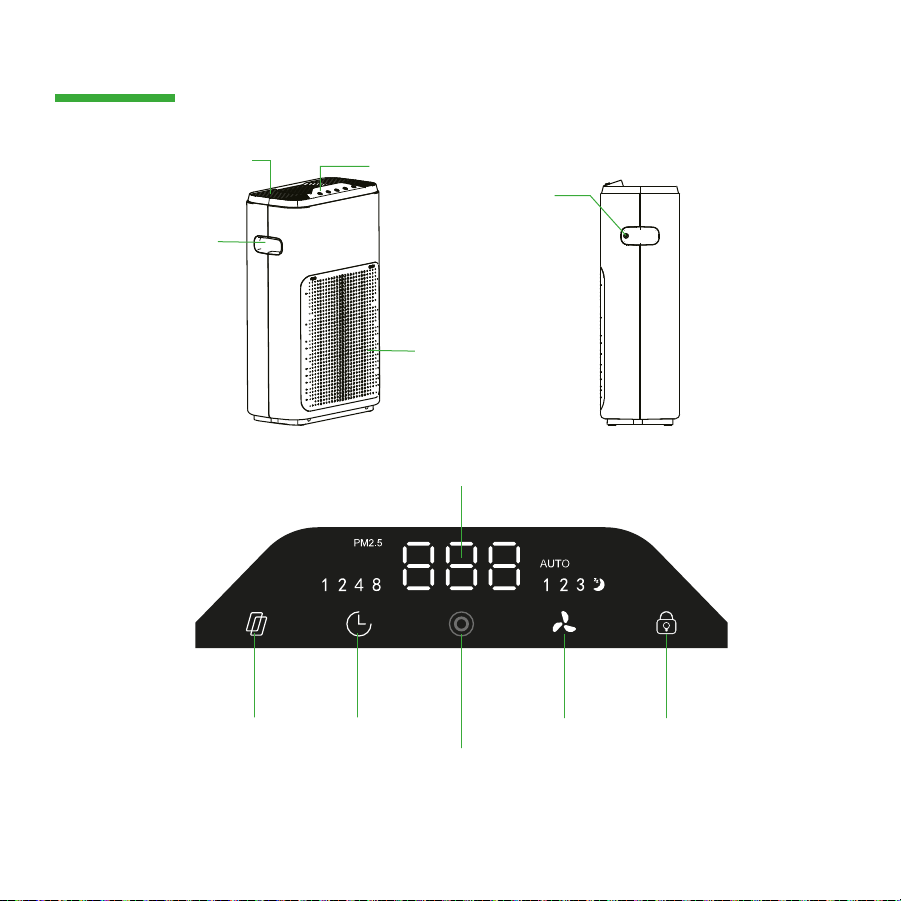

Product Structure
Air outlet
Handle
Operation panel
Buckle
Sensor
Air Quality Indicator
Filter Reminder
or Reset Sleep Mode
Power
(Air quality indication lamp)
Speed Child Lock
Legate Smart Air Purifier Standard - Product Information

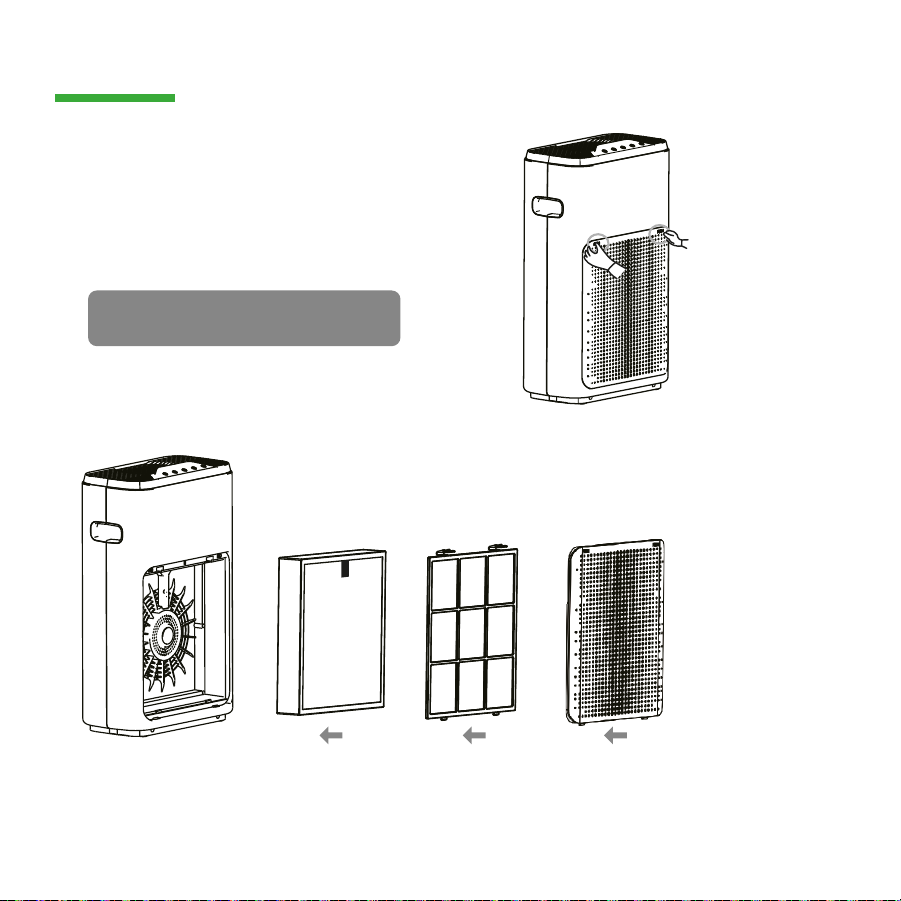

Installation
First, remove the filter from the plastic bag
Install filter
1.Remove the air inlet.
2. Remove the filter.
3.Remove the filter from the plastic bag.
Note: Make sure to remove the plastic
bag from the filter before use.
Note: There are internal and external points, the one with the pull tab facing out; be sure to install
the front panel before use.
Press the “PUSH” on both sides of the front cover
and open the front cover.
Legate Smart Air Purifier Standard - Product Information

Filter / Dust Sensor Maintenance
Pre-filter (about half a month)
*Tips
Use a vacuum cleaner to remove dust from the surface of the filter or wash
it with water and dry it throughly.
1.
HEPA+ activated carbon composite filter (about once every two months)
When the 1500 hour filter replacement prompt “ ” flashes, press an hold
ther reset button to clear the filter indicator light and reset the timing
fuction.
2.
Place the filter in a ventilated place so that the harmful gases and bacteria on the
surface of the filter can be volatilized. Do not expose it to excessive sunlight.
•
Unplug the power plug before cleaning and maintenance;
Do not operate with the filter removed (no dust removal effect, and the dust that is inhaled
may cause equipment failure);
Unplug the power cord when it is idle for a long time (it will also consume power in the
standby state);
When replacing the filter, please turn off the power first.
•
•
•
•
Do not wash the filter with water.
•
Legate Smart Air Purifier Standard - Product Information

How to use
After plugging in the power, you will hear a sound“Di”, the machine enters standby mode,
and the air quality indicator will shows red color.
After the power is turned on, the air quality indicator light is completely red, the
machine enters the automatic mode.
1.
Boot
2.
The machine's working time can be set by the timer button while the machine is
running. Set the time to 1 hour, 2 hours, 4 hours, 8 hours, press again to turn off,
the corresponding indicator lights after the selected time.
Timer
3.
Press the wind speed button to change the speed of the motor. It is divided into
first gear, second gear, third gear, sleep, AUTO. When pressed, the machine
increases one gear from the current gear position, and then returns to the
automatic mode. files. In AUTO mode, PM2.5 corresponds to the corresponding
table of air quality and gear position in the intelligent mode of speed:
1~100 = green light = excellent air quality = first gear
101~200 = yellow light = good air quality = second gear
201~500 = red light = poor air quality = third gear
Speed
4.
Legate Smart Air Purifier Standard - Product Information

How to use
When the child lock button is pressed, the button function of the machine enters
the locked state, and all the buttons cannot be operated. Long Press this button
for 3 seconds to unlock
Child Lock
5.
This unit is equipped with a timing change filter function, which will flash until
the 1500 hour filter replacement prompt. Press and hold the reset button for 5
seconds to clear the filter indicator and reset the timing function.
Reset
6.
When the power is on, touch the “Power” button on the operation, and the
machine enters the standby state. (The icon light is on when the machine enters
the standby state.)
Power Off
7.
