legate S50123010 Series Assembly instructions

SMART LED LIGHT STRIP
Legate Smart Lighting
Manual Guide

Let’s Get Started.
Install the app
Download the Legate Smart Home app
from Google Play or the App Store on a
compatible phone or tablet.
1
Register and login
Register on the app by using your contact
number or Email address.
2
Connect to wifi
Make sure that your mobile phone and
smart device are connected to 2.4 GHz
wifi network.
3
*note: The distance between the phone and smart device should not be greater
than 4meters while pairing both devices. If the signal is week you’ll need a wifi
booster. (Recommended Wifi Booster Version: TP LINK TL-WA855RE)

Legate Smart LED Light Strip
to Legate Smart Home App

Getting the Smart Device Ready
Legate Smart LED Light Strip - Connecting the Smart Device to Legate Smart Home app
3
Plug the Power Adapter
into the socket.
4
Press and hold the “ ” button
until the LED Light blinks.
1
Clean the installation
surface.
2
Stick the Smart LED Light
on the instalation surface.

Add Smart Device
5
Open Legate Smart Home app,
Click “+” or Add Device.
6
Under “Lighting” tab
Click “Lighting (Wi-Fi)”.
Legate Smart LED Light Strip - Connecting the Smart Device to Legate Smart Home app

Network Configuration
8
Enter your Wifi Password. Then
click “Confirm” button.
(note: Only 2.4 GHz Wifi network are supported)
7
Click “Confirm indicator
rapidly blink”button.
Legate Smart LED Light Strip - Connecting the Smart Device to Legate Smart Home app

Network Configuration
9
Wait for the Smart Device
connects to the app.
10
Click “Done” button when the Smart
Device is successfully added.
(note: You can change the device’s name)
Legate Smart LED Light Strip - Connecting the Smart Device to Legate Smart Home app

Legate Smart LED Light Strip
Features

Adjust the Smart LED
Light Strip’s Brightness.
Change the Colour of the
Smart LED Light Strip.
Legate Smart LED Light Strip - Features
Main Function

Set the Scene/Mood of the
Smart LED Light Strip.
Able to set Schedule
to ON/OFF the LED Light Strip.
Main Function
Legate Smart LED Light Strip - Features

Push Notification
Enable to turn off the notification.
1
Click “Me” button on Legate
Smart Home app. Then click
“Settings”.
2
Click “Push Notification”
tab.
3
Can turn on or turn off the
“Enable notification”
123
Legate Smart LED Light Strip - Features

Remove Device from Legate Smart Home app
The device will restore to default settings.
Click “ ” button on upper
right corner of Smart Camera
main page.
Click “Remove Device”
tab.
Click “Confirm” button to
completely remove the device
from the Legate Smart Home app.
...
1 2 3
Legate Smart LED Light Strip - Features

Legate Smart LED Light Strip
Product Information

Product Configuration
Press and Hold the Button for 5 seconds until the light flashes in red.
*Note: When the Smart LED Light Strip is connected with new Wi-Fi, you need to restore the factory settings, and re-gain
connection.
Factory Reset:
Legate Smart LED Light Strip - Product Information
Light Strip
Controller
Power
Adapter

Specifications
Lifespan
Working Temperature
Working Humidity
Power Input
Wireless Connect
Support systems
Free App
About 25000Hr
-20 ~+ 40°C
0%-85%RH
100-240V-50/60Hz 1.5A
Wi-Fi IEEE 802.11 b/g/n 2.4GHz
IOS 7.0 or above, Android 4.0 or above
Legate Smart Home
:
:
:
:
:
:
:
Model NO. S50123010-XX
12W(LED Strip)
RGB
12V 2A
Color
Strip Input
Rated Power
S50123010-XX
16W(LED Strip)
RGBW
12V 2A
S50123010-XX
30W(LED Strip)
RGB
12V 3A
S50123010-XX
40W(LED Strip)
RGBW
12V 4A
Legate Smart LED Light Strip - Product Information

Legate Smart LED Light Strip - Product Information
Safety Precautions
1. Please confirm the working voltage before using this product, the use of
inappropriate voltage may cause damage to the product and security risk.
2. LED module can’t be replaced, please do not dismantle the product by yourself.
3. The Smart LED Light Strip will generate heat when working. Please jee the air
circulation for heat dissipation.

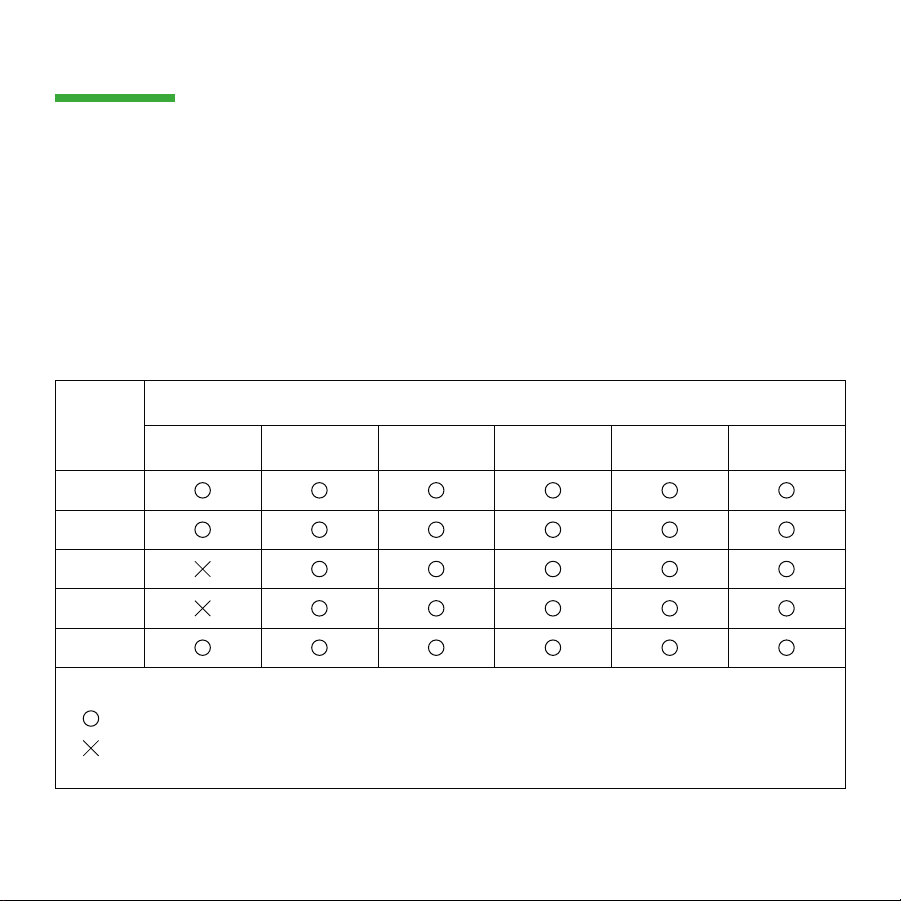

Harmful substances in the product
Parts
lead
(Pb)
mercury
(Hg)
cadmium
(Cd)
Hexavalent
chromium
(Cr(VI))
Polybrominated
biphenyis
(PBB)
Polybrominated
diphenyl ethers
(PBDE)
Harful Substances
This chart is made in accordance with the provisions of SJ / T 11364.
: The contect of the hazardous material in all homogeneous materials of the part is within the limit requirement of GB / T26572.
: The contect of the hazardous substance in at least one homogeneous material of the part exceeds the limit requirement of
GB / T267572
Light Strip
Controller
Adapter
Wire
Packing Box
