Leggett & Platt brio 20 User manual

at / sleep
head only
feet only
zero-gravity
BrioAdjustableBases.com
brío 20
brío 30
brío 60
owners manual
ENGLISH
SPANISH
FRENCH
PRELIMINARY

PRELIMINARY

Advisory...................................................................................................................... 4
Acoustics.................................................................................................................... 6
Installation ................................................................................................................. 7
brío 20 & 30 Remote Control Function ........................................................................ 11
brío 60 Remote Control Function ................................................................................ 12
Troubleshooting ......................................................................................................... 13

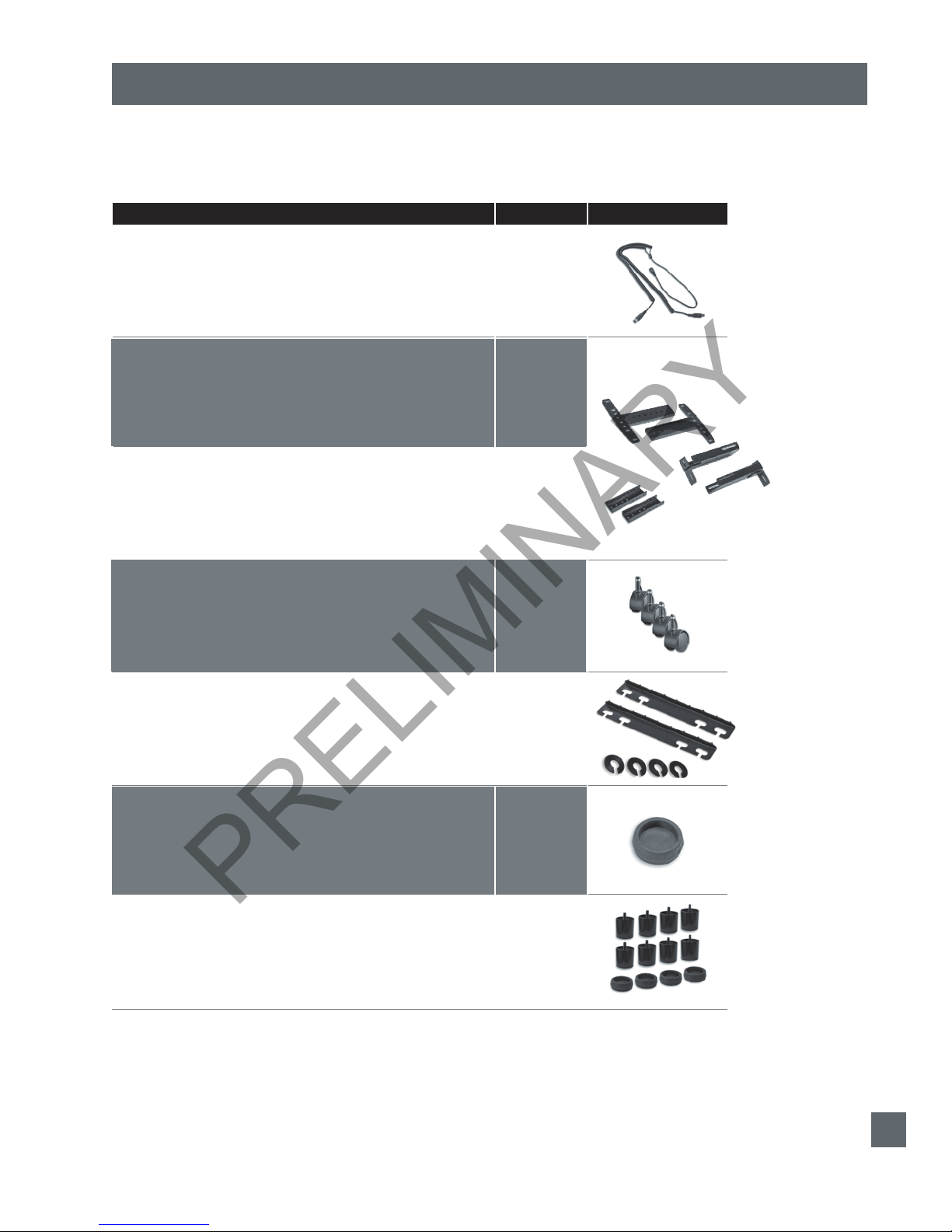

Accessories ............................................................................................................... 15
CONTENTS
If adjustable base does not operate or if parts are missing, call:
800-888-3078
Do not contact retail store or dealer.
PRELIMINARY

brío™ Owners Manual 99301358-b
4
important information
READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT
ELECTRICAL RATING
Electrical components are rated for 110/120
voltage, 60Hz, 100 watt.
ELECTRICAL GROUNDING
This product is equipped with a polarized or
grounded electrical power cord. The power cord
will only fit into a grounded, electrical surge
protection device (not included) or a grounded
electrical outlet.
WARRANTY WARNING
Do not open any control boxes, motors or
remote control devices. The product warranty
will be void if these components are tampered
with. Do not attempt to alter component wiring
or adjust or modify the structure of the product
in any way or the warranty will be void. Any
repair or replacement of base parts must be
performed by authorized personnel.
LUBRICATION
This product is designed to be maintenance
free. The lift motors are permanently lubricated
and sealed—no additional lubrication is
required. Do not apply lubricant to lift motor
lead screws or any nylon nuts or the base may
inadvertently creep downward from the elevated
position.
PRODUCT RATINGS
The base lift motors are not designed for
continuous use. Reliable operation and full
life expectancy will be realized as long as the
lift motor operation does not exceed five (5)
minutes over a forty-five (45) minute period, or
approximately 11% duty cycle. Any attempt
to circumvent or exceed product ratings will
shorten the life expectancy of the product and
may void the warranty.
The recommended weight restrictions for
this adjustable base is 450 lb (204 kg), all
sizes. The base will structurally support the
recommended weight distributed evenly across
the head and foot sections. This product is not
designed to support or lift this amount in the
head or foot sections alone. Note: Exceeding
the recommended weight restrictions could
damage the base and void the warranty.
For best performance, consumers should enter
and exit the adjustable base with the base in
the flat (horizontal) position. DO NOT SIT ON
THE HEAD OR FOOT SECTIONS WHILE IN THE
RAISED POSITION.
UL (Underwriters Laboratories) recognized
components.
CFR 1633 approved for use with most
mattresses.
Assembled in USA.
ADVISORY
FOR OPTIMUM ADJUSTABLE BASE
OPERATION, USE A GROUNDED, ELECTRICAL
SURGE PROTECTION DEVICE (NOT
INCLUDED). FAILURE TO USE A SURGE
PROTECTION DEVICE COULD COMPROMISE
SAFETY OR CAUSE PRODUCT MALFUNCTION.
PRELIMINARY

brío™ Owners Manual 99301358-b 5
ADVISORY
READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT
PACEMAKER WARNING
This product produces a vibrating sensation.
It is possible that individuals with heart-assist
pacemakers may experience a sensation similar
to exercise. Consult physician for complete
information.
important information
SMALL CHILDREN / PETS WARNING
After the base is unboxed, immediately dispose
of packaging material as it can smother small
children and pets. To avoid injury, children or
pets should not be allowed to play under or on
the base. Children should not operate this base
without adult supervision.
HOSPITAL USE DISCLAIMER
This base is designed for in-home use only. It
is not approved for hospital use and does not
comply with hospital standards. Do not use this
base with tent type oxygen therapy equipment,
or use near explosive gases.
SERVICE REQUIREMENTS
Service technicians are not responsible for
moving furniture, removing headboards and
footboards or any items required to perform
maintenance on the base. In the event the
technician is unable to perform service due
to lack of accessibility, the service call will
be billed to the purchaser and the service will
have to be rescheduled.
FCC COMPLIANCE
The equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a residential
environment. This equipment generates, uses,
and can radiate radio frequency energy and,
if not installed and used in accordance with
the instruction manual, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will
not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning off the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
Radio Frequency = 433MHz.
PRELIMINARY

Manual para Proprietarios brío™ 99301358-b
6
LIFTING/LOWERING MECHANISMS
The lift/lower feature will emit a minimal
humming sound during operation. This is
normal.
During operation, the lift arm wheels make
contact with the platform support of the base.
This applies slight tension on the moving
components and resonance is reduced to a
minimum level. If excessive noise or vibration is
experienced, reverse the movement action (up or
down) of the base with the remote control. This
should realign the base’s activating mechanisms
to the proper operational position.
LOCATION ENVIRONMENT
The level of sound experienced during
operation is directly related to the location
environment. For example, when a base is
located on a hardwood floor with the massage
feature in operation, a vibrating tone will be
audible. To minimize this resonance, place a
piece of carpet, or rubber caster cups, under
each leg or caster of the base.
It is possible to experience vibration or noise
from headboard brackets, headboards or
footboards (if used) if mounting bolts are not
firmly tightened.
ACOUSTICS
PRELIMINARY

brío™ Owners Manual 99301358-b 7
INSTALLATION
For installation and setup, complete the following procedures, in the order indicated below
and on the following pages:

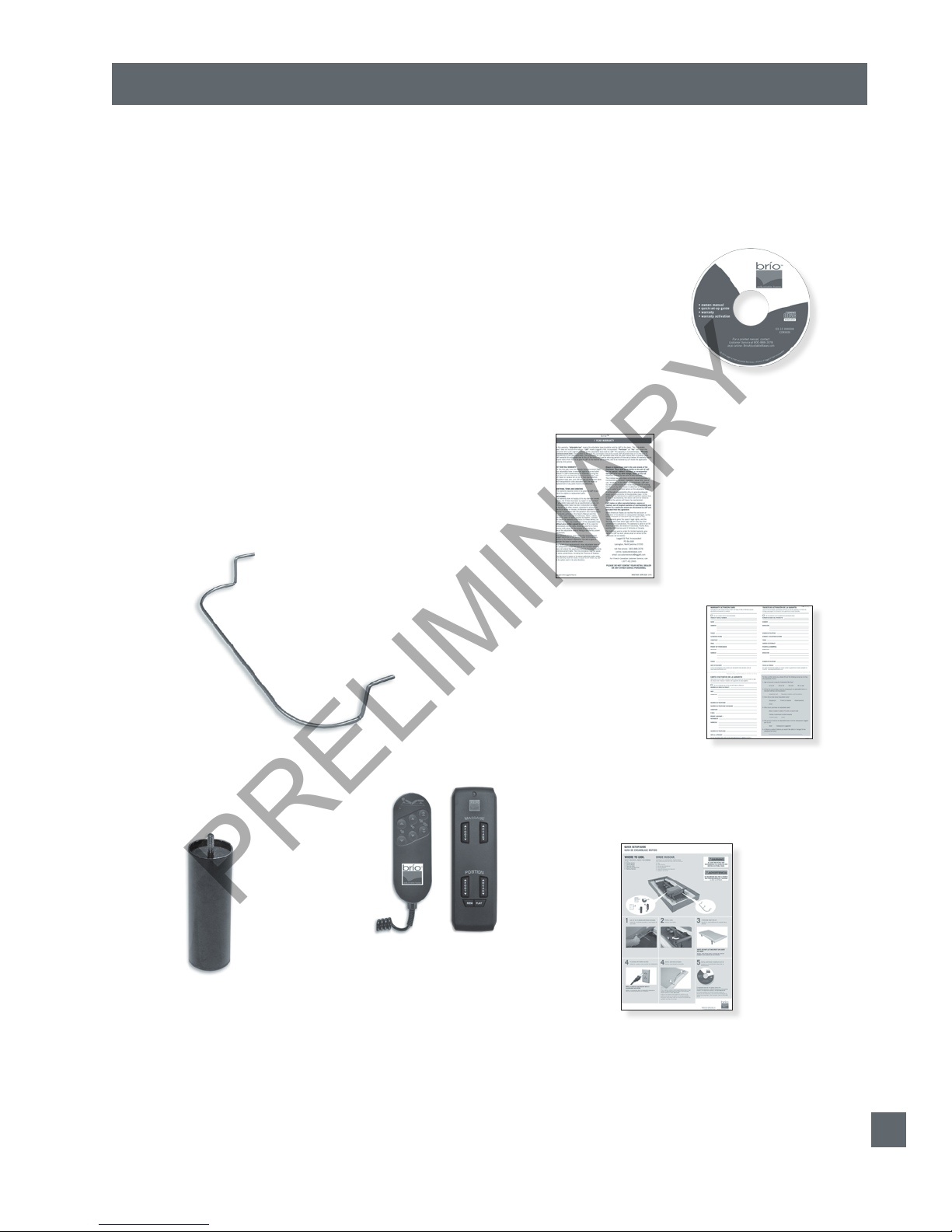

STEP 1
Before discarding any packing materials,
open the adjustable base shipping carton
and verify the following items are
included:
• (1) Mattress Retainer
• (4) Bed Legs
• (1) Remote Control (varies according to base type)
• (1) Owners Manual CD
• (1) Warranty Sheet
• (1) Warranty Activation Card
• (1) Quick Setup Guide
QUICK SETUP GUIDE
LEG
(4 pieces)
WARRANTY
ACTIVATION CARD
MATTRESS
RETAINER
(1 per base)
OWNERS MANUAL CD
WARRANTY
REMOTE CONTROL
(varies according to base type)
PRELIMINARY

brío™ Owners Manual 99301358-b
8
INSTALLATION
STEP 5
Remove the plastic packaging from the adjustable base
frame. Carefully rotate the base frame over to position
the base top-side-up.
STEP 4
Remove and extend out power cord from the
protective packaging.
STEP 2
Carefully lift the adjustable base frame from the
shipping carton, keeping the unit top-side-down.
STEP 3

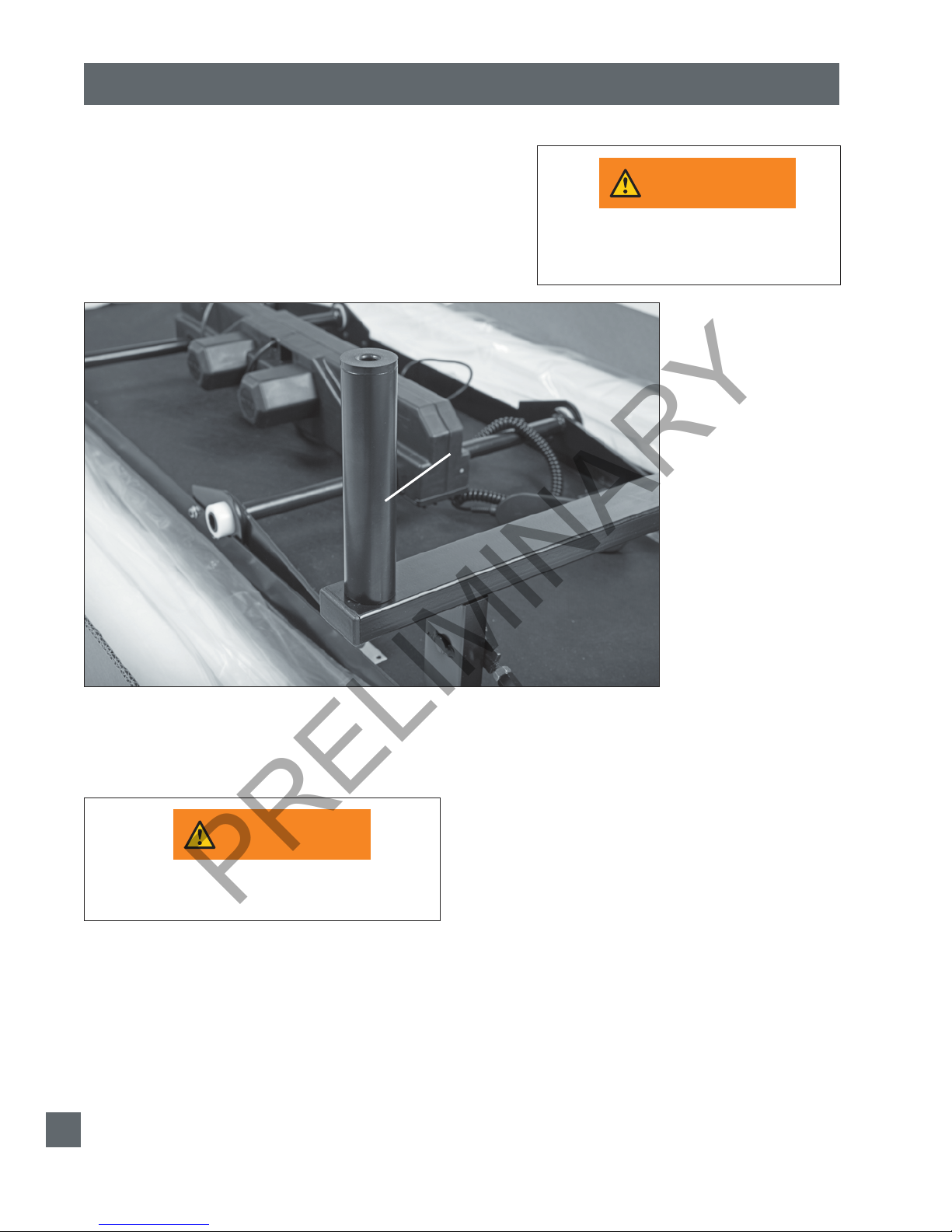

Install (4) legs into the base frame. Simply screw each
leg into a tapped hole at each corner of the base frame
(FIGURE 1).
LEGS – SCREW INTO
TAPPED HOLE AT
EACH CORNER
FIGURE 1
(UNDERSIDE OF
brío 20 AND 30
BASE SHOWN)
AT LEAST TWO PEOPLE ARE
RECOMMENDED FOR HANDLING AND
MOVING ADJUSTABLE BASE.
WARNING
POWER CORDS MUST NOT INTERFERE WITH
ANY ADJUSTABLE BASE MECHANISMS.
WARNING
PRELIMINARY

brío™ Owners Manual 99301358-b 9
STEP 6
Plug electrical power cord into a working, grounded electrical outlet.
Note: an electrical surge protection device is recommended (not included).
STEP 7

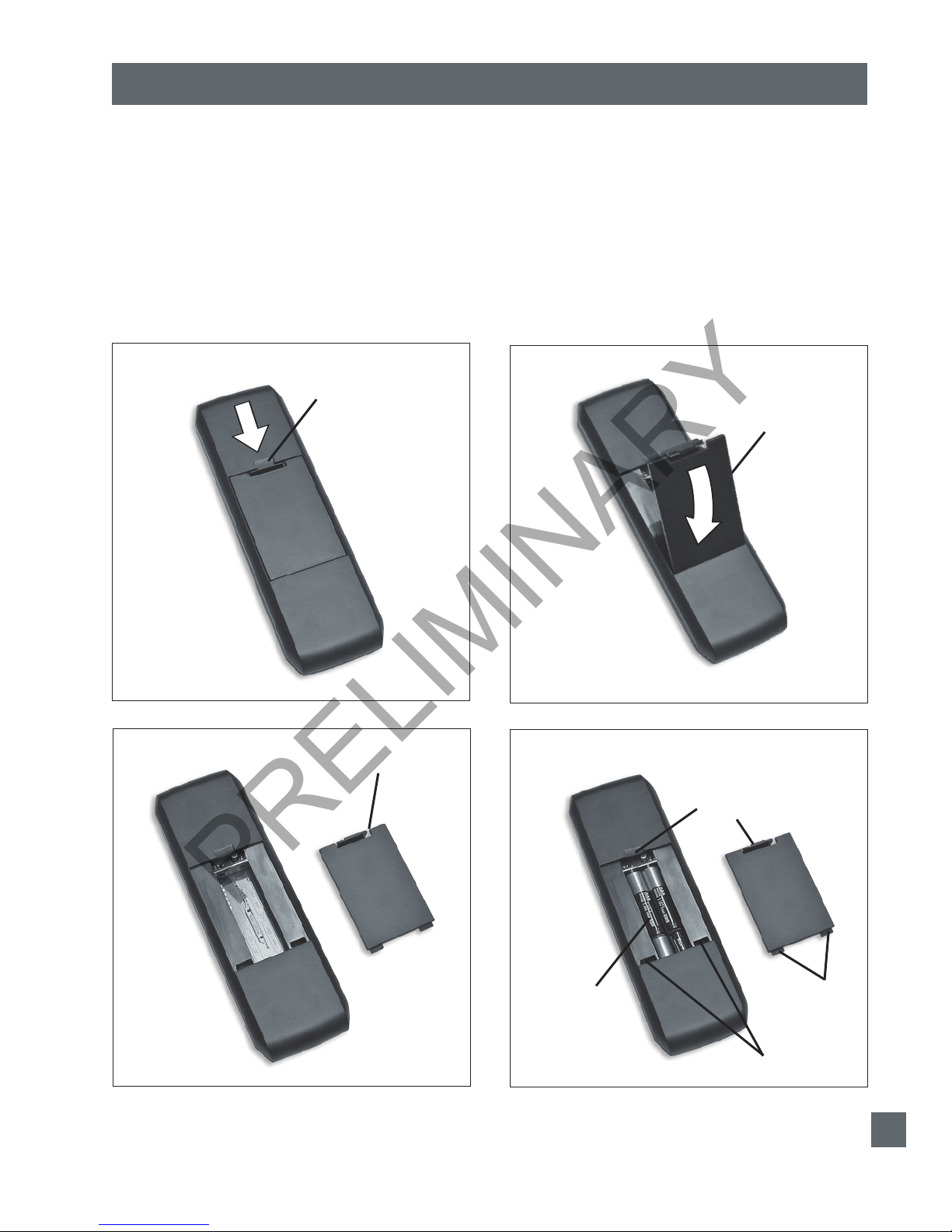

If remote control is non-wired type, install batteries in remote control
(wired remote controls do not require batteries) (FIGURES 2 thru 5).
Briefly activate all functions of the base with the remote control to verify
all features are in working order. If base does not operate, refer to the
Troubleshooting section of this manual.
FIGURE 2
FIGURE 4
FIGURE 3
FIGURE 5
PRESS IN
ON TAB
TO REINSTALL BATTERY
COMPARTMENT DOOR,
PLACE BOTTOM TABS IN
SLOTS AND LOCK TOP
TAB BACK INTO PLACE
BATTERY COMPARTMENT
DOOR REMOVED
BATTERIES
INSTALLED
BOTTOM
TABS
BOTTOM TAB SLOTS
LIFT BATTERY
COMPARTMENT
DOOR UP
AND BACK TO
DISENGAGE
INSTALLATION
PRELIMINARY

brío™ Owners Manual 99301358-b
10
INSTALLATION
Typical brío™ adjustable base installation is now complete.
STEP 10
Install mattress on adjustable base.
STEP 8
Return base to the level position.
STEP 9

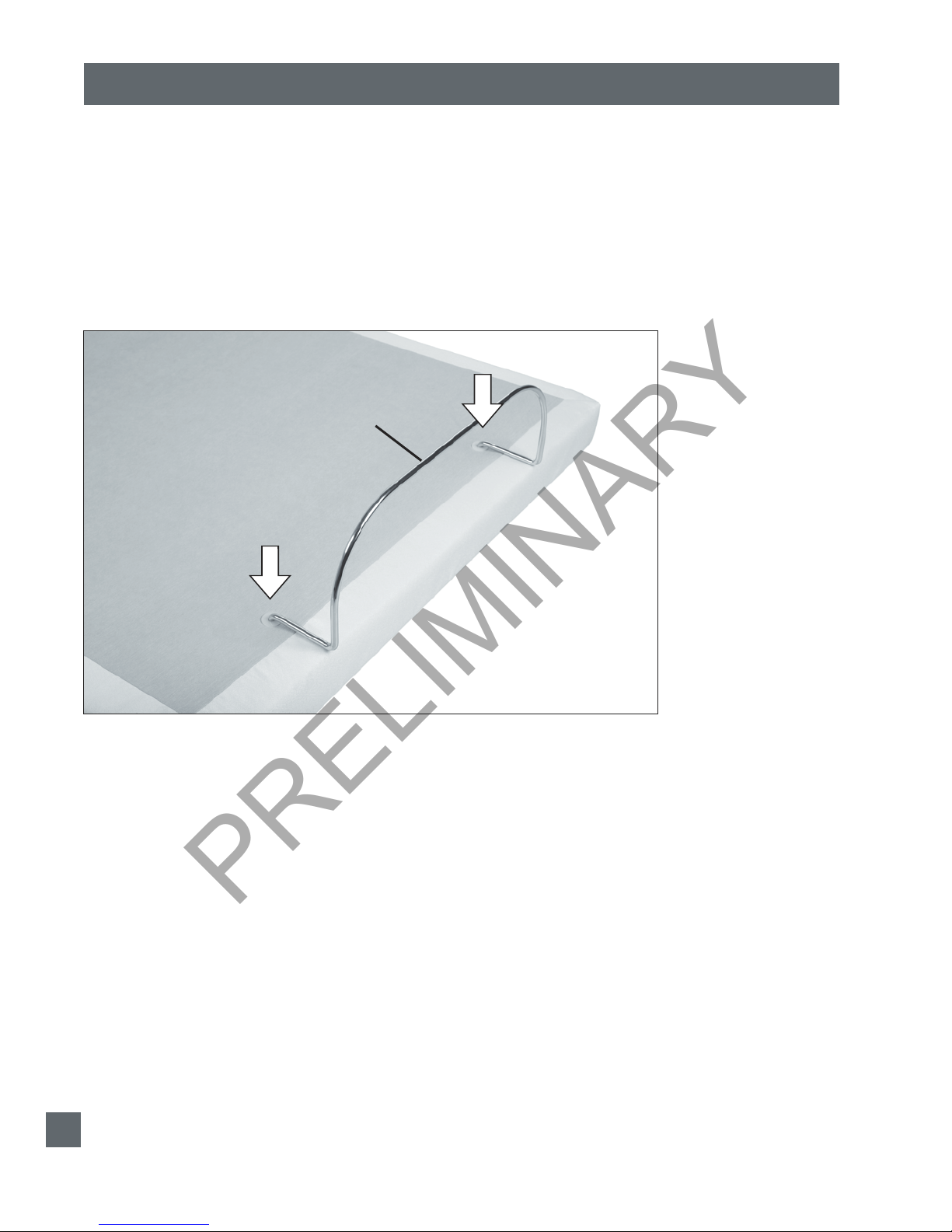

Install mattress retainer at the foot end of the base as follows:
a. Locate grommeted holes at foot of base (FIGURE 6).
b. Place mattress retainer ends into grommeted holes in top surface
of adjustable base (FIGURE 6). Press down until horizontal retainer
section is flush against base.
MATTRESS
RETAINER
FIGURE 6
FOOT END OF BASE
PRELIMINARY

brío™ Owners Manual 99301358-b 11

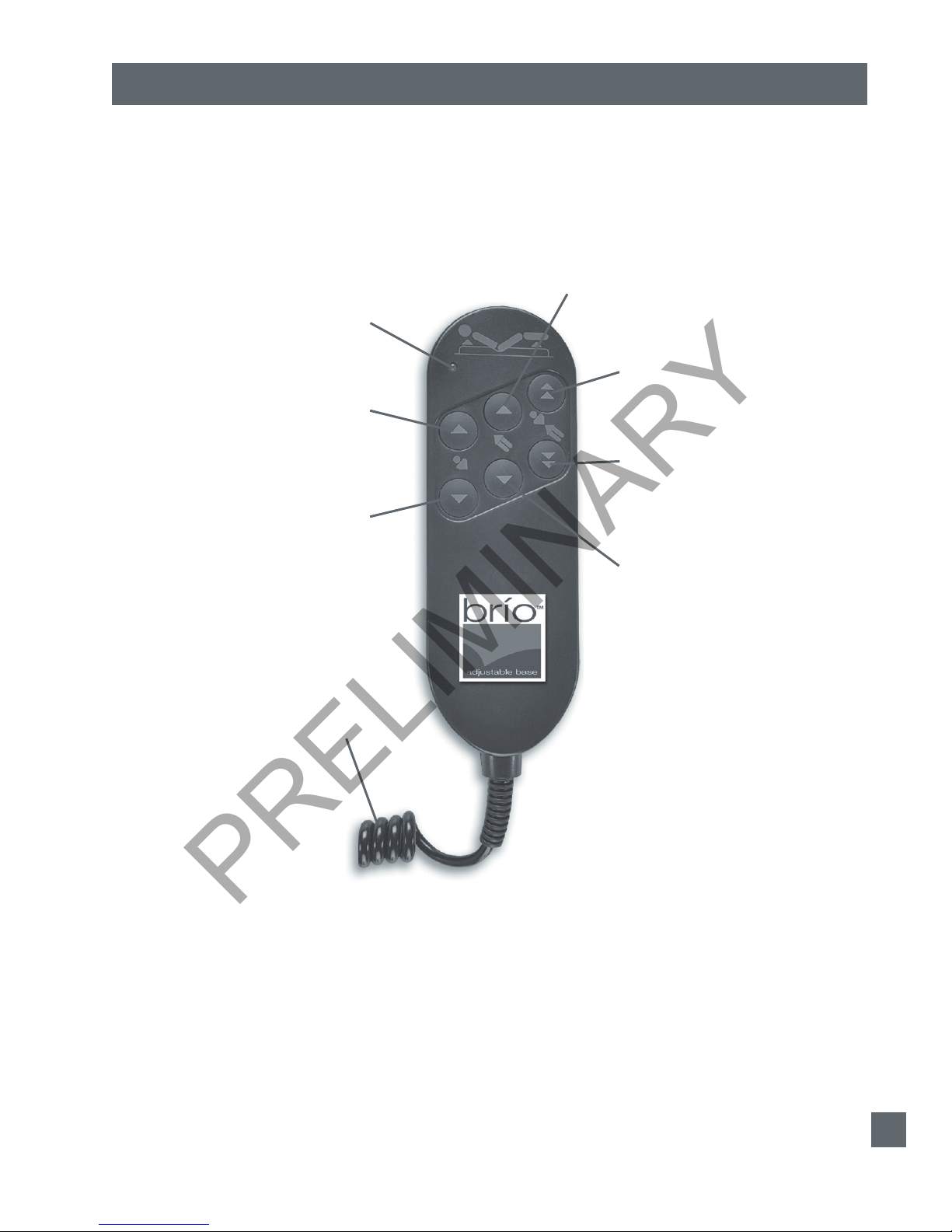

brío 20 & 30 REMOTE CONTROL FUNCTION
HEAD UP BUTTON
Press and hold to raise the
head section.
TRANSMISSION INDICATOR LIGHT
Verifies a button is being pressed
and data is being sent to the base. HEAD/FOOT UP BUTTON
Press and hold to raise the head
and foot sections simultaneously.
FOOT UP BUTTON
Press and hold to raise the
foot section.
HEAD DOWN BUTTON
Press and hold to lower the
head section.
HEAD/FOOT DOWN BUTTON
Press and hold to lower the head
and foot sections simultaneously.
FOOT DOWN BUTTON
Press and hold to lower the
foot section.
FACTORY PREWIRED
Flexible remote control cord is
pre-attached to the receiver unit
and is ready to use. Removal is
easy—depress the tab on the cord
connector first, then pull out. Push
cord connector in to
re-attach.
PRELIMINARY

brío™ Owners Manual 99301358-b
12

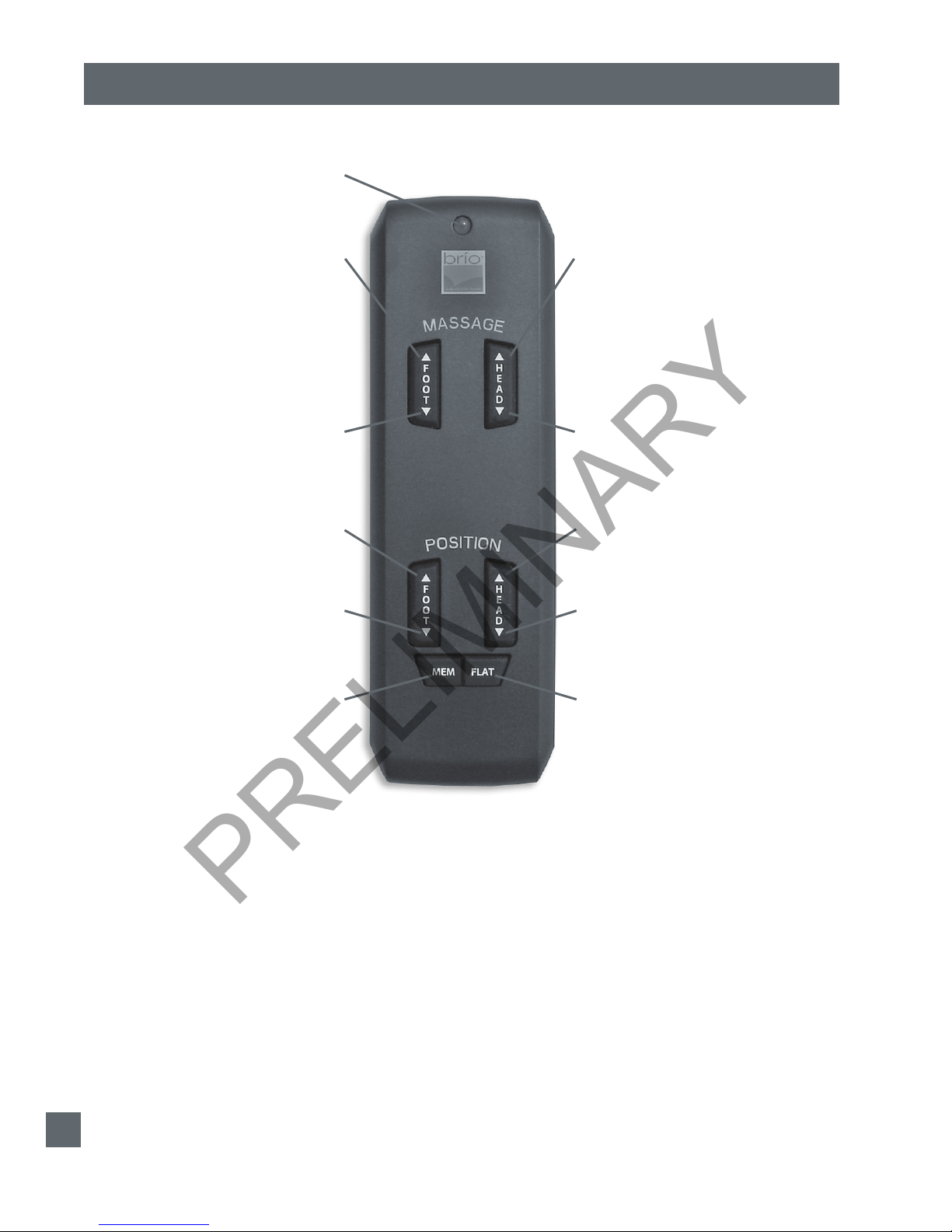

brío 60 REMOTE CONTROL FUNCTION
HEAD DOWN BUTTON
Press and hold to lower the
head section.
FLAT BUTTON
Press to adjust the base to the
flat position.
TRANSMISSION INDICATOR LIGHT
Verifies a button is being pressed
and data is being sent to the base.
FOOT MASSAGE UP BUTTON
Press to turn the foot massager
on at low intensity. Pressing the
button again will increase the level
of intensity. There are 3 levels of
intensity. The massager will
automatically turn off after 30
minutes.
HEAD MASSAGE UP BUTTON
Press to turn the head massager
on at low intensity. Pressing the
button again will increase the level
of intensity. There are 3 levels of
intensity. The massager will
automatically turn off after 30
minutes.
FOOT MASSAGE DOWN BUTTON
Press to decrease the foot massager
intensity. To turn off, press until
massager stops.
HEAD MASSAGE DOWN BUTTON
Press to decrease the head
massager intensity. To turn off, press
until massager stops.
FOOT UP BUTTON
Press and hold to raise the
foot section.
MEMORY BUTTON
Once the desired position or
massage function has been
achieved, press and hold the
memory button for 5seconds to
record the position in the memory.
After the position has been saved,
press the memory button to return
the base to this position from any
other position.
HEAD UP BUTTON
Press and hold to raise the
head section.
FOOT DOWN BUTTON
Press and hold to lower the
foot section.
PRELIMINARY

brío™ Owners Manual 99301358-b 13
TROUBLESHOOTING (wireless Base)
In the event the adjustable base fails to operate, investigate the symptoms and possible
solutions provided in the chart below:
SYMPTOM SOLUTION
• Verify power cord is plugged into a working,
grounded electrical outlet. A grounded, electrical surge
protection device is recommended. Test outlet by
plugging in another working appliance.
• Program the remote control (see Remote Control
Programming section of this manual for programming
procedures).
• Unplug power cord, wait 30 seconds and plug in to
reset electronic components.
• Electrical circuit breaker may be tripped. Check
electrical service breaker box to verify.
• Defective surge protection device or electrical outlet.
Test outlet by plugging in another working appliance.
• Replace batteries in the hand control.
• Base mechanism may be obstructed. Elevate base and
check for obstruction. Remove obstruction.
• Head section may be too close to the wall.
• Headboard may be too close the edge of the mattress.
Verify a 1.5” (38.1mm) to 2” (50.8mm) distance
between headboard brackets and mattress. Adjust if
required.
• Verify headboard brackets were removed during
installation. Remove headboard brackets if still
attached to the underneath side of base.
• If base is located on hard surface ooring, place carpet
pieces or rubber caster cups under each leg or caster
of the base. (See accessory sheet, included with this
product, for rubber caster cup order information.)
• Elevate the head or foot section a short distance (with
the remote control) to realign the lift/lower mechanisms
with the base support platform.
• Verify that base is not positioned against a wall,
nightstand, or other object that may cause vibration or
noise.
• If base is installed over a base frame, verify massage
motors are not causing base frame (or base frame
components) to vibrate.
• Verify that headboard attachment hardware is tightened
firmly (if used).
Remote control illuminates and appears to be
operable, but will not activate base.
No features of the base will activate.
Remote control will not illuminate.
Head or foot section will elevate, but will not
return to the horizontal (flat) position.
Excessive massage motor noise.
PRELIMINARY

brío™ Owners Manual 99301358-b
14
TROUBLESHOOTING (wired Base)
In the event the adjustable base fails to operate, investigate the symptoms and possible
solutions provided in the chart below. For additional assistance call 800-888-3078.
SYMPTOM SOLUTION
• Verify power cord is plugged into a working, grounded
electrical outlet. A grounded, electrical surge protection
device is recommended. Test outlet by plugging in
another working appliance.
• Verify remote control is plugged into the motor.
• Unplug power cord, wait 30 seconds and plug in to
reset electronic components.
• Electrical circuit breaker may be tripped. Check
electrical service breaker box to verify.
• Defective surge protection device or electrical outlet.
Test outlet by plugging in another working appliance.
• Base mechanism may be obstructed. Elevate base and
check for obstruction. Remove obstruction.
• Head section may be too close to the wall.
• Headboard may be too close the edge of the mattress.
Verify a 1.5” (38.1mm) to 2” (50.8mm) distance
between headboard brackets and mattress. Adjust if
required.
Remote control will not activate base.
Head or foot section will elevate, but will not
return to the horizontal (flat) position.
PRELIMINARY

brío™ Owners Manual 99301358-b 15
ACCESSORIES
brío™OPTIONAL EQUIPMENT
Contact customer service toll free (800-888-3078) to order the accessories indicated in the chart
below.
4B5431
4B6117
4B6118
4B1806
4B7410
4B1792
4B7365
Wired Remote Control Cable - Dual DC Motor
Head Board Brackets-TXL
Head Board Brackets-FXL/Q
Push-in Locking Casters (set of 4)
Bed Link Kit (connects two bases together)
Rubber Caster Cups (set of 4)
Leg Extension Kit
ACCESSORY DESCRIPTION CODE IMAGE
PRELIMINARY

NATIONWIDE CUSTOMER SERVICE toll free: [phone]
© 2013 Leggett & Platt Adjustable Bed Group, a division of Leggett & Platt Incorporated
BrioAdjustableBases.com
99301358-b EDR122XX 5/13
PRELIMINARY
