Leggett & Platt U-232 User manual

U-232
ULTRA™FURNITURE DESIGN owners manual

CONTENTS
Advisory...................................................................................................................... 4
Acoustics.................................................................................................................... 6
Fabric Cleaning Information.......................................................................................... 6
Installation ................................................................................................................. 7
Power Down Operation ............................................................................................... 17
Remote Control Function............................................................................................ 19
Remote Control Programming ..................................................................................... 20
USB Outlets.............................................................................................................. 23
Troubleshooting ......................................................................................................... 24
Accessories ............................................................................................................... 25
1-3-25 Warranty........................................................................................................ 26
CONTENTS
If adjustable base does not operate or if parts are missing, call:
800-888-3078
Do not contact retail store or dealer.

ULTRA™furniture design owners manual 99301592
4
IMPORTANT INFORMATION
READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT
ELECTRICAL RATING
Input - 100-240V, 50/60Hz, 1.5A; Output - 29VDC,
5.0A.
ELECTRICAL GROUNDING
This product is equipped with a polarized or
grounded electrical power cord. The power cord will
only fit into a grounded, electrical surge protection
device (not included) or a grounded electrical outlet.
WARRANTY WARNING
Do not open any control boxes, motors or remote
control devices (with the exception of the remote
control and power down box battery compartments).
The product warranty will be void if these
components are tampered with. Do not attempt
to alter component wiring or adjust or modify the
structure of the product in any way or the warranty
will be void. Any repair or replacement of base parts
must be performed by authorized personnel.
LUBRICATION
This product is designed to be maintenance free.
The lift motors are permanently lubricated and
sealed—no additional lubrication is required. Do not
apply lubricant to lift motor lead screws or any nylon
nuts or the base may inadvertently creep downward
from the elevated position.
PRODUCT RATINGS
The base lift motors are not designed for continuous
use. Reliable operation and full life expectancy
will be realized as long as the lift motor operation
does not exceed five (5) minutes over a fifty (50)
minute period, or approximately 10% duty cycle.
Note: Massage equipped bases are not designed for
continuous, extended massage operation. Massage
systems are rated for a maximum of 2 hours of use
within any 6 hour period. Any attempt to circumvent
or exceed product ratings will shorten the life
expectancy of the product and may void the warranty.
The recommended maximum weight (including
mattress) is 700 lb (317 kg) distributed evenly
across the base. This product is not designed to
support or lift this amount in the head or foot
sections alone. Note: Exceeding the recommended
weight restrictions could damage the base and void
the warranty.
For best performance, consumers should enter and
exit the adjustable base with the base in the flat
(horizontal) position. Avoid placing entire weight on
head or foot section of the base, including when in
the raised position. DO NOT STAND ON BASE AT
ANY TIME.
UL (Underwriters Laboratories) recognized
components.
CFR 1633 approved for use with most mattresses.
Assembled in USA.
ADVISORY
FOR OPTIMUM ADJUSTABLE BASE
OPERATION, USE A GROUNDED, ELECTRICAL
SURGE PROTECTION DEVICE (NOT
INCLUDED). FAILURE TO USE A SURGE
PROTECTION DEVICE COULD COMPROMISE
SAFETY OR CAUSE PRODUCT MALFUNCTION.
WARNINGWARNING
SERVICE REQUIREMENTS
Service technicians are not responsible for moving
furniture, removing headboards and footboards
or any items required to perform maintenance on
the base. In the event the technician is unable to
perform service due to lack of accessibility, the
service call will be billed to the purchaser and the
service will have to be rescheduled.
SMALL CHILDREN / PETS WARNING
After the base is unboxed, immediately dispose of
packaging material as it can smother small children
and pets. To avoid injury, children or pets should not
be allowed to play under or on the base. Children
should not operate this base without adult supervision.

ULTRA™furniture design owners manual 99301592 5
ADVISORY
READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT
IMPORTANT INFORMATION
PACEMAKER WARNING
This product produces a vibrating sensation.
It is possible that individuals with heart-assist
pacemakers may experience a sensation similar to
exercise. Consult physician for complete information.
HOSPITAL USE DISCLAIMER
This base is designed for in-home use only. It is
not approved for hospital use and does not comply
with hospital standards. Do not use this base with
tent type oxygen therapy equipment, or use near
explosive gases.
FCC COMPLIANCE
The equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
residential environment. This equipment generates,
uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following conditions: (1)
This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
FCC Caution: Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate this equipment.
Radio Frequency = 433MHz.
PINCH POINT WARNING
DURING BASE OPERATION, GAPS (PINCH
POINTS) ARE CREATED (ARROWS IN FIGURE
1). A CHILD, A PERSON’S LIMB, OR A
PET CAN BECOME ENTRAPPED AT THESE
LOCATIONS. DURING USE, AND WHEN BASE
IS IN THE RAISED POSITION, ALWAYS KEEP
GAP AREAS (PINCH POINTS) CLEAR AND
KEEP ALL LIMBS ON TOP OF BASE. FAILURE
TO FOLLOW THIS WARNING COULD RESULT
IN SERIOUS INJURY OR DEATH.
FIGURE 1
TYPICAL PINCH POINTS

ULTRA™furniture design owners manual 99301592
6
ACOUSTICS
LIFTING/LOWERING MECHANISMS
The lift/lower feature will emit a minimal
humming sound during operation. This is normal.
During operation, the lift arm wheels make contact
with the platform support of the base. This applies
slight tension on the moving components and
resonance is reduced to a minimum level. If
excessive noise or vibration is experienced, reverse
the movement action (up or down) of the base with
the remote control. This should realign the base’s
activating mechanisms to the proper operational
position.
MASSAGE OPERATION
The massage feature will emit a minimal tone
during operation. This is normal. When the
massage level is increased, motor resonance will
intensify accordingly.
LOCATION ENVIRONMENT
The level of sound experienced during operation
is directly related to the location environment. For
example, when a base is located on a hardwood
floor with the massage feature in operation, a
vibrating tone will be audible. To minimize this
resonance, place a piece of carpet, or rubber
caster cups, under each leg or caster of the base.
It is possible to experience vibration or noise from
the headboard brackets, headboards or footboards
if mounting bolts are not firmly tightened.
FABRIC CLEANING INFORMATION
Spot clean only with water based shampoo
or foam upholstery cleaner. Pretest a small,
inconspicuous area before proceeding. Do not
over wet. Do not use solvents to spot clean.
Pile fabrics may require brushing with a non-
metallic, stiff bristle brush to restore appearance.
Hot water extraction or steam cleaning is not a
recommended cleaning method.
To prevent overall soiling, frequent vacuuming
or light brushing with a non-metallic stiff bristle
brush to remove dust and grime is recommended.
When cleaning a spill, blot immediately to remove
spilled material. Clean spots or stains from the
outside to the middle of the affected area to
prevent circling. Use a professional furniture
cleaning service when an overall soiled condition
is apparent.

ULTRA™furniture design owners manual 99301592 7
INSTALLATION
For installation and setup, complete the following procedures, in the order indicated below
and on the following pages:
STEP 1
Before discarding any packing materials,
check the adjustable base shipping carton
and verify the following items are
included:
• (4) Bed Legs
• (1) Remote Control w/ (3) AAA Batteries
• (1) Remote Control Holder
• (2) Headboard Bracket Assemblies
• (1) Headboard Bracket Hardware Kit (blister card)
• (1) Power Supply (includes power brick, electrical
feed cord, and electrical power cord)
• (1) Dual Sync Cable (split sizes only)
• (2) Mattress Retainers w/ bushings
• (1) Warranty Activation Card
• (1) Quick Setup Guide
WARRANTY
ACTIVATION CARD
POWER SUPPLY (power brick, electrical
feed cord, and electrical power cord) factory
attached to base, no assembly required
DUAL SYNC CABLE
(split sizes only)
DUAL SYNC CABLE
REMOTE CONTROL
w/ 3 - AAA batteries
QUICK SETUP GUIDE
REMOTE CONTROL HOLDER
(shown with remote control)
LEG
(4 pieces)
CORNER MATTRESS
RETAINER w/bushings
(2 per base)
HEADBOARD BRACKET ASSEMBLIES - HARDWARE
(4 bracket pieces, hardware blister card)
Blister Card
HEADBOARD BRACKET ASSEMBLIES - HARDWARE
POWER SUPPLY (
power brick, electrical
feed cord, and electrical power cord
)
factory

ULTRA™furniture design owners manual 99301592
8
INSTALLATIONINSTALLATION
STEP 2
Remove the hardware box. Cut zip-tie and remove
mattress retainer.
STEP 3

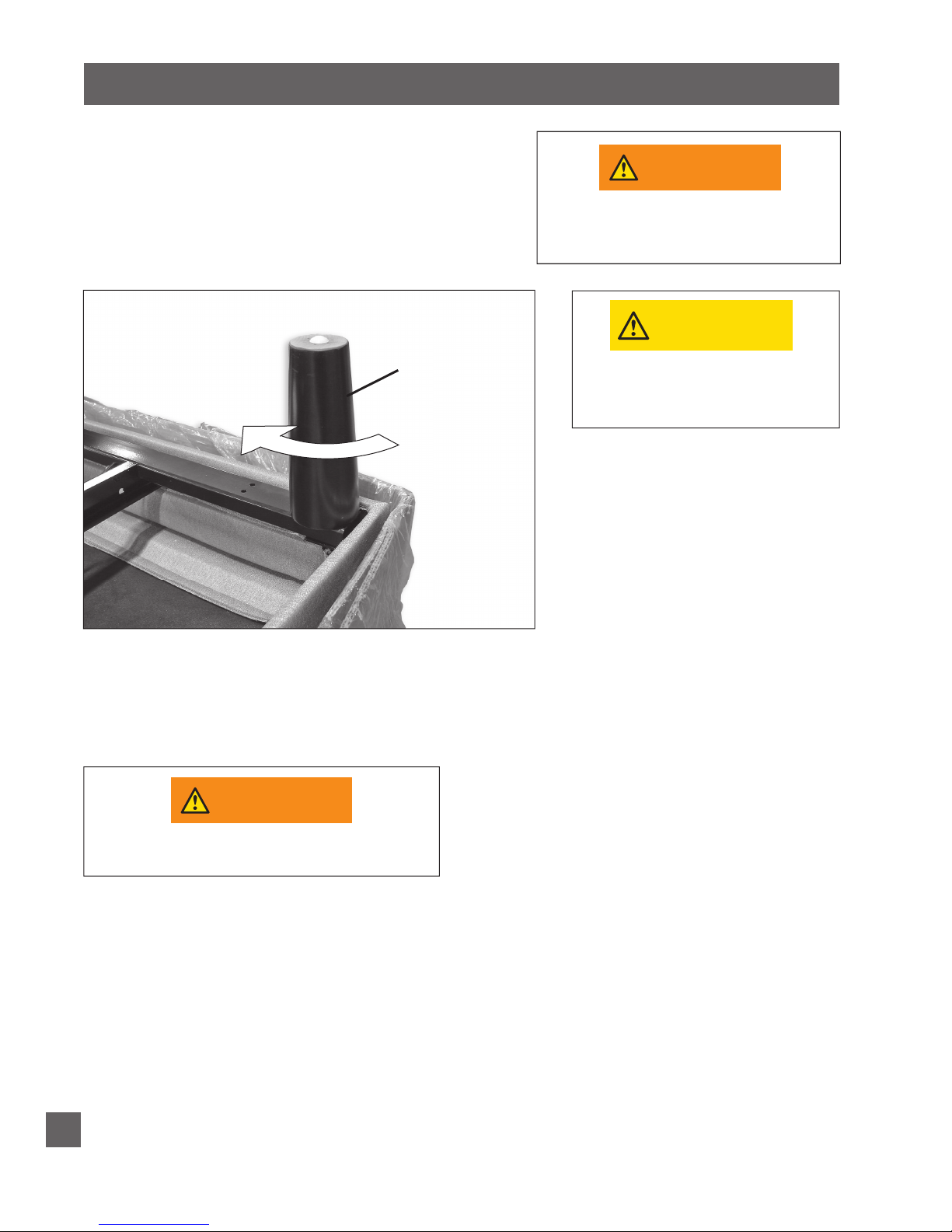

Install (4) legs into the base frame. Simply screw each leg
into a tapped hole at the corner of the base frame (FIGURE 2).
STEP 4
Carefully lift the adjustable base from the shipping carton,
keeping the unit top-side-down. Remove and extend out
power cord from base.
AT LEAST TWO PEOPLE ARE
RECOMMENDED FOR HANDLING AND
MOVING ADJUSTABLE BASE.
WARNINGWARNING
DO NOT ATTEMPT TO SCREW
LEGS INTO ANY OTHER INSERTS.
THIS WILL DAMAGE PRODUCT.
CAUTIONCAUTION
POWER CORDS MUST NOT INTERFERE WITH
ANY ADJUSTABLE BASE MECHANISMS.
WARNINGWARNING
FIGURE 2
LEGS – SCREW
INTO TAPPED
HOLE AT EACH
CORNER

ULTRA™furniture design owners manual 99301592 9
INSTALLATION
STEP 7

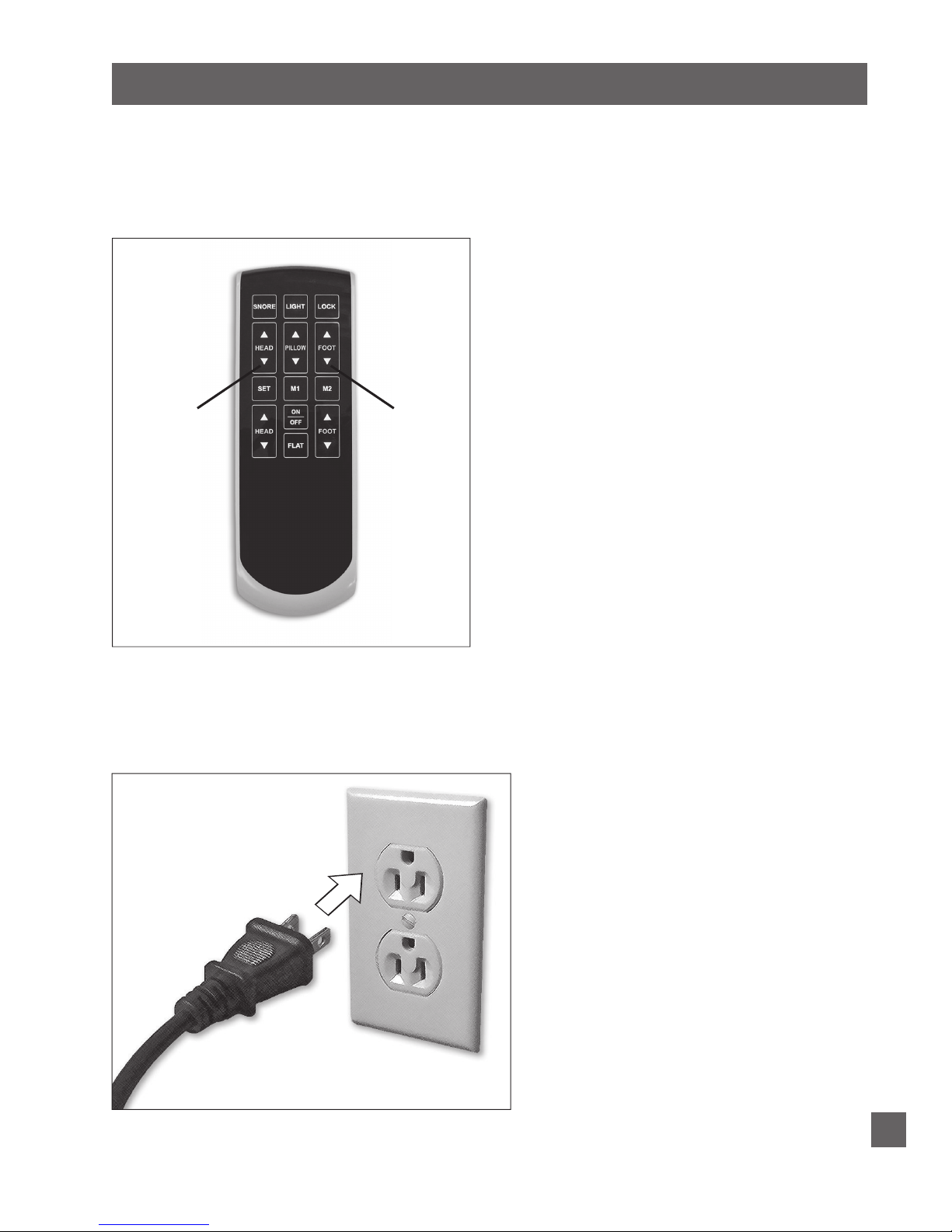

Install batteries in remote control (3-AAA, included) (FIGURE 3). Note:
Make sure batteries are properly oriented. Briefly activate all functions of the
base with the remote control to verify all features are in working order. If
base does not operate, refer to the Troubleshooting section of this manual.
STEP 6
Plug electrical power cord into a working, grounded electrical outlet.
Note: An electrical surge protection device is recommended (not included).
STEP 5
Remove the plastic packaging from the base frame. Carefully rotate the
adjustable base over to position the base so it is resting on its legs.
PRESS IN ON TAB AND LIFT
OUT TO REMOVE BATTERY
COMPARTMENT DOOR.
INSERT TABS IN TAB SLOTS
AND SNAP IN TO REPLACE.

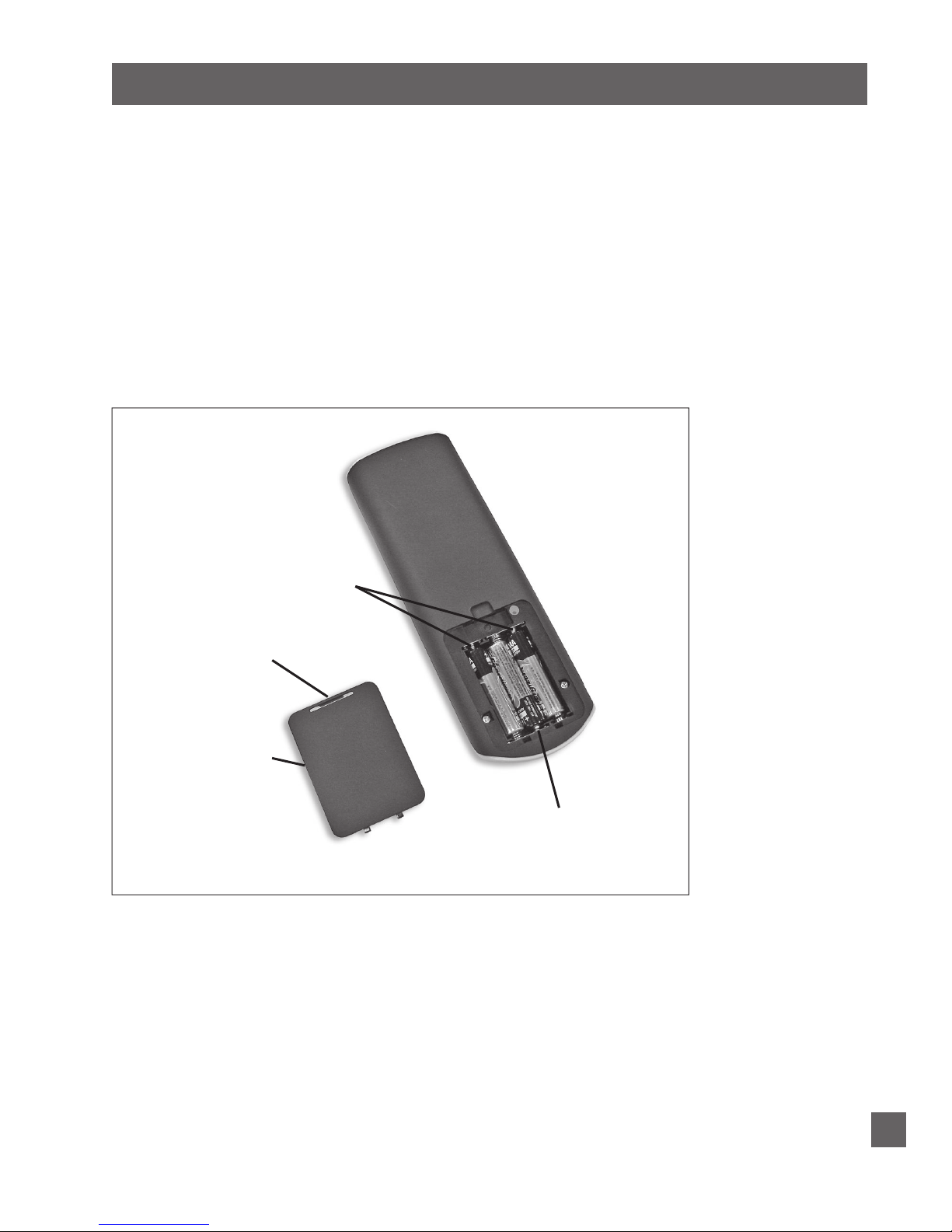

FIGURE 3
TAB
STEP 8
Return base to the level position.
BATTERY
COMPARTMENT
DOOR
POSITIVE (+)
END
POSITIVE (+)
END

ULTRA™furniture design owners manual 99301592
10
INSTALLATION
NOTE: If base is to be set up without a headboard, basic
installation is now complete. If headboard is to be installed,
proceed to Headboard Bracket Installation.
STEP 9

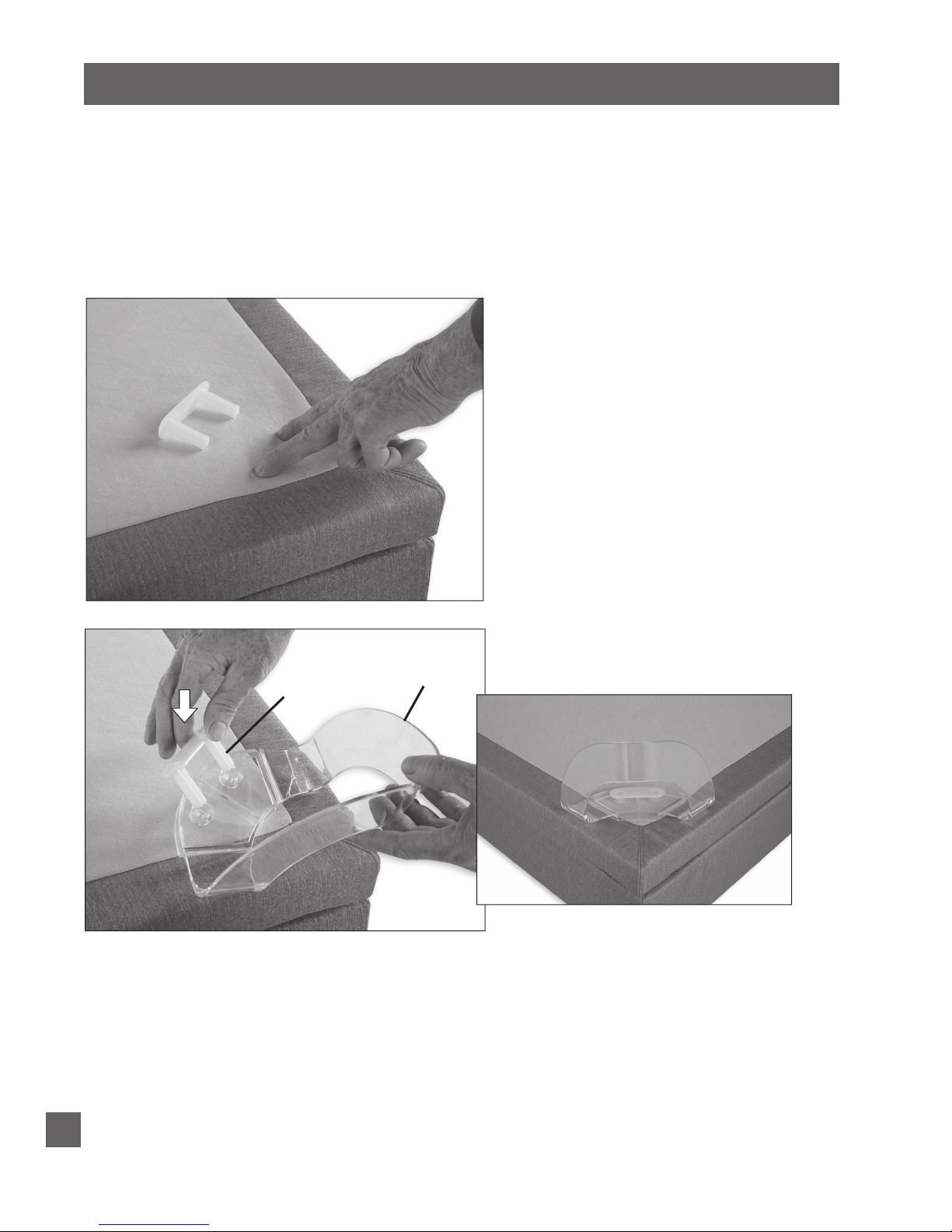

Install corner mattress retainers at the foot end of the adjustable base as follows:
a. Locate by feel corner holes underneath base cover at foot end of
base (FIGURE 4).
CORNER
MATTRESS
RETAINER
TWO-PRONGED
BUSHING
FIGURE 5
b. Insert two-pronged bushing into holes in corner mattress retainer.
Press bushing through material into holes until retainer fits
securely against base (FIGURES 5 and 6).
FIGURE 4
LOCATE
CORNER
HOLES
FIGURE 6
CORNER
MATTRESS
RETAINER
INSTALLED

ULTRA™furniture design owners manual 99301592 11
3 inches MAX.
FIGURE 7
HEADBOARD BRACKET INSTALLATION
INSTALLATION
FAILURE TO FOLLOW HEADBOARD BRACKET
INSTALLATION INSTRUCTIONS MAY CAUSE
HEADBOARD BRACKET INTERFERENCE
WITH BASE FOAM DURING BASE
OPERATION. BASE FOAM OR BASE COVER
DAMAGE COULD RESULT.
NOTE
IN ORDER TO AVOID A PERSON OR PET BEING
CAUGHT IN THE SPACE REFERENCED BELOW
WHILE THE BASE IS IN MOTION, THE BOTTOM
OF THE HEADBOARD CROSS MEMBER MUST
BE POSITIONED SO THAT THERE IS NO
MORE THAN 3 INCHES (76.2mm) BETWEEN
THE HEADBOARD AND THE TOP OF THE
MATTRESS (FIGURE 7). DO NOT EXCEED 3
INCHES (76.2mm). FAILURE TO FOLLOW THIS
INSTRUCTION COULD RESULT IN SERIOUS
PERSONAL INJURY OR DEATH.
WARNING

ULTRA™furniture design owners manual 99301592
12
STEP 10
Install headboard brackets to the adjustable base frame as follows:
a. Using the remote control, raise the head section of the base as far
as it will articulate to gain access to the adjustable base frame.
b. Insert a 1/2” carriage bolt into a headboard bracket weldment
(FIGURE 8).
INSTALLATION
1/2” CARRIAGE
BOLT
HEADBOARD
BRACKET
WELDMENT
FIGURE 8

ULTRA™furniture design owners manual 99301592 13
c. Locate (2) holes in base frame at one corner of head end of base.
Place the headboard bracket weldment underneath base frame
and against the head end of the base, positioning the bracket
weldment so the carriage bolt appears through the innermost
hole in the base frame (FIGURE 9). Place hex nut on 1/2” long
carriage bolt to attach bracket weldment to base frame. Loosely
tighten to allow adjustment for headboard hole alignment. Place
second 1/2” long carriage bolt in remaining hole and secure using
hex nut. Loosely tighten to allow adjustment for headboard hole
alignment.
INSTALLATION
HEADBOARD
BRACKET
WELDMENT
HEAD END
OF BASE
FRAME
HOLES
1/2 INCH LONG
CARRIAGE BOLT
AND NUT
FIGURE 9

ULTRA™furniture design owners manual 99301592
14
INSTALLATION
d. Place headboard flange weldment against headboard bracket
weldment. Install (2) 1” long hex bolts through slots in headboard
bracket weldment and holes in headboard flange weldment
(FIGURES10 and 11). Secure using (2) hex nuts. Loosely tighten
to allow adjustment for headboard hole alignment.
e. Repeat procedure to attach the other headboard bracket
assembly.
HEADBOARD
FLANGE
WELDMENT
HEADBOARD
FLANGE
WELDMENT
FIGURE 10
HEADBOARD
BRACKET
WELDMENT
SLOTS
HEADBOARD
BRACKET
WELDMENT
SLOTS

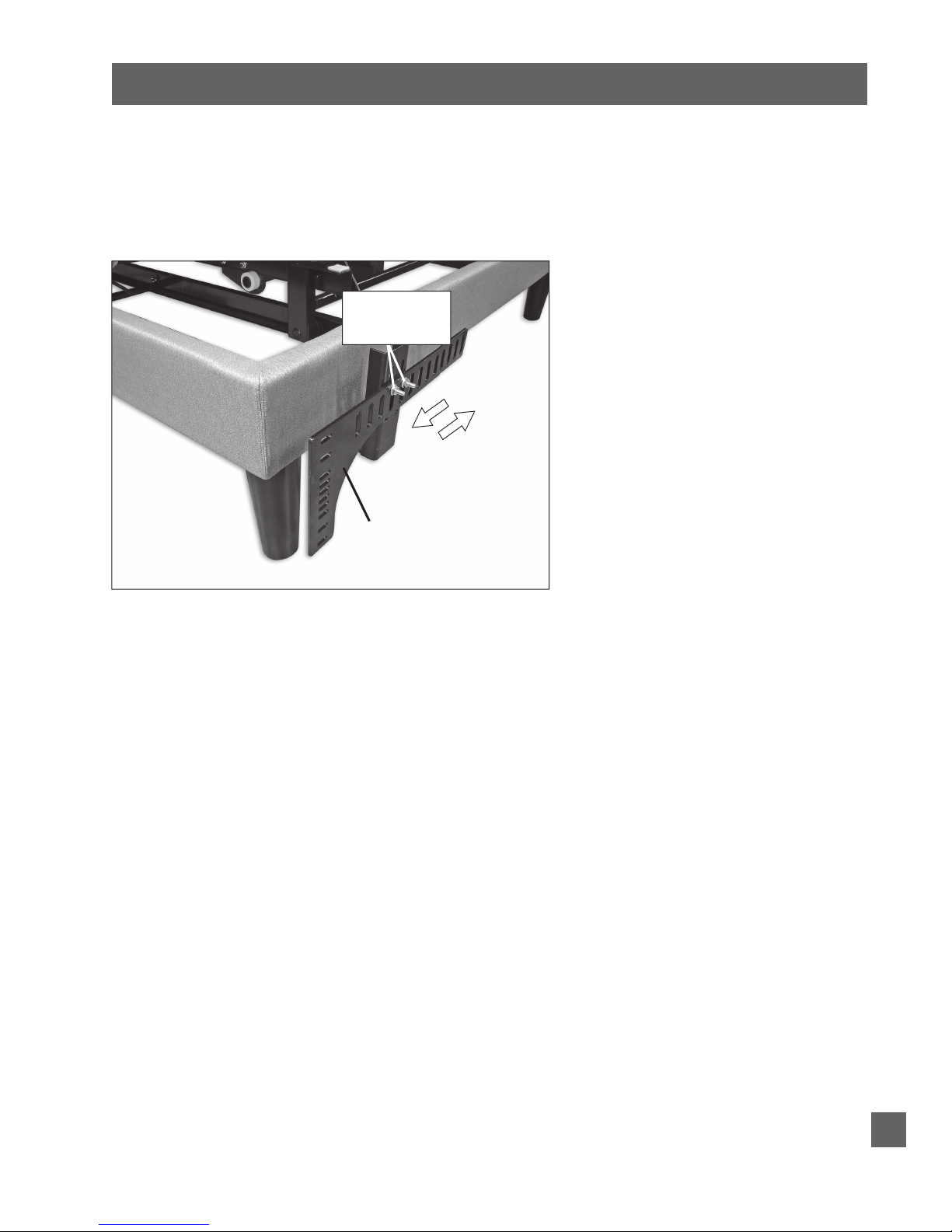

1 INCH LONG
HEX HEAD BOLTS
AND NUTS
1 INCH LONG
HEX HEAD BOLTS
AND NUTS
FIGURE 11
NOTE: If more
floor clearance is
required, mount
headboard
bracket flange
with extension
facing upward.

ULTRA™furniture design owners manual 99301592 15
INSTALLATION
f. Measure the center-to-center distance between the mounting slots of the
headboard bracket flanges.
g. If bracket flange adjustment is required to accept the headboard, remove the
1 inch long hex head bolts and move flanges side-to-side for the adjustment
(FIGURE 12). Reinstall bolts. Tighten all headboard mounting bolts.
h. Firmly tighten all bolts of both headboard bracket assemblies.
i. Install headboard.
HEADBOARD
FLANGE
WELDMENT
FIGURE 12
1 INCH LONG
HEX HEAD BOLTS
AND NUTS
SLIDE BRACKET
ASSEMBLIES IN OR
OUT TO ACHIEVE
POSITION
Typical U-232 adjustable base installation is now complete.
STEP 11
Install mattress on adjustable base.

ULTRA™furniture design owners manual 99301592
16
POWER DOWN OPERATION
To lower the base to the fl a t position during an electrical power outage, complete the following procedure:
STEP 1
Verify power is unplugged from electrical power source.
STEP 2

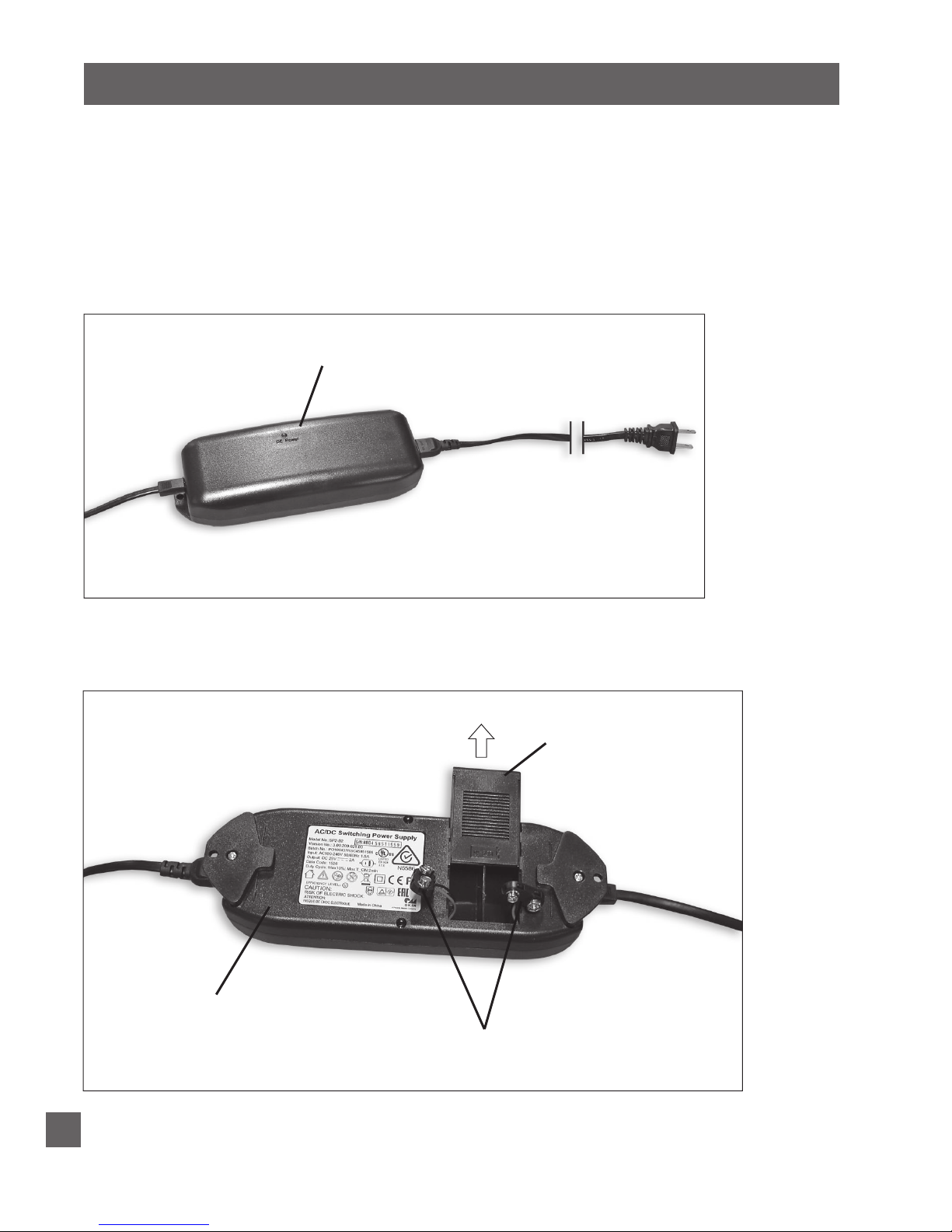

Locate (1) power brick (FIGURE 13) and (2) 9 volt batteries (not
included).
STEP 3
Install (2) 9 volt batteries in power brick (FIGURE 14).
FIGURE 13 POWER
BRICK
FIGURE 14
INSTALL (2) 9 VOLT BATTERIES
*BATTERIES NOT INCLUDED
UNDERSIDE OF
POWER BRICK
BATTERY
COMPARTMENT DOOR
(push down and slide off
to remove)

ULTRA™furniture design owners manual 99301592 17
STEP 4
Press the head down button on the remote control until the head
section is flat, then press the foot down button on the remote
control until the foot section is flat (FIGURE 15).
STEP 5
Remove two (2) 9 volt batteries from power brick. Plug power cord
back into electrical power source (FIGURE 16). When power is
restored from outage, base is ready to resume normal operation.
HEAD
DOWN
BUTTON
FOOT
DOWN
BUTTON
FIGURE 15
POWER DOWN OPERATION
FIGURE 16

ULTRA™furniture design owners manual 99301592
18
REMOTE CONTROL FUNCTION
REMOTE CONTROL REQUIRES THREE (3) AAA SIZE BATTERIES (INCLUDED).
NOTE
SNORE BUTTON
Press and hold to raise head to the
preprogrammed position. Head will
automatically lower to flat after 15
minutes.
*To program a position, adjust base to
desired position, press and hold the set
button until the massage motors turn on
and off, then press and hold the Snore
button until the massage motors turn on
and off.
SET BUTTON
Press and hold to program Cust 1, Cust 2
and Snore presets.
M1 BUTTON
Press and hold to adjust base to the
programmed position.
*To program a position, adjust base to
desired position, press and hold the set
button until the massage motors turn
on and off, then press and hold the M1
button until the massage motors turn on
and off.
M2 BUTTON
Press and hold to adjust base to the
programmed position.
*To program a position, adjust base to
desired position, press and hold the set
button until the massage motors turn
on and off, then press and hold the M2
button until the massage motors turn on
and off.
HEAD MASSAGE UP/DOWN BUTTON
Press to increase or decrease massage
intensity. Massage has 3 speeds:
Low, medium and high. Massage will
automatically shut off after 15 minutes.
FOOT MASSAGE UP/DOWN BUTTON
Press to increase or decrease massage
intensity. Massage has 3 speeds:
Low, medium and high. Massage will
automatically shut off after 15 minutes.
MASSAGE ON/OFF BUTTON
Press “on” to turn both massage motors
on. Press “off” to turn both massage
motors off.
FOOT UP/DOWN BUTTON
Press and hold to raise or lower the foot
section.
FLAT BUTTON
Press and hold to lower the base to the
level position.
HEAD UP/DOWN BUTTON
Press and hold to raise or lower the head
section.
PILLOW TILT UP/DOWN BUTTON
Press and hold to raise or lower the
pillow tilt section.
UNDERBED LIGHT BUTTON
Press to turn underbed light on. Press
again to turn underbed light off.
LOCK BUTTON
Press to lock remote control. Press again
to unlock remote control.
PRESS & HOLD TO ONE TOUCH
To change remote control functions from “press and hold” to “one touch” (“one touch” = press and release), simultaneously
press the HEAD MASSAGE DOWN and FOOT MASSAGE DOWN buttons for 5 seconds. The massage motor will turn on and off
confirming the change. Your base is now set to “one touch.”
When in “one touch” mode:
Custom 1, Custom 2, and Snore buttons
Press and release (one touch) button. Base will adjust to the programmed position. Press any other button to stop the base during movement.
Flat button
Press and release (one touch) button. Base will shut off massage motor, if active, and adjust base to level position. Press any other
button to stop the base during movement.
To revert back to factory settings, simultaneously press and hold the SET button and the FLAT button for 5 seconds. The massage
motor will turn on and off confirming the change. Your base is now set to factory settings. Note: Custom 1, Custom 2, and Snore
positions will revert to factory preprogrammed positions.

ULTRA™furniture design owners manual 99301592 19

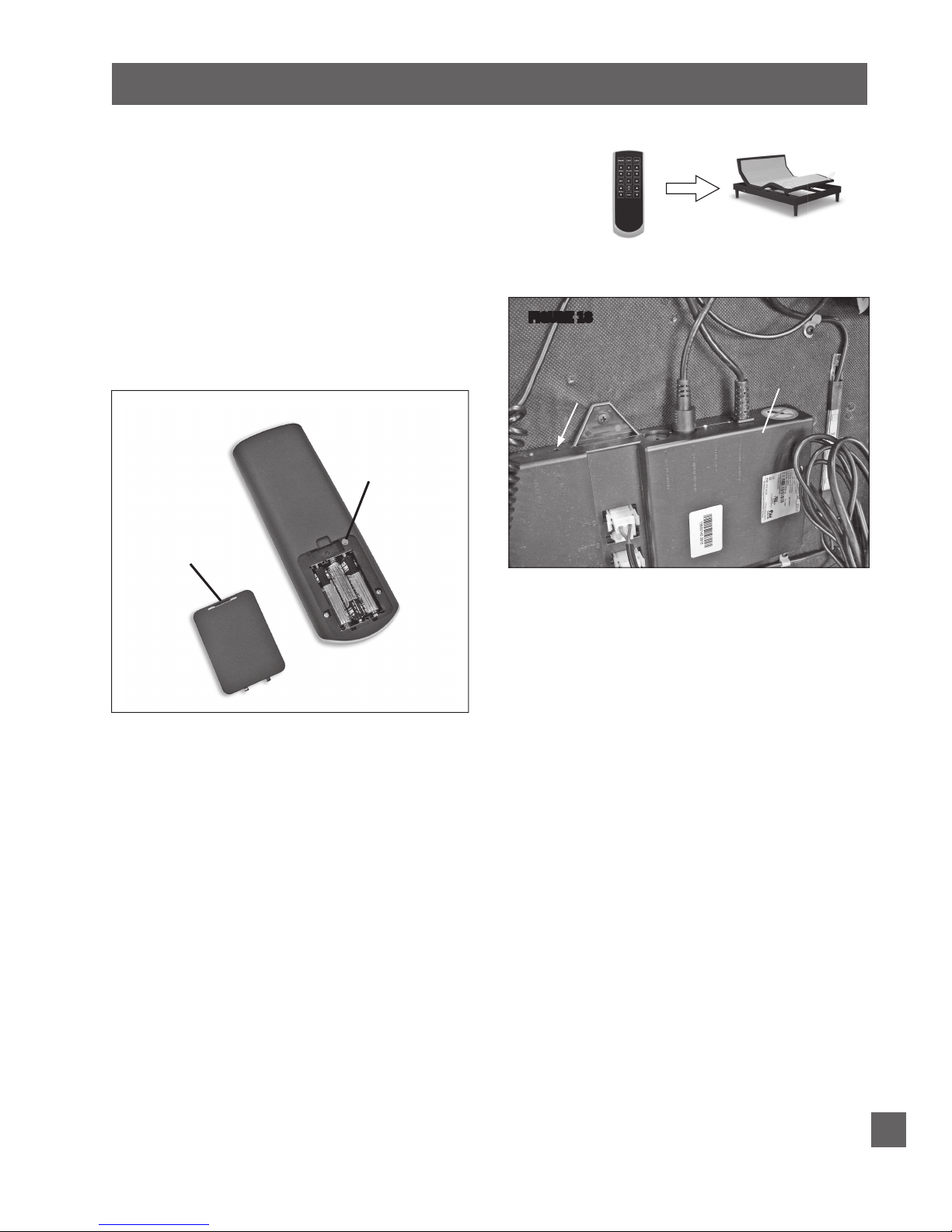

REMOTE CONTROL PROGRAMMING ( 1 remote control - 1 base)
Program One Remote to Operate One Base - perform the
following numbered procedure.
STEP 1
Unplug the adjustable base electrical power
cord from power source. Wait 30 seconds, then
plug back in.
STEP 2
Remove the battery compartment door from the
remote control (FIGURE 17).
STEP 5
On the remote control, press and hold the learn
switch (FIGURE 17) until the underbed lighting
goes off.
STEP 6
Operate remote control to verify programming.
One remote control is now programmed to
operate one base.
FIGURE 17
LEARN
SWITCH
BATTERY
COMPARTMENT
DOOR
STEP 3
Position base on its side. Locate the control
box, attached to the underside of the base
(FIGURE 18).
STEP 4
Using a pointed object, push the learn button
in two times in rapid succession (FIGURE 18).
The underbed lighting will come on.
FIGURE 18
LEARN
BUTTON
CONTROL
BOX

ULTRA™furniture design owners manual 99301592
20
REMOTE CONTROL PROGRAMMING (1 or 2 remote controls - 2 bases)

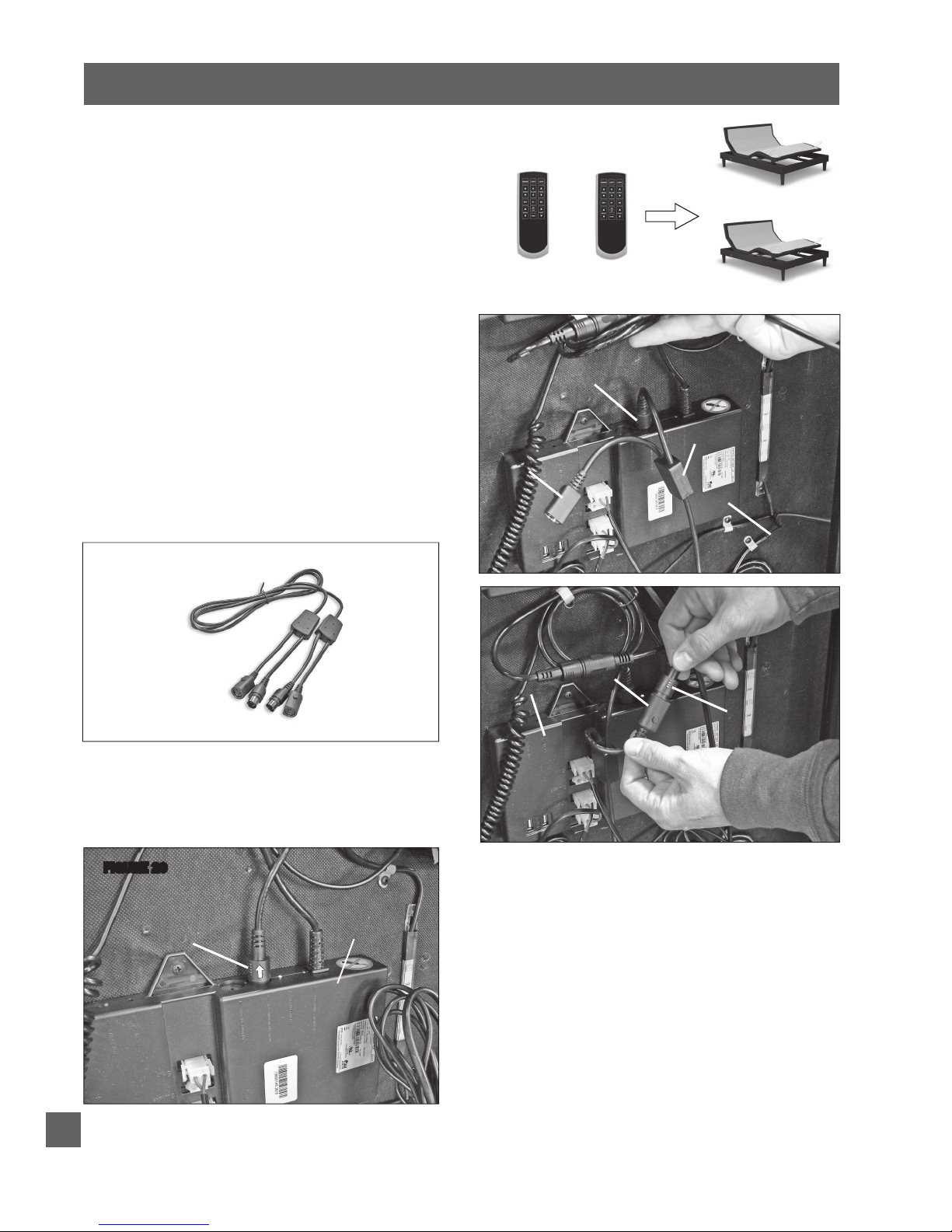

BASE 1
BASE 2
FIGURE 19
DUAL SYNC
CABLE
FIGURE 21
CONTROL
BOX
CONTROL
BOX
MALE
PLUG
FEMALE
PLUG
FEMALE
PLUG
DUAL
SYNC
CABLE
CABLE
REMOVED
FROM
CONTROL
BOX
FIGURE 22
OR
REMOTE 1 REMOTE 2
Program One Remote to Operate Two Bases (Tandem Syncing)
- perform the following numbered procedure. Note: Make sure
both remotes are in “press & hold” mode and both bases are flat
before beginning procedure.
STEP 1
Plug both adjustable bases into electrical power source.
Operate both remote controls to verify each remote
functions properly with its respective base. NOTE: see
1-to-1 programming procedure if bases do not operate.
Using remote controls, adjust both bases to flat position.
Unplug both bases from electrical power outlet.
STEP 2
Choose base 1 remote. Retain base 2 remote control as a
spare or use if 2 remotes are desired to operate both bases.
STEP 3
Position both bases on their sides, in close proximity
to each other. CAUTION: AT LEAST TWO PEOPLE
ARE RECOMMENDED FOR HANDLING AND MOVING
ADJUSTABLE BASE.
STEP 4
Locate dual sync cable (FIGURE 19).
FIGURE 20
CONTROL
BOX
STEP 5
On base 1, unplug the existing cable from the control box
(FIGURE 20). Insert one male plug of dual sync cable into
the control box (FIGURE 21). Insert removed cable into
the female plug of the dual sync cable (FIGURE 22).
STEP 6
Repeat Step 6 with base 2, using the remaining male and
female plugs of the dual sync cable.
STEP 7
Turn both bases over so they are resting on their legs.
CAUTION: MAKE SURE CABLE IS CLEAR OF BASE AND FREE
OF ANY PINCH POINTS.
STEP 8
Plug both bases into electrical power source.
STEP 9
Operate both bases with the remote control. NOTE: If bases
do not operate in unison with the remote, verify dual sync
cable connections are fully seated in both MFP ports. Unplug
both bases, wait 10 seconds, then plug them back in.
EXISTING
CABLE
