LEGION LIGHTING EMTRP Series User manual

INSTALLATION INSTRUCTIONS FOR LED EMERGENCY UNIT
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS AND DELIVER TO OWNER AFTER INSTALLATION
WARNING: RISK OF ELECTRIC SHOCK- NEVER CONNECT TO, DISCONNECT FROM, OR SERVICE WHILE EQUIPMENT IS
ENERGIZED.
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS MAY RESULT IN DEATH, SERIOUS INJURY
OR SIGNIFICANT PROPERTY DAMAGE - For your protecon, read and follow these warnings and instrucons
carefully before installing or maintaining this equipment. These instrucons do not aempt to cover all installaon
and maintenance situaons.
•All service shall be performed by qualified service electrician. This product must be installed and maintained in
accordance with the applicable installaon codes by a person familiar with the construcon & operaon of the
product and the hazards involved.
•This product must be installed in accordance with the applicable installaon codes
and ordinances.
•Before wiring to power supply, turn offelectricity at fuse or circuit break er.
•Disconnect A. C. power and unplug baery before servicing.
•Consult your local building code for approved wiring and installaon.
•Do not let power supply cord touch hot surfaces.
•Do not mount near gas or electric heater.
•Equipment should be mounted in locaons and at heights where it will not
readily be subjected to tampering by unauthorized personnel.
•The use of accessory equipment not recommended by the manufacturer may cause an unsafe condion.
•Do not use this equipment for other than intended use.
•Connect to an AC voltage as recommended on the product label of this equipment.
INSTALLATION INSTRUCTIONS
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS!

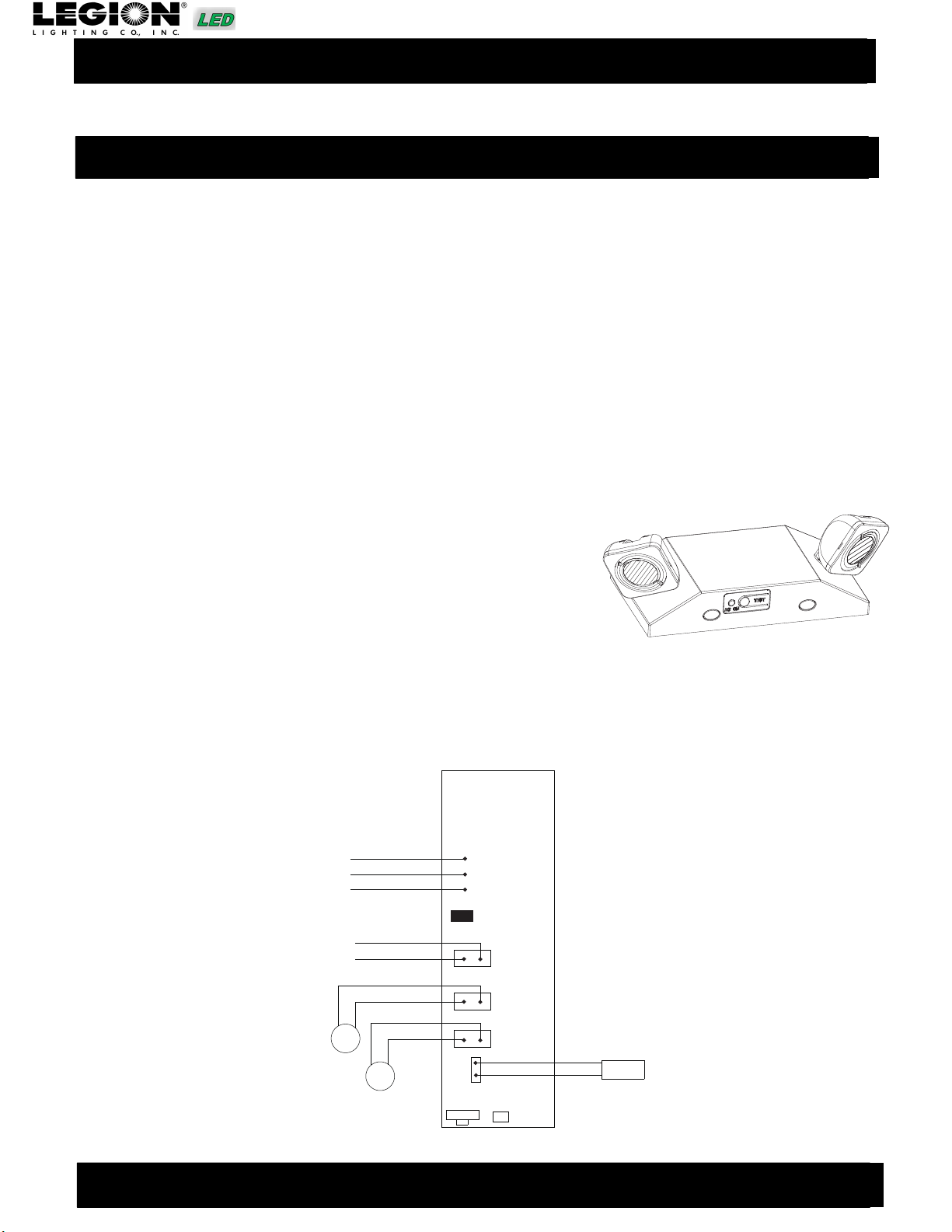

WIRING DIAGRAM:
CAUTION: DO NOT connect YELLOW
and BLUE remote leads together. Please
also ensure remote head positive (+)
lead is connected to Emergency unit's
yellow lead (+) and remote head
negative (-) lead is connected to
Emergency unit's blue lead (-).
LAMP
LAMP
LED indicator
TEST
BATTERY
RED
BLACK
RED
BLACK
WHITE
277V
120V
0V
CHARGER
BOARD
JP1
For RC-SDT Only
For RC Only
BLUE(-)
BLUE(-)
BLUE(-)
YELLOW(+)
YELLOW(+)
YELLOW(+)
TO REMOTE
Note:
Use 18-22 AWG stranded wire to
connect remote lamp heads.
Remove Jumper (JP1) from PCBA, if
remote lamps are being connected
(RC-SDT models only)
Unused input lead must be
properly insulated with wire nut or
other approved method.
Series EMTRP
Legion Lighting Co., Inc. | 221 Glenmore Avenue, Brooklyn, NY 11207 | Phone: [phone] | Fax: [phone] | Toll Free: 1-800-4-LEGION | email: [email protected] | www.legionlighting.com

INSTALLATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS!
CONDUIT MOUNT INSTALLATION:
J-BOX MOUNTING INSTALLATION
Fig.A (J-Box) Fig.B Fig.C
Connect the battery
connector to the PCBA
1. Before starting installation, make sure AC power is turned OFF.
2. Remove unit’s backplate by pushing through the two locking tabs at the bottom using a narrow screwdriver.
3. Feed fixture leads through the back plate and connect to AC power supply leads (Fig A). For 120V use Black &
White wires and for 277V, use Red & White wires.
4. Attach back plate to J-Box (not provided) and secure with screws.
5. Complete the battery connection. (Fig. B)
6. Align tabs and push housing directly onto the back plate (Fig. C). Apply continuous AC power.
7. After the battery has been left to charge for 24 hours, test the unit by pushing the test switch and the LED
lamp heads will turn ON.
FLEXIBLE CONDUIT ONLY
1. Before starting installation, make sure AC power is turned OFF.
2. Remove unit’s backplate by pushing through the two locking tabs at the
bottom using a narrow screwdriver.
3. Secure back plate to wall surface using keyhole knockouts.
4. Remove the knockouts for conduit opening on the backplate and unit housing.
Feed wires through the hole to make conduit connection. For 120V, use Black
& White wires and for 277V, use Red and White wires.
5. Complete the battery connection. (Fig. B)
6. Align tabs and push housing directly onto the back plate (Fig. C). Apply
continuous AC power.
7. After the battery has been left to charge for 24 hours, test the unit by pushing
the test switch and the LED lamps heads will turn ON
OPERATION :
The baery in this unit may not be fully charged. Aer electricity is connected to the unit for at least 24 hours,
then normal operaon of this unit should take effect. To check, press the “TEST” button. The LED lamps on the
unit should turn ON.
In accordance with NFPA 101, the emergency lighng system must be tested monthly for a minimum of 30
seconds and annually for 90 minutes. Refer to the local codes for any addional requirements that may
apply. When re-lamping, use only LED lamps specified in the fixture. Using other lamp types may result in
damage or unsafe conditions.
Note: UL recommended maximum mounting height is 16-ft
Series EMTRP
