E-Flex
EFNTWK Gateway User Manual
Rev. 1.14
F589
8 June 2021

TECHNICAL INQUIRY
The lighting control system consists of electrical and electronic components which could cause
electrical shock if tampered with. Only individuals experienced with electrical and electronic
equipment should remove the panels or attempt to service this system.
All questions regarding this equipment should be referred to:
Lehigh Electric Products Company
6265 Hamilton Boulevard
Allentown, PA. 18106-9789
Phone [phone]
Fax [phone]
WARRANTY
Subject to the terms of this paragraph, the supplier warrants its title to the products sold by it and
warrants to the Purchaser that its products are free of defects in workmanship or material and are in
conformity with applicable specifications and descriptions of the supplier. No claim shall be maintained
hereunder unless the facts giving rise to it are discovered within 16 months from the date of shipment
from the factory, or 12 months after initial energization of said equipment, with the one expiring first
given precedence, and written notice thereof given to the supplier within 30 days of discovery. The sole
and exclusive liability of the supplier, for Breach of Warranty shall be, at its option, to replace or repair
the product or part concerned F.O.B. its factory or such place as it may designate. The warranties stated
in this paragraph are exclusive of all other warranties, written or oral, statutory, expressed or implied,
none of which shall apply to the sale of the suppliers products hereunder.

1
E-Flex EFNTWK User Manual, Rev. 1.14
Contents
Glossary of Terms.......................................................................................................................................... 4
Introduction .................................................................................................................................................. 5
Features and Specification........................................................................................................................ 5
Requirements............................................................................................................................................ 5
Software Version....................................................................................................................................... 5
Installation .................................................................................................................................................... 6
Shipment Inspection ................................................................................................................................. 6
Mounting................................................................................................................................................... 6
Wiring........................................................................................................................................................ 7
Input Power Wiring (EFNTWK-PL)......................................................................................................... 7
FlexNet Link Wiring ............................................................................................................................... 7
Dip Switch SW3 ..................................................................................................................................... 9
Rotary Switch SW2................................................................................................................................ 9
Jumper J6 .............................................................................................................................................. 9
Contact Closure Inputs............................................................................................................................ 10
Emergency...........................................................................................................................................10
General CCI..........................................................................................................................................10
Ethernet Connection............................................................................................................................... 10
TCP / IP Settings .................................................................................................................................. 10
Static IP Address (SW3-5 ON)..........................................................................................................10
Dynamic IP Address (SW3-5 OFF) ................................................................................................... 11
SW3 IP Address Selection (SW3-1 thru SW3-4) ..............................................................................11
Wireless Router Set Up ....................................................................................................................... 12
Telnet Communication for Gateway Protocol .................................................................................... 13

2
E-Flex EFNTWK User Manual, Rev. 1.14

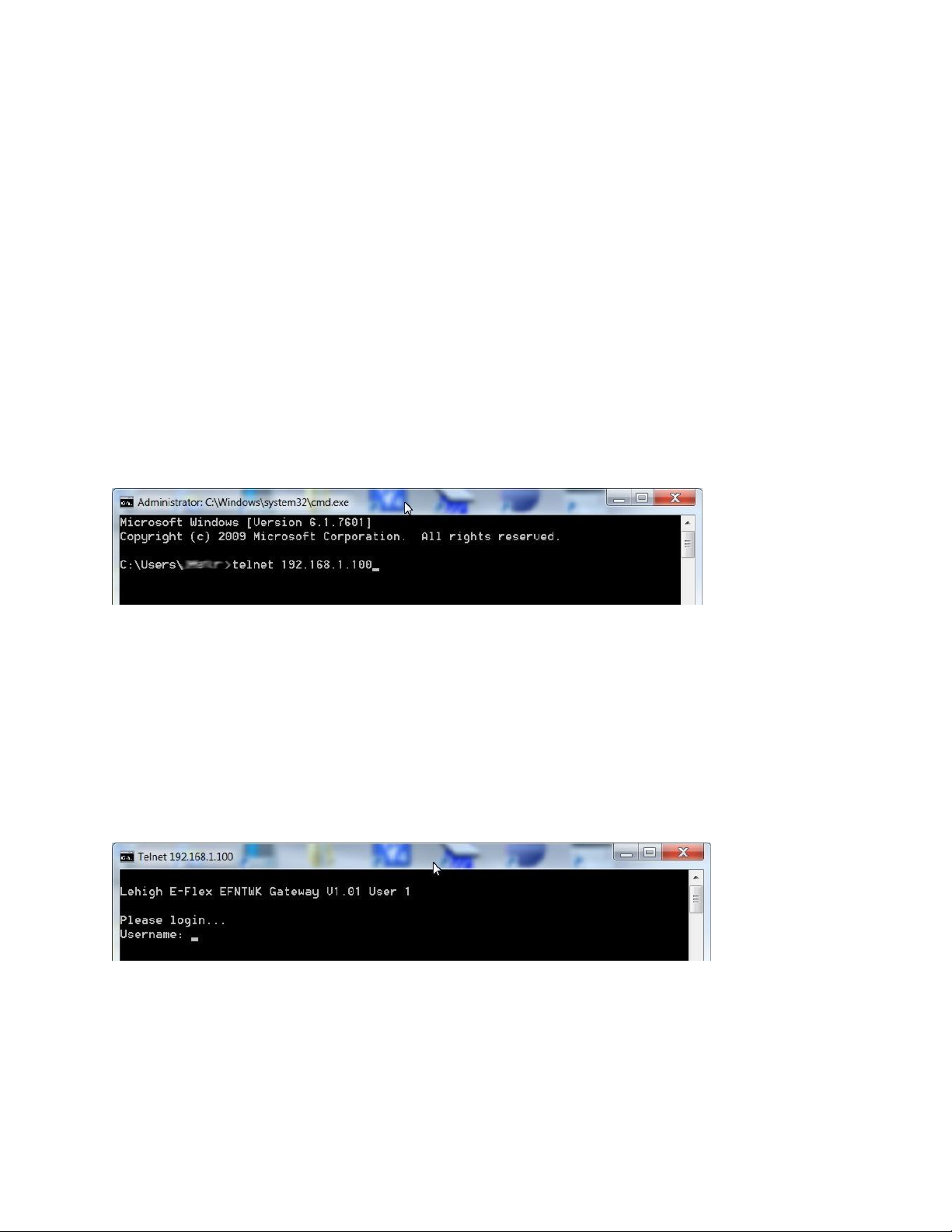

Establishing a Telnet connection ............................................................................................................ 13
Login.................................................................................................................................................... 13
Ending a Telnet connection .................................................................................................................... 14
EFNTWK Telnet-only commands............................................................................................................. 14
EFNTWK Gateway-only commands ........................................................................................................14
Changing the Password....................................................................................................................... 14
Changing the EFNTWK Gateway Name...............................................................................................15
Reset to Factory Defaults....................................................................................................................15
EFNTWK Gateway Protocol.........................................................................................................................16
Protocol Rules and Formatting ...............................................................................................................16
Protocol Message Operations................................................................................................................. 16
Command Message Format ....................................................................................................................17
Message Response Format .....................................................................................................................17
Error Response Message Format............................................................................................................ 17
Error Response Codes ......................................................................................................................... 17
EFNTWK Commands ...............................................................................................................................18
Activate Preset (510)........................................................................................................................... 18
Master Up Start (511) ......................................................................................................................... 18
Master Down Start (512) .................................................................................................................... 19
Master R/L Stop (513) .........................................................................................................................19
Zone Raise Start (514)......................................................................................................................... 19
Zone Lower Start (515) ....................................................................................................................... 20
Zone R/L Stop (516).............................................................................................................................20
Zone Level Set (517)............................................................................................................................21
Start Occupancy Override (519).......................................................................................................... 21

3
E-Flex EFNTWK User Manual, Rev. 1.14
Stop Occupancy Override (520) ..........................................................................................................22
Start Lights Out (521).......................................................................................................................... 22
Stop Lights Out (522) .......................................................................................................................... 23
Start Demand Response (523) ............................................................................................................ 23
Stop Demand Response (524)............................................................................................................. 24
Request Device Info (550)................................................................................................................... 25
List Devices (551) ................................................................................................................................ 25
Request Preset Names (552)...............................................................................................................26
Request Zone Names (553)................................................................................................................. 26
Request Input Status (554) ................................................................................................................. 27
Start Emergency (555) ........................................................................................................................28
Stop Emergency (556)......................................................................................................................... 28
Request Output Status (557) ..............................................................................................................29
Start Panic Override (558)...................................................................................................................29
Stop Panic Override (559) ...................................................................................................................30
EFNTWK Notifications.............................................................................................................................31
Preset Activated (510)......................................................................................................................... 31
Quick Reference...................................................................................................................................... 32

4
E-Flex EFNTWK User Manual, Rev. 1.14
Glossary of Terms
Gateway -
In a communication network, a network node equipped for interfacing with another network that uses
different protocols and in addition may use different physical layers.
Controller -
AV Equipment, computer or other third party device that connects to the gateway to control and
monitor an E-Flex lighting control system.
Command -
Message sent from the controller to the gateway.
Response -
Message sent from the E-Flex lighting control system to the controller thru the gateway as a result of a
command message. It can also be a direct response from the gateway as a result of a gateway specific
command.
Activity -
Status message sent from the E-Flex lighting control system to the controller thru the gateway as a
result of activity such as a preset being recalled.

5
E-Flex EFNTWK User Manual, Rev. 1.14
Introduction
The EFNTWK (E-Flex Network) gateway provides an Ethernet connection to configure, control devices in
an E-Flex lighting system on the wired FlexNet link using third-party equipment, such as touch-screens,
universal remote controls and software applications.
The Ethernet connection can be used to control a system using the EFNTWK gateway protocol over
Telnet or when running the E-Flex Flextool System Configurator software on a PC for system
configuration and control over TCP/IP using a proprietary protocol.
Features and Specification
Direct surface mount enclosure
One Ethernet input
One E-Flex FlexNet link connection
Telnet –control and monitoring for third party devices, two users max.
TCP/IP proprietary protocols –configuration, control, and discovery.
Dip Switch configuration for static or dynamic IP addressing.
EFNTWK Gateway Discovery
System FlexNet Device Discovery
ASCII-based Command Protocol
Emergency contact closure input –broadcasts emergency signal on FlexNet link.
Contact closure input –broadcasts demand response or sweep to OFF on FlexNet link.
Optional mounting –DIN rail, plenum enclosure, rack mount
Requirements
•Link Power Supply (not required plenum enclosure):
oE-Flex Relay Panel
oLPS-20UL Link Power Supply
oFlexNet unit load –100mA
•FlexNet Communication Link
Software Version
The features described in this manual are supported with E-Flex Panel software version V1.01 and
higher.

6
E-Flex EFNTWK User Manual, Rev. 1.14
Installation
Shipment Inspection
Check the shipment before beginning installation and confirm that it has arrived complete and
undamaged.
Check the shipping container for any physical damage. If there is any damage found, document
it to help with any claim against the shipper.
Check the contents of the shipping container against the packing list and ensure that the order is
complete. If there are any discrepancies with the contents of the shipment, contact Lehigh
customer service.
Mounting

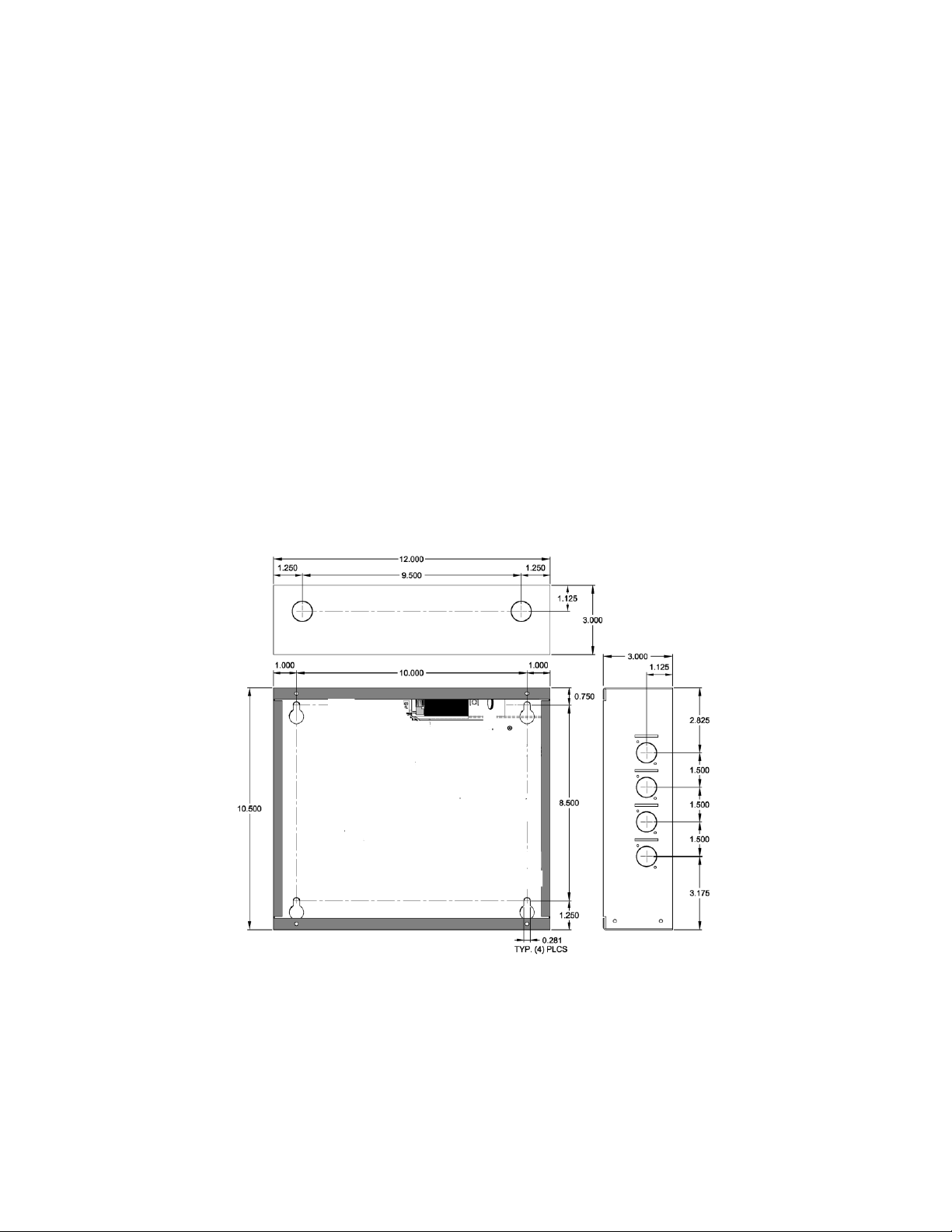

For EFNTWK-PL, mount the panel to the wall using the four ¼” keyhole slots in the rear of the
enclosure. Suitable for indoor use only on a vertical surface.
EFNTWK-PL Shown

7
E-Flex EFNTWK User Manual, Rev. 1.14
Wiring
Input Power Wiring (EFNTWK-PL)
The EFNTWK-PL power supply operates at 120-277VAC. Use the following instructions to wire line
voltage to the unit.
Warning:
RISK OF DEATH OR ELECTRIC SHOCK! Before installing input power to the controller, make
sure upstream source of power is off via a circuit breaker.
1. Use 14 to 12 AWG conductors (depending on breaker rating) to feed the control power wiring. The
E-flex gateway draws less than .60A at 120V and less than .34A at 277V.

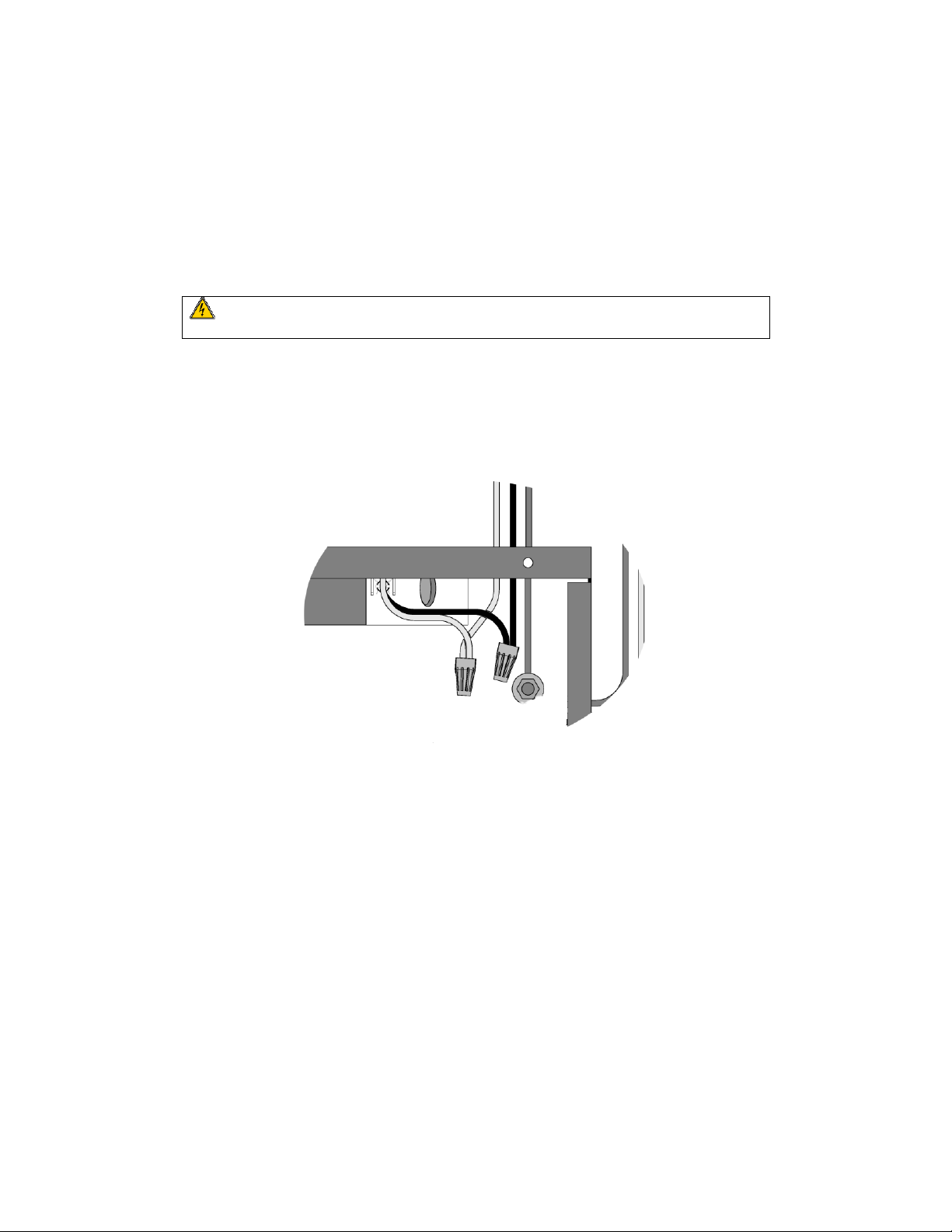

2. The unit power supply has a black (Hot) and white (Neutral) wire. Wire nut the Hot and Neutral of
the power feed to these wires as shown.
3. A stud is provided to land the ground wire.
FlexNet Link Wiring
FlexNet link interconnects up to 100 devices on a single network. Recommend Alpha 6455 if power and
data are run, Alpha 6454 (1.5 pairs) if no power is run. If necessary a shielded data cable along with
discrete power (18 to 12 AWG) can be used.

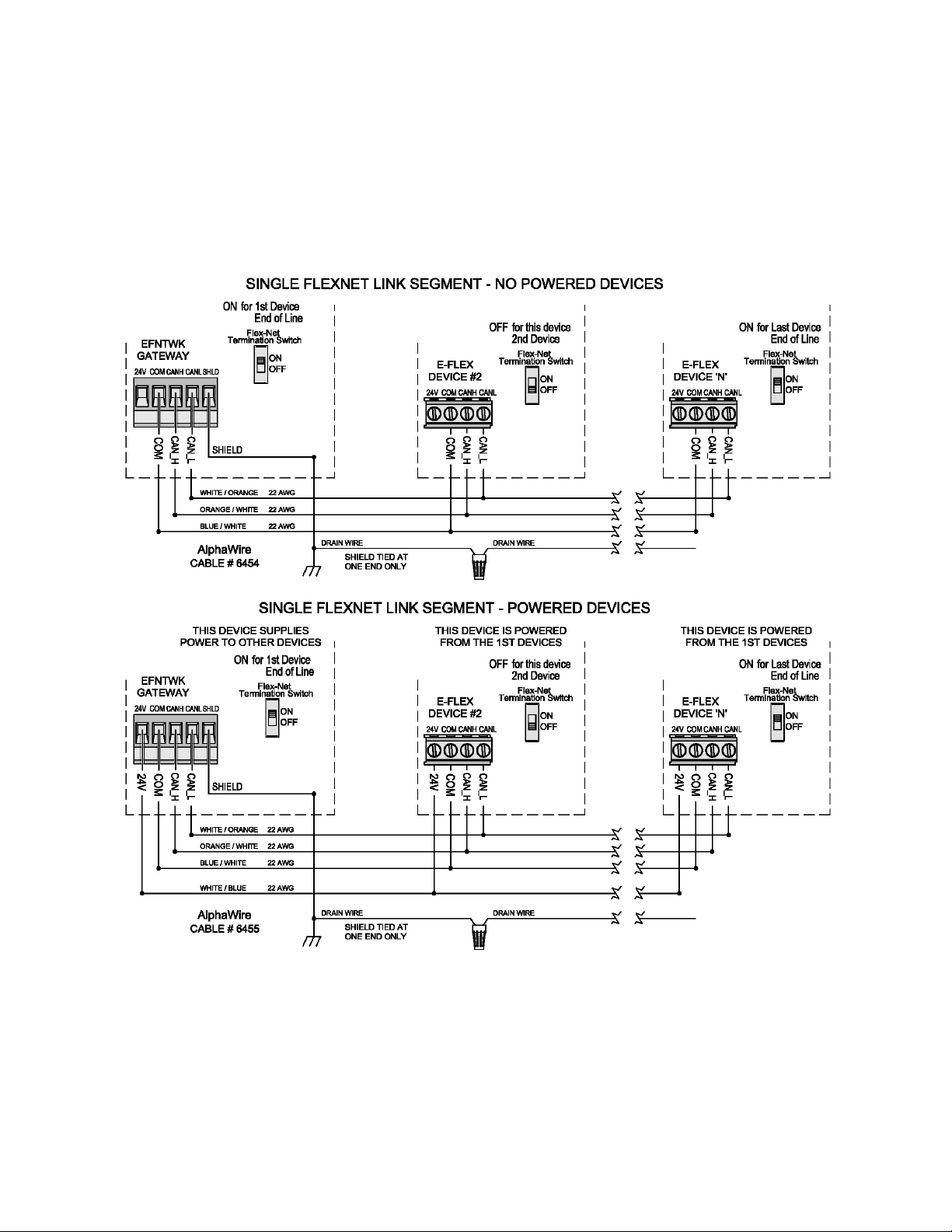

FlexNet Wiring
#24-22 AWG (data), 18-14 AWG (power) wires, strip length –¼ in., torque –1.7 lbs.
Cable distance is limited by data wire size and number of devices on a link segment. Using 22
AWG, the total distance is 1000 ft. (300m). Using 24 AWG data the total distance is 650 ft. with
100 devices.
