User's Manual
LEICKE Sharon ActivityTracker
for smartphones with luetooth
Product number: WD67209

PACKAGE CONTENTS
Before attempting to use this device, please check the packaging and make sure the
following items are contained in the package:
Number of
Pieces
Name Note
1 ActivityTracker (USB Interface) Bluetooth 4.0,
Blue OLED, iP68
1 Bracelet Device has to be taken off the wrist band
for charging.
1 User's Manual
TECHNICAL DETAILS
Input voltage USB, 5V
Input current 60mA
Weight 20 g
Steps 0 120000 steps, division 1 step
Calories 0 12000.0 kcal, division 0.1 kcal
Distance 60.0 km
Heart rate 30~200 beats per minute, division 1bpm
Exercise time 0 23h and 59 minutes, division 1 minute
Data connection Bluetooth 4.0
Frequency band UHF
Max. transmission 1,59 mW
Display Blue OLED
22.8mm x 6.8mm
Battery 75mAh, Li Polymer 3.8V
Battery run time ~7 days with activated heart rate function
~1 month with deactivated heart rate function
Working Environment 0°C ~ 100°C operation
20 ~ 100°C storage
Dimensions Size: 250 mm x 17 mm x 10.8 mm

PRODUCT INFORMATION
The bracelet transmits fitness data like how many steps you did, your heart rate or how
long you slept to your smartphone. Like this you know your daily activity and you can
make a training schedule. Additionally, functions of your smartphone can be shown or
operated (e.g. incoming calls) on the bracelet. The bracelet is waterproof (IP68) and you
don't need to take it off when washing your hands or taking a shower.

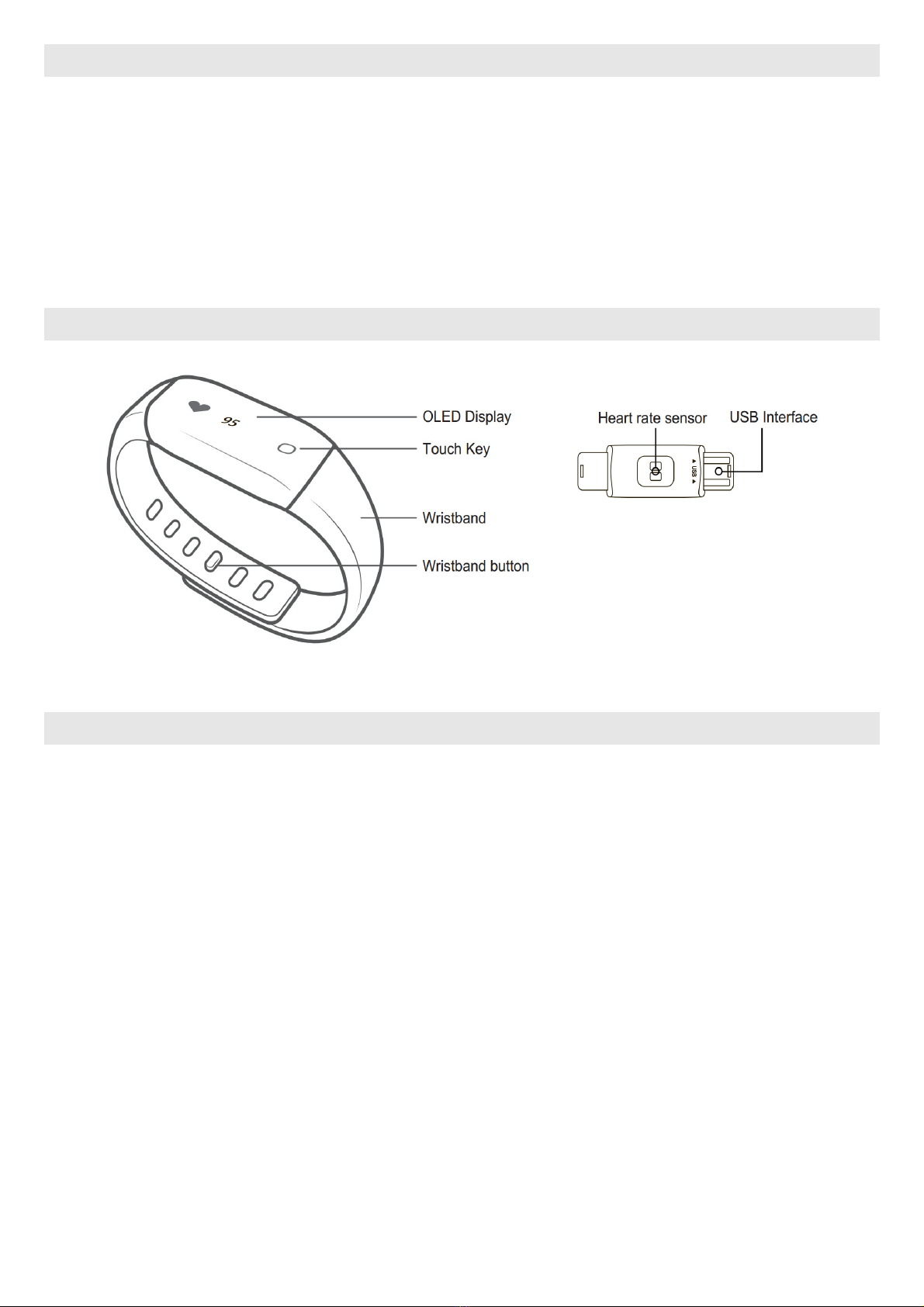

CONTROL ELEMENTS
Important features
OLED display with touch button to change functions
Saves tracked data for up to 7 days
Shows steps, distance, calorie consumption, time and heart rate
24h heart rate monitoring
Waterproof, just wear while swimming
Sleep tracker
Shows incoming calls or messages (depending on app)

OLED Display
Symbol Description
Shows time and date
Pedometer
Distance (km)
Calorie consumption (kcal)
Heart rate / pulse
How to start
To activate your Sharon Activity Tracker just touch the button. The display now shows for
about 10 seconds "Open App to connect". Take your smartphone and connect the
Tracker while bluetooth is switched on to a compatible app to adjust settings. If no
connection is established in the following 30 minutes, the tracker resets to production
mode.
Suitable Apps can be found under smart.leicke.eu/wd67206 or with scanning the
following QR Codes:

Follow the instructions in the app or website to adjust all settings. To install the app the
operational system of your smartphone has to be iOS 8 or Android 5.0 or higher.
HOW TO PUT ON CORRECTLY
To have the sensor work properly, the touch button must be on the side showing to your
body. The optical sensor must be in contact with your skin. Between wrist and bracelet
should be at least 2 cm of space.

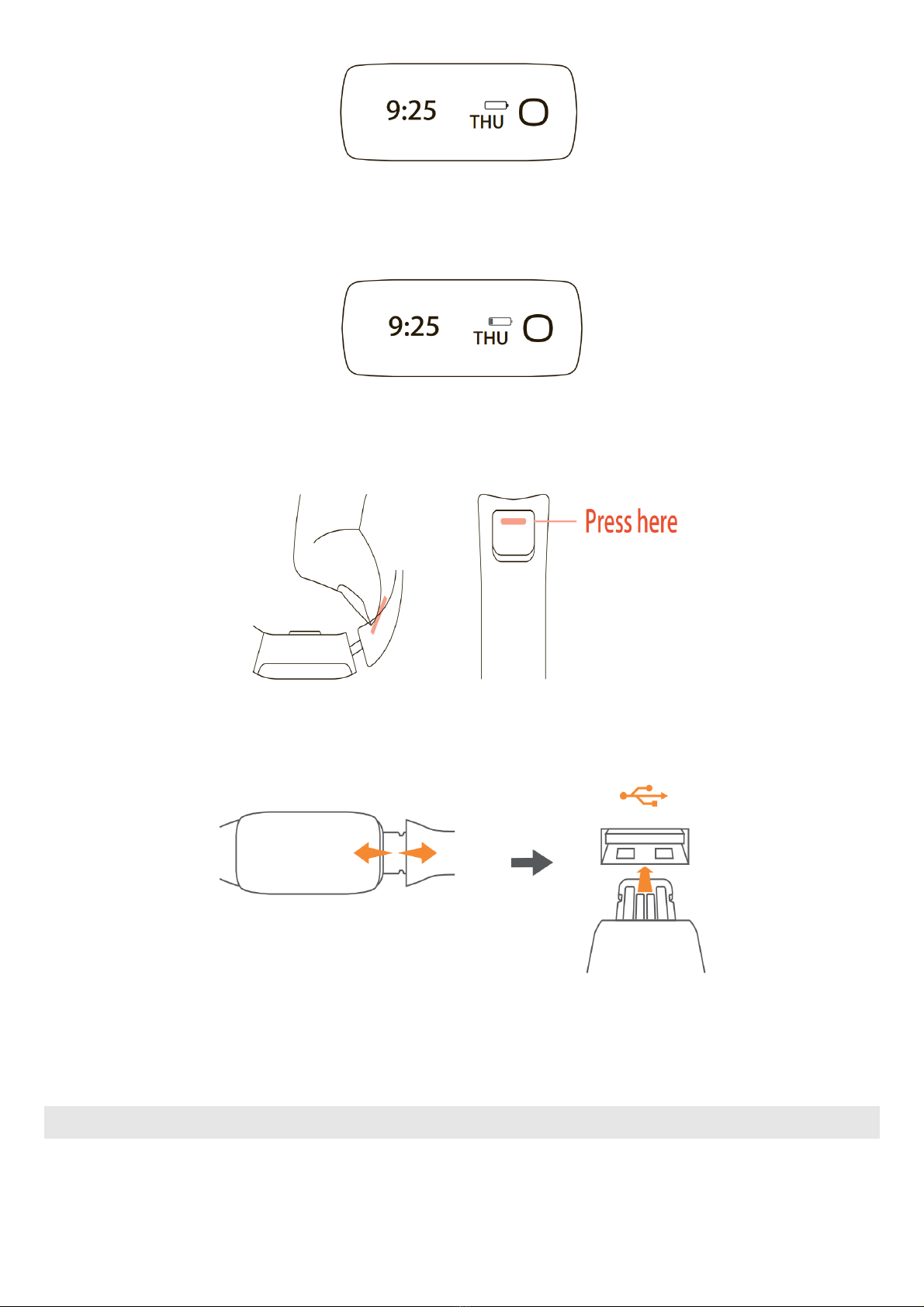

Charging the integrated battery
If the symbol shows an empty battery, the integrated battery is completely empty and it is
time to charge the bracelet fully.

If the symbol shows a nearly empty battery, the integrated battery has a remaining
capacity and it is time to charge the bracelet.
The bottom of the tracker shows you where the charging port is. There open the bracelet
by pushing the button at the bottom and simultaneously pull tracker and bracelet apart.
Now use a USB port to charge the bracelet. Please note! Data transmission is not
possible via USB.
While charging the battery symbol keeps flashing. When the battery is fully charged the
symbol shows a fully charged battery.
SWITCH ON DISPLAY AND SHOW DATA
To show information on the trackers display, just switch it on by pushing the touch button
or moving the according wrist shortly from one side to the other.

Through touching the button you can change between function. After 5 seconds the
display switches off automatically.
Attention! All data of one day will be deleted automatically at oo.oo o'clock. It is not
possible to delete them manually. Information on heart rate is excluded and can be
shown for the last 7 days. When using the bracelet in the sauna the touch button may not
react properly because of the humidity. In this case wipe with a clean and dry cloth.
SPECIAL FUNCTIONS
Alarm:
If an alarm is set via the app, the bracelet reminds you through a bell symbol and
vibration. Through touching the button you can switch off the alarm. The alarm can
be set to 5, 15, 30 or 60 seconds duration.
Incoming call:
ctivate the displaying of incoming calls in the app. When a call comes in
the name will be shown on the display, and the bracelet vibrates. fter four
repetitions and 6 seconds of further display, the bracelet switches
off. The incoming call can be dismissed by touching the button. Unknown callers
will be shown with their number or with "incoming call" if number is oppressed.

Incoming messages:
If supported by the app incoming messages can be displayed. n incoming
message will be signalled through vibration, then the message symbol and the
message itself will be shown. Messages will be displayed only once on the bracelet.
If more than one message came in, a number for the unread messages will be
displayed.
Please note, that it is possible to show incoming calls or messages only when
Bluetooth is activated on your smartphone, text messages are activated and the
used app is authorised to show the messages (will be asked during installation).
The smartphones display must be locked. If too many messages come in, the
display of more messages will be oppressed until the already received messages
are read.
Choose wrist
The tracker can be worn left or right. djust settings accordingly in the app.
Vertical an horizontal displays stay the same no matter how you wear the bracelet.
Heart rate
Heart rate tracking is normally activated. If it is deactivated, the pulse sensor's
green light at the bottom of the tracker will also be deactivated. Deactivation
prolongs the battery life.
Display mode
The way the information will be shown on the tracker can be changed to horizontal
or vertical if supported by the app. Choose these settings in the app. While
activated, charged or updated the displayed information will always be vertical,
incoming calls and messages horizontal only.

FAQ
Problem Description Possible Cause/Possible Solution
Extraordinary
measuring results,
very big difference
between two
measurements
Inept clothes leads to more arm movement than
normally. Change clothes.
Slippery roads or inept shoes prevent normal walking
movements. To walk or jog choose good roads and good
shoes.
OLED display does not
work Device switches
off
Battery is too low please charge fully.
No data transmission
possible
Bluetooth on smartphone not
activated
Activate bluetooth on your
smartphone.
App is not active Open app on your
smartphone.
Outside bluetooth
transmission range.
Bring both devices into closer
range.
App has not enough rights Check if the app has got the
rights needed during
installation. You will find more
information looking for help
sites concerning your
smartphone's operational
system.
Touch control is not
working
Is the battery charged?
If using in sauna etc., please dry display with a cloth.

CLEANING INSTRUCTIONS
Wipe with a dry, soft cloth to clean.
For dirt use a wet cloth.
Don't use propellant, abrasive or other chemicals to avoid malfunctions and
discolouring.
To prolong the life span of the integrated, not changeable battery, please charge
the battery at least every 3 months if the device is not used and stored.
Avoid contact to sharp objects to avoid scratches.
SAFETY NOTES
Do not drop, crush, excessively bend, deform, puncture, shred,
microwave,incinerate, paint the device or insert foreign objects.
Do not expose to liquid,moisture,humidity or rain while charging.
Do not expose to heat, cooking places or fire.
The device does not contain any user serviceable components. Do not open or
disassemble.
attery note
The battery is built in and not changeable.
Use chargers in accordance to user instructions only. The use of unsuitable
charger may cause severe damage!
The battery must not be exposed to fire.
Do not wear the device while charging.
HEALTH NOTE
Warning: THIS DEVICE IS NO MEDICAL DEVICE!
The activity tracker and its associated applications must not be used to diagnose, treat or
prevent any disease or medical condition. Always seek advice of qualified medical
professionals before making any changes to your exercise, sleep or nutrition. Non compliance
may cause severe harm or death.

FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures: Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver. Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an
experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. (2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Caution: FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
Radiation Exposure Statement:
1. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users should follow the specific instructions in the user's manual to comply
with the FCC rules.
2. This transmitter must not be co located or operating in conjunction with any other antenna or
transmitter.
DISPOSAL
This device contains materials that must not be disposed of as household waste. Please check local
laws concerning the applicable disposal regulations. Protect the environment by participating in
recycling programs!

Declaration of Conformity
LEICKE GmbH herewith declares that the devices WD67206 comply with the RED 2014/53/EU and
ROHS 2011/65/EC regulations. The declaration of conformity can be found at:
www.leicke.com/de/products/WD67206
CONTACT
If you have any questions, please feel free to contact us.
PRODUCTION & WHOLESALE
LEICKE GmbH
Dohnanyistr. 28
04103 Leipzig
Germany
Web: www.leicke.com
Mail: [e-mail]
