Leicke SI54098 User manual

User's Manual

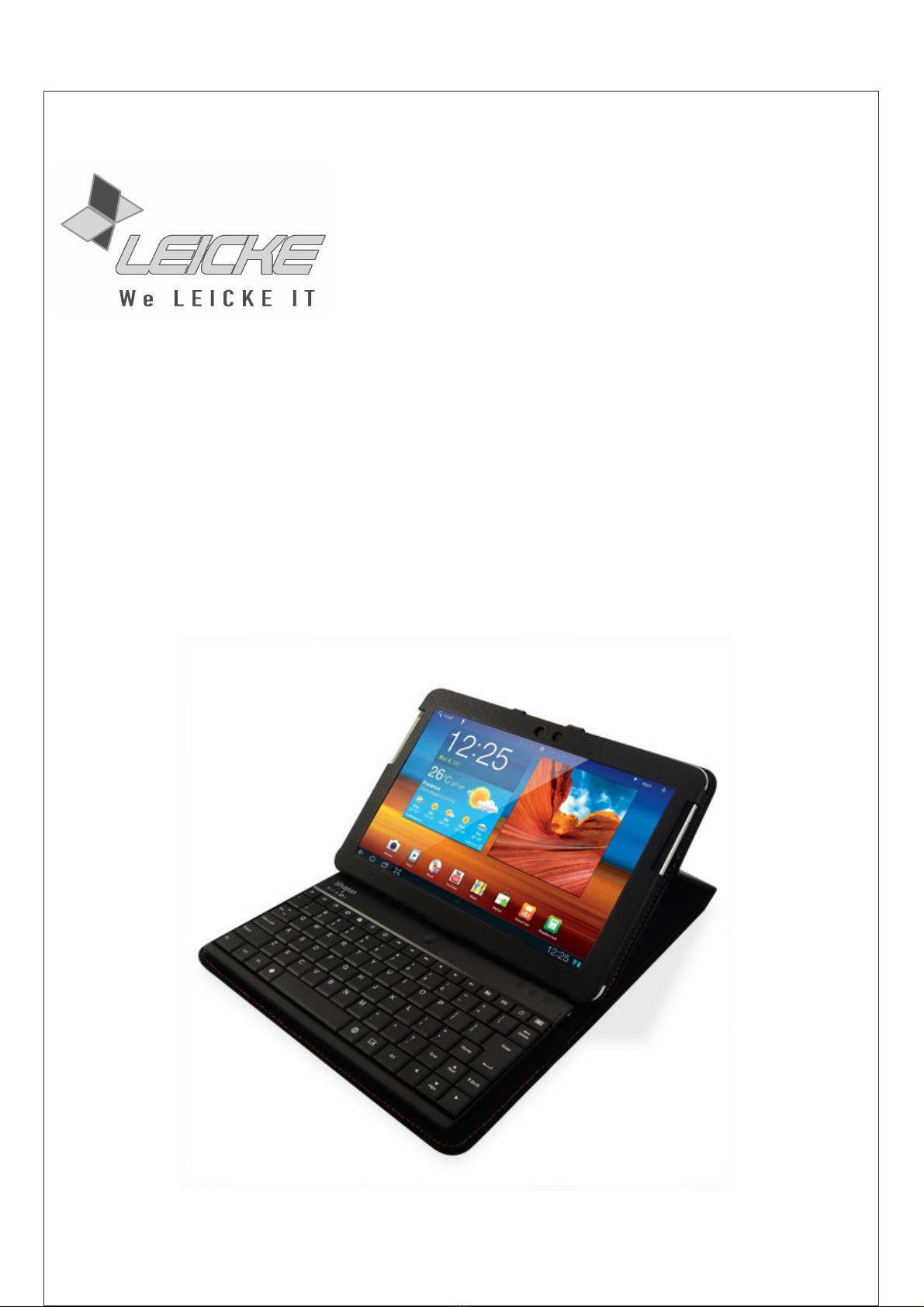

Portable Bluetooth Keyboard for Samsung
Galaxy Tab 10.1 P7 00/P7 11
Product number: SI 4098

Thank you for purchasing the Galaxy Tab 10.1" Protection Case with integrated
Bluetooth keyboard from Sharon.
We hold several brands to produce and distribute our products: LEICKE (power
adapters, batteries), KanaaN (adapters/converters, charging cables etc.), Sharon (iPad
cases with keyboard, fans etc.), Hebron (protective cases, docking stations, screen
protectors etc.), Manna (notebook cases).
We continuously work on the development of our products, our customer support and
innovations. ur products have a long service life, are eco-friendly and high performing.
Furthermore, every day we do our very best to satisfy you as our customer. That is why
you, no matter if private or business customer, are in the focus of our company’s efforts.
We take your reviews and proposals seriously and evaluate them continuously. That way,
we get to know you and your demands on our products and services better and thus
allow for positive enhancements.
To discover more about LEICKE products, or if you have any questions about this
product, visit our website www.leicke.com (production & wholesale) or www.leicke-
distributor.de (distribution) and feel free to contact us.
PACKAGE CONTENTS
Before attempting to use this device, please check the packaging and make sure the
following items are contained in the package:
Number
of Pieces
Name Note
1 Bluetooth keyboard -
1 USB charging cable USB type A to mini USB
1 User's Manual -

PRODUCT INFORMATION
•Wireless bluetooth 3.0 keyboard
•Fancy aluminium case to protect the display.
•Range up to 10 m
•Built-in rechargeable lithium battery
•Special function keys (depending on model and operating system)
•Lightweight, with silent key strokes
•Energy-saving sleep mode
KEYBOARD DETAILS
Interface Bluetooth 3.0
perating distance up to 10 m
Frequency modulation GFSK
perating voltage 3.0-5.0 V
Working current < 5,0 mA
Sleeping current < 200 µA
Charging current ~ 100 mA
Standby time 60 days
Charging time 4-5 h
Lithium battery capacity 160 mA
Uninterrupted working time 55 h
Key strength 80 g ± 10 g
Key life about 5 million strokes
perating Temperature -10°C to 55°C

CONNECTING THE BLUETOOTH KEYBOARD
Step 1: Switch the keyboard on. The Bluetooth LED glows for 5 seconds and then goes
off again.
Step 2: Press the link/connect button. The Bluetooth LED will flash and the device is
ready for connection. The keyboard is now ready for the connection to the Samsung
Galaxy Tab 10.1".
Step 3: Turn on and unlock Galaxy Tab. pen the settings menu via the app menu.
Step 4: Choose "Bluetooth". If switched off, activate it. If Bluetooth is active the menu will
display "Bluetooth keyboard!. Choose this device.
Step : The Galaxy Tab will now display a code to connect. Insert the code via the
keyboard and confirm with the Return key. The connection will now be securely encoded.
Step 6: Wireless keyboard is now connected successfully to the Samsung Galaxy Tab
10.1". nce successfully connected, the keyboard saves all connection data until
connected to another device.
Note: The keyboard can also be used with iPad, iPhone and iPod Touch. iOS 4.0 or
higher has to be installed. For other Bluetooth-enabled devices, lease verify the
Bluetooth standard & com atibility before attem ting to connect to the keyboard.
Language: To set the keyboard layout you choose in "Settings / Language and Input"
gear icon behind "Samsung keyboard" and then "Input Languages". Remove the check
mark behind "language system" in order to use different keyboard layouts with the
Bluetooth keyboard. Some devices have different menus! In this case, the settings can
be found under the menu item "Language and Input" and "Physical keyboard".

CHARGING THE INTEGRATED BATTERY
When the battery power is low, the [power] indicator light will start blinking. It is time to
recharge the keyboard.
Step 1: Connect the USB charging cable with the micro USB plug to the keyboard's
charging interface.
Step 2: Connect USB-A to a power adapter or computer's USB interface.
Step 3: During the charging process the charging status LED will light and then go off,
when charging is finished.
ENERGY SAVING SLEEP MODE
The keyboard will change into sleep mode when it is inactive for 10 minutes. To activate
from sleep mode, just press any key and wait 3seconds. The keyboard will come back
on.
SAFETY NOTES
Please avoid the following situations:
•Keep away from sharp objects, oil, chemicals or any other organic liquids.
•Do not place heavy objects on top of the keyboard.
•Avoid open fire and high temperatures.
•Do not microwave or put into direct sunlight.

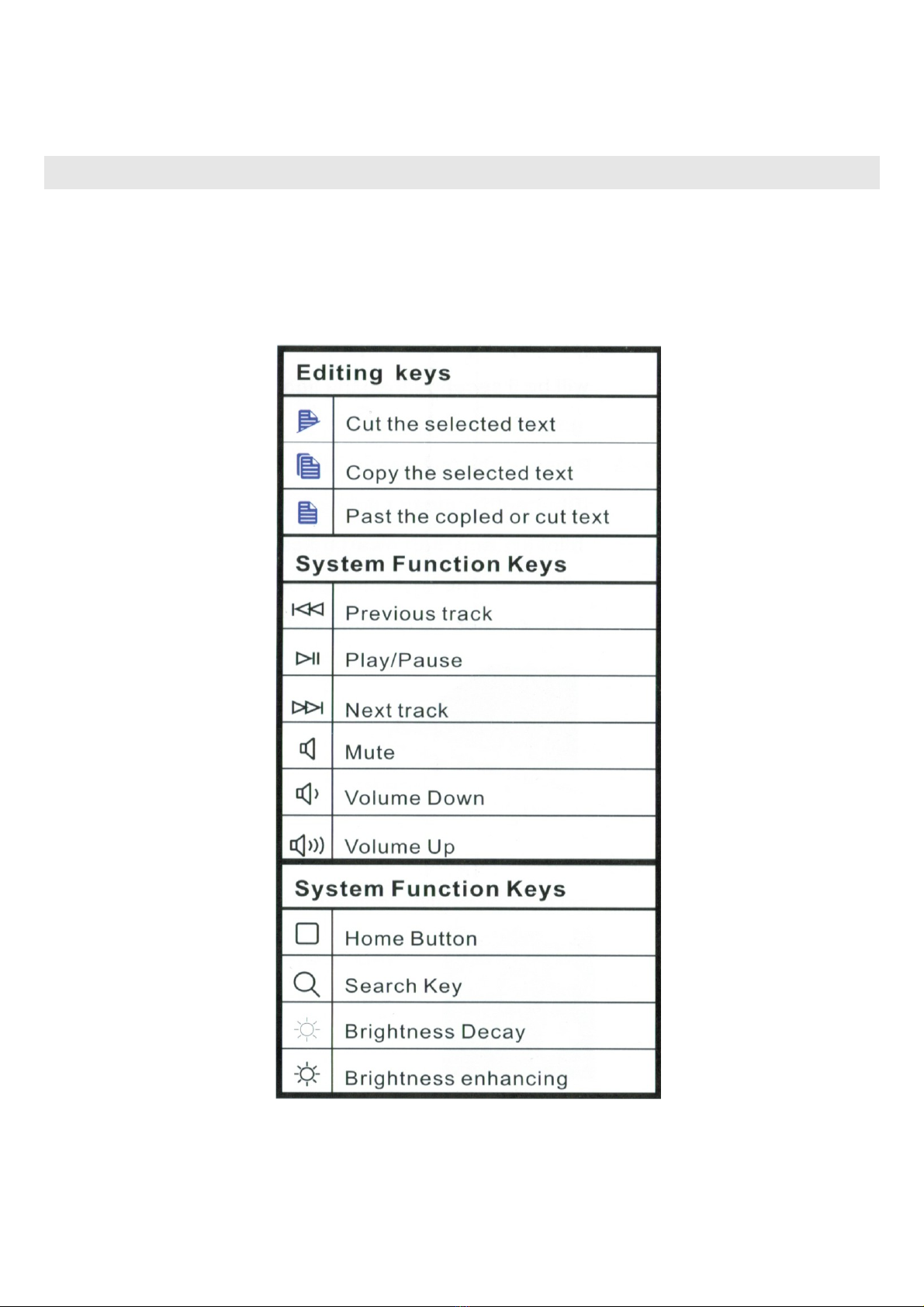

SPECIAL KEYS
The keys in the top row are for special functions. According to their symbols they can
control program functions like media playback and screen brightness.

CLEANING
Clean the keyboard with a moist cloth and water or a mild soap solution.
TROUBLE SHOOTING
We arranged the following questions and answers for you to find the cause and solve the
problem.
Problem Possible Cause/Possible Solution
Unable to connect 1. Make sure the keyboard is switched on.
2. Make sure the keyboard is within the operating distance.
3. Check the battery's charging state.
4. Make sure Samsung Galaxy Note's Bluetooth setting is
on.
5. Make sure wireless keyboard has been paired with the
Samsung Galaxy Note.
6. In case nothing helps, try to delete and then connect the
keyboard again.
Unable to charge
keyboard
1. Make sure the USB power cable is connected properly to
the keyboard and the power source.
2. Check if the power adapter is compatible.
If the problems cannot be solved, please don't hesitate to contact us.
iPad, iPad2, New iPad, iPhone, iPodTouch are registered trademarks of Apple Inc, Galaxy Note is a
registered trademark of Samsung.

FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures: - Reorient or relocate the receiving antenna. -
Increase the separation between the equipment and receiver. - Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an
experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. peration is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. (2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC-Caution: Any changes or modifications not expressly approved by the party responsible for
compliance
could void the user's authority to operate this equipment.
IMP RTANT N TE:
Radiation Exposure Statement:
1. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users should follow the specific instructions in the user's manual to comply
with the FCC rules.
2. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
DISP SAL
This device contains materials that must not be disposed of as household waste. Please check local laws
concerning the applicable disposal regulations. Protect the environment by participating in recycling programs!

CONTACT
If you have any questions, please feel free to contact us.
PRODUCTION & WHOLESALE
LEICKE GmbH
Dohnanyistr. 28
04103 Leipzig
Germany
Web: www.leicke.com
Mail: [e-mail]
DISTRIBUTION
LEICKE Distributor (LEICKE GmbH)
Dohnanyistr. 28
04103 Leipzig
Germany
Web: www.leicke-distributor.de
Mail: [email protected]
