Leicke EP18107 User manual

User's Manual
Bluetooth Speaker with radio and MP3 player
Product number: EP18105/7

PACKAGE CONTENTS
Before attempting to use this device, please check the packaging and make sure
the following items are contained in the package:
Number
of Pieces
Name Note
1 Bluetooth speaker integrated battery
1 charging cable micro USB
1 AUX cable .5 mm // .5 mm
1 user's manual -
TECHNICAL DETAILS
Bluetooth version V 4.0, up to 10 m range
Pairing mechanism NFC or manual
Capacity of integrated battery 1500 mAh
Maximum output 2x5 Watts
Loudspeaker system Stereo, two-way, 2 x 1.5“ with Bass-
Boost
Maximum playtime 5-6h, depending on volume and genre
Frequenzband 2402 MHz
Max. Sendeleistung 2,68 dBm
Supported audio formats MP , WMA files
Supported memory cards TF / MicroSD up to 2 Gbyte
Power supply USB 5V / 500 mA
Size (LxWxH) 68 x 68 x 181 mm
Weight 405 g

GETTING STARTED
Step 1: To switch the device on, press and hold the power button for seconds.
When switched on, the device will give acoustic feedback.
Step : After switching on, the device will be in Bluetooth mode (“Bluetooth mode
has been on”). You can switch between Bluetooth, radio, line-in or MP player
operation by pressing the mode button “M” shortly. If the speaker has been
connected to a phone during prior usage, the connection will be automatically
established in Bluetooth mode.
Step 3: Volume is controlled in all modes of operation by long pressing the forward
(+) or backward (-) button for more than 2 seconds.
Step 4: Short press the forward and backward button to switch songs or radio
channels depending on the mode the device is in.
Step 6: Switch the device off by pressing the power button for seconds. The
device will respond by playing a two-tone sequence.
Note: Before attempting to use the device for the first time, please charge the
battery for at least two hours. Thereby the maximum life span will be ensured.
ESTABLISHING THE BLUETOOTH CONNECTION
Step 1: Switch the speaker on. Wait until you hear the acoustic response “Bluetooth
mode has been on” from the device. uring pairing, the status LE will blink fast.
Step : Open the settings menu of your device and look for the Bluetooth option.
This must be activated. In the list of found devices you will now find "Bamboo
BT008". Connect. If a code is to be entered, please enter "0000". If your phone is
NFC-enabled and NFC as well as Bluetooth are activated, you can connect simply

by holding your phone close to the connector side of the loudspeaker. If the
connection is established successfully, the device will respond acoustically
(“Paired”).
Step 3: Now the speaker is ready for use. Pairing will be saved and available when
switching on the device the next time.
MP3 PLAYER
The MP function is activated by inserting a memory card and pressing the mode
button until the speaker responds with “reader music mode”. To switch between
songs short press the forward “+” or backward “-“ buttons. Adjust volume by long
pressing the “+” and “-“ backward buttons.
RADIO
Before using the radio function, connect the charging cable to the speaker. The
speaker must be switched off and the other end of the cable must not be
connected to anything! It will work as antenna. Switch on the speaker and
activate radio function pressing the mode button until you hear white noise.
Station scanning will be activated by pressing the mode and the Play button
simultaneously. The scan is finished when the channels stop changing
automatically. To change the channel short press + or - . Adjust volume by long
pressing the + or - buttons.
To switch back to Bluetooth mode press the mode button.
HANDS-FREE FUNCTION
Receive and end incoming calls by short pressing the Play/Pause button. The
integrated microphone will be activated automatically. The last dialed number can
be called by a long press (more than seconds) on the Play/Pause button.
CHARGING THE INTEGRATED BATTERY
When the battery is low (about 10 minutes run time left) the speaker alerts

acoustically. In this case, charge the speaker as soon as possible. Use a 5V 1A
USB power supply to charge. Higher voltage may damage speaker and power
supply. The red indicator light will stay on when the speaker is charging. Once it
has finished charging, the indicator light will go out.

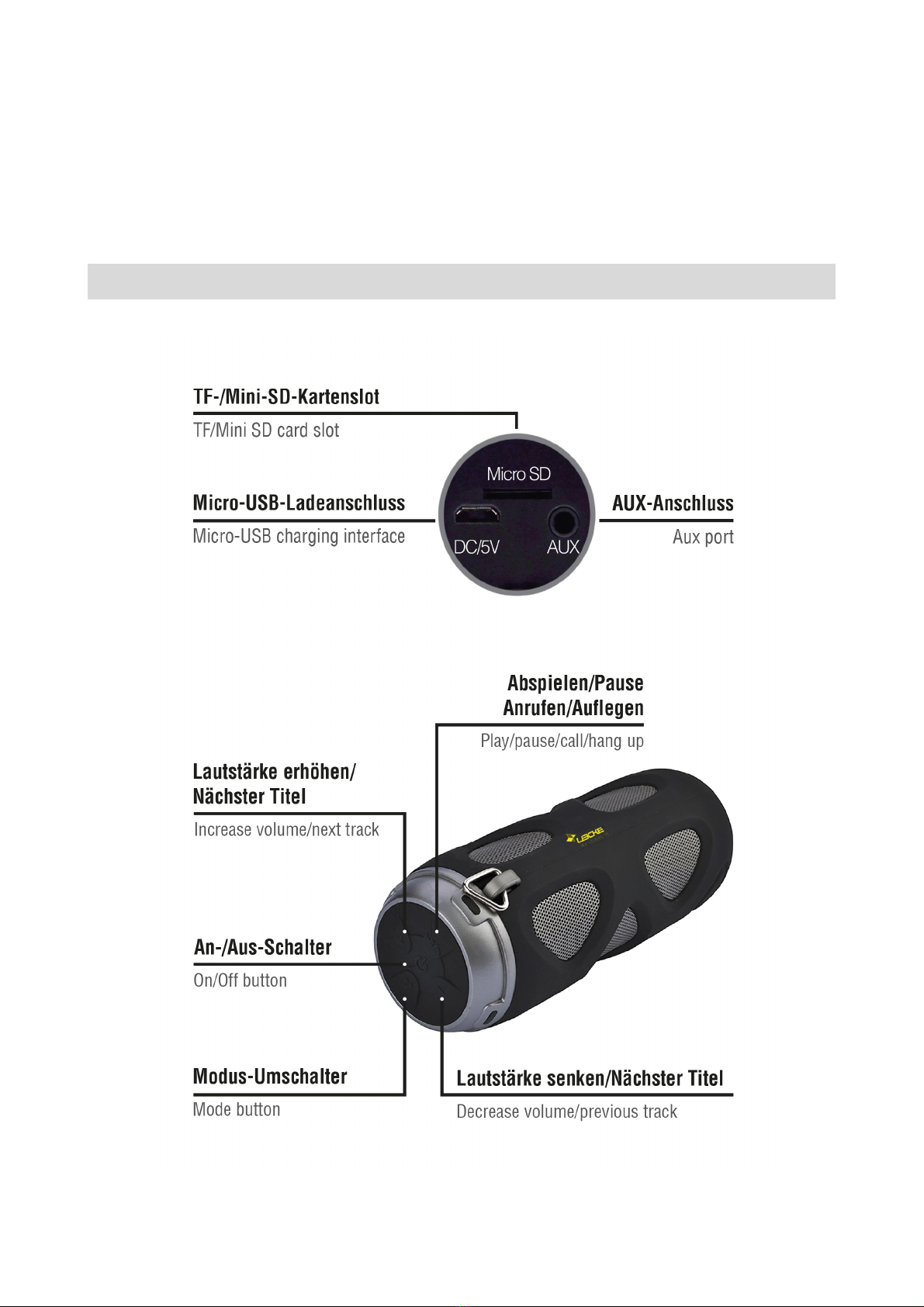

CONTROL ELEMENTS

TROUBLE SHOOTING
First check if the speaker is charged and switched on.
Problem Possible Cause/Possible Solution
Playing via Bluetooth not
possible
• Is pairing with your device successfully completed?
• Try to connect again by switching off and on again.
• Check if speaker is in radio mode.
• Check if speaker is in range of your device.
• Is volume high enough?
No playback from Micro
SD / TF card
• Are there music files saved on the card?
• Try going to the next song by short pressing the
forward button.
• Is the memory card intact?
Interrupted playback • Is the speaker located within the maximum range?
Try to place it in the immediate vicinity of your phone
or tablet.
• MP mode: Is the file corrupted? Try to switch to the
next track.
No playback from radio • Is the reception disturbed? Try switching the channel
with backward or forward.
• Is a USB or audio cable connected to the device to
act as an antenna? The cable must not be connected
to another device.
Our customer support will be glad to help you at [email protected].

SAFETY NOTES
For your own safety and for long enjoyment of our product, please follow the
following safety instructions:
Please use device as described in the manual.
To protect your hearing and widen the life span of the speaker, maximum
volume should not be adjusted over a longer period of time.
Use 5V /1 A power supplies only. The connection of power supplies with
higher voltage leads to irreparable damage.
Please keep power adapter and speaker dry and use in dry environment
only. Do not touch with wet hands.
Keep away from damp, high temperature, dusty, erosive and oxidative
environment.
Keep safe from being hit or falling down.
Turn off power when device is not in use for a longer time.
Do not open cover and do not touch inner parts.

FCC INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures: -
Reorient or relocate the receiving antenna. - Increase the separation between the
equipment and receiver. - Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected. - Consult the dealer or an experienced
radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that
may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
IMPORTANT NOTE:
Radiation Exposure Statement:
1. This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users should follow the specific instructions in
the user's manual to comply with the FCC rules.
2. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.

DISPOSAL
This device contains materials that must not be disposed of as household
waste. Please check local laws concerning the applicable disposal regulations.
Protect the environment by participating in recycling programs.
DECLARA ION OF CONFORMI Y
LEICKE GmbH herewith declares that the device complies with the
RE 2014/53/EU und RoHS 2011/65/EU regulations. The
declaration of conformity can be found at www.leicke.com. Go to the
product you bought and look at downloads.
CONTACT
If you have any questions, please feel free to contact us.
PRODUCTION & WHOLESALE
LEICKE GmbH
Dohnanyistr. 28
0410 Leipzig
Germany
Web: www.leicke.com
Mail: [email protected]
