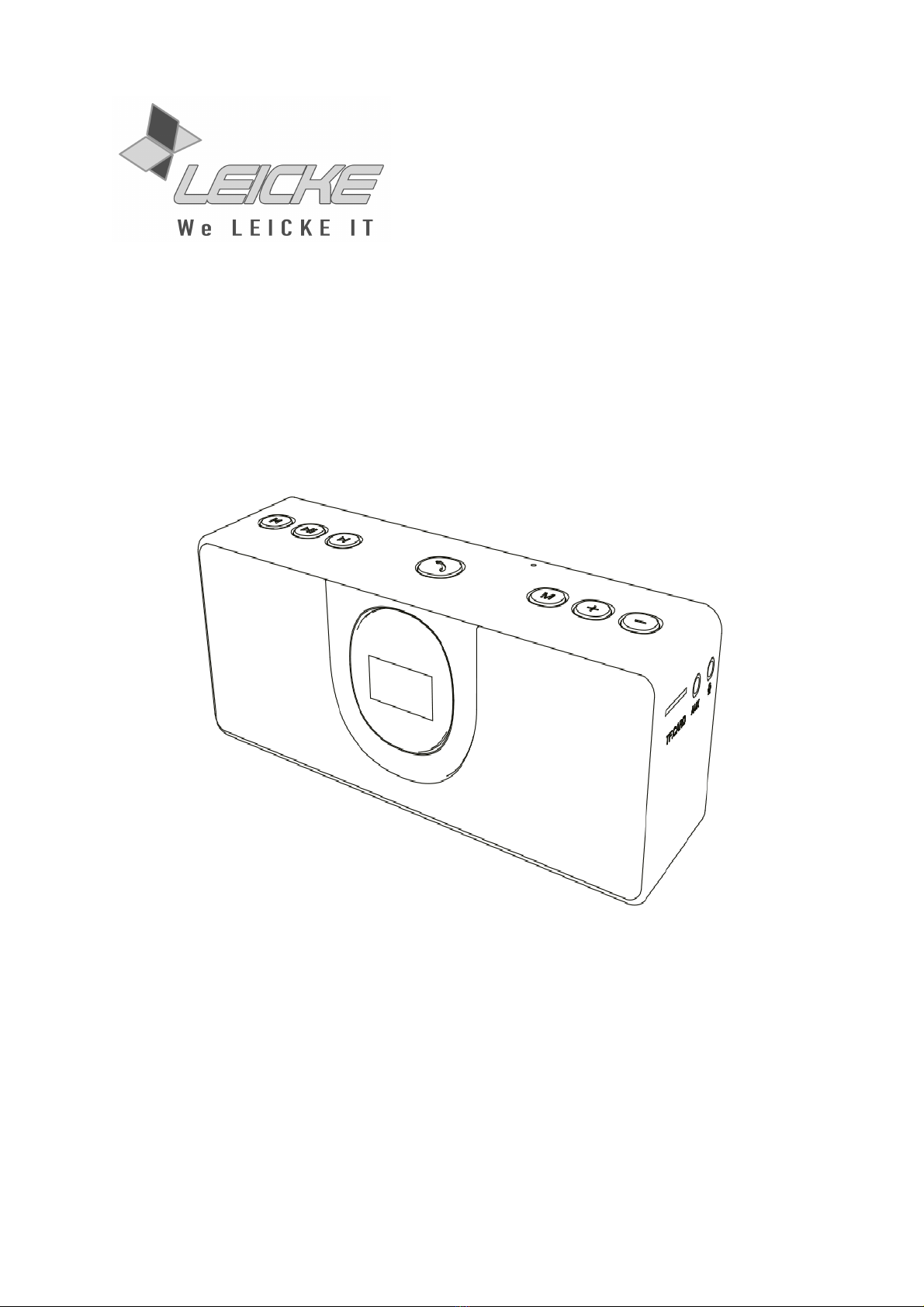

Leicke EP18125 User manual

Manual
Bluetooth Speaker
Product number: EP18125 and EP18126

PACKAGE CONTENTS
Before attempting to use this device, please check the packaging and make sure
the following items are contained in the package:
Number
of Pieces
Name Note
1 Bluetooth speaker integrated battery
1 charging cable -
1 AUX cable -
1 user s manual -
TECHNICAL DETAILS
Frequency 50Hz-20KHz
Output 2 x 5 Watt
S/N ≥ 90dB-20K/65dB
THD ≤ 5%
Sensitivity 1K (85dB)
Speaker ᵠ 40mm*2, 4Ω 5W
Bass diaphragm 36mm*2
Bluetooth version 4.2 +EDR
Bluetooth transmission range ≤ 10m
Bluetooth currant usage < 30mA
Bluetooth stand-by usage < 15mA
Audio transmission protocol compatible with A2DP/AVRCP High
Quality Stereo transmission, remote
control protocol
Bluetooth transmission frequency 2.4GHz-2.480GHz
Bluetooth frequency band UHF
Bluetooth transmission rate 1Mbp

Max. transmission 2.07 mW
Max. working voltage 3,7V
Max. working currant ≤ 550mA
Stand-by usage ≤ 30mA
Charging voltage DC 5V
Battery capacity 1800Ah
Working temperature -10~60°C
FM 87,5-108MHz
Size 160mm*60mm*40mm
OPERATION
! Note:
Please charge the battery before using the speaker the first time for about ten
hours to ensure a maximum life span.
Just use the right charging cables.
Step : Switch the device on by using the ON/Off switch.
Step 2: After switching on the device is normally in Bluetooth mode. Please
establish a connection with your smartphone or tablet. If a memory card is inserted,
the speaker automatically switches to MP3 output. To activate radio mode short
press the multi-functional button.
Step 3: Volume can be adjusted via + and - .
Step 4: Short pressing + or - changes title or channel.
Step 5: Incoming calls can be taken by short pressing the telephone button. You
may use the speaker for hands-free calls.
Step 6: Please switch of the device if you don t use it anymore.

BLUETOOTH PAIRING
Step : Switch on the speaker. NO memory card must be inserted to use Bluetooth
function. Either use NFC or proceed with step 2.
Step 2: Go to your telephone s settings and open and activate the Bluetooth option.
In the list of found devices you should now find „LEICKE EP18125“ or „LEICKE
EP18126“. Connect your device and if a code is needed just enter „0000“.
Step 3: The speaker is now connected. The pairing will be saved for future usage.
MP3 PLAYER
The MP3 function will be started by inserting a memory card. Use the forward or
backward button to switch between the titles. Adjust the volume with + or -. Please
note, as long as the card is inserted no Bluetooth mode is possible.
RADIO
Before switching the speaker on and using the radio function please insert the
charging cable whereas the other end of the cable has to be free. It works as
antenna. Switch on the speaker and activate radio through long pressing the multi-
functional button until a signal can be heard. Press Play/Pause to start channel
search. The search is finished if the channels stop switching. Now you can switch
through the channels by short pressing forward or backward. Adjust the volume
with + or -. Long press the multi-functional button to switch back to Bluetooth mode.
Every time you switch to radio function you may short press forward or backward to
go to a channel.
AUX MODE
If you insert an aufdio cable the speaker will output the audio signal of the
connected source device.

EQ MODE
In Bluetooth or TF card mode you can change the sound settings by long pressing
the multi-functional button. The display shows the following:
NOR = normal, POP = Pop, ROC = Rock, JAZZ = Jazz, CLAS = classical
MICROPHONE
Connect the microphone and use it according to the apps (e.g. Karaoke).
Depending on the software the song texts will be shown on the display.
HANDS FREE CALLS
Take or end incoming calls by short pressing the phone button. The speaker s
integrated microphone will be activated now. To reject a call keep the phone button
pressed for at least 3 seconds. To re-dial double press the phone button shortly.
CHARGING
Connect the device with the charging cable to a USB port. While charging the red
LED will glow. It stops glowing when charging is completed (after about 8 hours).
Switch the speaker of when not using it to ensure maximum battery life span.
Note: Switch the speaker off during charging to ensure maximum charging results.

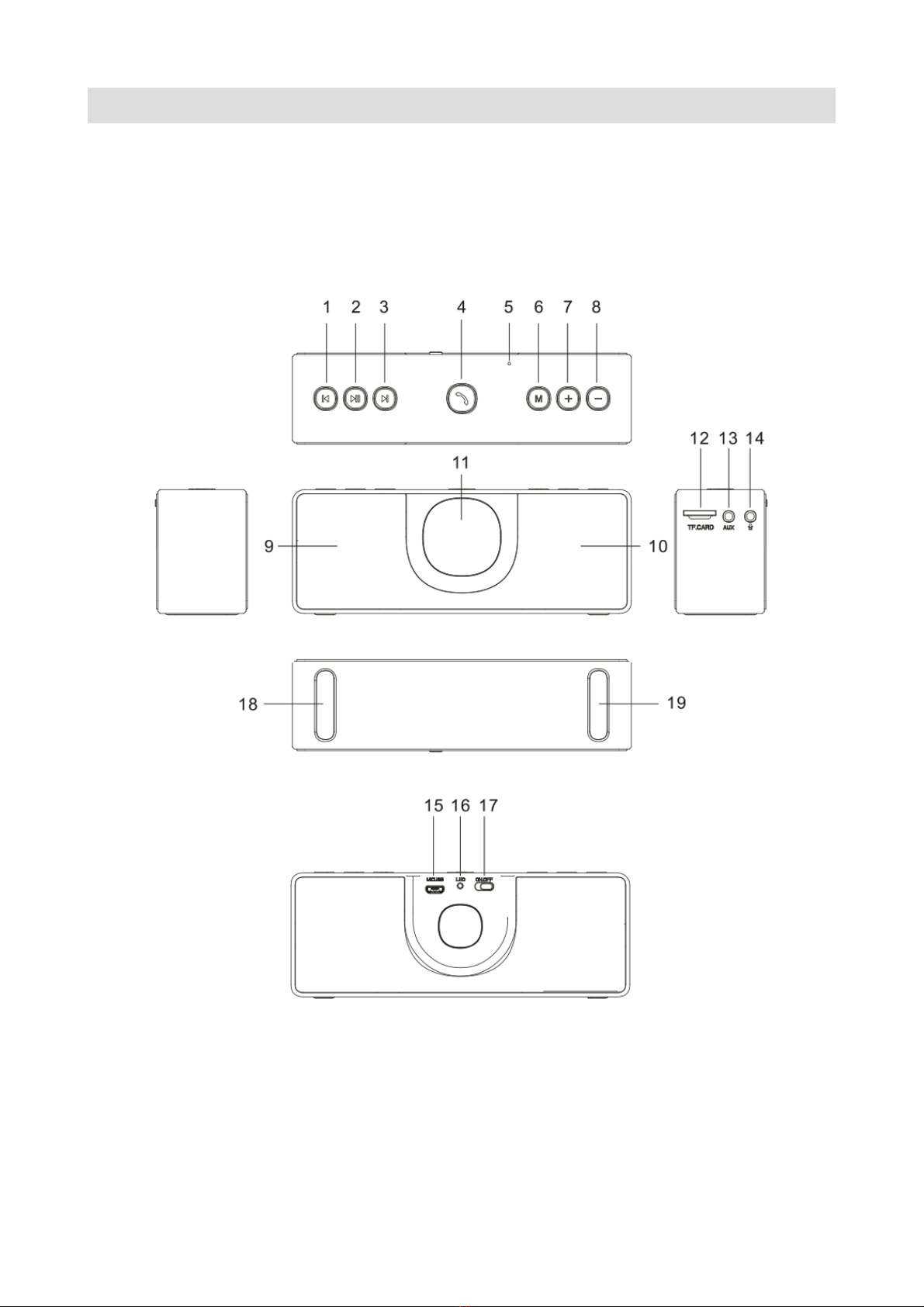

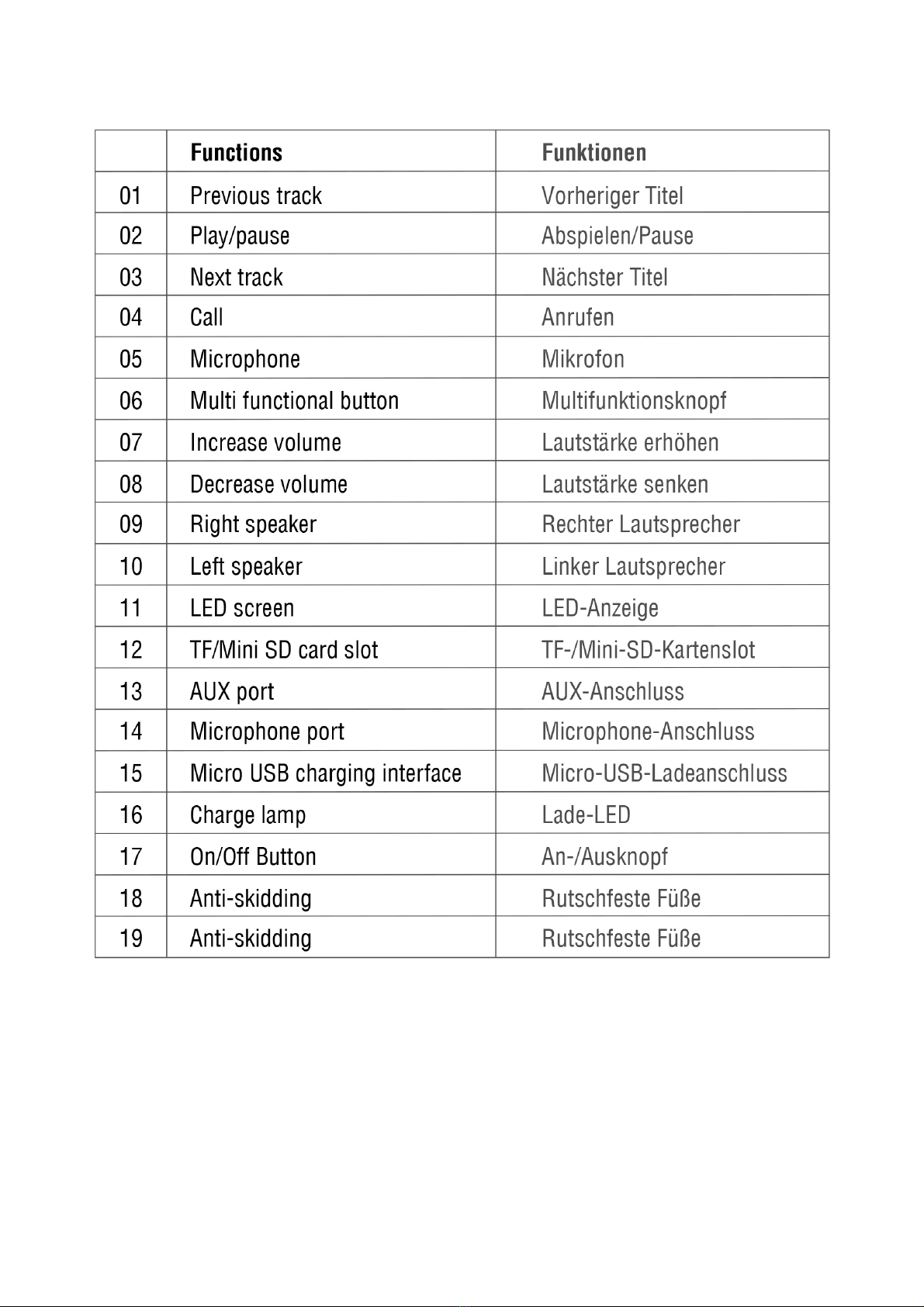

BEDIENELEMENTE

TROUBLE SHOOTING
First check if the speaker is charged and switched on.
Problem Possible Cause/Possible Solution
Playing via Bluetooth not
possible
• Is pairing with your device successfully completed?
• Try to connect again by switching off and on again.
• Check if speaker is in radio mode.
• Check if speaker is in range of your device.
• Is volume high enough.
No playback from Micro
SD / TF card
• Are there music files saved on the card.
• Try going to the next song by short pressing the
forward button.
• Is the memory card intact?
No playback from radio • Is the reception disturbed? Try switching the channel
with backward or forward.
Our customer support will be glad to help you at [email protected].

SAFETY NOTES
For your own safety and for long enjoyment of our product, please follow the
following safety instructions:
Please use device as described in the manual.
To protect your hearing and widen the life span of the speaker, maximum
volume should not be adjusted over a longer period of time.
Use 5V /1A power supplies only. The connection of power supplies with
higher voltage leads to irreparable damage.
Please keep power adapter and speaker dry and use in dry environment
only. Do not touch with wet hands.
Keep away from damp, high temperature, dusty, erosive and oxidative
environment.
Keep safe from being hit or falling down.
Turn off power when device is not in use for a longer time.
Do not open cover and do not touch inner parts.

FCC INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures: -
Reorient or relocate the receiving antenna. - Increase the separation between the
equipment and receiver. - Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected. - Consult the dealer or an experienced
radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that
may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user s authority to operate this
equipment.
IMPORTANT NOTE:
Radiation Exposure Statement:
1. This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users should follow the specific instructions in
the user s manual to comply with the FCC rules.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
DISPOSAL
This device contains materials that must not be disposed of as household
aste. Please check local la s concerning the applicable disposal regulations.
Protect the environment by participating in recycling programs.

DECLARATION OF CONFORMITY
LEICKE GmbH here ith declares that the device complies ith the EMC
2014/30/EU abd Rohs 2011/65/EG regulations. The declaration of conformity can be
found at .leicke.com. Go to the product you bought and look at do nloads.
CONTACT
If you have any questions, please feel free to contact us.
PRODUCTION & WHOLESALE
LEICKE GmbH
Dohnanyistr. 28
04103 Leipzig
Germany
Web: www.leicke.com
Mail: [email protected]
