Leicke EP18141 User manual

Manual
Bluetooth Speaker DJ Roxxx Shower
Product number: EP18141

PACKAGE CONTENTS
Before attempting to use this device, please check the packaging and make sure the
following items are contained in the package:
Number of
Pieces
Name
Note
1
Bluetooth speaker
integrated battery
1
charging cable
-
1
carabiner
-
1
user's manual
-
TECHNICAL DETAILS
Frequency
100Hz-20KHz
Output
5 Watt
Supported audio format
MP3
SD / TF card
up to 16GB
Sensitivity
83dB +-2dB
Bluetooth version
4.1+EDR
Bluetooth transmission range
≤ 10m
Bluetooth usage current
< 30mA
Bluetooth stand-by current
< 15mA
Bluetooth transmission frequency
2.4GHz-2.480GHz
Bluetooth frequency band
UHF
Bluetooth transmission rate
24Mbp
Max. transmission
2.51 mW
Stand-by usage
Up to 40 h
Charging voltage
DC 5V / 100mA
Battery capacity
400 mAh
Working temperature
-10~60°C

FM
87,5-108MHz
Max. playtime
Up to 5 h
Size, Weight
90mm*90mm*50mm, 155g
! Note:
• Please charge the battery for about 10 hours with the enclosed power supply before
the first use. This will ensure maximum battery life.
• Only use charging cables provided for this purpose.
COMPATIBILTY
Compatible with iPhones, tablets, smartphones, PCs, game consoles etc., which have
Bluetooth or AUX output.
BLUETOOTH PAIRING
Step 1: Switch on the speaker. To use the Bluetooth function, no memory card must be
inserted in the speaker. Either use NFC or proceed with step 2.
Step 2: Open your phone's settings and locate the Bluetooth option. It must be enabled.
The list of found devices should now contain a device with the name "LEICKE EP18141".
Connect your phone to it. If a code is requested, you can enter "0000".
Step 3: The speaker is now connected. The pairing will be saved for future usage.
Step 4: The music is selected via the connected device, the volume as well as the forward
and backward switching between the songs can be done via the loudspeaker (see
Functions and Controls).
SD CARD MODE (MP3 PLAYER)
The MP3 player function is activated by inserting a memory card. Long press the Mode
button to switch to another mode. Also see Functions and Controls.
RADIO
Before switching on the speaker and using the radio function, please plug in the charging
cable with the other end of the cable free. It works as an antenna. After switching on, press
the Mode button long press to switch to radio mode. You can activate the automatic station
search via the on/off switch. Also see Functions and Controls.
AUX MODE
When you connect an audio cable via the AUX input, the speaker plays the audio signal

from the connected source. In this case, the operation is carried out exclusively via the
connected device and not via the loudspeaker.
HANDS-FREE CALL
Take a call using the LED/call button. If you want to end the call, briefly press the LED/call
button again. To dial the last number you called, press and hold the LED/call button. To
reject the call, press and hold the LED/call button.
VOICE ASSISTANT
Briefly press the voice assistant button to activate Siri or Google Assistant.
SURROUND SOUND
Switch on both speakers and then press the power button twice on both. You will hear two
beeps. Both speakers are now successfully connected.
To disconnect the speakers. Turn on any speaker and press the power button twice again.
If you were successful, you will hear a voice.
CHARGING
Connect the device with the charging cable to a USB port. While charging the LED will
glow. It stops glowing when charging is completed. Turn off the speaker when not using it
to ensure maximum battery life.
Note: Switch off the speaker during charging to ensure maximum charging results.

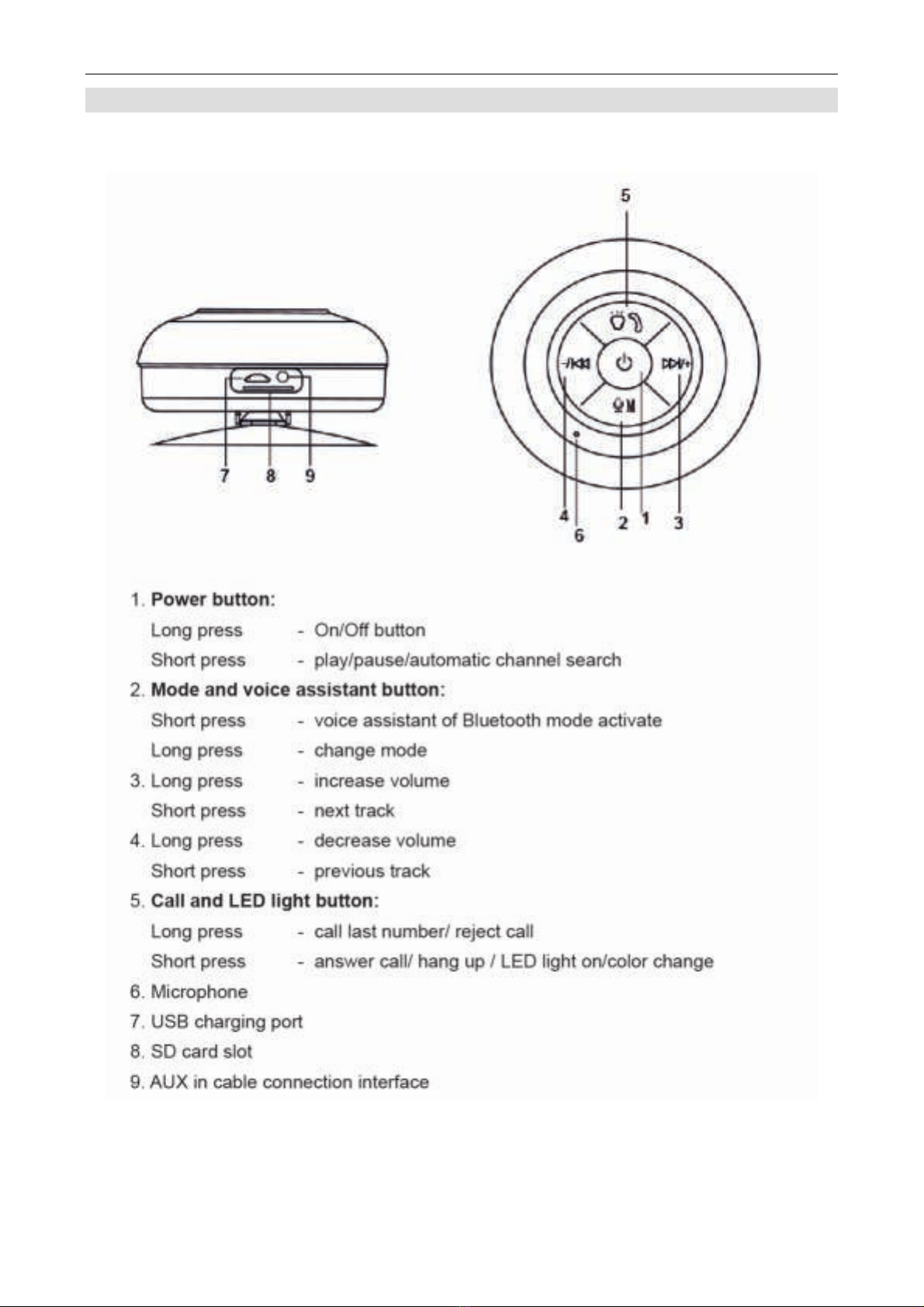

FUNCTIONS AND CONTROLS

TROUBLE SHOOTING
First check if the speaker is charged and switched on.
Problem
Possible Cause/Possible Solution
Playing via Bluetooth not
possible
• Is pairing with your device successfully completed?
• Try to connect again by switching off and on.
• Check if the speaker is in radio mode.
• Check if the speaker is in range of your device.
• If the volume is set sufficiently high.
No playback from Micro SD /
TF card
• Are there music files in MP3 format on the memory
card?.
• Try going to the next song by long pressing the forward
button.
• Is the memory card intact?
No playback from radio
• Is the reception disturbed? Switch to one of their
stations by pressing the Forward and Back buttons.
Is the device charged? Restarting the speaker may also help with all troubles.
Our customer support will be glad to help you at [email protected].
SAFETY NOTES
For your own safety and so that you can enjoy our product for a long time, please observe
the following safety instructions:
• Please use device as described in the manual.
• To protect your hearing and and preserve the life of your speaker, maximum volume
should not be adjusted over a longer period of time.
• Use 5V /1A power supplies only. The connection of power supplies with higher
voltage leads to irreparable damage.
• Keep away from damp, high temperature, dusty, erosive and oxidative environment.
• Keep safe from being hit or falling down.
• Turn off power when the device is not in use for a longer time.
• Do not open cover and do not touch inner parts.

FCC INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of
the following measures: - Reorient or relocate the receiving antenna. - Increase the
separation between the equipment and receiver. - Connect the equipment into an outlet on
a circuit different from that to which the receiver is connected. - Consult the dealer or an
experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
Radiation Exposure Statement:
1. This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users should follow the specific instructions in the
user's manual to comply with the FCC rules.
• This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
DISPOSAL
This device contains materials that must not be disposed of as household
waste. Please check local laws concerning the applicable disposal
regulations. Protect the environment by participating in recycling programs.

DECLARATION OF CONFORMITY
LEICKE GmbH herewith declares that the device complies with the RED
2014/53/EU and Rohs 2011/65/EU regulations. The declaration of conformity
can be found at www.leicke.com. Go to the product you bought and look at
downloads.
Contact
You can find our manual on our Website.
Go to the product you bought and look at downloads.
If you have any questions, please feel free to contact us.
PRODUCTION & WHOLESALE
LEICKE GmbH
Dohnanyistr. 28
04103 Leipzig
Germany
Web: www.leicke.com
Mail: [email protected]
