Lennox Elite series Owner's manual

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLATEUR: Laissez cette notice avec l'appareil.
CONSOMMATEUR: Conservez cette notice pour consul-
tation ultérieure.
- Donotstoreorusegasolineorotherflammablevaporsand
liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
WARNING: If the information in these instructions is
not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
- Ne pas entreposer ni utilizer d’essence ni d’autres
vapeurs ou liquides inflammables dans le voisinage
de cet appareil ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d’allumer d’appareil.
• Ne touchez à aucan interrupteur. Ne pas vous servir
des téléphones se trouvant dans le bâtiment où vous
trouvez.
• Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du fournis-
seur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incindies.
- L’installation et l’entretien doivent être assurés par un
installateur ou un service d’entretien qualifié ou par
le fournisseur de gaz.
AVERTISSEMENT: Assurez-vous de bien suivre les
instructions données dans cette notice pour réduire
au minimum le risque d’incindie ou d’explosion ou
pour éviter tout dommage matériel, toute blessure
ou la mort.
INSTALLATION AND OPERATION
Ce manuel d’installation est disponible en francais, s implement en faire
la demande. Numéro de la pièce 775,223CF.
MODELS
US
Portland
P/N 775,223M REV. C 03/2010
Direct-Vent
EPIC™
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating
plate. This appliance is not convertible for use with other gases, unless a certified kit is used.
WARNING
AVERTISSEMENT
UNE SURFACE VITRÉE CHAUDE PEUT
CAUSER DES BRÛLURES.
LAISSER REFROIDIR LA SURFACE
VITRÉE AVANT D'Y TOUCHER.
NE PERMETTEZ JAMAIS À UN ENFANT
DE TOUCHER LA SURFACE VITRÉE.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
EPIC33/40
The Epic™ Gas Stove is factory equipped for 40,000 BTU input
and can be converted to 33,000 using the smaller orifice provided.
OTL Report No. 050-S-21b-5

2
CONGRATULATIONS!
When you purchased your new gas stove, you joined the ranks
of thousands of individuals whose answer to their home heat-
ing needs reflects their concern for aesthetics, efficiency and
our environment. We extend our continued support to help you
achieve the maximum benefit and enjoyment available from
your new gas stove.
Thank you for selecting a Lennox Hearth Products gas stove as
the answer to your home heating needs.
TABLE OF CONTENTS
Using this Manual ...................................................... 2
Safety and Warning Information ....................................... 3
Orifice Size / Altitude Adjustment ........................................ 5
Codes and Approvals....................................................... 5
New York City, New York (MEA) .......................................... 5
Commonwealth Of Massachusetts Requirements ..................... 5
Pre-Installation............................................................6-8
Features ............................................................ 6
Packaging List..................................................... 6
Ratings.............................................................. 6
Preparing Your Epic Stove for Installation .................... 7
Dimensions ........................................................ 7
Clearances to Combustibles..................................... 8
Installation............................................................... 8-12
Trim Installation................................................... 8
Firebox Setup...................................................... 9
Brick Panel Installation ......................................... 10
Log Set and Ember Installation ................................11
Vent Installation .......................................................12-16
Venting.............................................................12
Residential and Mobile Home Installations ................. 12
Vent Considerations .............................................12
Vent Parts List .................................................... 13
Horizontal Vent Installation.....................................13
Vertical Vent Installation........................................ 14
Flue Restrictors ..................................................15
Horizontal Terminations.........................................16
Vertical Terminations............................................16
Horizontal Vent Termination Locations .......................17
Gas Line Installation ...................................................... 18
Gas Pressure Requirements.................................... 18
LP and Natural Gas Supplies...................................18
Attaching Safety In Operation Warnings ............................... 19
Operating Instructions ................................................20-23
Pre-Lighting Checklist...........................................20
Lighting Instructions.............................................20
Flame Color and Behavior ......................................21
Air Shutter Adjustment ..........................................22
Quiet Operation................................................... 22
Paint Curing....................................................... 22
Optional Wall Thermostat.......................................22
Operating Options................................................23
Millivolt Control System ........................................ 23
Maintenance and Servicing ..........................................24-26
Maintenance Checklist ..........................................24
Millivolt and Systems Checks.................................. 24
Vent Pipe Maintenance..........................................24
Glass Door Cleaning and Maintenance .......................25
Opening and Removing Door...................................25
Fuel Conversion ..................................................26
Troubleshooting............................................................ 27
Wire Harness Diagram.................................................... 28
Replacement Parts ........................................................ 29
Accessories.................................................................32
Stove Labels............................................................ 33-34
Product Reference Information .......................................... 36
USING THIS MANUAL
Please read and carefully follow all of the instructions found in this
manual. Please pay special attention to the safety instructions provided
in this manual.
PRODUCT IS SUBJECT TO CHANGE WITHOUT NOTICE

IMPORTANT SAFETY AND WARNING
INFORMATION
WARNING
Youngchildrenshouldbecarefullysupervisedwhen
they are in the same room as the appliance. Tod-
dlers,youngchildrenandothersmaybesusceptible
to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the
house. To restrict access to a fireplace or stove,
install an adjustable safety gate to keep toddlers,
young children and other at risk individuals out of
the room and away from hot surfaces.
AVERTISSEMENT
Lesjeunesenfantsdevraientêtresurveillésétroite-
mentlorsqu’ilsse trouvent dans la mêmepièceque
l’appareil. Les tout petits, les jeunes enfants ou les
adultespeuventsubirdesbrûluress’ilsviennenten
contact avec la surface chaude. Il est recommandé
d’installerunebarrièrephysiquesidespersonnesà
risqueshabitent la maison. Pour empêcherl’accès
à un foyer ou à un poêle, installez une barrière de
sécurité; cette mesure empêchera les tout petits,
les jeunes enfants et toute autre personne à risque
d’avoir accès à la pièce et aux surfaces chaudes.
WARNING
Improper installation, adjustment, alteration, ser-
vice or maintenance can cause injury or property
damage. Refer to this manual. For assistance or
additional information consult a qualified installer,
service agency or the gas supplier.
WARNING
Failure to comply with these installation instructions
will result in an improperly installed and operating
appliance, voiding its warranty. Any change to this
appliance and/or its operating controls is danger-
ous.
WARNING
Clothing or other flammable material should not
be placed on or near the appliance.
AVERTISSEMENT
On ne devrait pas placer de vêtements ni d’autres
matières inflammables sur l’appareil ni à prox-
imité.
WARNING
Any safety screen or guard removed for servicing
the appliance must be replaced prior to operating
the appliance.
AVERTISSEMENT
Tout écran ou protecteur retiré pour permettre
l’entretien de l’appareil doit être remis en place
avant de mettre l’appareil en marche.
WARNING
Improper installation or use of this appliance can
cause serious injury or death from fire, burns,
explosion or carbon monoxide poisoning.
WARNING
Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
AVERTISSEMENT
Les enfants et les adultes devraient être infor-més
des dangers que posent les températures de surface
élevéesetseteniràdistanceafind’éviterdesbrûlures
ou que leurs vêtements ne s’enflamment.
WARNING
DO NOT ATTEMPT TO ALTER OR MODIFY THE CON-
STRUCTION OF THE APPLIANCE OR ITS COMPO-
NENTS. ANY MODIFICATION OR ALTERATION MAY
VOIDTHEWARRANTY,CERTIFICATIONANDLISTINGS
OF THIS UNIT.
3

4
FORYOURSAFETYdonotinstalloroperatethisappliancewithout
first reading and understanding this manual. Any installation or
operation of the appliance deviating from that which is stated
in this manual WILL void the warranty and may be hazardous.
INSTALLATIONANDREPAIRSHOULDONLY BEDONEBY
A QUALIFIED SERVICE TECHNICIAN. DO NOT ATTEMPT
TO SERVICE THE APPLIANCE YOURSELF.
Do not make any make-shift compromises during installation.
Any modification or alteration may result in damage to the ap-
pliance or dwelling and will void the warranty, certification and
listings of this unit.
Failure to use manufacturer provided parts, variations in tech-
niques and construction materials or practices other than those
described in this manual may create a fire hazard and void the
limited warranty.
This gas appliance must be equipped for the proper fuel type
and altitude at which it will be operated. Any operation outside
the parameters outlined in this manual may result in a hazard-
ous condition and will void the warranty. Please carefully read
the sections pertaining to these subjects and/or be sure your
appliance is properly equipped.
Never use solid fuels such as wood, paper, cardboard, coal, or
any flammable liquids, etc., in this appliance.
Any grill, panel, or glass removed for service MUST be replaced
prior to operating the appliance. Do not operate appliance with
the glass front removed, cracked or broken.
Gold and nickel plated surfaces must be cleaned with glass
cleaner and a clean soft cloth before firing the first time or
fingerprints will remain permanently. NEVER use brass polish
to clean gold or nickel, this will remove the plating!!!
When opening the lower door while the stove is burning, pull on
the handle located on the top side of the lower door. Be cautious
not to touch any part of the front door and firebox just above the
lower door as those areas are hot.
LHP, its employees, or any of its representatives assume no
responsibility for any damages caused by an inoperable, inad-
equate,orunsafeconditionasaresultofanyimproperoperation,
service or installation procedures, whether direct or indirect.
Due to high temperatures, the appliance should be located out
of traffic and away from furniture and draperies.
En raison des températures élevées, l’appareil devrait être
installé dans un endroit où il y a peu de circulation et loin du
mobilier et des tentures.
Provide adequate clearances around air openings and adequate
accessibility clearance for service and proper operation. Never
obstruct the front openings of the appliance.
These appliances are designed to operate on natural or propane
gas only. The use of other fuels or combination of fuels will de-
grade the performance of this system and may be dangerous.
Theseappliancesaredesigned assupplementalheaters.There-
fore, it is advisable to have an alternate primary heat source
when installed in a dwelling.
These appliances must not be connected to a chimney or flue
serving a separate solid fuel burning appliance.
These appliances are vented gas appliances. Do not burn wood
or other material in these appliances.
This appliance is only for use with the type of gas indicated on
rating plate. This appliance is not convertible for use with other
gases, unless a certified kit is used.
Cet appareil doit être utilisé uniquement avec les types de gaz
indiqués sur la plaque signalétique. Ne pas l'utiliser avec
d'autres gaz sauf si un kit de conversion certifié est installé.
Hot while in operation. Do not touch. Severe Burns may result.
Keep children, clothing furniture, gasoline and other liquids
having flammable vapors away.
L’appareil est chaud lorsqu’il fonctionne. Ne pas toucher
l’appareil. Risque de brûlures graves. Surveiller les enfants.
Garderles vêtements, lesmeubles,l’essence ou autresliquides
produisant des vapeur inflammables loin de l’appareil.
This appliance may be installed in an aftermarket, permanently
located, manufactured home (USA only) or mobile home, where
not prohibited by local codes.
Cet appareil peut être installé dans une maison préfabriquée
(mobile) déjà installée à demeure si les règlements locaux le
permettent.
Ensure clearances are in accordance with local installation
codes and the requirements of the gas supplier.
Dégagement conforme aux codes d'installation locaux et aux
exigences du foumisseunde gaz.
Installation and repair should be done by a qualified service
person. The appliance should be inspected before use and at
least annually by a professional service person. More frequent
cleaning may be required due to excessive lint from carpet-
ing, bedding material, etcetera. It is imperative that control
compartments, burners and circulating air passageways of the
appliance be kept clean.
L’installationetlaréparationdevraitêtreconfiéesàuntechnicien
qualifié. L’appareil devrait faire l’objet d’une inspection par un
technicien professionnel avant d’être utilisé et au moins une
fois l’an par la suite. Des nettoyages plus fréquents peuvent
être nécessaires si les tapis, la literie, et cetera produisent une
quantité importante de pous-sière. Il est essentiel que les com-
partiments abritant les commandes, les brûleurs et les conduits
de circulation d’air de l’appareil soient tenus propres.
Do not use these appliances if any part has been under water.
Immediately call a qualified, professional service technician
to inspect the appliance and to replace any parts of the control
system and any gas control which have been under water.
Ne pas utiliser cet appareil s’il a été plongé, même partielle-
ment, dans l’eau. Appeler un technicien qualifié pour inspecter
l’appareil et remplacer toute partie du système de commande
et toute commande qui a été plongée dans l’eau.
Only trim kit(s) supplied by the manufacturer shall be used in
the installation of this appliance.
Seuleslestroussesdegarniture fournies par le fabricant doivent
être utilisées pour l’installation de cet appareil.
INSTALLER: THESE INSTRUCTIONS ARE TO REMAIN WITH THE
HOME OWNER!

5
Certification
Gas appliances must be tested and certified by a nationally recognized
testing and certification laboratory to ANSI (American National Standard
Institute) gas appliance safety standards.
This stove has been tested and certified by OMNI -Test Laboratories to
ANSI Z21.88 / CSA 2.33 Standard for Vented Gas Fireplace Heater and
CGA 2.17-M91 and UL 307B Gas Burning Heating Appliances for Manu-
factured (Mobile) Homes in both USA and Canada.
• Must conform with all local, state and national installation codes. In
the absence of local codes, the installation must conform with National
Fuel Gas Code ANSI Z223.1 - latest edition, also known as NFPA 54
(In Canada, the current CAN/CSA B149.1 installation code). Refer to
the National Fuel Gas Code and local zoning and code authorities for
details on installation requirements.
• Mobile home installations must conform with the Mobile Home Con-
struction and Safety Standard, Title 24 CFR, Part 3280 (in Canada
CAN/CSA Z240 MH), or, when such a standard is not applicable, the
Standard for Mobile Home Installations, ANSI A225.1 - latest edi-
tion.
• Must be vented directly to the outside in accordance with the latest
edition of the National Fuel Gas Code and must never be attached to
a chimney serving a separate solid fuel burning appliance.
• Has been certified for use with either natural gas or propane.
• Is not for use with solid fuels.
• Is approved for sitting rooms and/or bedrooms.
THE EPIC™ STOVE
For altitudes above 2,000 feet (In Canada 4,500 FT/1370 M),the orifice
should be de-rated by 4% for every 1,000 feet to maintain the proper ratio
of gas to air. Improper orifice sizing may result in damage and unsafe
conditions.Changingthe orifice should onlybedoneby a qualified service
technician. Contact your Lennox Hearth Products dealer for proper orifice
sizes. (see Page 26 for more information).
Since there are always several potential sources of fire in any home, we
recommend installing smoke detectors. If possible, install the smoke
detector in a hallway adjacent to the room (to reduce the possibility of
occasional false activation from the heat produced by the appliance). If
your local code requires a smoke detector be installed within the same
room, you must follow the requirements of your local code. Check with
your local building department for requirements in your area.
ORIFICE SIZE/ALTITUDE ADJUSTMENT
SMOKE DETECTORS
CODES AND APPROVALS
Installation of these appliances are approved for installation in New York
City in the US state of New York (MEA#: 138-07-E).
NEW YORK CITY, NEW YORK (MEA)
COMMONWEALTH OF MASSACHUSETTS REQUIREMENTS
(Massachusetts Approval #G3-0806-6)
These appliances are approved for installation in the US state of Mas-
sachusetts if the following additional requirements are met:
• Install this appliance in accordance with Massachusetts Rules and
Regulations 248 C.M.R. Sec. 5.08 2(a) through 2(e).
• Installation and repair must be done by a plumber or gas fitter licensed
in the Commonwealth of Massachusetts.
• The flexible gas line connector used shall not exceed 36 inches (92
centimeters) in length.
• The individual manual shut-off must be a T-handle type valve.
Massachusetts Horizontal Vent Requirements
IntheCommonwealthofMassachusetts,horizontalterminationsinstalled
less than seven (7) feet above the finished grade must comply with the
following additional requirements:
• A hard wired carbon monoxide detector with an alarm and battery
back-up must be installed on the floor level where the gas fireplace
is installed. The carbon monoxide detector must comply with NFPA
720, be ANSI/UL 2034 listed and be ISA certified.
• A metal or plastic identification plate must be permanently mounted to
the exterior of the building at a minimum height of eight (8) feet above
grade and be directly in line with the horizontal termination. The sign
must read, in print size no less than one-half (1/2) inch in size, GAS
VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS.
It has met all necessary ANSI Standards and is fully certified for installa-
tion in any community. If there are any questions or if you need further
substantiation either write to or call your Lennox Hearth Products dealer.
If you have further questions, please contact Lennox Hearth Products.
Checkalllocalbuildingandsafetycodesbeforeinstallation.Theinstallation
instructions and appropriate code requirements must be followed exactly
and without compromise. In the absence of local codes the following
standards and codes must be followed.
The Installation must conform to local codes or, in the absence of local
codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54 - latest
edition (In Canada, the current CAN/CSA-B149.1 installation code).
The appliance, when installed, must be electrically grounded and wired
in accordance with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70 - latest edition, or the Canadian
Electrical Code, CSA C22.1 - latest edition.

6
Features
Installation Options
Residential
Vented vertical and horizontal
Manufactured (mobile) home
Natural gas (NG) or propane (LP)
Bedrooms
Optional wall-mounted or remote thermostat
Venting
This stove can be vented with Security™ Secure Vent™ pipe*. Coaxial
pipe diameters are 6-5/8” outer and 4” inner. The combustion air for this
stove is drawn from outside the house through the outer DV (direct-vent)
pipe. Room air is not required for combustion.
When planning your installation, select the correct length of vent pipe
for your particular requirements. Determine the minimum clearance to
combustibles from the rear of the unit to the wall. It is also important
to note the thickness of the wall. Before cutting the vent hole through
the wall make sure that ALL vent and termination clearances (see Page
17) will be met.
Electrical
The standard fan motor requires 120 Volts AC for operation. The stove is
not dependent on the fan or an outside electrical supply to operate.
WARNING- ElectricalGrounding Instructions - This appliance is
equipped with a three-prong (grounding) plug for your protec-
tion against shock hazard and should be plugged directly into a
properlygroundedthree-prongreceptacle.Donotcutorremove
the grounding prong from this plug.
RATINGS
Epic™ 33 (EPIC33) Epic™ 40 (EPIC40)
NATURAL GAS LP GAS NATURAL GAS LP GAS
Max/Min Input BTUh 0-2,000 Feet
(0-610 M)u
33,000 / 23,000 31,000 / 24,000 40,000 / 27,000 39,000 / 30,000
Manifold Pressure (IN. WC)
3.5 / 1.7 10.0 / 5.4 3.5 / 1.7 10.0 / 5.4
Min. Inlet Pressure (IN. WC)
5.0 11.0 5.0 11.0
P4 Efficiency w
56.98% 63.58% 63.54% 65.10%
Orifice (DMS) 0-2,000 Feet (0-610 M)u
#36/.106 IN. #52/.064 IN. #31/.120 IN. #49/.073 IN.
uUnit factory equipped for 0-2000 FT/0-610 M, In Canada 0-4500 FT/0-1370 M
vThe Steady State Efficiency numbers based on maximum vent configuration.
wTested to CSA P.4.1-02 “Testing Method for Measuring Annual Fireplace Efficiency.
Electrical Rating: 120 VAC, 60 HZ, Less Than 2 Amps
Millivolt Valve
This stove is operated with a millivolt valve and therefore burns even
during a power outage.
Fuel
This stove comes from the factory equipped to burn natural gas at a
specified elevation. The stove can be converted to burn LP gas (liquid
propane) by changing the cassette (valve and pilot assembly) or installing
a conversion kit. Only Lennox Hearth Products conversion kits can be
used to convert from NG to LP or LP to NG. Contact your Lennox Hearth
Products dealer for details.
Specifications
Pipe:Type - direct-vent
Recommended manufacturer*
Security™ Secure Vent™*
Diameter - 6-5/8”x 4” for all installations
Stove Packaging List
The Epic™ gas stove comes with the following parts:
1 Stove Body with Burner Cassette and 150 CFM Blower
1 3/8”x 9” Gas Pipe
1 3 pc. Brick Panel Set
1 4 pc. Log Set
1 Bag of Ember Material
1 Bag of Rock Wool
1 Bag of Flue Restrictors, Brick Panel Brackets and Tap-tites
1 Power Cord
1 Epic 33 Conversion Orifice
1 Installation and Operation Manual
Options
One required: Black Painted, Gold, Brushed Nickel, or Black Nickel Trim
Kit
* Other approved chimney brand is Simpson Dura-Vent DV-GS.
PRE-INSTALLATION

7
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Dimensions
The gas line attaches to the gas valve at the lower left corner at the
back of the stove. Test all gas connections for leaks with a gas leak test
solution.
Preparing Your Epic™ Stove For Installation
Read all instructions before beginning your installation. If instructions
have not been read carefully, your installation could void your warranty
and may create a serious fire, health, or other safety hazard.
The Lennox Hearth Products warranty will be voided if one of the fol-
lowing occurs:
• Installation of any damaged stove or vent system component.
• Unauthorized modification of the direct-vent system.
• Installation other than as instructed by Lennox Hearth Products,
Security™ Chimneys, or Simpson Dura-Vent.
• Installation of any stove or vent system component not manu-
factured or approved by Lennox Hearth Products, Security™
Chimneys, or Simpson Dura-Vent.
When planning the installation for your Epic gas stove, it’s necessary to
consider the following:
• Where the unit is to be installed
• The vent system configuration to be used
• Gas supply (NG or LP)
• Electrical wiring
• Optional accessories (door trim assembly and wall-mounted or
remote thermostat)
23-1/2”
(597mm)
17”
(432mm)
23-1/2”
(597mm)
31-1/4”
(794mm)
Top View
Front View
Figure 1
Figure 2
17”
(432mm)
23-1/2”
(597mm)
23-1/2”
(597mm)
31-1/4”
(794mm)

8NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

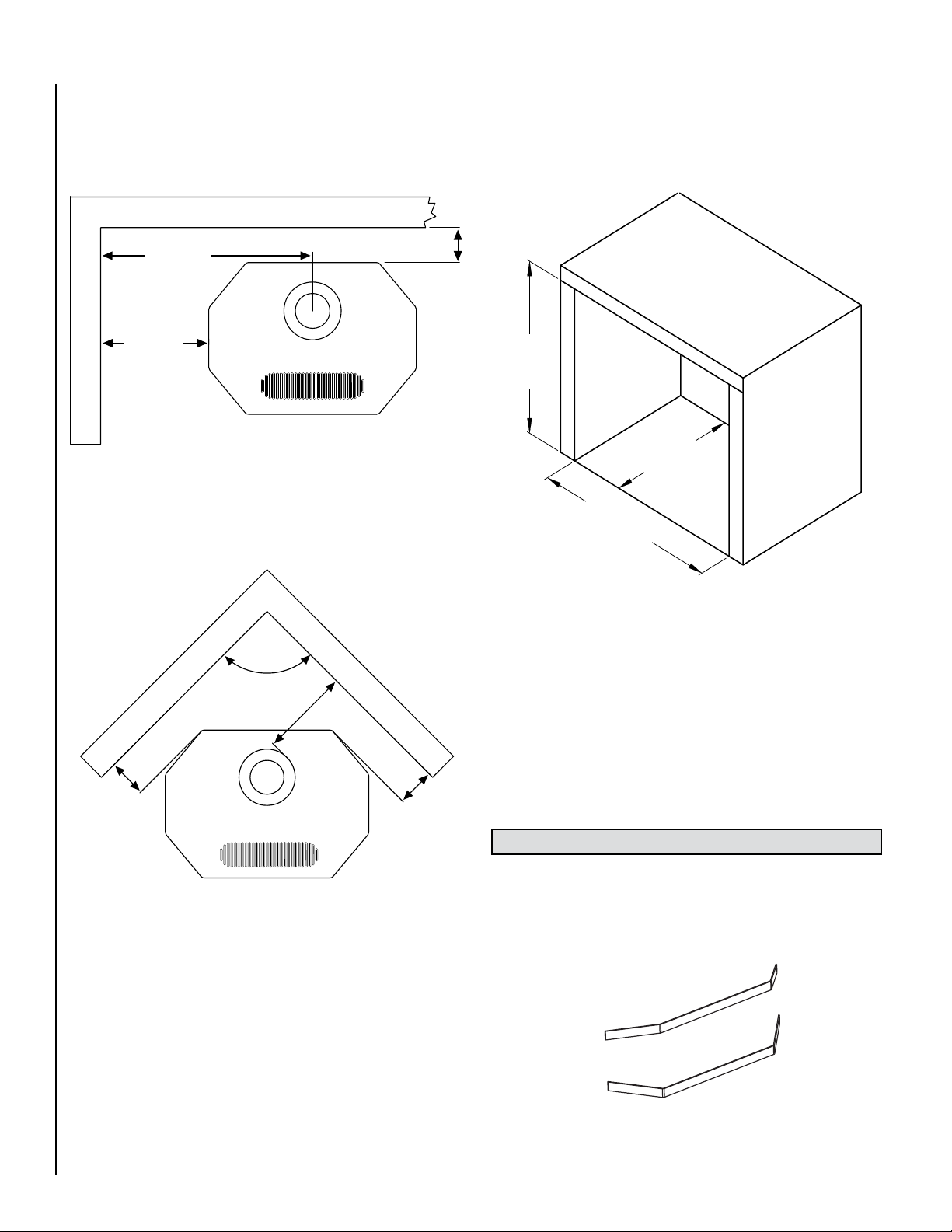

Clearances to Combustibles
Minimum clearances to combustible materials in inches (millimeters):
Parallel Installation
Corner Installation
Alcove dimensions
The minimum width between the alcove side walls is 48” (1219mm).
The minimum height of the alcove is 69” (753mm) and the maximum
depth is 48” (1219mm).
Floor Protection
A noncombustible hearth pad is not required. This stove may be installed
on a combustible surface. Also, the floor beneath the stove must be
stable, level, hard and strong enough to support the stove without a
tipping hazard.
48”
(1219mm)
Min.
48”
(1219mm)
Max.
69”
(753mm)
Min.
24-1/2”
(622mm)
Min.
12-1/2”
(318mm)
Min.
4” (102mm)
4-1/2”
(114mm)
Min.
4-1/2”
(114mm)
Min.
10-1/2”
(267mm)
Min.
90°
Figure 3
Figure 4
Figure 5 - Alcove Dimensions
Pipe Clearances
All installations using a vertical termination cap must maintain one inch
clearance between the direct-vent pipe and combustibles. For horizontal
runs of pipe, one inch of clearance to combustibles on the sides and
bottom and two inches on the top of the pipe is required. See Page 16
for allowable pipe configurations.
Back Wall
Side Wall
INSTALLATION
Install Door Trim Kit
Install door trim kit per instructions provided in kit (ref. form
#775291M).
Figure 6

9
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

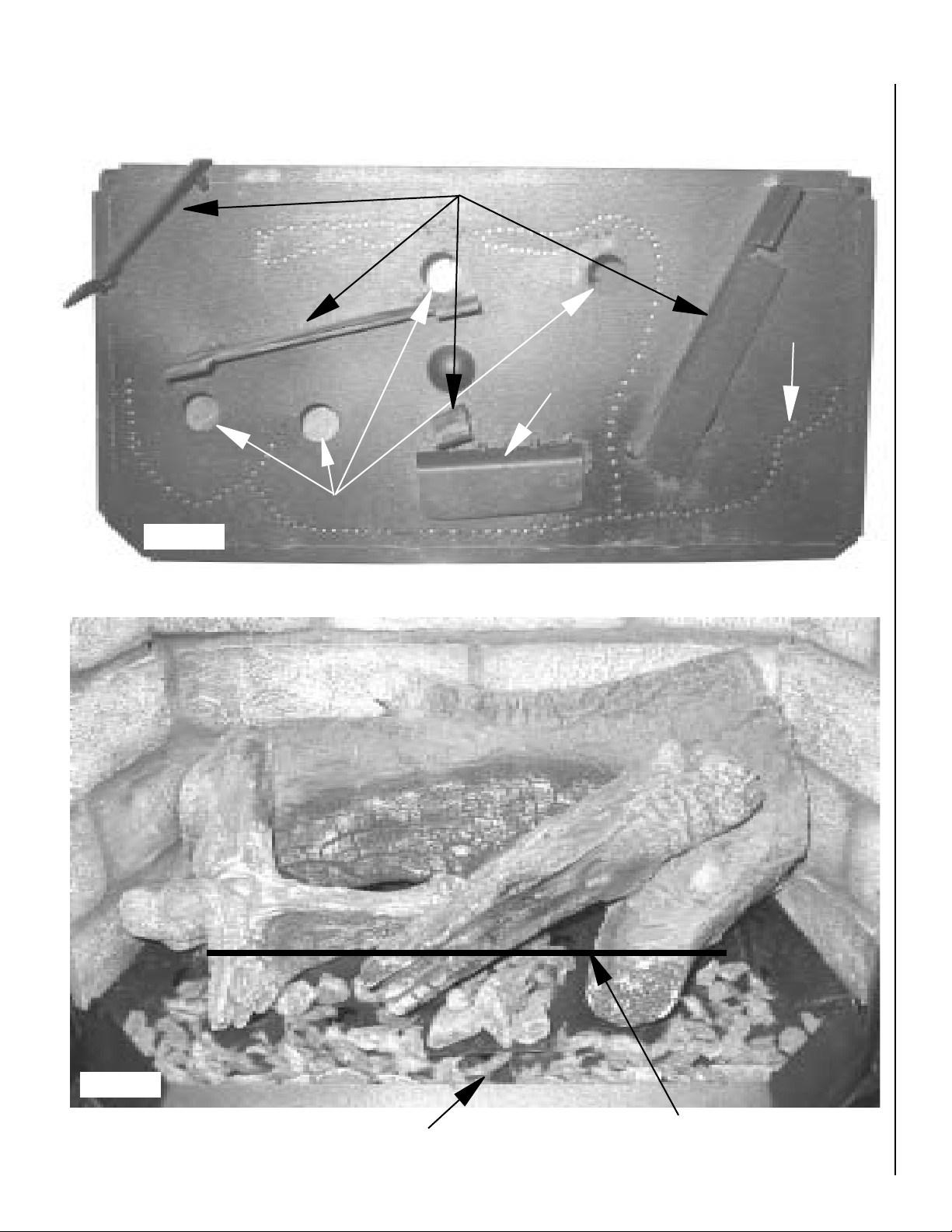

Log Stands
Secondary Air Holes
Air Deflector
Gas Ports
1
2
3
4
Do not cover any secondary air holes or gas ports (see Burner Pan
Diagram above) behind this line.
To ensure aproperburn leave a1” space freeof any embersor rockwool
directly in front of the air deflector (see Burner Pan Diagram above).
Burner Pan Diagram
Completed Firebox Setup
Firebox Setup
Figure 7
Figure 8

10 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Brick Panel Installation
CAUTION: The brick panels are required for your appliance to
function correctly and safely.
Packaging List: Rear brick panel (A), left brick panel (B), right brick panel
(C), retaining brackets (D) - in flue restrictor bag
1. Remove the brick panels from the box and carefully unwrap them.
The panels are fragile, so handle them with care. Remove the bag
containing the brick retaining brackets (D) and flue restrictors from
the firebox.
4. Using the included screws, install the brick retaining brackets (D) above
the left and right brick panels (B and C).
3. Install the left panel (B) bottom first and stand flush against left wall of
firebox. Repeat for right panel (C) against the right wall of firebox.
2. Install the rear brick panel (A) bottom first and stand it flush against
the rear of the firebox ensuring the pilot cutout is at the bottom directly
above the pilot.
AB C
D
Figure 9
Figure 10
Figure 11
Figure 13
Figure 14
Figure 15
Figure 12

11
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
C
D

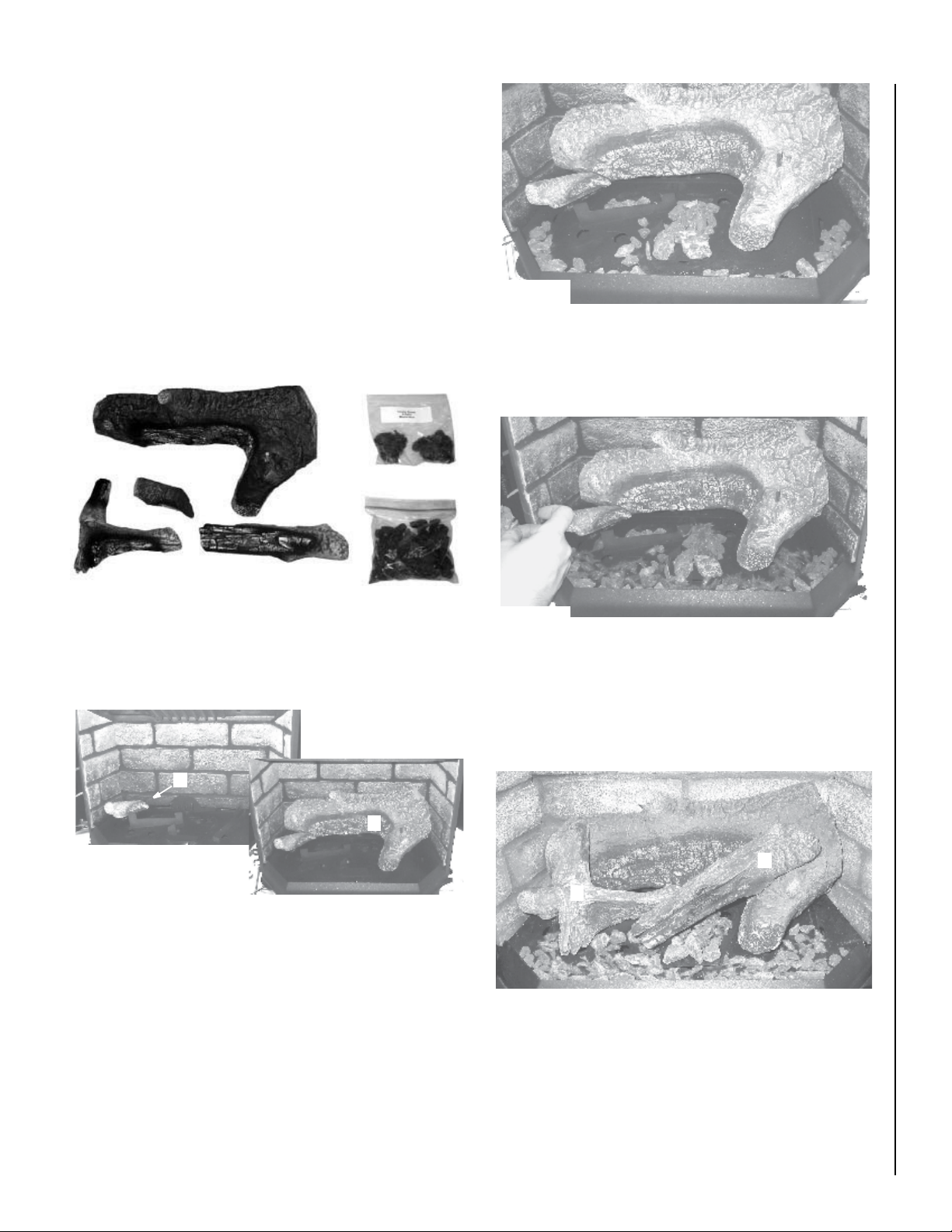

Log Set and Ember Installation
If logs are not installed according to the log installation instruc-
tions, flame impingement and improper combustion could
occur and result in soot and/or excessive production of carbon
monoxide (CO), a colorless, odorless, toxic gas.
The size and position of the log set is critical to achieve a safe,
reliableandattractive flamepattern. Anyattempttousea differ-
ent log set in the fireplace will void the warranty and will result
in incomplete combustion, sooting and poor flame quality.
Packaging List: Log set [rear log (A), left rear log (B), left front log
(C), center log (D)], embers (E) and rockwool (F)
1. Carefully remove the logs from their packaging and ensure you
have a complete set. The logs are fragile, so handle them with
care.
3. Place the rear log (A) onto log stands 1 and 2 (see Burner Pan
Diagram, Page 9). The charred surface of the log should face the
front.
4. Place the embers (E) on the burner pan. Using the larger embers
first, create a small pile on the elevated air deflector near the center
and place them along the front edge of the burner (leaving about 1/4”
in between each ember and a 2” gap in the center). It will not affect the
performance, but smaller embers may fall into the front air gap. Place
the rest of the embers throughout the firebox taking care not to block
off any secondary air holes or gas ports (see example below for proper
placement of embers).
5. Place the rockwool (F) over the gas ports and in between the embers
along the front of the firebox. The rockwool can be placed over gas
ports but do not cover the secondary air holes (see Burner Pan
Diagram, Page 9).
6. Place the left front log (C) on log stand 3 (see Burner Pan Diagram,
Page 9)and the center log (D) spanning from log stand 4 to the
peg found on the right side of rear log (A). When installed correctly,
both logs should sit firmly in place with the charred side facing
forward.
2. Install left rear log (B) onto the front half of log stand 1 (see Burner
Pan Diagram, Page 9). When installed correctly it should sit firmly
in place with the charred surface facing the center of the firebox.
NOTE: All logs are designed to fit only one way. For the ap-
pliance to function properly, it is essential that the logs be
installed correctly. See below for an example of a correctly
burning Epic™ gas stove.
Figure 17
Figure 20
Figure 16
Figure 18
Figure 19
A
B
CD
E
F
B
A
B
A
C
D

12 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Vent Installation
Venting:
The Epic™ gas stove has been tested and listed as a direct-vent
heater system by OMNI-Test Laboratories, Beaverton, Oregon
and is recommended for use with Security™ Secure Vent pipe*.
Use only approved chimney brands with this appliance.
Important:
• Read all instructions carefully before starting the installation.
Failure to follow these instructions may create a fire or other
safety hazard and will void the warranty. Be sure to check for
specific clearances to combustible requirements on Page 8.
Do not extend the venting system vertically or horizontally in
excess of the distance prescribed on Page 16. Consult your
local building codes before beginning the installation.
• Always maintain the proper air spaces between the vent pipe
and nearby combustibles to prevent a fire hazard. Do not fill
air spaces with insulation. Be sure to check the vent termina-
tion clearance requirements from decks, windows, soffits, gas
regulators, air supply inlets and public walkways, as specified
in these installation instructions on Page 17 and local building
codes.
• This gas stove and vent system must be vented directly to
the outside of the building and never be attached to a chim-
ney serving a separate solid fuel or gas-burning appliance.
Each direct-vent gas appliance must use its own separate vent
system. Common vent systems are prohibited.
• The Epic gas stove is recommended for use with Security™
Secure Vent pipe*. The appliances and vent manufacturers
warrantieswillbevoidedandseriousfire,health, or other safety
hazards may result from any of the following actions:
• Installation of any damaged direct-vent component.
• Unauthorized modification of the direct-vent system.
• Installation of any vent component part not approved or
manufactured by the approved vent manufacturer.
• Installation other than as instructed by Lennox Hearth
Products and vent manufacturers instructions.
Residential and Mobile Home Installations:
These are the minimum pieces required. Other parts may be required for
your particular installation.
Minimum Components for Horizontal Installation:
Horizontal Termination Kit which includes:
• 1 6-5/8”x 6” Black Pipe
• 1 Riser Vent Terminal
• 1 Wall Penetration Heat Shield (Wall Thimble) (2 pcs)
• 1 Decorative Wall Trim (black)
• 1 Tube Mill-Pac
• Screws
Optional Components:
• 45º Elbow
• Vinyl Siding Shield for Riser Vent Terminal
• Vent Guard
• Snorkel Termination (36”)
• Snorkel Termination (14”)
• Wall Penetration Heat Shield
Vent Considerations:
Twist-lock procedure: Four indentations on female ends of pipes and
fittings are designed to slide straight onto male ends of adjacent pipes
and fittings by orienting the four pipe indentations so they match and
slide into the four entry slots. Push pipe sections completely together,
then twist-lock one section clockwise approximately one-quarter turn
until the two sections are fully locked. The female locking lugs will not
be visible from the outside on the pipe or fittings. They may be located
by examining the inside of the female ends.
Supports: Horizontal runs of vent must be supported every 3 feet. Wall
straps are available for this purpose.
PipeSealing:IfSimpsonDura-Ventpipeisused,thepipemustbesealed
as follows: seal both the inner and outer pipes with a high temperature
silicone sealant rated for at least 600ºF (commonly know as “RTV”).
Run a 1/8” (3mm) bead of silicone around outside of male end of outer
sleeve. Run a 1/8” (3mm) bead of silicone about 1/4” (6mm) from the
end of the male inner pipe, which is found in the pipe to be attached
above. Twist-lock the pipes or fittings together.
* Other approved chimney brand is Simpson Dura-Vent DV-GS.
Figure 22
Figure 21
Sealant
Female
Locking
Lugs
Male
Locking
Lugs

13
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Vent Parts List
Direct vent pipe Security™ Secure Vent™ * may be used with the Epic™
gas stove. Please see the lists below to verify the components available
fromeachdirect-ventpipemanufacturer.Snorkelterminationsareavailable
for applications which may require vertical rise on the building exterior.
The components listed below come in a galvanized finish. Most of the
components are also available in a painted black finish. Add a “B” to the
end of the part number when ordering if a black part is desired.
Security™ Secure Vent 6-5/8”x 4” Pipe
Part Number Description
SV4LC 6” Pipe Length
SV4L12 12” Pipe Length
SV4L24 24” Pipe Length
SV4L36 36” Pipe Length
SV4L48 48” Pipe Length
SV4LA 6” Pipe, Adjustable
SV4LA12 12” Pipe, Adjustable
SV4FA Flashing, 1/12 to 6/12 Roof Pitch
SV4FB Flashing, 7/12 to 12/12 Roof Pitch
SV4RSM Wall Radiation Shield
SV4E46 45º Elbow
SV4E90 90º Elbow
SV4VS Vinyl Shield Protector
SV4FC Storm Collar
SV4CGV Vertical Termination Cap
SV4BF Firestop
SV4CHC Horizontal Termination Cap
SV4STC36 Snorkel Termination Cap (36”)
SV4STC14 Snorkel Termination Cap (14”)
SV4BM Wall Band
Simpson Dura-Vent GS 6-5/8”x 4” Pipe
Part Number Description
908 6” Pipe Length
907 9” Pipe Length
906 12” Pipe Length
904 24” Pipe Length
903 36” Pipe Length
902 48” Pipe Length
911 11” to 14-5/8” Pipe, Adjustable
942 Wall Thimble
940 Rnd Support Box/Wall Thimble Cover
941 Cathedral Ceiling Support Box
943 Flashing, 0/12 to 6/12 Roof Pitch
943S Flashing, 7/12 to 12/12 Roof Pitch
945 45º Elbow
990 90º Elbow
950 Vinyl Siding Standoff
953 Storm Collar
963 Ceiling Firestop
988 Wall Strap
981 Snorkel Termination (36”)
982 Snorkel Termination (14”)
984 Horizontal Termination Cap
985 Horizontal Termination Cap (High Wind)
980 Vertical Termination Cap
991 Vertical Termination Cap (High Wind)
Horizontal Vent Installation
Venting terminals may not be recessed into a wall or siding.
1. Set the unit in the desired location. Check whether or not wall studs
are in the way when the venting system is attached. If wall studs are
in the way, you may want to adjust the location of the unit.
2. All horizontally terminated vent installations may only use 6-5/8”x 4”
Security™ Secure Vent pipe*.
3. Assemble the desired combination of pipe and elbow(s) to the appli-
ance adapter with pipe seams facing down. Offsetting the pipe seams
as double seams in one place will cause the outer pipe to take an oval
shape.
4. When this pipe passes through a wall, a wall thimble - Simpson #942
or Security™ #SV4RSM - is required. The hole in the wall for the
wall thimble should be 9-1/4” x 10-1/4”. If the wall being penetrated
is constructed of non-combustible material (i.e. masonry block or
concrete), a 7” diameter hole is acceptable and a wall thimble is not
required.
5. Horizontal runs of vent pipe must be supported every 3 feet. Wall
straps - Security™ #SV4BM or Simpson #988 - are available for this
purpose.
6. If the vent passes through a ceiling or floor, a firestop - Security™
#SV4BF or Simpson #963 - is required.
7. Also note that venting terminals shall not be recessed into a wall or
siding. If installing the termination cap on a wall covered with vinyl
siding, a vinyl siding standoff - Security™ #SV4VS or Simpson #950
- or furring strips must be used to ensure that the termination cap is
not recessed into the siding.
8. The horizontal run of vent should have a 1/4” (6mm) rise for every 12”
of run toward the termination. Never allow the vent to run downward.
This could cause high temperatures and may present the possibility
of a fire.
9. The location of the horizontal vent termination on an exterior wall must
meet all local and national building codes and must not be blocked
or obstructed. For allowable external vent termination locations see
Page 17.
10.Allowableclearancesfrom thevent pipetocombustiblematerialsmust
be maintained. See Page 8 for these clearances.
11.Do not locate the termination cap where it may be blocked by shrub-
bery or snow.
* Other approved chimney brand is Simpson Dura-Vent DV-GS.

14 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Vertical Vent Installation
Important Notes
1. All vertically terminated vent installations use 6-5/8”x 4” Se-
curity™ Secure Vent™ pipe*.
2. If the ventpasses through a ceiling orfloor,a firestop- Simpson
#963 or Security™ #SV4BF - is required.
3. If the vent passes through the roof, a roof flashing - Simpson
#943 or 943S or Security™ #SV4FA or SV4FB - and storm collar
- Simpson #953 or Security™ #SV4FC - are required.
4. A 1-inch clearance from the vent pipe to combustible materials
must be maintained.
5. A maximum of either four 45º elbows or two 90º elbows may
be used. See Page 15 for allowable offsets.
6. Themaximumsystemheightis30feet(9.1M)andtheminimum
is 10 feet (3M).
StormCollar VerticalTerminationCap
CeilingFirestop
CeilingMinimum
Framing 10”x 10”
Roof - Maintain
1” Clearance
toCombustibles
Pipe Length
Flashing
Figure 23

15
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
A B
C D
* Other approved chimney brand is Simpson Dura-Vent DV-GS.
Figure 24

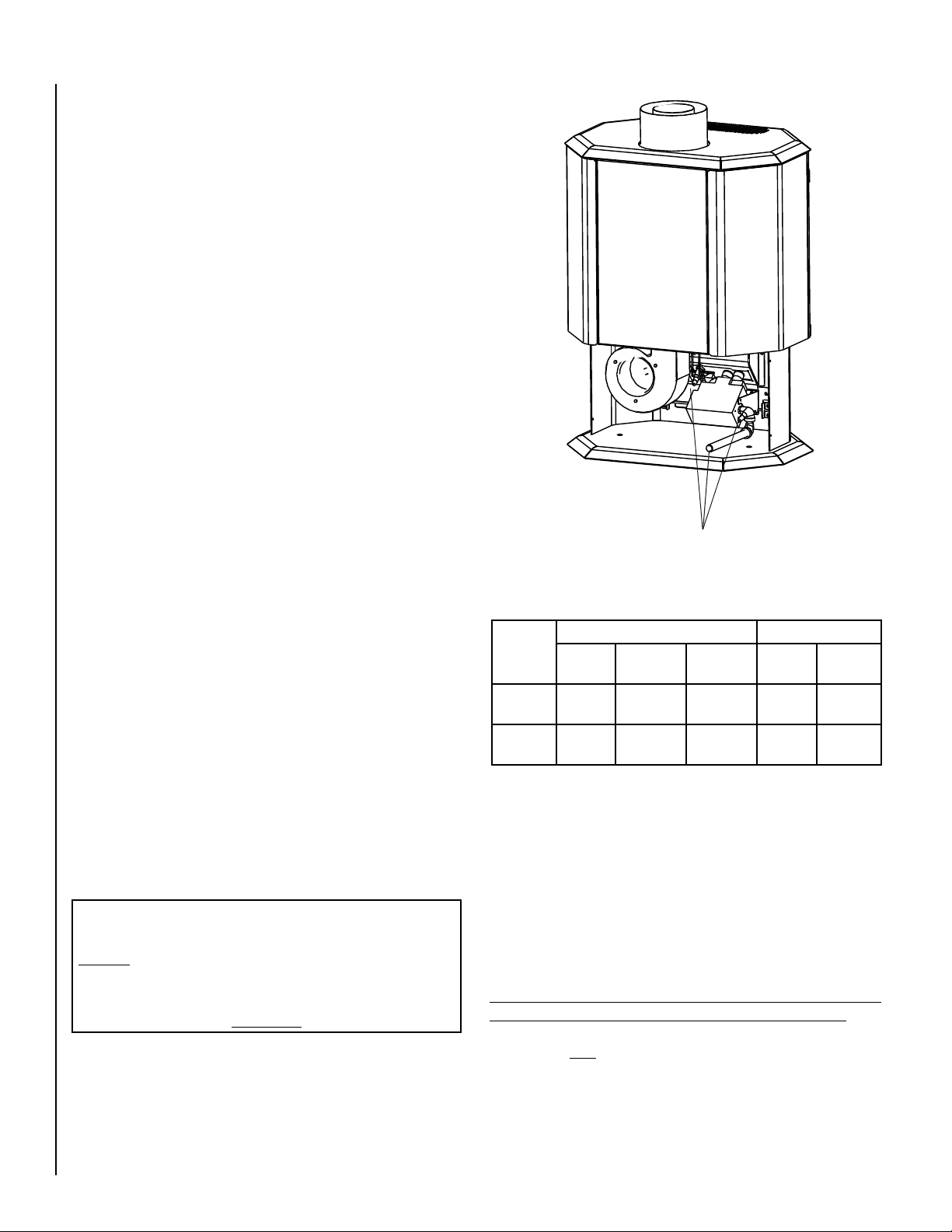

Flue Restrictors

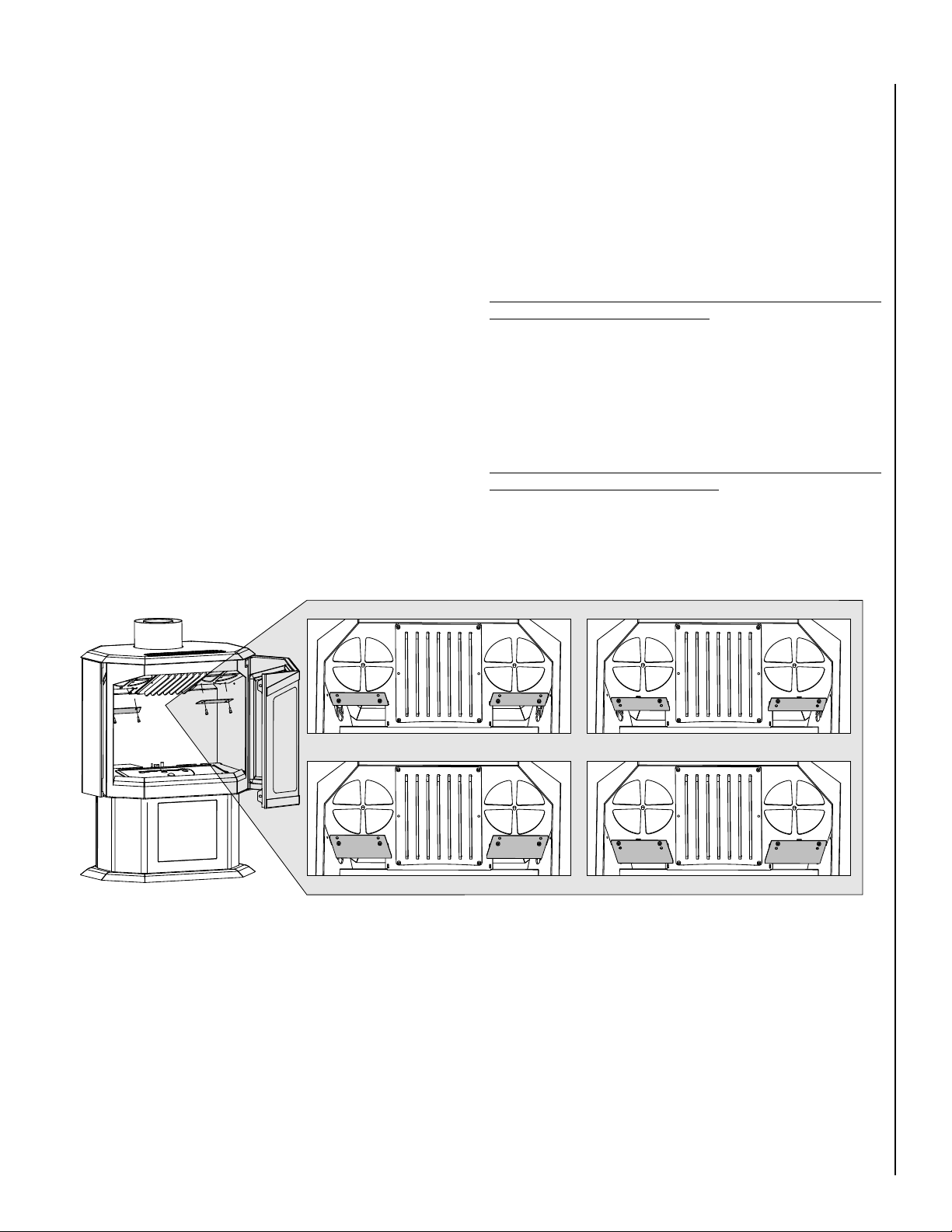

The flue restrictor settings shown in Figures 25 and 26 are for typical
installations and may need to be adjusted from standard to take into
accountothervariablesintheinstallationtoachievepropercombustion.
See Flue Restrictor Guidelines on this page to assist you in making a
proper flue restrictor adjustment.
This stove requires a balanced flue to ensure proper combustion. As such,
flue restrictors may need to be installed depending on the vent configura-
tion of your stove. The drawings on the next page show all the allowable
pipe configurations for the Epic™ gas stove. To properly install the flue
restrictors, find your pipe configuration in the drawings on the next page
and note which restrictor setting is recommended. The flue restrictors are
shipped in the firebox of your stove. Install the flue restrictors using the
four allen head screws according to the diagram below. Install the flue
restrictor screws in their original holes in the top of the firebox. Restrictor
positions are based on tests run in a laboratory.
Flue Restrictor Adjustment Guidelines
After the flue restrictors have been changed to the standard flue restrictor
settings as shown in Figures 25 and 26, the burner flame appearance
should be evaluated to determine if the A, B, C or D flue restrictor standard
settings were the correct adjustment for variables in your installation.
Light the appliance and allow it to burn for 20 minutes on the high setting.
See Flame Color and Behavior on Pages 21 and 22 to determine if you
have a proper burner flame appearance. If the proper flame appearance
cannot be achieved, the flue restrictor may need to be changed to a dif-
ferent position (A,B,C or D). See the following guidelines to determine if
you need to readjust the flue restrictors.
Before proceeding, confirm the manifold and inlet gas pressure is correct,
primary air shutter is properly adjusted, venting system connections are
secure and not blocked and if you are at a high elevation, ensure unit
has been properly derated:
Symptoms - Lack of Combustion Air
If the symptoms listed below are present, you may need to adjust the
flue restrictor to a more open position.
• Flame appears yellow
• Floating Flames (lazy, ill defined, quiet, may roll)
• Sooting
• Pilot becomes yellow and appliance shuts down
Symptoms - Excessive Combustion Air
If the symptoms listed below are present, you may need to adjust the
flue restrictor to a more closed position.
• Low Flame
• Pilot pulls and appliance shuts down
• Pilot flame ghosts

16

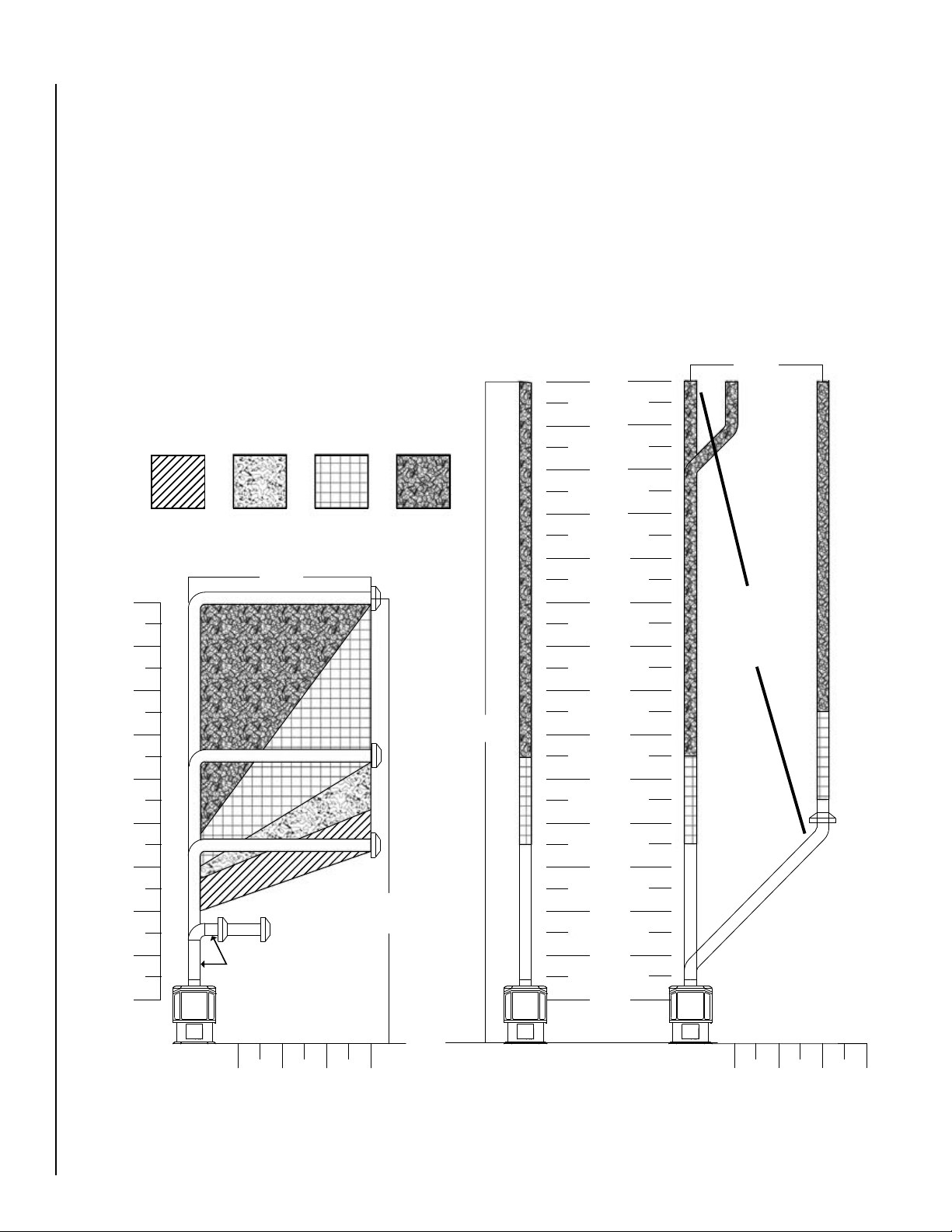

Vertical Terminations
The diagram below shows all allowable combinations of straight vertical
and offset to vertical vent configurations with vertical terminations. The
termination must fall within the shaded areas on the diagram. Use the
restrictor positions indicated. Offsets may consist of two 90° elbows
OR four 45° elbows. The minimum termination height is 10 feet and the
maximum is 30 feet.
NOTE: Horizontal pipe requires 1/4” rise for every 12” of run. Offsets
must remain within max and min lines. Vertical height is measured
from the bottom of stove.
Horizontal Terminations
The shaded areas in the diagram below show all allowable combinations
of vent configurations with horizontal terminations. Horizontal sections
of pipe require 1/4” of rise for every 12” of run. A second 90° or 45°
elbow (in addition to the first 90° elbow at the top of the vertical length
of pipe) is allowed as long as the overall length of the horizontal run of
pipe does not exceed those shown below. Use the restrictor positions
indicated. Note that if the termination cap falls in the unshaded area, then
no restrictor is installed in the stove.
Figure 25 Figure 26
2
4
6
8
10
12
14
16
18
20
2
4
6
8
10
12
14
16
18
20
22
24
26
28
MIN. 24" VERT. PIPE SECT.
WITH 9" HORIZONTAL SECT.
8' MAX
30' MAX
30
19' 7" MAX VERT. WITH
8' HORIZONTAL
VERTICAL HEIGHT (FT)
2 4 6 8 2 4 6 8
VERTICAL HEIGHT (FT)
HORIZONTAL DISTANCE (FT) HORIZONTAL DISTANCE (FT)
6' MAX
2’ (MIN) OF
VERTICAL PIPE
REQUIRED BELOW
TERMINATION
A B C D
RESTRICTOR POSITIONS
HORIZONTAL DISTANCE (FEET)
VERTICAL HEIGHT (FEET)
HORIZONTAL DISTANCE (FEET)
VERTICAL HEIGHT (FEET)

17

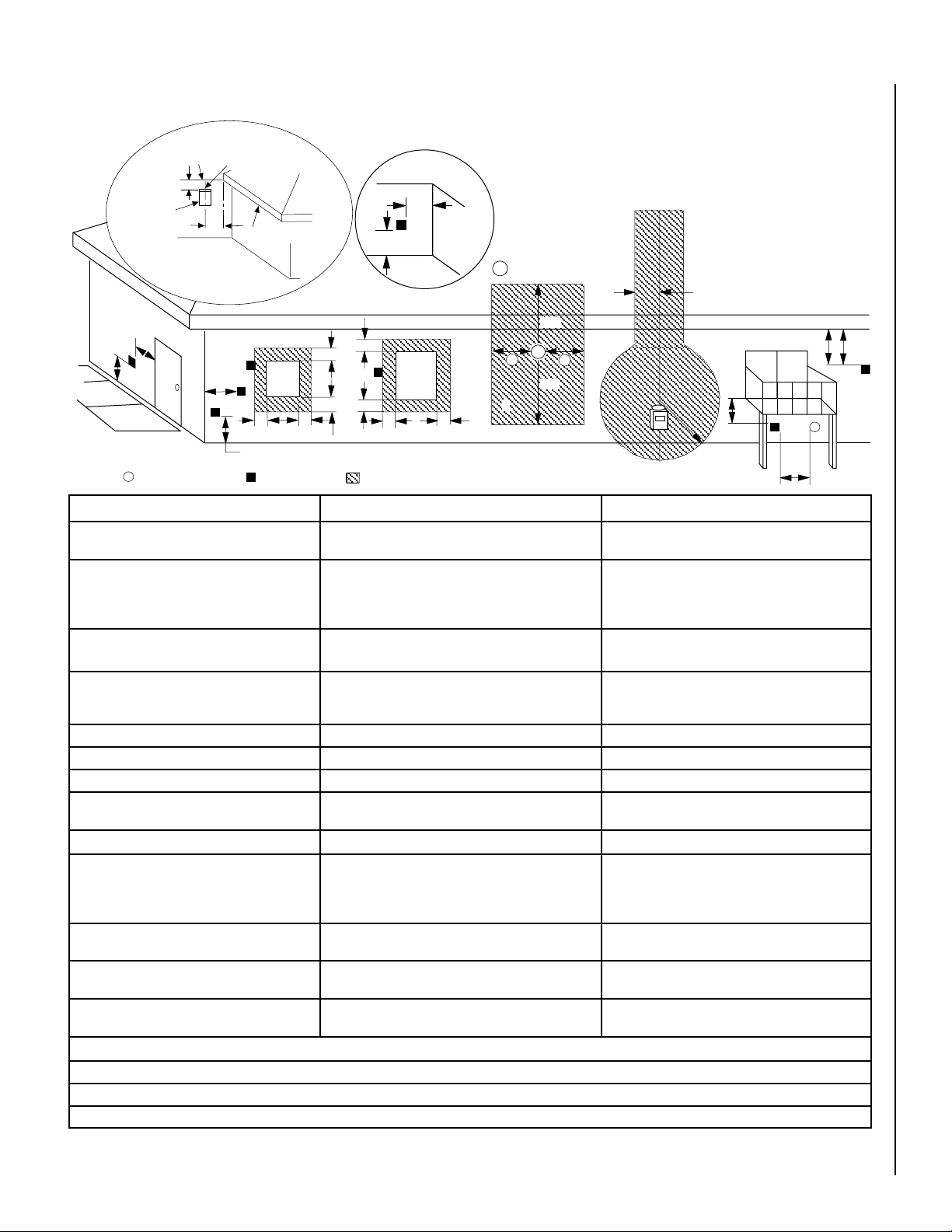

Exterior Horizontal Vent Termination Clearance Requirements
V
V V
V
V
F
C
B
B
A
B
H
M
I
X V
D
V
A A
A
V
L
B
J
X E
V
A
G
*18”
18”
B
C
C
C
K
X
�
�
�
* See Item D in the Text Below.
Center Line
of Termination
Exterior Wall
Horizontal
Termination
Ventilated Soffit
Inside Corner
DETAIL D
Minimum Clearances Canadian Installation * US Installation **
A = Clearance above grade, veranda, porch, deck
or balcony.
12 inches (30 cm) * 12 inches (30 cm) **
B = Clearance to window or door that may be
opened.
6 in. (15.2 cm) for appliances < 10,000 BTU/hr (3kW),
12 in. (30 cm) for appliances > 10,000 BTU/hr (3kW) and <
100,000 BTU/hr (30kW), 36 inches (91 cm) for appliances
> 100,000 BTU/hr (30kW)*
6 in. (15.2 cm) for appliances < 10,000 BTU/hr (3kW),
9in.(23cm)forappliances>10,000BTU/hr(3kW)and <
50,000 BTU/hr (15kW), 12 inches (30 cm) for appliances
> 50,000 BTU/hr (15kW)*
C = Clearance to permanently closed window 12 inches (305 mm) recommended to prevent window
condensation
9 inches (229 mm) recommended to prevent window
condensation
D = Vertical clearance to ventilated soffit located
abovetheterminalwithina horizontaldistanceof18
in. (458 mm) from the center line of the terminal
18 inches (458 mm) 18 inches (458 mm)
E = Clearance to unventilated soffit 12 inches (30 cm) 12 inches (30 cm)
F = Clearance to outside corner 5 inches (12.7 cm) 5 inches (12.7 cm)
G = Clearance to inside corner 6 in. (15 cm) 6 in. (15 cm)
H = Clearance to each inside of center line extended
above meter / regulator assembly
3 feet (91 cm) within a height of 15 feet above the meter /
regulator assembly *
3 feet (91 cm) within a height of 15 feet above the meter
/ regulator assembly **
I = Clearance to service regulator vent outlet 3 feet (91 cm) * 3 feet (91 cm) **
J = Clearance to non-mechanical air supply inlet
to building or the combustion air inlet to any other
appliance
6 in. (15.2 cm) for appliances < 10,000 BTU/hr (3kW), 12
in. (30 cm) for appliances > 10,000 BTU/hr (3kW) and <
100,000 BTU/hr (30kW), 36 inches (91 cm) for appliances
> 100,000 BTU/hr (30kW)*
6 in. (15.2 cm) for appliances < 10,000 BTU/hr (3kW), 9
in. (23 cm) for appliances > 10,000 BTU/hr (3kW) and <
50,000 BTU/hr (15kW), 12 inches (30 cm) for appliances
> 50,000 BTU/hr (15kW)*
K = Clearance to mechanical air supply inlet 6 feet (1.8 meters) * 3 feet (91 cm) above, if within 10 feet (3 m) horizon-
tally**
L = Clearance above paved sidewalk or paved
driveway located on public property
7 feet (2.13 m) ‡ 7 feet (2.13 m) ‡
M = Clearance under veranda, porch, deck or
balcony
12 in. (30 cm) * ‡ 12 in. (30 cm) ** ‡
* In accordance with the current CSA-B149.1 National Gas and B149.2 Propane Installation Code - Latest Editions.
** In accordance with the current ANSI Z223.1 / NFPA 54 National Fuel Codes - Latest Edition.
‡ A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.
*‡ Only permitted if veranda, porch, deck or balcony is fully open on a minimum 2 sides beneath the floor.
Inside
Corner Detail
Operable
Window
Fixed
Closed
Window
= 9" in U.S.
= 12" in Canada
3 ft.
3 ft.
= Air Supply Inlet = Vent Terminal = Area where Terminal is NOT permitted
Figure 27

18
Gas Line Installation
This stove must be connected to the gas line in accordance with local
codes and/or the National Fuel Gas Code, ANSI Z223.1 (In Canada, the
current CAN/CSA B149.1 installation code). Remove the four screws
holding the back of the pedestal in place. Slide rear cover back far enough
to gain access to the inside of the pedestal. Remove plastic plug from
the 3/8”x 9” pipe. Connect gas line to the 3/8”x 9” pipe. After connect-
ing the gas line, all joints in the line and connections at the valve should
be checked for leaks before final positioning of the unit. Conduct a gas
leakage test of the appliance piping and control system downstream of
the shutoff valve in the supply line to the appliance.
Gas Pressure Requirements
A MAJOR CAUSE OF OPERATING PROBLEMS WITH GAS
APPLIANCES IS IMPROPER GAS PRESSURE!
The most important item to check during the initial installation
and the first thing to check when operating problems occur is
gas pressure! This appliance will not function properly unless
the required gas pressure is supplied. See the table on this
page for gas pressure requirements.
Twopressuretapsareprovidedonthestove’svalvetocheckgaspressures.
To access the taps, remove the four socket head screws from the valve
control panel. The taps are located below the On/Off/Pilot knob (see
Figure 29 on Page 21). The left tap is the inlet (supply) pressure side.
To check inlet pressure (with the stove burning) insert a small flat-bladed
screwdriver into the tap and turn a half-turn counterclockwise. Cover the
tapwiththe linefromthemanometerand checkthepressure.Closethe tap
gently but securely after completing the check. The manifold (outlet) tap
is to the right of the inlet tap. To check manifold pressure (with the stove
burning at the high burn setting) insert a small flat-bladed screwdriver
into the tap and turn a half-turn counterclockwise. Cover the tap with the
line from the manometer and check the pressure. Again close the tap
gently but securely after completing the check. Check the taps for gas
leaks with a gas leak test solution (retighten if necessary).
If the pressure is not sufficient, make sure the gas supply line is large
enough, the supply regulator is properly adjusted and the total gas load
for the residence does not exceed the amount supplied.
Propane tanks are at pressures that will cause damage to valve com-
ponents. Verify that the tanks have step down regulators to reduce the
pressure to safe levels.
LP and Natural Gas Supplies:
Your Epic™ gas stove is equippedfromthefactory for usewithnaturalgas
only as specified on the Safety / Listing label attached to the appliance.
This appliance can only be operated using propane gas (LP) if a certified
fuel conversion kit provided by Lennox Hearth Products is installed by a
qualified service technician.
Also check the orifice size on the label on the igniter bracket. It must be
the correct size for the fuel and altitude.
Do not run propane tank dry. Running the tank dry may cause a
hazardous condition due to pressure drop in empty tank.
Solid fuel is NOT to be used with this unit.
Fuel
Type
Inlet Pressure Manifold Pressure
Desired Minimum Maximum On Hi
Fire
On Lo
Fire
Natural
Gas
7" WC 5" WC 10.5" WC 3.5" WC 1.7" WC
LP Gas 11" WC 11" WC 13" WC 10" WC 6.0” WC
Check all connections
for leaks using a gas
leak test solution.
Figure 28
These appliances must be isolated from the gas supply piping system
(by closing their individual manual shut-off valve) during any pressure
testing of the gas supply piping system at test pressures equal to or
less than 1/2 psig (3.5 kPa).
These appliances and their individual shut-off valves must be discon-
nected from the gas supply piping system during any pressure testing
of that system at pressures greater than 1/2 psig (3.5 kPa).
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

19
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
La chimenea caliente cau-
sará quemaduras graves
Nunca permita que los niños
toquen el vidrio ni otras
partes de la chimenea
ADVERTENCIA
Un foyer chaud peut causer
de graves brûlures
Ne laissez jamais un enfant
toucher à la vitre ou à toutes
autres parties du foyer
AVERTISSEMENT
ATTACHING SAFETY IN OPERATION WARN-
INGS
It is required that the safety instruction labels fur-
nished with the fireplace be affixed to the operation
andcontrolpointofthefireplace. Asafetyinstruction
label must be affixed to the wall switch plate where
the fireplace is turned on and off (See Figure A)
or wall thermostat (See Figure B)and if used on
the remote control handheld transmitter (Figure
C). To properly complete the installation of this
fireplace, locate the multi-lingual adhesive labels
provided with the Care and Operation Instructions
and proceed as follows:
1. Locate the wall switch or wall thermostat that
controlsthe fireplace (verifythe switch operates
the fireplace by turning it on and off). Clean the
wall switch plate or wall thermostat thoroughly
to remove any dust and oils. Affix the label to
the surface of the plate of the wall switch that
controls the fireplace (Figure A)or the wall
thermostat (Figure B). Choose the language
primarily spoken in the home. If unknown, affix
the English language label.
2. Ifaremotecontrolisusedtocontrolthefireplace,
locate the transmitter and clean it thoroughly
to remove any dust and oils. Affix the label to
the surface of handheld transmitter (Figure C).
Choose the language primarily spoken in the
home. If unknown, affix the English language
label.
3. If you are unable to locate the labels, please call
LennoxHearth Products oryour nearest Lennox
Hearth Products dealer to receive additional
safety instruction labels free of charge.
Cat. No. H8024 Replacement Label Kit
LENNOX HEARTH PRODUCTS
1-800-9-LENNOX
Note: English is red text on clear label. French and
Spanish are white text on black label.
Hot Fireplace Will Cause Severe Burns Never Allow Children to Touch Glass or other Fire- place Parts
WARNING
La chimenea caliente
causará quemaduras graves
Nunca permita que los niños
toquen el vidrio ni otras
partes de la chimenea
Un foyer chaud peut causer
de graves brûlures
Ne laissez jamais un enfant
toucher à la vitre ou à toutes
autres parties du foyer
ADVERTENCIA
Figure A
INSTALLER INSTRUCTIONS - ATTACHING SAFETY IN OPERATION WARNINGS
It is the installers responsibility to ensure these warnings are properly affixed during installation. These warning labels are a
critical step in informing consumers of safe operation of this appliance.
Hot Fireplace Will Cause
Severe Burns
Never Allow Children to
Touch Glass or other Fire-
place Parts
WARNING
Figure B Figure C
DIAGRAMMES DES ÉTIQUETTES DE SÉCURITÉ / DIAGRAMAS DE ETIQUETAS DE SEGURIDAD / SAFETY LABEL DIAGRAMS
APPOSITION DES MISES EN GARDE RELATIVES
À LA SÉCURITÉ D’UTILISATION
Il est impératif que les étiquettes de sécurité fournies
avec le foyer soient collées à côté des dispositifs
de contrôle du foyer. Une étiquette de sécurité doit
être collée sur la plaque de l’interrupteur contrôlant
l’allumagedufoyer(voirFigureA)ousurlethermostat
mural (voir Figure B)et, le cas échéant, sur le boîtier
de la télécommande (Figure C). Pour achever l’instal-
lation correcte de ce foyer, procédez comme suit avec
lesétiquettesadhésivesenlanguesétrangèresfournies
avec les instructions d’utilisation et d’entretien :
1. Repérez l’interrupteur ou le thermostat mural qui
contrôle le foyer (vérifiez que l’interrupteur
contrôle le fonctionnement du foyer en le faisant
basculerdeMarcheàArrêt,etvice-versa).Nettoyez
soigneusement la plaque murale de l’interrupteur
ou le thermostat mural pour éliminer la poussière
et les traces de graisse ou d’huile. Collez l’étiquette
sur la surface de la plaque de l’interrupteur mural
qui contrôle le foyer (Figure A)ou du thermostat
mural (Figure B). Choisissez la langue qui est
principalement parlée dans la résidence du
propriétaire. En cas de doute, collez l’étiquette en
anglais.
2. Si une télécommande est utilisée pour contrôler
le foyer, nettoyez la soigneusement pour éliminer
la poussière et les traces de graisse ou d’huile.
Collez l’étiquette sur le boîtier de la télé-
commande (Figure C).Choisissezlalanguequiest
principalementparléedanslarésidenceduproprié-
taire. En cas de doute, collez l’étiquette en anglais.
3. Si vous ne trouvez pas les étiquettes, veuillez
appelerLennoxHearthProductsouvotredistribu-
teur Lennox Hearth Products local pour recevoir
gratuitement des étiquettes supplémentaires.
Étiquettes de remplacement, n° cat. H8024
LENNOX HEARTH PRODUCTS
1-800-9-LENNOX
Remarque : Le texte anglais est rouge sur un support
transparent. Le texte français et espagnol est blanc
sur un support noir.
COLOCACIóNDEADVERTENCIASDESEGURIDAD
EN OPERACIóN
Se requiere que las etiquetas de instrucciones de
seguridad incluidas con la chimenea se coloquen en
el punto de operación y control de la misma. Se debe
colocar una etiqueta de instrucciones de seguridad
en la placa del interruptor de pared desde el cual se
enciendeyseapagalachimenea(verlaFiguraA)oenel
termostatodepared(verlaFiguraB)yeneltransmisor
de control remoto (Figura C)si seusa.Paracompletar
correctamente la instalación de esta chimenea,
encuentrelasetiquetasadhesivasmultilingüesincluidas
con las instrucciones de cuidado y operación y haga
lo siguiente:
1. Identifique el interruptor o el termostato de pared
quecontrolalachimenea(verifiquequeelinterruptor
opera la chimenea encendiéndola y apagándola).
Limpie bien la placa del interruptor o el termostato
de pared para quitar el polvo y aceite. Pegue la
etiquetaenlasuperficiedelaplacadelinterruptorque
controla la chimenea (Figura A)o en el termostato
de pared (Figura B).Seleccione el idioma que
más se habla en la casa. Si no sabe cuál es, use la
etiqueta en inglés.
2. Si se usa un control remoto para controlar la
chimenea, encuentre el transmisor y límpielo bien
para quitar el polvo y aceite. Pegue la etiqueta en
la superficie del transmisor (Figura C).Seleccione
el idioma que más se habla en la casa. Si no sabe
cuál es, use la etiqueta en inglés.
3. Si no puede encontrar las etiquetas, sírvase llamar
a Lennox Hearth Products o al distribuidor de
Lennox Hearth Products más cercano para recibir
etiquetasdeinstruccionesdeseguridadadicionales
gratuitas.
Juego de etiquetas de repuesto - Nº de cat. H8024
LENNOX HEARTH PRODUCTS
1-800-9-LENNOX
Nota: La etiqueta en inglés es transparente con texto
rojo. Las etiquetas en francés y español son negras
con texto blanco.
AVERTISSEMENT

20
WHAT TO DO IF YOU SMELL GAS:
DO NOT try to light the appliance. DO NOT touch any electric
switch. DO NOT use any phone in the building. Immediately
call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions. If you cannot reach your gas supplier, call
the fire department.
C. Use only your hand to push in or turn the gas control knob.
Never use any tool. If the knob will not push in or turn by hand,
don’t try to repair it, call a qualified service technician. Force or
attempted repair may result in a fire or explosion.
D. DO NOT use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
OPERATING INSTRUCTIONS
CAUTION: YOURLennox HearthProductsgasAPPLIANCEMUST
ALWAYS BE OPERATED WITH THE GLASS DOOR IN PLACE.
STOP!! Read the safety information above before proceeding.
1. Make sure gas supply shut off cocks are open and ON/OFF
rocker switch is “OFF.” If equipped with a thermostat, set it to
the lowest setting.
2. Turn off all electrical power to the appliance.
3. Push in gas cock dial slightly and turn clockwise to
“OFF”.
NOTE: Dial cannot be turned from “PILOT” to “OFF” unless dial
is pushed in slightly. Do not force.
4. Wait five minutes to clear out any gas. If you smell gas, STOP!!
Follow “B” above. If you don’t smell gas, continue.
5. Locate the pilot by looking through the hole under the right front
log. Blue flame will be seen when the pilot is lit.
6. Turn the gas control knob counter-clockwise to the
“PILOT” position.
7. Push the knob all the way in and hold in that position. Im-
mediately light the pilot by pressing the igniter button several
times until pilot is lit. Continue to hold the knob in for about
30 seconds after the pilot is lit. Release knob and it will pop
back out. Pilot should remain lit. If it goes out, repeat steps
4-8 holding knob in an additional 15 seconds after pilot is lit.
If knob does not pop out when released, stop and immediately
call your service technician or gas supplier. If the pilot will not
stay lit after several tries, turn the gas control knob to “OFF”
and call you service technician or your gas supplier.
Operating Instructions
Pre-Lighting Checklist:
Be sure to check these items before the initial lighting of the
stove:
c The stove gas label corresponds to the gas supply available
- that is “natural gas” for natural gas or “LP gas” for LP
gas.
c Gas pressure has been checked carefully - see Page 18.
c All gas fittings have been checked for leaks.
c All clearances to combustibles have been met - see Page
8.
c All combustible materials have been removed from area in
front of the stove.
c All vented areas of the stove are unobstructed.
c House is ventilated to clear initial paint curing odors - see
Page 22.
c All packaging materials have been removed from the fire-
box.
c While stove is cool, fingerprints or other marks have been
cleaned from any gold or nickel surfaces with denatured
alcohol and a soft cloth. Marks left on these surfaces may
becomeetched into thefinish if notremoved prior toburning
the unit.
c Brick panel, log set and embers have been installed.
c The glass door is in place and is properly sealed.
Lighting Instructions:
The following is a copy of the operating and lighting instructions
found with each stove:
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS
EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROP-
ERTY DAMAGE, INJURY, OR LOSS OF LIFE.
CAUTION: HOT WHILE IN OPERATION. DO NOT TOUCH. KEEP
CHILDREN, FURNITURE, GASOLINE AND OTHER LIQUIDS WITH
FLAMMABLEVAPORSAWAY.NEVEROPERATEUNITWITHGLASS
DOOR OFF OR ATTEMPT TO OPEN THE DOOR WHILE HOT.
A. This appliance is equipped with a piezo ignition device to light
the pilot. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING, smell around the appliance area for gas.
Be sure to smell next to the floor, because some gas is heavier
than air and will settle on the floor.
