Please read this instruction manual carefully before first use, and store
it in a safe place. If you pass on the product to another person, hand
over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Mounting the stove. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
8 Using the stove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9 Cleaning and maintaining the stove. . . . . . . . . . . . . . . . . . . . . . . . . 20
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

EN
Dometic ORIGO Explanation of symbols
9
1 Explanation of symbols
!WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
!CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.
ANOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
INOTE
Supplementary information for operating the product.
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
2 General safety instructions
The manufacturer accepts no liability for damage in the following cases:
Damage to the product resulting from mechanical influences and excess
voltage
Alterations to the product without express permission from the manu-
facturer
Use for purposes other than those described in the operating manual

EN
General safety instructions Dometic ORIGO
10
Please observe the following basic safety information when using electrical
devices to protect against:
Electric shock
Fire hazards
Injury
2.1 General safety
!WARNING!
Use denatured alcohol only. Do not use other fuels such as
gasoline, diesel, methanol, propane or charcoal lighter.
Danger of asphyxiation!
Before starting the device, ensure that the area is sufficiently
ventilated.
Place a class A fire extinguisher (for alcohol fires) in reaching
distance.
Ensure the fire extinguisher is regularly checked by qualified
personnel.
Persons whose physical, sensory or mental capacities prevent
them from using this device safely should not operate it without
the supervision of a responsible adult.
Electric devices are not toys
Keep electrical appliances out of reach of children or infirm
persons. Do not let them use the appliances without super-
vision.
ANOTICE!
Use the stove only as intended.
Dometic ORIGO alcohol/electric stoves C100 and C200 only
!WARNING!
Place a class B-1 fire extinguisher (for electric fires) in reaching
distance.
Ensure the fire extinguisher is regularly checked by qualified
personnel.
Always disconnect the power supply when working on the
device.

EN
Dometic ORIGO General safety instructions
11
Maintenance and repair work may only be carried out by
qualified personnel who are familiar with the risks involved and
the relevant regulations.
If the connection cable is damaged, it must be replaced by
qualified personnel.
Inadequate repairs can lead to considerable hazards.
If the stove is not fitted with an accessible plug, all pole dis-
connection must be incorporated in the fixed wiring.
Inform yourself how to power-off the circuit breaker or the fuse
in the event of an emergency.
2.2 Safety precautions when handling denatured
alcohol
!WARNING!
Keep inflammable substances apart from heating and cooking
devices and other light and heat sources.
Store alcohol in suitable containers only and in sufficient
distance from the stove.
Eliminate all sources of sparks or flames where the alcohol is
stored or filled-in.
Never fill the canisters while still in the stove. Never pour fuel
through the burner openings in top of the stove (fig. 1, page 2).
Overfilling, spilt alcohol and hot objects can cause severe
burns.
Denatured alcohol burns with almost invisible flame, so great
damage can arise before you notice the danger.
ANOTICE!
Mop up any spilt alcohol immediately to prevent uncontrollable
burning.
Do not smoke when handling alcohol or when operating the
stove.
Fill the canister to the maximum capacity only. Alcohol expands
in the canister when heated. Overfilled alcohol can cause un-
controllable burning inside the stove.

EN
General safety instructions Dometic ORIGO
12
2.3 Operating the device safely
!WARNING!

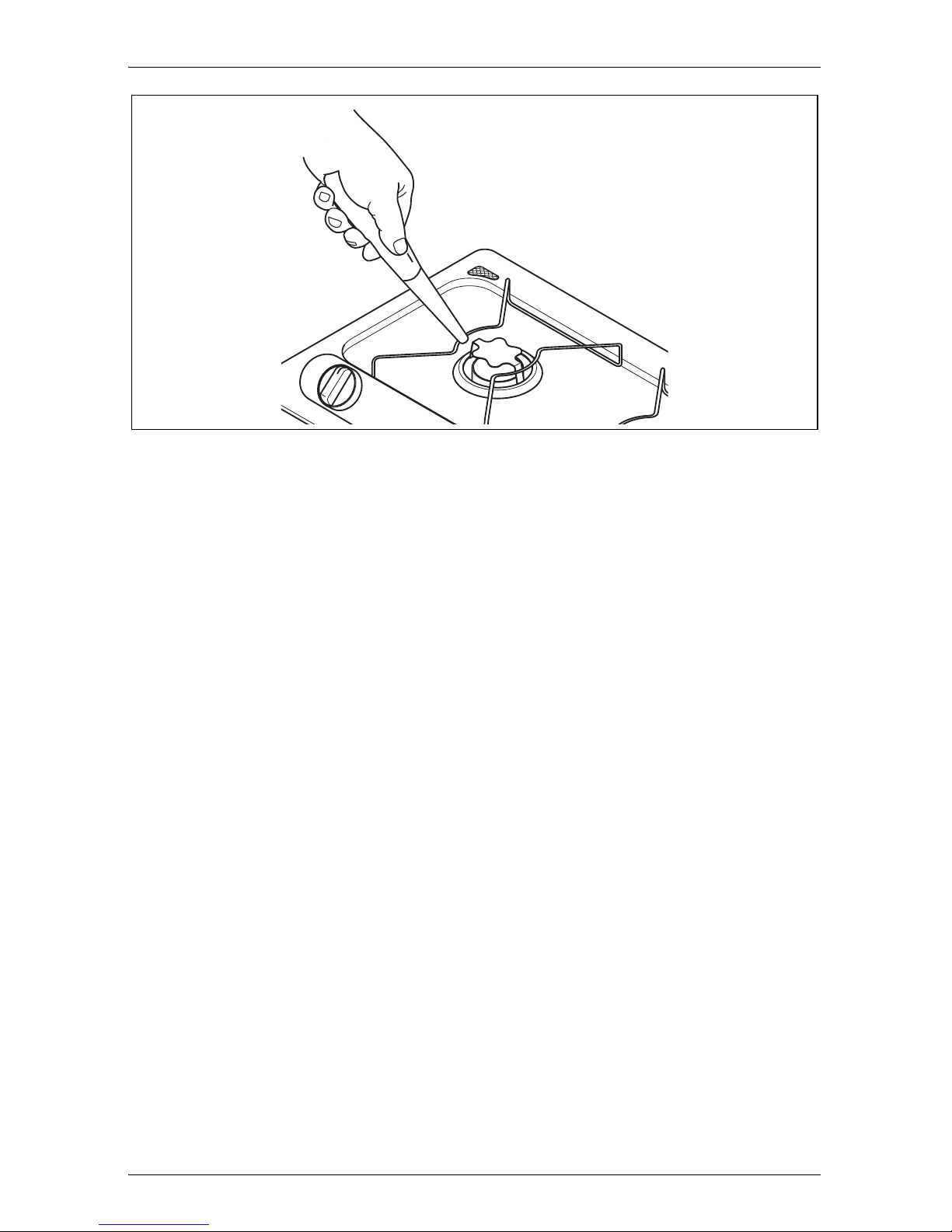

Use long matches or long lighters to light the burner.
Quickly remove your hand as soon as the burner ignites.
Wear proper clothing when operating the stove.
Do not wear hanging garments which can catch fire.
ANOTICE!
Let the stove cool down to ambient temperature before you
touch it with bare hands.
Keep the area surrounding the stove and interior parts free of
grease, fat, alcoholic substances, plastic or inflammable cloths
(for instance curtains, towels, kitchen utensils).
Use only pots and pans with flat bottoms and with a maximum
diameter of 23 cm (9"). The pots and pans should be large
enough to cover the heating element. The use of undersized
utensils will expose a portion of the heating element to direct
contact and may result in ignition of clothing.
Proper sized utensils will also improve efficiency.
When cooking ensure that pans and pots are securely in posi-
tion. Recommended is the use of pot holders (fig. 22, page 2,
accessory).
Never allow pot handles to extend beyond the edge of the stove.
Turn pot handles inward, but not extending over other burners.
This will minimize the possibility of spillage, ignition of flamma-
ble materials and/or serious burns.
Be careful when heating grease or oil. Grease and oil catch fire
when exposed to great heat.
Use only dry pot cloths to prevent the formation of steam. Do not
use towels or the like instead of pot cloths as these can catch
fire.
Never leave the stove unattended when cooking. Pots boiling
over can cause smoke and fires.
Move the burner control (fig. 21, page 2) to the off position
before removing the pot.
Do not use the stove to heat the environment.

EN
Dometic ORIGO Scope of delivery
13
Dometic Origo C100 and C200 only: Never use alcohol and
electrical burners simultaneously to prevent overheating which
can destroy the heating element.
Dometic Origo C100 and C200 only: Operating electrical
burners at a high setting without a filled pot can damage the
stove.
3 Scope of delivery
Stove
Operating Manual
4 Accessories
5 Intended use
The Dometic ORIGO stoves are designed for use in vehicles or boats.
6 Technical description
6.1 Function
The stove is made of stainless steel and uses the absorption principle. The
canister has a capacity of 1.2 l. Denatured alcohol is used as fuel. The burner
can be lit with long matches or a corresponding lighter.
Alcohol is absorbed into a non-flammable material in the canister. It is not
equipped with fuel valve or fuel lines, which can develop leaks, or with other
such components requiring regular service.
Description Item no.
A100 A200 C100 C200
Glass Lid 9103303992 9103303991 9103303992 9103303991
Pot Holder 9103303982 9103303982
Canister 9103303993 9103303993

EN
Technical description Dometic ORIGO
14
The Dometic ORIGO alcohol/electric stoves C100 and C200 are equipped
with a 1200 W (EU) element. They can alternatively be operated with alcohol
or 220–240 V.
6.2 Specifications for the device variants
Various stove versions are available.
A100 and C100: single-burner unit
A200 and C200: double-burner unit
C100 and C200: additional heating element for operating with 220–240 V
To define your device see the item number on the type plate located on the
right side of the stove.
6.3 Operating elements

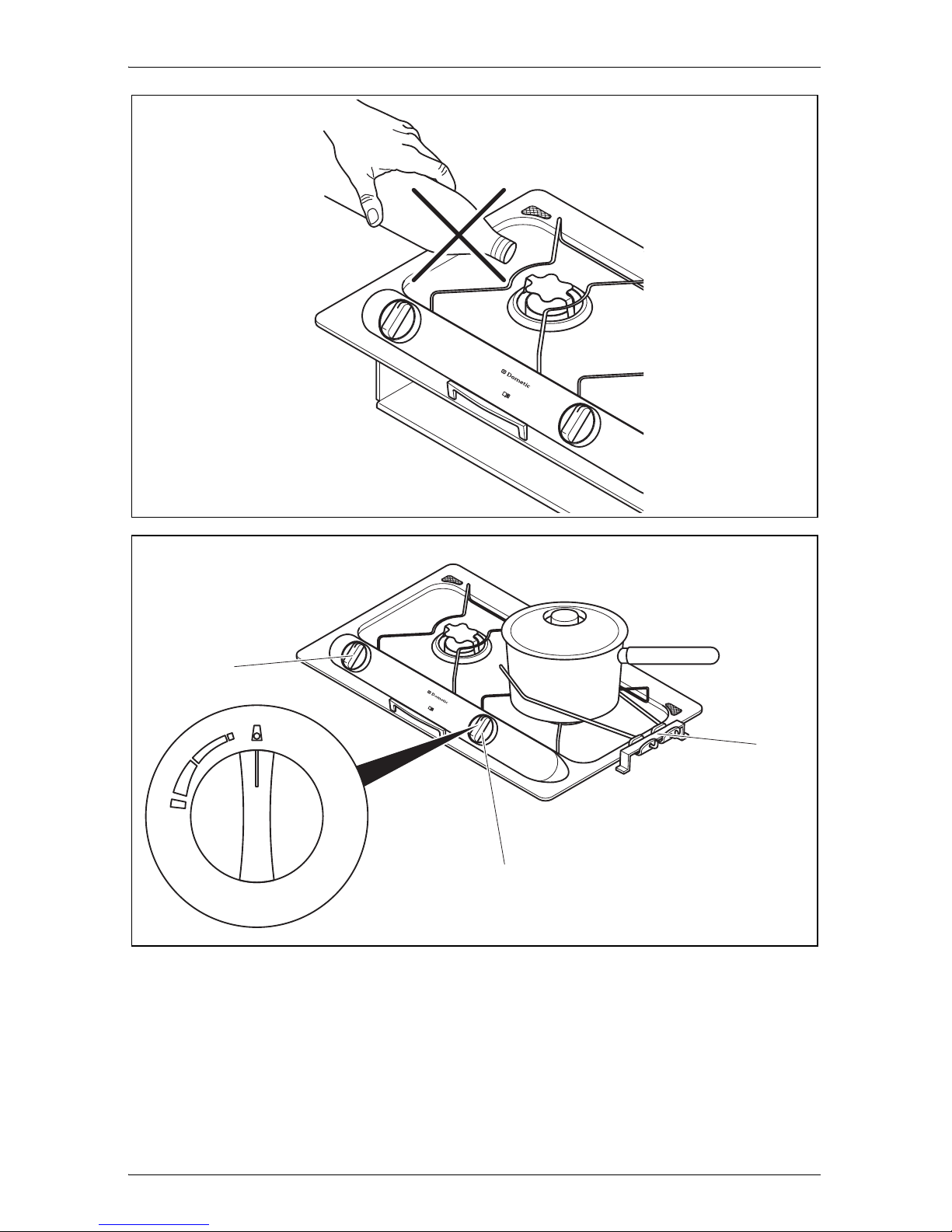

Operating elements for operation with denatured alcohol (fig. 2,
page 2):
Operating elements for operation at 220–240 V mains (fig. 3, page 3)
(Dometic ORIGO C100 and C200)
No. Description
1 Control knob, continuously adjustable
Turn counter-clockwise to increase the burner’s flame
2 Pot holder (accessory)
No. Description
1 Status LED
The LED is lit when the electrical power is turned on.
2 Power setting knob
Turn clockwise to increase the heating element’s power setting

EN
Dometic ORIGO Mounting the stove
15
7 Mounting the stove
You can fit the stove into the countertop of your kitchen.
7.1 Selecting the installation location
When selecting the installation location, observe the following instructions:
Select a well-ventilated location for the device.

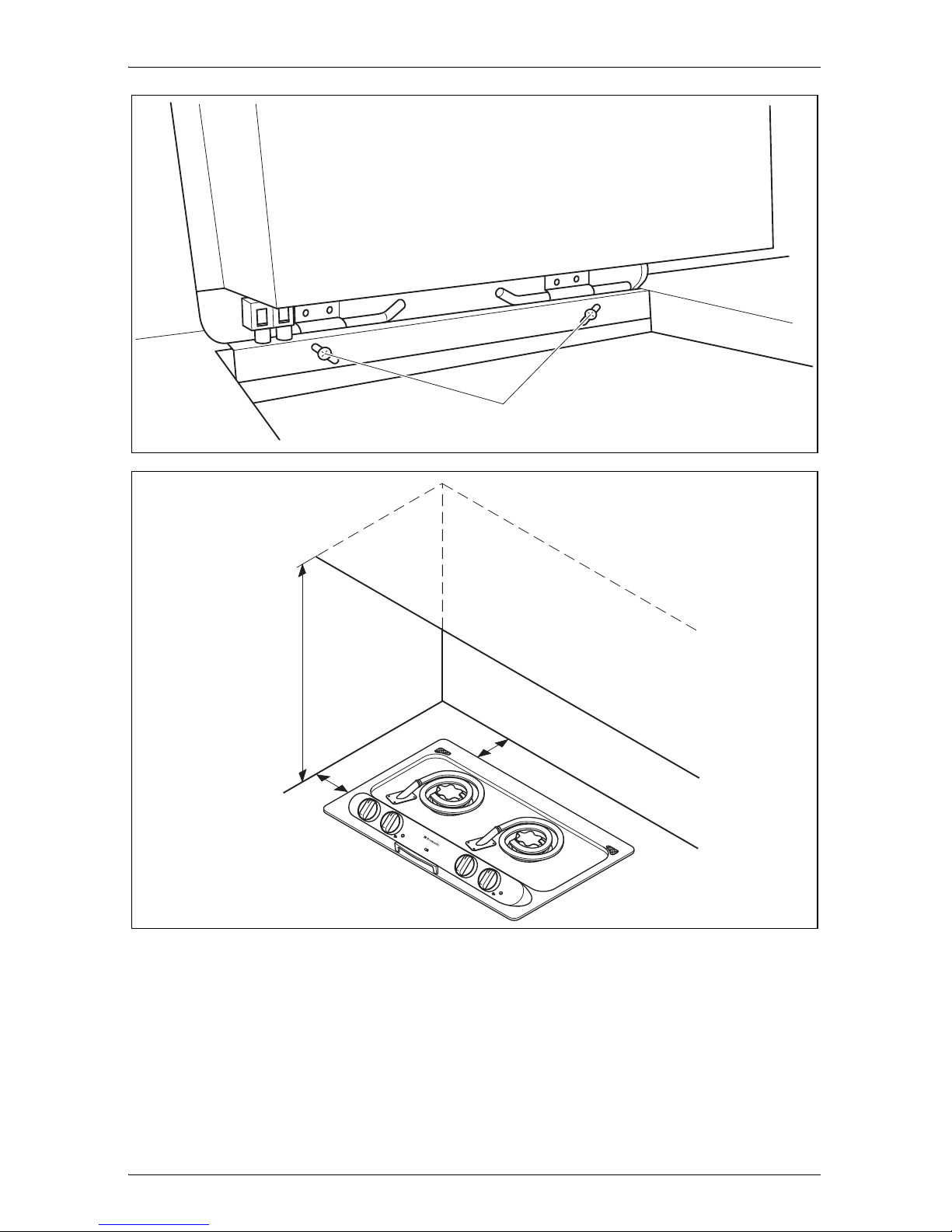

Ensure a minimum distance (fig. 6, page 4) of
– 50 mm to side and back walls
– 750 mm between stove coil element and horizontal surface above the
stove
Avoid draft at the installation location.
If you fit the stove in an open cockpit or other open areas mount an
additional wind protection.
Avoid cabinet storage space above the stove.
Otherwise you risk burns and fire when reaching over the stove.
Do not operate the device in spaces where danger of explosion is pre-
sent.
7.2 Installing the stove
ANOTICE! Danger of damaging the device!
Before drilling any holes, make sure that no electrical cables or oth-
er parts of the vehicle can be damaged by drilling, sawing and filing.
➤Cut a rectangular hole into the countertop (dimensions see following
table):
➤Open the top and remove the canisters (see “Taking out the canister” on
page 17).
➤Open up the hinge part in the back of the stove.
Model Dimensions W x D x H
A100 255 x 150 x 340 mm
A200 485 x 150 x 340 mm
C100 255 x 150 x 340 mm
C200 485 x 150 x 340 mm

EN
Mounting the stove Dometic ORIGO
16
➤Place the stove according to fig. 4, page 3.
➤Mark the drill holes.
Use the fastening holes in the hinge as a template.
➤Pre-drill the holes into the countertop where marked.
➤Fasten the stove by screwing flat head screws through each drill hole in
the hinge (fig. 52, page 4).
➤Install the magnetic locker in the front of the cutout (fig. 41, page 3).
➤Place a class B-1 fire extinguisher in reaching distance.
7.3 Connecting the stove electrically
(Dometic ORIGO C100 and C200 only)
!WARNING!
The stove may only be connected by a qualified specialist.
The following information is intended for technicians who are
familiar with the guidelines and safety precautions to be applied.
Observe the following safety instructions for the electrical connections:
ANOTICE! Risk of short circuit!
Always use sockets which are grounded and secured by
residual current circuit breakers.
If you have to feed cables through metal walls or other walls with
sharp edges, use ducts or tubes to prevent damage.
Do not lay cables which are loose or bent next to electrically
conductive material (metal).
Fasten the cables securely.
Do not pull on the cables.
Lay the cables so that they cannot be tripped over or damaged.
➤Check the type plate on the right side of the stove to ensure that the volt-
age of the unit matches the voltage of the source.
➤Connect the three conductors of the connection cable to the AC mains.
➤Secure the cable with a clamp.

EN
Dometic ORIGO Using the stove
17
8 Using the stove
8.1 Filling-in denatured alcohol
!WARNING!
Never pour fuel through the burner openings in top of the stove
(fig. 1, page 2).
Overfilling, spilt alcohol and hot objects can cause severe burns.
➤Ensure all burners are turned off:
– operation with denatured alcohol: turn the control knob to the Off
position
– operation at 220–240 V mains (C100 and C200 only):
switch heating elements off
➤Ensure the stove is cooled down to room temperature.
➤Open the stovetop (fig. 7, page 5).
Taking out the canister
In operating mode, the flexible catch (fig. 81, page 5) is locked in the cutout
on the safety lever (fig. 82, page 5).
➤To release the fuel tank, push the catch (fig. 91, page 5) in the direction
of the arrow and turn the lever (fig. 92, page 5) clockwise (fig. 0,
page 5).
➤When the catch (fig. a1, page 5) is vertical, push it in the direction of the
arrow.
✓The canister is released.
➤Take out the canister.
Filling with denatured alcohol
➤Check canister opening ensuring there’s neither fire nor glow.
➤Make sure the canister is cool enough to be held in your bare hand before
filling.
➤Hold the canister tilted down (fig. b, page 6).
➤Fill the denatured alcohol through the wire mesh into the opening of the
canisters.
The maximum capacity per canister must not exceed 1.2 l.

EN
Using the stove Dometic ORIGO
18
➤Check the fuel level by tilting the canister vertically (fig. c, page 6).
Keep it in this position for 20 s, to make sure it's not overfilled. In addi-
tion, in the case of accidental overfilling you can get rid of the surplus
fuel.
✓The maximum fuel level is reached when the fuel is visible at the bottom
of the opening.
INOTE
The stove will operate even if the canister isn’t filled with the
maximum capacity.
➤Wipe possible spilt alcohol off the outside of the canister.
Inserting the canister
➤Push the canister into the stove as far as it will go so that it is locked by
the catch (fig. d1, page 6).
➤To secure the catch (fig. e1, page 6), push it in the direction of the arrow
and simultaneously turn the safety lever (fig. e2, page 6) anti-clockwise
until the catch (fig. e1, page 6) is engaged.
8.2 Lighting the stove
!CAUTION!
Use extra-long matches or an extra-long lighter for lighting.
Remove your hand quickly as soon as the burner is lit.
➤Turn the controller up.
✓The burner is opened.
➤Light the cooker by holding an extra-long match or extra-long lighter to the
burner opening (fig. f, page 7).
➤Adjust the flame so it does not extend beyond the edge of the pot.
➤Choose the desired power setting via control knob.
INOTE
If the stove hasn’t cooled down from previous use, the burner may
ignite but immediately extinguish. In this case blow air into the
burner opening to dissipate vapour.
Afterwards light the stove as described above.

EN
Dometic ORIGO Using the stove
19
8.3 Extinguish the flame
➤Turn the control knob to the Off position.
✓The burned is closed.
➤Wait about five seconds.
➤Turn the control knob to the Maximum position to make sure the flame is
extinguished.
✓The burner is open.
➤Turn the control knob to the Off position.
✓The burner is closed.
➤If applicable, wait until the stove has cooled down completely before
replacing the glass lid (accessory).
8.4 Using the heating element
(Dometic ORIGO C100 and C200 only)
ANOTICE!
Never use alcohol and electrical burners simultaneously to prevent
overheating which can destroy the heating element.
➤If applicable, lift the glass lid (accessory).
➤To switch on the heating element push and turn the power setting knob
clockwise.
➤Choose the desired power.
➤To switch off the heating element turn the power setting knob to the Off
position.
➤Let the element cool down completely, before you close the glass lid
(accessory) or touch the stove top or let flammable material contact the
stove top.

EN
Cleaning and maintaining the stove Dometic ORIGO
20
9 Cleaning and maintaining the stove
ANOTICE!
Do not use any sharp or hard objects for cleaning since they may
damage the device.
➤Remove the grate from the stovetop.
➤Clean the stovetop. In particular remove carefully sticky grease and oil.
➤C100 and C200 only: Lift the heating element until you feel a resistance.
Clean the stove underneath the heating element.
➤Never use a steam cleaner for cleaning the stove.
10 Guarantee
The statutory warranty period applies. If the product is defective, please
contact your retailer or the manufacturer's branch in your country (see the
back of the instruction manual for the addresses).
For repair and guarantee processing, please include the following docu-
ments when you send in the device:
A copy of the receipt with purchasing date
A reason for the claim or description of the fault
11 Disposal
➤Place the packaging material in the appropriate recycling waste bins
wherever possible.
MIf you wish to finally dispose of the product, ask your local recycling
centre or specialist dealer for details about how to do this in
accordance with the applicable disposal regulations.
